Converts digital HDMI and audio to component/
CVBS video with either digital audio (S/PDIF) or
analog stereo audio.
HDMI to Video Scaler and Converter
AVSC-HDMI-VIDEO

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
HDMI is a registered trademark of HDMI Licensing LLC.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
Disclaimer
Black Box Network Services shall not be liable for damages of any kind,
including, but not limited to, punitive, consequential or cost of cover damages,
resulting from any errors in the product information or specifications set forth in
this document and Black Box Network Services may revise this document at any
time without notice.

724-746-5500 | blackbox.com Page 3
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufac-
turer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such
interference when the equipment is operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at his own expense will be required to take whatever mea-
sures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.

724-746-5500 | blackbox.com
Page 4
NOM Statement
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.

724-746-5500 | blackbox.com Page 5
NOM Statement/Safety Notice
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
Safety Notice
Please read and follow the safety instructions to protect yourself from possible
injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on the unit.
• Do not attempt to service the unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device away from it, and place the unit
on stable surfaces.
• Only use the power adapter, power cords, and connection cables designed for
the unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the
power to the device before cleaning.

724-746-5500 | blackbox.com
Page 6
Table of Contents
Table of Contents
1. Specifications.........................................................................................7
2. Overview................................................................................................9
2.1 Introduction ..................................................................................9
2.2 Features.........................................................................................9
2.3 What’s Included ............................................................................9
2.4 Hardware Description .................................................................10
3. Connection Diagram ...........................................................................12
4. OSD Menu ...........................................................................................13
5. Operation.............................................................................................15
6. Troubleshooting.................................................................................. 22
6.1 Contacting Black Box................................................................. 22
6.2 Shipping and Packaging............................................................. 22

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
Approvals CE, FCC
Audio Support Stereo PCM (48 kHz only)
Maximum Resolution 1080p, 1920 x 1200
Maximum Color 4:2:2
Enclosure Metal wall mounting case with screws
ESD Protection Human body model:
±19 kV (air-gap discharge) and
±12 kV (contact discharge);
Core chipset: ±2 kV
Firmware Update via USB Port
Frequency Bandwidth Output video: 165 MHz;
Input video: 74.25 MHz
IR Sensor Receives IR commands from the IR remote
User Controls (1) DIP switch for firmware update;
(3) Push buttons (Down, Up, Menu/Enter)
Connectors Input:
(1) HDMI Type A (19-pin female),
Output:
(2) 3.5-mm stereo (L, R),
(3) RCA (YPbPr),
(1) RCA (CVBS),
(1) RCA (S/PDIF);
Firmare update and control: (1) Mini USB;
Power: (1) interlocking power jack
Indicators (1) Red LED for Power;
(1) Green LED for Video Signal

724-746-5500 | blackbox.com
Page 8
Chapter 1: Specifications
1. Specifications (continued)
Environment Temperature Tolerance:
Operating: 32 to 104° F (0 to 40° C);
Storage: -4 to +140° F (-20 to +60° C)
Relative Humidity: 20–90%, noncondensing
Power Power supply: 5 VDC, 2 A;
Consumption: 5 Watts (max.)
Dimensions 5.3"H x 6.9"W x 5"D (13.5 x 17.5 x 12.7 cm)
Weight 9.5 oz. (270 g)

724-746-5500 | blackbox.com Page 9
Chapter 2: Overview
2. Overview
2.1 Introduction
Scalers work to convert and scale a type of video/audio signal to another type
of video/audio signal. This enables you to use differently formatted video/audio
signals on differently formatted display screens. Scaling allows for changing
resolutions to increase quality or improve compatibility.
The HDMI to Video Scaler and Converter (AVSC-HDMI-VIDEO) converts digital
HDMI to Component/CVBS with either digital audio (S/PDIF) or analog stereo
audio. With this module, HDMI based devices such as Blu-ray disc players, PS3,
DVD players, camcorders, or set-top boxes can connect to your PC LCD and PC
speakers. The device also enables users to connect full digital video and audio to
a CVBS monitor and S/PDIF equipped audio receiver and amplifier for maximum
compatibility with your home theater devices.
2.2 Features
• IR remote control
• Remote control via Mini-USB
• OSD control interface
• Input maximum pixel rate: 165 MHz
• Deinterlacer supported
• Supports noise reduction and video enhancement features
• Over/under scanning adjustable
• Video H/V mirror supported
• Active video area adjustment supported
• USB firmware upgradable for expanding compatibility
• Wallmount housing design for easy installation
2.3 What’s Included
• HDMI to Video Scaler and Converter
• 5-VDC, 2-A power supply unit
• IR Remote control
• This User's Manual
• Installation software CD (CD included; you can also download installation
software from blackbox.com).

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
2.4 Hardware Description
Figures 2-1 and 2-2 show the front and back panels of the scaler. Table 2-1
describes its components.
1 2 3 4 5 6 7 7 7
Figure 2-1. Front panel.
8 9 10 11 12 13 14
Figure 2-2. Back panel.

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview
Table 2-1. Scaler components.
Number Component Description
1CVBS Connects to as CVBS display with a CVBS
male-male cable
2, 3 (2) Stereo audio
out connectors (1
L, 1 R)
Connects to analog stereo audio
speaker.
4DIP switch For firmware update:
ON (UP): firmware update mode;
OFF (DOWN): normal mode
5LED indicator (1) Red LED for Power;
(1) Green LED for Video Signal
6IR sensor Used to receive the IR commands from
IR remote
7Push button Down button
7Push button Up button
7Push button Menu/Enter button
5(2) LED indicators (1) Power LED (red)
8Interlocking power
jack
Connects to 5 VDC power supply unit
9Mini-USB port • Used for firmware update
• Connects to 5 VDC power supply unit
10 S/PDIF Audio out
connector
Connects to digital S/PDIF audio speaker
11, 12, 13 (3) Component
output connectors
Component output (Y, Pb, Pr)
14 HDMI IN
connector
Connect to a HDMI source

724-746-5500 | blackbox.com
Page 12
Chapter 3: Connection Diagram
3. Connection Diagram
RCA L
cable
Rear
AV S C- H D M I -
VIDEO
front (top) and
back (bottom)
DVD player
Flat panel
display
Digital audio in
HDMI cable
Front
YPbPr RCA R
cable
Rear
Figure 3-1. Typical application.

724-746-5500 | blackbox.com Page 13
Chapter 4: OSD Menu
4. OSD Menu
Table 4-1. OSD menu.
Option Description Settings
1. Output Setup Output Mode YCbCr4:2:2
Default Pattern Disable (Default);
White;
Cross;
Hatch;
Color;
Gray;
Windows;
H-Ramp;
W-HRamp;
W-VRamp;
Diagonal
EDID Audio CH# 2ch, 7.1ch
2. Image Contrast 0–255 (Default = 0)
Brightness 0–255 (Default = 0)
Saturation 0–255 (Default = 0)
Hue 0–255 (Default = 0)
B/W Extension Off (Default)
On
Color Tone Off (Default)
Skin
Green
Edge Enhance Typ, Med, Max, Off
Sharpness 0–127 of Sharpness level

724-746-5500 | blackbox.com
Page 14
Chapter 4: OSD Menu
Table 4-1 (continued). OSD menu.
Option Description Settings
3. Adjustment Under/Over Scan -50%–50% (Default Off)
Aspect Ratio 16:9 (Default);
4:3
H-Mirror Off (Default);
On
V-Mirror Off (Default);
On
H-Shift -100–100 (Default 0)
V-Shift -50–50 (Default 0)
4. System Input Res. Info
Firmware Version
Factory Reset No (Default);
Yes

724-746-5500 | blackbox.com Page 15
Chapter 5: Operation
5. Operation
Method A: Push-in Button
See Figure 5-1.
Down Up Menu
Figure 5-1. Location of push buttons on the scaler.
Method B: IR Remote Control
Figure 5-2. Remote control.

724-746-5500 | blackbox.com
Page 16
Chapter 5: Operation
Table 5-1. IR remote control functions.
Button Function
FREEZE Freeze video
ASPECT RATIO Aspect ratio change
BLANK Blank video
EXIT Exit OSD
ENTER Enter key
UP Up key
LEFT Left key
RIGHT Right key
DOWN Down key
MENU Menu on
INPUT INFO Source resolution information
1080p60 Select 1080p60 output resolution
1080i60 Select 1080i60 output resolution
720p60 Select 720p60 output resolution
480p60 Select 480p60 output resolution

724-746-5500 | blackbox.com Page 17
Chapter 5: Operation
Method C: IR Remote Control through Mini-USB port

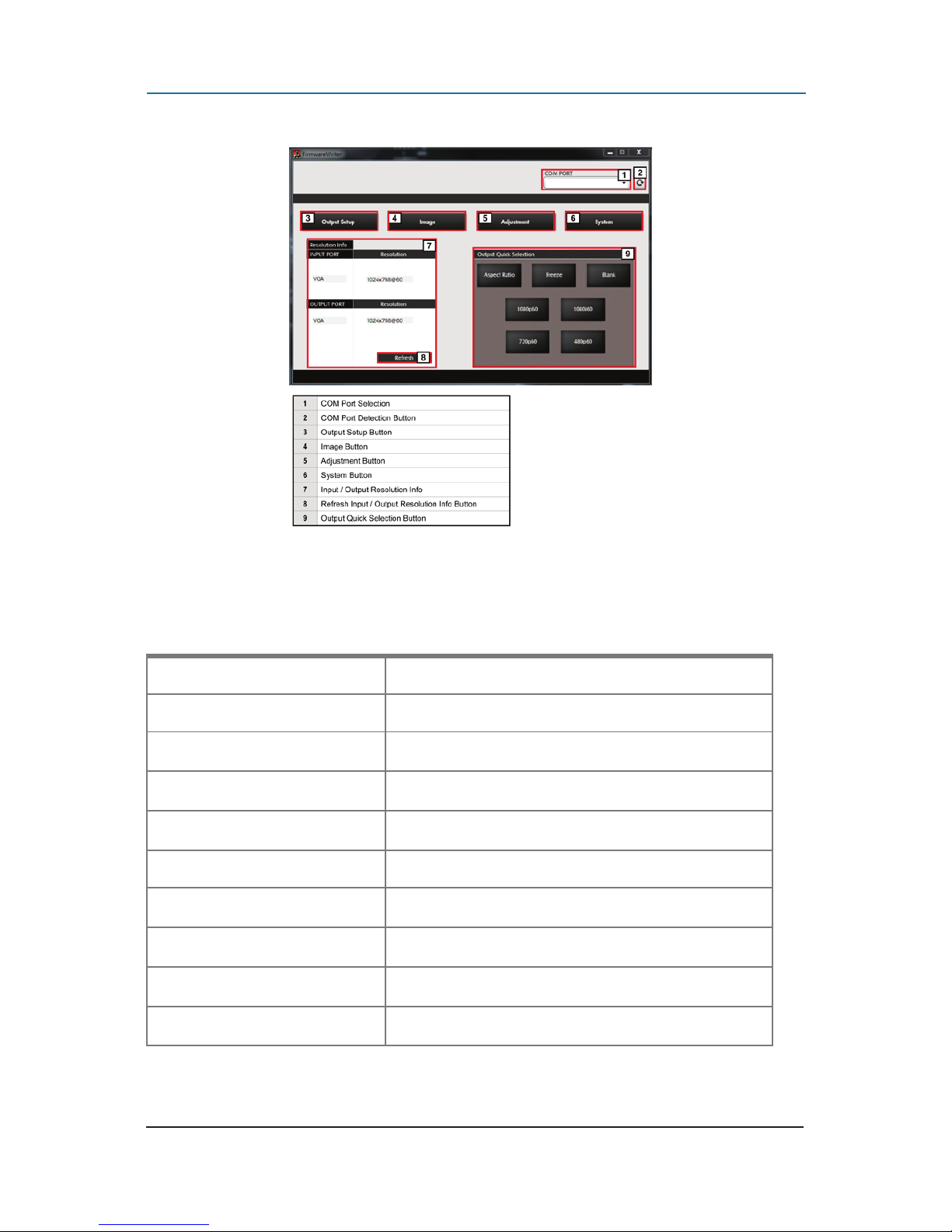

Figure 5-3.
Table 5-2. IR remote control through mini-USB port screen functions.
Number in Figure 5-3 Function
1COM Port Selection
2COM Port Detection Button
3Output Setup Button
4Image Button
5Adjustment Button
6System Button
7Input/Output Resolution Info
8Refresh Input/Output Resolution Info Button
9Output Quick Selection Button

724-746-5500 | blackbox.com
Page 18
Chapter 5: Operation
1. COM Port Selection
Please select the COM PORT application.
Figure 5-4. Select COM port.
2. COM Port Detection Button
Click on the curved-arrow button to detect the COM PORT.
3. Output Setup Button
Figure 5-5.

724-746-5500 | blackbox.com Page 19
Chapter 5: Operation
4. Image Button
Figure 5-6.
5. Adjustment Button
Figur e 5 -7.

724-746-5500 | blackbox.com
Page 20
Chapter 5: Operation
6. System Button

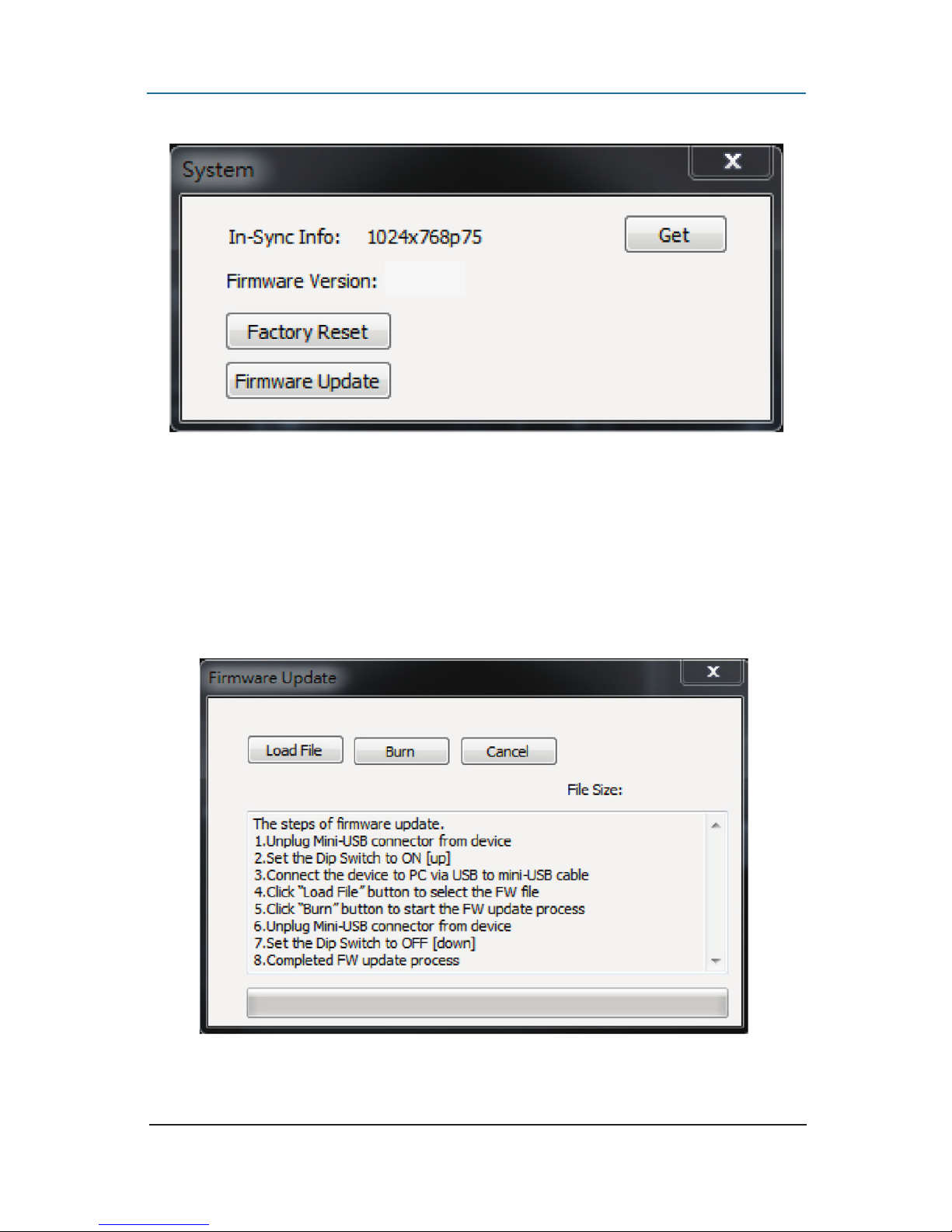

Figure 5-8. System screen.
1) In-Sync Info:
To view the current input resolution
2) Factory Reset Button
3) Firmware Update Button
Figure 5-9. Firmware update screen.
