Data Rates Up to 115.2 Kbps
Connectors RS-232 side—CL090A-F, CL091A-F, CL092A-
F, CL090AE-F, CL091AE-F, CL092AE-F:
DB25 female; CL090A-M, CL091A-M,
CL092A-M, CL090AE-M, CL091AE-M,
CL092AE-M: DB25 male
Current-Loop side—CL090A-F, CL090A-M,
CL090AE-F, CL090AE-M: Terminal block
with strain relief; CL091A-F, CL091A-M,
CL091AE-F, CL091AE-M: RJ-11; CL092A-F,
CL092A-M, CL092AE-F, CL092AE-M: RJ-45
Operation Transmitter is always active; receiver can be
configured as active or passive with a switch
Transmission Line 19- to 26-AWG twisted pair
Range 4 miles (6.4 km) on 24-AWG twisted pair
Interfaces Asynchronous, EIA RS-232, CCITT V.24 full
duplex, 20-mA current loop
Indicators TD, RD, PWR
Isolation 1500V RMS via opto-isolators
Operating Temperature 32° to 140°F (0° to 60°C)
Humidity 0 to 95%, noncondensing
Altitude Up to 15,000 feet (4570 m)
Power 9 VDC at 500 mA; 110 VAC/60 Hz or
220 VAC/50 Hz
Size 2.7"H x 0.7"W x 2.1"D (6.9 x 1.8 x 5.3 cm)
Weight 1.5 oz. (42.5 g)
1. Specifications

6
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
2.1 Overview
The HS RS-232↔Current Loop Converter Active lets an asynchronous RS-232
device communicate with a passive 20-mA current-loop device. Equipped with
an external power supply, the Converter supports data rates up to 115.2 Kbps.
The HS RS-232↔Current Loop Converter Active transmitter is active and
must be connected to a passive receiver, and the HS RS-232↔Current Loop
Converter Active receiver can accommodate either a passive or active
transmitter.
Operating at full duplex, the HS RS-232↔Current Loop Converter Active
supports communication distances up to 4 miles (6.4 km) over two
unconditioned 24-AWG twisted pairs. To guard against data loss due to
ground loops, the Converter is equipped with 1500V RMS optical isolators on
the line side.
The HS RS-232↔Current Loop Converter Active connects directly to the RS-
232 interface using a male or female DB25 connector. An external DCE/ DTE
switch eliminates the need for a crossover cable on the RS-232 interface.
2.2 Features
•Full-duplex, asynchronous transmission over 4 wires.
•Data rates up to 115.2 Kbps.
•Optically isolated.
•Twisted-pair connection via terminal blocks, RJ-11, or RJ-45 jacks.
•External DCE/DTE switch.
•Receiver operates actively or passively; transmitter is active only.
•LEDs monitor transmit data, receive data, and power.
•DB25 male or female connectors on RS-232 side.
•Range to 4 miles (6.4 km) on 24-AWG twisted pair.
2. Introduction

7
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
The HS RS-232↔Current Loop Converter Active is easy to use. The only
configuration necessary for operation is the proper setting of two switches:
the external DCE/DTE switch and the internal active/passive switch.
3.1 Setting the DCE/DTE Switch
The figure below shows the location of the DCE/DTE switch on the PC
board, as well as the location of the terminal block.
RCV G XMT
3. Configuration
Active/passive switch
Terminal Block
DCE/DTE Switch
AC Adapter
RCV
PWR
TX

8
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
For your convenience, the Converter has an externally accessible DCE/DTE
switch (see the diagram below). If the RS-232 device connected to the
Converter is a modem or multiplexor (or is wired like DCE), set the switch to
“DTE.” The setting causes the Converter to behave like Data Terminal
Equipment, transmitting data on RS-232 pin 2 and receiving data on pin 3.
If the RS-232 device connected to the Converter is a PC, terminal, or host
computer (or is wired like DTE), set the switch to “DCE.” This setting causes
the Converter to behave like Data Communications Equipment, transmitting
data on RS-232 pin 3 and receiving data on pin 2. Remember, the switch
setting is always from the point of view of the HS RS-232↔ Current Loop
Converter Active, not the connected equipment.
3.2 Setting the Active/Passive Switch
The active/passive switch is used to control the mode of the receiver; it has no
control over the transmitter since the transmitter is fixed in the active mode.
To configure your HS RS-232↔Current Loop Converter Active receiver, you
first need to determine whether your device will be active or passive. If you are
going to use the HS RS-232↔Current Loop Converter Active receiver to
provide current for the loop, set the switch to the “active” position. If the HS
RS-232↔Current Loop Converter Active is to be used in an active loop, set
the HS RS-232↔Current Loop Converter Active receiver’s active/passive
switch to passive.
DCE DTE

9
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
CAUTION
Never connect two active devices together. Your configuration
must be “active to passive” or “passive to active.”
Passive
Active
Active/Passive
Switch

10
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE

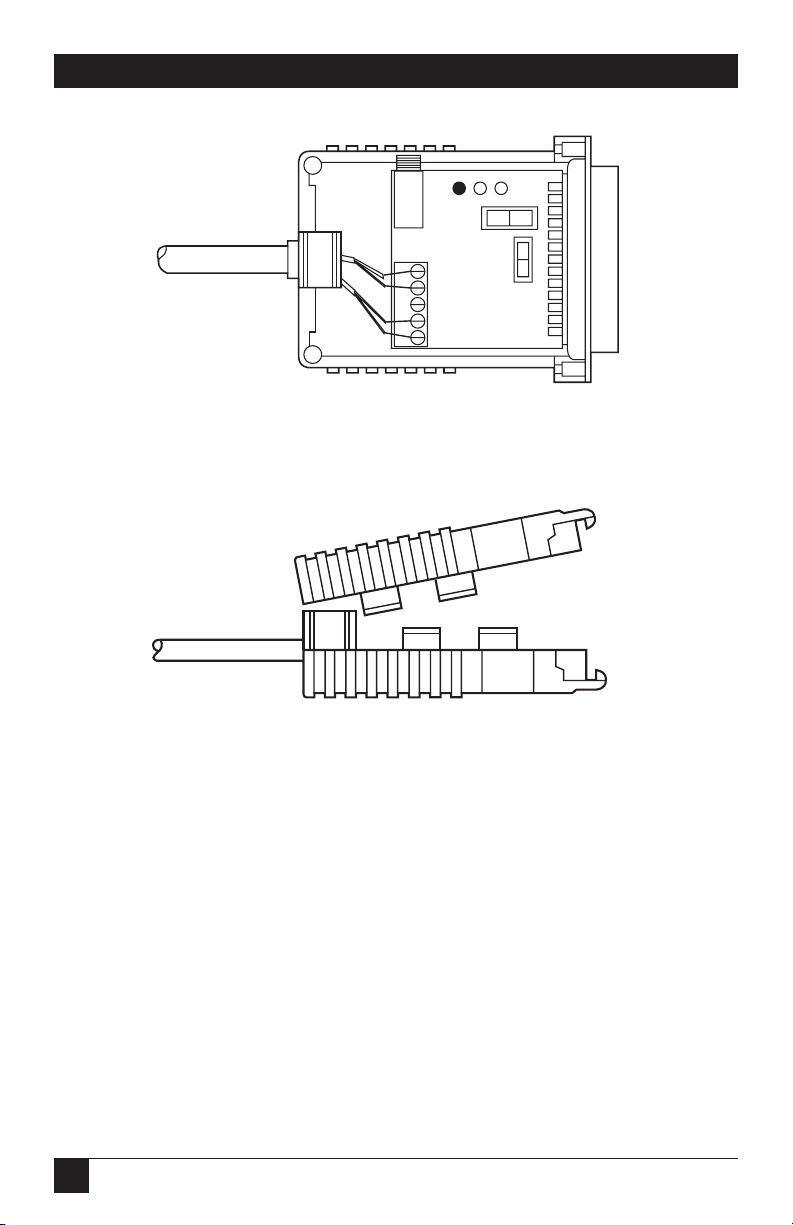

The HS RS-232↔Current Loop Converter Active is simple to install. After
configuring the DCE/DTE and active/passive switches, connect the two
twisted pairs using one of three methods: terminal blocks with strain relief, RJ-
11 jack, or RJ-45 jack. The method you use will depend on the specific model
you have. (See Chapter 1 if you aren’t sure which method you should use.)

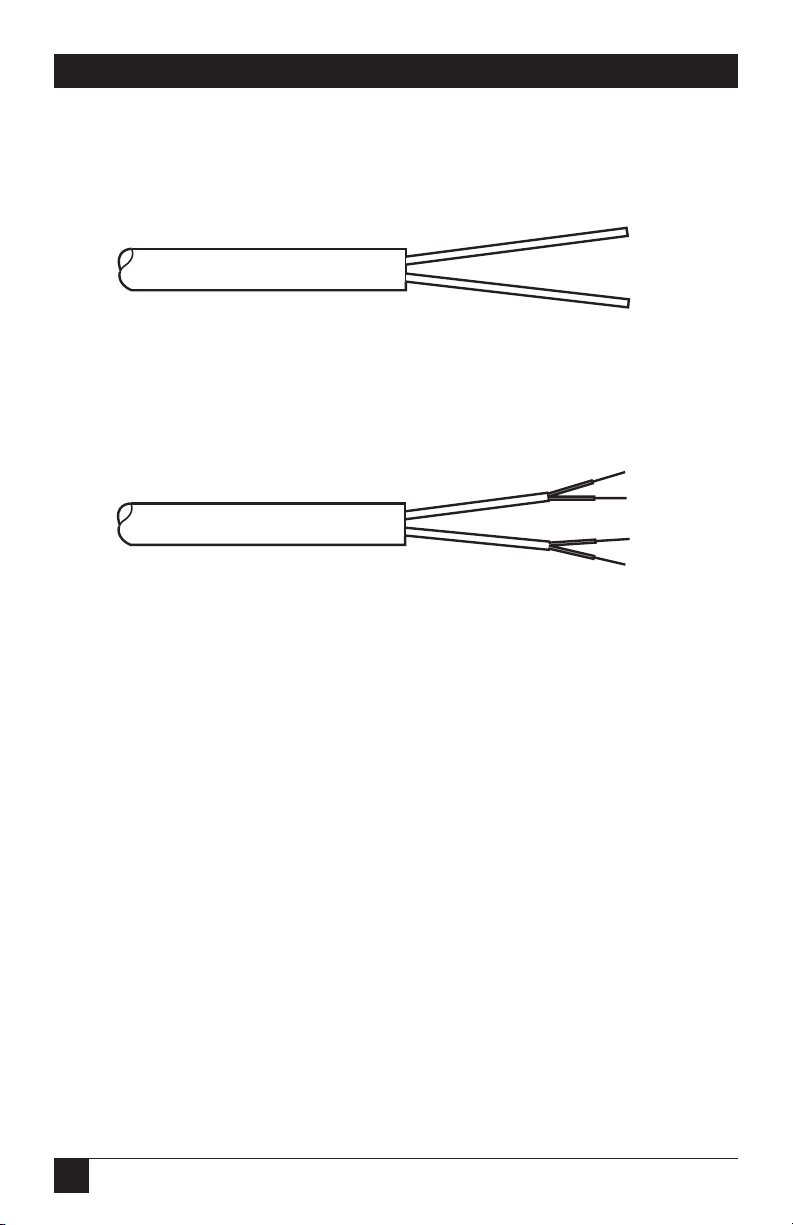

4.1 Twisted-Pair Wiring
Only one HS RS-232↔Current Loop Converter Active is needed for each RS-
232 to 20-mA current-loop circuit. The HS RS-232↔Current Loop Converter
Active is connected to the current-loop device using two twisted pairs. The
pairs must be “dry” (unconditioned) metallic wire, 19 to 26 AWG. Best
distance is achieved with smaller gauges (that is, thicker wires). When you
have completed wiring for your data circuit, the pin connections should be as
shown below:
4.1.1 T WISTED -P AIR C ONNECTION U SING T ERMINAL B LOCKS
The terminal block/strain-relief version of the HS RS-232↔Current Loop
Converter Active (CL090A-F, CL090A-M, CL090AE-F, CL090AE-M) allows you
to hook up the line-side interface using bare wires. The following instructions
will tell you how to open the case, connect the bare wires, and fasten the
strain-relief collar in place.
XMT+
XMT-
G
RCV-
RCV+
- - - - - - - - -
G
RCV-
- - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - RCV+
To Shield (Optional)
- - - - - - - - - - - - - - - - - - - - XMT-
- - - - - - - - - - - - - - - - - - - - XMT+
One Pair
One Pair
G
4. Installation

11
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
1. Open the unit by gently inserting a screwdriver between the DB25
connector and the lip of the plastic case (see the diagram below). You don’t
have to worry about breaking the plastic, but be careful not to bend the D-sub
connector.
Once the unit has been opened, you will be able to see the terminal blocks
located at the rear of the PC board.

12
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
2. Strip the outer insulation from the twisted pairs about one inch from the
end.
3. Strip back the insulation on each of the two twisted-pair wires about one
quarter of an inch.
4. Connect one pair of wires in the telephone cable to XMT (Transmit) on the
terminal block, being careful to observe the polarity. (The wire connected to
XMT+ must be connected at the other end of the telephone line to RCV+ in
the other unit. The wire connected to XMT- must be connected at the other
end of the telephone line to RCV- in the other unit.)
5. Connect the other pair of wires in the telephone cable to RCV (Receive),
again being careful to observe the polarity. (The wire connected to RCV+
must be connected at the other end of the telephone line to XMT+ in the
other unit. The wire connected to RCV- must be connected at the other end
of the telephone line to XMT- in the other unit.)
6. If there is a shield around the telephone cable, it may be connected to “G”
on the terminal block. To avoid ground loops, we recommend connecting the
shield at the computer end only. A ground wire is not necessary for proper
operation of these units.

13
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
7. When you finish connecting the wires to the terminal block, the assembly
should resemble the diagram below.
8. Place the two halves of the strain-relief assembly on either side of the
telephone wire and press together very lightly. Slide the assembly so that it is
about two inches (5.1 cm) from the terminal posts and press together firmly.
If your cable diameter is too small or too large for our strain relief, contact
your supplier for technical support.
9. Insert the strain-relief assembly with the wire going through it into the slot
in the bottom half of the converter case and set it into the recess in the case.
If the telephone wire does not fit, contact your supplier for technical support.
RCV G XMT
RCV G XMT

14
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
10. Bend the top half of the case as necessary to place it over the strain-relief
assembly. Do not snap the case together yet.
11. Insert one captive screw through a saddle washer, then insert the captive
screw with the washer on it through the hole in the DB25 end of the case.
Snap that side of the case closed. Repeat the process for the other side. Cable
installation is complete.
4.1.2 T WISTED -P AIR C ONNECTION U SING M ODULAR J ACKS
The modular versions of the HS RS-232↔Current Loop Converter Active
have an RJ-11 (CL091A-F, CL091A-M, CL091AE-F, CL091AE-M) or RJ-45
(CL092A-F, CL092A-M, CL092AE-F, CL092AE-M) jack mounted in the case.
These jacks are prewired for a standard telco wiring environment. To be sure
you have the right wiring, use the table below as a guide.
RCV G XMT

15
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
RJ-11 Signal RJ-45 Signal
1.....................GND†1...........................N/C
2.....................RCV- 2 ........................GND
3.....................XMT+ 3 ........................RCV-
4.....................XMT- 4 ........................XMT+
5.....................RCV+ 5 ........................XMT-
6.....................GND 6 ...........................RCV+
7...........................GND
8...........................N/C
†Connection to ground is optional
Figure 1. AT&T®standard color codes.
4.2 Completing the Installation
Once you have configured the Converter for DCE or DTE and connected the
twisted-pair wires correctly, simply plug the Converter into the RS-232 data
port. Remember to insert and tighten the two captive connector screwlocks.
The PWR light remains on as long as the power supply is connected and
supplying power. When the data is transmitted or received, the TD and RD
lights will flicker or appear to remain on (depending on the baud rate).
The HS RS-232↔Current Loop Converter Active requires 9 volts of DC
power.A 110- (for the “A” models) or 220-volt (for the “AE” models) power
supply is included with your Converter.
1 - Blue
2 - Orange
3 - Black
4 - Red
5 - Green
6 - Yellow
7 - Brown
8 - Slate
1 - Blue
2 - Yellow
3 - Green
4 - Red
5 - Black
6 - White

16
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
Pin Signal
1...................................FG
2...................................TD
3...................................RD
4
5
6
8
20
7...................................GND
9...................................+V
Appendix A. RS-232C Pin Connections

17
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE
2
3
4
5
6
7
8
20
3
1
6
4
2
5
Level
Conversion
Amplifier
Constant
Current
Amplifier
Data
Detection
LED
Optocoupler
T
e
r
m
i
n
a
l
B
l
o
c
k
TX+
TX-
GND
RX-
RX+
9VDC
Level
Conversion
Amplifier
Data
Detection
LED
Current
Limiter 9VDC
Constant
Current
Amplifier
Current
Source
Reference
DCE/DTE
Switch
Active/
Passive
Switch
NC NC
NC
Regulated
Power Supply
LED
Power
In
9VDC
Appendix B. Block Diagram

18
HS RS-232↔CURRENT LOOP CONVERTER ACTIVE

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax [phone]
© Copyright 1996. Black Box Corporation. All rights reserved.
