Black Box AVSW-HDMI4X4 User manual

BL A C K B O X®
Switch multiple HDMI sources to multiple
displays in any combination.
HDMI Matrix Switches
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information
AVSW-HDMI4X4
AVSW-HDMI2X4
AVSW-HDMI4X2
AVSW-HDMI2X2

Page 2 724-746-5500 | blackbox.com AVSW-HDMI2X2
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart J of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Page 3
724-746-5500 | blackbox.com
AVSW-HDMI2X2
NOM Statement
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.

Page 4 724-746-5500 | blackbox.com AVSW-HDMI2X2
NOM Statement
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
AMX is a registered trademark of AMX LLC.
Control4 is a registered trademark of Control4 Corporation.
Crestron is a registered trademark of Creston Electronics, Inc.
Dolby is a registered trademark of Dolby Laboratories Licensing Corporation.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com AVSW-HDMI2X2
Table of Contents
Table of Contents
1. Specifications ..............................................................................................7
2. Overview..................................................................................................... 8
2.1 Introduction ....................................................................................... 8
2.2 Features ............................................................................................. 8
2.3 What’s Included ................................................................................. 9
2.4 Hardware Description ........................................................................9
2.4.1 Front Panel..............................................................................9
2.4.2 Back Panel ............................................................................ 11
3. Remote Control Functions ........................................................................ 12
4. RS-232 Serial Interface.............................................................................. 16
4.1 Pin Definitions .................................................................................. 16
4.2 Commands....................................................................................... 16
5. RS-232 Serial Commands.......................................................................... 17
5.1 Standby Mode ................................................................................. 17
5.2 Power Off Mode.............................................................................. 17
5.3 Front Panel Lock............................................................................... 18
5.4 Unit Reset ........................................................................................ 18
6. Typical Application.................................................................................... 19
7. Safety Information .................................................................................... 20
7.1 Safeguards ....................................................................................... 20
7.2 Precautions....................................................................................... 20

Page 7
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 1: Specifications
1. Specifications
Bandwidth: 6.75 Gbps (single-link)
Resolutions Supported: PC: Up to 1920 x 1200;
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
CE Approval: Yes
RoHS: Yes
Connectors: AVSW-HDMI4X4: Input: (4) HDMI F;
Output: (4) HDMI F;
Control/command port: (1) DB9 F (RS-232);
AVSW-HDMI2X4: Input: (2) HDMI F;
Output: (4) HDMI F;
Control/command port: (1) DB9 F (RS-232);
AVSW-HDMI4X2: Input: (4) HDMI F;
Output: (2) HDMI F;
Control/command port: (1) DB9 F (RS-232);
AVSW-HDMI2X2: Input: (2) HDMI F;
Output: (2) HDMI F;
Control/command port: (1) DB9 F (RS-232)
Power: Input: 12 VDC
Size: 1.75"H (1U) x 17.3"W x 8.5"D (4.3 x 43.9 x 22 cm)
Weight: 7.5 lb. (3.4 kg)
NOTE: When connecting outputs to both displays and AV receivers, the audio out-
put will only be stereo because of the limitations of the display.
In addition, the switch will determine the resolution of all connected
displays and output the resolution of the lowest display. For example:
If you have both a 1080p LCD and a 720p LCD connected, the output
to both will be 720p.

Page 8 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 2: Overview
2. Overview
2.1 Introduction
HDMI Matrix Switches from Black Box support sharp, highly defined video in HD
resolutions of up to 1080p—with a bandwidth of 6.75 Gbps.
Any input can be routed to any output, or the same input can be routed to all
outputs or any combination, eliminating the need to manually move various cables
to display HDMI video from different sources on different screens. An input source
LED tells you at a glance each output you’ve selected.
The switch sets up in seconds and is easy to use. Control using front-panel
buttons, the included IR remote controller, or an RS-232 connection linked to a
Crestron®, AMX®, Control4®system, or any third-party computerized software/
hardware control system. The switch even comes with an RS-232 serial cable for
quick setup.
The switch also has an IR signal extension port (and includes an IR extender
receiver). Once plugged in, the receiver enables you to use the IR remote
controller to switch ports on the unit from another room—up to 984 feet
(300 m) away.
Four models are available:
• AVSW-HDMI4X4: (4) HDMI inputs, (4) HDMI outputs
• AVSW-HDMI2X4: (2) HDMI inputs, (4) HDMI outputs
• AVSW-HDMI4X2: (4) HDMI inputs, (2) HDMI outputs
• AVSW-HDMI2X2: (2) HDMI inputs, (2) HDMI outputs
2.2 Features
• HDMI 1.3 and HDCP compliant.
• Works with all HDMI sources and displays—plus it’s 3D capable.
• Signal boosters on ports amplify HDMI signals up to 60 feet (18.2 m).
• Supports the latest HDMI audio formats, including Dolby®TrueHD and DTS-HD.
• Carries the high-speed digital video signaling of TMDS formats for the delivery
of 12-bit Deep Color.
• Ideal for corporate theaters, conference rooms, classroom and training facilities,
and video broadcasting applications.

Page 9
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 2: Overview
• Rackmountable 1U-high unit with mounting ears.
• Switch audio and video of two or four sources to two or four displays in any
combination.
• Control from the front panel, with the included IR remote controller, or from an
RS-232 console.
• Supports resolutions up to 1080p.
2.3 What’s Included
Your package should include the following items. If anything is missing
or damaged, contact Black Box Technical Support at 724-746-5500 or
[e-mail].
• Matrix switch • Rackmount kit
• 12-VDC power supply adapter • Control software
• IR extender kit • RS-232 serial cable
• IR remote controller • This user‘s manual
2.4 Hardware Description
2.4.1 Front Panel
Figure 2-1 shows the front panel of the converter. Table 2-1 describes its
components.
1 3 4 5 6
7
2
Figure 2-1. Front panel.

Page 10 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 2: Overview
Table 2-1. Front panel components.
Number Component Description
1 Power switch and Press this button to power the switch on
LED indicator or off.
2 LEDs 1–4 Provides input port status
3 Input selector A Press the HDMI OUT A button
repeatedly to switch to your desired
source, and the LED will light to indicate
which input source is selected and
routed to HDMI A display.
4 Input selector B Press the HDMI OUT B button
repeatedly to switch to your desired
source, and the LED will light to indicate
which input source is selected and
routed to HDMI B display.
5 Input selector C Press the HDMI OUT C button
repeatedly to switch to your desired
source, and the LED will light to indicate
which input source is selected and
routed to HDMI C display.
6 Input selector D Press the HDMI OUT D button
repeatedly to switch to your desired
source, and the LED will light to indicate
which input source is selected and
routed to HDMI D display.
7 Status LEDs (4) seven-segment LEDs to show current
output status.
NOTE: AVSW-HDMI4X2 and
AVSW-HMDI2X2 switches only
have (2) seven-segment LEDs.

Page 11
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 2: Overview
2.4.2 Back Panel
Figure 2-2 shows the back panel of the converter. Table 2-2 describes its
components.
8 9 10 11 12
Figure 2-2. Back panel.
Table 2-2. Back-panel components.
Number Component Description
8 (4) HDMI connectors HDMI outputs: Connect each of these
output ports to the HDMI input of an
HDMI display.
NOTE: AVSW-HDMI4X2 and
AVSW-HDMI2X2 switches only
have (2) HDMI outputs.
9 (4) HDMI connectors HDMI inputs: Connect each of these
input ports to your source equipment
such as a DVD player or set-top box.
NOTE: AVSW-HDMI2X4 and
AVSW-HDMI2X2 switches only
have (2) HDMI inputs.
10 DB9 connector RS-232 communication port: links to
console port on PC for management.
11 IR in socket Plug the IR extender sensor (optional)
into the socket for IR extension control.
12 Barrel connector Plug the 12-VDC power supply in here
and connect the adapter to an AC wall
outlet.

Page 12 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 3: Remote Control Functions
3. Remote Control Functions
Figures 3-1 through 3-4 show the remote controls. Table 3-1 describes their
components.
Table 3-1. Remote Control Components.
Number Component Description
1 Input Select Press 1, 2, 3, or 4 to select the desired
for HDMI OUT A input source for HDMI OUT A
2 Input Select Press 1, 2, 3, or 4 to select the desired
for HDMI OUT B input source for HDMI OUT B
3 Input Select Press 1, 2, 3, or 4 to select the desired
for HDMI OUT C input source for HDMI OUT C
4 Input Select Press 1, 2, 3, or 4 to select the desired
for HDMI OUT D input source for HDMI OUT D
5 Power Turn remote control ON/OFF
Figures 3-1 through 3-4 show the overlay on the remote control overlay for each
of the four available Matrix Switches.

Page 13
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 3: Remote Control Functions
5
1
4
3
2
Figure 3-1. 4 x 4 HDMI Matrix Switch remote control overlay.

Page 14 724-746-5500 | blackbox.com AVSW-HDMI2X2

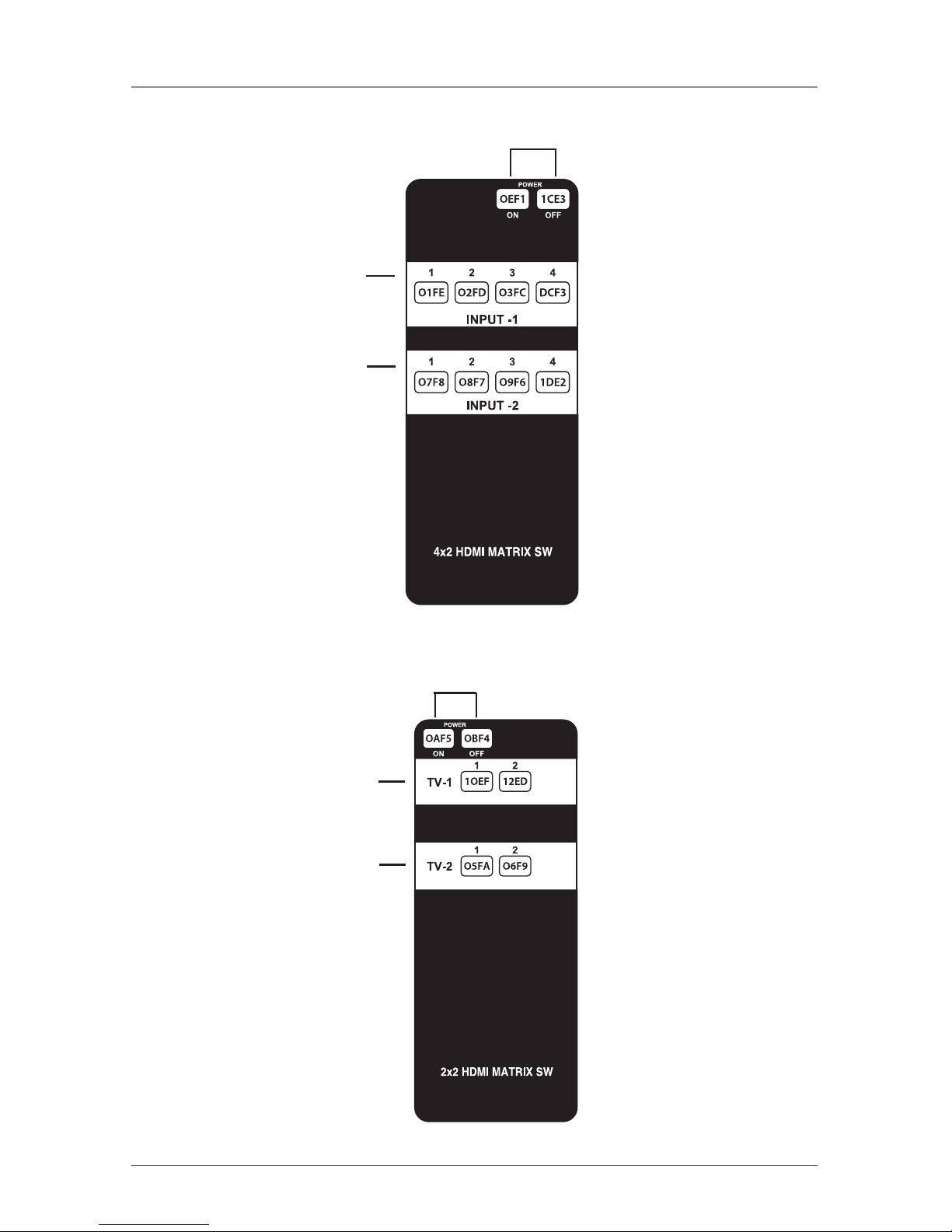

Chapter 3: Remote Control Functions
5
1
2
Figure 3-2. 4 x 2 HDMI Matrix Switch remote control overlay.
1
2
5
Figure 3-3. 2 x 2 HDMI Matrix Switch remote control overlay.

Page 15
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 3: Remote Control Functions
5
1
4
3
2
Figure 3-4. 2 x 4 HDMI Matrix Switch remote control overlay.

Page 16 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 4: RS-232 Serial Interface
4. RS-232 Serial Interface
4.1 Pin Definitions
Table 4-1. RS-232 pin definitions.
AVSW-HDMI Switch Remote Control Console
Pin Definition Pin Definition
1 Not connected 1 Not connected
2 Tx 2 Rx
3 Rx 3 Tx
4 Not connected 4 Not connected
5 GND 5 GND
6 Not connected 6 Not connected
7 Not connected 7 Not connected
8 Not connected 8 Not connected
9 Not connected 9 Not connected
4.2 RS-232 Serial Control Port
You can control the HDMI Matrix Switches via the RS-232 serial control port for
interfacing to a PC. The serial communication parameters are: 9600 baud, 8 bits,
no parity, and one stop bit. This is often referred to as 9600 8N1.
When the switch recognizes a complete command, it will perform the requested
action—no deliminater charcter is required. The unit does not send out a message
when a value is changed from the front panel or via IR control. If you need to
control the unit via the front panel in addition to the RS-232 control, you should
regularly poll the unit status to ensure that the control system accurately reflects
the current settings or similar third-party control system.

Page 17
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 5: RS-232 Serial Commands
5. RS-232 Serial Commands
To switch inputs to outputs:
SBI02O0Y (where X is the output number [1-4] and Y is the input number [1-4]).
Unit will respond with:
SBUD0XOY (where X is the output number [1-4] and Y is the input number [1-4]).
Example: Send input 2 to output 3:
SBI02O03: Send
SBUD02O3: Recvd
5.1 Standby Mode
NOTES: Turning the unit‘s System Power Off over RS-232 will turn off the LED
display, leaving only the Power Switch LED on. The video and audio
outputs will also mute.
While the unit is turned off by RS-232, it will continue to accept and act
upon switching commands. For example, if the unit is in the off mode
(via RS-232) and you send a command to switch an input to an output,
that route will complete and the video and audio will now appear
on that channel only.
The front panel LED for that particular output will also show the input
selected (for that single output channel only). The remaining LEDs will
stay off and video and audio outputs muted.
The unit will still return status and change messages in response to
commands sent while in Power Off state.
A hard reset command (SBALLRST) will return the unit to normal
operation and also unlock the front panel.
5.2 Power Off Mode
SBSYSMOF: Put system into Standby (soft power off).
SBSYSMON: Bring the unit out of Standby (soft power on).
Unit will respond with:
SBALOFAX: Unit is in standby.
SBALONAK: Unit is no longer in standby.
Example: Put unit in standby (soft power).

Page 18 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 5: RS-232 Serial Commands
SBSYSMOF: Send
SVBALOFAK: Rcvd
5.3 Front Panel Lock
NOTE: Hard resetting the unit will unlock the front panel controls.
SBSYSMLK: When the front panel is locked, you can only make changes by
RS-232.
SBSYSMUL : Front panel unlock.
Unit will respond with:
SBSYSLOK: Front panel has been locked.
SBYSULK: Front panel has been unlocked.
Example: Lock front panel buttons
SBSYSMLK: Send
SBSYSLOK: Recd
5.4 Unit Reset
SBALLRST: Reset every output to input 1.
Unit will respond with:
SBRSTACK: Unit has reset each output to input 1.
Example: Reset all outputs to input 1.
SBALLRST: Send
SBRSTACK: Recd

Page 19
724-746-5500 | blackbox.com
AVSW-HDMI2X2
Chapter 6: Typical Application
6. Typical Application
HDTV 1 HDTV 2 HDTV 3 HDTV 4
DVD
player
PS3 Blu-ray
player
Set-top box
Matrix
Switch
Figure 6-1. Example application.

Page 20 724-746-5500 | blackbox.com AVSW-HDMI2X2
Chapter 7: Safety Information
7. Safety Information
7.1 Safeguards
To reduce the risk of electric shock, do not expose this product to rain or
moisture. If the wall plug does not fit into your local power socket, hire an
electrician to replace your obsolete socket.
Do not modify the wall plug. Doing so will void the warranty and safety features.
Install this equipment near the socket outlet. The device should be easily accessible
in case you need to disconnect it.
7.2 Precautions
FCC regulations state that any unauthorized changes or modifications to this
equipment not expressly approved by the manufacturer could void the user’s
authority to operate this equipment.
Operate this product using only the included external power supply. Use of other
power supplies could impair performance, damage the product, or cause fires.
If an electrostatic discharge occurs, this device may automatically turn off. If this
happens, unplug the device, and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by any-
thing placed on or against them. Be especially careful of plug-ins or cord exit
points from this product.
Avoid excessive humidity, sudden temperature changes, or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet
basements, and swimming pools.
Use only accessories recommended by Black Box to avoid fire, shock, or other
hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning. Do not use-
cleaning fluid or aerosols, which could enter the unit and cause damage, fire, or
electrical shock. Some substances may also mar the finish of the product.
Never open or remove unit panels or make any adjustments not described in this
manual. Attempting to do so could expose you to dangerous electrical shock or
other hazards. It may also cause damage to your matrix switch. Opening the
product will void the warranty.
Do not attempt to service the unit. Instead disconnect it and contact Black Box
Technical Support at 724-746-5500 or [e-mail].
