Black Box ACR500HDMI-T User manual

USER GUIDE
ACR500HDMI-T ACR500DP-T-R2
AGILITY
ZERO U
TRANSMITTER
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM

21. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
We‘re here to help! If you have any questions about your application
or our products, contact Black Box Tech Support at 877-877-2269
or go to blackbox.com and click on “Talk to Black Box.”
You’ll be live with one of our technical experts in less than 60 seconds.

3
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE
STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict
accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and
found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of
FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user
at his own expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio
Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques
de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Disclaimer:
Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or
cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black
Box Network Services may revise this document at any time without notice.

41. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
INSTRUCCIONES DE SEGURIDAD
(NORMAS OFICIALES MEXICANAS ELECTRICAL SAFETY STATEMENT)
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca
de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación.
Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico
sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes
que impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros
aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como
se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados
sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

5
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
CHAPTER 1: SPECIFICATIONS..................................................................................................... 6
CHAPTER 2: WELCOME .............................................................................................................. 7
CHAPTER 3: INSTALLATION ....................................................................................................... 8
Connections................................................................................................................................................................................................8
Video link.....................................................................................................................................................................................................9
Network link ..............................................................................................................................................................................................10
USB and power connections ................................................................................................................................................................... 11
CHAPTER 4: CONFIGURATION .................................................................................................. 12
Initial configuration .................................................................................................................................................................................. 12
Manual factory reset ................................................................................................................................................................................ 12
Browser-based configuration utility....................................................................................................................................................... 13
Restoring a backup firmware image....................................................................................................................................................... 14
Performing an upgrade ............................................................................................................................................................................ 15
CHAPTER 5: OPERATION .......................................................................................................... 16
Status indicators ...................................................................................................................................................................................... 16
Resetting ................................................................................................................................................................................................... 17
CHAPTER 6: FURTHER INFORMATION ...................................................................................... 18
Appendix A - Supported video modes .................................................................................................................................................... 18
Appendix B - Configuration pages.......................................................................................................................................................... 19
Appendix C - Dimensions ........................................................................................................................................................................29
Appendix D - Tips for success when networking Agility units.............................................................................................................30
Appendix E - Troubleshooting .................................................................................................................................................................32
Appendix F - Glossary..............................................................................................................................................................................34
Appendix G - Open source licenses........................................................................................................................................................37
SAFETY INFORMATION ............................................................................................................ 54
CONTENTS

61. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
CHAPTER 1: SPECIFICATIONS
Approvals: CE, FCC
Hardware Compatibility: All computers with DVI-D or DisplayPort digital video and USB interfaces
Software Compatibility: Operates with all known software and operating systems including
Windows®, Linux®, Unix®, BSD, all Sun®OS, all Mac®OS, NetWare®, etc.
Operating Temperature: 32 to 104°F (0 to 40°C)

7
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
Agility RX
Agility RX
Agility RX
Gigabit
Ethernet
Agility Zero U TX
Agility RX
Agility Zero U TX
CHAPTER 2: WELCOME
Thank you for choosing the Black Box Agility family of high capacity digital extenders/switches. By encoding high quality video,
audio and Hi-Speed USB data into Internet Protocol (IP) messages, Agility units offer flexible ways to link peripherals and
systems via standard networks.
This guide covers the Agility Zero U unit, a highly compact dongle which can be attached to its host computer and transfer high
quality video (single link DisplayPort™or HDMI™according to the chosen model) and Hi-Speed USB signals across your network.
One-to-one conguration
The simplest conguration links one RX unit to a single TX unit, either by a direct link or over
much greater distances via a high speed network.
One-to-many conguration
Using multicast techniques, an unlimited
number of receivers* can receive video and
audio data streams from a single TX unit.
* A maximum of thirteen concurrent USB inputs
(via multiple RX units) are permitted to a single TX
unit.
AGILITY UNITS AND THE BLACK BOX IPATH AGILITY CONTROLLER
Where multiple Agility units are used on a network, we have developed the Black Box iPATH Agility Controller to allow
comprehensive and secure central control of all Agility units and users.
When using an Black Box iPATH Controller to configure Agility units, it is vital that all Agility units that you wish to locate and
control are set to their factory default settings. Otherwise they will not be located by the Black Box iPATH Controller. If necessary,
perform a factory reset on each Agility unit.
Note: If you are using one or more Agility Zero U Transmitter units within an installation managed by an Black Box iPATH
Controller, the Black Box iPATH Controller must be running firmware version 4.7 or above.
Please also see Appendix C - Tips for success when networking
1
2

81. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
CHAPTER 3: INSTALLATION
CONNECTIONS
Installation involves linking the Agility Zero U unit to various ports on the
host computer, while the Agility RX unit is attached to your peripherals:
Status
indicators
Black USB plug provides Hi-Speed USB signals
(plus power if the external power adapter is not
present)
Red USB plug provides power only when
the external power adapter is not present
DisplayPort
or
HDMI
Ethernet
port
Optional external
power input
Reset
button
Cable tie
mounting slot

9
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
VIDEO LINK
Each Agility Zero U unit is supplied with either a DisplayPort™or HDMI connector (model dependant). Video signals at pixel clocks
up to 300MHz (equivalent to a maximum resolution of 2560 x 1600 at 60Hz) are permissible. Two channel digital audio is also
supported via the video connector.
TO MAKE A VIDEO LINK
1 Connect the Agility Zero U video connector to the DisplayPort™ or HDMI socket of the host computer:
AGILITY ZERO U HDMI MODEL Host com-
puter HDMI
video port
AGILITY ZERO U DP MODEL
Host computer
DisplayPort
connector
SUPPORT FOR AUDIO
The Agility Zero U can derive its (digital) audio feed either from the USB connection or from the video link (i.e. embedded audio
within the DisplayPort/HDMI signal). In both cases, the digital audio is converted to analog as it is transferred to the receiver(s),
where it is output via their 3.5mm jack(s). The two audio sources are controlled from the System Configuration page of the
internal utility (see page 20) as follows:
• When the Enable Audio-1 option is checked, the Agility Zero U arranges a bi-directional audio stream with the host computer
via the USB connection.
• When the Enable Audio-2 option is checked, the EDID definition of the DisplayPort or HDMI connection will be altered to permit
a uni-directional audio stream via the video output. This allows the use of embedded audio, even when the video display itself
does not support audio.
Note: It is possible for both options to be enabled at the same time without issue.

10 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
NETWORK LINK
Agility transmitters and receivers can either be connected directly to each other or via a high speed network.
A single Gigabit Ethernet port is located on the front panel. For direct links via Ethernet cable, the length of cable should not
exceed 100 metres (328 feet). Network cables used for connections may be category 5, 5e, 6 or 7 twisted-pair cable. The Agility
Zero U unit has an auto-sensing capability on its network interfaces, so for direct point-to-point connections, no ‘crossover’
Ethernet cable is required.
TO LINK THE AGILITY ZERO U UNIT
1 Connect a CAT 5, 5e, 6, or 7 cable to the Gigabit Ethernet socket on the front panel of the Agility Zero U unit.
2 Connect the other end of the cable either directly to an Agility receiver or to a Gigabit Ethernet switch, as appropriate.
3 [For connections via a network] repeat steps 1 and 2 for the other Agility unit(s).
CAT 5, 5e, 6, or 7 link either
directly from the other Agil-
ity unit or from a Gigabit
Ethernet switch

11
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269

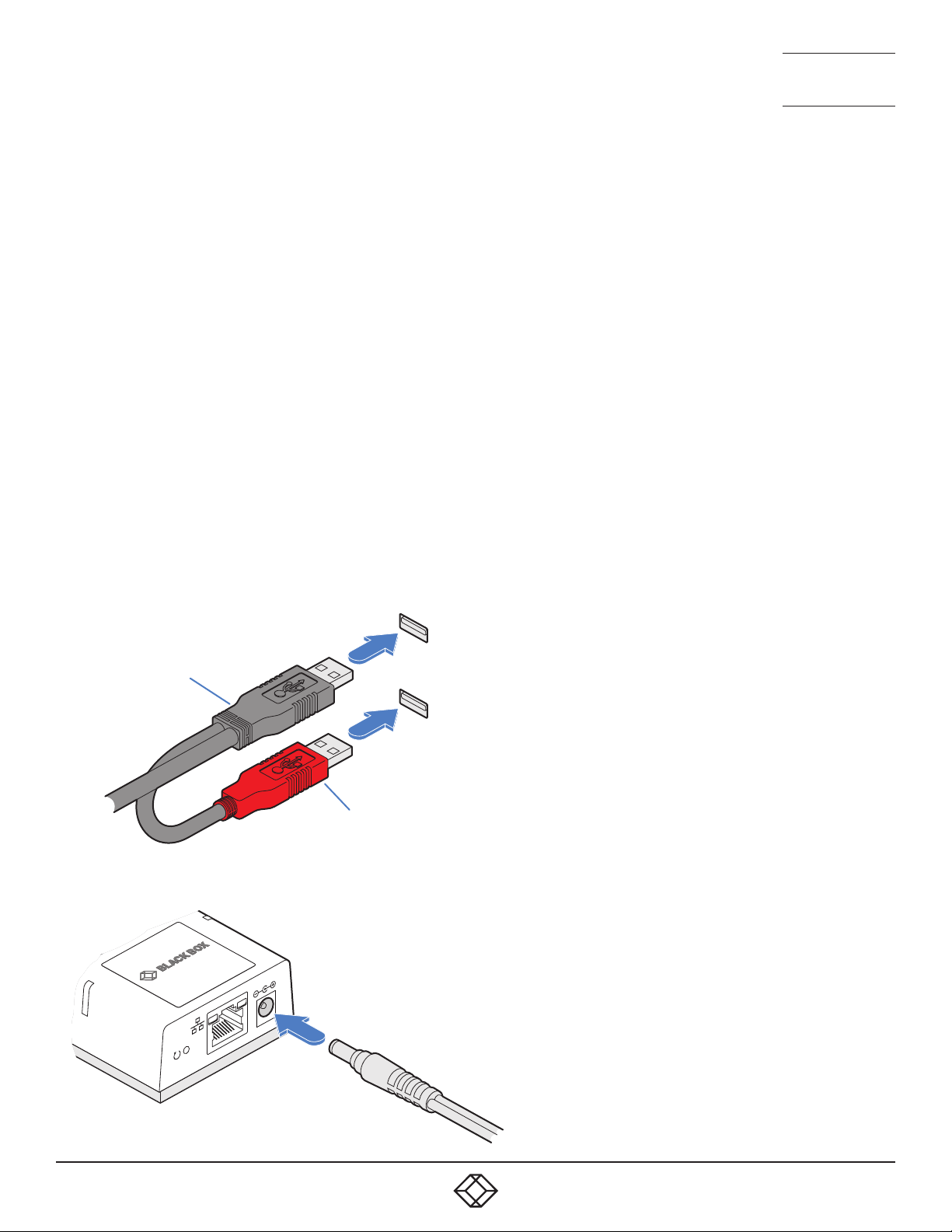

USB AND POWER CONNECTIONS
The Agility Zero U unit is designed to be as flexible as possible. It can either operate using an optional external power adapter
(see page 3) or derive all of its power from its two USB plugs. The main advantage offered by using an external power adapter
is that it allows the Agility Zero U unit to be active before the host computer; thus allowing a remote user to access the host’s
initial boot up and access the BIOS menu, when required.
If powered by USB only, then both the black and red USB plugs need to be connected.
If powered by external power adapter, only the black Hi-Speed USB plug needs to be connected, for signal purposes. Whenever,
the external power adapter is attached and operating, then power will be taken from it rather than the USB plugs. There is no
problem if the red USB plug remains connected while the power adapter is used.
This is summarized as follows:
Power Black Red
adapter USB USB Power sourcing behavior
ûüüPower taken from both USB plugs.
üüûPower taken from power adapter only.
üüüPower taken from power adapter only, unless it becomes unavailable, in which case power will
be taken from both USB plugs after a short interruption.
Note: The USB plugs do not operate as a seamless failover for the external power adapter; there will be a short interruption as
operation switches from one power source to the other.
SUPPORT FOR AUDIO
The Agility Zero U can derive its (digital) audio feed
either from the USB connection or from the video
link (i.e. embedded audio within the DisplayPort/
HDMI signal). In both cases, the digital audio is
converted to analog as it is transferred to the
receiver(s), where it is output via their 3.5mm
jack(s). The two audio sources are controlled from
the System Configuration page of the internal utility
(see page 20) as follows:
• When the Enable Audio-1 option is checked, the
Agility Zero U arranges a bi-directional audio
stream with the host computer via the USB
connection.
• When the Enable Audio-2 option is checked,
the EDID definition of the DisplayPort or HDMI
connection will be altered to permit a uni-
directional audio stream via the video output.
This allows the use of embedded audio, even
when the video display itself does not support
audio.
Note: It is possible for both options to be enabled
at the same time without issue.
Host computer
USB ports
Black USB plug
provides USB signals
(plus power if the ex-
ternal power adapter
is not present)
Red USB plug provides power
only when the external power
adapter is not present
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
From the optional
external power
adapter

12 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
INITIAL CONFIGURATION
Agility units are designed to be as flexible as possible and this principle extends also to their configuration.
DIRECT LINKING
Where Agility transmitters and receivers are directly linked to each other, very little configuration action is required, provided that
they have their factory default settings in place. If the standard settings have been changed in a previous installation, you merely
need to perform a factory reset on each unit.
NETWORKED LINKING
Where Agility units are connected via networked links, you can either configure them individually, or configure them collectively
using an IPATH Agility Controller:
• Configuring networked Agility units individually - You need to specify the network addresses of the Agility units so that they
can locate each other. This is done by running the Browser-based configuration utility on a computer system linked to the
same network as the Agility units.
• Configuring Agility units collectively - The iPATH Agility Controller allows you to configure, control and coordinate any number
of Agility transmitters and receivers from a single application.
• IfyouareusingoneormoreAgilityZeroUtransmitterswithinaninstallationmanagedbyanIPATHAgilityController,the
IPATHAgilityControllermustberunningfirmwareversion4.12orabove.
IMPORTANT: When using IPATH to configure Agility units, it is vital that all units that you wish to locate and control are set to
their factory default settings. Otherwise they will not be located by the IPATH Agility Controller. If necessary, perform a factory
reset on each Agility unit.
MANUAL FACTORY RESET
A factory reset returns Agility Zero U unit to its default configuration. You can perform factory resets using the Browser-based
configuration utility or by using this direct manual method.
TO PERFORM A MANUAL FACTORY RESET
1 Power on the Agility Zero U unit.
2 Use a narrow implement (e.g. a straightened-out paper clip) to press-and-hold the recessed reset button on the front panel
for roughly fifteen seconds, until the indicators turn blue (Note: alternating red/green indications will occur during the fifteen
second period while the button is still pressed).
CHAPTER 4: CONFIGURATION
3 Release the reset switch.
The indicators will remain blue for a short while (less than ten seconds) while Agility Zero U unit configures itself and should
then change to green if all connections are correct; or orange if one or more of the video, USB and/or network links are missing.
NOTE: If you are performing a factory reset and intend to disconnect the power immediately after the reset, you must wait at least 30 seconds after
you have released the reset button for it to complete the process.
Use a straightened-out paper
clip to press the reset button
for roughly 5 seconds
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM

13
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
BROWSER-BASED CONFIGURATION UTILITY
The browser-based configuration utility within all TX and RX units requires a network connection between the Agility Zero U
unit and a computer on the same network. The configuration utility allows you to perform many important functions. Please see
Appendix B.
TO CONNECT A COMPUTER TO ACCESS THE CONFIGURATION UTILITY
1 Connect a CAT 5, 5e, 6, or 7 link cable to the network port on the front panel. The port automatically configures itself, so no
cross-over cable is required (but is supported if you do use one).
2 Connect the other end of the link cable directly to the network port of your computer.
TO ACCESS THE BROWSER-BASED CONFIGURATION UTILITY
Use the menu options to choose the
required conguration page
Temporary link from your
computer to the Agility Zero U
network port
1 Temporarily connect the Agility Zero U
unit and your computer, as discussed
left.
2 Run a web browser on your computer and
enter the IP address of the Agility Zero U
unit:
169.254.1.33
Note:IftheIPaddressofAgilityZeroU
unit has been changed and is not known,
providing it is appropriate to do so,
perform a manual factory reset to restore
the default address.
The opening page of the Agility
configuration utility should be displayed:
You can find further information about the
configuration pages later in this guide:
• Appendix B - Configuration pages

14 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
RESTORING A BACKUP FIRMWARE IMAGE
The Agility Zero U unit retains a backup image of the previous firmware version in order to provide a fallback in case of any issues
with the primary image. The backup image has no video or USB functionality; once invoked, you will need to load an upgrade file
using the web interface or via an iPATH Agility Controller to load a new primary image - see Performing an upgrade (shown right).
TO RESTORE THE BACKUP FIRMWARE IMAGE
1 Power on the Agility Zero U unit.
2 Use a narrow implement (e.g. a straightened-out paper clip) to press-and-hold the recessed reset button for roughly ten
seconds until the indicators flash green/red.
3 Release the reset switch.
The Agility Zero U unit will switch to the backup firmware image. Once complete, Agility Zero U unit will then continually flash
green/red.
4 Perform an upgrade to reinstate a fresh primary firmware image - see next page.
Use a straightened-out paper
clip to press the reset button
for roughly 10 seconds
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM

15
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
PERFORMING AN UPGRADE
Agility Zero U units are flash upgradeable using the method outlined here. However, for larger installations we recommend that
you use the iPATH Agility Controller to upgrade multiple Agility units. When using the method below, the Agility Zero U unit will be
upgraded in sequence.
IMPORTANT: Upgrades should be performed equally on transmitters and receivers at the same time. Mixed firmware operation
may cause issues.
WARNING: During the upgrade process, ensure that power is not interrupted as this may leave Agility Zero U unit in an inoperable
state.
If the upgrade process is interrupted and fails, it may be necessary to switch to the backup firmware image in order to regain
operation. See previous page for details.
TO FIND THE LATEST UPGRADE FILES
Firmware files for the Agility Zero U units are available from the Black Box Support department.
Note: It is possible to downgrade the firmware. After installing the older firmware, perform a factory reset on each Agility unit in
order to clear the configuration file.
TO UPGRADE A SINGLE AGILITY ZERO U UNIT VIA THE NETWORK LINK
1 Download the latest upgrade file from Black Box.
2 Temporarily connect the Agility Zero U unit and a computer via a network (see Browser-based configuration utility section for
details).
3 Run a web browser on your computer and enter the IP address of the Agility Zero U unit to be upgraded.
4 Click the Firmware Upgrade link. Within the Firmware Upgrade page, click the Choose File button. In the subsequent file dialog,
locate the downloaded upgrade file - check that the file is correct for Agility Zero U unit being upgraded. The file contains a
single image.
5 Click the Upgrade Now button. A progress bar will be displayed (however, if your screen is connected to Agility Zero U unit
being upgraded then video may be interrupted) and the status indicators on Agility Zero U unit will flash while the upgrade is in
progress.
6 The indicators should stop flashing after roughly two minutes, after which Agility Zero U unit will automatically reboot itself.
The upgrade process is complete.

16 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
CHAPTER 5: OPERATION
In operation, many Agility installations require no intervention once configured. The TX and RX units take care of all connection
control behind the scenes so that you can continue to work unhindered.
STATUS INDICATORS
The two top panel indicators on the Agility Zero U unit provide a useful guide to operation:
MAIN STATUS INDICATORS
• Off No power
• Green Operating - Video, USB and network link all present
• Orange Operating - But video, USB and/or network link missing.
• Red (momentarily) Unit is booting up, or
(consistently) Unit has failed, try rebooting.
• Red/green flashing Unit is in backup mode.
• Blue Factory reset has been activated.
• Red/blue flashing Unit is in upgrade mode.
• Fast green flash Unit is in identify mode (see page 20).
NETWORK SPECIFIC INDICATORS
• Orange Off: No link On: Link established
• Green Off: No link Flashing: Network activity On: Quiescent link
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
Main status indicators
Network specic
indicators

17
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
RESETTING
The recessed reset button provides a way to take control of the Agility Zero U if normal operation is affected. You will need a thin
implement, such as a straightened out paper clip to press and hold the button. Depending on when you release the button, one of
three functions will occur:
Required function Release time Indicators
To reboot to the primary firmware version less than 10s red
To boot to the backup firmware version* 10 to 14s green/red flash
To restore factory settings and reboot more than 15s blue
* The backup firmware version has no video or USB functionality. Once invoked, you will need to load an upgrade file to restore
normal operation - see page 14.
TO RESET THE AGILITY ZERO U
1 Power on the Agility Zero U unit.
2 Use a narrow implement (e.g. a straightened-out paper clip) to press-and-hold the recessed reset button. The status indicators
will immediately turn red:
Use a straightened-out paper
clip to press the reset button
for roughly 10 seconds
WWW.BLACKBOX.COM
WWW.BLACKBOX.COM
3 Release the reset switch at the appropriate time (see the table above).
NOTE: If you are performing a factory reset and intend to disconnect the power immediately after the reset, you must wait at
least 30 seconds after you have released the reset button for it to complete the process.

18 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
CHAPTER 6: FURTHER INFORMATION
APPENDIX A - Supported video modes
The following video modes are supported and can be automatically configured by the Agility
Zero U. If a recognized video mode cannot be found, contact Technical Support for help.
Note: Other video modes may also be supported.
cvt reduced 1360 x 768 @ 60Hz
vesa 1360 x 768 @ 60Hz
vesa 1366 x 768 @ 60Hz
vesa reduced 1366 x 768 @ 60Hz
vesa 1400 x 1050 @ 60Hz
vesa reduced 1400 x 1050 @ 60Hz
vesa 1440 x 900 @ 60Hz
vesa 1440 x 960 @ 60Hz
cvt reduced 1600 x 900 @ 60Hz
vesa reduced 1600 x 900 @ 60Hz
cvt reduced 1600 x 1200 @ 60Hz
vesa 1600 x 1200 @ 60Hz
vesa 1680 x 1050 @ 60Hz
vesa reduced 1680 x 1050 @ 60Hz
vesa 1920 x 540 @ 60Hz
cvt reduced 1920 x 1080 @ 50Hz
cvt 1920 x 1080 @ 50Hz
vesa 1920 x 1080 @ 60Hz
vesa reduced 1920 x 1200 @ 60Hz
vesa 1920 x 1440 @ 60Hz
vesa 2048 x 768 @ 60Hz
vesa 2048 x 1080 @ 60Hz
vesa 2048 x 1152 @ 60Hz
vesa 2048 x 1536 @ 60Hz
vesa 2048 x 2048 @ 60Hz
vesa 2560 x 1080 @ 60Hz
vesa 2560 x 1080 @ 60Hz
vesa 2560 x 1440 @ 60Hz
vesa 2560 x 1600 @ 60Hz
vesa 2560 x 2048 @ 50Hz
vesa 3440 x 1440 @ 50Hz
sun 1024 x 768 @ 77Hz
sun 1152 x 900 @ 66Hz
sun 1152 x 900 @ 76Hz
sun 1024 x 1024 @ 61Hz
sun 1280 x 1024 @ 67Hz
sun 1280 x 1024 @ 76Hz
cvt reduced 640 x 480 @ 60Hz
vesa 640 x 480 @ 60Hz
vesa 640 x 480 @ 72Hz
vesa 640 x 480 @ 75Hz
ibm 640 x 480 @ 75Hz
vesa 720 x 480 @ 60Hz
vesa 768 x 576 @ 60Hz
vesa 800 x 400 @ 60Hz
cvt reduced 800 x 600 @ 60Hz
vesa 800 x 600 @ 56Hz
vesa 800 x 600 @ 60Hz
vesa 800 x 600 @ 72Hz
vesa 800 x 600 @ 75Hz
cvt 1024 x 600 @ 60Hz
cvt reduced 1024 x 600 @ 60Hz
cvt reduced 1024 x 768 @ 60Hz
vesa 1024 x 768 @ 60Hz
vesa 1024 x 768 @ 70Hz
ibm 1024 x 768 @ 70Hz
vesa 1024 x 768 @ 75Hz
ibm 1024 x 768 @ 75Hz
vesa 1152 x 768 @ 60Hz
cvt reduced 1152 x 864 @ 60Hz
vesa 1152 x 864 @ 70Hz
vesa 1152 x 864 @ 75Hz
cvt 1280 x 720 @ 60Hz
vesa 1280 x 720 @ 60Hz
vesa 1280 x 768 @ 60Hz
vesa reduced 1280 x 786 @ 60Hz
vesa 1280 x 786 @ 75Hz
vesa 1280 x 786 @ 85Hz
vesa 1280 x 800 @ 60Hz
cvt reduced 1280 x 960 @ 60Hz
vesa 1280 x 960 @ 60Hz
cvt reduced 1280 x 1024 @ 60Hz
vesa 1280 x 1024 @ 60Hz
ibm 1280 x 1024 @ 67Hz
vesa 1280 x 1024 @ 75Hz

19
1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
APPENDIX B - Conguration pages
This section covers the browser-based configuration utility for the Agility Zero U unit. The pages are titled as follows:
• System Configuration • System Messages
• Video Configuration • Statistics
• USB Settings • Firmware Upgrade
• Security • Reboot
• IPATH Manager • About

20 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM
NEED HELP?
LEAVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.877.877.2269
SYSTEM CONFIGURATION
To get here
1 Connect your computer to the network port on the front panel.
2 Run a web browser and enter the IP address of the unit. If the address is
unknown, perform a manual factory reset to http://169.254.1.33
3 If necessary, click the System Conguration link.
