Black Horse Model CHIPMUNK Owner's manual

Instruction Manual Book
Made in Vietnam.
Item code: BH63
CHIPMUNK
Glow and EP
SPECIFICATION:
- Wingspan: 2,170 mm 85.43 in.
- Length: 1,740 mm 68.50 in.
- Weight: 6.6 kg 14.52 lbs.
- Wing area: 74.2dm2.
- Wing loading: 88.95 g/dm2.
- Wing type: Naca Airfoil.
- Servo mount: (42 x 21)mm.
- Gear type: Oleo struts (included).
- Tail gear type: Spring wire for tail gear (included).
- Spinner: 80 mm.
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 08 standard high torque servos
- Engine: 30-35 cc Gas.
- Motor: Brushless outrunner 2500 - 3200W, 250KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
- Motor: RIMFIRE.1.60.
- Lipo cell: 12 cells 4,000-5,500mAh.
- Receiver battery: 6V/ 1200mAh.
- ESC: 80A.
STAINLESS STEEL OLEO STRUTS LANDING GEAR.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
95% ALMOST READY TO FLY

CHIPMUNK Item code: BH63 Instruction Manual
Academy of Model Aeronautics: If you are not already a member of the AMA, please join! The AMA is the
governing body of model aviation and membership provides liability insurance coverage, protects modelers’
rights and interests and is required to fly at most R/C sites.
Academy of ModelAeronautics
5151 East Memorial Drive Muncie IN 47302-9252
Tele. [phone]
Fax. [phone]
Or via the Internet at: http://www.modelaircraft.org
SINCE 1939
INTRODUCTION
Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly
testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along
with a team of creative engineers and skilled workers, we will always accompany with customers by our great
experiences, fully enthusiasm... which will burn our passion!! Joining with us to explore and conquer challenges
in the sky ...
Your satisfaction is our success. Please read through this manual before starting construction.
2

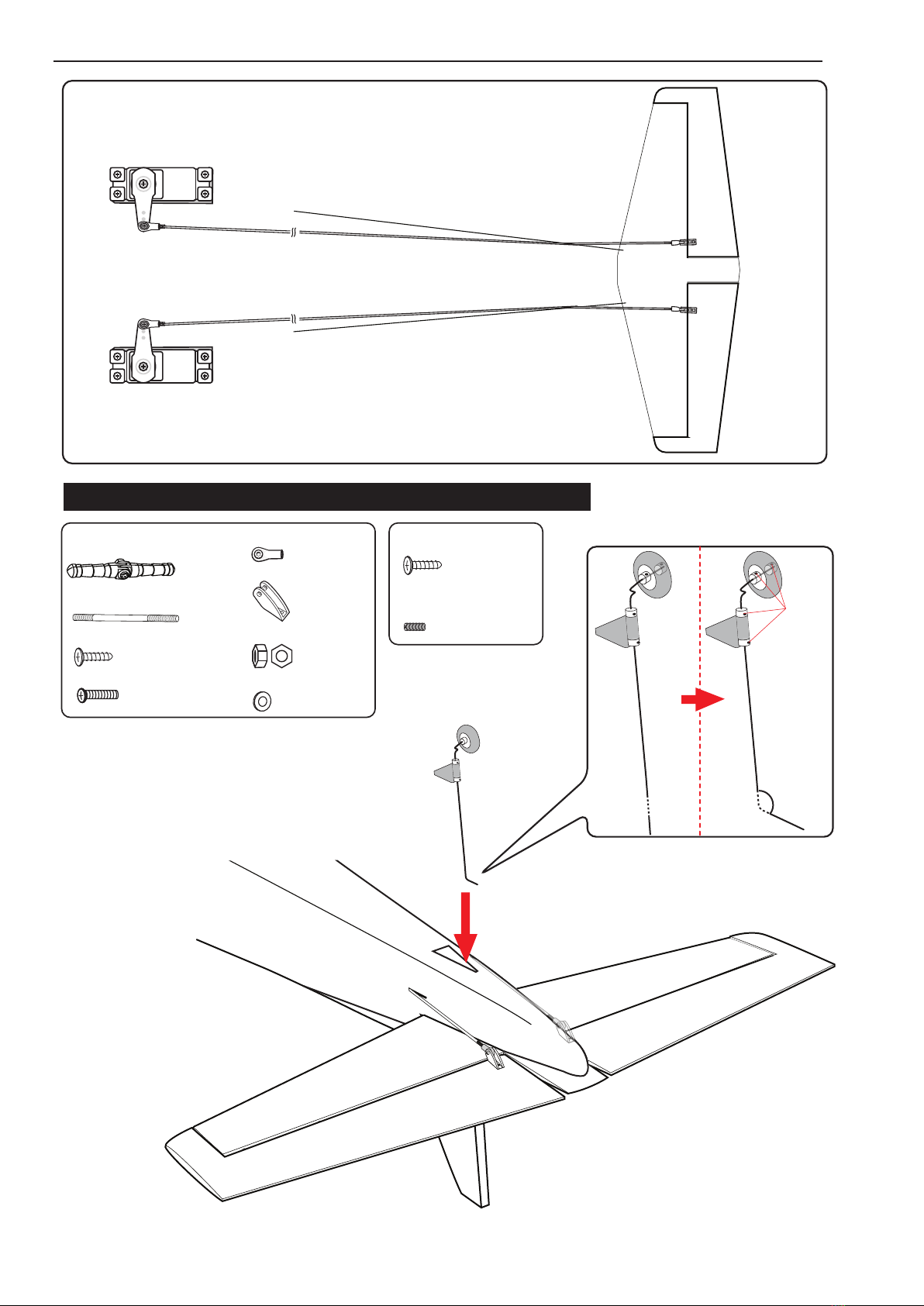

Installing the rudder linkages...................25
Installing the tail gear...............................27
Secure the wing to the fuselage..............31
Installing the engine.................................34
Installing the throttle.................................36
Installing the stopper................................37
Installing the fuel tank..............................38
Installing the ...........................................39
Mounting the cowl....................................40
Installing valve control.............................44
Installing the receiver and battery............46
Installing the switch..................................46
Installing cockpit fuselage................................48
Installing the propeller..............................50
Installing keine bombe.............................52
Balancing.........................................................56
Lateral Balance................................................56
Control throws..........................................58
Flight preparation pre flight check............58
For your radio installation Basic connection
for airplane And adjustment of servos......59
Main gear dimensional detail...................60
Tail gear dimensional detail......................60
Decoration................................................61
Exploded view..........................................62
TABLE OF CONTENTS
Introduction
Warranty
Disclaimer
Safety precaution
Parts listing (not included)
Tools & supplies needed
Preparation
Installing the ailerons and aps
Installing the aileron and ap servos

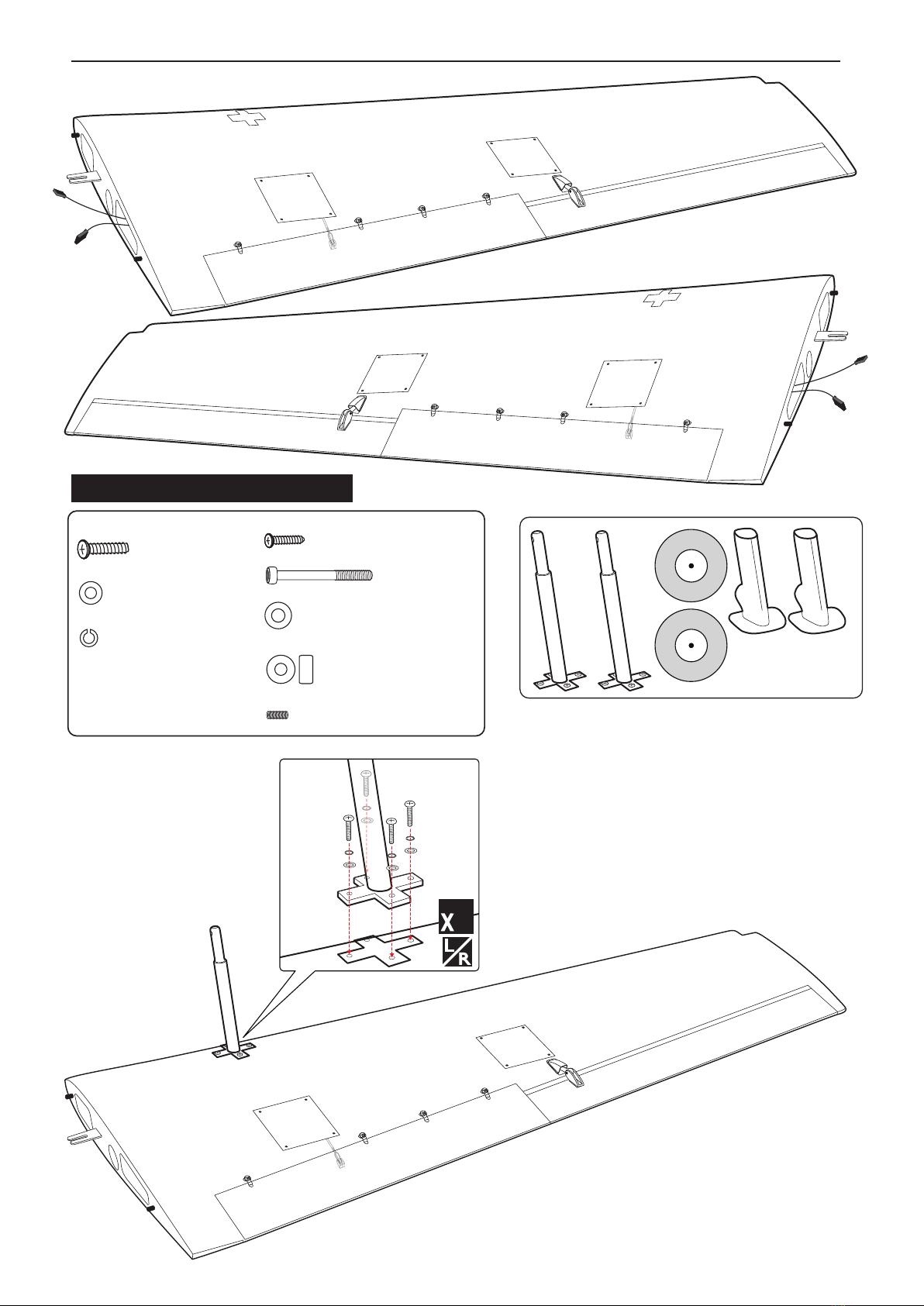

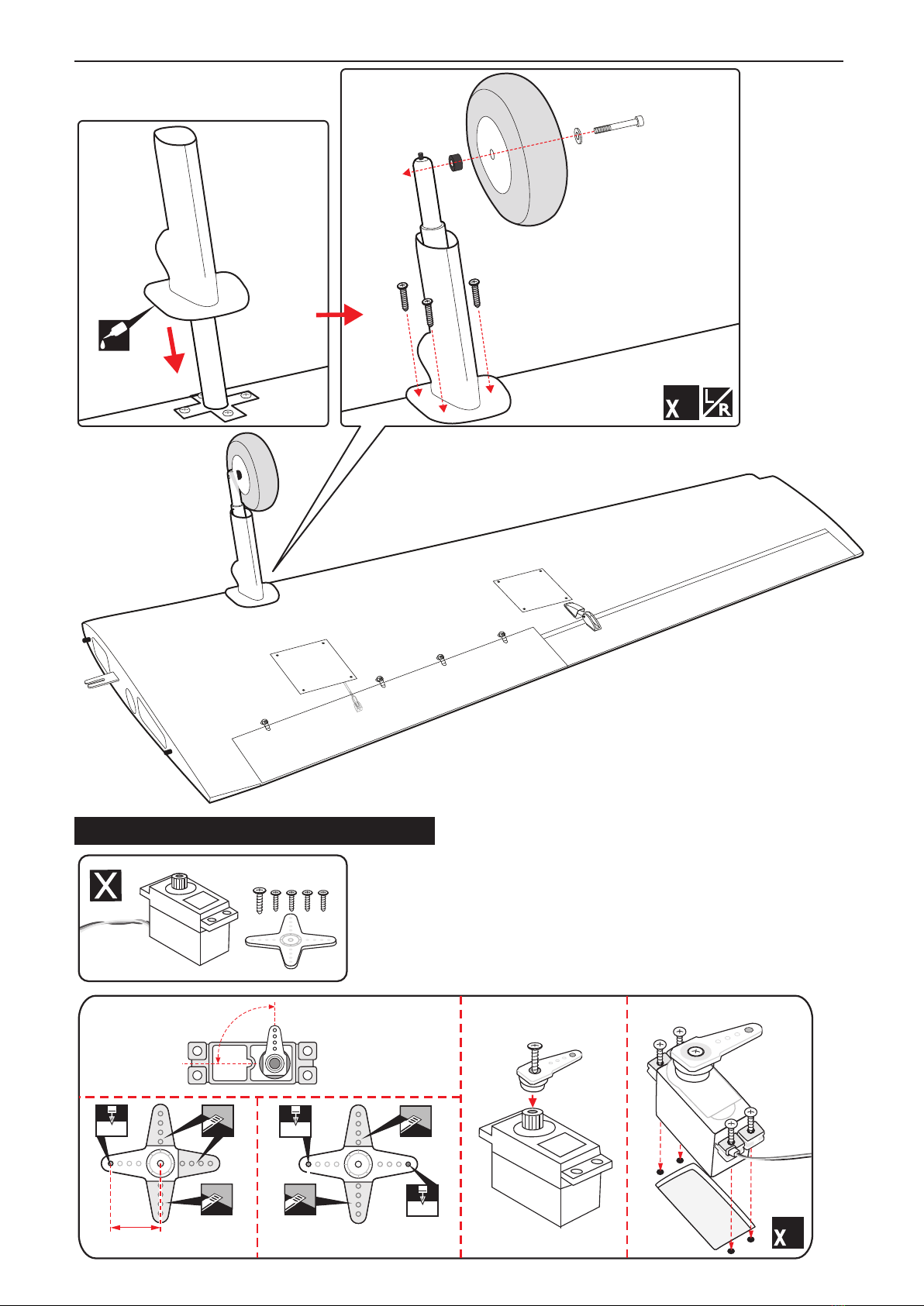

Installing the main gear

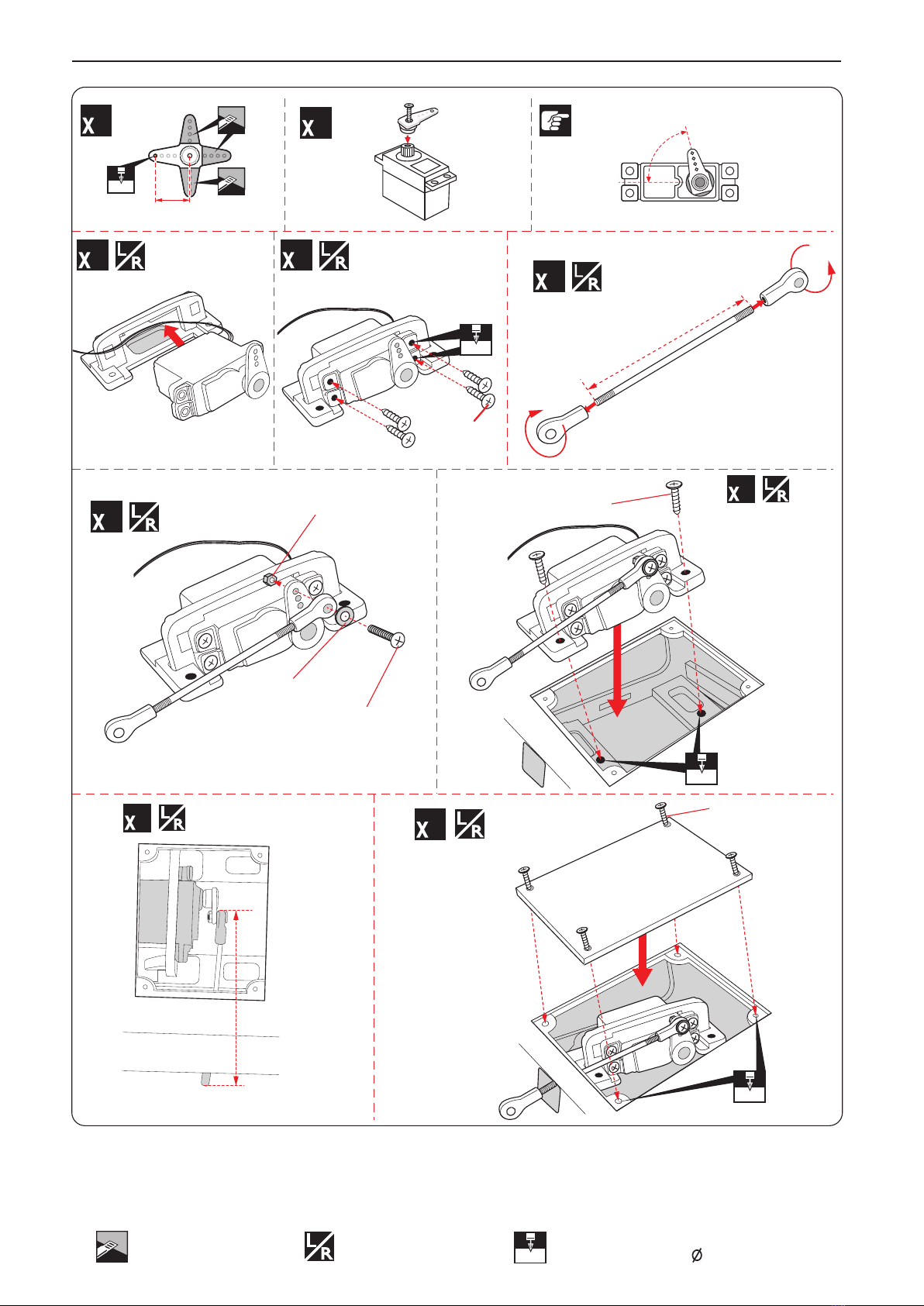

Installing the fuselage servos

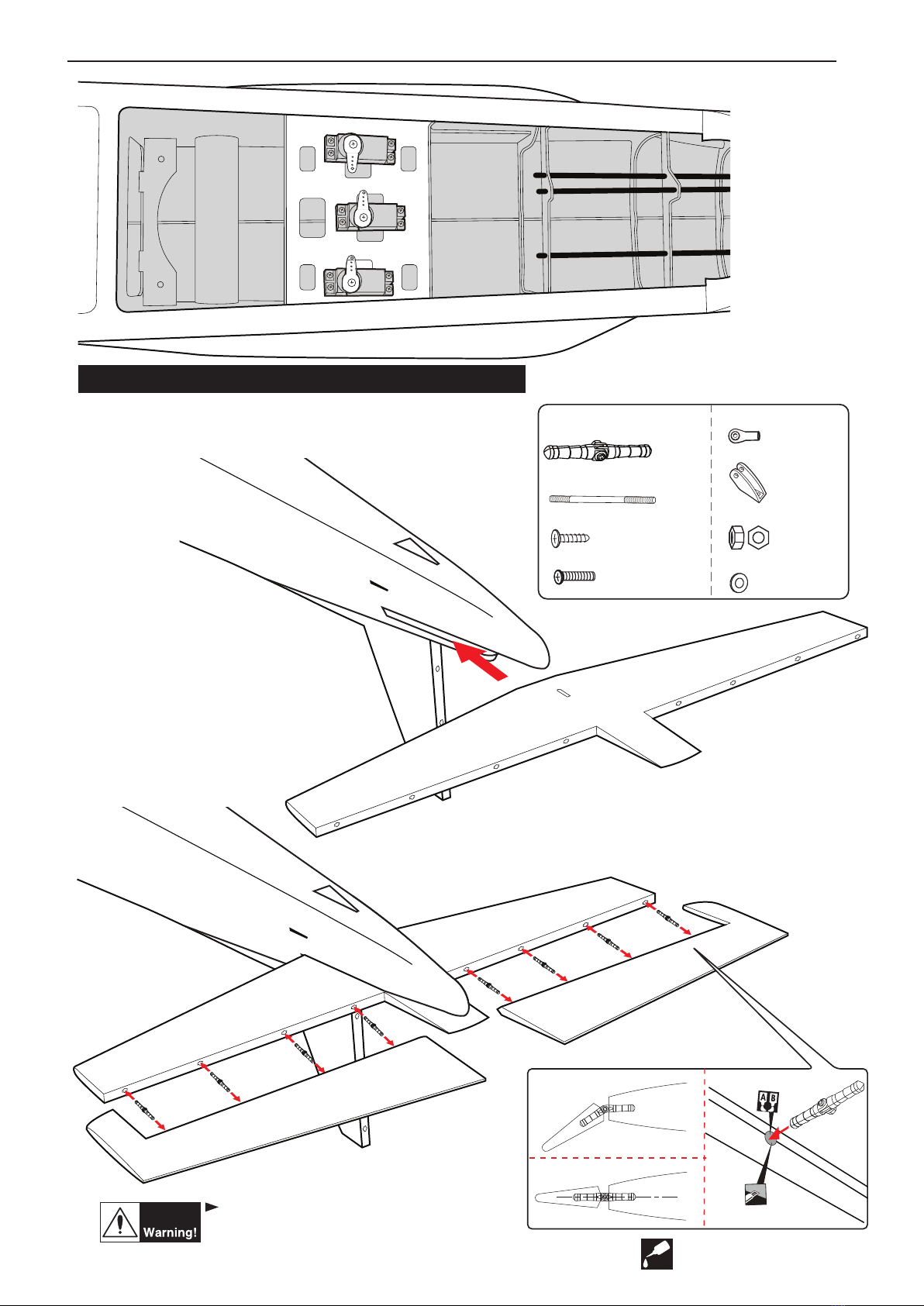

Installing the horizontal stabilizer
Installing the vertical stabilizer
Installing the engine
Installing the stopper
Installing the fuel tank
Installing the throttle
Mounting the cowl
Installing the switch, receiver and
battery
Installing the wings to fuselage
Installing cockpit fuselage
Installing the propeller and spinner
Installing the electric motor
Balancing
Lateral balance
Control throws
Flight preparation pre ight check
Exploded view

CHIPMUNK Item code: BH63 Instruction Manual
Black Horse Model guarantees the component parts
in this kit to be free from defects in both material and
workmanship at the date of purchase by the
purchaser.
This warranty does not cover cosmetic damage or
damage due to acts of God, accident, misuse,
abuse, negligence, commercial use, or modification
of or to any part of the Product.
This warranty does not cover damage due to
improper installation, operation, maintenance, or
attempted repair by anyone other than Black Horse
Model.
Further, Black Horse Model reserves the right to
change or modify this warranty without notice.
WARRANTY
Read this disclaimer carefully before using this
product. Please strictly follow the instruction manual
to assemble and use this.
In that Black Horse Model has no control over the
final assembly or material used for final assembly,
Black Horse Model is not responsible for loss of use ,
or other incidental or consequential damages.
Furthermore, Black Horse Model cannot be held
liable for personal injury or property damage caused
by the use or misuse of Black Horse Model products.
By the act of using the user-assembled products, the
user accepts all resulting liability.
DISCLAIMER
Please trial fit all the parts. Make sure you have the
correct parts and that they fit and are aligned properly
before gluing! This will assure proper assembly. This
kit is hand made from natural materials, every plane
is unique and minor adjustments may have to be
made. However, you should find the fit superior and
assembly simple.
The painted and plastic parts used in this kit are
fuel proof. However, they are not tolerant of many
harsh chemicals including the following: paint thinner,
C/A glue accelerator, C/A glue debonder and
acetone. Do not let these chemicals come in contact
with the colors on the covering and the plastic parts.
Some parts included in this kit such as the cowl or
wheel pants are made of fiberglass, the fibers of
which may cause eye, skin and respiratory tract
irritation. Never blow into a part to remove fiberglass
dust, as the dust will blow back into your eyes.
Always wear safety goggles, a particle mask and
rubber gloves when grinding, drilling and sanding
fiberglass parts. Vacuum the parts and the work area
thoroughly after working with fiberglass parts.
IMPORTANT BUILDING NOTES
To avoid scratching your new airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old towel or
brown paper, both to protect the aircraft and to
protect the table. Keep a couple of jars or bowls
handy to hold the small parts after you open the bag.
SUGGESTION
Always operate in open areas, away from factories,
hospitals, schools, buildings and houses etc.
NEVER fly your aircraft close to people or built up
areas.
NEVER fly near power lines, aerials or other
dangerous areas including airports, motorways etc.
NEVER fly in wet conditions or on windy or stormy
days.
ALWAYS adjust the engine from behind the
propeller, and do not allow any part of your body to
be in line with the propeller.
THE PROPELLER IS DANGEROUS Keep fingers,
clothing (ties, shirt sleeves, scarves) or any other
loose objects that could be caught or drawn in,
away from the propeller. Take care at ALL times.
NEVER use damaged or deformed propellers
or spinners.
Keep all onlookers (especially small children and
animals) well back from the area of operation. This
is a flying aircraft, which will cause serious injury in
case of impact with a person or animal.
DO NOT dispose of empty fuel containers on a fire,
this can lead to an explosion.
FLIGHT WARNINGS
This is not a toy and pilots must be over the age
of 14
Be sure that no other flyers are using your radio
frequency.
Do not smoke near fuel
Store fuel in a cool, dry place, away from children
and pets.
Wear safety glasses.
The glow plug clip must be securely attached to
the glow plug.
Do not flip the propeller with your fingers.
Keep loose clothing and wires away from the
propeller.
Do not start the engine if people are near. Do not
stand in line with the side of the propeller.
Make engine adjustments from behind the propeller
only. Do not reach around the spinning propeller.
Moisture causes damage to electronics. Avoid
water exposure to all equipment not specifically
designed and protected for this purpose.
SAFETY PRECAUTION
3

CHIPMUNK Item code: BH63 Instruction Manual
When ready to fly, first extend the transmitter aerial.
Switch on the transmitter.
Switch on the receiver.
Check that the wings are correctly fitted to the
fuselage.
Operate the control sticks on the transmitter and
check that the control surfaces move freely and in
the CORRECT directions.
Check that the transmitter batteries have adequate
power.
ALWAYS take off into the wind.
If the model does not respond correctly to the
controls, land it as soon as possible and correct the
fault.
ALWAYS land the model INTO the wind, this ensures
that the model lands at the slowest possible speed.
Switch off the receiver.
Switch off the transmitter.
Empty the fuel tank after flying, fuel left in the tank
can cause corrosion and lead to engine problems.
A. GENERAL: A model aircraft is a non-human-carrying aircraft capable of sustained flight in the atmosphere. It may
not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition.
All model flights must be conducted in accordance with this safety code and anyadditional rules specific to the
flying site.
1. Model aircraft will not be flown:
(a) In a careless or reckless manner.
(b) At a location where model aircraft activities are prohibited.
2. Model aircraft pilots will:
(a) Yield the right of way to all human-carrying aircraft.
(b) See and avoid all aircraft and a spotter must be used when appropriate. (AMA Document #540-D.)
(c) Not fly higher than approximately 400 feet above ground level within three (3) miles of an airport without notifying
the airport operator.
(d) Not interfere with operations and traffic patterns at any airport, heliport or seaplane base except where there is a
mixed use agreement.
(e) Not exceed a takeoff weight, including fuel, of 55 pounds unless in compliance with the AMA Large Model
Airplane program. (AMA Document 520-A.)
(f) Ensure the aircraft is identified with the name and address or AMA number of the owner on the inside or affixed
to the outside of the model aircraft. (This does not apply to model aircraft flown indoors.)
(g) Not operate aircraft with metal-blade propellers or with gaseous boosts except for helicopters operated under the
provisions of AMA Document #555.
(h) Not operate model aircraft while under the influence of alcohol or while using any drug that could adversely affect
the pilot’s ability to safely control the model.
(i) Not operate model aircraft carrying pyrotechnic devices that explode or burn, or any device which propels a
projectile or drops any object that creates a hazard to persons or property.
Exceptions:
• Free Flight fuses or devices that burn producing smoke and are securely attached to the model aircraft during
flight.
• Rocket motors (using solid propellant) up to a G-series size may be used provided they remain attached to the
model during flight. Model rockets may be flown in accordance with the National Model Rocketry Safety Code
but may not be launched from model aircraft.
Academy of Model Aeronautics National Model Aircraft Safety Code
Effective January 1, 2014

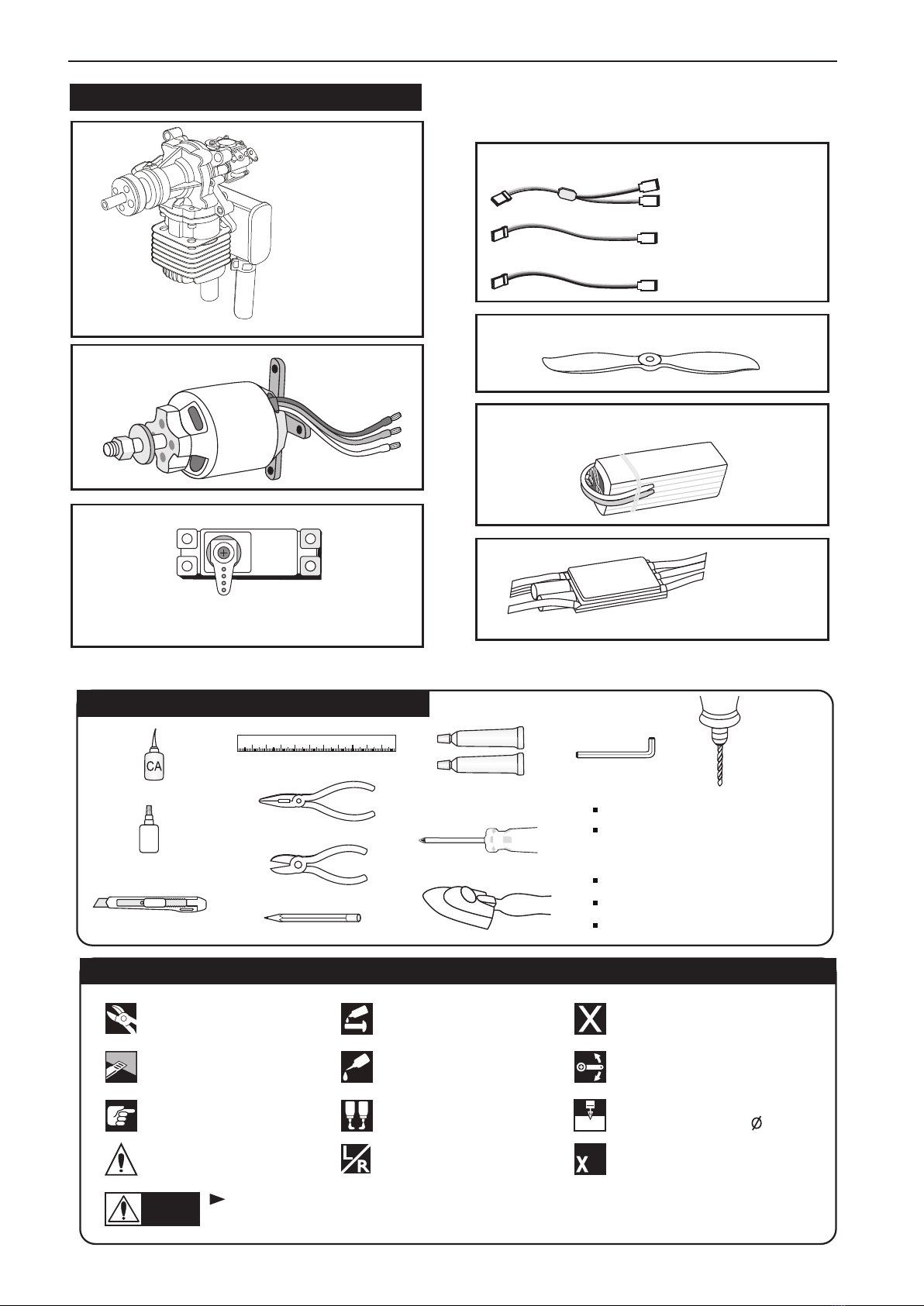

FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS
Top Flite® MonoKote® Sealing Iron
Top Flite Hot Sock Iron Cover
Top Flite MonoKote Trim Seal Iron
Top Flite MonoKote Heat Gun
COVERING TOOLS
Thin CA
30-minute epoxy
6-minute epoxy
Threadlocker thread locking cement
Mixing sticks
Mixing cups (GPMR8056)
Epoxy brushes
Denatured alcohol
Canopy Glue
Felt-tipped pen or pencil
Flat screwdriver
Adjustable wrench
Drill
Hobby knife
Masking tape
Phillips screwdriver (large)
Phillips screwdriver (small)
Ruler
Sandpaper
Soldering iron
Solder
Hex wrench
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm),
1/8-inch (3,2mm), 3/16-inch (4,8mm),11/64-inch
(4.5mm), 13/64-inch (5,2mm), 1/4-inch (6,4mm)
4

CHIPMUNK Item code: BH63 Instruction Manual
• Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within
the Team AMA Program Document. (AMA Document #718.)
(j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document
#510-A.)
3. Model aircraft will not be flown in AMA sanctioned events, air shows or model demonstrations unless:
(a) The aircraft, control system and pilot skills have successfully demonstrated all maneuvers intended or anticipated
prior to the specific event.
(b) An inexperienced pilot is assisted by an experienced pilot.
4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT,
ANSI, SNELL or NOCSAE approved or comply with comparable standards.
B. RADIO CONTROL (RC)
1. All pilots shall avoid flying directly over unprotected people, vessels, vehicles or structures and shall avoid
endangerment of life and property of others.
2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be
completed before the first flight of a new or repaired model aircraft.
3. At all flying sites a safety line(s) must be established in front of which all flying takes place. (AMA Document
#706.)
(a) Only personnel associated with flying the model aircraft are allowed at or in front of the safety line.
(b) At air shows or demonstrations, a straight safety line must be established.
(c) An area away from the safety line must be maintained for spectators.
(d) Intentional flying behind the safety line is prohibited.
4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications
Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on
Amateur Band frequencies.
5. RC model aircraft will not knowingly operate within three (3) miles of any pre-existing flying site without a
frequency-management agreement. (AMA Documents #922 and #923.)
6. With the exception of events flown under official AMA Competition Regulations, excluding takeoff and landing, no
powered model may be flown outdoors closer than 25 feet to any individual, except for the pilot and the pilot's
helper(s) located at the flightline.
7. Under no circumstances may a pilot or other person touch an outdoor model aircraft in flight while it is still under
power, except to divert it from striking an individual.
8. RC night flying requires a lighting system providing the pilot with a clear view of the model’s attitude and
orientation at all times. Hand-held illumination systems are inadequate for night flying operations.
9. The pilot of an RC model aircraft shall:
(a) Maintain control during the entire flight, maintaining visual contact without enhancement other than by corrective
lenses prescribed for the pilot.
(b) Fly using the assistance of a camera or First-Person View (FPV) only in accordance with the procedures outlined
in AMA Document #550.
(c) Fly using the assistance of autopilot or stabilization system only in accordance with the procedures outlined in
AMA Document #560.
C. FREE FLIGHT
1. Must be at least 100 feet downwind of spectators and automobile parking when the model aircraft is launched.
2. Launch area must be clear of all individuals except mechanics, officials, and other fliers.
3. An effective device will be used to extinguish any fuse on the model aircraft after the fuse has completed its
function.
D. CONTROL LINE
1. The complete control system (including the safety thong where applicable) must have an inspection and pull test
prior to flying.
2. The pull test will be in accordance with the current Competition Regulations for the applicable model aircraft
category.
3. Model aircraft not fitting a specific category shall use those pull-test requirements as indicated for Control Line
Precision Aerobatics.
4. The flying area must be clear of all utility wires or poles and a model aircraft will not be flown closer than 50 feet
to any above-ground electric utility lines.
5. The flying area must be clear of all nonessential participants and spectators before the engine is started.
5

CHIPMUNK Item code: BH63 Instruction Manual
Wire cutters.
Hex Wrench.
Threadlocker
(screw cement).
Hand or
electric drill.
cm
12345678
910
Straight edge ruler.
Some more tools.
Assorted drill bits.
Masking tape.
Paper towels.
Rubbing alcohol
90° square or builder's triangle.
Screw driver
Medium C/A glue
EPOXY A
EPOXY B
30 minute epoxy.
5 minute epoxy.
Modeling knife.
2 bender plier
TOOLS & SUPPLIES NEEDED
PARTS LISTING (NOT INCLUDED).
Cut off excess.
BA Apply epoxy glue.
Apply threadlocker
(screw cement).
C . A
Apply instant glue
(C.A glue, super glue).
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Must be purchased
separately!
Ensure smooth, non-binding
movement when assembling.
Warning!
Set all scerws securely. If they come off during
flight you will lose control of your aircraft!
Pay close attention here. Drill holes using the stated.
(in this case 1.5mm ).
1.5mm
Take particular care here.
The number of times
the same way Assembly
(in this case twice).
2
Symbols used throughout this instruction manual, comprise:
6
Propeller. Suit with your engine.
ESC
ESC: 80A ....... 1 pcs.
BATTERY
LiPo. 6S - 22.2V- 4,000 - 5,500mAh.
2 Packs
Servo extension leads.
................. 2 pcs.
190mm .... 4 pcs.
330mm .... 2 pcs.
Motor: RIMFIRE.1.60
7 servos. Size: (39.9 x 20.1 x 38.1)mm.
Torque: 4.8V (7.92kg/cm), 6V ( 9.43 kg/cm).
Engine: 35 cc gas

7
- - - - - - - 8
67mm Pinned hinge
- - - - - - - 8
44mm Pinned hinge
CHIPMUNK Item code: BH63 Instruction Manual
2x10mm Tp Screw
- - - - 16
- - - - 4
- - - - 4 - - - - 8
- - - - 2
- - - - 2
- - - - 2
- - - - 2
- - - - 8
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer Horn
Horn
Ball link Plastic
2.6x90mm Push rod
- - - - 2
2.6x80mm Push rod
- - - - - - - 4
3x12mm Tp Screw
Connector - - - - 1
3x12mm Tp Screw
Plastic 01
Plastic 02
- - - - - 12
- - - - - - 2
- - - - - - 2
9
5mm Flat Washer
- - - - - - - 4
5mm Spring Washer
- - - - - - - 4
16x5mm Flat Washer
- - - - - - - 4
16x5mm Rubber Washer
- - - - - - - 4
500mm Pushrod wire
- - - - - - - - 4
- - - - - - - 4
12x45mm Aluminium
- - - - - 4
- - - - - 2
5x70mm Socket Head
Cap Screw
M5 Blind Nut
12
4mm Spring Washer
3x4mm SetScrew
5mm Flat Washer
5mm Collar
- - - - 2
- - - - 2
- - - - 2
4mm Flat Washer
- - - - 8
- - - - 8 5x60mm Socket Head Cap Screw
4x15mm Tp Screw 3x12mm Tp Screw
- - - - 6
- - - - 8
- - - - 6
10
- - - - 8
44mm Pinned Hinge
- - - - 2
- - - - 2
- - - - 4
- - - - 2
- - - - 4
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer
Horn
Ball link
- - - - 2
2.6x920mm Push rod
- - - - 4
3x12mm Tp Screw
- - - - 3
44mm Pinned Hinge
- - - - 1
- - - - 1
- - - - 2
- - - - 1
- - - - 2
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer
Horn
Ball link
- - - - 1
2.6x820mm Push rod
- - - - 2
3x12mm Tp Screw
:
Wood - motor mount:
: Engine mount.
:
: Spinner set.
12
13
1
2
3
4
5
6
7
8
7

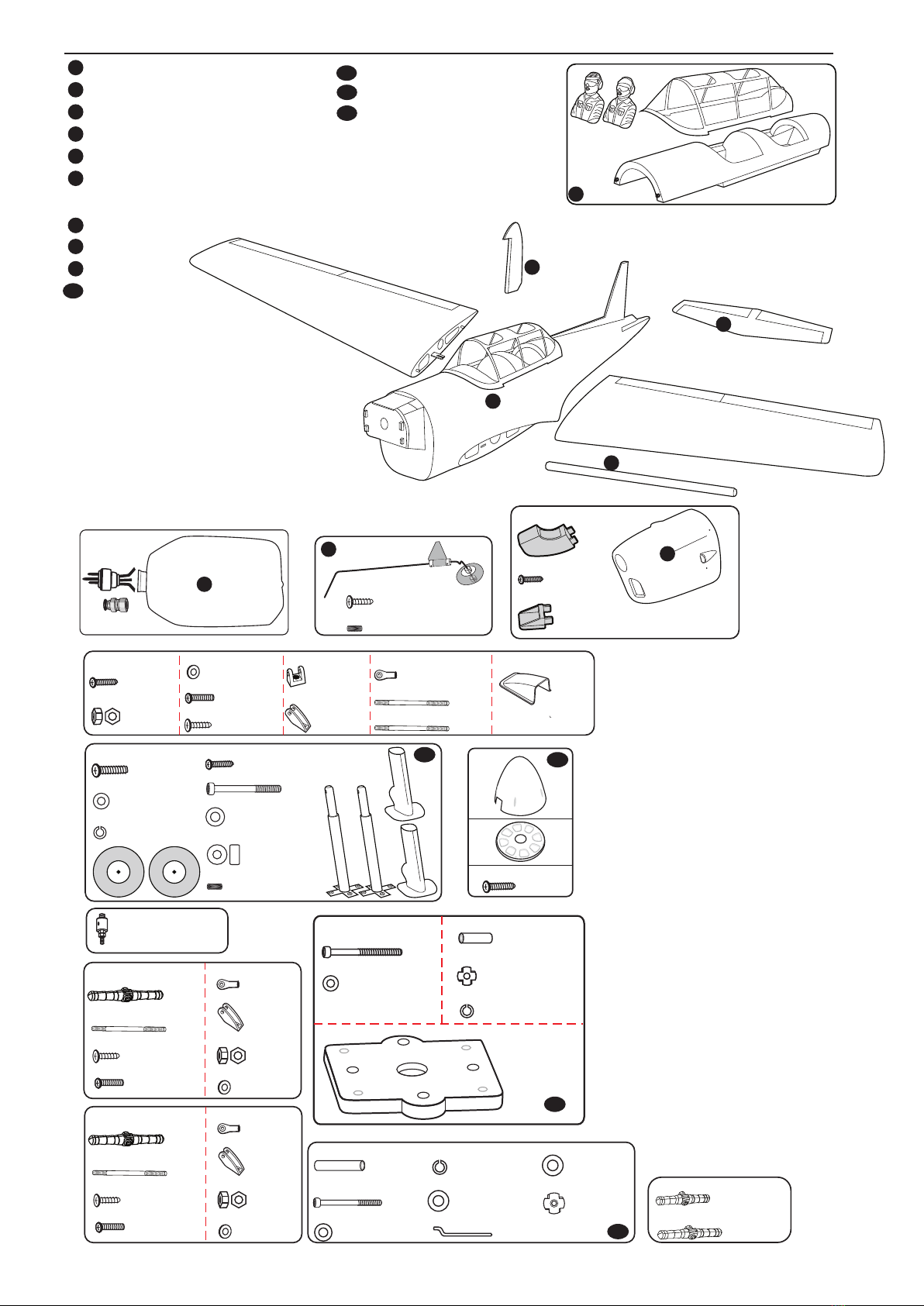

: Fuselage.
: Wing panel (2a, 2b).
: Horizontal stabilizer.
: Vertical stabilizer
: Aluminium wing dihedral brace.
: Cockpit fuselage (6a: Canopy,
: Pilot, 6c: Top hatch fuselage).6b
: Fuel Tank (7a : Clunk; 7b : Stopper (three line)).
: Tail gear set .
: Cowling set.
Main gear set.
:
9
10
1
2a
2b
3
6b 6a
6c
6
4
5
11
7
7a
7b
3x4mm SetScrew
- - - - 4
- - - - 2
3x15mm Tp Screw
8
- - - 4
3x12mm TP Scew
13
- - - - - 4
4mm Flat Washer
- - - - - - - - 4
4mm Spring Washer
- - - - - - - - 4
- - 4
4x40mm Socket Head
Cap Screw - - - - - 4
10x20mm Aluminium
M4 Blind Nut
11

CHIPMUNK Item code: BH63 Instruction Manual
INSTALLING THE AILERONS AND FLAPS
8
- - - - - - - 8
67mm Pinned hinge
- - - - - - - 8
44mm Pinned hinge
Make certain the hinges are adequately secured with glue. If
they come loose in flight accidents may result.
Flap Aileron
Bottom View
PREPARATIONS
Use a covering iron with a covering sock on
high heat to tighten the covering if necessary.
Apply pressure over sheeted areas to
thoroughly bond the covering to the wood.

CHIPMUNK Item code: BH63 Instruction Manual
9
INSTALLING THE AILERON AND FLAP SERVO
1. Install the rubber grommets and brass eyelets
onto the aileron servo.
4. Using the thread as a guide and using masking
tape, tape the servo lead to the end of the
thread: carefully pull the thread out. When you
have pulled the servo lead out, remove the
masking tape and the servo lead from the
thread.
5. Place the aileron servo tray / hatch into the
servo box on the bottom of the wing and drill
pilot holes through the tray and the servo box
for each of the four mounting screws. Secure
the servo tray in place using the mounting
screws provided .
6. Repeat step # 2 - # 5 to install the second
aileron servo in the opposite wing half.
2. Using a modeling knife, remove the covering
from over the pre-cut servo arm exit hole on the
aileron servo tray / hatch. This hole will allow
the servo arm to pass through when installing
the aileron pushrods
3. Place the servo into the servo tray. Center the
servo within the tray and drill pilot holes
through the block of wood for each of the four
mounting screws provided with the servo.
For Aileron servo.
For Flap servo.
Bottom View
2x10mm Tp Screw
- - - - 16
- - - - 4
- - - - 4 - - - - 8
- - - - 2
- - - - 2
- - - - 2
- - - - 2
- - - - 8
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer Horn
Horn
Ball link Plastic
2.6x90mm Push rod
- - - - 2
2.6x80mm Push rod
- - - - - - - 4
3x12mm Tp Screw

CHIPMUNK Item code: BH63 Instruction Manual
10
2
For
Flap
1.5mm
2x10mm
Tp Screw
2
For
Flap
2
For
Flap
o
60
Flaps
2
For Flap.
2
For Flap.
approx.16mm
2 mm
2
Flaps
servos.
2
Screw
1.5 mm
3x12mm Tp Screw
2
For Flap.
3mm Hex Nut
3mm Flat Washer
3x12mm Cap Screw
2
For Flap.
114mm
2mm
2.6x90mm
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Drill holes using the stated.
(in this case 1.5mm ).
1.5mm

CHIPMUNK Item code: BH63 Instruction Manual
11
2
Aileron
2
Aileron
o
60
Aileron
2
Aileron
approx.16mm
2mm
2
Aileron
servos.
2
2x10mm
Tp Screw
Screw
3x12mm Cap Screw
3mm Flat Washer
3mm Hex Nut
2
Aileron
2
Aileron
96mm
1.5mm
1.5mm
2mm
2.6x90mm
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Pay close attention here.
Drill holes using the stated.
(in this case 1.5mm ).
1.5mm
The number of times
the same way Assembly
(in this case twice).
2

CHIPMUNK Item code: BH63 Instruction Manual
12
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Pay close attention here.
The number of times
the same way Assembly
(in this case twice).
2
Drill holes using the stated.
(in this case 2mm ).
2mm
Tie the string
Pull out servo cord with string.
1
2
1
2
3x12mm
Tp Screw
Horn
3x12mm
Cap Screw
Aileron Aileron Aileron
Aileron Aileron
C.A
2
2
3x12mm
Cap Screw
3x12mm
Tp Screw
Flap
Flap Flap
Horn
2
2x10mm Tp Screw
2x10mm Tp Screw
Bottom View
Flap servo
Aileron servo
2

CHIPMUNK Item code: BH63 Instruction Manual
INSTALLING THE MAIN GEAR
13
4mm Spring Washer
3x4mm SetScrew
5mm Flat Washer
5mm Collar
- - - - 2
- - - - 2
- - - - 2
4mm Flat Washer
- - - - 8
- - - - 8 5x60mm Socket Head Cap Screw
4x15mm Tp Screw 3x12mm Tp Screw
- - - - 6
- - - - 8
- - - - 6
Bottom View
2
2
2
5mm Collar
secure 5mm Flatwasher
5x40mm Socket
Head Cap Screw

CHIPMUNK Item code: BH63 Instruction Manual
14
Bottom View
C . A
2
5mm Collar
INSTALLING THE FUSELAGE SERVOS
1) Install the rubber grommets and brass collets into the elevator,
rudder and throttle servos. Test fit the servos into the servo tray.
Trim the tray if necessary to fit your servos.
2) Mount the servo to the tray using the mounting screws provided
with your radio system.
o
90
approx.16mm
2mm
4
2mm
2mm
For rudder servo
5x60mm Socket Head
Cap Screw
5mm Flat Washer
3x4mm SetScrew
3x12mm TP Screw

CHIPMUNK Item code: BH63 Instruction Manual
15
INSTALLING THE HORIZONTAL STABILIZER
Bottom View
C . A
Apply instant glue
(C.A glue, super glue).
Make certain the hinges are adequately
secured with glue. If they come loose in
flight accidents may result.
elevator servo
rudder servo
elevator servo
Fuselage top view
- - - - 8
44mm Pinned Hinge
- - - - 2
- - - - 2
- - - - 4
- - - - 2
- - - - 4
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer
Horn
Ball link
- - - - 2
2.6x920mm Push rod
- - - - 4
3x12mm Tp Screw

CHIPMUNK Item code: BH63 Instruction Manual
16 Assemble left and right
sides the same way.
Drill holes using the stated.
(in this case 2mm ).
2mm
elevator servo
rudder servo
elevator servo
Fuselage top view
Push rod
Ball link
3mm Hex nut
3x12mm
Cap scew
3mm
Flash washer
Servo tail
2
222
3x12mm
Tp Screw
Horn
3x12mm
Cap Screw

CHIPMUNK Item code: BH63 Instruction Manual
17
INSTALLING THE VERTICAL STABILIZER AND TAIL GEAR
Bottom View
Elevator Elevator
Elevator servo
90o
SetScrew
- - - - 3
44mm Pinned Hinge
- - - - 1
- - - - 1
- - - - 2
- - - - 1
- - - - 2
3x12mm Cap Screw
3mm Hex Nut
3mm Flat Washer
Horn
Ball link
- - - - 1
2.6x820mm Push rod
- - - - 2
3x12mm Tp Screw
3x4mm SetScrew
- - - - 4
- - - - 2
3x15mm Tp Screw

CHIPMUNK Item code: BH63 Instruction Manual
18
Top View
3x15mm Tp Screw
Make certain the hinges are
adequately secured with glue. If
they come loose in flight
accidents may result.
Rudder
Tailgear

CHIPMUNK Item code: BH63 Instruction Manual
19
elevator servo
rudder servo
elevator servo
Push rod
Ball link
3mm Hex nut
3x12mm
Cap scew
3mm
Flash washer
Servo tail
3x12mm
Tp Screw
Horn
3x12mm
Cap Screw

CHIPMUNK Item code: BH63 Instruction Manual
20
Rudder
Rudder servo
DLE-35CC
DLE-35CC
INSTALLING THE ENGINE MOUNT
Using plate of plywood (supplied with the kit) mark the holes
onto the fire wall for installing the engine mount for DLE-35CC
or OS-33CC.
OR
DLE-35CC
Throttle Lever
OS-30CC
Throttle Lever
May be you also need to trim
some wood from the tri-angle
wood for the installation is easy.
Mark Line
DLE-35CC
Plate of plywood
Throttle hole Φ 6mm
Throttle hole Φ 6mm
6.2mm
6.2mm
DLE - 35CC
