Black Horse Model CAP 232 Owner's manual

SPECIFICATION
1Wingspan : 2,060 mm 81 in.
1Length :
1Weight : 5.2 kg 11.44 Lbs.
1Radio : 06 channels.
1Servo : 06 servos.
1Engine : 160 Cu.in 2 Stroke.
22 - 33cc gas.
Instruction Manual book
MadeinVietnam.
1,840 mm 72.4 in.
ITEM CODE: BH24.

CAP 232-Item code:BH24. Instruction Manual
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manualthoroughlybeforestartingassemblyofyour CAP232.Usethepartslistingbelowtoidentify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenewpilotonhiswaytosuccessfulR/Cflight.Theywillalsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
1Thick cyanoacrylate glue.
130 minute epoxy.
15 minute epoxy.
1Hand or electric drill.
1Assorted drill bits.
1Modellingknife.
1Straightedge ruler.
12mm ball driver.
1Phillips head screwdriver.
1220 grit sandpaper.
190° square or builder’s triangle.
1Wire cutters.
1Masking tape & T-pins.
1Thread-lock.
1Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoidscratching yournew airplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the
aircraftandtoprotect the table. Keep a couple
of jars or bowls handy to hold the small parts
after you open the bag.
Pleasetrialfitalltheparts. Makesureyouhave
the correct parts and that they fit and are
alignedproperly before gluing!Thiswillassure
proper assembly. CAP 232 ARFis hand made
from natural materials, every plane is unique
andminoradjustmentsmayhavetobemade.
However, you should find the fit superior and
assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the
following: paint thinner, C/A glue accelerator,
C/A glue debonder and acetone. Do not let
these chemicals come in contact with the
colors on the covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
1(1) Fuselage.
WING ASSEMBLY
1(1) Right wing half with pre-installed
aileron.
1(1) Left wing half with pre-installed
aileron.
Tail section assembly
1(1) Vertical stabilizer with pre-
installedrudder.
1(1) Horizontal stabilizer with pre-
installedelevatorhalves.
SUGGESTION.
NOTE.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
3
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,pleaseaskan experienced model flyer
forhelpand support. If you attempt to operate
themodelwithoutknowingwhatyouaredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Evenif you have alreadybuilt a large number
ofRCmodels please read rightthroughthese
instructionsand check all thekit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minorcreases or bubblesmay develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.);in rare cases you may even find aslight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures,and can easilybe corrected using
aheat gun, as commonlyused for modelling.
Creases: Blowwarmair over the area
and rub down with a soft
cloth.
Wing warp: Hold the panel twisted
gently in the opposite
direction to the warp, and
apply warm air to remove
the creases from the
covering.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt in a veryshorttime.However,the work
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
tasks competently - so please work slowly
and accurately.
When self-tapping screws have to be
screwed into wood, apply a little white
glue to prevent them shaking loose: just
squirt white glue into the hole and fit the
screw.
+ This is not a toy
+ Be sure that no other flyers are using your
radiofrequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplugclipmust besecurelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Do not stand in line with the side of the
propeller.
+ Make engine adjustments from behind the
propeller only. Do not reach around the
spinningpropeller.
SAFETY PRECAUTION.
1 1. Install the rubber grommets and brass
eyelets onto the aileron servo.
INSTALLING THEAILERON SERVOS.
REPLACEMENT LARGE PARTS
A
B
C
D
F
G
E
H
I
K
B.Fuselage.
D. Horizon stabilizer.
E. Vertical stabilizer.
C. Wing panel.
A. Cowling.
G. Decal sheet .
F.Aluminiumwingdihedral brace.
K.Aluminiumlandinggear.
I. Cover wheel pant.
H.Wheel.

CAP 232-Item code:BH24. Instruction Manual
4

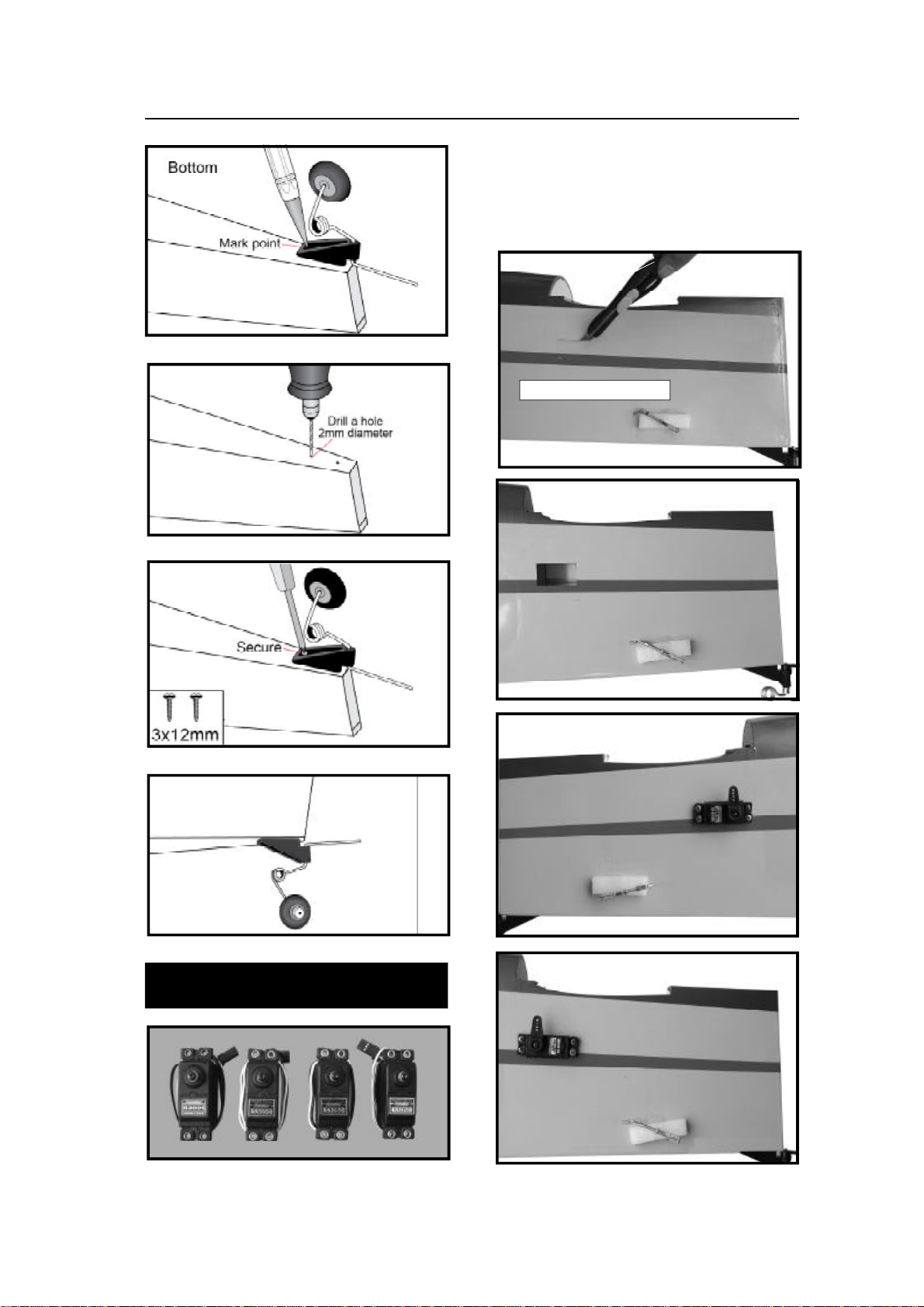

1 2.Using a modeling knife,remove the cov-
ering at possition show below.
14.Drill1,5mm pilot holes throughtheblock
of wood for each of the four mounting screws
providedwiththeservo.Installservointoaileron
servo tray as same as picture below.
13. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
Electric
wire.
Thread.
Bottom of wing.
Remove the
covering.
Bottom of wing.
C/Aglue.
C/Aglue.
C/Aglue.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
5
15. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
Repeat the procedure for the other wing
half.
Remove the
covering. Bottom side.
Control horn of Aileron
INSTALLING THEAILERON CONTROL HORN.
3x50mm.
Nilon control clasp.
M3lock nut.
Remove the
covering.
Topside.

CAP 232-Item code:BH24. Instruction Manual
6
Repeat the procedure for the other wing
half.
Installaileroncontrolhornassame
aspicturebelow. Control horn.
Installing the aileron linkages as pictures
below.
Attach the clevis to the outer hole in the con-
trolhorn.
C/Aglue.
bottom size
M3 M3lock nut
INSTALLING THE AILERON
LINKAGES.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
7
Repeat the procedure for the other wing
half.

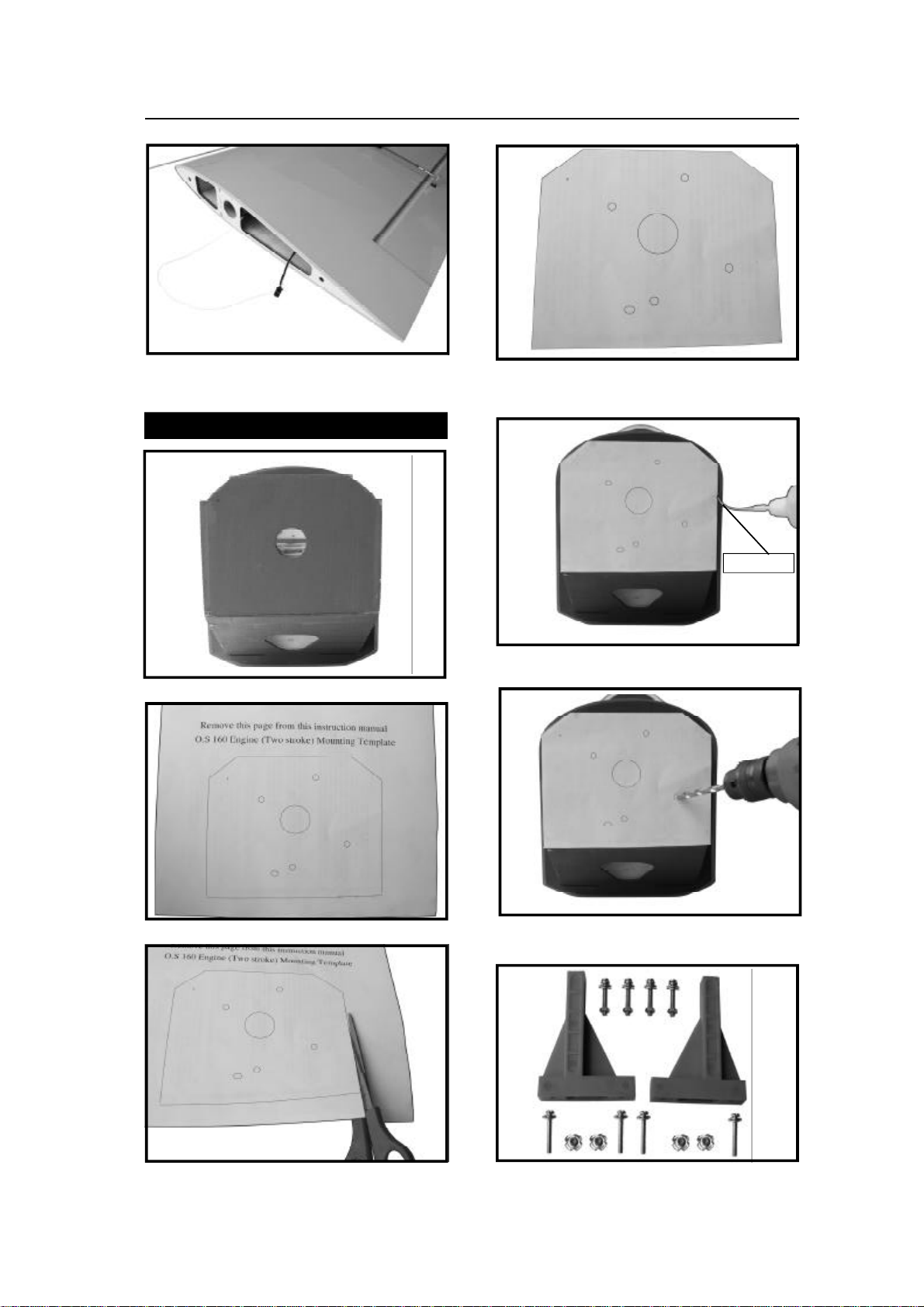

INSTALLING THE ENGINE MOUNT.
C/Aglue.
4x30mm
.
4x30mm

CAP 232-Item code:BH24. Instruction Manual
8

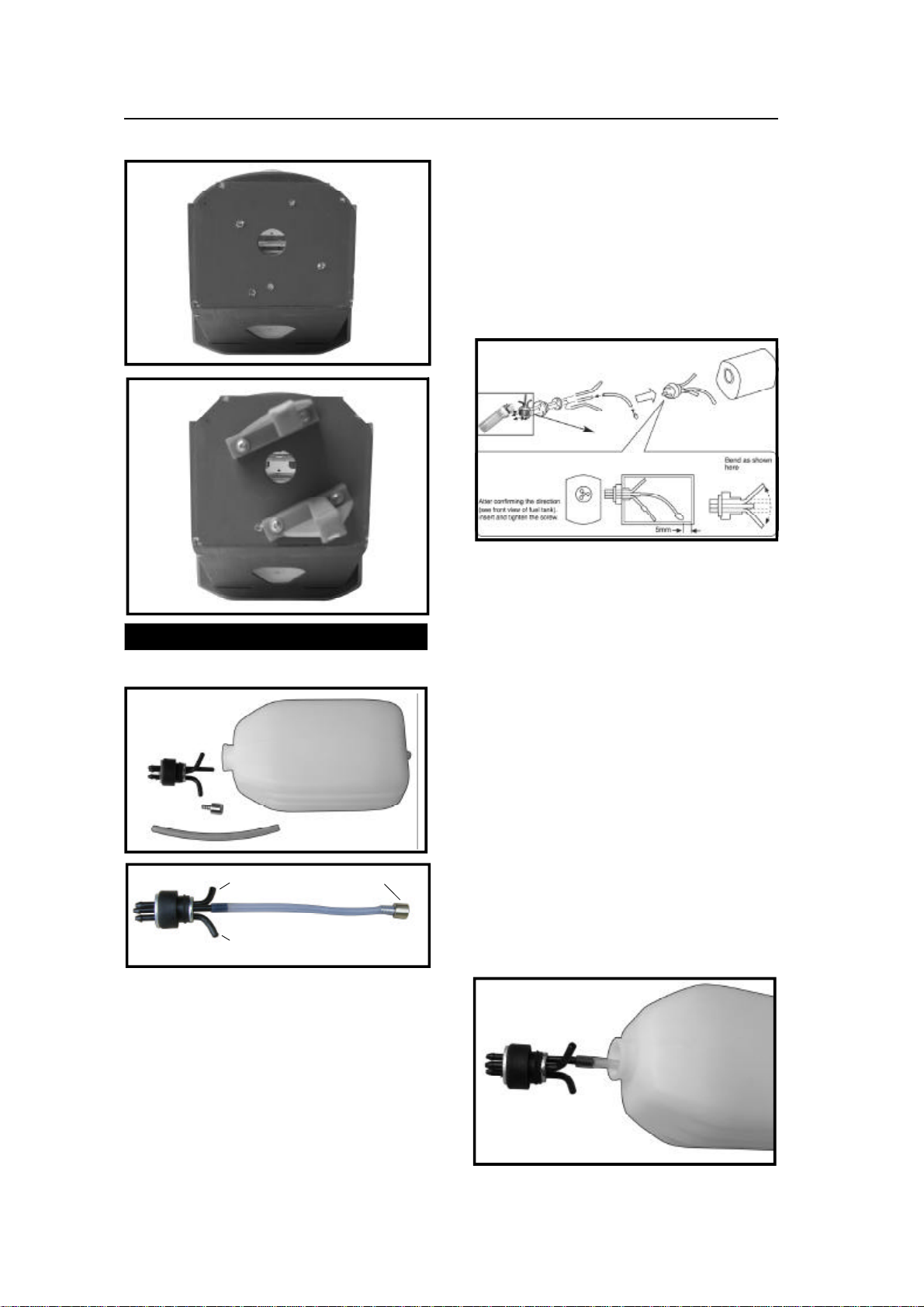

15. Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. If flashing is present, make
sure none of it falls into the tank.
16.When satisfied with thealignment of the
stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper
expands and seals the tank opening. Do not
overtightenthe assembly as thiscouldcause
the tank to split.
17. Using a modeling knife, cut 3 lengths of
fuelline150mm long. Connect 2 linestothe 2
venttubes and 1 lineto the fuel pickuptube in
the stopper.
18. Feed three lines through the fuel tank
compartmentand through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the front ofthetankshouldjust about
touch the back of the firewall.
13.Carefullybend the second nylontubeup
ata 45 degree angle (using acigarettelighter).
This tube will be the vent tube to the muffler.
14.Carefullybend the third nylontubedown
ata 45 degree angle (using acigarettelighter).
This tubewillbeventtubetothefuelingvalve.
INSTALLING THE STOPPER ASSEMBLY
When the stopper assembly is installed
in the tank, the top of the vent tube should
rest just below the top surface of the tank.
It should not touch the top of the tank.
ENGINE MOUNT.
FUEL TANK.
Venttube Fuel pick- up tube
Fuelfill tube
11.Thestopperhas been pre-assembled at
the factory.
12.Usingamodelingknife,cutonelengthof
siliconfuel line (the length ofsilicon fuel line is
calculated by how the weighted clunk should
restabout 8mm away from the rear of thetank
andmovefreelyinsidethetank).Connect one
end of the line to the weighted clunk and the
otherendtothe nylon pick up tube inthestop-
per.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
9

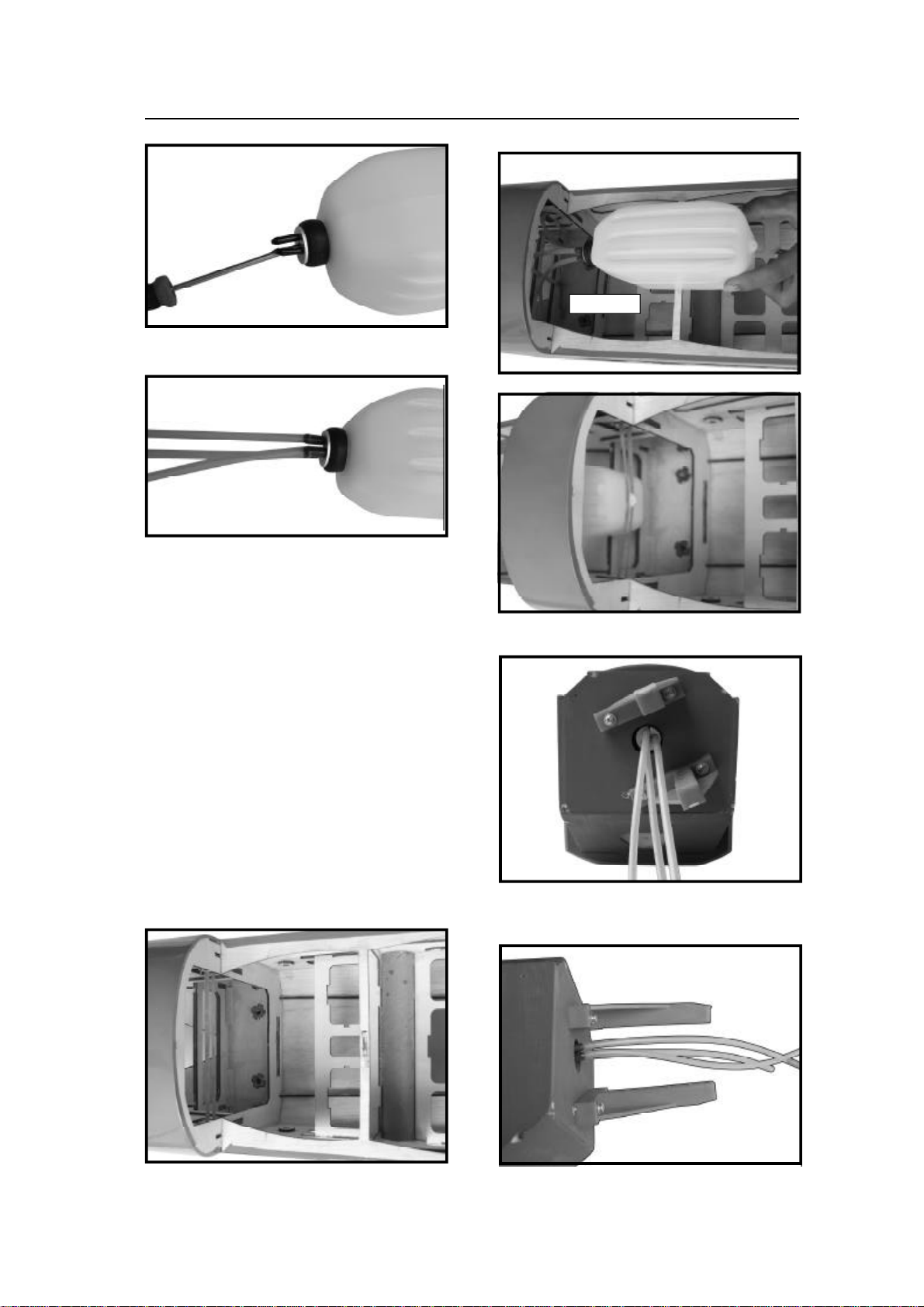

Do not secure the tank into place perma-
nently until after balancing the airplane.
You may need to remove the tank to mount
the battery in the fuel tank compartment.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
19. To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank, where it exits the fuselagebehindthe
enginemountingboxandtothe rearofthetank
atthe forward bulkhead.
Fueltank.

CAP 232-Item code:BH24. Instruction Manual
10
Secure.
Locate the long piece of wire used for the
throttlepushrod. Oneendofthe wire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armoftheenginewhenthe engineisfittedonto
theenginemount.Fit the engine to the engine
mount using the screws provided.
INSTALLING THE ENGINE-
THROTTLE.
4 x30mm.
15.5 cm.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
11
Pushrod wire.
Right side.
Left side.
11. Slide the fiberglass cowl over the en-
gine and line up the back edge of the cowl
with the marks you made on the fuselage.
COWLING.
Pushrod wire.
Trim and cut.
Bottom side.
Trim and cut.
Right side.

CAP 232-Item code:BH24. Instruction Manual
12
Secure.
MAIN GEAR INSTALATION.
PARTSREQUIRED
12. While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftoftheengine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
14. Installthemufflerandmufflerextension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
andfuel filler valve.
13. Slide the cowl back over the engine
andsecureitinplaceusing four wood screws.
See picture below.
Installthe spinner backplate, propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
INSTALLING THE SPINNER.
Bottom side.
3 x 12mm.
3 x 12mm.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
13
11. Assemble and mounting the wheel
pants as shown in the following pictures.
Drill 8mm hole
Drill 5mm hole
Ply wood washer
Repeat the procedure for the other
wheel pant .

CAP 232-Item code:BH24. Instruction Manual
14
Secure.
Landing gear.
12. A drop of C/A glue on the wheel collar
screwswillhelpkeep them from coming lose
duringoperation.
Repeat the process for the other wheel.
INSTALLING THE MAIN LANDING GEAR.
13. Using the hardware provided, mount
the main landing gear to the fuselage.
11. The blind nuts are already mounted
inside the fuselage.
12. The holes in the landing gear should
be to accept the mounting bolts.
11. Set the tail wheel assembly in place
on the plywood plate. The pivot point of the
tail wheel wire should be even with the rud-
der hinge line and the tail wheel bracket
should be centered on the plywood plate.
MOUNTING THE TAIL WHEEL
BRACKET.
3x12mm
12. Mark the locations of the two mounting
screws. Remove the tail wheel bracket and
drill 2mm pilot holes at the locations marked.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
15
11. Install the rubber grommets and brass
collets into the elevator servo. Test fit the
servo into the servo tray.
12. Mount the servo to the tray using the
mounting screws provided with your radio
system.
INSTALLING THE FUSELAGE
SERVOS.
elevatorservo right side
elevator servo left side
Remove the covering
Bottomside

CAP 232-Item code:BH24. Instruction Manual
16
C/Aglue.
C/Aglue.
11. Using amodeling knife, cut awaythe
covering from the fuselage for the stabilizer
and remove it.
12. Draw a center line onto the horizontal
stabilizer.Thenputthehorizontalintothe fuse
large.
Centerline.
C/Aglue.
C/Aglue.
1Horizontal stabilize installation .
See picture below.
HORIZONTAL STABILIZER INSTALLATION.
Topelevator.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
17
13. Mark the shape of the vertical on the
left and right sides onto the horizontal stabi-
lizer using a felt-tip pen
Bottom side.
Topelivator
Remove covering.
Bottom side.
14. Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove
the covering from between them using a
modelingknife.
When cutting through the covering to
remove it, cut with only enough pressure
to only cut through the covering it’s self.
Cutting into the balsa structure may
weaken it. This could lead to possible fail-
ure during flight
15. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topandbottomofthestabilizermountingarea
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and re-align. Double check all of your meas-
urements one more time before the epoxy
cures. Remove any excess epoxy using a
papertowelandrubbing alcohol and hold the
stabilizerinplacewithT-pinsormaskingtape.
Epoxyglue.
Check to mark sure the wing and stabi-
lizer are paralell. If they are not, lightly sand
theopeninginthefuselageforthe stabilizer
until the stabilizer is paralell to the wing.

CAP 232-Item code:BH24. Instruction Manual
18
C/Aglue.
16. After the epoxy has fully cured,
remove
themaskingtapeorT-pins used to holdthe
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
cleanuptheexcess using a paper towel and
rubbingalcohol.
Remover covering.
Bottom side.
Controlhornofelevator.
Elevatorcontrolhorninstallassameasthe
way of aileron control horn. Please see pic-
tures below.
3mm x 50mm.
M3lock nut.
Nilon control clasp.
ELEVATOR CONTROL HORN
PUSHROD INSTALLATION.
Bottomside.

CAP 232-Item code:BH24. INSTRUCTION MANUAL
19
Elevator Elevator
1Elevator pushrod install as same as the
way of aileron pushrod.
ELEVATOR PUSHDROD
INSTALLATION
Bottom side.
Elevator
pushrod.
Elevator
pushrod.
Left side.
Right side.
Vertical stabilizer installation
See picture below.
Topside.
VERTICAL INSTALLATION.
Hinge.

CAP 232-Item code:BH24. Instruction Manual
20
Hingeslot.
13. Mark the shape of the vertical on the
leftandright side of the rudder ontothe hori-
zontal stabilizer using a felt-tip pen.
14. Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
12.Put therudderintothefuselageassame
as picture below.
Pen.
1Also carefully remove the covering from
the horizontal fin as below the lines which
you drew as same picture below.
Remove covering.
Remove covering.
11. Using a modeling knife cut away the
coveringfrom theendof fuselage fortherud-
derhinge.
C/Aglue.
Rudder
2. A/B
