Series SSP-X
Stainless Steel Positive Displacement Rotary Lobe Pumps
Operating Manual

The information contained herein is correct at the time of issue but may be subject to change without prior notice.
11
Table of contents
1. General description ........................................................................... 12
1.1 General description ...................................................................... 12
2. Safety.................................................................................................. 13
2.1 Important information .................................................................... 13
2.2 Warning signs ............................................................................... 13
2.3 Safety precautions ........................................................................ 14
3. Installation.......................................................................................... 15
3.1 Unpacking, Handling and Storage................................................ 15
3.2 System design and installation...................................................... 16
3.3 Flushed seal arrangements and pre-start up checks ................... 19
4. Maintenance ....................................................................................... 21
4.1 Cleaning in place (CIP) ................................................................. 21
4.2 Maintenance schedule.................................................................. 22
4.3 Disassembly.................................................................................. 23
4.4 Assembly ...................................................................................... 26
4.5 Primary seals removal and fitting .................................................. 32
4.6 Troubleshooting ............................................................................ 35
5. Technical data .................................................................................... 36
5.1 Technical data............................................................................... 36
6. Parts list .............................................................................................. 38
6.1SSP-X1 - 3 Pump Range .............................................................. 38
6.2SSP-X4 Pump Range.............................................................. 40
6.3SSP-X5 - 7 Pump Range - Vertically Ported ................................. 42
7. Appendix
7.1 Appendix A ................................................................................... 44
7.2 Appendix B ................................................................................... 45

12
1.1 General description 1. General description
The SSP-Xpumpisapositivedisplacementrotarylobepump;
it may be supplied with or without a drive unit (see drawing).
The drawing shown indicates various parts of the pump unit.
The Series SSP-X range has a universal gearbox design in models
SSP-X1 - 4. This enables the flexibility of mounting pumps with the
inlet and outlet ports in either a vertical or horizontal plane.
Theport orientation, verticalorhorizontal, may bechangedby
moving one of two available bolt-on feet on the gearbox. Port
orientation should be specified when ordering, but the
alternative foot design allows pumps that are already installed
beingchanged should theneedarise.
ModelsSSP-X5, 6 and7 pumps onlyhavethe inletandoutlet ports
in the vertical plane by using dedicated gearbox castings. Baseplate fixing holes
Coupling guard
(encloses coupling)
Rotorcase
Rotorcase
cover
Ports
Product
seal area
Gearbox
Drive unit
Pump Duty Conditions
Thepump should onlybeused for thedutyfor which ithasbeen specified. Theoperatingpressure, speed andtemperaturelimits
have been selected at the time of order and MUST NOT be exceeded. These details are stated on the original order
documentation and if not available may be obtained from your supplier quoting pump model and serial number.
Noise Levels
Under certain operating conditions pumps and/or drives and/or the systems within which they are installed can produce sound
pressure levels in excess of 85dB[A]. When necessary, protection against noise should be taken.

13
2. Safety 2.1 Important information
2.2 Warning signs
Always read the manual before using the pump !
WARNING !
Indicates that special procedures must be followed to avoid severe personal injury.
CAUTION !
Indicates that special procedures must be followed to avoid damage to the pump.
NOTE !
Indicates important information to simplify or clarify practices.
General warning :
Dangerous electrical voltage :
Caustic agents :
Unsafe practices and other important information are emphasized in this manual.
Warnings are emphasized by means of special signs.

14
2.3 Safety precautions 2. Safety
All warnings in the manual are summarised on this page.
Pay special attention to the instructions below so that severe personal injury or damage to the pump are avoided.
Installation
-AlwaysAlways
AlwaysAlways
Always observe the technical data (see chapter 5).
-NeverNever
NeverNever
Never start in the wrong direction of rotation with liquid in the pump.
-NeverNever
NeverNever
Never put your hands or fingers inside the port connections or anywhere close to rotating
shafts.
The pump mustmust
mustmust
must be electrically connected by authorised personnel (see the motor instructions
supplied with the drive unit).
Operation
-AlwaysAlways
AlwaysAlways
Always observe the technical data (see chapter 5).
-NeverNever
NeverNever
Nevertouch the pump or the pipelines when pumping hot liquids or when sterilising.
-NeverNever
NeverNever
Never stand on the pump or pipelines.
-NeverNever
NeverNever
Neverrun the pump with both the suction side and the pressure side blocked.
-NeverNever
NeverNever
Never put your hands or fingers inside the port connections or anywhere close to rotating
shafts.
OnlyOnly
OnlyOnly
Onlyhandle toxicandacidic liquids inaccordance with theirmanufacturers instructions and
recommendations.
Maintenance
-AlwaysAlways
AlwaysAlways
Always observe the technical data (see chapter 5).
- The pump must nevernever
nevernever
never be serviced when hot.
- The pump and the pipelines must nevernever
nevernever
neverbepressurised when the pump is being serviced.
-NeverNever
NeverNever
Never put your hands or fingers inside the port connections or anywhere close to rotating
shafts.
AlwaysAlways
AlwaysAlways
Alwaysdisconnect the power supply when the pump is being serviced.

15
3. Installation 3.1 Unpacking, Handling and Storage
Step 1
Refer to the pump weightsguide (chapter 5) before selecting and usingany lifting gear. The drawing show how the pump should
belifted.
Ensure that lifting equipment is correctly rated and used within these limits.
Bareshaftpump
Pump with drive unit
Step 2
On receipt always :
- Check the delivery note against the goods received.
- Ifmotorised,check that thedriveinstructionsare available.
- Inspect the packing for signs of damage in transit.
- Carefully remove the packing away from the pump.
- Inspect the pump for any visible signs of damage.
- Clean away the packing from the pump port connections.
- Report any damage to the carrier.
Step 3
After receipt and inspection, if the pump is not to be installed immediately, the pump should be repacked and placed in
suitable storage. The following points should be noted :
- Plastic or gasket type port covers should be left in place.
- Pumps received wrapped with corrosion inhibiting treatment material should have wrappiong replaced.
- A clean, dry storage location free from vibration should be selected. If a moist or dusty atmosphere is used for storage, further
protect the pump or unit with a suitable cover.
- Rotate the pump/pump unit by hand weekly, to prevent bearing damage.
- All associated ancillary equipment should be treated similarly.

16

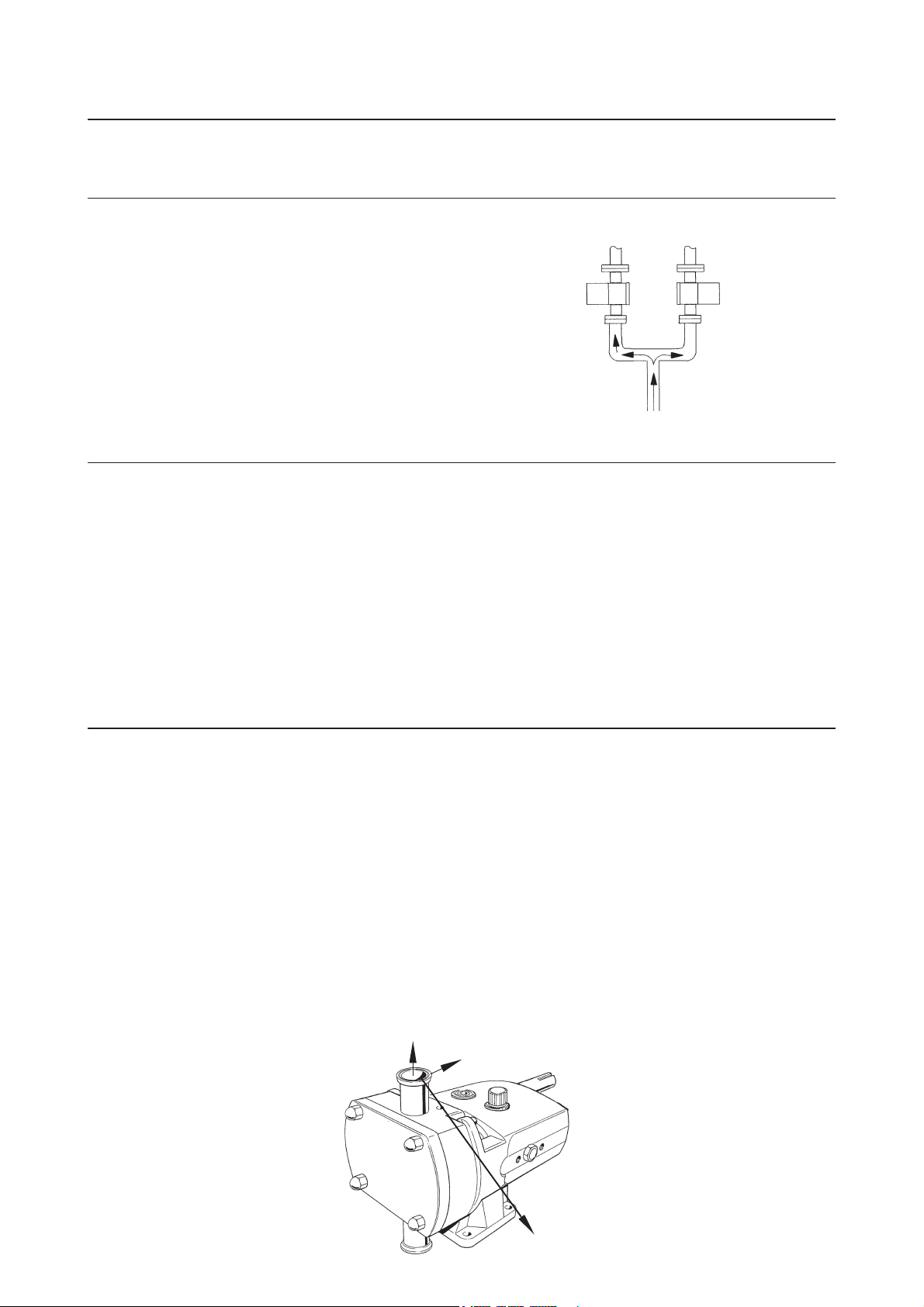

3.2 System design and installation 3. Installation
Step 1
When designing the pumping system :
- Confirm the Net Positive Suction Head requirements of the
pump(NPSHr)aremet,asthisis crucial for wnsuring smooth
operation of the pump and preventing cavitation.
- Avoid suction lifts and manifold/common suction lines for
twopumpsrunning in parallel,asthismay cause vibration or
cavitation.
- Protect the pump against blockage from hard solid objects
e.g. nuts, bolts etc. Also protect the pump from accidental
operationagainst a closedvalveby using eitherreliefvalves,
pressure switch or current limiting device.
Dischargeline
Plan view Suctionline
Step 2
Before the pump is installed it is advisable to consider the following :
Always
- ensure that the mounting surface is flat to avoid distortion of the baseplate, as this will cause pump/motor shaft
misalignment and pump/motor unit damage.
Check
- pump shaft to motor shaft alignment is within manufacturers limits once the base plate has been secured.
Always allow at least 1 m for pump access/maintenance all around the pump.
- Fit suction and discharge pressure monitor points for diagnostic purposes.
- Fit valves if two pumps are to be used on manifold/common discharge lines.
- Make the necessary piping arrangements if flushing is required for the seal or if media is required for heating/cooling jackets.
-Do not subject the pump to rapid temperature changes. Pump seizure can result from thermal shock.
Step 3
All pipework must be supported. The pump must not be allowed to support any of the pipework weight beyond the limits set in
the following table.
Remember :
Pipework supports must also support the weight of the product being pumped.
Always :
- Design short straight suction lines to reduce friction losses in the pipework thereby improving the NPSH available from the
system.
- Avoid bends, tees and any restrictions close to either suction or discharge side of pump. Use ling radius bends wherever
possible.
- Provide isolating valves on each side of the pump to isolate the pump when necessary.
- Keep pipework horizontal where applicable to reduce air locks. Include eccentric reducers on suction lines.
Plane ‘X’
Plane ‘Z’
Plane ‘Y’

17
3. Installation 3.2 System design and installation
Step 3 - continued
Table of Maximum Forces and Moments
Step 4
The direction of flow is dictated by the direction of rotation of the drive shaft. Reversing the direction of rotation will reverse the
flow direction.
For oil quantities required, please see technical data (chapter 5).
Pump Forces Moments
Model FZ FY FX EF MZ MY MX EM
SSP-X1 Forces N806070120
lbf 18 13 16 27
Moments Nm 30 30 30 50
lbft 22 22 22 37
SSP-X2 Forces N125100110190
lbf 28 22 25 43
Moments Nm 60 70 75 115
lbft 44 52 55 85
SSP- X3/4 Forces N165135150260
lbf 37 30 34 58
Moments Nm 100 115 140 205
lbft 74 85 103 151
SSP-X5/6 Forces N300250250460
lbf 67 56 56 103
Moments Nm 125 145 175 260
lbft 92 107 129 192
SSP-X7 Forces N380320320590
lbf 85 72 72 133
Moments Nm 165 190 230 340
lbft 122 140 170 251
DischargeSuction Discharge
SuctionDischarge DischargeSuction
Suction

18
3.2 System design and installation 3. Installation
Step 5
The pump will be supplied pre-filled with oil.
Check the oil level.
Oil changing : Oil level must be checked with the pump static.
First change : After 150 hours of operation, thereafter every
3000 hours of operation.
Oilfilling : Fillwith oil throughthefiller plug tothe level indicated
in the sight glass.
NOTE !
Onhorizontally portedpumpsthe sightglassmust befittedto
the upper hole on the side of the gearcase.
Refer to technical data (chapter 5) for oil quantities required.
Pump Operating Temperature
-20°C to +130°C +130oC to 200°C
(-4°F to +266°F (+266°F to 392°F)
BP Energol GR - XP150 BP GRS15
Castrol Alpha SP150 Castrol Alpha SN150
Mobil Gear 629 Mobil Glycoyle 30
Shell Omala 150 Shell Tivela WA
Texaco Meropa 150 Texaco Synlube SAE90
Esso Spartan EP150 Esso IL1947

19
3. Installation 3.3 Flushed seal arrangements
and pre-start up checks
Step 1
A flushed seal arrangement is fitted in order to cool or clean the seal area.
It is important that :
- The flush is correctly connected (see below).
- A compatible flushing fluid is used and supplied at the correct pressure and flow rate.
- The flush is turned on at the same time/prior to starting the pump, and turned off at the same time/after stopping the
pump.
Step 2
Connecting the flush
The following equipment is strongly recommended when using a flushing system :
- Control valve and pressure gauge, to enable the correct flushing pressure to be obtained and monitored.
- Isolation valve and check valve, so that the flush can be turned off, and to stop any unwanted substances flowing in
the wrong direction.
- A method of visibly indicating flushing fluid flow.
Step 3
Flusing pipework
This suggested arrangement is for single mechanical seals. If
the pump is fitted with double mechanical seals or packed
glands the pressure gauges and control valves should be
fitted on the outlet side of the system.

20
3.3 Flushing seal arrangement
and pre-start up checks 3. Installation
Step 4
Flushing fluid
Thechoice of flushingfluidis dependent uponthefluid being pumpedandduty conditions i.e.pressureand temperature. Usually
wateris used forcooling or flushingwatersoluble products. Foradvice on selectingasuitable flushing fluidplease contact pump
supplier.
Step 5
Flusing pressure and flow rate
Single mechanical seal 0.5 bar (7 psi) maximum. Any further increase in pressure will result in lip seal failure.
Doublemechanical seal/flushedpackedgland 1.0bar
(14psi) higher pressurethanthe discharge ofthe pump. Ifthe discharge
pressure fluctuates set the pressure to suit maximum condition.
The flushing flow rate must be adequate to ensure that the temperature limitation of the seals is not exceeded. Contact your
pump supplier for further information on the recommended flow.
Step 6
Pre-start up checks
- Check the pipework system has been purged to remove debris.
- Check all obstructions have been removed from pipework and pump.
- Check pump connections and pipework joints are tight.
- Checklubrication levels arecorrect.
- Checkseal flushing is connectedifapplicable.
- Checkall safety guardsare in place.

21
4. Maintenance 4.1 Cleaning in place (CIP)
The pump can be manually cleaned or cleaned in place (CIP). The following is an example of a typical CIP procedure. However
specific advice for each application should be sought from the pump supplier.
Typical CIP procedure
1. Flush through the system with cold water or bore water (6°)
(43°F) .
2. Run hot caustic soda (70-80°C)
(158-176°F) at 2.5% dilution through the system for 20-30 minutes.
3. Finalflush through withcoldwater again.
Warnings
-NeverNever
NeverNever
Never touch the pump or the pipelines as they will be extremely
hot !
hot !
-Do notDo not
Do notDo not
Do not subject the pump to rapid temperature changes during CIP procedures, as pump
seizure can result from thermal shock. A suitable by-pass is recommended.
-AlwaysAlways
AlwaysAlways
Alwaysrinse well with clean water after using a cleaning agent.
-AlwaysAlways
AlwaysAlways
Always use rubber gloves and protective goggles when handling caustic agents.
-AlwaysAlways
AlwaysAlways
Alwaysstore/discharge cleaning agents in accordance with current rules/directives.

22
4.2 Maintenance schedule 4. Maintenance
It is advisable to install pressure gauges on both sides of the pump so that any problems within the pump/pipework can be
monitored.
Maintenance schedule
Yourweekly schedule shouldinclude :
- Checking the oil level in the gearcase with the pump stationary.
- Checkingthe sealsforleakage andreplacingas necessary.
- Checkingthe oilsealsfor leakage.
- Checkpumping pressures.
In certain operational circumstances the pump will pose a thermal hazard and as such should not be touched during operation.
After shutdown the pump unit should be allowed time to cool.
Oil should be changed every 3000 hours of operation or a period of 2 years, whichever is the soonest.
Part description Quantity
Lip seal drive end 1
Compression joint rotorcase cover 1
Lipseal gland end 2
Cup seal, rotor retainers 2
Primary seals 2
Recommended Spare Parts
The table shows recommended spare parts that should be
retainedwithinyour maintenance schedule.

23
4. Maintenance 4.3 Disassembly
Step 1
Before disassembling the pump refer to safety
precautions. See exploded view drawings (chapter 6).
Removing rotorcase cover.
Remove rotorcase cover nuts (13) and cover (12).
Step 2
Removing rotors
Insert a plastic/wooden block between the two rotors (17)
to stop them turning.
Plastic or
wooden block
Step 3
Remove rotor retainer (22) and rotors. A rotor retainer
removal tool (supplied with all new pumps) is used for this
purpose by sliding the tool into the rotor retainer slot and
turningin an anti-clockwisedirection.
Rotorretainer
removaltool
Step 4
Removing static seal components
Please see section 4.5 for seal removal.

24
4.3 Disassembly 4. Maintenance
Step 7
Removing seal retainers
1. Remove screws (15).
2. Then remove seal retainers (14) - as a liquid sealant has
been used a lever may be required to remove retainers.
3. The lip seals (16) can be removed using a screwdriver/
lever once the seal retainers are removed. It is essential to
renew the lip seals and it is recommended that new
gaskets or sealant be used prior to reassembly.
Step 8
Removing Gearcase Cover
1. Remove screws (6).
2. Remove gearcase cover (5) after breaking the gasket seal
thenpress out thelip seal (7).Itis essential torenew the lip
seal prior to reassembly.
Step 5
Removing rotorcase
1. Forflushedmechanicalsealarrangements,removetheseal
housing retaining nuts and ease the seal housing from the
rotorcase.
2. Removethe rotorcase retainingnuts(4) and washers(4A).
3. Tap both sides of the rotorcase (9) with a soft mallet.
4. Therotorcase must notbeallowed to dropontothe shafts
(24 and 25) during the removal process.
5. Shims (8) should not be removed unless rotor clearances
require resetting.
Step 6
Draining pump lubrication
1. Place a tray under the gearcase to collect the waste
lubricatingoil.
2.Removethelowerdrainplug(45)atthesideofthegearcase(1).

25
4. Maintenance 4.3 Disassembly
Step 9
Removing timing gears
1.Release clamp plate screws (40) on pump models SSP-X1,
2 and 3. Release the torque locking assembly screws in
several stages on pump models SSP-X4, 5, 6 and 7.
2. Remove gears (36) using the tapped extraction holes
provided, or remove shaft assembly as shown in step 10
below.
Step 10
Shaft assembly removal
1. Usinga soft malletgently taptherear end ofeach shaft(24
and 25), to remove through the front of the gearcase (1).
2. Support each shaft during removal from the gearcase.
3. Remove the shaft abutment spacer (27) from:
-On models SSP-X1, 2, 3 and 4, the bearing bore opposite
the rotorcase mounting face with the additional
machiningmark.
-On models SSP-X5, 6 and 7 pumps, the right hand bearing
bore when viewed from the front of the pump.
Step 11
Bearing removal
1. Hold the shafts (24 and 25) in a vice using soft jaws to
protect the areas where the seals will be located.
2. Remove the bearing nuts (30) with a ‘sharp tap’ on a ‘C’
spanner. The nuts may be tight all the way off as they are
fitted with thread locking adhesive.
3. Mount the shaft vertically in a press with a tool positively
located against the bearing inner as shown and apply
pressure to the top of the shaft so that the shaft moves
through the bearings (26 and 31).
4. Remove each bearing set (inner and outer). Good
engineeringpracticesuggests that ifbearings areremoved
from the shafts they should be renewed.
Clean and examine all components for wear or
damage. Renew where necessary.

26
4.4 Assembly 4. Maintenance
4.4.1 Fitting bearings to shafts
Take care not to damage shaft surfaces, in particular where the seals will be located.
Ensure all fasteings are tightened to torque settings as shown in Technical Data (chapter 5).
On models SSP-X1, 2 and 3 pumps, bearings do not require heating. For models SSP-X4, 5, 6 and 7 pumps, heat the bearing
inner cones to 110°C
(230°F) .
Do not use any form of live flame when heating, as this will damage bearings.
Step 1
Position shaft (24 and 25) vertically in a vice using soft jaws and apply anti-seize compound to the bearing diameters.
Step 2
Placethe inner coneonthe shaft ensuringapositive fit against
theshaft shoulder.
Step 3
Locate outer cup, bearing spacer (32) and rear bearing cup.
Step 4
Allow bearings to cool (models SSP-X4, 5, 6 and 7 pumps only). Failure to do so will result in incorrectly set bearings.
1. Apply Permabond Grade 145 or equivalent locking compound to the bearing nut thread.
2. Tighten the bearing nut (30), whilst at the same time rotating the bearings (26 and 31) and spacer (32). The bearings are
correctly adjusted when the spacer can only be moved with a light tap of a mallet.
3. Repeat the above for double bearing assemblies.
4. Apply oil to the bearings.

27
4. Maintenance 4.4 Assembly
4.4.2 Fitting Shaft Assemblies
Step 1
Replace the shaft abutment spacer (27) in :
-On models SSP-X1, 2, 3 and 4 pumps, the bearing bore opposite the rotorcase mounting face with the additional machining
mark.
-On models SSP-X5, 6 and 7 pumps, the right hand bearing bore when viewed from the front of the pump.
Step 2
Identify drive and auxillary shaft positions according to gearcase cover (5) orientation.
Step 3
1. Usinga soft facedmallet taptheshafts(24 and 25)intothe
gearcase (1).
2. Ifthebearingshavebeenreplaced,a new abutment spacer
will probably be needed. It is vital to ensure the rotor
alignments is within the limits set in section 4.4.4.
4.4.3 Fitting seal retainers
Step 1
1. Clean the rear face of the seal retainers (14), fit in position and tighten.
Step 3
Replace and tighten the screws (15).
Step 2
1. Check rotor alignment is correct by reffering to the rotor abutment alignment in section 4.4.4.
2. When rotor alignment is correct remove seal retainers and press new lip seals (16) into seal retainers.
3. Apply liquid sealant onto the front of the gearcase (1) and push the seal retainers into position. Make sure lip seals are not
damaged when sliding them onto the shafts.

28
4. Maintenance4.4 Assembly
4.4.5 Fitting timing gears
Step 1
Slide timing gears (36) onto shafts (24 and 25), realigning timing marks.
Step 4
Timing adjustment is now requiredTiming adjustment is now required:
Timing adjustment is now required:Timing adjustment is now required:
Timing adjustment is now required:
Tighten one clamp plate/torque locking assembly only,
allowing rotation of the shaft in the other gear for timing
adjustment. See Adjusting Rotor Timing section 4.4.6.
4.4.4 Checking rotor abutment alignment
Step 1
Incorrect setting of rotor alignment will damage the pump.
Fit rotors onto shafts (24 and 25) and tighten rotor retainers (22).
Step 2
1. Using a depth micrometer ensure axial alignment is within
tolerance of 0.012mm
(0.0005 in) .
2. Ifthealignment is incorrect,theshaftabutment spacer (27)
mustbe replaced/machined.
Step 2
1. Beforefittingthe torque lockingdevices (38)lubricate them
with gear oil. Models SSP-X1, 2 and 3 have two sets of
elements.
2.Models SSP-X4, 5, 6 and 7 pumps have torque locking
assemblies.
Step 3
Fit timing gear clamp plates (39) - models SSP-X1, 2 and 3 only.
