OPERATING MANUAL BS-110 MKIII
VERSION 1.1

2
EC DECLARATION OF CONFORMITY
in accordance with Appendix II sub A of Directive 2006/42/EC
BLASTRAC B.V.
Utrechthaven 12
NL - 3433 PN NIEUWEGEIN
Tel: [phone]
Fax: [phone]
[email protected]
The Netherlands
Declare under our sole responsibility that the machine as described below conforms with the Health and Safety
requirements of the European Directive of the machine Safety.
In case of changes to the machine without our written authorization this declaration loses its validity.
Model: BLASTRAC BS-110-0135 MK III
BS-110-0235 MK III
Serial number: xxxxxB
1. satisfies the conditions set out in the Machine Directive (Directive 98/37/EC); Low voltage directive
(73/23/CEE, as last amended; EMC directive 89/336/CEE, as last amended)
2. satisfies the following harmonized standards:
EN 12100-1, EN 12100-2, EN60335-1 and EN55014-1
Nieuwegein 13-11-2013

3
Table of contents
EC Declaration of Conformity 02
1 Introduction 04
2 Machine description 04
3 Safety 05
Safety precautions
Safety regulations
Safety instructions
4 Initial operation 06
Checkpoints of electrical safety
Checkpoints of machine safety
Drive wheel engaging and disengaging
Transport wheel
5 Operation 07
Electric controls
Height adjusting steering handle
Narrow mode steering handle
Blade choice
Blade versions
Blade changing
Blade sharpening
Start up machine
Types of tear outs
Remove weights
6 Maintenance
Wheel scrapers 13
Replace shock absorbers
7 Technical data 14
Contact 15

4
1. Introduction
It is important that all persons who are working or maintaining this machine read the manual carefully and
understand it fully.
Keep this manual near to the machine, so it can always be consulted.
Only authorized and trained personnel may operate this machine.
2. Machine description
The Blastrac BS-110 stripper is ideally suited for small and medium sized applications. The machine have a
strong electric drive system with a very easy operating with forward, backward and speed control function.
Main assets of BS-110:
- Electrical driven machine with two electrical motors
- Forward and backward function.
- Standard speed control.
- User and environmentally friendly; very low noise level, easy to operate and low vibrations.
- Very high output
- Adjustable handle position.
- Shock absorbing handles.
- Wheel scrapers as standard.
- Small and compact equipment, so easy for transportation.
- Weights can easily removed.
- Heavy duty equipment, which is almost maintenance free.
- Standard transport wheel on machine.
- Lifting handle in front of machine and lifting eye in middle position of machine.

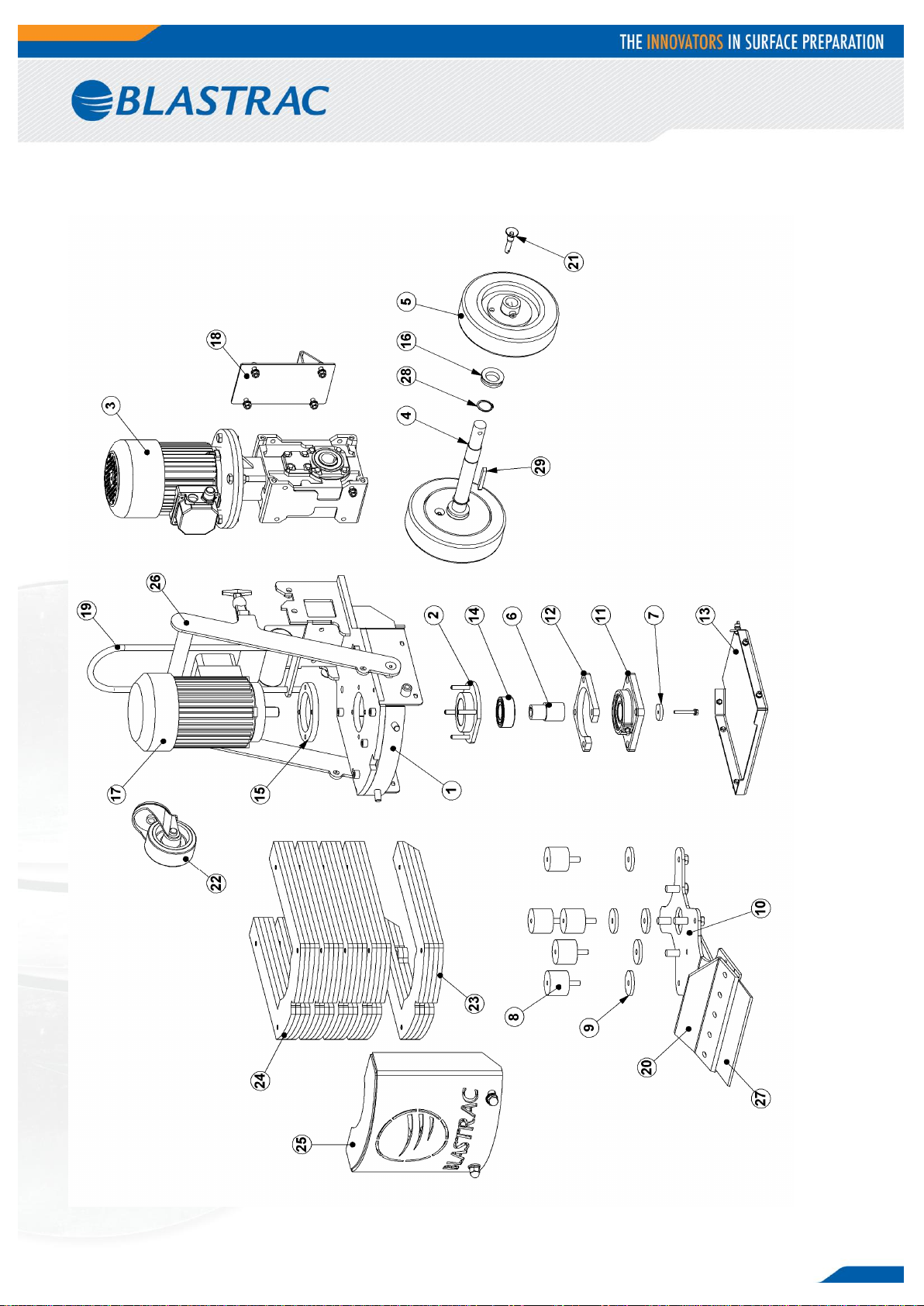

5
1
Tool holder
8
Mounting hole handle narrow position
2
M12 nuts, unscrew for remove weights
9
Drive switch lever for narrow mode
3
Transport wheel
10
Lifting eye
4
Selection switch
11
Drive wheel with quick release pin
5
Speed control
12
Hole for pin for handle in transport position
6
Clamp lever adjustable steer handle
7
Shock absorbing handle
3. Safety
It is important that all persons who are working with or maintaining this machine must read the manual
carefully and understand it fully.
Keep this manual always with the machine, to enable it to be referred to at any time.
Safety precautions
Make sure that persons who are not operating the machine are not in the surrounding area
The surface must be clear, avoid the risk of tripping.
Make sure that there are no cables or hoses in the driving direction of the machine.
Don’t get disturbed during the activities.
Safety regulations
Don’t change anything on the machine. Always use cables which are approved and safety earthed,
including extension cables. The machine is always equipped with an earthed connection, do not change
this and use always earthed cables with an earthed plug.
Connect the main power supply cable to an installation with an earth leakage circuit breaker.
Inspect and test the electrical components regularly. The electrical components have to satisfy to the
requirements which apply to these components.
Always call a skilled electrician or your distributor when you have questions about the safety of the
electrical components.
Work on electrical equipment or operating materials may only be undertaken by a skilled electrician or
by trained persons under the guidance and supervision of a skilled electrician as well as in accordance
with the electrical engineering regulations.
Pull out the main plug during inspections and repairing on the machine.
The following sticker is placed on the machine.

6
Meanings of these symbols are:
Ear protection is obliged
Safety glasses with lateral protection are obliged
CE-mark on this machine
Safety shoes obliged
Consult the manual before operating the machine
Personnel must tie back long hair and not wear loose clothing or jewellery including rings.
Wear gloves and dust mask during operating the machine.
Safety instructions
Pull out the main plug during inspections and repairing on the machine.
Keep the machine original, only use original Blastrac parts.
Do not pull out the power supply cable by the wire, but by the connector.

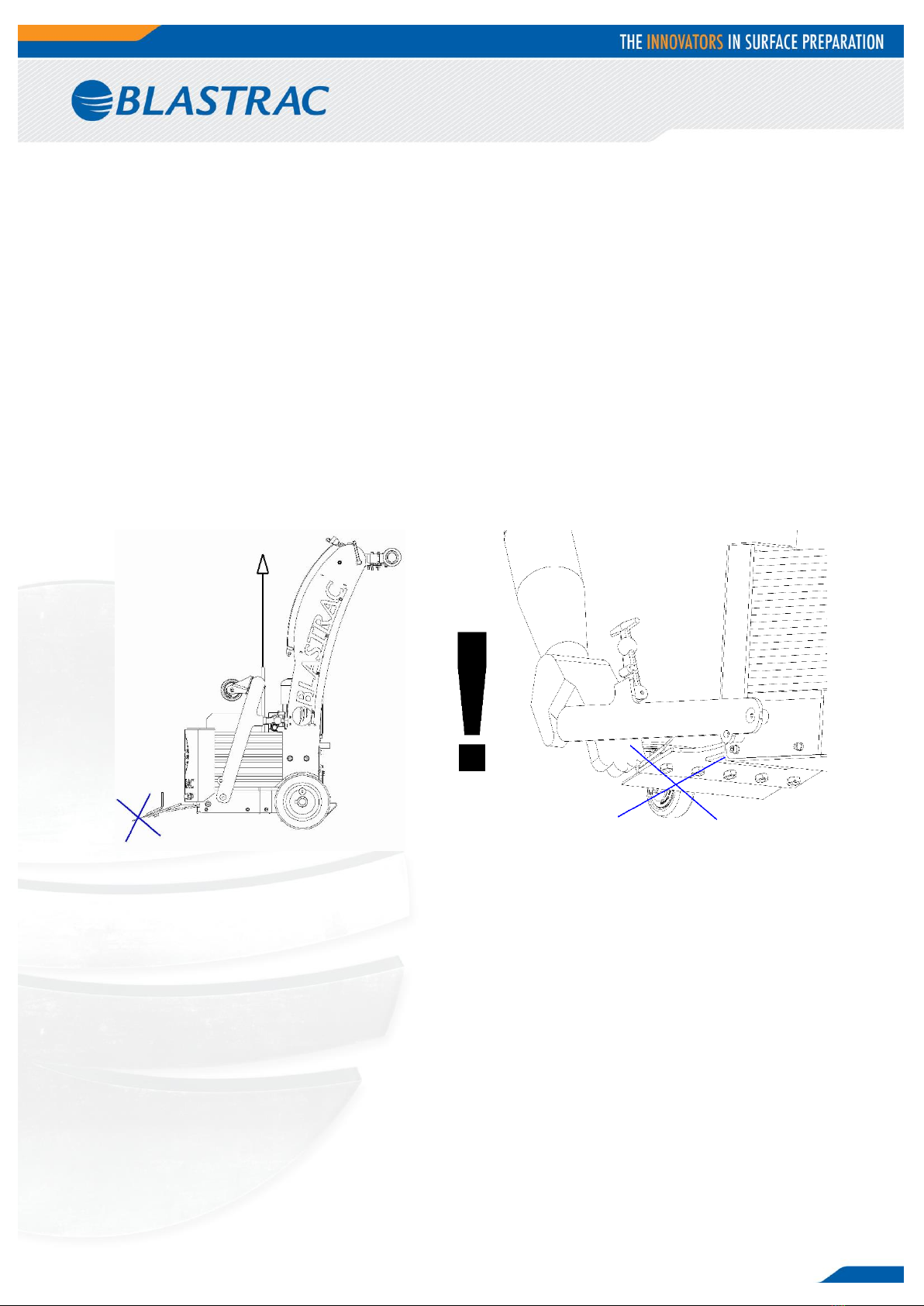

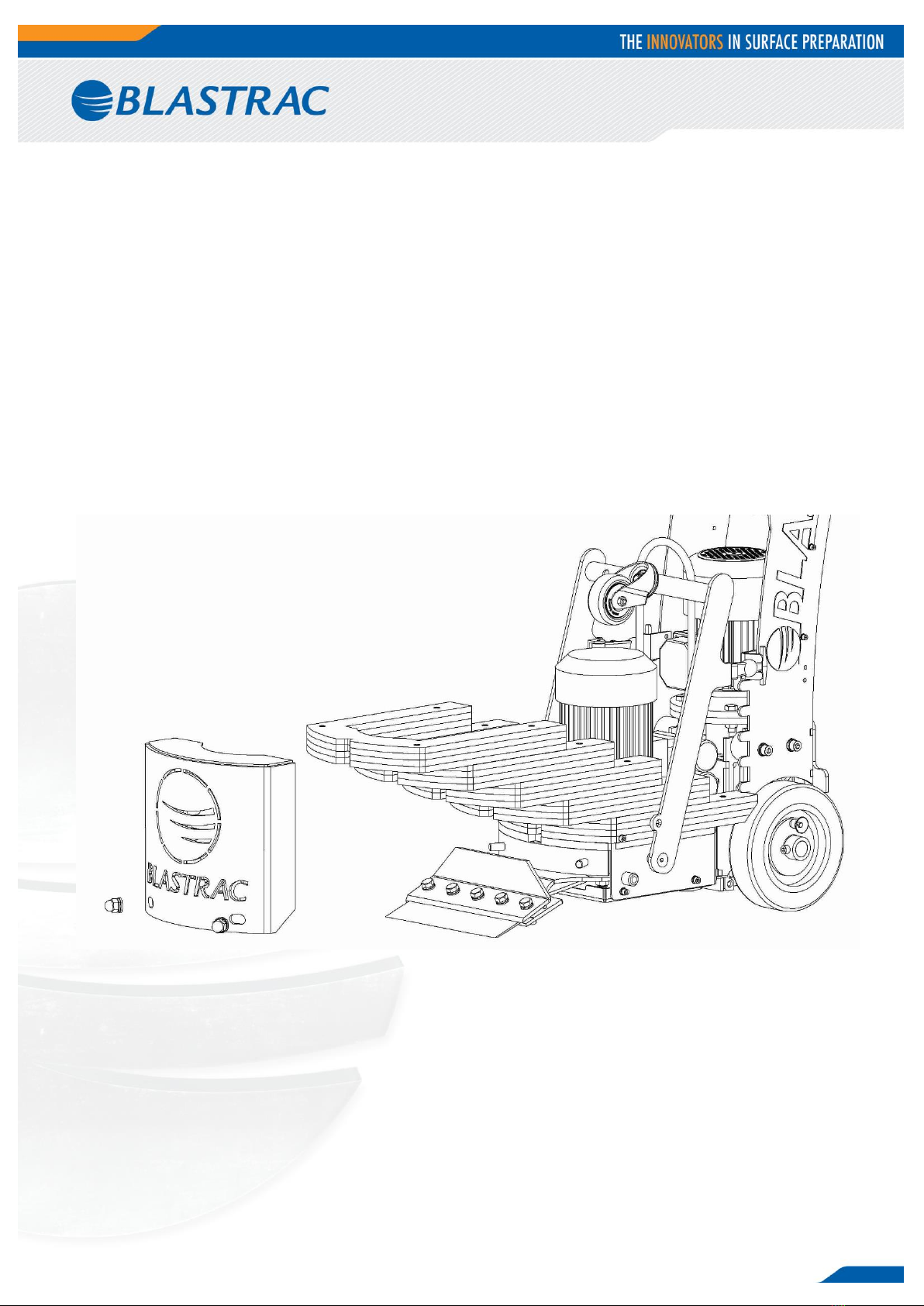

The weight of the BS-110 MKIII is 170kg with the weights. Use preferably appropriate appliances as a
lift or crane. Use the existing lifting points to lift the machine.
Never lift the machine with mounted tool! This sharp tool can be very dangerous!
4. Initial operation
Before using the machine it is of great importance to inspect the machine every day.
It is not permitted to use the machine if the machine safety is not according the checkpoints below.
Checkpoints of electrical safety
Use only extension cables for extending the main cable that are sized and marked in accordance with
the overall power consumption of the machine.
Electrical cables must be rolled entirely off of the reels.
Any damage to electric cables is not permitted.
Use an electrical power supply connection with earth connection.
Checkpoints of machine safety
Check if:
The safety functions and operating functions work correct.
There are not any loose nuts or bolts.
There are no damages on the electrical components.

7
Drive wheel engaging and disengaging
The drive wheels are engaged with quick release pins. Remove
them for easy transport by hand. Line up wheel hub hole and
wheel hole to insert pin as following: Push the machine side wards
so, that the drive wheel lift up and rotate it to line up the holes.
Never load or unload machine on a ramp or incline when wheels
are in the disengage mode. Failure to do so could cause machine
runaway, damage to machine, damage to property or cause
serious injury.
Transport wheel
The transport wheel helps to move the machine easily and
eliminate damaging to the floor. Loosen the 2 rubber clamps and
rotate the handle forwards. Secure the handle by inserting 2
quick release pins.
5. Operation
Electric controls
The selection switch (1) is mount on top of
machine. Switch to 1 to activate the
frequency driver and the machine is ready to
drive with drive motor. The drive speed can
be adjust with the drive speed control (2).
The right switch lever (3) switch the drive
motor to forward and the left switch lever
(4) switch the drive motor to backward.
Switch the selection switch to 2 to activate
the vibration motor. Selection switch on zero
switch off all functions.

8
Height adjustment steering handle
Adjusting the height of the steering handle is possible by loosening the clamp levers (1) to find a comfortable
working position.
Narrow mode steering handle
To work as close as possible along the wall it is possible to remove the right handle grip. The handle grip (2)
can be screw into the opposite side of the handle. The internal switch (1) lever can be used to switch the drive
motor to forwards.

9
Blade choice
Proper blade size and placement, depending on material and sub-floor type,
affects performance.
- The harder a job comes up, for best results, use a smaller blade.
- Start with a narrow blade, then increase the blade size to optimize the cutting pass.
- Narrower blades work easier than wider blades.
- Narrower blades usually clean the floor better.
- Normally bevel on blade is up for concrete. Bevel down for wood or soft sub-floors.

10
Blade changing
Dull blades greatly reduce cutting ability. Re-sharpen or replace as needed. Always wear gloves when changing
blades. Use extended wrench to keep hand safely away from the edge of the blade.

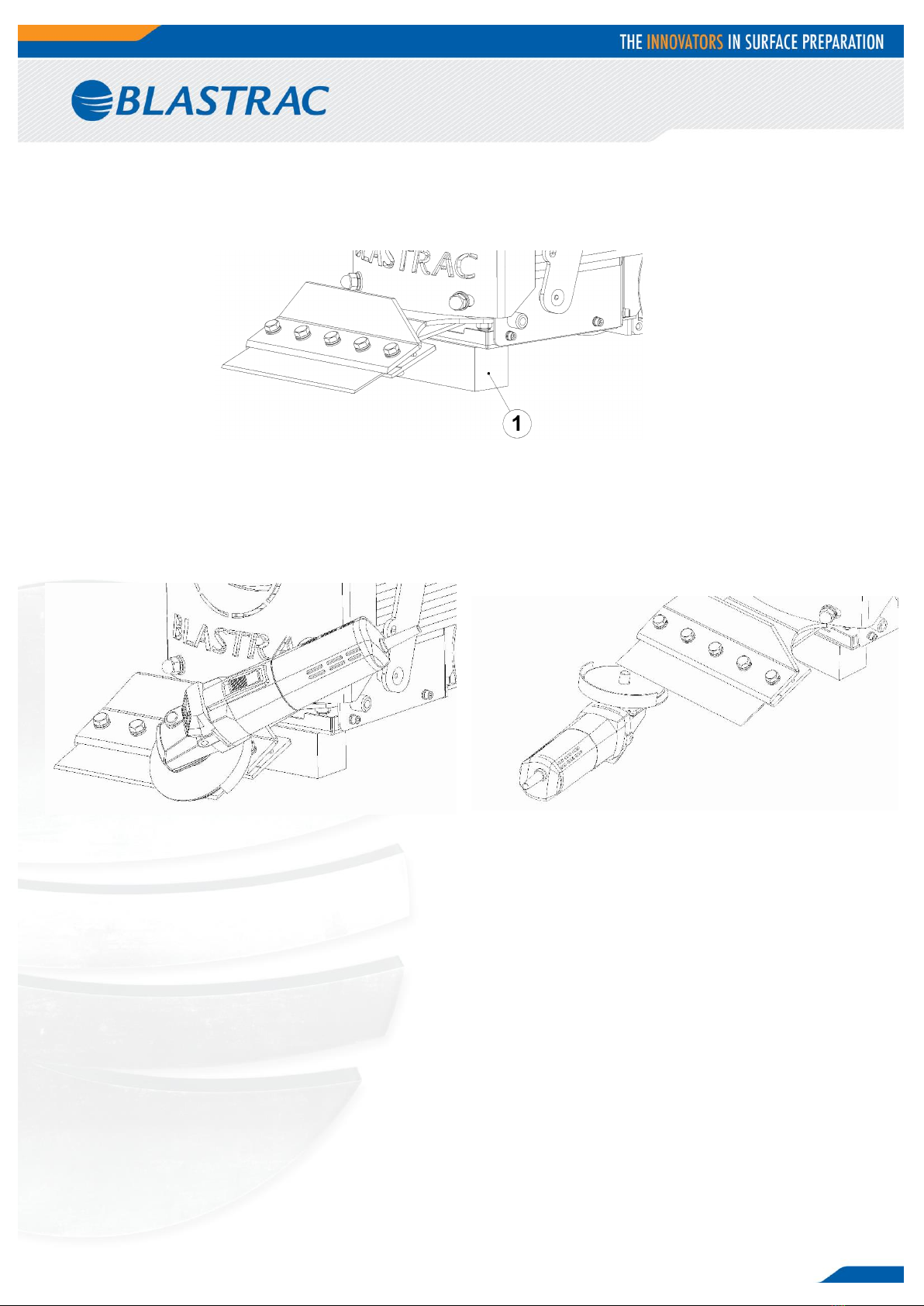

Place a bock (1) under the front of the machine and loose the five hex head bolts and replace the blade. It is
not necessary to remove the bolts. Be sure that the blade is far enough under the blade holder, to insure a
secure hold.
Blade sharpening
Always wear gloves and safety glasses. It is not necessary to remove the bolts. Sharpen the blade mounted to
the machine. Using hand grinder, block up front of machine so blade is off the floor. Sharpen the blade with a
10 cm diameter disk with 120 or finer grit. Be careful not catch disk on edge or corner of blade.
Blade bevel up Blade bevel down
Furthermore there is the opportunity to remove the blade from the machine and to sharpen the blade at a
vice, obeying the same way as shown in figures above.
Start up machine
The machine must be off before plugging the machine into power source.
1. Selection switch must be on ‘0’ position
2. Turn speed control to slowest position.
3. Plug in the main plug.
4. Turn the selection switch to ‘2’ position.
5. Engage forward or reserve switch.
6. Increase speed control to desired speed.
The frequency drive has been factory set, do not change any setting of the frequency drive.
Do not lock the wheel drive into a permanent position. If the operator would lose control or be disabled,
the machine continues to operate.
