BLAUBERG Ventilatoren Box User manual

InlIne centrIfugal fan
EN USER’S MANUAL
Box
Box-R

Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Unit design and operating principle................................................................................................................................. 9
Installation and set-up................................................................................................................................................................ 10
Connection to power mains .................................................................................................................................................. 12
Technical maintenance.............................................................................................................................................................. 13
Troubleshooting............................................................................................................................................................................. 13
Storage and transportation regulations.......................................................................................................................... 13
Manufacturer’s warranty........................................................................................................................................................... 14
Certificate of acceptance.......................................................................................................................................................... 15
Seller information.......................................................................................................................................................................... 15
Installation certificate.................................................................................................................................................................. 15
Warranty card................................................................................................................................................................................... 15
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the Box, Box-R unit and
all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
CONTENTS
www.blaubergventilatoren.de Box, Box-r
2

SAFETY REQUIREMENTS
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
The installation site of the fan must have protective elements that prevent foreign objects from
entering the fan.
When starting, setting up and operating the fan, the exhaust and supply spigots must be
protected to prevent injury from the rotating parts of the fan.
www.blaubergventilatoren.de
Box, Box-r
3

THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
Connection to the mains must be made through a disconnecting device, which is integrated
into the fixed wiring system in accordance with the wiring rules for design of electrical units,
and has a contact separation in all poles that allows for full disconnection under overvoltage
category III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
Ensure that the unit is switched off from the supply mains before removing the guard.
WARNING: If there are any unusual oscillating movements, immediately stop using the unit and
contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
Fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the appliance.
The mounting of the suspension system shall be performed by the manufacturer, its service
agent or suitably qualified persons.
The appliance is to be installed so that the blades are more than 2.3m above the floor.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
www.blaubergventilatoren.de Box, Box-r
4

NAME NUMBER
Fan 1 pc.
Mounting bracket 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
The Inline centrifugal fan is designed for supply and exhaust ventilation of domestic, public and industrial premises with high requirements
to the noise level and with limited space for mounting.
The unit is rated for continuous operation.
The unit is a component part and is not designed for stand-alone operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
DELIVERY SET
DESIGNATION KEY
PURPOSE
Designation example: Box-R 150 /100x4 max V3
Series
Box, Box-R — inline centrifugal fan
Outlet spigot diameter [mm]
80; 100; 125; 150; 160; 200
Inlet spigot diameter [mm]
_ — 80; 100
125; 150; 160; 200
Number of inlet spigots
_ — 1
2; 4; 5; 6
Motor modication
max — high-powered motor
Motor type
_ — one speed
V2 — two-speed
V3 — three-speed
DC — direct current
www.blaubergventilatoren.de
Box, Box-r
5

Model Speed Voltage
[V/50 Hz] Power [W] Current [A] Maximum air flow [m3/h]
Rotation
per minute
[RPM]
Noise level
at 3 m
distance
[dBA]
Maximum
transported
air
temperature
[°C]
Box-R 80 V3
1
230
20 0.32 88 1400 32
+50
2 26 0.34 130 1800 35
3 45 0.4 162 2600 43
Box-R 80x2 V3
1
230
20 0.32 88 1400 32
2 26 0.34 130 1800 35
3 45 0.4 162 2600 43
Box-R 80x4 V3
1
230
20 0.32 88 1400 32
2 26 0.34 130 1800 35
3 45 0.4 162 2600 43
Box-R 80x5 V3
1
230
20 0.32 88 1400 32
2 26 0.34 130 1800 35
3 45 0.4 162 2600 43
Box-R 80x6 V3
1
230
20 0.32 88 1400 32
2 26 0.34 130 1800 35
3 45 0.4 162 2600 43
Box-R 100 V3
1
230
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100/80x2 V3
1
230
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100/80x4 V3
1
230
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100/80x5 V3
1
230
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100/80x6 V3
1
230
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
The unit is designed for indoor application with the ambient temperature ranging from 0 °C up +45 °C and relative humidity
up to 80 %.
The unit is rated as a Class I electrical appliance. Hazardous parts access and water ingress protection rating: IP22 for the assembled
unit connected to the air ducts and IP44 for the unit motors.
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
TECHNICAL DATA
www.blaubergventilatoren.de Box, Box-r
6

Model Speed Voltage
[V/Hz] Power [W] Current [A] Maximum air flow [m3/h]
Rotation
per minute
[RPM]
Noise level
at 3 m
distance
[dBA]
Maximum
transported
air
temperature
[°C]
Box-R 100x2 V3
1
230/50
20 0.32 97 1400 33
+50
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100x4 V3
1
230/50
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100x5 V3
1
230/50
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box-R 100x6 V3
1
230/50
20 0.32 97 1400 33
2 26 0.34 138 1800 36
3 45 0.4 176 2600 44
Box 100 1 230/50 58 0.26 240 2500 47
+50
Box 125 1 230/50 58 0.26 340 2500 48
Box 125/100x2 1 230/50 58 0.26 340 2500 48
Box 125/100x4 1 230/50 58 0.26 340 2500 48
Box 150, Box 160 1 230/50 85 0,38 553 2600 50
+40Box 150, Box 160 1 230/60 107 0,47 610 2810 52
Box 150/125x2 1 230/50 85 0.38 553 2600 50
Box-R 125 1 230/50 48 0.22 242 1430 37 +50
Box-R 125 max 1 230/50 127 0.55 414 2800 47 +50
Box-R 125 V2 1 230/50 42 0.18 220 1960 39 +50
2 230/50 48 0.22 300 2610 45 +50
Box-R 150 1 230/50 113 0.52 536 1050 46 +50
Box-R 150 V2 1 230/50 98 0.43 356 750 45 +50
2 230/50 122 0.56 533 870 46 +50
Box-R 200 1 230/50 139 0.61 783 950 47 +50
Box-R 200 V2 1 230/50 103 0.45 460 770 46 +50
2 230/50 142 0.63 752 1200 48 +50
www.blaubergventilatoren.de
Box, Box-r
7

Model Dimensions [mm] Weight
[kg]
Ø D Ø D1 B H H1 L L1 L2
Box-R 80 V3 79 79 252 90 - 351 - 253 3.2
Box-R 100 V3 99 99 252 110 - 351 - 253 3.2
Box-R 125 124 124 270 141 - 397 - 299 5.2
Box-R 125 max 124 124 270 141 - 397 - 299 5.8
Box-R 125 V2 124 124 303 152 - 430 - 330 6.0
Box-R 150 149 149 340 207 - 447 - 350 7.1
Box-R 150 V2 149 149 340 207 - 447 - 350 7.7
Box-R 200 198 198 362 222 - 494 - 397 8.8
Box-R 200 V2 198 198 362 222 - 494 - 397 8.8
Box 100 99 99 252 133 - 420 - 321 4.5
Box 125 124 124 252 133 - 420 - 321 4.5
Box 150 149 149 300 170 - 480 - 382 5.4
Box 160 159 159 300 170 - 480 - 382 5.5
Box-R 80x2 V3 79 79 252 90 - 351 - 253 3.1
Box-R 100/80x2 V3 99 79 252 110 - 351 - 253 3.1
Box-R 100x2 V3 99 99 252 110 - 351 - 253 3.1
Box 125/100x2 124 99 252 133 - 420 - 321 4.5
Box 150/125x2 149 124 300 170 - 480 - 382 5.5
www.blaubergventilatoren.de Box, Box-r
8

Model
Dimensions [mm] Weight
[kg]
ØD ØD1 B H H1 L L1 L2
Box-R 80x4 V3 79 79 252 90 136 - 297 253 3.4
Box-R 100/80x4 V3 99 79 252 110 166 - 297 253 3.4
Box-R 100x4 V3 99 99 252 110 166 - 297 253 3.4
Box 125/100x4 124 99 252 133 191 - 370 321 5.0
Box-R 80x5 V3 79 79 252 90 136 351 - 253 3.5
Box-R 100/80x5 V3 99 79 252 110 166 351 - 253 3.7
Box-R 100x5 V3 99 99 252 110 166 351 - 253 3.5
Box-R 80x6 V3 79 79 252 90 136 351 - 253 3.6
Box-R 100/80x6 V3 99 79 252 110 166 351 - 253 3.6
Box-R 100x6 V3 99 99 252 110 166 351 - 253 3.6
www.blaubergventilatoren.de
Box, Box-r
9

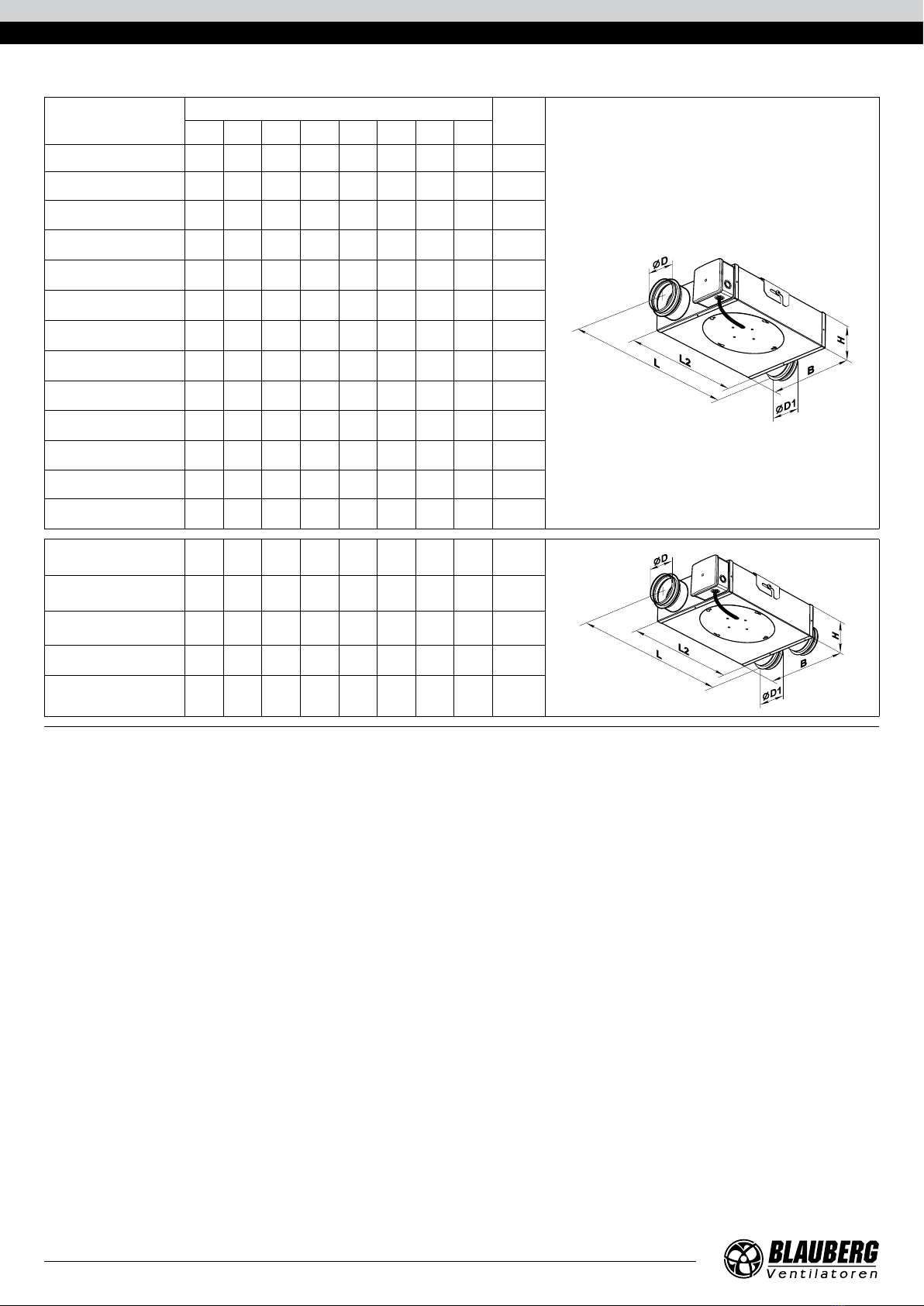

1 inlet – 1 outlet 2 inlets – 1 outlet
4 inlets – 1 outlet 5 inlets – 1 outlet 6 inlets – 1 outlet
Box-R 80...200
Box 100...160
a) Box-R 80..100/80..100x2
Box 125..150/100..125x2
c)
Box-R 80..100/80..100x4
Box 125/100x4
d) Box-R 80..100/80..100x5
e) Box-R 80..100/80..100x6
f)
Casing Terminal box
Mounting bracket
The Box-R V3 fan consists of a metal casing with a turbine fixed on a casing flange. The impeller with forward curved blades is located
inside of the scroll casing that ends up with the exhaust spigot. The terminal box incorporates an operating capacitor and a terminal
block inside, and is attached to the casing end face. The flange with the turbine and the fixing bracket with mounting slots are screwed
to the back or front panel of the fan casing depending on its model.
The Box-R fan consists of a metal casing with a turbine with backward curved blades fixed to a flange. The terminal box with an operating
capacitor and a terminal block inside is attached to the casing end face.The flange with the turbine and the fixing bracket with mounting
slots is screwed to the back or front panel of the fan casing depending on its model.
The Box-R 80 V3 and Box-R 100 V3 fans and all their modifications have 3 operating speeds.
The Box-R V2 fans have 2 operating speeds.
The Box and Box-R fans have 1 operating speed.
The Box-R max fans incorporate a high-powered motor.
DESIGN AND OPERATING PRINCIPLE
www.blaubergventilatoren.de Box, Box-r
10

WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT
MAINTENANCE AND REPAIR.
BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN
OBJECTS E.G. FOIL, PAPER.
The fan is suitable both for horizontal and vertical installation. To get the best performance of the unit and to V3mize turbulence-induced
air pressure losses, connect the straight air duct section to the spigots on both sides of the unit while installing. V3mum straight air duct
length: equal to 1 air duct diameter on intake side and to 3 air duct diameters on outlet side. No filters or any other similar devices are
allowed to be installed in these sections.
Model
Dimensions,
mm Model
Dimensions,
mm
H1 H2 H1 H2
Box-R 80 V3
60 200
Box-R 100x4 V3
60
200
H1
H2
Box-R 80x2 V3 Box-R 100x5 V3
Box-R 80x4 V3 Box-R 100x6 V3
Box-R 80x5 V3 Box 100
Box-R 80x6 V3 Box 125
Box-R 100 V3 Box 125/100x4
Box-R 100/80x2 V3 Box 150
250Box-R 100/80x4 V3 Box 150/125x2
Box-R 100/80x5 V3 Box 160
Box-R 100/80x6 V3 Box-R 125 (V2) (max) 200
Box-R 100x2 V3 Box-R 150 (V2) 250
Box-Rx200 (V2)
CAUTION!
If necessary, close the fan spigot with a plug, lubricate the rubber seal of the spigot with silicone grease.
Silicone grease for rubber seals is purchased separately, plugs are available on request.
!
Install a backdraft damper to prevent air back drafting (optionally).
a) Unit ceiling mounting b) Unit wall mounting
MOUNTING AND SETUP
www.blaubergventilatoren.de
Box, Box-r
11

Fan mounting sequence:
• Make sure that the fan is disconnected from power mains.
• Mark the positions for mounting the fixing brackets on the load-bearing surface.
• Drill the holes and fix the bracket with matching fasteners (e.g. dowels), see Fig. b.
• Install the fan on the fixing bracket (Fig. c).
• Tighten the fixing screws (Fig. d).
• Connect the air ducts to the fan spigots (Fig. e).
• Tighten the quick-detachable clamps at the points where the air ducts are connected to the spigots (see Fig. e).
Connection options of the air duct to the Box-R ... /...x4 fans are shown in Fig. g, h.
a
c
e
g
b
d
f
h
www.blaubergventilatoren.de Box, Box-r
12

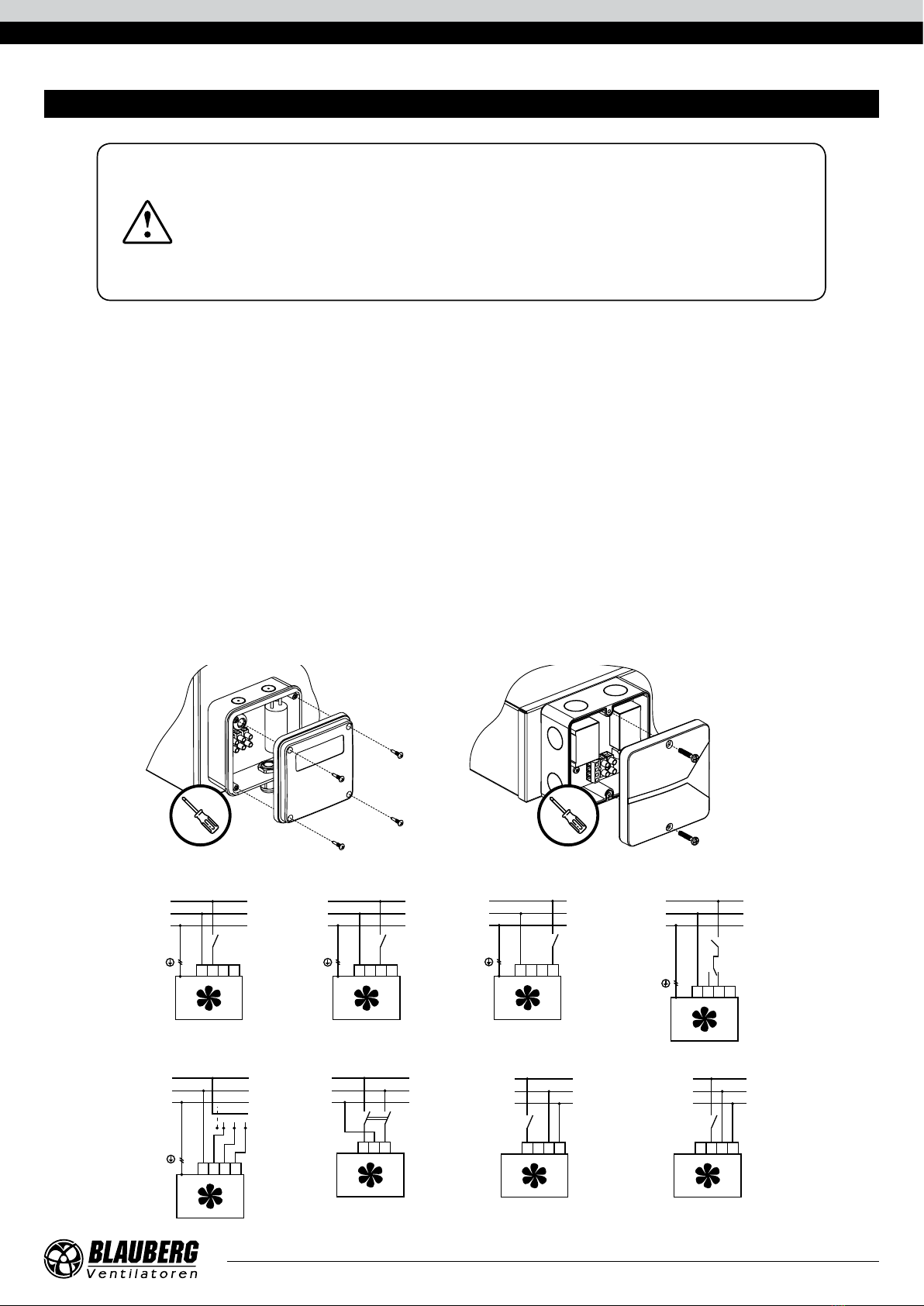

The recommended circuit breaker nominal current is 1.0 A.
The conductor section is 0.75 mm².
Connect the fan to power mains through the terminal block incorporated inside the terminal box on the fan casing in compliance with
the fan wiring diagram.
Airflow direction must be in compliance with the direction of the arrow on the fan casing.
Sequence of power supply connection:
• Remove the terminal box cover. Route the power cables through the cable entry on the terminal box.
• Strip the power wires for 7-8 mm, then insert the wire ends into the respective terminals against insulation stop to the metal part,
and fix these with screws.
• Cover the terminal box.
Mounting box
Mounting
box cover
Mounting
box cover
Terminal block
Mounting box
Terminal block
L
N
PE
S1
N 1 2 3
~230 V,
50 Hz
L
N
PE
S1
N 1 2 3
~230 V,
50 Hz
L
N
PE
S1
N 1 2 3
~230 V,
50 Hz
L
N
PE S2
N 1 2 3
~230 V,
50 Hz
L
N
PE
QF
L PE N
~230 V,
50 (60) Hz
L
N
PE
S1
N 1 2 3
~230 V,
50 Hz
S2
L
N
PE
L1 L2 N PE
~230 V,
50 Hz
S1
L
N
PE
L1 L2 N PE
~230 V,
50 Hz
S1
Box-R V3 — low speed Box-R V3 — medium speed Box-R V3 — high speed
Box-R V3 — low, medium
and high speed
Box fan connection
Box — fan connection
Box-R V3 — low and medium speed
Box-R V2 — low speed Box-R V2 — medium speed
DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED
ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER
CAREFUL READING OF THE PRESENT USER’S MANUAL.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
• The unit is rated for connection to 1~230 V/50 (60) Hz power mains.
• The unit must be connected to power mains using insulated electric conductors (cables, wires). The actual wire cross section
selection must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation,
length and installation method.
• The external power input must be equipped with an automatic circuit breaker built into the stationary wiring to open the electric
circuit in case of overload or short-circuit. The circuit breaker installation place must provide quick access for emergency shutdown
of the unit. The trip current of the automatic circuit breaker QF must exceed the maximum current consumption of the unit (refer
to the technical data table). The recommended trip current of the circuit breaker is the next current in the standard trip current row
following the maximum current of the connected unit. The automatic circuit breaker is not included in the delivery set.
CONNECTION TO POWER MAINS
www.blaubergventilatoren.de
Box, Box-r
13

The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. The impeller blades require
thorough cleaning once in 6 months.
Maintenance sequence:
• Cut off power supply to the fan (Fig. a).
• Loosen the screw (Fig. b).
• Remove the flange with the turbine from the casing (Fig. c).
• Clean the impeller blades using a dry brush or a vacuum casing (Fig. d).
Perform all the above operations in the reverse order after cleaning.
a c
bd
Problem Possible reasons Troubleshooting
The fan does not start.
No power supply. Make sure that the unit is properly connected to the
power mains and make any corrections, if necessary.
Jammed motor. Turn off the fan. Troubleshoot the motor jamming.
Restart the fan.
Circuit breaker tripping during
the fan start.
Excessive electric current consumption
caused by a short circuit. Turn off the fan. Contact the Seller.
Noise, vibration.
The fan impeller is soiled. Clean the impellers.
The screw connection is loose. Check the screw connection and tighten the screws
if needed.
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 ˚С to +40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE
ANY MAINTENANCE OPERATIONS!
TROUBLESHOOTING
TECHNICAL MAINTENANCE
www.blaubergventilatoren.de Box, Box-r
14

FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
www.blaubergventilatoren.de
Box, Box-r
15

www.blaubergventilatoren.de Box, Box-r
16

www.blaubergventilatoren.de
Box, Box-r
17

www.blaubergventilatoren.de Box, Box-r
18

CERTIFICATE OF ACCEPTANCE
Unit Type Inline centrifugal fan
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The _____________________________________ unit is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Inline centrifugal fan
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller
www.blaubergventilatoren.de
Box, Box-r
19

www.blaubergventilatoren.de
B17EN-06
