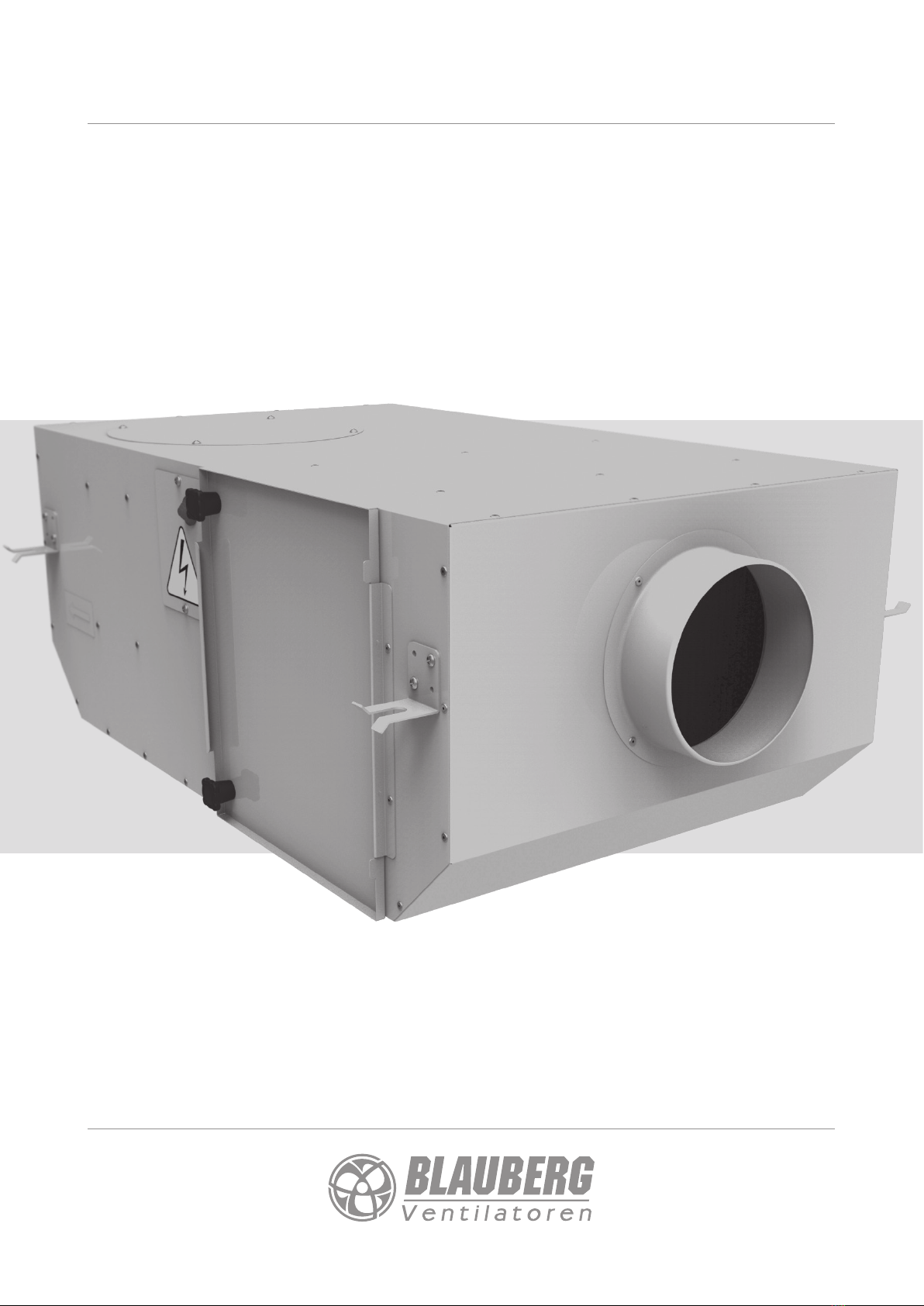

BLAUBERG Ventilatoren Iso Box-F 100 User manual

USER’S MANUAL
Iso Box-F 100
Iso Box-F 150
Iso Box-F 150 L
Iso Box-F 200
Iso Box-R 100
Iso Box-R 150
Iso Box-R 150 L
Iso Box-R 200
Sound-insulated
centrifugal filter fan

www.blaubergventilatoren.de
2
Iso Box-F(R)
Read the user’s manual carefully prior to installing and operating the unit.
Fulfil the user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical and technical norms
and standards.
The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
After a careful reading of the manual, keep it for the entire service life of the unit.
While transferring the unit control the user’s manual must be turned over to the receiving operator.
Symbol legend:
WARNING!
DO NOT!
This user’s manual consisting of the technical details, operating instructions and technical specification covers the installation and mounting of the Iso
Box-F(R) sound-insulated centrifugal filter fan (hereinafter referred to as «the fan» or «the unit» as mentioned in the «Safety requirements» and «Manufacturer’s
warranty» sections as well as in warnings and information blocks).
Safety requirements ......................................................................................................................................... 2
Purpose .................................................................................................................................................................... 4
Delivery set ............................................................................................................................................................ 4
Designation key .................................................................................................................................................. 4
Technical data ...................................................................................................................................................... 4
Unit design and operating logic ............................................................................................................... 7
Mounting and set-up ...................................................................................................................................... 8
Connection to power mains and control ........................................................................................... 9
Technical maintenance .................................................................................................................................. 10
Troubleshooting ................................................................................................................................................. 11
Storage and transportation regulations .............................................................................................. 11
Manufacturer's warranty ............................................................................................................................... 11
Acceptance certificate .................................................................................................................................... 12
Seller information .............................................................................................................................................. 12
Installation certificate ...................................................................................................................................... 12
Warranty card ....................................................................................................................................................... 12
CONTENTS
SAFETY REQUIREMENTS
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from power mains prior to
any installation operations. • The unit must be grounded!
• Do not lay the power cable of the unit in close
proximity to heating equipment.
• While installing the unit follow the safety
regulations specific to the use of electric tools.

3
• Do not change the power cable length at your
own discretion.
• Do not bend the power cable.
• Avoid damaging the power cable.
• Do not put any foreign objects on the power
cable.
• Unpack the unit with care.
• Do not use damaged equipment or cables
when connecting the unit to power mains.
• Do not operate the unit outside the
temperature range stated in the user's manual.
• Do not operate the unit in aggressive or
explosive environments.
• Do not touch the unit controls with wet hands.
• Do not carry out the installation and
maintenance operations with wet hands.
• Do not wash the unit with water.
• Protect the electric parts of the unit against
ingress of water.
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
• Do not allow children to operate the unit. • Disconnect the unit from power mains prior to
any technical maintenance.
• Do not store any explosive or highly flammable
substances in close proximity to the unit.
• When the unit generates unusual sounds, odour
or emits smoke disconnect it from power supply
and contact the Seller.
• Do not open the unit during operation. • Do not direct the air flow produced by the unit
towards open flame or ignition sources.
• Do not block the air duct when the unit is
switched on.
• In case of continuous operation of the unit
periodically check the security of mounting.
• Do not sit on the unit and avoid placing foreign
objects on it. • Use the unit only for its intended purpose.

www.blaubergventilatoren.de
4
Iso Box-F(R)
The fan is designed for ventilation of domestic, public and industrial premises with high requirements to the noise level and with limited space for
mounting.
The fan is intended for mounting into a system of round air ducts.
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafés, conference halls and other utility and public
spaces.
The fan is intended for suspended mounting.
The unit is rated for continuous operation.
PURPOSE
THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL,
MENTAL OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL
AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY
UNATTENDED CHILDREN.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust,
soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
DELIVERY SET
Name Number
Fan 1 item
User's manual 1 item
Packing box 1 item
DESIGNATION KEY
Iso Box - F 100 G4 V2 L
Unit model name
Connected air ducts
diameter [mm]
Filter (installed filters are listed in hy-
phenated form)
G4 - filter of G4 filtration class
F8 — filter of F8 filtration class
H13 - filter of H13 filtration class
C - carbon filter
Motor type
_ — single-speed
V2 — two-speed
L — low-noise design
Filters
F — with filters
R — no filters
TECHNICAL DATA
The fan is designed for operation in an enclosed area at ambient temperatures from -25 ˚C to + +40 ˚C at relative humidity of up to 80 % (at +25 ˚C).
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The unit casing is made of painted steel.
The unit design is constantly being improved, so some models can slightly differ from those ones described in this manual.
Air capacity of the fan is shown in the table below.

5
L2
R6
12
L
L1
D
B B2
H
B1
K K1
R6
12
L2
L1
L
B
K K1 H
B2 B1
D

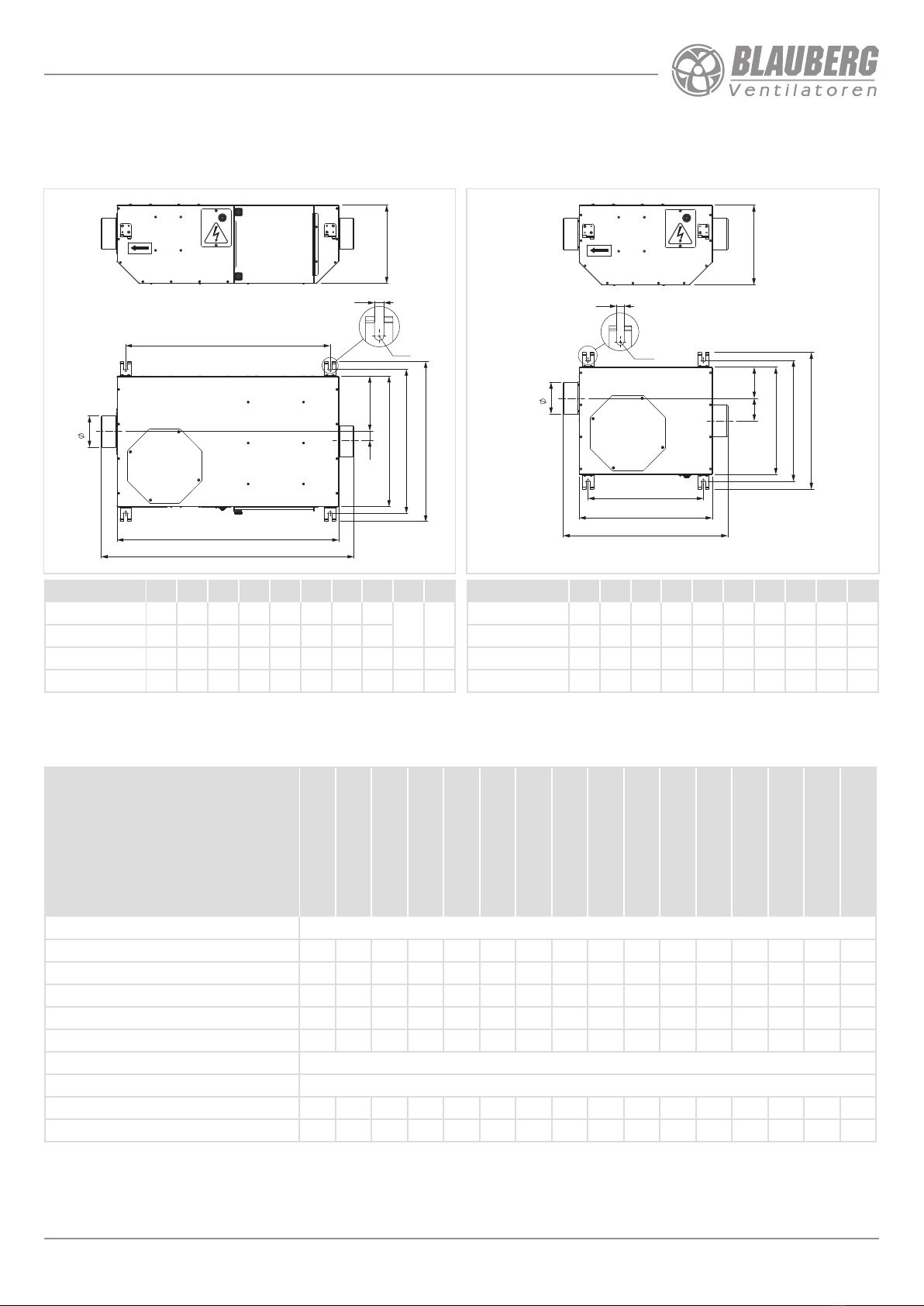

OVERALL DIMENSIONS OF THE UNIT, MM
Model D L H B L1 B1 L2 B2 K K1
Iso Box-F 100 100 705 250 415 805 508 650 458 31 177
Iso Box-F 150 L 150 705 250 415 805 508 650 458 31 177
Iso Box-F 150 150 735 300 440 835 533 680 483 47 173
Iso Box-F 200 200 735 300 605 835 698 680 648 35 267
Model D L H B L1 B1 L2 B2 K K1
Iso Box-R 100 100 415 250 335 515 428 360 378 70 97
Iso Box-R 150 L 150 415 250 335 515 428 360 378 70 97
Iso Box-R 150 150 450 300 395 550 488 395 438 70 127
Iso Box-R 200 200 450 300 395 550 488 395 438 70 127
Iso Box-F Iso Box-R
ISO BOXF TECHNICAL DATA
Parameters
Iso Box-F 100 Iso Box-F 100 G4 Iso Box-F 100 G4/F8 Iso Box-F 100 G4/H13 Iso Box-F 150 L Iso Box-F 150 G4 L Iso Box-F 150 G4/F8 L Iso Box-F 150 G4/H13 L Iso Box-F 150 Iso Box-F 150 G4 Iso Box-F 150 G4/F8 Iso Box-F 150 G4/H13 Iso Box-F 200 Iso Box-F 200 G4 Iso Box-F 200 G4/F8 Iso Box-F 200 G4/H13
Voltage [V] 1 ~ 230
Power [W] 53 53 53 52 63 63 61 59 107 107 104 102 123 123 120 115
Current [A] 0.27 0.27 0.27 0.27 0.29 0.29 0.25 0.28 0.49 0.49 0.48 0.48 0.56 0.56 0.56 0.52
Maximum air capacity [m3/h] 190 190 180 170 360 360 330 310 440 440 400 360 580 580 570 490
RPM [min-1] 1300 1300 1300 1300 1300 1300 1300 1300 1250 1250 1250 1250 1250 1250 1250 1250
Sound pressure level at 3 m distance [dB(A)] 23 23 23 23 25 25 25 25 27 27 27 27 38 38 38 38
Maximum transported air temperature [˚C] -25..+40
Ingress protection rating of the casing IPX4
PM 2.5 Ratio [%] 36 36 93 98 31 31 92 98 39 39 92 98 40 40 93 98
Energy efficiency (SEC) class C C C C C C C C D C C C

www.blaubergventilatoren.de
6
Iso Box-F(R)
ISO BOXF V2 TECHNICAL DATA
Parameters
Iso Box-F 100 G4 V2 Iso Box-F 100 G4/F8 V2 Iso Box-F 100 G4/H13 V2 Iso Box-F 150 G4 L V2 Iso Box-F 150 G4/F8 L V2 Iso Box-F 150 G4/H13 L V2 Iso Box-F 150 G4 V2 Iso Box-F 150 G4/F8 V2 Iso Box-F 150 G4/H13 V2 Iso Box-F 200 G4 V2 Iso Box-F 200 G4/F8 V2 Iso Box-F 200 G4/H13 V2
Fan speed 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2
Voltage [V] 1~ 230
Power [W] 34 42 33 41 32 41 44 52 41 50 40 48 92 117 89 115 85 114 106 123 103 121 97 119
Current [A] 0.15 0.19 0.15 0.19 0.15 0.19 0.19 0.23 0.18 0.22 0.18 0.21 0.41 0.55 0.41 0.55 0.38 0.54 0.47 0.59 0.45 0.57 0.43 0.55
Maximum air capacity [m3/h] 160 190 150 175 140 160 230 340 215 310 205 285 320 430 300 390 280 355 390 630 380 590 350 525
RPM [min-1] 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200 700 1200
Sound pressure level at 3 m distance [dB(A)] 14 23 14 23 14 23 15 25 15 25 15 25 16 27 16 27 16 27 22 38 22 38 22 38
Maximum transported air temperature [˚C] -25..+40
Ingress protection rating of the casing IPX4
PM 2.5 Ratio [%] 35 31 94 93 99 98 31 23 90 87 93 92 47 41 95 94 98 96 37 28 98 97 99 98
Energy efficiency (SEC) class C C D C C C D D E C D D
ISO BOXR TECHNICAL DATA
Parameters
Iso Box-R 100 Iso Box-R 150 L Iso Box-R 150 Iso Box-R 200
Voltage [V] 1~ 230
Power [W] 61 75 103 130
Current [A] 0.27 0.33 0.48 0.58
Maximum air capacity [m3/h] 180 300 450 600
RPM [min-1] 1200 1200 1200 1200
Sound pressure level at 3 m distance [dB(A)] 23 25 27 38
Maximum transported air temperature [˚C] -25..+40
Ingress protection rating of the casing IPX4
Energy efficiency (SEC) class E E E E
ISO BOXR V2 TECHNICAL DATA
Parameters
Iso Box-R 100 V2 Iso Box-R L 150 V2 Iso Box-R 150 V2 Iso Box-R 200 V2
Speed 1 2 1 2 1 2 1 2
Voltage [V] 1~ 230
Power [W] 36 43 46 54 92 119 107 137
Current [A] 0.15 0.2 0.2 0.25 0.4 0.55 0.47 0.62
Maximum air capacity [m3/h] 170 200 220 360 350 450 370 600
RPM [min-1] 700 1200 700 1200 700 1200 700 1200
Sound pressure level at 3 m distance [dB(A)] 14 23 15 25 16 27 22 38
Maximum transported air temperature [˚C] -25..+40
Ingress protection rating of the casing IPX4
Energy efficiency (SEC) class F E F F

7
UNIT DESIGN AND OPERATING LOGIC
The device is a sound-insulated centrifugal fan.
The fan casing is made of galvanized sheet steel using heat- and sound-insulation material.
The round connecting spigots are rubber sealed.
The fan is equipped with a two-pole AC motor with an external rotor and an impeller with backward curved blades.
The motor has an integrated overheating protection with an automatic restart.
Use of the motor with ball bearings with specially selected grease ensures low-noise, maintenance-free operation of the fan.
The Iso Box-F fans are equipped with filters of different filtration classes.
Each Iso Box-F fan enables installing up to three filters of different intake air filtration classes (from rough to fine filtering).
Air flow direction is indicated by an arrow on the casing of the unit.
Filter maintenance panel
Filter
Terminal box cover
Fan
Sound insulation material
Service cover
Iso Box-F
Iso Box-R
Mounting bracket
Fan
Sound insulation material
Service cover
Terminal box cover
Mounting bracket
UNIT DESIGN AND OPERATING LOGIC

www.blaubergventilatoren.de
8
Iso Box-F(R)
MOUNTING AND SETUP
The fan is suspended to the mounting surface through the threaded rod fixed inside the expansion anchor. The fan is intended for mounting to
round air ducts. The fans are installed between the air ducts.
The casing is equipped with fixing brackets for easier installation of the fan.
While installing the unit ensure convenient access for subsequent maintenance and repair. Fasteners for ceiling mounting are not included into
delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit,
refer to the Technical Data section. Fasteners for unit mounting should be selected by the service technician.
To attain the best performance of the fan and to minimise turbulence-induced air pressure losses connect the straight air duct section to the spigots
on both sides of the unit while mounting.
Minimum straight air duct length:
• equal to 1 air duct diameter on intake side
• equal to 3 air duct diameters on outlet side
If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects.
To prevent uncontrollable access to the fan the spigots may be covered with a protecting grille or other protecting device with mesh width not
more than 12.5 mm.
min 800 mm
Nut
Washer
Vibration absorbing
rubber
Washer
Nut and lock nut
Access to filters
(only Iso Box-F)
FAN MOUNTING

9
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE FAN MUST
BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN.THE RATED ELECTRICAL
PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
ANY INTERNAL CONNECTION MODIFICATIONS ARE NOT ALLOWED
AND RESULT IN WARRANTY LOSS.

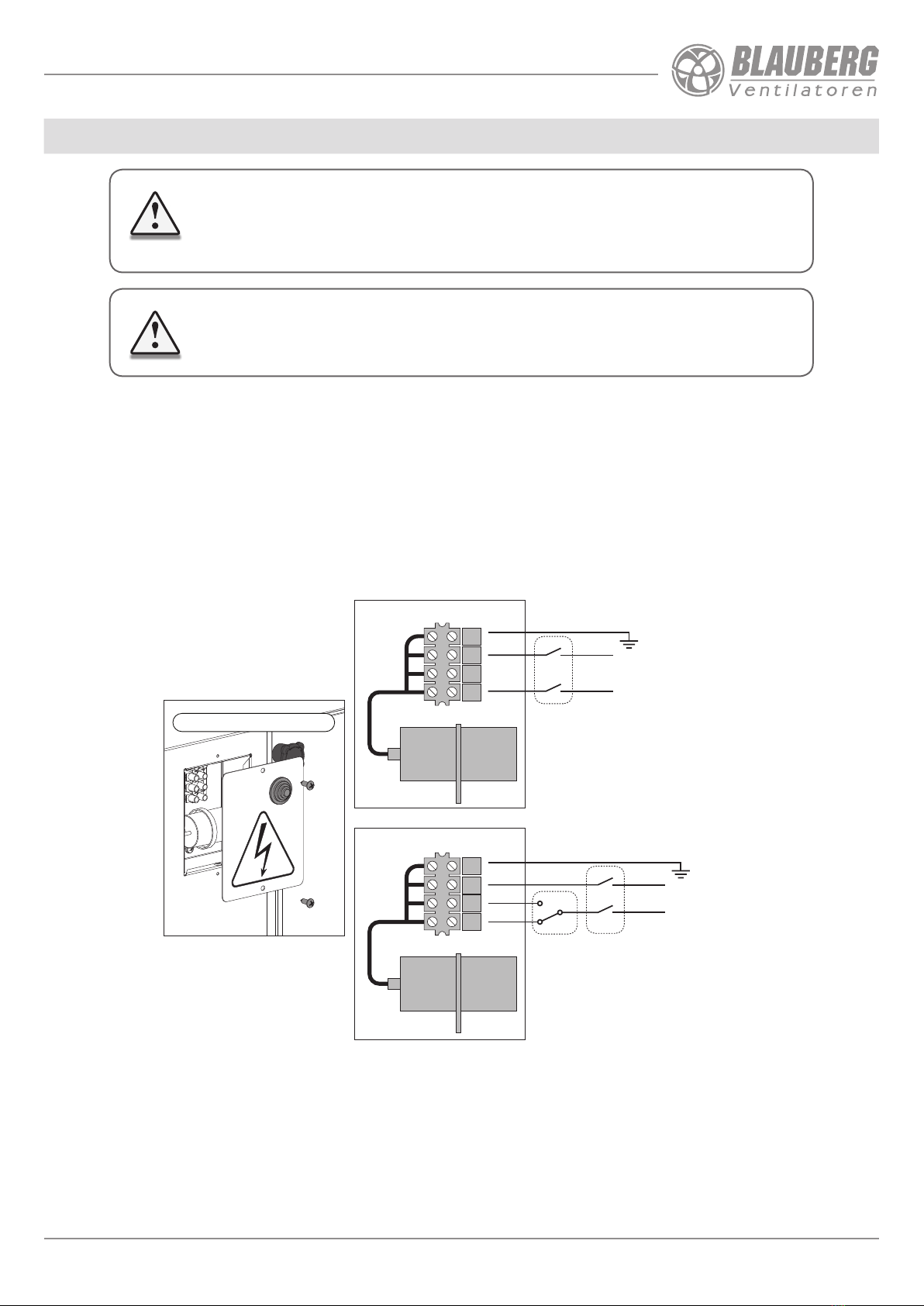

CONNECTION TO POWER MAINS AND CONTROL
The fan is rated for connection to single-phase AC 230 V/50 Hz power mains according to the wiring diagram below.
The terminal designation is placed inside of the terminal box.
The terminal clamp marking corresponds to the marking on the wiring diagram.
The fan must be connected to power mains using durable, insulated and heat-resistant conductors (cables and wires) with corresponding cross section
(not less than 0.75 mm2).
Route the conductors to the terminal box through the stepped grommet on the unit panel to preserve the electrical protection class.
Connect the unit to power mains through the external automatic switch with a magnetic trip integrated into the fixed wiring system with the rated
current not less than 1 A.
L N PE
QF
N
L
~230 V/50 Hz
Access to the terminal block
L1 L2 N PE
QF
S1
N
L~230 V/50 Hz
Single-speed fan wiring diagram
Two-speed fan wiring diagram
EXTERNAL CONNECTIONS DIAGRAM

www.blaubergventilatoren.de
10
Iso Box-F(R)
TECHNICAL MAINTENANCE
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS.
Maintenance operations of the unit are required 3-4 times per year.
Technical maintenance includes regular cleaning of the unit and periodic cleaning of filters.

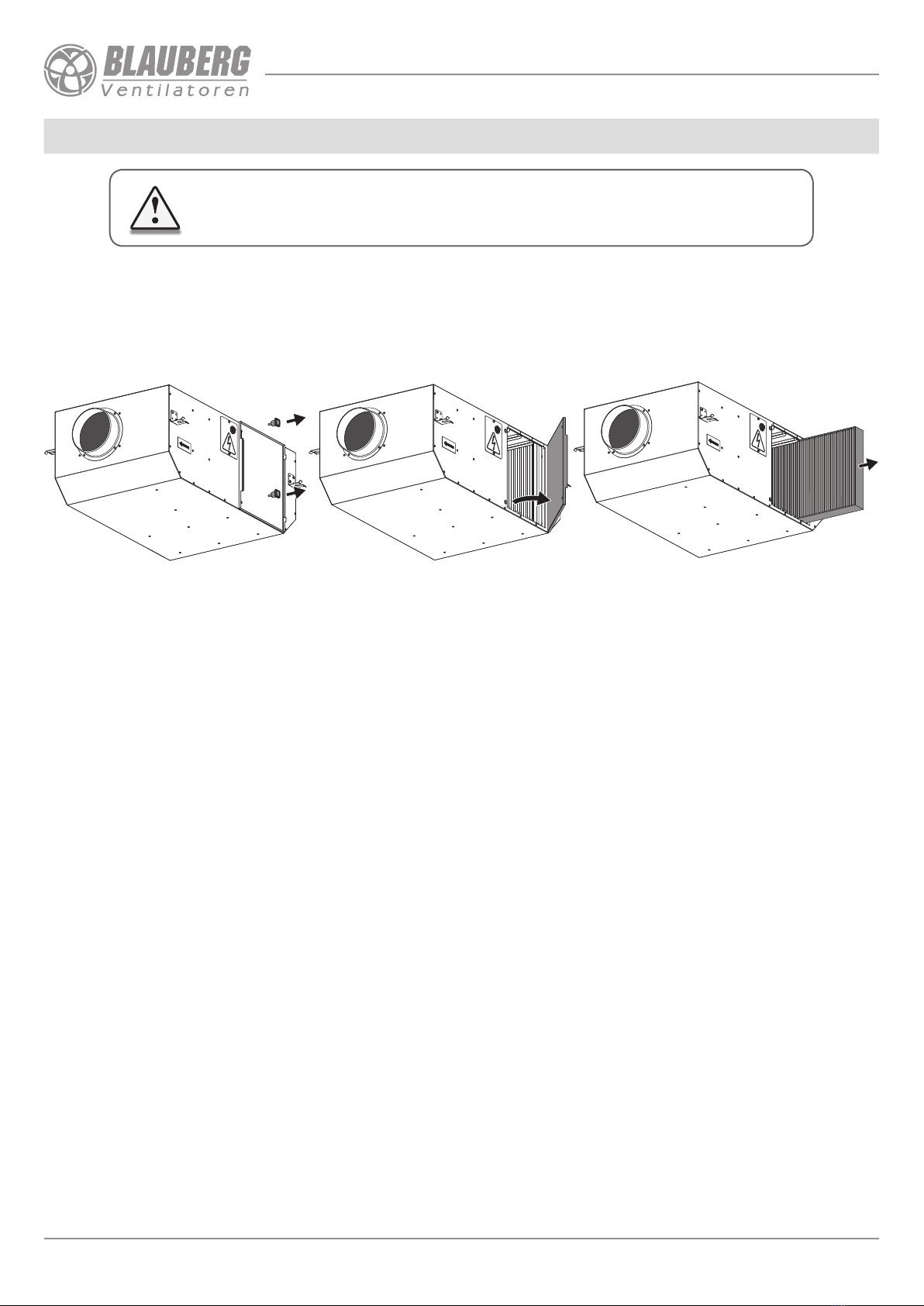

1. Filter maintenance (3-4 times per year) – only for Iso Box-F.
Dirty filters increase air resistance. The filters require cleaning not less than 3-4 times per year. Vacuum cleaning is allowed. After two consecutive
cleanings filters must be replaced. For new filters contact the Seller. Filter replacement sequence:
1. Unlatch the service panel.
2. Open the service panel.
3. Pull the filters to remove.
4. Re-assemble the unit in the reverse order.
2. Fan maintenance (once a year).
Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow.
Clean the fans with a soft brush or cloth. Do not use water, aggressive solvents or sharp objects as they may damage the impeller.
3. Supply air ow control (twice per year).
The supply duct grille may get clogged with leaves and other objects reducing the unit performance and supply air delivery. Check the supply grille
twice per year and clean it as required.
4. Technical maintenance of air duct system (every 5 years).
Even regular fulfilling of all the prescribed above maintenance operations may not completely prevent dirt accumulation in the air ducts which reduces
the unit capacity. Duct maintenance means regular cleaning or replacement.

11
TROUBLESHOOTING
Problem Possible reasons Troubleshooting
The fan(s) do(es) not get
started.
No power supply. Make sure the power supply line is connected correctly, otherwise
troubleshoot a connection error.
Jammed motor. Turn off the fan. Troubleshoot the motor jamming. Restart the fan.
Automatic circuit breaker
tripping following the fan
turning on
High current consumption due to short circuit in power line. Turn off the fan. Contact the Seller.
Low air flow
The filters and the fans are clogged, the heat exchanger is clogged. Clean or replace the filters, clean the fans and the heat exchanger.
The ventilation system components (air ducts, diffusers, louvre
shutters, grilles) are clogged or damaged.
Clean or replace the ventilation system components (air ducts,
diffusers, louvre shutters, grilles).
Cold supply air Extract filter clogging. Clean or replace the extract filter.
Noise, vibration
The impellers are soiled. Clean the impellers.
The fan or casing screw connection is loose. Tighten the screw connection of the fans or the casing against
stop.
STORAGE AND TRANSPORTATION REGULATIONS
Store the unit in the manufacturer’s original packing box in a dry closed ventilated premise with temperature range from +5 ˚C to + 40 ˚C.
Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation and sealing deformation.
Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
Follow the handling requirements applicable for the particular type of cargo.
The unit can be transported in the original packing by any mode of transport without limitation provided proper protection against precipitation and
mechanical damage.
Avoid sharp blows, scratches or rough handling during transportation, loading and unloading.
The unit complies with the requirements according to the EU norms and directives, to the relevant EU-Low Voltage Equipment Directives, EU-Directives
on Electromagnetic Compatibility.
We hereby declare that the unit complies with the essential protection requirements of Electromagnetic Council Directive 2004/108/EC, 89/336/EEC
and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility, which relate to electrical appliances used in set voltage classes.
The manufacturer hereby warrants normal operation of the unit over the period of two years from the retail purchase date provided observance of the
installation and operation regulations.
In case of a failure due to a manufacturing fault during the warranty period the consumer has the right to exchange it.
The replacement is offered by the Seller.
In case of no confirmation of the purchase date, the warranty period shall be calculated from the manufacturing date.
The MANUFACTURER is not responsible for any damage resulting from any misuse of or gross mechanical interference with the unit.
The MANUFACTURER is not responsible for the damages resulted due to the use of third party equipment or to third party equipment.
MANUFACTURER’S WARRANTY
WARNING!
THE PRODUCT MUST BE COLLECTED SEPARATELY AT THE END OF SERVICE LIFE.
THE UNIT CONTAINS IN PART MATERIALS THAT CAN BE RECYCLED AND IN PART
SUBSTANCES THAT SHOULD NOT END UP AS DOMESTIC WASTE.
DISPOSE OF THE UNIT ONCE IT HAS REACHED THE END OF ITS WORKING LIFE
ACCORDING TO THE REGULATIONS VALID IN YOUR COUNTRY.

www.blaubergventilatoren.de
12
Iso Box-F(R)
ACCEPTANCE CERTIFICATE
SELLER INFORMATION
INSTALLATION CERTIFICATE
WARRANTY CARD
Unit Type Sound-insulated centrifugal filter fan
Model Iso Box- ______________________________________
Serial Number
Manufacture Date
Quality
Inspector’s Stamp
Seller
Address
Phone Number
E-mail
Purchase Date
Seller’s Stamp
Seller’s Stamp
Installation Company Stamp
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
Sound-insulated centrifugal filter fan
Iso Box- ______________________________________
has been connected to power mains pursuant to the requirements stated in the present user’s manual.
Company Name
Address
Phone Number
Installation Technician's
Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
Unit Type Sound-insulated centrifugal filter fan
Model Iso Box- ______________________________________
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

13

www.blaubergventilatoren.de
14
Iso Box-F(R)

15

IsoBox_F(R)_v.2(0)_EN
