BLAUBERG Ventilatoren Moon User manual

USER’S MANUAL
MOON | HI-FI | BAVARIA
AXIAL FAN
EN

2
EN
CONTENTS
Delivery set ............................................................................................................................................................................................................................................ 8
Brief description ................................................................................................................................................................................................................................. 8
Operation guidelines ....................................................................................................................................................................................................................... 8
Designation key................................................................................................................................................................................................................................... 9
Mounting................................................................................................................................................................................................................................................. 9
Electronic system operation algorithm................................................................................................................................................................................ 10
Maintenance.......................................................................................................................................................................................................................................... 11
Troubleshooting.................................................................................................................................................................................................................................. 12
Storage and transportation regulations............................................................................................................................................................................... 12
Manufacturer’s warranty................................................................................................................................................................................................................ 13
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
Blauberg Moon/Hi-Fi/Bavaria unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should
be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the
territory of the country.
The information in this user’s manual is correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time
in order to incorporate the latest technological developments.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means in any
information search system or translated into any language in any form without the prior written permission of the Company.

3
EN
READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS.
COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG
SERVICE LIFE OF THE UNIT.
KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO
REREAD THE INFORMATION ON THE PRODUCT SERVICING.
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and
operating the unit.
Disconnect the unit from power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical units
up to 1000 V are allowed for installation and maintenance. The
present user’s manual should be carefully read before beginning
works.
• Single-phase power mains must comply with the acting local
electrical norms and standards.

4
EN
• Fixed electrical wiring must be equipped with an automatic circuit
breaker.
• The unit must be connected to power mains through a double pole
circuit breaker of suitable rating integrated into the fixed wiring
system with opening of contacts at all poles. The gap between the
circuit breaker contacts at all poles must be not less than 3 mm.
• Check the unit for any visible damage of the impeller, the casing,
and the grille before starting installation. The casing internals must
be free of any foreign objects that can damage the impeller blades.
• While mounting the unit, avoid compression of the casing!
Deformation of the casing may result in motor jam and excessive
noise.
• Misuse of the unit and any unauthorized modifications are not
allowed.
• Do not expose the device to adverse atmospheric agents (rain, sun,
etc.).
• Take steps to prevent ingress of smoke, carbon monoxide, and other
combustion products into the room through open chimney flues or

5
EN
other fire-protection devices. Sufficient air supply must be provided
for proper combustion and exhaust of gases through the chimney
of fuel burning equipment to prevent back drafting.
• The unit may adversely affect the safe operation of appliances
burning gas or other fuels (including those in other rooms) due to
back flow of combustion gases. These gases can potentially result
in carbon monoxide poisoning. After installation of the unit the
operation of flued gas appliances should be tested by a competent
person to ensure that back flow of combustion gases does not
occur.
• Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
• Do not use the unit in a hazardous or explosive environment
containing spirits, gasoline, insecticides, etc.
• Do not close or block the intake or extract vents in order to ensure
the efficient air flow.
• Do not sit on the unit and do not put objects on it.

6
EN
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Do not allow children to play with the unit.
• Cleaning and user maintenance shall not be made by children
without supervision.
• The information in this user’s manual was correct at the time of the
document’s preparation.
• The Company reserves the right to modify the technical
characteristics, design, or configuration of its products at any time in
order to incorporate the latest technological developments.
• No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means in any
information search system or translated into any language in any
form without the prior written permission of the Company.

7
EN
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
WARNING! Similar to the use of any other household electrical
appliances when operating this fan, the following basic rules
must be followed:
• Never touch the fan with wet or damp hands.
• Never touch the fan when barefoot.

8
EN
DELIVERY SET
Fan - 1 pc.
Screws with dowels - 4 pcs.
Plastic screwdriver - 1 pc. (only for the models with a timer)
User’s manual - 1 pc.
Packing box - 1 pc.
BRIEF DESCRIPTION
The product is an axial fan for exhaust ventilation of small and medium-sized premises heated in winter. The design of the fan
may include a back valve that prevents air from flowing into the room when the fan is off. The fan is designed for connection
to ø100 and 125 mm air ducts.
OPERATION GUIDELINES
The fan is rated for connection to 220-240 V/50 Hz or 12 V/50 Hz single-phase AC power mains, depending on the model type.
For more detailed information, see the casing sticker. Ingress protection rating against access to hazardous parts and water
ingress is IP44. The manufacturer’s recommended operating temperature range is from +1 °C to + 40 °C.
The unit is rated as a Class II (220-240 V/ 50 Hz) or Class III (12 V/50 Hz) electric appliance.

9
EN
MOUNTING

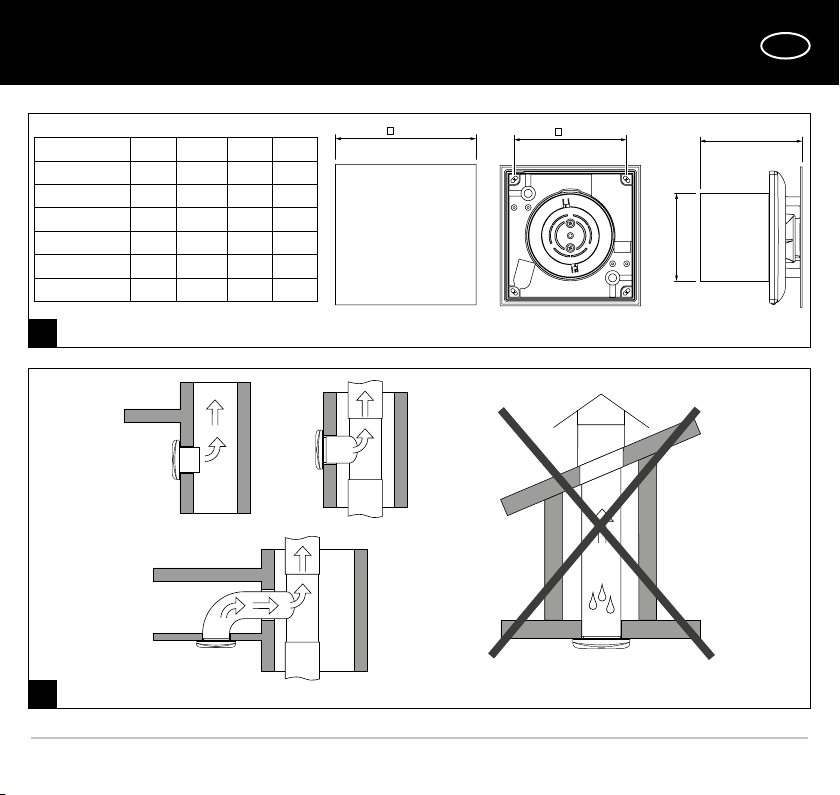

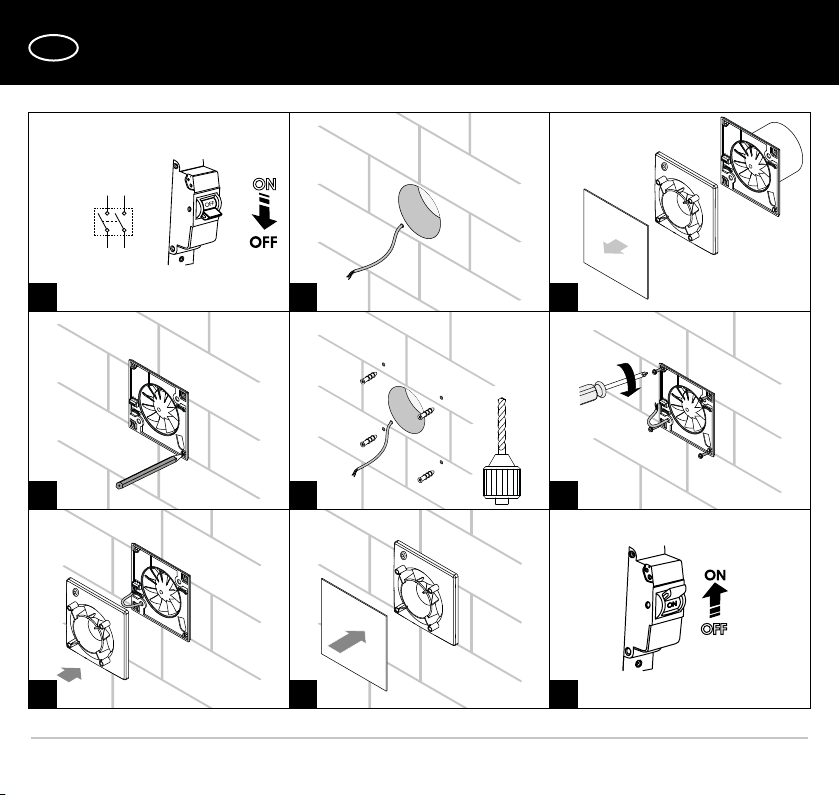

The fan can be mounted to the ceiling or onto a wall with air extraction into a ventilation shaft or a matching diameter
round air duct (Fig. 2). The fan installation steps are given on Fig. 3-11. Electric connection diagrams are given on Fig. 12-17.

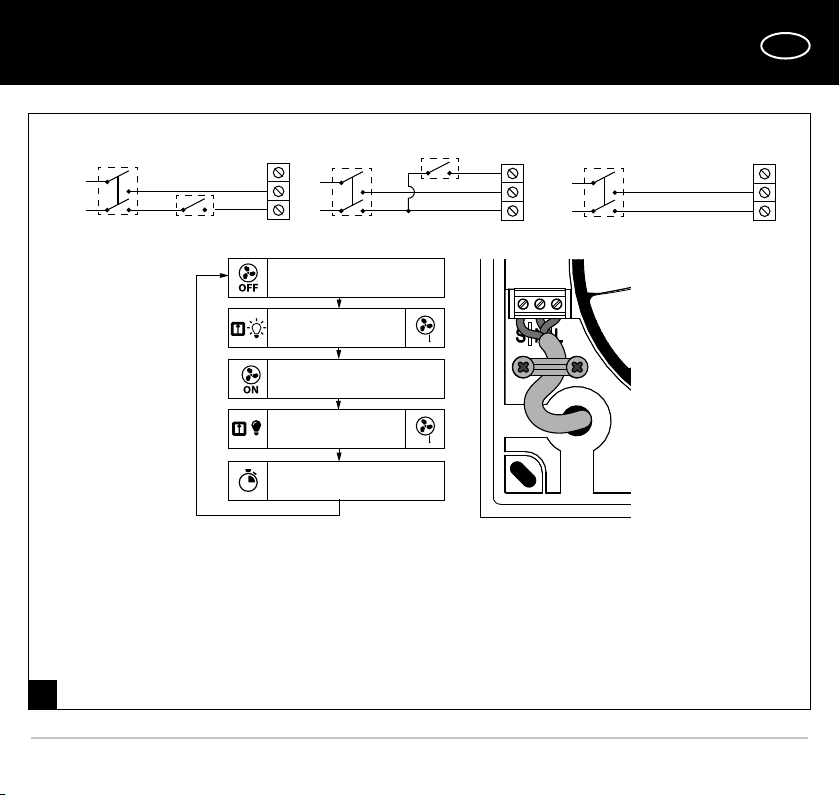

Connection diagram terminal key:
L— line S— external switch
N— neutral QF — automatic switch
LT — timer control line
WARNING! Fans rated for 12 V (as specied on the fan packing and casing) must be connected to ~12 V electric
mains only!
DESIGNATION KEY
Moon V2 100 X X
Power supply
_ - 220-240 V / 50 Hz (by default)
220-240 V / 60 Hz
12 V
Additional options
_ - basic model
S - pull cord switch
T- turn-off delay timer
TR - turn-on and turn-off delay timer
H - humidity sensor and turn-off delay timer
H (for V2) - humidity sensor and turn-off/turn-on delay timer
Outlet duct diameter [mm]
100/125
Motor type
_ — single-speed motor
V2 — double-speed motor
Fan series
Moon/Hi-Fi/Bavaria

10
EN
THE TIMER CIRCUIT IS LIVE.
MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY.
ELECTRONIC SYSTEM OPERATION ALGORITHM
The T model fans equipped with a timer are activated by control voltage application to input terminal Sby an external
switch (e.g. indoor light switch). Upon control voltage removal the fan continues to operate for the period of time set by the
timer within the range from 2 to 30 minutes.

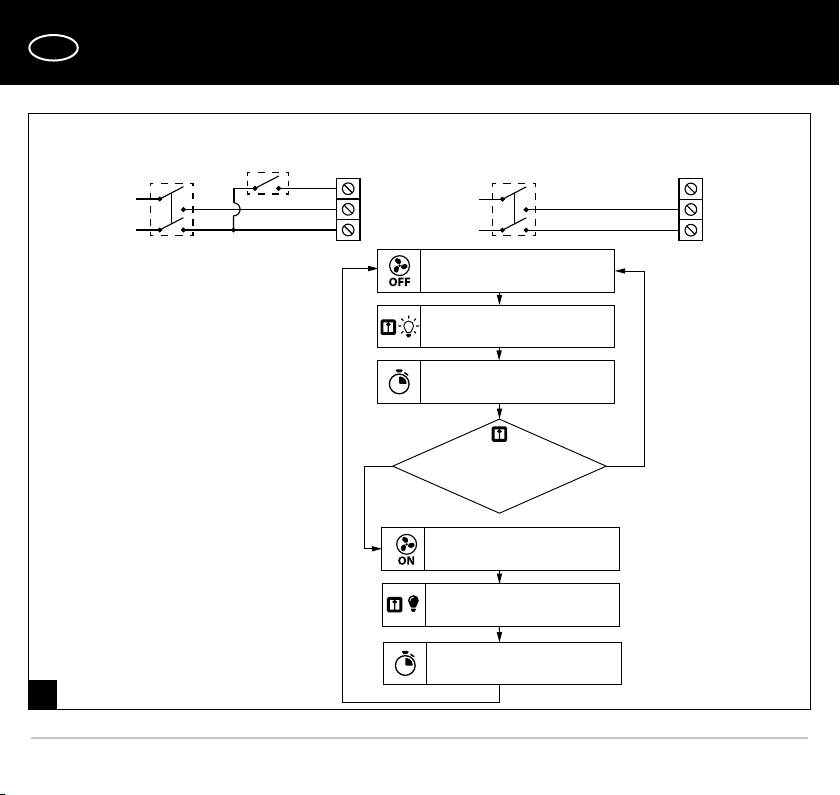

Fan with a ТR timer. When control voltage is applied to input terminal Sby the external switch (e.g. indoor light switch), the
turn-on delay timer is activated. The fan blades do not rotate. The turn-on delay time is in the range from 0 to 2 minutes. The
adjustment range can be selected by means of the potentiometer on the timer circuit board. Upon control voltage removal
the fan continues to operate for the period of time set by the turn-off delay timer within the range from 2 to 30 minutes.
The fan with the V2 ТR timer runs at Speed 1. When the control voltage is applied to the S input, the turn-on delay timer
is activated by the external switch from 0 to 2 minutes, and the fan switches to 2nd speed. You can select the control range
using a potentiometer on the timer board. After removing the control voltage, the fan continues to operate for the time
specified by the turn-off delay timer, which ranges from 2 to 30 minutes, then switches to Speed 1.

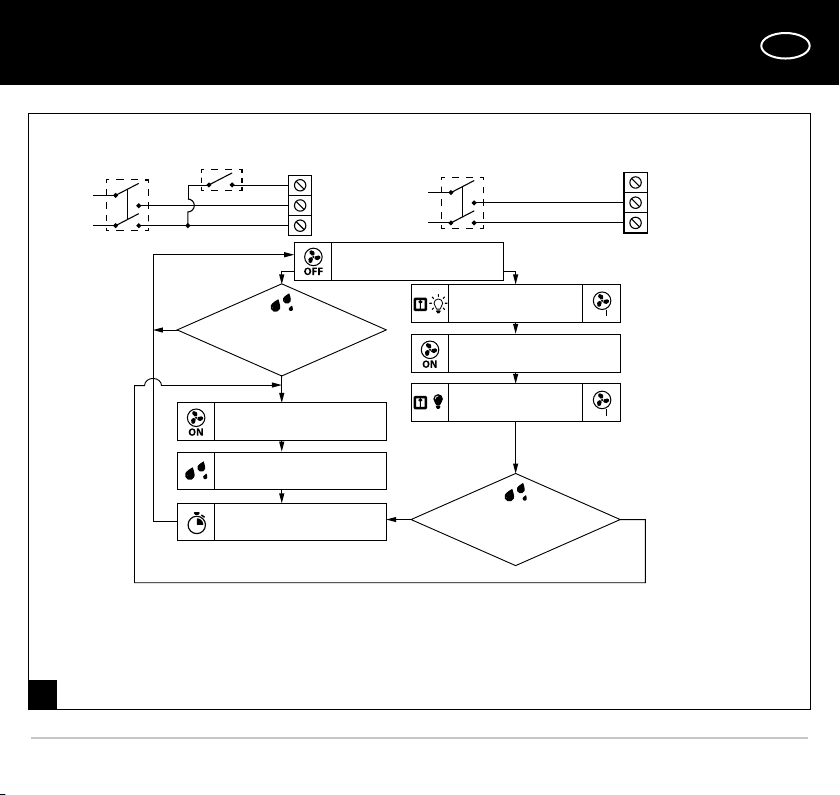

The H model fans equipped with a timer and a humidity sensor are activated by control voltage application to input
terminal Sor on exceeding the pre-set humidity level Hadjustable within the ~60 % to ~90 % range. Upon control voltage
removal or a decrease of humidity level Hthe fan continues to operate for the period of time set by the timer within the
range from 2 to 30 minutes.
A V2Н double-speed fan with a timer and humidity sensor is switched to the Speed 2 when the set humidity level
in the room (from 60 to 90 %) is exceeded. As the indoor humidity level drops down to the set value, the fan continues to
operate for 5 minutes and goes to the Speed 1. The fan can be turned on in manual mode, for example, using a light switch.
After turning on the switch, the fan switches to Speed 2 with a time delay of 45 s. After the switch is turned off, the fan will
continue to work at the Speed 2 for the time set by the turn-off delay timer, from 2 to 30 minutes, then it will switch to the
Speed 1.To set the maximum level of humidity, it is necessary to set the potentiometer regulator to the Hmax position
(90 %).

11
EN
H
60% 90%
To
2 min 30 min
Ton
0 min 2 min
for H/SН
for Т/ST
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD.
MAINTENANCE
To clean the unit from any dust and dirt which may accumulate on the surfaces (Fig. 18-21), use a soft cloth and a brush
soaked in a mild detergent solution. Avoid spilling liquid on the electrical components. Wipe the cleaned surfaces dry.
— To adjust the fan activation delay time, turn the Ton potentiometer knob clockwise (+) or counter-clockwise (-)
which sets the activation delay time within the range from 0 to 2 minutes.
— To adjust the fan deactivation delay time, turn the To potentiometer knob clockwise (+) or counter-clockwise (-)
which sets the activation delay time within the range from 2 to 30 minutes.
— To adjust the humidity sensor threshold value turn the Hpotentiometer knob clockwise (+) or counter-clockwise (-)
which sets the threshold value within the range from 60 % to 90 %.
The fan is supplied with a special plastic screwdriver. Use the
screwdriver to adjust the fan activation or deactivation delay
time or the humidity sensor threshold value.

12
EN
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
+5 °C up to + 40 °C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and
sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against
precipitation and mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating
temperature for at least 3-4 hours.
TROUBLESHOOTING
Problem Possible reasons Troubleshooting
When the unit is connected to power
mains, the fan does not rotate and
does not respond to any controls.
No power supply.
Make sure the power supply line
is connected correctly, otherwise
troubleshoot the connection error.
Internal connection fault. Contact the Seller.
Low air flow. The ventilation system is clogged. Clean the ventilation system.
Increased noise, vibration.
The impeller is clogged. Clean the impeller.
The fan is not secured well or is not
mounted properly. Troubleshoot the installation error.
The ventilation system is clogged. Clean the ventilation system.

13
EN
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility.
We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/
EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and
of the Council and CE-marking Council Directive 93/68/EEC. This certificate is issued following test carried out on samples
of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 60 months after the retail sale date provided the user's
observance of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the
course of the unit operation through the Manufacturer's fault during the guaranteed period of operation, the user is entitled
to get all the faults eliminated by the manufacturer by means of warranty repair at the factory free of charge. The warranty
repair includes work specific to elimination of faults in the unit operation to ensure its intended use by the user within the
guaranteed period of operation. The faults are eliminated by means of replacement or repair of the unit components or a
specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the
payment paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact
the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission
with missing component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's
manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal
components caused by the user.

14
EN
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind,
blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

15
EN
1.
2.
ABL
ø D
D, mm A, mm B, mm L, mm
Moon 100 99 180 128 123
Hi-Fi 100 99 180 128 120
Bavaria 100 99 180 128 120
Moon 125 123.5 180 158 130
Hi-Fi 125 123.5 180 158 126
Bavaria 125 123.5 180 158 127

16
EN
QF
L N
3. 4. 5.
6. 7. 8.
9. 10. 11.

17
EN
12.
S
N
QF
L
N
L
S1
S
N
QF
L
N
L
S
N
QF
L
N
L
S1
Fan does not run
Contact of the S1 switch
or the pull cord switch is
CLOSED
Fan runs
Contact of the S1 switch
or the pull cord switch is
OPENED
Activation of turn-off
delay timer (2-30 minutes)
S1
... 100/125 T ... 100/125 S(T)
... 100/125

18
EN
13.
S
N
QF
L
N
L
S1
S
N
QF
L
N
L
Fan does not run
Contact of the S1 switch or
the pull cord switch is
CLOSED
Switch is OFF during countdown
of turn-on delay timer
Fan runs
Contact of the S1 switch or
the pull cord switch is
OPENED
Activation of turn-off
delay timer (2-30 minutes)
YesNo
... 100/125 TR ... 100/125 STR
Activation of turn-off
delay timer (0-2 minutes)

19
EN
14.
S
N
QF
L
N
L
S1
S
N
QF
L
N
L
Fan does not run
Humidity exceeds set point
No
Yes
Humidity is below set point
Activation of turn-off
delay timer (2-30 minutes)
Contact of the S1 switch
or the pull cord switch is
CLOSED
Fan runs
Contact of the S1 switch
or the pull cord switch is
OPENED
Humidity exceeds set point Yes
No
Fan runs
... 100/125 H ... 100/125 SH

20
EN
15.
2
1
S
N
QF
L
N
L
S1 1
2
speed 1 and 2
Fan does not run
Contact of the S1 switch or
the pull cord switch is
CLOSED
S switch is in Speed position
Fan runs at speed 1 Fan runs at speed 2
Contact of the S1 switch or
the pull cord switch is
OPENED
... V2 100/125
