IMPORTANT NOTES FOR INSTALLATION AND OPERATION
SBF-3E and SBF-5E
ELECTRIC BOILER FREE CONVECTION STEAMER
INSTALLATION – OPERATION –MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone [phone] Fax: [phone]
S00106 Rev B (2/08)

2
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
WARNING: Improper installation, operation, adjustment, alteration,
service or maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing, operating or servicing this equipment.
WARNING: Never spray water in electrical components.
NOTICE: Unit must be level to assure proper performance.
Intended for commercial use only. Not for household use.
This manual should be retained for future reference.

3
TABLE OF CONTENTS
DESCRIPTION PAGE
1.0 Service Connection ..................................................................................................... 4
2.0 Introduction ................................................................................................................. 5
3.0 Installation .................................................................................................................... 6
4.0 Performance Check ..................................................................................................... 8
5.0 Operating Instructions ................................................................................................. 9
6.0 Cooking Guidelines .................................................................................................... 13
7.0 Preventative Maintenance .......................................................................................... 15
8.0 Troubleshooting .......................................................................................................... 17
9.0 Wire Diagrams ............................................................................................................ 22

4

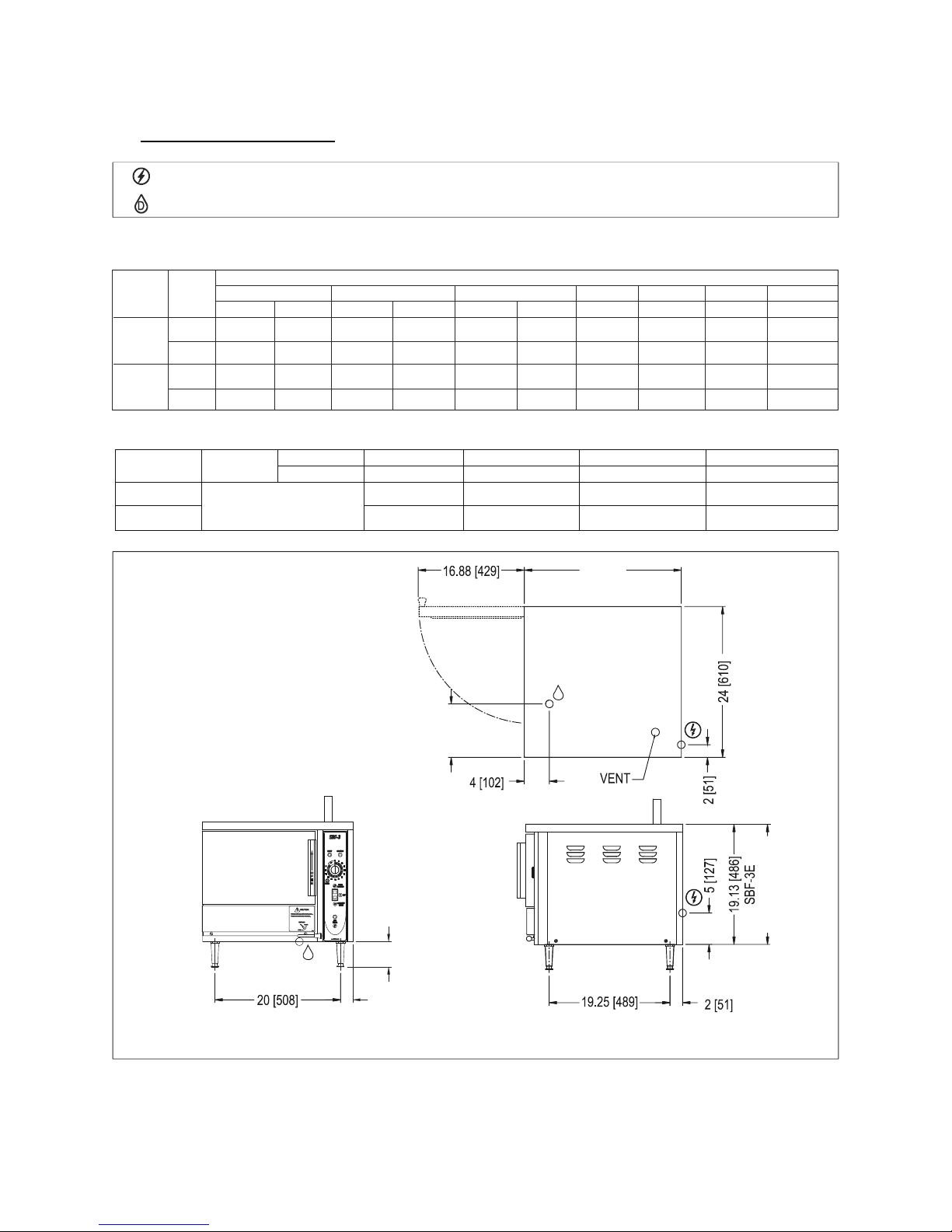

1.0 SERVICE CONNECTION
25.5 [648] SBF-5E
D
2 [51]
4 [102]
8.5 [216]
D
25 [635]
DIMENSIONS ARE IN INCHES (MM)
ELECTRICAL CONNECTION: Ø1 1/8" hole for electrical connection. Rating to be as specified on data plate.
DRAIN: ½”NPT
ELECTRICAL CHARACTERISTICS
SBF-3E
MODEL
3 phase
25.0
kW
9
1 phase
AMPS PER LINE
SBF-5E
15
3 phase 1 phase 3 phase 3 phase
41.6
N/A
N/A
6
10
40.9
68.2
27.3
45.5
23.6
39.4
N/A
N/A
37.5
62.5
25.0
41.7
21.7
36.0
N/A
N/A
13.7
22.8
N/A
N/A
1 phase
43.3
72.1
28.9
48.1
208V 220V 240V 380V
3 phase
12.5
20.9
N/A
N/A
415V
3 phase
10.8
18.0
N/A
N/A
480V
3 phase
8.7
14.4
N/A
N/A
600V
PAN CAPACITIES
SBF-3E
MODEL
SBF-5E
PAN
DEPTH
Inches
mm
Total Quantity of Pan
1
25
6
10
2.5
64
3
5
4
102
2
3
6
152
1
2

5
2.0 INTRODUCTION
DESCRIPTION
The model SBF-3E steamer comes equipped with a standard 9.0 kW heating block that can be
reduced to 6 kW on single phase supplies. Model SBF-5E steamer comes equipped with a
standard 15.0 kW heating block that can be reduced to 10 kW on single phase supplies.
Your new steamer has been designed and manufactured to meet the toughest industry
standards. The best possible workmanship and materials along with laboratory tests have been
utilized in its design.
Proper installation, care and maintenance will give you years of reliable, trouble free operation.
The SBF-3E and SBF-5E are electric fired pressureless steam cookers. The cooking
compartments are equipped with a three-piece door with inner gasket plate isolated from the
exterior surface. Door latch operates by slam action for positive sealing of the door. Operating
controls are displayed on a front-mounted panel and include indicator lights for ready and
cooking modes, a timer to set cook times and an illuminated rocker mode selection switch for
TIMED COOKING, OFF and CONSTANT STEAM.
BASIC FUNCTIONING
The cooker is ready for operation when the READY light comes on.
At the end of the set interval, timer contacts switch to shut off the cooking operation and sounds
a signal buzzer and will maintain a safe food holding temperature at or above 150EF. The
buzzer is silenced by returning the timer dial to the OFF position. The READY light will be
illuminated.

6
3.0 INSTALLATION
UNPACKING
Immediately after unpacking the steamer, check for possible shipping damage. If the steamer is
found to be damaged after unpacking, save the packaging materials and contact the carrier
within 15 days of delivery. File a claim regardless of extent of damage.
We cannot assume responsibility for damage or loss incurred in transit.
Prior to installation, verify that the electrical service agrees with the specifications on the
machine data plate which is located on the left side panel.
LOCATING
Allow space for vent and electrical connection. Minimum clearances for proper air circulation is
2" on the sides and 6" on the back. Allow adequate access for servicing.
LEVELING
Using a spirit level, adjust the feet to level the unit, front to back and side to side. The unit must
be level for proper operation. Warranty will be void for improper installation.
ELECTRICAL CONNECTIONS
WARNING: The unit must be electrically grounded and comply with
local codes, or in the absence of local codes with the national
electrical code ANSI/NFPA to latest edition. Canadian installation
must comply with CSA Standard (C22.2 No. 109-M1981 General
Requirements Canadian Electrical Code, Part II 109-M1981) for
commercial cooking appliances.
WARNING: Disconnect electrical power supply and place a tag at
the disconnect switch to indicate that you are working on circuit.
Use copper wire suitable for at least 200EFahrenheit (90ECelsius).
The steamer must be grounded. The wiring diagram is located on
the right side panel as you face the unit.
Make electrical connection through the 1-1/8" (29 mm) diameter hole provided using 3/4" (19
mm) trade size conduit. Refer to the wiring diagram located inside the right side panel. Use
90EC minimum insulated wire.

7
3.0 INSTALLATION (Continued)
PLUMBING CONNECTIONS
No plumbing connections are required as steamer is filled manually.
DRAIN CONNECTIONS
No drain connection is required.
WATER CONDITION
For best results, Blodgett recommends that the water supply meet the following specification:
Hardness: Less than 2 grains or 35 ppm.
Total Dissolved Solids (TDS): Less than 60 ppm.
PH Factor: 7.0 to 7.5
This degree of hardness can easily be obtained with the use of a properly maintained water
softener.
VENT HOOD
Some local codes may require the steamer to be located under an exhaust hood. It is
recommended that this steamer be located under an exhaust hood to remove excess steam
during cooking operations.
Information on the construction and installation of ventilating hood may be obtained from the
standard for “Vapor Removal for Cooking Equipment”, NFPA No. 96 (Latest Edition).
WARNING: For an appliance equipped with casters, the installation
shall be made with an adequate flexible electrical conduit; adequate
means must be provided to limit the movement of the appliance
without depending on or transmitting stress to the electrical conduit.
The location where restraining means may be attached is to the rear
of the stand, below power supply connection.

8
4.0 PERFORMANCE CHECK
WARNING: The steamer and its parts are hot. Use care when
operating, cleaning or servicing the steamer. The cooking
compartment contains live steam and hot water. Stay clear while
opening the door.
Once the steamer has been installed, thoroughly test the steamer before operation.
1. Check that door opens and closes for proper operation.
2. Inspect the door gasket to ensure there is no damage.
3. Check without water in the steamer and with “CONTINUOUS” cooking mode selected, that
the “LOW WATER” indicator and alarm comes on within 10 minutes of a cold start.
4. Open compartment door and pour in water up to the “Water Level” mark located at back of
compartment.
5. Select TIMED COOKING mode with the power switch and set the timer to the OFF position.
6. Close door and wait approximately 10 minutes for the READY indicator to illuminate which
will indicate the unit is up to proper operating temperature.
7. Open the door to verify the cavity has reached cooking temperature. Water in the bottom of
the cooking cavity should be between 200 to 210°F.
8. Set the timer to 5 minutes and close the door to initiate the cooking cycle. The COOKING
indicator should illuminate. Allow the timed cooking cycle to complete, verifying that the end
of cycle buzzer sounds and the COOKING indicator is out. The ‘READY’ light will illuminate.
BEFORE FIRST USE
Clean the protective oils from all surfaces of the steamer. Use a non-corrosive, grease
dissolving commercial cleaner, following manufacturer’s directions. Rinse thoroughly and wipe
dry with a soft clean cloth.
WARNING: The steamer and its parts are hot. Use care when
operating, cleaning or servicing the steamer. The cooking
compartment contains live steam. Stay clear when opening door.

9
5.0 OPERATING INSTRUCTIONS CONTROLS
RE ADY C OO KING
COOKING
CO N STAN T
OFF
STEAM
TIMED
AD D
W ATER
1. Door Handle - Move handle up to open door to
cooking cavity.
2. Ready Pilot Light - When lit, indicates the
steamer cavity is above 150° F (65° C) and is ready
for the cooking cycle.
3. Cooking Pilot Light - When lit, indicates that a
cooking cycle is in progress.
4. Timer Dial- Set the cooking time (0 to 60 minutes)
- steam cooking will begin after the door is closed.
The cooking cycle will be interrupted if the door is
opened during the cooking cycle; resume cooking by
closing the door. Holding temperature in the cavity
will keep cooked foods warm after cooking cycle, at
or above 150° F (65° C).
5. Main Power Switch
TIMED COOKING - The steamer will begin heating
to the pre-set temperature for standby. Red light will
illuminate on the main power switch. Cooking cycle
is determined by timer dial.
OFF - The steamer is powered off.
CONTINUOUS STEAM - Steamer will heat to enter
into a continuous cooking cycle. Both indicator lights
will remain off during continuous steam cooking
cycles
6. Add Water Pilot Light - Illuminates to indicate a
low water condition or that the temperature of the
heater element is above normal. A buzzer will also
sound an audible alarm.
7. Drain Handle - Use to drain the steamer at end of
day.

10
5.0 OPERATING INSTRUCTIONS (Continued)
COOKING
CAUTION: Live steam and accumulated hot water in the
compartment may be released when the door is opened.
1. Close drain valve.
2. Remove the deflector plate to expose the bottom of the cavity.
3. Pour water through the door up to the “WATER LEVEL” mark on the back wall of the cavity
and then replace the deflector plate.
4. Close the door, select “TIMED COOKING” mode with the power switch and set the timer to
one minute position. The unit will be ready for operation in approximately ten minutes when
the “READY” indicator lamp is illuminated and the buzzer sounds.
5. Turn the timer to “OFF” position to silence the buzzer, slide pans of food into cooking
compartment pan supports and close cooking compartment door.
6. Select “CONSTANT STEAM” or “TIMED COOKING” mode.
7. In “CONSTANT STEAM” mode the unit will begin the cooking cycle and continue
indefinitely until user intervention or unit runs out of water. There are no indicator lights
illuminated in this mode.
8. In “TIMED COOKING” mode the unit will run through the cooking cycle determined by
number of minutes selected with the timer. The end of the cooking cycle is indicated by the
buzzer and the illuminated “READY” lamp. The unit will hold the cooked foods in a warm
state and will maintain the cooking cavity at or above 150EF (65EC) with the timer set to the
“OFF” position.
9. The cooking cycle may be interrupted at any time by opening the compartment door. To
resume operation, close the door.
10. Open door slightly at first letting most of the steam out of the compartment and then fully
open the door.
11. Unload by sliding pans of food from pan supports.
12. Close the door to ensure the unit is ready for the next cook cycle.

11
5.0 OPERATING INSTRUCTIONS (Continued)
SHUTDOWN
CAUTION: When the unit is not in use, leave the cooking
compartment doors ajar to prolong the life of the door gasket.
1. Drain the steamer after each day’s use.
2. Set the power switch to “OFF”
CAUTION: Drain water is very hot and can cause severe personal
injury.
3. Drain the steamer into a suitable receptacle capable of holding 3 gallons of boiling water.
4. Thoroughly clean the unit.
CLEANING
WARNING: Never use chlorine or bleach solution for cleaning door
gasket.
Never use steel wool or other metallic pads to clean the steamer.
Weekly, or more often if necessary, clean the exterior with damp
cloth and polish with soft dry cloth.
Use a non-abrasive cleaner to remove discolorations.
1. After each period of daily operation (more frequently as required to maintain cleanliness),
the cooker should be thoroughly cleaned by completing the following steps:
2. Perform SHUTDOWN procedure.
3. Remove the deflector plate and pan supports by lifting up and off mounting studs and wash
with a mild detergent. Rinse and set aside for reassembly.
4. When the unit has cooled, use hot soapy water to clean the interior of the steamer and
thoroughly rinse and dry all surfaces with a clean dry cloth.

12
5. Inspect the drain opening to assure there are no obstructions.
6. Replace the pan supports and deflector in compartment and leave door ajar.
WARNING: When this appliance is installed with casters and is
connected to the supply service with flexible electrical conduit, a
restraint to prevent damage to the electrical conduit should have
been installed. If disconnection of the restraint is necessary,
reconnect this restraint after the appliance has been returned to its
originally installed position.

13
6.0 COOKING GUIDELINES
1. Frozen vegetables should always be cooked in perforated 12" x 20" x 2 ½ “ (1/1 65 mm)
pans, 7 ½ lbs. (3.4 kg) maximum per pan.
2. Frozen entrees should be underlined with a perforated pan for best results. If they are
defrosted first, the heating time will be decreased.
3. Fresh foods may also be cooked in this unit. Vegetables and other foods where the stock is
not to be retained should be cooked in perforated 12" x 20" x 2 ½" (1/1 65 mm) pans for the
most nutritious results.
4. Total cooking time will vary depending on the load, even though the timer setting is the
same.
5. All foods, except cakes and pastry, can be cooked in a steam cooking unit.
6. Steam cooked meals have greater nutritional value since they retain most of their vitamins
and minerals.
7. Because foods are cooked faster by the higher temperatures of steam cooking, they can be
prepared closer to serving time, insuring maximum freshness.
8. Steam cooked foods have a higher percent yield more portions per dollar spent.
9. Food may be served from the same pan in which it is steam cooked, thus reducing food
breakage since there is no extra handling or transferring of food from cooking pans to
serving pans. It also reduces pot washing tasks.
10. Some important advantages of steam cooking are labour saving, reduced operating costs,
space saving, and the lifting of heavy stock pots is eliminated.
11. Rice and pasta products, if thoroughly wet at the start of the cooking process, are very
easily prepared.
12. Food such as potatoes, poultry, seafood, and some meats may be blanched in the steam
cooker, thus reducing the total cooking time and grease absorption.
13. The steam cooker will loosen foods burned on pans making washing easier.
14. Solid pans are recommended when liquid is to be retained and perforated pans when the
liquid is not to be retained.
15. Eggs may be cooked out of the shell if they are to be chopped which eliminates peeling
after steaming.
16. The steam cooker can be opened during the cooking period to add or remove items.

14
STEAM COOKING
Your steamer efficiently cooks vegetables or other foods for immediate serving. Steam cooking
should be carefully time controlled. Keep hot food holding time to a minimum to produce the
most appetizing results. Prepare small batches, cook only enough to start serving, then cook
additional amounts to meet demand. Separate frozen foods into smaller pieces to allow more
efficient cooking.
Use a pan cover for pre-cooked frozen dishes that cannot be cooked in the covered containers
in which they are packed if they require more than 15 minutes of cooking time. When cover is
used, approximately one-third additional cooking time is necessary.
Cooking time for frozen foods depends on amount of defrosting required. If time permits, allow
frozen foods to partially thaw overnight in a refrigerator. This will reduce their cooking time.
PREPARATION
Prepare vegetables, fruits, meats, seafood and poultry normally by cleaning, separating, cutting,
removing stems, etc. Cook root vegetables in a perforated pan unless juices are being saved.
Liquids can be collected in a solid 12" x 20" pan placed under a perforated pan. Perforated
pans are used for frankfurters, wieners and similar items when juices do not need to be
preserved. Solid pans are good for cooking puddings, rice and hot breakfast cereals.
Vegetables and fruits are cooked in solid pans in their own juices. Meats and poultry are
cooked in solid pans to preserve their own juices or to retain broth. Canned foods can be
heated in their opened cans (cans placed in 12" x 20" solid pans) or the contents may be
poured into solid pans.
The steamer compartment is designed to accept combinations of the pan of 12" x 20" (either
solid or perforated) as shown on the following table.
DEPTH OF PAN NUMBER OF PANS
SBF-3E SBF-5E
1" 6 10
2 ½" 3 5
4" 2 3
6" 1 2

15
7.0 PREVENTIVE MAINTENANCE
A good preventive maintenance program begins with the daily cleaning procedure. Additional
preventive maintenance operations are presented in this section. In establishments that employ
full-time maintenance personnel, the tasks described can be assigned to them. For other
installations, tasks requiring mechanical or electrical experience should be performed by an
authorized service agency.
The following paragraphs are set for minimum preventive maintenance procedures that must be
completed periodically to assure continued trouble-free operation of the cooker.
CAUTION: Under no circumstances should hardware (or parts) be
replaced with a different length, size, or type other than as specified
in the parts list. The hardware used in the cooker has been selected
or designed specifically for its application, and the use of other
hardware may damage the equipment and will void any warranty.
WARNING: Disconnect the power supply to the appliance before
cleaning or servicing.
WARNING: The steamer and its parts are hot. Use care when
operating, cleaning or servicing the steamer. The cooking
compartment contains live steam. Stay clear when opening door.
CLEANING
At the end of each day, or between cooking cycles if necessary:
CAUTION: Do not use cleaning agents that are corrosive.
NOTICE: Contact the factory, the factory representative or a local
service company to perform maintenance and repairs should the
appliance malfunction. Refer to warranty terms.

16
7.0 PREVENTIVE MAINTENANCE (Continued)
CLEANING
Weekly, or more often if necessary:
1. Clean exterior with a damp cloth and polish with a soft dry cloth.
2. Use a non-abrasive cleaner to remove discolorations.
It is NOT RECOMMENDED to use cleaning agents that are corrosive.
Use of cleaning agents that contain chloride, acids or salts which are corrosive may cause
pitting and corrosion when used over a period of time; this will reduce the life of the appliance.
Should pitting or corrosion occur, this is not covered by warranty.
Follow the recommended cleaning instructions. Use a mild detergent, warm water and rinse
thoroughly.
NEVER SPRAY WATER INTO ELECTRIC CONTROLS OR LOUVRES.
MONTHLY
REMOVAL OF SCALE DEPOSITS
It is recommended that your steamer be descaled once a month, or more often if necessary.
Should your steamer develop a heavy build-up of lime scale deposits, use the CLR®
TREATMENT KIT available from your authorized service agent.
DESCALING PROCEDURE
WARNING: Read and follow instructions on the CLR® bottle. Use
plastic or rubber gloves to avoid skin contact. If CLR® comes in
contact with skin, rinse with clean water.
1. Set power switch to “OFF”.
2. Remove diffuser plate and pan support racks.
3. Pour one quart of solution into the cavity.
4. Fill the remainder with water up to the “WATER LEVEL” line.
5. Set the power switch to “TIMED COOKING” and set the timer to 30 minutes.

17
6. At the end of the 30 minute cook cycle, turn power switch “OFF” and drain the contents of
the cavity.
7. Thoroughly flush the cavity with clean water and dry with a soft cloth. LEAVE
COMPARTMENT DOOR OPEN WHEN NOT IN USE. The steamer is now ready for use.
Turn off for overnight shutdown.
8.0 TROUBLESHOOTING
GENERAL
PROBLEM PROBABLE CAUSE REMEDY
a. Main power circuit breaker
tripped.
Locate external circuit breaker for
incoming power and place in ON
position.
b. Door interlock switch contacts
not closed.
Shut cooker door to close switch
contacts. Check alignment of door with
switch.
c. Door interlock switch faulty. Replace switch.
d. Indicator light burned out. Replace light.
e. Faulty timer contacts. Replace timer.
f. Faulty wiring. Inspect condition of wire and tightness of
all connections. Correct as needed.
Cooking indicator light
fails to light with
Timer set.
g. Fuse blown. Replace with same rated fuse.
Steam fails to
generate with cooking
indicator light on.
a. Faulty wiring. Inspect condition of wire and tightness of
all connections. Correct as needed.
a. Faulty thermostatic switch. Replace thermostat.
Steams continuously
without the cooking or
ready light on . b. Power switch - continuous
steam setting is selected.
This is normal operation when
“continuous steam” is selected.
a. Faulty timer motor. Replace timer.
Timer dial not turning
b. Faulty wiring. Inspect condition of wire and tightness of
all connections. Correct as needed.
a. Timer contacts faulty. Replace timer.
b. Buzzer faulty. Replace buzzer.
Buzzer fails to sound
at end of timer
setting.
c. Faulty wiring. Inspect condition of wire and tightness of
all connections. Correct as needed.

18
8.0 TROUBLESHOOTING (Continued)
COMPONENT TESTING
60-MINUTE TIMER
Timer Contacts
Defective timer contacts will result in failure of cooker compartment to operate. When this
occurs, remove the side panel and proceed as follows:
1. Turn off power to the cooker at external circuit breaker.
2. Disconnect all three wires from timer terminals.
3. Connect an ohmmeter between terminals 1 and 3.
4. Rotate timer dial beyond the “0 - Minute” point (any setting) to obtain a reading of zero ohms
on the ohmmeter. If zero ohm reading cannot be obtained, timer contacts are defective and
the timer must be replaced.
5. Move ohmmeter leads to terminals 1 and 4.
6. Rotate timer dial to “0 - Minute” position. (An audible click indicates correct position). If zero
ohm reading cannot be obtained, the timer is defective and must be replaced.
7. Remove ohmmeter and replace all three leads on timer terminals.
Timer Motor
A defective timer motor will cause continuous operation in the TIME mode, with the timer dial
failing to return to the “0 - Minute” position.
To confirm timer motor condition, proceed as follows:
1. Carefully check motor wire leads and tighten loose connections.
WARNING: Use care while working with control panel. Terminals
carry 240 Volts.
2. Turn on power to the steamer.

19
8.0 TROUBLESHOOTING (Continued)
3. Set timer dial (any setting beyond “0 - Minute”). If operation is correct, the motor will turn the
dial toward “0 - Minute”. If the motor fails to operate, it is defective and the entire timer must
be replaced.
4. Shut off power to the cooker.
Door Interlock Switch
Malfunction of the cooker door interlock switch prevents timer indicator lights from turning on
and steam generator from operating when the timer dial is set. If steam does not enter the
compartment and the cooking indicator light fails to turn on with the door latch securely
engaged, the fault may be in the door interlock switch. Proceed as follows:
1. Turn off power to the cooker.
2. Disconnect wires to the door switch terminals.
3. Connect an ohmmeter between the terminals of the switch. The switch is marked “C” for
common, “NC” for normally closed and “NO” for normally open.
4. Actuate the switch by closing the cooking compartment door. If a zero reading cannot be
obtained between the C and NO terminals, the switch is defective and must be replaced.
5. Remove the ohmmeter and replace the leads on switch terminals.
Indicator Lights
If the cooker compartment functions correctly, with the single exception that the indicator light
fails to light during operation, the fault is a defective indicator light. A “burned out” or defective
light is verified by using an AC voltmeter at the leads, with input power on the selector switch in
the correct position for that timer, the timer set, and the door latches closed. If 240 volts is
present, the fault is in the indicator light and requires replacement. If 240 volts is not present,
the fault is in the wiring or control components (selector switch, timer or door switch).
Buzzer
If the buzzer does not sound at the termination of the operator-selected timer setting (timer dial
returned to “0 - Minute” position), the fault may be a defective buzzer. Buzzer operation is
verified using an AC voltmeter at buzzer coil connections with input power on and selector
switch and coinciding timer dial set at the “0 - Minute” position. If voltage is 240 volts, the fault
is in the buzzer, which must be replaced. If 240 volts is not present, the fault is in the wiring or
control components (timer or selector switch).

20
8.0 TROUBLESHOOTING (Continued)
Wiring
WARNING: Disconnect the power supply to the appliance before
cleaning or servicing.
Using an ohmmeter, wiring continuity between the connections shown on the wiring diagram is
readily verified. This is best done in stages, removing only those wires required for each
continuity check. As each lead is replaced, it should be checked for evidence of corrosion, and
cleaned if necessary. All leads must be tightly attached so as to provide a good electrical
connection.
Door Gasket
Check gasket for cuts and replace if necessary.
Door Gasket Replacement
The cooking compartment door gaskets are made of a silicone-type rubber material that is very
durable but subject to wear during normal operation. Should the gasket leak replace it.
1. Open the cooking compartment door.
2. Remove the six or eight screws from the gasket plate in the door panel assembly.
3. Remove the gasket plate and the door gasket from door panel.
4. Install the new door gasket to the door panel. Replace the gasket plate and six or eight
screws.
5. Gasket replacement is now complete.
Door may be difficult to close until gasket has compressed to conform to opening. Leaving door
closed overnight will compress gasket.
Exterior Panel Removal
WARNING: To prevent hazard in servicing the cooker, be certain
that the electrical disconnect circuit breaker for the steamer is OFF
before removing side panels.
Access to all internal plumbing and electrical assemblies is from the right side. The right-side
panel is removed by removing the bottom screws from panel.
