SERIES A3F and A4F
Operating Manual
ProSeries
by Blue-White Ind.
TM
Protected by Patents: 7,001,153;
7,284,964; 4,496,295
and other patents pending
FLEX-PRO
Peristaltic Metering Pump
Patent No. 7,001,153 & 7,284,964
system
TFD
Tube Failure Detection
Exclusive:
2
TWO-YEAR
WARRANTY
ProSeries
R
R

Page 2
1.0 Introduction
Congratulations on purchasing the Flex-Pro variable speed Peristaltic Metering Pump. A peristaltic pump is a type
of positive displacement pump used for pumping a variety of fluids.
Your Flex-Pro pump is pre-configured for the tubing that shipped with your metering pump. The tubing assembly
has an Identification number printed for easy re-order.
Please Note: Your new pump has been pressure tested at the factory with clean water before shipping. You may
notice trace amounts of clean water in the pre-installed tube assembly. This is part of our stringent quality assur-
ance program at Blue-White Industries.
Flex-Pro
TABLE OF CONTENTS
1.0 Introduction.........................................................................................................................2
1.1 Available Models........................................................................................................................3
2.0 Specifications..................................................................................................................................4
2.1 Materials of Construction...........................................................................................................4
3.0 Features............................................................................................................................................5
3.1 Agency Listings..........................................................................................................................5
4.0 Installation.......................................................................................................................................6
4.1 Mounting Location......................................................................................................................6
4.2 Dimensions................................................................................................................................6
4.3 Installing the Discharge Injection Fitting and Suction Strainer.............................................7
5.0 Input Power Connections..............................................................................................................8
5.1 Wiring Terminals and I/O Schematics......................................................................................9
6.0 How to Operate Flex-Pro..............................................................................................................10
7.0 Pump Output Speed Adjustment................................................................................................11
8.0 Contact Closure Input....................................................................................................................11
9.0 Set FVS (flow verification system)..............................................................................................12
10.0 Pump Tube Timer............................................................................................................................13
11.0 TFD (tube failure detection).........................................................................................................13
12.0 Alarm relay.....................................................................................................................................13
13.0 Reverse Rotor Rotation................................................................................................................14
14.0 How To Maintain the Pump...........................................................................................................15
15.0 Tube Replacement..........................................................................................................................16
16.0 Model A3 Replacement Parts List................................................................................................18
17.0 Model A4 Replacement parts List................................................................................................19
18.0 Tubing Data.....................................................................................................................................20
18.1 Tube Life Estimates..................................................................................................................20
18.2 Output Versus Fluid Viscocity.................................................................................................22

Page 3
1.1 Available Models
Flex-Pro
®
Flex-A-Thane A3 Tube Pumps
Meets FDA criteria for food | Resistant to oils, greases and fuels
GPH
.002 - 4.6
.004 - 10.1
.010 - 24.9
.011 - 28.5
.007 - 18.23
LPH
.007 - 17.4
.015 - 38.4
.038 - 94.2
.043 - 108
.03 - 69.0
ML/Min
.1 - 290
.3 - 637
.6 - 1570
.7 - 1800
.46 - 1150
RPM
125
125
125
125
125
115V AC
A3F24-*GE
A3F24-*GG
A3F24-*GH
A3F24-*GK
A3F24-*G2G
230V AC
A3F25-*GE
A3F25-*GG
A3F25-*GH
A3F25-*GK
A3F25-*G2G
220V AC
A3F26-*GE
A3F26-*GG
A3F26-*GH
A3F26-*GK
A3F26-*G2G
®
Flex-A-Chem A3 Tube Pumps
Meets FDA criteria for food | Superior chemical resistance
LPH
.022 - 57.0
.043 - 108
230V AC
A3F25-*TH
A3F25-*TK
115V AC
A3F24-*TH
A3F24-*TK
GPH
.006 - 15.06
.011 - 28.5
220V AC
A3F26-*TH
A3F26-*TK
ML/Min
.4 - 950
.72 - 1800
RPM
125
125
®
Flex-A-Prene A3 Tube Pumps
Meets FDA criteria for food | Excellent chemical resistance | CIP | SIP
LPH
.003 - 7.8
.038 - 96.0
.050 - 126
.050 - 126
230V AC
A3F25-*ND
A3F25-*NJ
A3F25-*NK
A3F25-*NKL
115V AC
A3F24-*ND
A3F24-*NJ
A3F24-*NK
A3F24-*NKL
GPH
.001 - 2.10
.010 - 25.3
.013 - 33.3
.013 - 33.3
220V AC
A3F26-*ND
A3F26-*NJ
A3F26-*NK
A3F26-*NKL
ML/Min
.05 - 132
.6 - 1596
.8 - 2100
.8 - 2100
Feed Rate
RPM
125
125
125
125
Max
Speed A3 Model Numbers
PSI (bar)
65 (4.5)
65 (4.5)
65 (4.5)
65 (4.5)
65 (4.5)
Max
Pressure
PSI (bar)
125 (8.6)
125 (8.6)
125 (8.6)
30 (2.1)
PSI (bar)
50 (3.4)
50 (3.4)
LPH
.04 - 108
.07 - 168
.08 - 192
.09 - 204
.09 - 204
.15 - 378
.24 - 600
230V AC
A4F25-*NH
A4F25-*NJ
A4F25-*NK
A4F25-*NHH
A4F25-*NHHL
A4F25-*NL
A4F25-*NP**
115V AC
A4F24-*NH
A4F24-*NJ
A4F24-*NK
A4F24-*NHH
A4F24-*NHHL
A4F24-*NL
A4F24-*NP**
220V AC
A4F26-*NH
A4F26-*NJ
A4F26-*NK
A4F26-*NHH
A4V26-*NHHL
A4F26-*NL
A4F26-*NP**
ML/Min
.7 - 1800
1.1 - 2800
1.3 - 3200
1.4 - 3400
1.4 - 3400
2.5 - 6300
4.0 - 10000
RPM
125
125
125
125
125
125
125
PSI (bar)
125 (8.6)
100 (6.9)
80 (5.5)
100 (6.9)
65 (4.5)
50 (3.4)
30 (2.0)
Max
Temperature
F (C)
185 (85)
185 (85)
185 (85)
185 (85)
F (C)
130 (54)
130 (54)
F (C)
130 (54)
130 (54)
130 (54)
130 (54)
130 (54)
F (C)
185 (85)
185 (85)
185 (85)
185 (85)
185 (85)
185 (85)
185 (85)
®
Flex-A-Prene A3 Tube Pumps
Meets FDA criteria for food | Excellent chemical resistance | Extra long tube life
®
Flex-A-Thane A4 Tube Pumps
Meets FDA criteria for food | Resistant to oils, greases and fuels
GPH
.01 - 39.6
.02 - 55.5
.04 - 100
LPH
.06 - 150
.09 - 210
.20 - 378
ML/Min
1.0 - 2500
1.4 - 3500
2.5 - 6300
RPM
125
125
125
115V AC
A4F24-*GH
A4F24-*GK
A4F24-*GKK
230V AC
A4F25-*GH
A4F25-*GK
A4F25-*GKK
220V AC
A4F26-*GH
A4F26-*GK
A4F26-*GKK
®
Flex-A-Chem A4 Tube Pumps
Meets FDA criteria for food | Superior chemical resistance
LPH
.08 - 204
.20 - 477
230V AC
A4F25-*TK
A4F25-*TKK
115V AC
A4F24-*TK
A4F24-*TKK
GPH
.02 - 54.00
.05 - 126
220V AC
A4F26-*TK
A4F26-*TKK
ML/Min
1.36 - 3400
3.2 - 8000
RPM
125
125
®
Flex-A-Prene A4 Tube Pumps
Meets FDA criteria for food | Excellent chemical resistance | CIP | SIP
Feed Rate
Max Speed
A4 Model Numbers
PSI (bar)
65 (4.5)
65 (4.5)
65 (4.5)
Max Pressure
PSI (bar)
30 (2.1)
30 (2.1)
Max Temp
F (C)
130 (54)
130 (54)
F (C)
130 (54)
130 (54)
130 (54)
GPH
.01 - 28.5
.02 - 44.4
.02 - 50.7
.02 - 54.0
.02 - 54.0
.04 - 100.0
.06 - 158.5
3 of 6
!The Flex-Pro Pump’s motor speed is linear over the entire 0.05% to 100% adjustment range.
!Output versus pressure is nearly linear in all models. Larger tubes exhibit greater losses.
!See the instruction manual for output versus viscosity curves.
!For optimum tube life, specify the pump to operate at the lowest possible RPM and pressure.
!Output based on testing with water at 72 F, 5 foot suction lift, atmospheric conditions at sea level.
LPH
.007 - 18
.03 - 72
230V AC
A3F25-*NEE
A3F25-*NGG
115V AC
A3F24-*NEE
A3F24-*NGG
GPH
.002 - 4.76
.007 - 19.02
220V AC
A3F26-*NEE
A3F26-*NGG
ML/MIN
.12 - 300
.48 - 1200
RPM
125
125
PSI (bar)
110 (7.6)
110 (7.6)
F (C)
185 (85)
185 (85)
* Inlet/outlet connection type
** NP flow rate reduced 16.5% with Quick Disconnect connections.
S = 3/8” OD x 1/4” ID tubing compression type connections (A3 models only)
M = 1/2”male NPT (available on A3 & A4 models)
B = 1/2” ID tubing barb type connections (ND, NKL, NEE, NGG, G2G and A4 models only)
C = 1/2” - 3/4” tri-clamp connections (ND, NKL, NEE, NGG, and G2G only)
Q = Quick Disconnect (A3 Models ND, NKL, NEE, NGG, G2G, and A4 single Flex-A-Prene®
tube models only) (Valves sold separately)

Page 4 Flex-Pro
2.0 Specifications
Maximum working pressure (excluding pump tubes):
125 psig (8.6 bar)
Note: see individual pump tube assembly maximum pressure ratings.
Maximum Fluid temperature (excluding pump tubes):
o o
185 F (85 C)
Note: see individual pump tube assembly maximum temperature ratings.
Ambient Operating Temperature
O O O O
14 F to 115 F (-10 C to 46 C)
Ambient Storage Temperature
O O O O
-40 F to 158 F (-40 C to 70 C)
Operating Voltage:
A3 MODELS:
115VAC/60Hz, 1ph (2.0 Amp Maximum)
230VAC/60Hz, 1ph (1.0 Amp Maximum)
220VAC/50Hz, 1ph (1.0 Amp Maximum)
240VAC/50Hz, 1ph (1.0 Amp Maximum)
A4 MODELS:
115VAC/60Hz, 1ph (3.1 Amp Maximum)
230VAC/60Hz, 1ph (1.6 Amp Maximum)
220VAC/50Hz, 1ph (1.6 Amp Maximum)
240VAC/50Hz, 1ph (1.6 Amp Maximum)
Power Cord Options:
115V60Hz = NEMA 5/15 (USA)
230V60Hz = NEMA 6/15 (USA)
220V50Hz = CEE 7/VII (EU)
240V50Hz = AS 3112 (Australia/New Zealand)
Enclosure:
NEMA 4X (Ip66), Polyester powder coated aluminum.
Maximum Overall Dimensions:
A3 models: 8-1/8”W x 10-3/4”H x 15-1/4”D (20.6W x 27.3H x 38.9D cm)
A4 models: 12-1/8”W x 14-1/4”H x 18-5/8”D (30.8W x 36.1H x 47.3D cm)
Approximate shipping wt:
A3 models: 33 lb. (15.0 Kg)
A4 models: 58 lb. (26.3 Kg)
Motor speed adjustment range 2,500:1:
0.05% - 100% motor speed
Motor speed adjustment resolution:
0.1% increments > 10% motor speed
0.01% increments > 1% motor speed and < 10%
0.001% increments < 1% motor speed
Maximum viscosity:
12,000 Centipoise
Maximum suction lift:
30 ft. Water, 0 psig (9.14 m, 0 bar)
Display
3 color VGA backlit LCD, UV resistant.
Display Languages
English, Spanish, French or German selectable.
Keypad
Ten button positive action tactile switch keypad.
Security
Programmable 4-digit password
2.1 Materials of construction
Wetted components: Non-Wetted components:
Pump Tube Assembly (Model Specific - 2 provided):
Tubing: . . . . . Flex-A-Prene or Flex-A-Chem or Flex-A-Thane® ® ®
Adapter fittings: .PVDF
Enclosure:
413 Aluminum (Polyester powder coated)
Pump Head:
Valox (PBT) thermoplastic®
Pump Head Cover:
Polycarbonate for added strength and chemical resistance.
Permanently lubricated sealed motor shaft support ball bearing.
Cover Screws:
Stainless Steel
Roller Assembly:
Rotor:..................................Valox (PBT)®
Rollers: ...............................PVDF/Nylon
Roller Bearings: .................SS Ball Bearings
Motor Shaft:
Chrome plated steel
TFD System Sensor pins:
Hastelloy C-276
Power Cord:
3 conductor, SJTW-A Water-resistant
Tube Installation Tool:
GF Nylon
Mounting Brackets and Hardware:
316 Stainless Steel
Injection / Back-flow Check valve:
Body & insert: . . . . . . PVDF
Check Ball: . . . . . . . . Ceramic
Spring: . . . . . . . . . . Hastelloy C-276
Ball Seat O-ring: . . . . . TFE/P (optional EP)
Static Seal O-ring: . . . . TFE/P (optional EP)
Ancillary Items provided
With “S” tubing type connections only:
Suction Tubing: . . . . . 3/8” OD x 1/4” ID x 10’ Clear PVC
Discharge Tubing: . . . . 3/8” OD x 1/4” ID x 10’ Polyethylene (LLDPE)
Suction Strainer: .....PVDF
With “B” tubing and “M” M/NPT connections only:
(Available on ND, NKL, NK, NGG, NEE, G2G and A4 only)
Suction Strainer:
Body: .................PVDF
Check Ball: ............Ceramic
Ball Seat O-ring: . . . . . . . . TFE/P (optional EP)
For “C” Tri-clamp and “Q” Quick Disconnect connections:
(Available on ND, NKL, NK, NGG, NEE, and G2G only)
No accessories provided
*Quick Disconnect Valves sold separately

3.0 Features
Enclosure Rating:
NEMA 4X: Constructed for either indoor or outdoor use to provide a degree of protection to personnel against
incidental contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow,
windblown dust, splashing water, and hose-directed water; and that will be undamaged by external formation of ice
on enclosure.
IP66: No ingress of dust; complete protection against contact. Water projected in powerful jets against enclosure from
any direction shall have no harmful effects.
Page 5
!Peristaltic pump design does not have valves that can clog requiring maintenance.
!Self priming - even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or
lose prime. Syphoning cannot occur.
!Output rates to: 158.5 GPH (600 LPH) and pressures to 125 PSI (8.6 Bar).
!No maintenance brushless variable speed motor.
!Specially engineered tubing for long life at high pressures.
!Patented Tube Failure Detection (TFD) system. Senses tube failure by detecting chemical in the pump head.
No false triggering.
!2500:1 turndown ratio.
!Remote start/stop.
!Operator friendly digital touch pad.
!VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed, output rate, service
and alarm status.
!Outputs include one 250V/6A Form C no/nc relay assigned to monitor both the TFD, FVS systems.
!Two molded squeeze and alignment rollers for optimum squeeze, unparalleled accuracy, and tube life.
!Heavy duty rotor - single piece plastic rotor means no flexing and increased accuracy (no metal springs or
hinges to corrode).
!Inject at maximum PSI in either direction (clockwise and counter clockwise).
!Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
3.1 Agency Listings
Symbol Explanation
!
WARNING, risk of electric shock
CAUTION, refer to users’ guide
GROUND, PROTECTIVE CONDUCTOR TERMINAL
Flex-Pro
This pump is ETL listed to conforms to the following:
UL Standard 778 as a motor operated water pump
CSA Standard C22.2 as process control equipment
This pump complies to the Machinery Directive 98/37/EC, BS EN 60204-1, Low Voltage Directive
73/23/EC BS EN 61010-1, EMC Directive 89/336/EC, BS EN 50081-1/BS EN 50082-1.

Page 6
4.0 Installation
4.1 Mounting Location
Choose an area located near chemical supply tank, chemical injection point, and electrical supply. Install pump
where it can be easily serviced.
!316SS Mounting brackets are included. Mount pump to a secure surface using enclosed mounting hardware.
!Mount pump close to injection point. Keep inlet (suction) and outlet (discharge) tubing as short as possible.
Longer discharge tubing increases back pressure at pump head.
!A back flow prevention check valve is recommended at the discharge of the pump to prevent system fluid from
flowing back through the pump during tube replacement or if the tube should rupture.
!A pressure relief valve is recommended at the discharge of the pump to prevent premature wear and damage to
the pump tube in the event the discharge line becomes blocked.
!The Flex-Pro does not require back pressure. Pressure regulator valves are not required. Keep the discharge
pressure as low as possible to maximize tube life.
!An anti-syphon valve is not required. Syphoning cannot occur.
4.2 Dimensions
All diagrams are strictly for guideline purposes only. Always consult an expert before
installing metering pump on specialized systems. Metering pump should be serviced by
qualified persons only.
nRaise metering pump 4-1/2 inches (11.43 cm) off ground or a surface.
nMade out of tough Stainless Steel.
nProvides a stable mounting surface.
Stainless Steel extended brackets allow pump to be securely mounted to most any surface;
floor, shelf, or skid. Brackets lift pump up 4-1/2 inches (11.43 cm), for easy pump access in
hard to reach areas.
Model #
72000-380
Description
Extended Mounting Bracket, 1 Pair, SS, 4 SS Screws
OptionalExtended Brackets
Model Number 72000-380
!
Always wear protective clothing, face shield, safety glasses and gloves when working on
or near your metering pump. Additional precautions should be taken depending on
solution being pumped. Refer to MSDS precautions from your solution supplier.
Risk of chemical overdose. Be certain pump does not overdose chemical during
backwash and periods of no flow in circulation system.
CAUTION
!
CAUTION
!
CAUTION
A
B
C
D
E
10-3/4”
8-1/8”
15-1/4”
10”
12-1/4”
27.3
20.6
38.9
25.4
31.0
14-1/4”
12-1/8”
18-5/8”
11”
13-5/8”
36.1
30.8
47.3
27.9
34.6
F4-1/4” 10.7 6” 15.2
14.2"
(36.1cm)
6.0"
(15.2cm)
12.13"
30.8cm)
Front View
11.0"
(27.9cm)
13.63”
(34.6cm)
18.63”
(47.3cm)
Right View
A
B
F
C
D
E
Mounting Hole Spacings
(for standard and extended type brackets)
A4 Series
11.50” (29.2 cm)
A3 Series
8.25” (20.9 cm)
2.5” (6.35 cm)
Flex-Pro
Maximum bolt hole size
0.200” diameter (4 places)

Page 7
Proper eye and skin protection must be worn when installing and servicing pump.
!CAUTION
This Pump Has Been Evaluated for Use with Water Only.
!CAUTION
4.3 Installing Discharge Injection Fitting and Suction Strainer
Flex-Pro
Discharge
Pipe or
½” Tubing
(not included)
Discharge Injection / Check Valve
Pipe
Tee Install
upward
for best
results
½” Male NPT
½” Male NPT
or ½” Hose Barb
Suction Strainer
1/2” Male NPT Connection and 1/2”Hose Barb Models
PVDF
PVDF
TFE/P (optional EP)
T/FEP (optional EP)
Hastelloy C-276
Ceramic
Suction
Strainer
½” Male NPT
or ½” Hose Barb PVDF
PVDF
Viton (optional EP)
PVDF
Removable
275 Micron
Filter
Discharge
Tubing
Tube retaining
nut
Injection
Check valve
Pipe tee
½” male NPT
1/4” male NPT
Discharge Injection / Check Valve Suction Tubing and Strainer
Ceramic
Weight
PVC Suction Tubing
3/8" OD x 1/4” ID
Polypropylene
Strainer
3/8”OD x 1/4” ID Tubing and Connection End Models (not included)
PVDF
Hastelloy C-276
PVDF
T/FEP (optional EP)
Ceramic
TFE/P (optional EP)
PVDF

Page 8
5.0 Input Power Connections
Risk of electric shock – cord connected models are supplied with a grounding
conductor and grounding-type attachment plug. To reduce risk of electric shock, be
certain that it is connected only to a properly grounded, grounding-type receptacle.
Three power cord plug types available.
Power cord length is 6 feet (3.83 meters)
WARNING
!Be certain to connect pump to proper supply voltage. Using incorrect voltage will damage pump and may result in
injury. Voltage requirement is printed on pump serial label.
!Input power range is 96VAC to 264VAC 50/60 Hz.
!Voltage Selection is automatically detected and adjusted by power supply. No mechanical switch necessary.
!Use voltage your power cord is rated for.
!Cord connected models are supplied with a ground wire conductor and a grounding type attachment plug (power
cord). To reduce risk of electric shock, be certain that power cord is connected only to a properly grounded,
grounding type receptacle.
!Permanently connected models must be properly grounded. Be certain that a grounding conductor is connected
to terminal T11-1 located in the wiring compartment.
!Never strap control (input / output) cables and power cables together.
!Power Interruption: This pump has an auto-restart feature which will restore pump to operating state it was in
when power was lost.
Note: When in doubt regarding your electrical installation, contact a licensed electrician.
Electrical connections and grounding (earthing) must conform to local wiring codes.
Be certain that a grounding conductor is connected to terminal T11-1 located in the
wiring compartment.
WARNING
115V 60Hz
NEMA 5/15 (USA)
max: 125V AC
230V 60Hz
NEMA 6/15 (USA)
max: 250V AC
240V 50Hz
CEE 7/VII (EU)
max: 250V AC
QTY. DESCRIPTION
2.50 INCH (12.7 mm) LIQ-TIGHT HOLE PLUGS (MAT’L = NEOPRENE), PRE-INSTALLED
3.875 INCH (22.2 mm) LIQ-TIGHT HOLE PLUGS (MAT’L = NEOPRENE), 2 PRE-INSTALLED
2.50 INCH (12.7 mm) LIQ-TIGHT CONNECTORS FOR PASS THRU CORDS (MAT’L = NYLON)
ACCEPTABLE CABLE DIAMETER .118 TO .255 INCH (3.0 TO 6.5 MM), NOT INSTALLED
3.875 INCH (22.2 mm) METALLIC LIQ-TIGHT CONNECTORS FOR PASS THRU CORDS (MAT’L = NYLON)
ACCEPTABLE CABLE DIAMETER .200 TO .395 INCH (5.1 TO =10.0 MM), 1 PRE-INSTALLED WITH POWER CORD MODELS
Cable and conduit connectors included
5.99 in.
(152.1 mm)
Ø .50
(12.7 mm)
2-PLCS.
Ø .84 in.
(21.3 mm)
3-PLCS.
WIRING COMPARTMENT COVER POWER CORD OPTIONS
Risk of electric shock - Disconnect electricity before removing the wiring
compartment cover.
WARNING
Flex-Pro
2METALLIC LIQ-TIGHT CONNECTORS FOR .50 INCH FLEXIBLE CONDUIT (MAT’L = DIE CAST ZINC), NOT INSTALLED

Page 9
OUTPUTINPUT
3
1
2
T3 DRY
RMT
COM
1
2
3
T1 PULSE
GND (-)
4-20 (+)
0-10 (+)
+15 VDC
1
2
T2
T4 3
12
(+)
FVS
SIG (-)
2
1
FREQ.
(-) (+)
T5
12
4-20 mA
T6
POWER
FUSE 5A SLOW BLOW
(20 X 5MM)
F1
2
3
1GROUND
N EUTRAL
(COMMON)
LINE
(HOT)
T11
N.C.
COM
N.O.
N.O.
COM
N.C.
CC3
CC2
T8
T9
3
1
2
3
1
2
3
1
2
CC1
N.O.
COM
N.C.
T10
123
N.C. COM. N.O.
RELAY
OUT
T7
(-) (+)
5.1 Wiring Terminals and I/O Schematics
NOT USED
FUNCTION TERMINAL PIN # RATING ELECTRICAL SP.
T1
T1
T1
T1
T2
T1
INPUT:
FVS (FLOW
VERIFICATION
SENSOR)
T4
T4
T4
(+) POSITIVE
3
2
1
2
1
2
1
2
3
(-) NEGATIVE
(+) POSITIVE
(-) NEGATIVE
(+) POSITIVE
(-) NEGATIVE
(+) POSITIVE
SIGNAL
(-) NEGATIVE
INPUT:
REMOTE
START / STOP
(DRY CONTACT C.)
INPUT:
REMOTE
START / STOP
(WET CONTACT C.)
OUTPUT:
RELAY, 10 AMP
INPUT:
POWER
FUSE
T3
T3
1
2
T3
T3
2
3
T6
T6
2
1
T5
T5
2
1
(+) POSITIVE
(-) NEGATIVE
(+) POSITIVE
(-) NEGATIVE
T7 1
T7
T7
2
3
NORM. CLOSED
COMMON
NORM. OPEN
T8 1
T8
T8
2
3
NORM. OPEN
COMMON
NORM. CLOSED
T9 1
T9
T9
2
3
NORM. OPEN
COMMON
NORM. CLOSED
T10 1
T10
T10
2
3
NORM. OPEN
COMMON
NORM. CLOSED
T11 1
T11
T11
2
3
GROUND
NEUTRAL
LINE (HOT)
F1 NA 5 AMP
6 TO 30 VOLT DC
1 AMP MAX.
6 AMP MAX AT
250 VAC,
5 AMP MAX AT
30 VOLT DC
5A SLOW BLOW
(20 X 5MM)
(-) NEGATIVE
(+) POSITIVE
(+) POSITIVE
(-) NEGATIVE
NO VOLTAGE
96 TO 264 VOLT AC,
50 / 60 HZ
A3 = 220W
A4 = 350W
T4 3
12
(+)
FVS
SIG (-)
RED (+)
BARE
BLACK (-)
3
1
2
T3 DRY
RMT
COM
3
1
2
T3 DRY
RMT
COM
(+)
(-)
(+)
(-)
123
N.C. COM. N.O.
RELAY
OUT
T7
NO
C
NC
SWITCH LOAD
10 AMP MAX @ 250V AC
8 AMP MAX @ 30V DC
2
3
1
GROUND
N EUTRAL
(COMMON)
LINE
(HOT)
T11
EXTERNAL DEVICE
6 TO 30V DC
OPEN CIRCUIT
IMPEDANCE MUST
BE GREATER THAN
50K OHM
BLUE-WHITE
FVS SENSOR
96 TO 264 VOLT AC,
50 / 60 HZ
A3 = 220W
A4 = 350W
Risk of electric shock - All
wiring must be insulated
and rated 300V minimum.
!
WARNING
Flex-Pro
Terminals T1 thru T10
Plug type
16 - 24 AWG
Power Input Terminal T11
Plug type
14 - 30 AWG
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
Shielded cables should be used on all input signal wires.
NOTE: USE ONLY
DRY CONTACT FOR
REMOTE S/S WHEN
USING 4-20mA
INPUT OR 0-10V DC
Terminal Block
Replacement #
2 Positions
90010-304
3 Positions
90010-305
5 Positions
90010-306

Page 11
Flex-Pro
7.0 Pump Output Speed Adjustment
Press UP arrow to increase pump output. Press DOWN arrow to increase
pump output.
Pressing the START button
repeatedly will toggle the
display to indicate the
%SPEED, RPM, and Tube
Timer Hours.
Tip!
Displays current rotor direction
Manual Speed Adjust
RPM
62
Å
É
ÄÈ
Manual Speed Adjust
%SPEED
70.8
Å
É
ÄÈ186
PUMP TUBE TIMER
Enter twice to reset
Current tube timer:
Hrs.
Tube Timer Displays
for 4 seconds.
- Contact Closure Input
Close: Stop Pump
Open: Stop Pump
Disable
Done
8.0 Contact Closure Input (Remote Start/Stop)
Used to remotely start and stop the pump using a close=stop or open=stop
signal. If the pump must start when the loop is open, then select “Close: Stop
Pump” option. Can be used with an external foot pedal, a PLC, contact closure,
or other similar external devices.
Default settings: Disable
CC Input Range: 6 - 30 VDC
or
Dry Contact Closure (no voltage required)
[See section 5.1 for wire connections]
Navigate to Contact Input menu by holding the START button for 5 seconds.
Press UP or DOWN arrow to scroll through your options.
Press START to make a selection. The radio button (square box) is now filled in
next to your selection.
Press DOWN arrow to scroll down to Done selection. Then press START.
IMPORTANT: To begin operation, press the START button to place pump in
STANDBY. The display background will turn blue indicating the pump has been
stopped remotely. When the pump is started by the remote contact, the display
background will turn green.
IMPORTANT: If the Contact Closure Input is enabled, the pump will display
STANDBY if the pump has been stopped by the Remote Contact Closure.
Please use caution in this mode as the pump may Start at anytime. If you
must perform maintenance to the pump, Press STOP button.
When Contact Closure Input is enabled, the word Remote will always be
displayed on the lower left side of the display screen.
Manual Speed Adjust
Waiting for SIGNAL...
STANDBY
REMOTE
Signal stopped pump
Signal started pump
Manual Speed Adjust
%SPEED
70.8
Å
É
ÄÈ
REMOTE
Manual Speed Adjust
%SPEED
70.8
Å
É
ÄÈ
REMOTE
Manual Speed Adjust
%SPEED
70.8
Å
É
ÄÈ
REMOTE
Manual Speed Adjust
%SPEED
70.8
Å
É
ÄÈ

Page 10
To PRIME pump
Press PRIME button to start 60 second prime feature. Pump will run at full speed for 60 seconds or
until STOP or START button is pressed. STOP button will stop pump and display will read OFF. START
button will stop prime feature and jump back into previous operating state.
To REVERSE ROTATION of rotor
Press REVERSE ROTATION button to reverse flow. A3V pump display will guide you through reverse
rotor rotation process.
6.0 How To Operate Flex-Pro
Flex-Pro F Series, Control Panel - Button Operation
To STOP pump at any time
Pump can be stopped at any time by pressing STOP button. STOP button
overrides all other controls and stops pump. Display will read OFF if pump has
been stopped in this manner. Pump will not respond to incoming input signals
while in OFF state. When START button is pressed, pump will start according to
it’s previous operating state.
To START pump
Press START button to start pump. If a remote start/stop input signal is used, the pump will begin
“listening” for the input signal.
Pressing the START button repeatedly will toggle the display to indicate the %SPEED, RPM, and Tube
Timer Hours.
UP Arrow
Press UP arrow to increase pump output.
Press UP arrow to navigate through menu items.
DOWN Arrow
Press DOWN arrow to increase pump output.
Press DOWN arrow to navigate through menu items.
Manual Speed Adjust
OFF
Manual Speed Adjust
Press START to run
Flex-Pro
Peristaltic Metering Pump
ProSeries
by Blue-White Ind.
®

Page 12 Flex-Pro
9.0 Set FVS (Flow Verification System)
Used to monitor pump output. If pump does not dispense fluid when pump
head rotor is turning, pump will go into an alarm mode and stop pump. Blue-
White offers a flow verification sensor that can easily attach to fitting on pump.
Default settings: 000 (off)
Navigate to Set FVS menu by pressing UP and DOWN arrows at the same
time, then select Input Setup, then Set FVS.
Press UP or DOWN arrow to set the FVS delay time in seconds.
Press START to save changes and exit FVS screen.
Flow Verification System (sensor sold separately)
Flex-Pro is equipped with a Flow Verification System which is designed to stop
pump and energize a 6 amp relay in event sensor does not detect chemical
during pump operation. This could indicate a clogged injection fitting, empty
chemical solution tank, worn pump tube, loose tubing connection, etc.
To allow pump to clear any gasses that may have accumulated during stopper
operation (such as with chlorine), an alarm delay time value from 1-255
seconds must be programmed (An alarm delay value of 000 seconds disables
FVS system).
If FVS alarm occurs, pump will stop, send an external signal (if setup), and
screen will flash FVS with an alarm icon.
To clear FVS alarm, you must press START button or re-cycle power (unplug
power to pump, then plug back in).
Install FVS Flow Sensor - Flow Verification Sensor (FVS) should be installed
on the inlet (suction) side of the pump tube. Sensor includes a PVC tubing
insert, located inside sensors female thread connection, that is designed to
seal sensor onto pump tube inlet adapter. Thread sensor onto pump tube until
tubing insert is snug against pump tube inlet fitting - do not over-tighten.
- Set FVS
Input FVS Time Delay:
OFF = 000
Range = 001-255 seconds
000 Seconds
Manual Speed Adjust
OFF
Manual Speed Adjust
Press START to run
Confirm the FVS flow range - Flow
Verification Sensor (FVS) will only function
within its operating range. See chart for
available ranges.
NOTE: For low viscosity (water-like) fluids
only. Consult the factory if attempting to
use with viscous fluids.
OPERATING
FLOW RANGE
(ml/min)
100-1000
FV-200-6V
200-2000
FV-300-6V
300-3000
FV-400-6V
500-5000
FV-500-6V
700-7000
FV-600-6V
SENSOR MODEL NUMBER
FVS ALARM
When a FVS alarm occurs
STOP
30-300
FV-100-6V
FV-200-3V
FV-300-3V
FV-400-3V
FV-500-3V
FV-600-3V
FV-100-3V
3/8”OD tube
connections
1/2” F/NPT
connections

Page 13
Flex-Pro
11.0 TFD (Tube Failure Detection)
Flex-Pro is equipped with a Tube Failure Detection System which is designed to
stop the pump and provide an output alarm (see Output menu) in the event pump
the tube should rupture and chemical enters the pump head. The pump will
detect a chemical with a conductivity reading greater than 500 microsiemens.
Chemicals with a conductivity of less than 500 microsiemens will not be
detected.
This patented system is capable of detecting the presence of a large number of
chemicals including Sodium Hypochlorite (Chlorine), Hydrochloric (muriatic)
Acid, Sodium Hydroxide, and many others. The system will not be triggered by
water (rain, condensation, etc.) or silicone oil (roller and tubing lubricant).
If system has detected chemical, pump tube must be replaced and pump head
and roller assembly must be thoroughly cleaned. Failure to clean the roller
assembly will void warranty.
If TFD alarm occurs, pump will stop, close an alarm output (if configured), and
screen will flash TFD with an alarm icon.
Confirm Chemical Detection - To determine if your chemical will be detected by
the system, remove the pump head cover and the pump tube and roller assem-
bly. Place a small amount of chemical in the bottom of the pump head - just
enough to cover the sensors. Replace the pump head cover only. When asked if
the tube was replaced, select “no” and press enter. Turn on the pump (press
start). If the TFD system detects the chemical, the pump will stop after a two
second confirmation period and the TFD Alarm screen will display. If the TFD
system does not detect the chemical, the pump will continue to run after the
confirmation period. Carefully clean the chemical out of the pump head being
sure to remove all traces of the chemical from sensor probes. Replace the roller
assembly and tubing. Replace the pump head cover. Press the START button to
clear the alarm condition and restart the pump.
TFD
STOP
ALARM
When a TFD alarm occurs
Chemical from tube failure
186
PUMP TUBE TIMER
Enter twice to reset
Current tube timer:
Hrs.
10.0 Pump Tube Timer
Flex-Pro has a built in Pump Tube Timer. Timer starts when rotor is rotating and stops
when rotor is idle. To view current Pump Tube Timer value, press START button
repeatedly until the Tube Timer screen appears. Screen will display current Pump
Tube Time in run-time hours. The Tube Timer screen will display for 4 seconds and
then switch back to the previous operating display screen.
While displayed, press DOWN arrow button twice to reset Pump Tube Timer to zero.
When replacing pump tube, pump will ask you if you’d like to reset Pump Tube Timer.
If you choose YES, screen will display current Pump Tube Time for 5 seconds before
timer is reset to zero.
12.0 Alarm Relay
Pump has a built in 6 amp alarm output relay. Relay is pre-configured to
energize on tube failure detection (TFD) and on Flow Verification Sensor (FVS).
A Flow Verification Sensor must be installed and configured for relay to trigger
on no-flow conditions.

Page 14 Flex-Pro
13.0 Reverse Rotor Rotation
Increase tube life with this feature!
!
CAUTION Prior to service, pump clean water through the pump and suction / discharge line to
remove chemical.
Always wear protective clothing, face shield, safety glasses and gloves when working on
or near your metering pump. Additional precautions should be taken depending on
solution being pumped. Refer to MSDS precautions from your solution supplier.
!
CAUTION
Pump rotor can reverse rotation by pressing REVERSE ROTATION button. This process can be used for many
reasons throughout various industries.
Two reasons for reversing current rotor rotation; to purge chemical from tubing and to extend tube life.
Plan ahead before reversing rotor rotation. If checkvalves are installed, make necessary arrangements to allow
back flow.
If your desire is to simply extend tube life:
Typically tubing fails on outlet side (pressure side) of tube assembly in pump head.
Failure to install checkvalves in their proper flow direction can cause excess pressure
(PSIg) build up in system and can result in tube rupture.
Always use extreme caution and ensure proper connections when using this feature.
!
CAUTION
Swap Inlet
and Outlet
O
N
R
T
F
Reversing rotation, moves outlet side (pressure side) to
opposite side of tube assembly, greatly increasing tube life.
Stop pump before tube failure occurs.
Disconnect power from pump. Carefully purge any pressure
in discharge line of pump. Disconnect suction end tubing and
discharge end tubing from pump head tubing.
IMPORTANT! Swap sides of suction (inlet) and discharge
(outlet) tubing. No need to remove Pump Head Cover.
Double check all connections before starting pump.
O
N
R
T
F
Outlet
Inlet
D
i
r
n
e
o
i
c
t
t
a
i
t
o
o
n
R
Typical Failure Point
(pressure side)
!

Page 15
Flex-Pro
14.0 How to Maintain Pump
Always wear protective clothing, face shield, safety glasses and gloves when working on
or near your metering pump. Additional precautions should be taken depending on
solution being pumped. Refer to MSDS precautions from your solution supplier.
!
CAUTION
Routine Inspection and Maintenance
Pump requires very little maintenance. However, pump and all accessories should be checked weekly. This is
especially important when pumping chemicals. Inspect all components for signs of leaking, swelling, cracking,
discoloration or corrosion. Replace worn or damaged components immediately.
Cracking, crazing, discoloration and the like during first week of operation are signs of severe chemical attack. If this
occurs, immediately remove chemical from pump. Determine which parts are being attacked and replace them with
parts that have been manufactured using more suitable materials. Manufacturer does not assume responsibility for
damage to pump that has been caused by chemical attack.
How to Clean and Lubricate Pump
Pump will require occasional cleaning. The amount will depend on severity of service.
]When changing pump tube assembly, pump head chamber, roller assembly and pump head cover should be wiped
free of any dirt and debris.
]Pump head cover bearing may require grease periodically. Apply a small amount of grease (Aeroshell aviation
grease #5 or equivalent) when necessary.
]100% silicone lubrication may be used on the roller assembly. Refer to Blue-White.com/videos for roller assembly
maintenance video instructions.
]Periodically clean injection/check valve assembly, especially when injecting fluids that calcify such as sodium
hypochlorite. These lime deposits and other build ups can clog fitting, increase the back pressure and interfere with
check valve operation.
]Periodically clean suction strainer.

Page 16 Flex-Pro
15.0 Tube Replacement
MAINTENANCE MODE
Pump Cover Removed!
Press STOP to stop
- Cover was removed!
- Motor Speed = 6 RPM
MAINTENANCE MODE
Press START to run
Pump Head
Spacer, Rear
Rotor
Spacer, Front
Tubing Assembly
Pump Head Cover
Thumb
Screws
Tube Nut
Remove Pump Head Cover by unscrewing four Thumb Screws. Pull out Pump
Head Cover.
Pump will detect Pump Head Cover is removed and enter MAINTENANCE MODE.
Rotor will rotate at a maximum of 6 RPM for your safety.
Pull out suction side of Tubing Assembly.
Press START button. While rotor is rotating, pull out old Tube Assembly.
TIP! Let pump do the work for you. Just guide tubing out between two rollers
located on Rotor.
Press STOP button at any time to stop the pump.
Pull out suction line adapter from Pump Head. Pull out Tubing Assembly as the
Rotor rotates around.
Stop pump by pressing STOP button.
Thoroughly clean Pump Head and Rotor. Rotor can be removed by pulling straight
out. After cleaning process, push Rotor back on shaft. See drawing above for
proper assembly. IMPORTANT! Rotor direction; the word “FRONT” on Rotor must
face front of pump.
Locate your new tubing and Tube Installation Tool. Please see next page on how to
install new Tube Assembly into Pump Head.
!
CAUTION Prior to service, pump clean water through the pump and suction / discharge line to remove
chemical.
Always wear protective clothing, face shield, safety glasses and gloves when working on
or near your metering pump. Additional precautions should be taken depending on
solution being pumped. Refer to MSDS precautions from your solution supplier.
!
CAUTION
Tube Installation Tool
90002-278
Use provided Tube Installation Tool to leverage tubing into pump head, NOT YOUR
FINGERS.
!
CAUTION
Use extreme caution when replacing pump tube. Be careful of your fingers and DO NOT
place fingers near rollers.
!
CAUTION
TIP! Apply silicone oil to
outside of Flex-A-Thane®
tubes for longer tube life.

Page 17
Flex-Pro
Re-attach Pump Head Cover using the four Thumb Screws.
Pump will detect Pump Head Cover is installed and begin to exit MAINTENANCE
MODE.
Pump will ask you if Tube was replaced. Yes / No
If Yes is selected, pump ask you to reset Tube Timer. Yes / No
If Yes is selected, pump will display Current Tube Timer briefly (5 seconds) before
resetting to zero.
The pump can now begin normal operation.
MAINTENANCE MODE
Pump Cover Detected!
Press ENTER to set
Was Tube Replaced?
MAINTENANCE MODE
Up/Down to select
YESNO
Insert suction fitting into pump head. Remove your fingers from
pump head. Start pump by pressing START button. Grab hold of
Tube Installation Tool and use it to leverage tubing into pump head.
Introduce tubing into pump head while the rotor is rotating. Avoid
using fingers to guide the tubing. Stop pump at anytime by
pressing STOP button. Start pump by pressing START button.
Continue to follow rotation of rotor while directing tube into pump
head. At this point, you may need to pull Tube Installation Tool to
stretch tubing into position. Let rotor spin a few rotations while
pulling Installation tool so fitting can be properly installed.
Continue to pull Tube Installation Tool to allow enough room to
slide discharge fitting into pump head tongue and groove. Once
discharge fitting is secured in pump head, stop pump by pressing
STOP button. Replace pump head cover. Pump will ask you if
you’d like to reset tube timer. If you choose yes, current tube time
will display for 5 seconds before resetting to zero. Make note of
your displayed tube life. Select Yes again to reset tube life timer.
12
3
PULL
4

Page 18 Flex-Pro

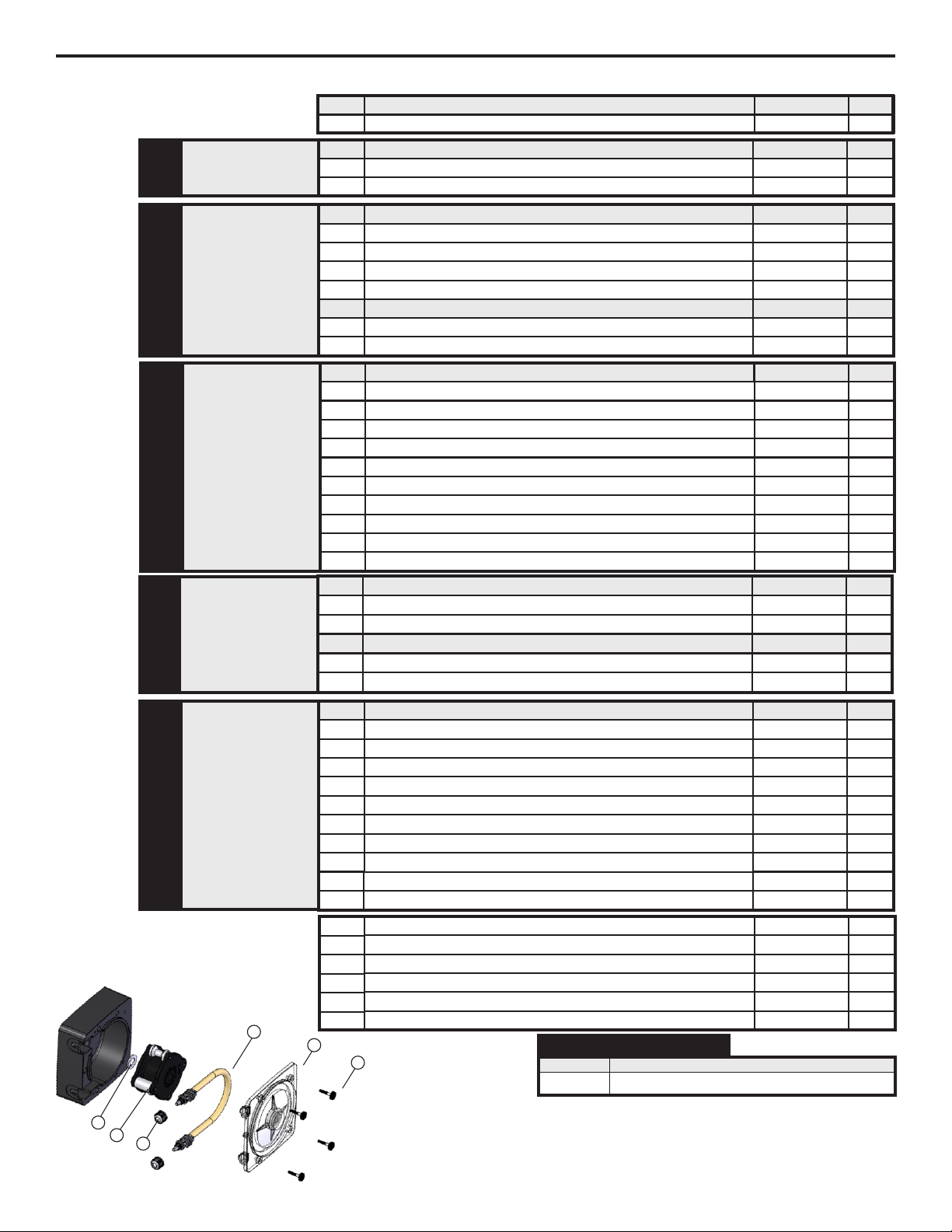

16.0 Flex-Pro Model A3 replacement parts list
2Spacer, Back
90011-184 1
QTY
Description
Part Number
Item
2
3
4
6
7
8
6
7
Pump Head Cover, Polycarbonate - New design, backwards compatible
Thumb Screw
A3-SXX-C
90011-183
1
4
8
Tube Nut, Compression, For 3/8” Tubing
C-330-6 2
Stainless Steel extended mounting bracket kit (pair)
Rubber feet
72000-380
90003-561
1
4
Not
Shown
Stainless Steel mounting bracket kit (pair)
72000-379 1
Not
Shown
Not
Shown
Model #
72000-537
Description
Roller Assembly and Pump Head Cover
Upgrade existing A3 pumps with Flex-A-Prene® Upgrade Kit to be compatible
with all new Flex-A-Prene® tubes.
®
Flex-A-Prene Upgrade Kit
3
4
Roller Assembly Complete (Rotor), For ND Tubes
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Prene ND (.075 ID)
A3-SND-R
A3-SND-T
1
1
3Roller Assembly Complete (Rotor), For NJ, NK, NE, and NGG Tubes A3-SNGG-R 1
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Prene NJ (.312 ID) A3-SNJ-T 1
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Prene NK (.375 ID) A3-SNK-T 1
Tubing in this group are
interchangeable with
single roller assembly
(rotor).
®
Flex-A-Prene
Tubing in this group are
interchangeable with
single roller assembly
(rotor).
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Prene ND (.075 ID) A3-MND-T 1
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Prene NJ (.312 ID) A3-MNJ-T 1
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Prene NK (.375 ID) A3-MNK-T 1
®
Flex-A-Prene
A3-SNKL-T 1
4A3-SNKL-T 1
3Roller Assembly Complete (Rotor), For NJ, NK, NEE and NGG Tubes A3-SNGG-R 1
Tubing in this group are
interchangeable with
single roller assembly
(rotor).
®
Flex-A-Prene
4
4
4
A3-QNEE-T
A3-SNEE-T
A3-MNEE-T
1
1
1
®
Tube Assembly, Quick Disconnect, Flex-A-Prene NEE (0.093 ID)*
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Prene NEE (0.093 ID)*
®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NEE (0.093 ID)
4
4
4
A3-BNEE-T
A3-CNEE-T
A3-QNGG-T
1
1
1
®
Tube Assembly, 1/2” Hose Barb, Flex-A-Prene NEE (0.093 ID)
®
Tube Assembly, 1/2” - 3/4” tri-clamp (Sanitary Fitting), Flex-A-Prene NEE (0.093 ID)
®
Tube Assembly, Quick Disconnect, Flex-A-Prene NGG (0.187 ID)*
A3-SNGG-T
A3-MNGG-T
A3-BNGG-T
A3-CNGG-T
1
1
1
1
1
1
1
1
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Prene NGG (0.187 ID)
4
4
4
®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NGG (0.187 ID)
®
Tube Assembly, 1/2” Hose Barb, Flex-A-Prene NGG (0.187 ID)
®
Tube Assembly, 1/2” - 3/4” tri-clamp (Sanitary Fitting), Flex-A-Prene NGG (0.187 ID)
3
4
Roller Assembly Complete (Rotor), For GE, GG, GH, GK. G2G Tubes
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Thane GE (.125 ID)
A3-SGE-R
A3-SGE-T
1
1
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Thane GG (.187 ID) A3-SGG-T 1
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Thane GH (.250 ID) A3-SGH-T 1
Tubing in this group
are interchangeable
with single roller
assembly (rotor).
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Thane GE (.125 ID) A3-MGE-T 1
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Thane GG (.187 ID) A3-MGG-T 1
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Thane GH (.250 ID) A3-MGH-T 1
4
4
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Thane GK (.375 ID)
®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Thane GK (.375 ID)
A3-SGK-T 1
A3-MGK-T 1
®
Flex-A-Thane
4®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Thane G2G (.187 ID) A3-SG2G-T 1
4®
Tube Assembly, 1/2” Male NPT connect, Flex-A-Thane G2G (.187 ID) A3-MG2G-T 1
3
4
Roller Assembly Complete (Rotor), For TH Tubes
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Chem TH (.250 ID)
A3-STH-R
A3-STH-T
1
1
Tubing in this group are
interchangeable with
single roller assembly
(rotor).
4®
Tube Assembly, 1/2” Male NPT, Flex-A-Chem TH (.250 ID) A3-MTH-T 1
4
4
®
Tube Assembly, 3/8” OD tube compression fitting, Flex-A-Chem TK (.375 ID)
®
Tube Assembly, 1/2” Male NPT, Flex-A-Chem TK (.375 ID)
A3-STK-T
A3-MTK-T
1
1
®
Flex-A-Chem
3Roller Assembly Complete (Rotor), For TK Tubes A3-SNGG-R 1
*Quick Disconnect valves sold separately.
Note: ND and NKL tube assemblies are also available in
“B”, “C” and “Q” connection types.
4®
Tube Assy, 1/2” Male NPT, Flex-A-Prene NKL (.375 ID) Low Pressure (30 psi max) A3-MNKL-T 1
®
Tube Assy, 3/8” OD tube comp, Flex-A-Prene NKL (.375 ID) Low Pressure (30 psi max)
3Roller Assembly Complete (Rotor), For NKL Tubes A3-STH-R 1

Page 19
Flex-Pro
17.0 Flex-Pro Model A4 replacement parts list
2
3
4
A4-SXX-C, Pump head cover (A4)
2
90011-183, Thumb screw
76001-439, Shaft extension
Not
Shown
Not
Shown
Not
Shown
Stainless Steel extended mounting bracket kit (pair)
Rubber feet (4 required per pump, sold individually)
Stainless Steel mounting bracket kit (pair)
72000-380
90003-561
72000-379
1
1
1
2Spacer, two spacers required, A4 (replaces 90011-184) 90011-217 1
QTY
Description Part NumberItem
Tubing in this group
are interchangeable
with single roller
assembly (rotor).
®
Flex-A-Prene
3Roller Assy Complete (A4 Rotor), For NH, NJ, NK, NHH Tubes A4-MNH-R 1
4
4®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NJ (.31 ID) A4-MNJ-T 1
4®
Tube Assembly, 1/2” hose barb, Flex-A-Prene NJ (.31 ID) A4-BNJ-T 1
4®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NH (.25 ID) A4-MNH-T 1
4®
Tube Assembly, 1/2” hose barb, Flex-A-Prene NH (.25 ID) A4-BNH-T 1
4®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NK (0.38 ID) A4-MNK-T 1
Dual tube designs are
Patent Pending
41
41
Tubing in this group
are interchangeable
with single roller
assembly (rotor).
3
4
4
4
4
Roller Assy Complete (A4 Rotor), For GH, GK, GHH, GKK Tubes
®
Tube Assembly, 1/2” hose barb, Flex-A-Thane GH (.25 ID)
®
Tube Assembly, 1/2” hose barb, Flex-A-Thane GK (.38 ID)
®
Tube Assembly, 1/2” Male NPT, Flex-A-Thane GH (.25 ID)
®
Tube Assembly, 1/2” Male NPT, Flex-A-Thane GK (.38 ID)
A4-MGH-R
A4-BGH-T
A4-BGK-T
A4-MGH-T
A4-MGK-T
1
1
1
1
1
4
4
4
4
®
Tube Assy, 1/2” hose barb, Multi-Tube Flex-A-Thane GH & GH (.25 + .25 ID)
®
Tube Assy, 1/2” hose barb, Multi-Tube Flex-A-Thane GK & GK (.38 + .38 ID)
®
Tube Assy, 1/2” Male NPT, Multi-Tube Flex-A-Thane GH & GH (.25 + .25 ID)
®
Tube Assy, 1/2” Male NPT, Multi-Tube Flex-A-Thane GK & GK (.38 + .38 ID)
A4-BGHH-T
A4-BGKK-T
A4-MGHH-T
A4-MGKK-T
1
1
1
1
3Roller Assy Complete (A4 Rotor), For TH, TK, THH, TKK Tubes A4-MTH-R 1
Tubing in this group
are interchangeable
with single roller
assembly (rotor).
®
Flex-A-Prene
Tubing in this group
are interchangeable
with single roller
assembly (rotor).
3
4
4
4
4
Roller Assy Complete (A4 Rotor), For NL, NP Tubes
®
Tube Assembly, 1/2” hose barb, Flex-A-Prene NL (.50 ID)
®
Tube Assembly, 1/2” hose barb, Flex-A-Prene NP (.75 ID)
®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NL (.50 ID)
®
Tube Assembly, 1/2” Male NPT, Flex-A-Prene NP (.75 ID)
A4-MNL-R
A4-BNL-T
A4-BNP-T
A4-MNL-T
A4-MNP-T
1
1
1
1
1
41
®
Tube Assembly, 1/2” hose barb, Flex-A-Chem TK (.38 ID) A4-BTK-T
41
®
Tube Assembly, 1/2” Male NPT, Flex-A-Chem TK (.38 ID) A4-MTK-T
41
41
®
Tube Assy, 1/2” hose barb, Multi-Tube Flex-A-Chem TK & TK (.38 +.38 ID) A4-BTKK-T
®
Tube Assy, 1/2” Male NPT, Multi-Tube Flex-A-Chem TK & TK (.38 + .38 ID) A4-MTKK-T
Dual tube designs are
Patent Pending
Dual tube designs are
Patent Pending
®
Flex-A-Chem
®
Flex-A-Thane
4®
Tube Assembly, 1/2” Male NPT, Multi-Tube Flex-A-Prene NHH (.25 + .25 ID) A4-MNHH-T 1
A4-QNH-T
®
Tube Assembly, Quick Disconnect, Flex-A-Prene NH (0.25 ID)*
4®
Tube Assembly, 1/2” Male NPT, Multi-Tube Flex-A-Prene NHH (.25 + .25 ID) A4-MNHH-T 1
®
Tube Assembly, Quick Disconnect, Flex-A-Prene NK (0.38 ID)*
®
Tube Assembly, Quick Disconnect, Flex-A-Prene NJ (0.31 ID)*
A4-QNJ-T 1
A4-QNK-T
4®
Tube Assembly, Quick Disconnect, Flex-A-Prene NL (.50 ID)* A4-QNL-T 1
4®
Tube Assembly, Quick Disconnect, Flex-A-Prene NP (.75 ID)* A4-QNP-T 1

Page 20 Flex-Pro
18.2 Output Versus Fluid Viscosity
0
20 40 60 80
100 120 140 160
0 30 60 90 125
Motor RPM
Flex-Pro Model A3
output of 12,000 cP fluid vs. motor rpm
MNH MNJ MNK MTK MGK MNGG MNEE MG2G
Suction lift = 3 ft.
0
500
1000 1500 2000 2500
0 30 60 90 125
Motor RPM
Flex-Pro Model A3
output of 200 cP fluid vs. motor rpm
MNH MNJ MNK MTK MGK MNGG MNEE MG2G
Suction lift = 3 ft.
0
500
1000 1500 2000 2500
0 30 60 90 125
Motor RPM
Flex-Pro Model A3
output of water vs. motor rpm
MNH MNJ MNK MTK MGK MNGG MNEE MG2G
Suction lift = 3 ft.
0
200 400 600 800
1000 1200 1400
0 30 60 90 125
Motor RPM
Flex-Pro Model A3
output of 1,700 cP fluid vs. motor rpm
MNH MNJ MNK MTK MGK MNGG MNEE MG2G
Suction lift = 3 ft.
Flow Rate (ml/min) Flow Rate (ml/min)
Flow Rate (ml/min) Flow Rate (ml/min)
