ICP DAS USA PM-4324 Series User manual

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 1
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 2
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 1 Introduction .................................... 4
1.1. PM-4324 introduction........ 4
1.2. Caution............................. 5
1.2.1. Danger.............................. 5
1.3. Warning ............................ 5
1.4. Product Warranty &
Customer Support............. 5
1.4.1. Limitation of Warranty....... 6
Chapter 2 Specifications................................. 7
2.1 Specifications.................... 7
2.2 Naming Rules................... 9
....................................................................... 9
Chapter 3 Installation.................................... 10
3.1 Inspection....................... 10
3.2 Safety ............................. 10
3.2.1 Dimension and Latch...... 10
3.2.2 Mounting and Dismounting
....................................... 12
3.2.3 CT’s installation steps..... 13
Chapter 4 Wiring Diagrams...........................14
4.1 Connection......................14
4.2 Wiring..............................16
Chapter 5 Relay output & LED Indicator........18
5.1 Relay...............................18
5.2 LED Indicator ..................18
Chapter 6 Modbus-RTU communication........19
6.1.1 SW1－SW6 setting..........19
6.2 Modbus-RTU setting .......22
6.2.1 Specifications..................22
6.2.2 Modbus Register.............24
Chapter 7 CANopen communication .............39
7.1 CANopen setting.............39
7.2 CANopen Protocol...........41
7.2.1 SDO Introduction.............42
7.2.1.1 Upload SDO Protocol......42
7.2.1.2 Download SDO Protocol..44

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 3
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
7.2.1.3 Abort SDO Transfer Protocol
....................................... 47
7.2.2 PDO Introduction............ 50
7.2.2.1 PDO COB-ID Parameters50
7.2.2.2 Transmission Type.......... 51
7.2.2.3 PDO Communication Rule
....................................... 52
7.2.3 NMT Introduction............ 54
7.2.3.1 Module Control Protocol . 54
7.2.3.2 Error Control Protocol..... 56
7.2.4 Special Functions for
PM-4324-CPS.................57
7.2.4.1 Power Meter Data Table..57
7.2.5 Object Dictionary of
PM-4324-CPS.................59
7.2.5.1 Communication Profile Area
........................................59
7.2.5.2 Manufacturer Specific
Profile Area .....................66
Appendix: Questions & Answers.............72

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 4
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 1 Introduction

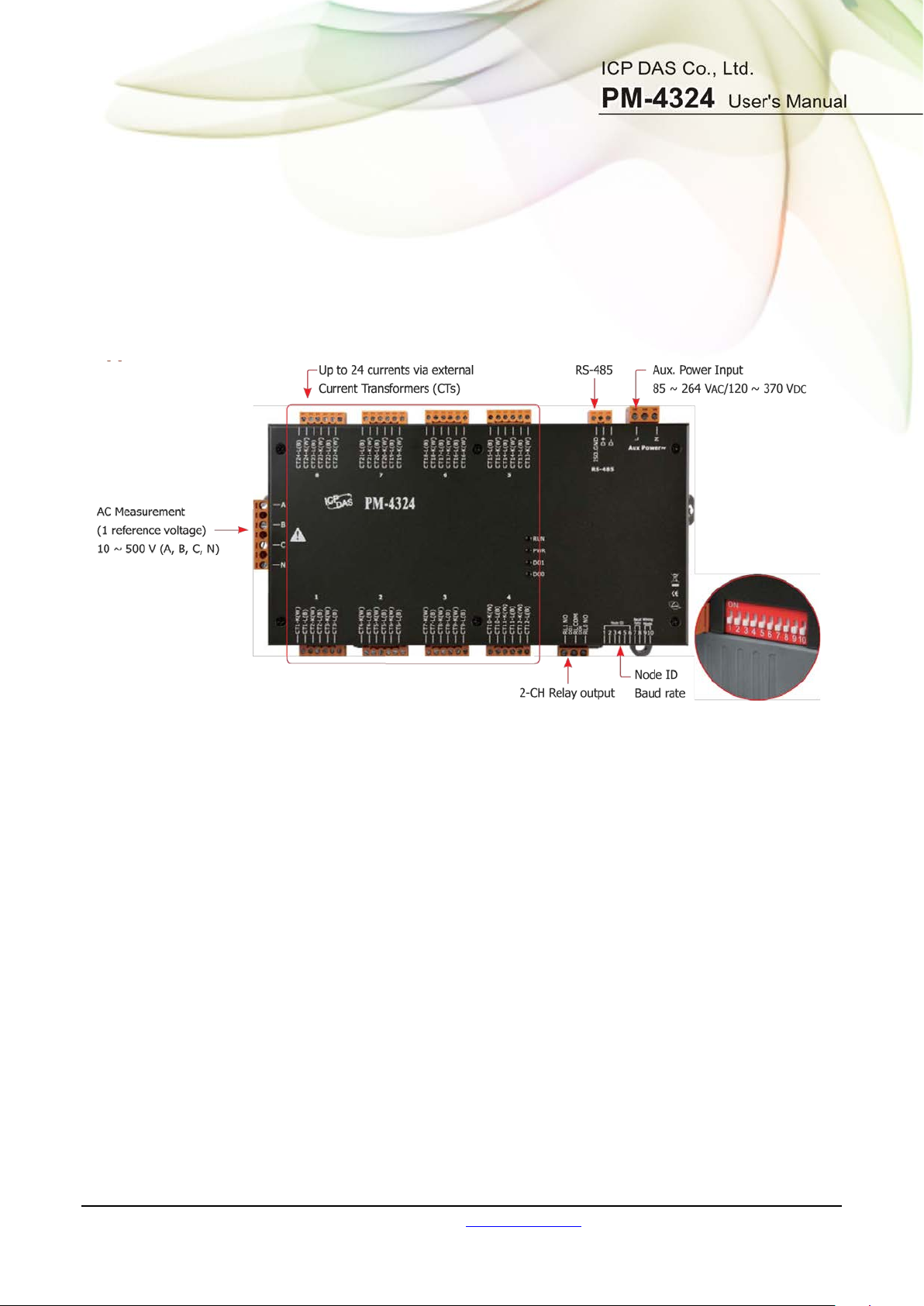

1.1. PM-4324 introduction
ICP DAS offers PM-4324 family in a full range of Single-phase and Three-phase smart
power meters for power monitoring. The products offer a rich feature set combined with
easy-to-integrate communications.
With its high accuracy (<0.5%, PF=1), the PM-4324 series products can be applied both
on low voltage primary side and/or medium/high voltage secondary side and enable the
users to obtain in real time the reliable and accurate energy consumption readings from
the monitored equipments while in operation. These compact size and cost effective
Power Meters are equipped with revolutionary wired clip-on CT (various types support
input current up to 400A) and standard Modbus communication RS-485 protocol for
easy deployment. It works with input voltages ranging 10V ~ 500V, supporting a wide
range of applications.
Features：
True RMS Power Measurements
Energy Analysis for 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Current Measurements Up to 400 A with Different CT Ratio
Voltage Measurements Up to 500 V
Clip-on CT for Easy Installation
W Accuracy Better than 0.5% (PF=1)
Supports RS-485, Ethernet Interface
Supports Modbus RTU, Modbus TCP protocols.
Supports 2-Power Relay Output (Form A)
Total Harmonic Distortion (THD)

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 5
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
1.2. Caution
1.2.1.Danger
The meter contains hazardous voltages, and should never be disassembled. Failing to
follow this practice will result in serious injury or death. Any work on or near energized
meters, meter sockets, or other metering equipment could induce a danger of electrical
shock. It is strongly recommended that all work should be performed only by qualified
industrial electricians and metering specialist. ICP DAS assumes no responsibility if
your electrical installer does not follow the appropriate national and local electrical
codes.
1.3. Warning
ICP DAS assumes no liability for any damage resulting from the use of this product. ICP
DAS reserves the right to change this manual at any time without notice. The
information furnished by ICP DAS is believed to be accurate and reliable. However, no
responsibility is assumed by ICP DAS for its use, not for any infringements of patents or
other rights of third parties resulting from its use.
1.4. Product Warranty & Customer Support
ICP DAS warrants all products free from defects in material and workmanship for a
period of one year from the date of shipping. During the warranty period, we will, at our
position, either repair or replace any product that proves to be defective. To report any
defect, please contact ：[phone] or [e-mail].
Please have the model, serial number and a detailed problem description available
when you call. If the problem concerns a particular reading, please have all meter
readings available. When returning any merchandise to ICP DAS, a return SN. is
required.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 6
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
1.4.1.Limitation of Warranty
This warranty does not apply to defects resulting from unauthorized modification,
misuse, or use for reason other than electrical power monitoring. The supplied meter is
not a user-serviceable product.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 7
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 2 Specifications
2.1 Specifications
Model PM-4324 PM-4324-MTCP PM-4324-CPS
AC Power Measurement
Wiring 1P2W-1CT, 1P3W-2CT, 3P3W-2CT, 3P3W-3CT and 3P4W-3CT
Measurement Voltage 10 ~ 500 V (CAT III)
Measurement Current CT Φ10 mm (60 A); CTΦ16 mm (100 A); CTΦ24 mm (200 A);
CTΦ36m (300 A); CTΦ36m (400 A)
Measurement Frequency 50-60 Hz
W Accuracy Better than 0.5% (PF:1)
Starting Current >0.03A( 60A), >0.05A(100A), >0.09A( 200A)
Power Parameter
Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW),Active Energy
(kWh), Apparent Power (kVA), Apparent Energy (kVAh),
Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency(Hz)
Data Update Rate 1 Second
Communication
RS-485
Protocol Modbus-RTU -
Baud rate 9600,19200 (default), 38400,
115200; DIP Switch Selectable -
Data
format
N,8,1 (default); N,8,2; E,8,1; E,8,2;
O,8,1; O,8,2
Isolation 3000 VDC -
Bias
Resistor
No (Usually supplied by the
RS-485
Master. Alternatively, add
a tM-SG4 or SG-785)
Ethernet Protocol - Modbus TCP
CANoepn Protocol CANopen
Alarm Output
Power Relay
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz),
5 A @ 30 VDC

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 8
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Field Wiring Terminal Markings:
3.81mm (For Measurement Current and Communication): Use Copper Conductors Only,
wires range 16-26 AWG, torque value 3.0 lb-in.
5.08mm (For Measurement Voltage, Aux Power and Alarm Output):
Use Copper Conductors Only, wires range 12-24 AWG, torque value 7.0 lb-in.
7.62mm: Use Copper Conductors Only, wires range 12-24 AWG, torque value 4.5 lb-in.
Aux Power
Input Range +100 ~ +240 VAC +100 ~ +240 VAC +100 ~ +240 VAC
Power Consumption 6 W
Dimensions (W x L x H) 237 mm x 52 mm x 134 mm
Environment
Operating Temperature -20 ~ +70 °C
Storage Temperature -25 ~ +80 °C

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 9
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
2.2 Naming Rules

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 10
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 3 Installation
3.1 Inspection
The instrument is no longer safe when,
a) Shows clear signs of damage
b) Does not work
c) Long storage under extreme conditions
d) Damage during shipment
3.2 Safety
Please use the soft dry clothes to clean the instrument.
Please do not use any chemical or detergent or volatile solvents to clean the instrument,
in order to avoid any possibility of the cover damage.
3.2.1 Dimension and Latch

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 11
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Products come with external split type clip-on CT’s. Disconnect the CT’s or use
other CT’s is highly prohibited.
Please read this operation manual carefully before using.
Please re-confirm the measure position.
PM-4324 series can be installed as rail mounting mode or embedded, no need to
drill a hole or screw to fix it (rail mounting width can up to the length of 35 mm).
Meter auxiliary power is +100 ~ +240 VAC.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 12
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
3.2.2 Mounting and Dismounting
Mounting
Assembly: Place the PM-4324 on the DIN-Rail. Push the front of the PM-4324
toward the mounting surface until it audibly snaps into place.
Dismantling: Pull out the latch and then remove the PM-4324 from the DIN-Rail.
Wire Disconnection
1. Open the CT clip to detach the CT, do not remove the CT terminal lines if
possible
Note: if you need to remove the terminal lines, always detach the CT before
removing the CT terminal lines. Otherwise the CT may develop open-circuit
secondary voltages which may be hazardous to personnel or damaging to the
CT or equipment connected in the secondary circuit.
2. Disconnect the voltage input wires from terminals and wrap the wire tips with
plastic tape.
3. Disconnect the communication wires from terminal.
4. Disconnect the auxiliary power from terminal and wrap the wire tip with plastic
tape.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 13
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
3.2.3 CT’s installation steps
At the bottom of the CT, there is a
“K→L” mark.
Open the CT clip.
Make sure the power current
direction follow the “K→L” mark on
the CT and then close the CT clip.
Installation steps finished.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 14
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 4 Wiring Diagrams
4.1 Connection
Please firstly check the current input terminal, and then in white black, white black,
white black wire sequences (CT1-K, CT1-L, CT2-K, CT2-L, CT3-K, CT3-L). Then
connect the CT’s, and close the CT clip. Make sure the arrow direction sign on CT’s
follows current flow direction（K→L）
Note: it must be in the same direction.
Connect the voltage input terminal N C B A. for PM-4324, in the three phase order
as follows on N C B A.
Attention please!! For 3P3W-2CT, connect in N C A phase sequence, do not
connect phase B (Check the diagram).

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 15
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Voltage Input
1. PM-4324 series: Input Voltage up to 500V.
For any higher Input Voltage large than 500V, please add the PT (power transformer), and Change PT
RATIO setup.
2. Confirm the RST (ABC) phase sequence.
Current Input
1. The external CT’s are fragile, please handle with care.
2. The current input of PM-4324 series is in mA range. Only the ex-factory attached CT’s can be used.
The other CT’s, for example, from panel will damage the instrument due to its large current (around
5A)
3. When more than one smart meter (PM-4324 series) are installed, please do not disconnect the CT
with its original meter and mix use with each other. Since each set of smart meter (PM-4324 series)
and its attached split type clip-on CT are calibrated set by set. The mix use may cause wrong
measurements.
4. To install CT’s correctly, please ensure the CT lines sequences is right before clip the CT’s onto the
power cable of the monitoring equipment. (Detail will be found in next section)
5. When measuring the current, the secondary circuit of a CT should never be
opened when a load is passing through its primary. Make sure you always open
the CT clip to detach the CT before removing the terminal lines. Otherwise, it will cause severe
injury.
6. Please handle with extra care, especially when the operation space of CT’s is limited.
7. The current direction must follow K-L marked on CT’s.
8. Please select the right size CT’s for different size of monitoring equipment cables:
power cable diameter ＜Φ10 use 60A CT，Φ10～Φ16 use 100A CT，Φ16～Φ24 use 200A CT,
，Φ36 use 300A CT，Φ36 use 400ACT
9. The maximum current value cannot exceed the CT rating

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 16
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
4.2 Wiring
1P2W-1CT (PM-4324)
1P3W-2CT (PM-4324)
3P3W-2CT (PM-4324)
3P3W-3CT (PM-4324)

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 17
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
DIP switch: Wiring mode SW 9 SW 10
3P3W-3CT
OFF
ON
3P4W-3CT (PM-4324)
DIP switch: Wiring mode SW 9 SW 10
3P4W-3CT
ON
ON

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 18
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 5 Relay output & LED Indicator
5.1 Relay
Relay type Power Relay, Form A (SPST N.O.)
Operating Voltage Range 250 VAC/30 VDC
Max. Load Current 5 A at 25 °C
Operate Time 6 ms
Release Time 3 ms
5.2 LED Indicator
The PM-4324 has 4 LED to indicate the unit power status, RS-485 communication, and
power data calculation.
RUN: Green, light up after RS-485 ready. LED will flash when the unit is processing
RS-485 communication.
PWR: Red, Power on LED always on.
DO0: Green. LED DO0 will light up, when DO0 is “ON”.
DO1: Green. LED DO1 will light up, when DO1 is “ON”.

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 19
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
Chapter 6 Modbus-RTU communication
6.1 RS-485 setting
Default setting for RS-485: 19200, n, 8, 1
DIP switch (SW1-SW6) is used for Modbus address setting, default is 1, i.e.
all OFF
For example: Modbus address is 10，find the table of DIP switch 1-6 is
ON, OFF, OFF, ON, OFF, OFF
6.1.1 SW1
－
SW6 setting
Setting Modbus-RTU address for communication (1-64)
Modbus Address
SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
1
OFF
OFF
OFF
OFF
OFF
OFF
2
ON
OFF
OFF
OFF
OFF
OFF
3
OFF
ON
OFF
OFF
OFF
OFF
4
ON
ON
OFF
OFF
OFF
OFF
5
OFF
OFF
ON
OFF
OFF
OFF
6
ON
OFF
ON
OFF
OFF
OFF
7
OFF
ON
ON
OFF
OFF
OFF
8
ON
ON
ON
OFF
OFF
OFF
9
OFF
OFF
OFF
ON
OFF
OFF
10
ON
OFF
OFF
ON
OFF
OFF
11
OFF
ON
OFF
ON
OFF
OFF
12
ON
ON
OFF
ON
OFF
OFF
13
OFF
OFF
ON
ON
OFF
OFF
14
ON
OFF
ON
ON
OFF
OFF
15
OFF
ON
ON
ON
OFF
OFF
16
ON
ON
ON
ON
OFF
OFF
17
OFF
OFF
OFF
OFF
ON
OFF
18
ON
OFF
OFF
OFF
ON
OFF
19
OFF
ON
OFF
OFF
ON
OFF
20
ON
ON
OFF
OFF
ON
OFF
21
OFF
OFF
ON
OFF
ON
OFF
22
ON
OFF
ON
OFF
ON
OFF
23
OFF
ON
ON
OFF
ON
OFF
24
ON
ON
ON
OFF
ON
OFF
25
OFF
OFF
OFF
ON
ON
OFF
26
ON
OFF
OFF
ON
ON
OFF
27
OFF
ON
OFF
ON
ON
OFF

PM-4324 User’s Manual v1.02 Last Revised: May. 2017 Page: 20
Copyright © ICP DAS Co., Ltd. All Rights Reserved. www.icpdas.com E-mail: [e-mail]
28
ON
ON
OFF
ON
ON
OFF
29
OFF
OFF
ON
ON
ON
OFF
30
ON
OFF
ON
ON
ON
OFF
31
OFF
ON
ON
ON
ON
OFF
32
ON
ON
ON
ON
ON
OFF
33
OFF
OFF
OFF
OFF
OFF
ON
34
ON
OFF
OFF
OFF
OFF
ON
35
OFF
ON
OFF
OFF
OFF
ON
36
ON
ON
OFF
OFF
OFF
ON
37
OFF
OFF
ON
OFF
OFF
ON
38
ON
OFF
ON
OFF
OFF
ON
39
OFF
ON
ON
OFF
OFF
ON
40
ON
ON
ON
OFF
OFF
ON
41
OFF
OFF
OFF
ON
OFF
ON
42
ON
OFF
OFF
ON
OFF
ON
43
OFF
ON
OFF
ON
OFF
ON
44
ON
ON
OFF
ON
OFF
ON
45
OFF
OFF
ON
ON
OFF
ON
46
ON
OFF
ON
ON
OFF
ON
47
OFF
ON
ON
ON
OFF
ON
48
ON
ON
ON
ON
OFF
ON
49
OFF
OFF
OFF
OFF
ON
ON
50
ON
OFF
OFF
OFF
ON
ON
51
OFF
ON
OFF
OFF
ON
ON
52
ON
ON
OFF
OFF
ON
ON
53
OFF
OFF
ON
OFF
ON
ON
54
ON
OFF
ON
OFF
ON
ON
55
OFF
ON
ON
OFF
ON
ON
56
ON
ON
ON
OFF
ON
ON
57
OFF
OFF
OFF
ON
ON
ON
58
ON
OFF
OFF
ON
ON
ON
59
OFF
ON
OFF
ON
ON
ON
60
ON
ON
OFF
ON
ON
ON
61
OFF
OFF
ON
ON
ON
ON
62
ON
OFF
ON
ON
ON
ON
63
OFF
ON
ON
ON
ON
ON
64
ON
ON
ON
ON
ON
ON
