BlueRhino Endless Summer 153100 User manual

Owners Manual
Manueal d’Utilisation
Model No.
153100
AVERTISSEMENT
POUR VOTRE SECURITE:
A Utiliser Uniquement a
l’Exterieur
(hors de tout abri clos)
AVERTISSEMENT
POUR VOTRE SECURITE:
Tout mauvais reglage ainsi que
toute installation, modication,
ou maintenance incorrecte
risque de provoquer des
blessures ou des degats
materiels. Lir completement
les instructions concernant
l’installation, le fonctionnement
et l’entretien avant d’installer ou
de proceder a la maintenance de
cet appareil.
U.S. Patent Number: 6,470,877
Les ETATS-UNIS font breveter
le nombre : 6,470,877
WARNING
FOR YOUR SAFETY
For Outdoor Use Only
(Outside any enclosure)
WARNING
FOR YOUR SAFETY
Improper installation,
adjustment, alteration,
service or maintenance
can cause injury or property
damage. Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
1 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
2Owner’s manual: model 153100 outdoor patio heater 2/13/04
WARNING
FOR YOUR SAFETY
For Outdoor Use Only
(Outside any enclosure)
WARNING
FOR YOUR SAFETY
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open ame.
3. If odor continues, contact
your gas supplies or re
department
WARNING
FOR YOUR SAFETY
1. Gas leaks may cause a re or
explosion which can cause
serious bodily injury or death,
or damage to property.
2. You must follow all leak
checking procedures as
outlined in step 13 before
operating this unit.
3. Never use an open ame to
check for leaks.
WARNING
FOR YOUR SAFETY
Do not store or use gasoline
or other ammable vapors or
liquids in the vicinity of this or
any other appliance.
WARNING
FOR YOUR SAFETY
Improper installation,
adjustment, alteration, service
or maintenance can cause
injury or property damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment
WARNING
California Proposition 65:
Chemicals know to the state of
California to cause cancer, birth
defects, or other reproductive
harm are created by the
combustion of propane.
WARNING
FOR YOUR SAFETY
• Purchaser assumes all risk in
the assembly and operation
of this unit. Failure to follow
this manual’s WARNINGs
and instructions can result in
severe personal injury, death or
property damage.
• Do not use in an explosive
atmosphere. Keep heater away
from areas where ammable
liquids, gasoline, vapors, or
explosives are stored or used.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
1 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
2Owner’s manual: model 153100 outdoor patio heater 2/13/04
Table of Contents
Safety First! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly Instructions

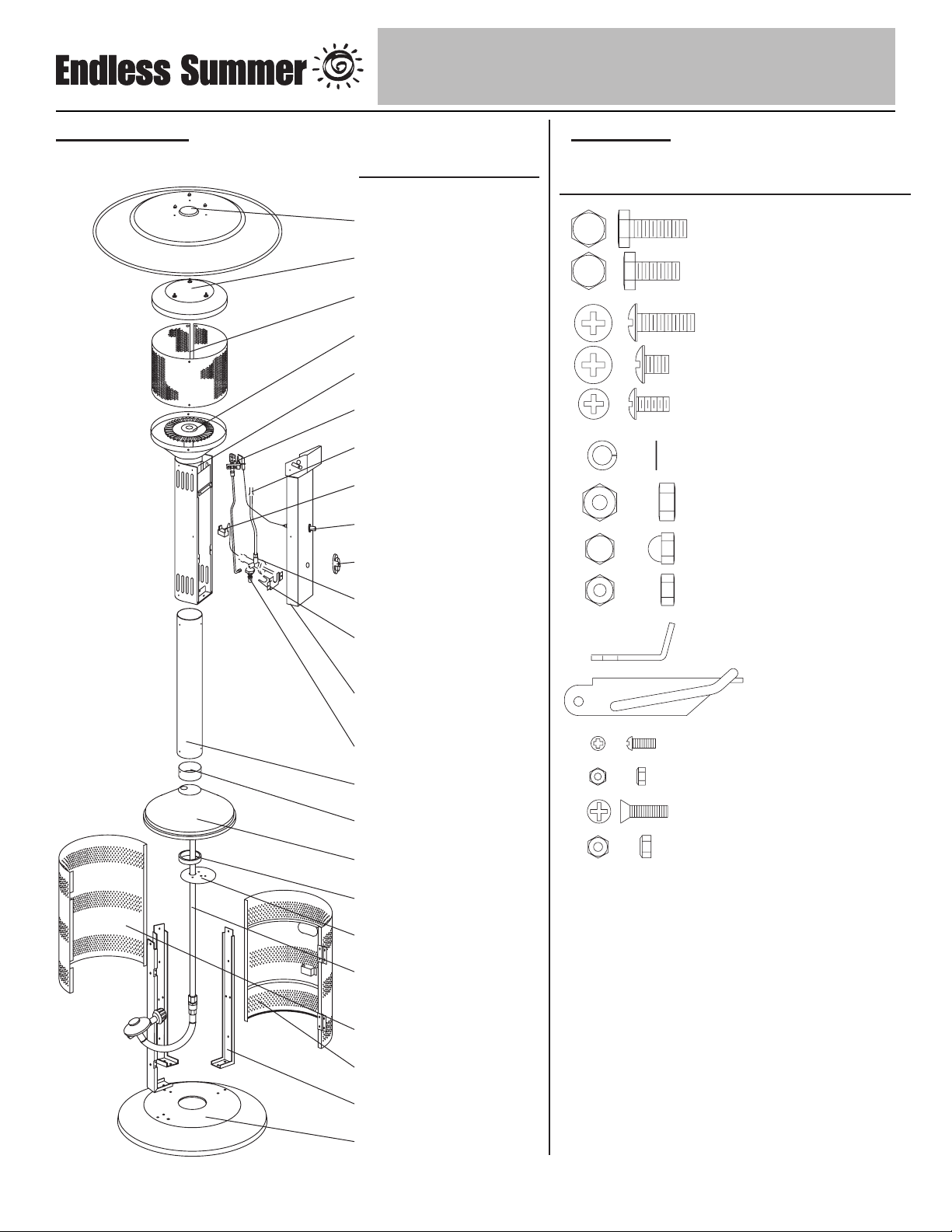

Components & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Components & Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Additional Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

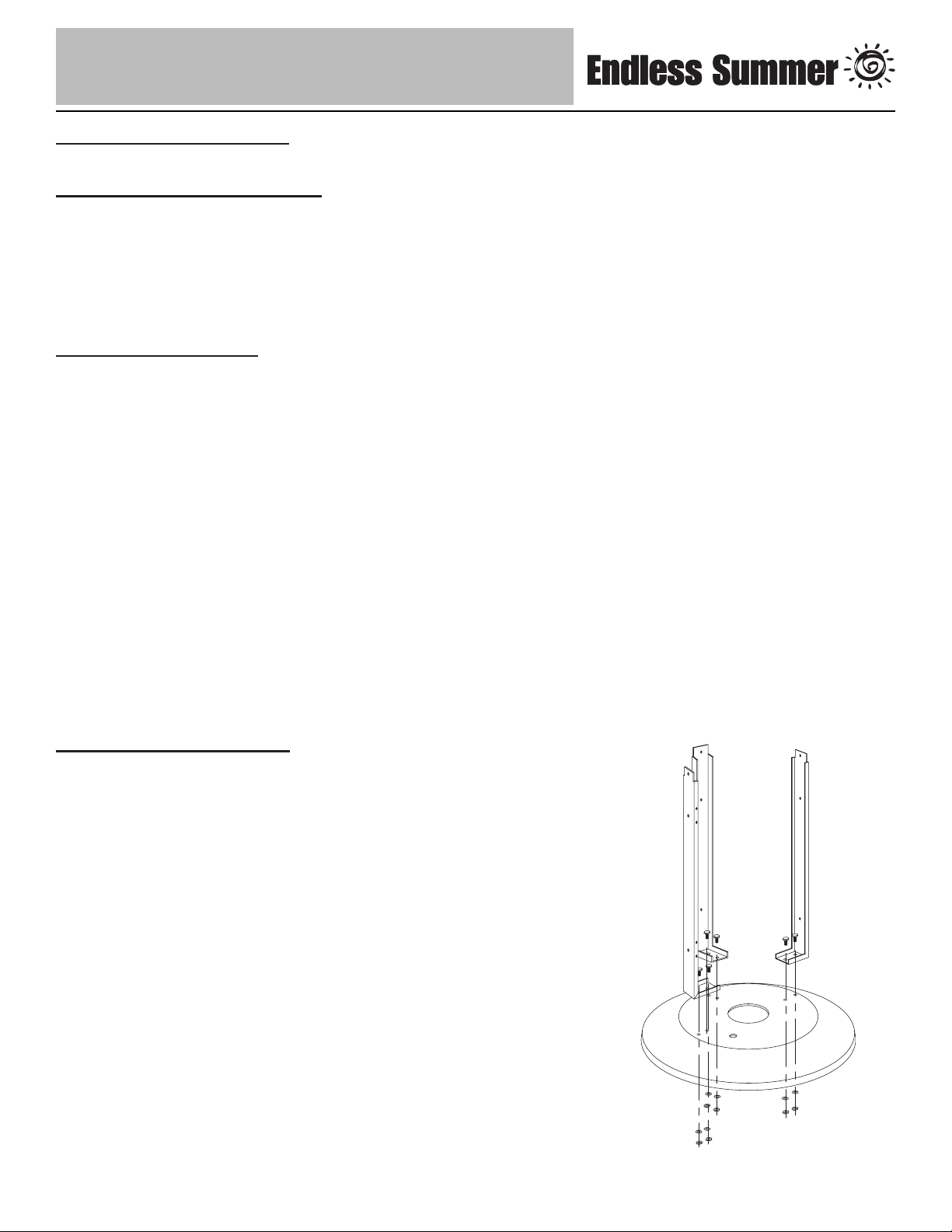

Step 1 Attach Legs to Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 2 Attach Cylinder Shroud to Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 3 Assemble Cup, Plate & Ring to Cap . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 4 Attach Cap Assembly to Legs/Insert Gas Line . . . . . . . . . . . . . . . . . 7

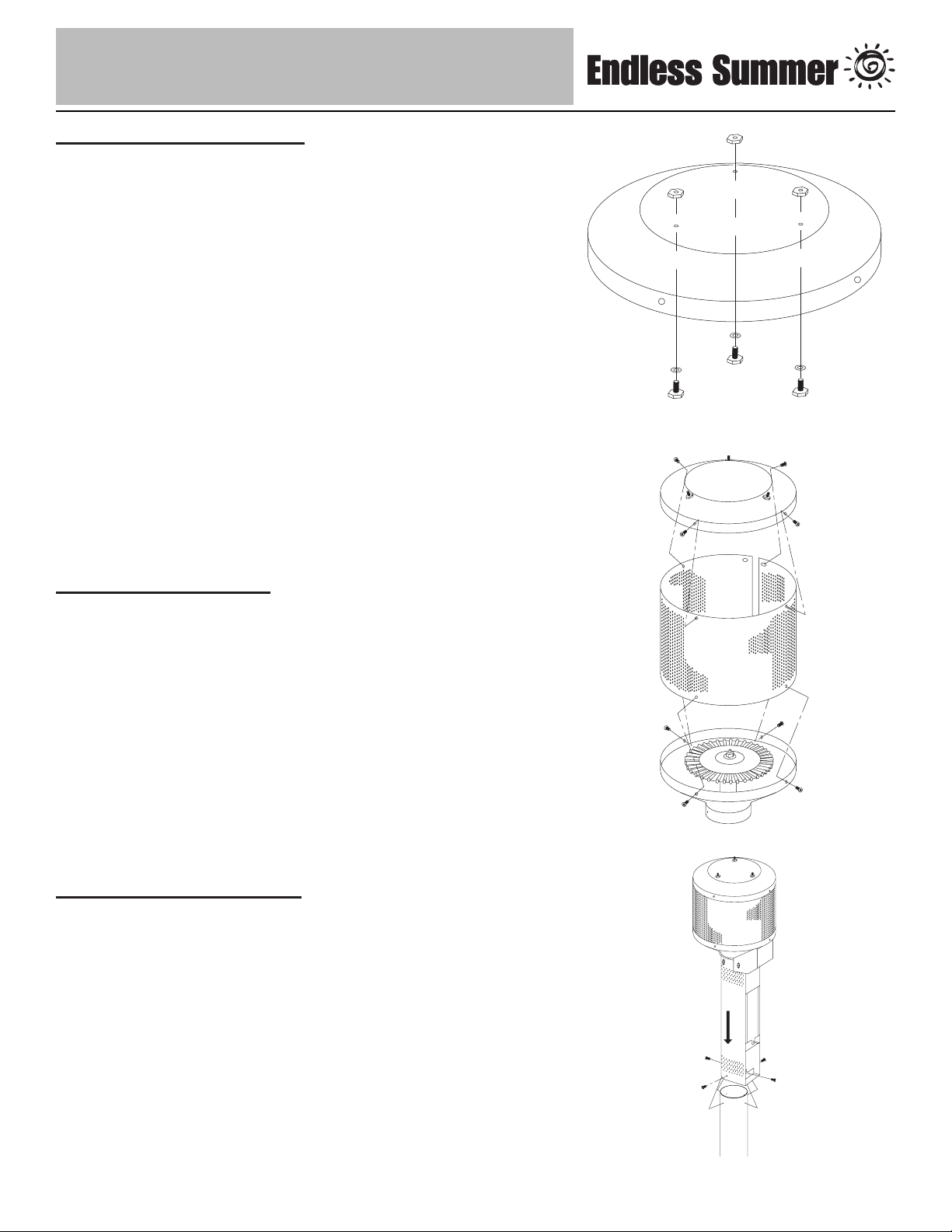

Step 5 Assemble Emitter Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 6 Assemble Emitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

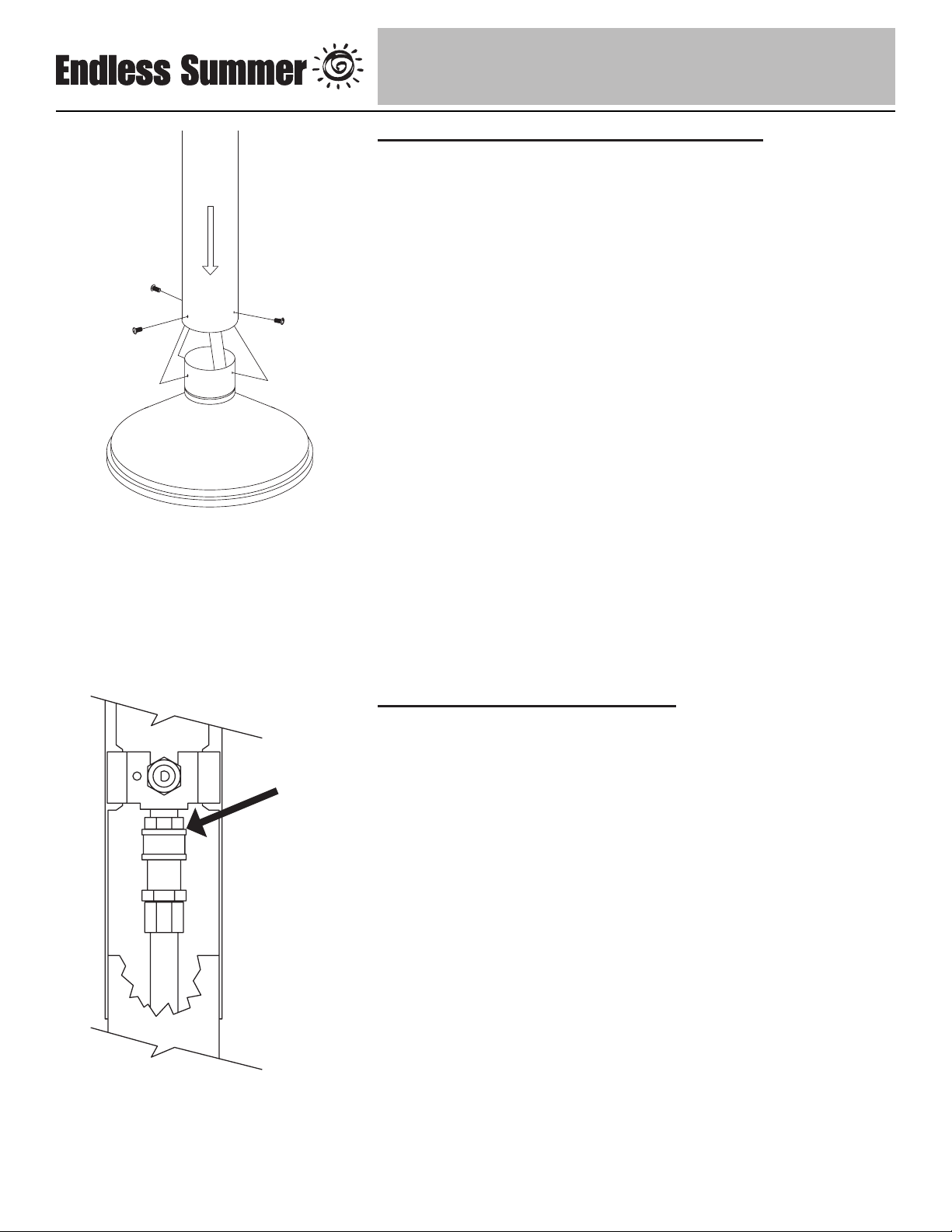

Step 7 Attach Engine to Post . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 8 Connect Engine/Pole Assembly to Cap . . . . . . . . . . . . . . . . . . . . . . 9
Step 9 Connect Gas Line to Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Step 10 Attach Dome to Emitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 11 Secure Gas Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

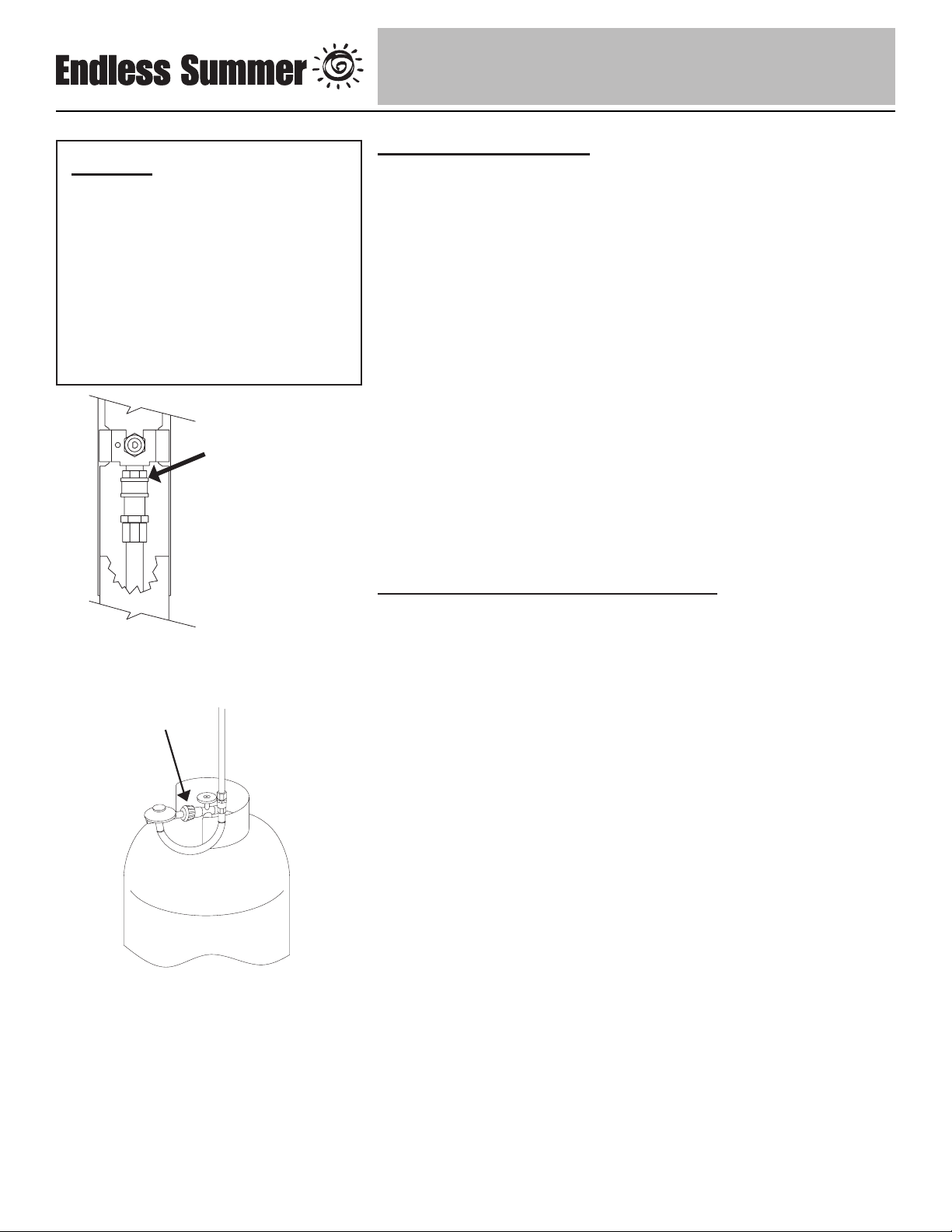

Step 12 Connect Gas Line to Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Step 13 Check for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step 14 Install Cylinder Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Step 15 Replace Engine Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation
Before Turning Gas Supply ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Re-Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
The use and installation of this product must conform to local codes. In absence
of local codes, us the National Fuel and Gas Code, ANSI Z223, 1/NFPA 54,
Storage and Handling of Liquid Petroleum Gases, ANSI/NFPA 58 or CSA B149.1,
Natural Gas and Propane Installation Code.
Save these instructions
for future reference. If you
are assembling this unit for
someone else, give this
manual to him or her to
save for future reference.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
3 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
4Owner’s manual: model 153100 outdoor patio heater 2/13/04
Safety First!
Read and become familiar with this entire manual, especially the following
precautions.
If you are unsure of anything in these instructions, STOP and contact
1-800-762-1142 for assistance.
Caution: This appliance is for outdoor use only (outside any
enclosure). Always make sure there is fresh air ventilation.

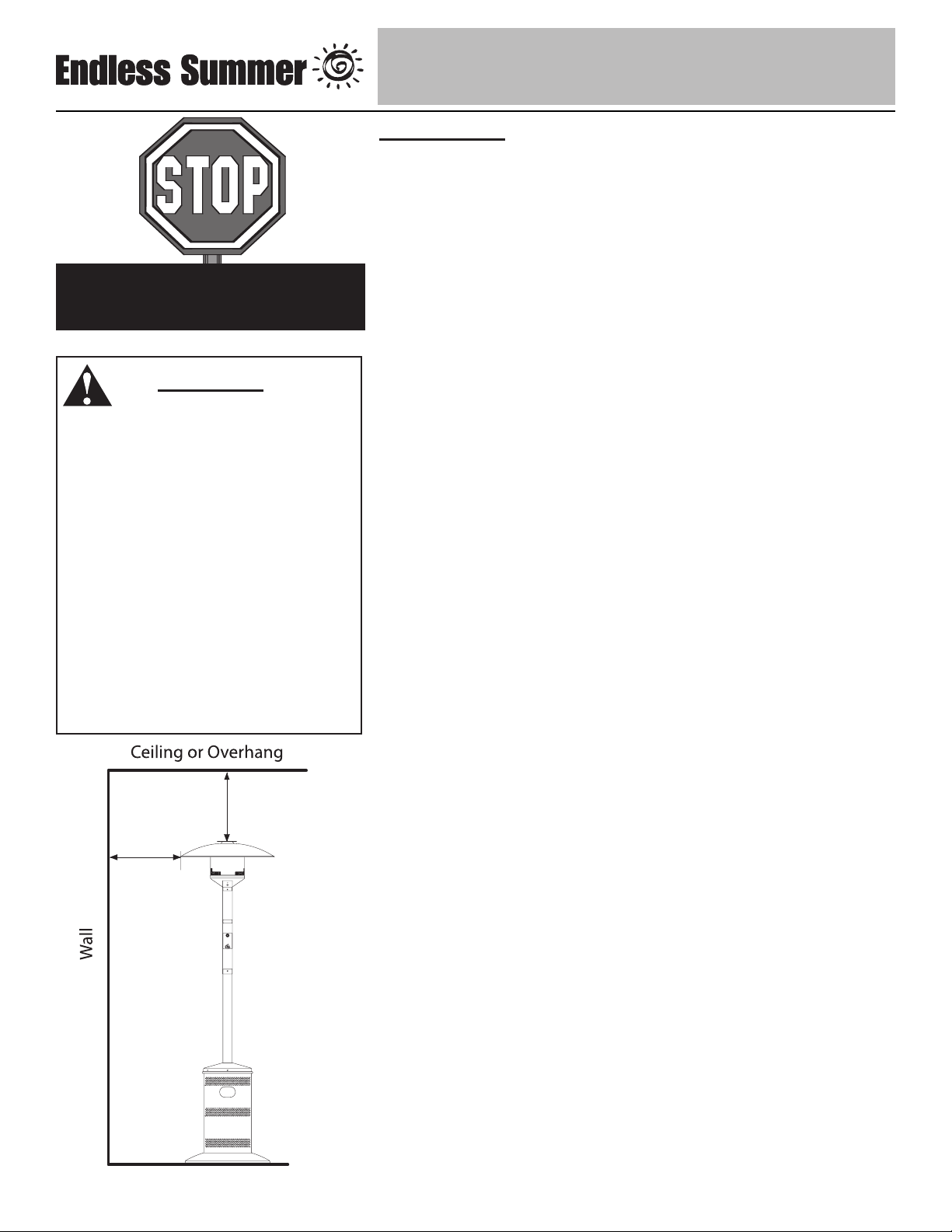

• Always maintain at least 36” clearance from combustible materials.
• Always place heater on a hard and level surface.
• Do not use if the wind velocity is greater than 10 miles per hour.
• Unit will operate at reduced efficiency below 40ºF (5ºC).
• Keep sprinklers and other water sources away from burner and controls.
• Always use extreme caution when near heater. Alert both children
and adults to the hazards of high temperatures, especially to avoid
burns or clothing catching fire.
• Young children and pets should be carefully supervised when they
are in the area of heater.
• Do not hang clothing or other flammable materials either on or near
heater.
• Any guard or other protective device removed for servicing the
heater must be replaced prior to operating the heater.
• Certain materials or items, when stored under heater, will be subjected to
radiant heat and could be seriously damaged.
• Do not alter heater in any manner.
• The pressure regulator and hose assembly supplied with the appliance
must be used and replacements must be those specified by the
manufacturer.
• Inspect heater before each use. If a damaged part is detected, do not
operate until an original equipment replacement part has been properly
installed. Use of unauthorized parts will void warranty and create an
unsafe condition.
• Do not attempt to use this appliance without a functional factory-supplied
gas regulator in place. If regulator becomes damaged, use only a factory-
supplied replacement.
• Prior to operating heater, replace any guards or protective devices
removed for servicing.
• During operation, do not touch burner assembly. The surface of heater’s
emitter can reach temperatures approaching 1600ºF.
• After shutdown, do not touch burner assembly until heater has cooled
(approximately 45 minutes after use).
Notice: This product should not be used with any fuel other than liquid
propane. Use of other fuels will detract from heaters performance and will
void your warranty.
Before you do anything else,
read and understand all
precautions in Safety First!
WARNING
FOR YOUR SAFETY
• Purchaser assumes all risk in
the assembly and operation
of this unit. Failure to follow
this manual’s WARNINGs
and instructions can result in
severe personal injury, death
or property damage.
• Do not use in an explosive
atmosphere. Keep heater
away from areas where
ammable liquids, gasoline,
vapors, or explosives are
stored or used.
Rhino
Blue
(Push in)
ON
Push
Push
Ignitor
Ignitor
Pilot
OFF
36"
36"

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
3 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
4Owner’s manual: model 153100 outdoor patio heater 2/13/04
Caution: Liquid propane (LP) gas is flammable and hazardous if
handled improperly. Become aware of the characteristics before
using any LP product.
• LP Characteristics – Flammable, explosive under pressure, heavier than
air - settles in pools in low areas.
• In its natural state, propane has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
• Contact with LP can cause freeze burns to skin.
• This heater is shipped from the factory for LP gas use only.

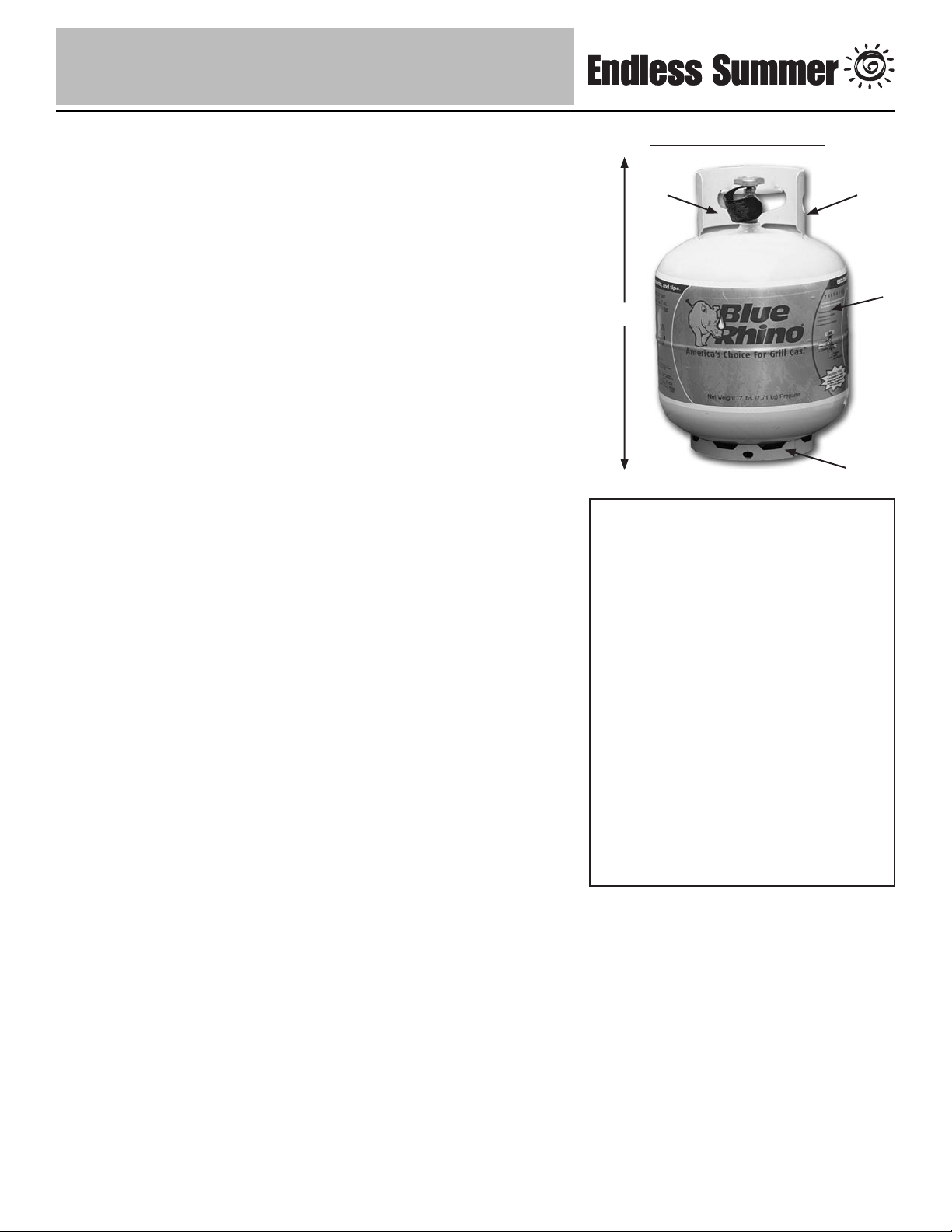

• Use only Department of Transportation (DOT) approved “20 lb.” LP gas
cylinders (same as those commonly used on gas grills) with Acme / Type
1 / QCC safety valves. These valves can be quickly identified because
they have external and internal threads.
• Never use an LP cylinder with a damaged body, valve, collar, or footring.
• Dented or rusted LP cylinders may be hazardous and should be checked
by your LP gas supplier.
• The cylinder supply system must be arranged for vapor withdrawl.
• The cylinder used must include a collar to protect the cylinder valve.
• When heater is not in use, turn LP cylinder OFF.
• Always perform a leak test on gas connections whenever a cylinder
is connected. Never use a flame to test for leaks. Do not smoke while
performing a leak test.
Caution: It is essential to keep the heater’s valve compartment,
burners, and circulating air passages clean.
• Spiders and insects can create a dangerous condition that may damage
heater or make it unsafe. Keep burner area clean of all spiders, webs, or
insects.
• Inspect heater before each use.
• Have heater inspected annually and repairs should be made by a
qualified service person.
• Check heater immediately if any of the following conditions exist:
• The smell of gas in conjunction with extreme yellow tipping of burner
flames.
• Heater does not reach proper temperature.
Note: At temperatures less than 40ºF, heat output will be reduced.
• Heater’s glow is excessively uneven
• Burner makes popping noises during use.
Note: A slight pop is normal when burner is extinguished.
• Carbon deposits may create a fire hazard. Keep dome and emitter clean
at all times.
• Do not clean heater with combustible or corrosive cleaners. Use warm,
soapy water.
• Do not paint engine, engine access panel or dome.
FOR YOUR SAFETY:
Beware of Spiders
Spiders or small insects can
get into the burner tube or other
openings of your heater, and
spin webs or build nests. These
obstructions can lead to gas ow
problems. It is important to make
frequent inspections of these
areas and clean them when
necessary.
Before operating your heater for
the rst time, be sure to check
for obstructions that may have
occurred during shipment.
Need a cylinder or gas?
Try Blue Rhino cylinder exchange service.
It’s easy, fast, safe, and available at tens
of thousands of conveniently located retail
outlets nationwide. You can purchase a
new full cylinder or exchange your empty
for a precision filled one.
For your nearest Blue Rhino retailer visit
www.bluerhino.com.
“20 lb.” LP Cylinder
Collar
Valve
Body
Foot
18”-19”

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
5 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
6Owner’s manual: model 153100 outdoor patio heater 2/13/04
Components Part Re-order
Name Number
Dome . . . . . . . . . .56-01-108
Top Dome Plate . . 56-01-116
Emitter . . . . . . . . . 56-01-118
Burner Assembly .56-01-124
Valve Housing . . .56-01-147
Pilot Assembly . . .56-01-127
Nozzle . . . . . . . . .56-01-125
Tilt Switch . . . . . .56-01-148
Ignitor . . . . . . . . .56-01-143
Knob . . . . . . . . . .56-01-156
Valve . . . . . . . . . .56-01-304
Valve Housing
Backboard . . . . . .56-01-144
Valve Housing
Cover . . . . . . . . . .56-01-141
Quick Connect . . .56-01-305
Pole . . . . . . . . . . .56-01-159
Cup . . . . . . . . . . .56-01-166
Cap . . . . . . . . . . .56-01-167
Ring . . . . . . . . . . .56-01-171
Cap Support . . . .56-01-172
Gas Line/Regulator
Assembly . . . . . . .56-01-192
Cylinder Shroud . .56-01-173
Cylinder Access . .56-01-177
Legs (3) . . . . . . . .56-01-193
Base . . . . . . . . . .56-01-197
Hardware
Used in
Picture Qty Description Step(s)
9 Large Bolt 1 & 3
56-01-200
3 Small Bolt 5
56-01-201
1 Extra Large Screw 11
56-01-202
17 Medium Screw 2, 4, 7 & 8
56-01-203
10 Small Screw 6
56-01-204
9 Lockwasher 1 & 5
56-01-206
9 Large Nut 1 & 5
56-01-209
3 Cap Nut 10
56-01-210
2 Small Nut 6
56-01-211
1 Clip 11
56-01-214
1 Latch 14
56-01-216
2 Latch Screw 14
56-01-217
2 Latch Nut 14
56-01-218
4 Hinge Screw 14
56-01-219
4 Hinge Nut 14
56-01-220

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
5 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
6Owner’s manual: model 153100 outdoor patio heater 2/13/04
Assembly Instructions
General Components & Features
Familiarize yourself with all components before proceeding. Refer to page 5 for hardware and components, and page 20
for specifications.
Do NOT attempt assembly unless all components are available. If you believe a component is missing or damaged,
contact 1-800-762-1142 for assistance.
Note: All hardware is mounted on a cardboard pack and numbered to match their assembly step.
Additional Requirements
The following items are not included, but are necessary for the proper assembly of your heater. Do NOT attempt to
assemble without proper tools. A hex (Allen) wrench is necessary and is included in the parts bag.
(1) 7/16” Wrench
(1) 7/16” Socket Wrench
(1) #2 Phillips Head Screwdriver
(1) Leak Detection Solution (Instructions to prepare are included in step 13)
(1) Precision Filled LP Gas Grill Cylinder with Acme Type 1 external threaded valve connection (4-5 gallon size)
Note: You must follow all steps to properly assemble heater.
Step 1 – Attach Legs to Base
Note: Attach Leg with notches for hinges as shown at left.
Secure each leg to base using (2) Large Bolts, (2) Lock Washers and (2)
Large Nuts per leg. Finger tighten only.
Do not fully tighten until Step 2.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
7 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
8Owner’s manual: model 153100 outdoor patio heater 2/13/04
Step 2–Attach Cylinder Shroud to Legs
Line up slots in Cylinder Shroud flange with notches in left leg as shown.
Line up holes in center of Shroud with holes in Center Leg. Attach
Cylinder Shroud to center Leg using (2) Medium Screws.
Secure Cylinder Shroud to outside Legs using (2) Medium
Screws per leg.
Tighten nuts and bolts from Step 1.
Step 3–Attach Weight Plate to Base
Place Spacer Ring on Support Plate so that all holes in plate fit
inside ring.
Line up 3 small, unthreaded holes in plate with corresponding holes
in cap.
Line up these holes with three threaded holes in Cup.
Insert (1) Large Bolt and tighten loosely.
Repeat for other (2) Large Bolts, then secure all tightly.
TIP:
To tighten use a 7/16” wrench on Bolt and a 7/16” socket wrench on Nut.
Step 4 – Attach Cap Assembly to Legs/Insert Gas Line
Line up 3 holes in Cap Assembly with holes in top of Shroud and legs.
Insert and tighten (1) Medium Screw into center leg.
Insert and tighten (1) Medium Screw into each of the outer legs.
Tilt base on edge and slide Gas Line up through large hole in Base, then
through Cap Assembly.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
7 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
8Owner’s manual: model 153100 outdoor patio heater 2/13/04
Step 6 – Assemble Emitter
Curl Emitter Screen into a circle. Overlap ends and line up holes. Secure
together using (2) Small screws and (2) small nuts.
Line up holes in bottom of Emitter Screen with holes in Engine.
Attach Emitter Screen to Engine with (4) Small Screws.
Line up holes in top of Emitter Screen with holes in Emitter Top.
Attach Emitter Screen to Emitter Top with (4) Small Screws.
Step 7 – Attach engine to Post
Remove and Save Control Knob.
Remove and save (3) screws from sides and bottom of Engine Access
Panel.
Open Engine Access Panel.
Disconnect wire from Igniter by gently pulling wire.
Remove and save Engine Access Panel.
Align threaded holes in Post with holes in bottom of Engine.
Insert (4) Medium Screws loosely. They will be fully tightened at the end
of the next step.
Note: Do not replace Engine Access Panel until Step 13.
Step 5 – Assemble Emitter Top
Slip (1) Small Bolt through hole in Emitter Top from inside.
Slip (1) Lockwasher over bolt and thread (1) Large nut all the way down
and tighten.
Repeat for other two holes.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
9 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
10Owner’s manual: model 153100 outdoor patio heater 2/13/04
Step 8 – Connect Engine/Post Assembly to Cap
Insert end of Post with (4) holes not threaded over Gas Line
Line up Post holes with threaded Cap holes.
Loosely Secure Post to Cap, using (4) Medium Screws, fully tighten
screws in Step 9.
Step 9 – Connect Gas Line to Engine
To attach Gas Line to Control Valve:
Pull collar of Gas Line down.
Insert Gas Line over Control Valve.
Release Gas Line Collar and it should lock in place. (Tip – push Gas Line
up from bottom of Post to make a good seating before releasing Collar.)
Gently tug on line to test for proper connection. If Gas Line moves you
are not properly connected.Do not proceed until a proper connection has
been made.
After gas line is secure, fully tighten (4) screws from Step 8.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
9 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
10Owner’s manual: model 153100 outdoor patio heater 2/13/04
Step 10 – Attach Dome to Emitter
Gently lay heater on its side
Tip: Use styrofoam end to prop up top half of heater.
Align holes in Dome with Emitter Studs.
Secure Dome to Emitter using (3) Cap Nuts.
Leave heater on its side for next step.
Step 11 – Secure Gas Line
Line up hole in Gas Clip with threaded hole in Support Plate.
Attach using (1) Extra Long Screw.
Tighten screw in Gas Line Clip until Gas Line is held securely in place.
Stand heater upright on base.
Step 12 – Connect Gas Line to Cylinder
The pressure regulator and hose assembly supplied with the appliance
must be used and replacements must be those specified by the
manufacturer.
Slide full Propane Cylinder onto Heater Base.
Attach Gas Line to Cylinder by turning black plastic knob clockwise over
Cylinder valve until tight.
Note: Be careful not to kink flexible hose of Gas Line.
Caution:
Before you attempt to use a
propane cylinder, understand
all cylinder and propane
related precautions in Section
#1 - “Safety First.”

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
11 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
12Owner’s manual: model 153100 outdoor patio heater 2/13/04
Caution
Your Endless Summer Portable
Heater has been checked at all
factory connections for leaks.
Recheck all connections, as
movement in shipping can
loosen connections. Check
for leaks even if your unit was
assembled for you at the store.
Step 13 – Check for Leaks
Make 2-3 oz. of leak check solution by mixing one part liquid
dishwashing soap and three parts water.
Turn cylinder valve ON.
Check Gas Line / Control Valve for leaks:
Spoon several drops of solution onto Gas Line and Control Valve
connection.
Inspect the solution at the connection to look for bubbles.
If NO bubbles appear, then the connection is secure.
If bubbles appear, there is a leak -
Turn Cylinder valve OFF.
Loosen screw on Clip.
Release Gas Line fitting from control valve and re-attach making sure
connection is secure (see Step 9).
Retighten Clip.
If you continue to see bubbles after several attempts, contact
1-800-762-1142 for assistance.
Check Gas Line / Cylinder valve for leaks:
Turn cylinder valve ON.
Spoon several drops of solution onto Gas Line and Cylinder valve
connection.
Inspect the solution at the connection to look for bubbles.
If NO bubbles appear, then the connection is secure.
If bubbles appear, there is a leak:
Turn Cylinder valve OFF.
Release Gas Line fitting from Cylinder valve and re-attach making sure
connection is secure (see Step 13).
If you continue to see bubbles after several attempts, contact
1-800-762-1142 for assistance.
Turn Cylinder Valve OFF.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
11 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
12Owner’s manual: model 153100 outdoor patio heater 2/13/04
Step 14 – Install Cylinder Access Panel
Line up holes on Latch with slots on Cylinder Shroud. Attach with (2)
Latch Screws and (2) Latch Nuts.
Line up holes in Access Panel hinges with holes in recessed area of left
leg. Attach each hinge with (2) Hinge Screws and (2) Hinge Nuts.
Swing Access Panel closed and slip Latch over panel hook and
snap shut.
Step 15 – Replace Engine Assembly
Slide Igniter wire onto Igniter post.
Position Engine Access Panel back in place.
Secure Panel in place with 3 screws previously removed from side and
bottom holes.
Note: Once you have successfully completed assembly steps 1-15 you
are ready to begin operating your heater.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
13 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
14Owner’s manual: model 153100 outdoor patio heater 2/13/04
Operation
Caution: Do NOT attempt to operate heater until you have read and
understand all precautions in section 1 “Safety First.”
Before Turning Gas Supply ON
• Your heater was designed and approved for OUTDOOR USE ONLY.
DO NOT use it inside a building, garage, or any other enclosed area.
• Make sure surrounding areas are free of combustible materials,
gasoline, and other flammable vapors or liquids.
• Ensure that there is no obstruction to air ventilation.
• Be sure all gas connections are tight and there are no leaks.
• Be sure the access panel is clear of debris.
• Be sure any component removed during assembly or servicing is
replaced and fastened prior to starting.
Before Lighting
• Heater should be thoroughly inspected before each use, and by a
qualified service person at least annually.
• If relighting a hot heater, always wait at least 5 minutes.
• Inspect the hose assembly for evidence of excessive abrasion, cuts,
or wear. Suspected areas should be leak tested. If the hose leaks, it
must be replaced prior to operation. Only use the replacement hose
assembly specified by manufacturer.
Lighting
Note: This heater is equipped with a Pilot Light that allows for safer
startups and shutdowns. Pilot must be lit before Main Burner can be
started.
• Turn Cylinder Valve OFF.
• Push Control Knob IN and turn to OFF.
• Wait 5 minutes for any gas to clear.
• Turn Cylinder Valve ON.
• Open Viewing Hole by sliding cover to either side.
• Push Control Knob IN and rotate to Pilot position.
• Note - For initial start or after any cylinder change, hold Control Knob IN
for 2 minutes to purge air from gas lines before proceeding.
• Push Igniter button once. Pilot Light flame will appear and be visible
through Viewing Hole.
• Release Control Knob after 30 seconds. Pilot Light will remain lit.
If not, return to step 1.
• Turn Control Knob to ON. Main Burner will light immediately. Flame is
visible through Viewing Hole. If not, return to step 1.
WARNING
FOR YOUR SAFETY
• Do NOT attempt to operate
heater until you have
read and understand all
precautions in Section 1
“Safety First.” Failure to
do so can result in serious
personal injury, death, or
property damage.
• If at any time you are unable
to light burner and smell
gas, wait 5 minutes to allow
gas to dissipate before
attempting to light heater.
• Do NOT touch emitter or
dome or move heater for at
least 45 minutes after use.
OFF
OFF
LOW
LOW
Pilot
Pilot
(Push in)
HIGH
HIGH
Pilot
Pilot
(Push in)
HIGH
HIGH
LOW
LOW
OFF
OFF
View Hole

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
13 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
14Owner’s manual: model 153100 outdoor patio heater 2/13/04
WARNING
FOR YOUR SAFETY
Be careful when attempting
to manually ignite this heater.
Holding in the control know for
more than 10 seconds before
igniting the gas will cause a
ball of ame upon ignition.
• If for some reason your ignitor fails to deliver a spark, your heater can
be started by inserting a lit match through the pilot view hole while
pushing the control knob in while in the PILOT position.
If you experience any ignition problem consult “Troubleshooting” on
page 16.
Caution: Avoid inhaling fumes emitted from the heater’s first use.
Smoke and odor from the burning of oils used in manufacturing will
appear. Both smoke and odor will dissipate after approximately 30
minutes. The heater should NOT produce thick black smoke.
Note: The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the Control Knob to the Pilot position.
Then, turn the knob to the level of heat desired.
When heater is ON:
Emitter screen will become bright red due to intense heat. The color is
more visible at night.
Burner will display tongues of blue and yellow flame. These flames
should not be yellow or produce thick black smoke, indicating an
obstruction of airflow through the burners. The flame should be blue with
straight yellow tops.
If excessive yellow flame is detected, turn off heater and consult
“Troubleshooting” on page 16.
Re-lighting
Note: For your safety, Control Knob cannot be turned OFF without first
depressing Control Knob in PILOT position and then rotating it to OFF.
Turn Control Knob to OFF.
Wait at least 5 minutes, to let gas dissipate, before attempting to relight
Pilot.
Repeat the “Lighting” steps on prior page.
Shut Down
Turn Control Knob clockwise to Pilot. (Normally, burner will make a slight
popping sound when extinguished.) Burner will extinguish but Pilot will
remain ON.
To extinguish Pilot, depress Control Knob and continue to turn it
clockwise to OFF.
Turn Cylinder Valve clockwise to OFF and disconnect Regulator when
heater is not in use.
Note: After use, some discoloration of the emitter screen is normal.
WARNING
FOR YOUR SAFETY
Heater will be hot after use.
Handle with extreme care.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
15 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
16Owner’s manual: model 153100 outdoor patio heater 2/13/04
Operation Checklist
For a safe and pleasurable heating experience, perform this check before
each use.
Before Operating
q I am familiar with entire owner’s manual and understand all precautions
noted in “Safety First”.
q All components are properly assembled, intact and operable.
q No alterations have been made.
q All gas connections are secure and do not leak.
q Wind velocity is below 10 mph.
q Outdoor temperature is greater than 40 degrees F.
q Heater is outdoors (outside any enclosure).
q There is adequate fresh air ventilation.
q Heater is away from gasoline or other flammable liquids or vapors.
q Heater is away from windows, air intake openings, sprinklers and other
water sources.
q Heater is at least 36” from combustible materials.
q Heater is on a hard and level surface.
q There are no signs of spider or insect nests.
q All burner passages are clear.
q All air circulation passages are clear.
q Children, pets, clothing, flammable materials and items that can be
damaged from radiant heat are away from the heater.
q Children and adults in the area have been alerted to the high
temperature hazards: especially burns and clothing fires.
q Children and adults in the area have been warned not to touch heater
near engine during operation and until unit has cooled.
After Operation
q Gas control is in OFF position.
q Gas tank valve is OFF
q Disconnect Gas line.
q Heater is upright in a secure location.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
15 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
16Owner’s manual: model 153100 outdoor patio heater 2/13/04
Troubleshooting
If the problem is: And this condition exists: Then do this
Pilot won’t light
Note: Heater operates at reduced efficiency
below 40ºF (5ºC).
Cylinder valve is closed
Blockage in orifice or pilot tube
Air in gas line
Low gas pressure with cylinder valve
fully open
Igniter fails
Open valve
Clean or replace orifice or pilot tube
Open gas line and bleed it (pressing
control knob in) for not more than 1 - 2
minutes or until you smell gas
Turn cylinder valve OFF and replace
cylinder
Use match to light pilot; obtain new
igniter and replace
Pilot won’t stay lit Dirt built up around pilot
Connection between gas valve and
pilot assembly is loose
Thermocouple is not operating
correctly
Clean dirt from around pilot
Tighten connection and perform leak
check
Replace thermocouple
Burner won’t light Gas pressure is low
Blockage in orifice
Control knob is not in ON position
Turn cylinder valve OFF and replace
cylinder
Clear blockage
Turn control knob to ON
Burner flame is low Gas pressure is low
Outdoor temperature is less than 40ºF
and tank is less than 1/4 full
Supply hose is bent or kinked
Control knob fully ON
Turn cylinder valve OFF and replace
cylinder
Use a full cylinder
Straighten hose
Check burner and orifices for blockage
Emitter glows uneven
Note: Bottom 1” of emitter normally does
NOT glow.
Gas pressure is low
Base is not on a level surface
Heater is level
Turn cylinder valvue OFF and replace
cylinder
Place heater on a level surface
Clean burner
Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter
Thick black smoke Blockage in burner Remove blockage and clean burner
inside and outside

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
17 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
18Owner’s manual: model 153100 outdoor patio heater 2/13/04
Maintenance
To enjoy years of outstanding performance from your heater, make sure
you perform the following maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use flammable or corrosive
cleaning agents.
While cleaning your unit, be sure to keep the area around the burner
and pilot assembly dry at all times. Do not submerge the control valve
assembly. If the gas control is submerged in water, do NOT use it. It
must be replaced.
Air flow must be unobstructed. Keep controls, burner, and circulating air
passageways clean. Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Spiders and insects can nest in burner or orifices. This dangerous
condition can damage heater and render it unsafe for use. Clean burner
holes by using a heavy-duty pipe cleaner. Compressed air may help
clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and emitter with
warm soapy water if any carbon deposits develop.
Note: In a salt-air environment (such as near an ocean), corrosion occurs
more quickly than normal. Frequently check for corroded areas and repair
them promptly.
WARNING
FOR YOUR SAFETY
• Do NOT touch or move
heater for at least 45 minutes
after use.
• Dome is hot to the touch.
• Allow dome to cool before
touching.
TIP:
Use high-quality automobile wax to help maintain the appearance of
your heater. Apply to exterior surfaces from the pole down. Do not
apply to emitter screen or domes.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
17 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
18Owner’s manual: model 153100 outdoor patio heater 2/13/04
Storage
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with
inclement weather (such as rain, sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent
build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect LP source and move to a secure, well-ventilated location
outdoors.
Store heater upright in an area sheltered from direct contact with
inclement weather (such as rain, sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent
build up in air passages.
Never leave LP cannister exposed to direct sunlight or excessive heat.
Note: Wait until heater is cool before covering.
Service
To learn how to service and procure parts for worn out, defective or
damaged components contact 1-800-762-1142 for assistance or e-mail
[email protected]. Please supply model number and
serial ID number for best service support. These numbers can be found on
a label on the rear of the Valve Housing.
Caution: Use only original equipment replacement parts. Use of
unauthorized parts or modification of parts will void warranty and
create an unsafe condition.
Caution: Always allow heater to cool before attempting service.

®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
19 Owner’s manual: model 153100 outdoor patio heater 2/13/04
®
Contact 1-800-762-1142 for assistance.
Do not return to place of purchase.
20Owner’s manual: model 153100 outdoor patio heater 2/13/04
Limited Warranty
Blue Rhino Global Sourcing, LLC (“Vendor”) warrants to the original retail purchaser of this heater,
and to no other person, that if this heater is assembled and operated in accordance with the printed
instructions accompanying it, then for a period of two (2) years from the date of purchase, all parts in
such heater shall be free from defects in material and workmanship. Vendor may require reasonable
proof of your date of purchase from an authorized retailer or distributor. Therefore, you should
retain your sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement
of parts, which prove defective under normal use and service and which Vendor shall determine in
its reasonable discretion upon examination to be defective. Before returning any parts, you should
contact Vendor’s Customer Service Department using the contact information listed below. If Vendor
confirms, after examination, a defect covered by this Limited Warranty in any returned part, and if
Vendor approves the claim, Vendor will replace such defective part without charge. If you return
defective parts, transportation charges must be prepaid by you. Vendor will return replacement parts
to the original retail purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse,
misuse, alteration, misapplication, improper installation or improper maintenance or service by you or
any third party, failure to perform normal and routine maintenance on the heater, shipping damage,
normal adjustment to burner, damage or repairs related to insects, birds, or animals of any kind, and
damage due to weather conditions as set out in this owner’s manual. In addition, the Limited Warranty
does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather
damage, after purchase.
This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for
products that are purchased from sellers other than authorized retailers or distributors. AFTER THE
PERIOD OF THE TWO (2)-YEARS EXPRESS WARRANTY, VENDOR DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FURTHER, VENDOR SHALL
HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL,
INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Vendor assumes no
responsibility for any defects caused by third parties. This Limited Warranty gives the purchaser
specific legal rights; a purchaser may have other rights depending upon where he or she lives.
Some jurisdictions do not allow the exclusion or limitation of special, incidental or consequential
damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not
apply to you.
Vendor does not authorize any person or company to assume for it any other obligation or liability in
connection with the sale, installation, use, removal, return, or replacement of its equipment, and no
such representations are binding on Vendor.
Blue Rhino Global Sourcing, LLC
104 Cambridge Plaza Drive
Winston-Salem, North Carolina 27104 USA
[phone]
24 Hour Fax: [phone]
[email protected]
