Bluesky PHG8732BZ User manual

OWNER'S MANUAL
HAMMERED BRONZE
GAS PATIO HEATER
MANUAL DEL USUARIO
CALEFACTOR COLOR
BRONCE MARTILLADO
PARA PATIO A GAS
PHG8732BZ
FOR OUTDOOR USE ONLY | SOLO PARA USO EXTERIOR

2  www.blueskyoutdoorliving.com
Here at Blue Sky Outdoor Living, we believe in the value
and benefits of spending time in nature. Our products are
designed for your home's backyard, on the patio, camping,
at the beach, or tailgating at your favorite sporting event.
You can rely on Blue Sky Outdoor Living to deliver
durable, easy to use products that will enhance you next
backyard, outdoor gathering or adventure.
Connect with us @blueskyoutdoorliving
Fill in the following information and retain this manual for future reference:
MODEL(S):
DATE OF PURCHASE:
PLACE OF PURCHASE:
RECEIPT NO:
TIME WELL SPENT
Part Number: PHG8732BZ (Hammered Bronze)
Dimensions: 32" Dia. x 87" H (81.3 cm Dia. x 221 cm H)

3
FOR YOUR SAFETY
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE
ASSEMBLING, USING OR SERVICING THIS GAS PATIO HEATER.
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS
PROVIDED WITH THIS HEATER CAN RESULT IN DEATH, SERIOUS
BODILY INJURY AND PROPERTY DAMAGE FROM FIRE, EXPLOSION,
BURNS, ASPHYXIATION, AND/OR CARBON MONOXIDE POISONING.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THESE
INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER. KEEP THIS
MANUAL FOR FUTURE REFERENCE.
DANGER
Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the installation,
operation and maintenance instructions thoroughly before installing
or servicing this equipment.
DANGER
IF YOU SMELL GAS:
• Shut o gas to the appliance.
• Extinguish any open flame.
• If odor continues, keep away from the appliance and immediately call
your gas supplier or fire department.
DANGER
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. An LP-cylinder not connected for use
should not be stored in the vicinity of this or any other appliance.

4  www.blueskyoutdoorliving.com
DANGER: CARBON MONOXIDE HAZARD
FOR OUTDOOR USE ONLY!
THIS APPLIANCE CAN PRODUCE CARBON MONOXIDE, WHICH HAS
NO ODOR AND CONSUMES OXYGEN.
USING THIS HEATER IN AN ENCLOSED SPACE CAN LEAD TO
SERIOUS INJURY OR DEATH.
NEVER USE THIS APPLANCE IN AN ENCLOSED SPACE SUCH AS A
CAMPER, TENT, CAR, HOME, FOUR-SEASONS ROOM, GARAGE OR
OTHER ENCLOSED OR UNVENTILATED AREA.
DO NOT BLOCK AIR FLOW INTO OR OUT OF THE HEATER.
This heater is a combustion appliance. All combustion appliances produce
carbon monoxide (CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous amounts of CO if
used and maintained in accordance with all warnings and instructions.
Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes,
headaches, dizziness, fatigue and possibly death. You can't see it and you
can't smell it. It's an invisible killer. If these symptoms are present during
operation of this product, get fresh air immediately!

5
DANGER: EXPLOSION AND FIRE HAZARD
During operation, this product can be a source of ignition. This heater is red
hot during use and can ignite flammables too close to the burner. Minimum
heater clearances from combustible materials: 3' (1 m) from the sides and
3' (1 m) from the top.
Keep solid combustibles, such as building materials, paper or cardboard,
a safe distance away from the heater.
Provide adequate clearances around air openings into the
combustion chamber.
Never use this heater in spaces which do or may contain volatile or airborne
combustibles, or products such as gasoline, solvents, paint thinner, dust
particles, unknown chemicals or other flammable vapors and liquids.
Do not use this heater in areas with high dust content.

6  www.blueskyoutdoorliving.com
PROPANE SAFETY
WARNING
Fuels used in liquefied propane gas appliances, and the combustion
products of such fuels, can expose you to chemicals such as benzene,
which is known to the State of California to cause cancer, birth defects
or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov.
• This product is fueled by propane gas. Propane gas is invisible, odorless
and flammable. An odorant is normally added to help detect leaks and can
be described as a “rotten egg” smell. The odorant can fade over time so
leaking gas is not always detectable by smell alone.
• Never use or store propane near high heat, open flames, pilot lights,
direct sunlight, other ignition sources or where temperatures exceed
120°F (49°C).
• Propane gas vapors are heavier than air and can accumulate in low places.
It can be ignited by ignition sources such as matches, lighters, sparks, lit
cigarettes/cigars or open flames of any kind, even those many feet away
from the original leak. If you smell gas, leave the area immediately.
• The propane cylinder must be constructed and marked in accordance
with the specifications for LP gas cylinders of the U.S. Department of
Transportation (in the United States) or the standard for cylinders, spheres
and tubes for transportation of dangerous goods and commission, CAN/
CSA-B339 (in Canada). Never connect an unregulated propane cylinder
to the heater.
• The cylinder must have a connection device compatible with the
connection for this appliance.
• The cylinder used must include a collar to protect the cylinder valve.
• The cylinder must have a listed overfilling prevention device.
• Never fill the propane cylinder beyond 80 percent full.

7
• Never install or remove the propane cylinder while the heater is lit, near flame,
pilot lights or other ignition sources, or while the heater is hot to touch.
• A dented, rusted or damaged propane cylinder may be hazardous and
should be checked by your cylinder supplier. Never use a propane cylinder
with a damaged valve connection.
• Store or use propane gas in compliance with local ordinances and codes
or with ANS/NFPA 58. Turn o propane when not in use.
• Store the propane cylinder outdoors in a well ventilated space out of reach
of children. Never store the propane cylinder in an enclosed area such as a
house, garage, etc. If you are storing the patio heater indoors, disconnect
the propane cylinder and store it separately outdoors.
• Place the dust cap on the propane cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the cylinder valve
that is provided with the cylinder valve. Other types of caps or plugs may
result in propane leakage.
• For more information, see chapter 5 of the standard for storage and
handling of liquefied petroleum gas, ANS/NFPA 58. Your local library or
fire department should have this book.
RULES FOR SAFE OPERATION
• Never leave the heater unattended when hot or in use.
• Keep out of reach of children. Carefully supervise young children when
they are in the vicinity of the heater.
• Alert children and adults to the hazards of high surface temperatures.
Stay away from these surfaces to avoid burning skin or igniting clothing.
• Materials or items stored under the heater will be subjected to radiant
heat and could be seriously damaged.
• Do not hang clothing or any other flammable materials from the heater,
or place on or near the heater.

8  www.blueskyoutdoorliving.com
• Keep all connections and fittings clean. Make sure the propane cylinder
valve outlet is clean and the cylinder cover is clear of debris.
• Use as a heating appliance only. Never alter in any way or use with any
other device.
• Do not operate this heater in conditions where the wind velocity is above
10 mph (16 kph).
• This heater will operate at reduced eciency below 40°F (5 °C).
• Do not operate this heater near windows, air intake openings, sprinklers
and other water sources.
• Keep this heater on a hard and level surface.
• Before each use, inspect the hose assembly for evidence of excessive
abrasion, cuts or wear. Suspected areas should be leak tested. If the hose
leaks, it must be replaced prior to operation. Only use the replacement
hose assembly specified by manufacturer.
• If relighting a hot heater, always wait at least 5 minutes.
• Do NOT touch or move the heater for at least 45 minutes after use. The
reflector is hot to the touch. Allow reflector to cool before touching.
• It is very important that the control compartment, burner and circulating air
passageways of the heater be kept clean. More frequent cleaning may be
required as necessary.
• Spiders and insects can nest in burner or orifices, which can damage the
heater and render it unsafe for use.
• Carbon deposits may create a fire hazard. See the Care and Maintenance
section for cleaning instructions.
• Installation and repair should be done by a qualified service person. The
heater should be inspected before use and annually by a qualified service
person. Make sure the heater is cool before servicing.
• Replace any guard or protective device removed for servicing the appliance
prior to placing back in service.

9
• This product contains sharp edges on the panels, cylinder housing and
handle. Please assemble with care.
• Nails must be used to secure this heater into the ground. Nails are
not included.
NOTES
• We cannot foresee every use which may be made of our heaters.
• Check with your local fire safety authority if you have questions about
heater use.
• Other standards govern the use of fuel gases and heat producing products
for specific uses. Your local authorities can advise you about these. In
the United States, the installation must conform with local codes, or in
the absence of local codes, follow National Fuel Gas Code ANS Z223.1/
NFPA54. In Canada, the installation must confirm to local codes. If no
local codes exist, follow the current National Standards of Canada CAN/
CGA-B149.2.
• Every part of the heater shall be secure against displacement and shall
be constructed to maintain a fixed relationship between essential parts
under normal and reasonable conditions of handling and usage. Parts
not permanently secured shall be designed so they cannot be incorrectly
assembled and cannot be improperly located or misaligned in removing or
replacing during cleaning or other servicing.

10  www.blueskyoutdoorliving.com
C
D
E
A

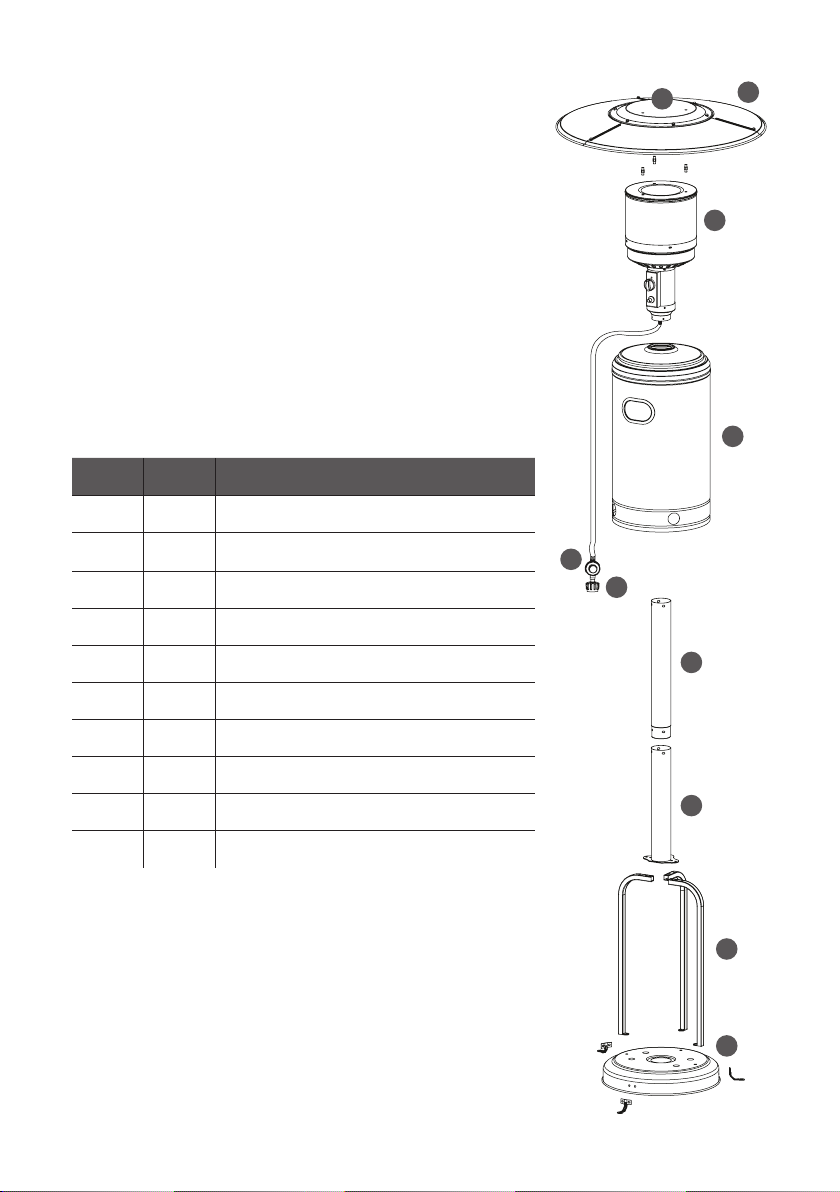

PARTS LIST
UNPACK PARTS, MAKING SURE ALL
PIECES ARE PRESENT BEFORE ATTEMPTING
TO ASSEMBLE.
If any part is missing or damaged, do not
attempt to assemble the product. Contact us by
email at [e-mail] or call
1-800-459-4409 (Monday–Friday,
8:00 am–4:30 pm, CST) for replacement parts.
REF QTY DESCRIPTION
A 3 Reflector Panel
B 1 Reflector Plate
C 1 Head Assembly
D 1 Cylinder Housing
E 1 Gas Hose
F 1 Regulator
G 1 Upper Pole
H 1 Lower Pole
I 3 Support Bracket
J 1 Base
F
G
H
I
J
B

11

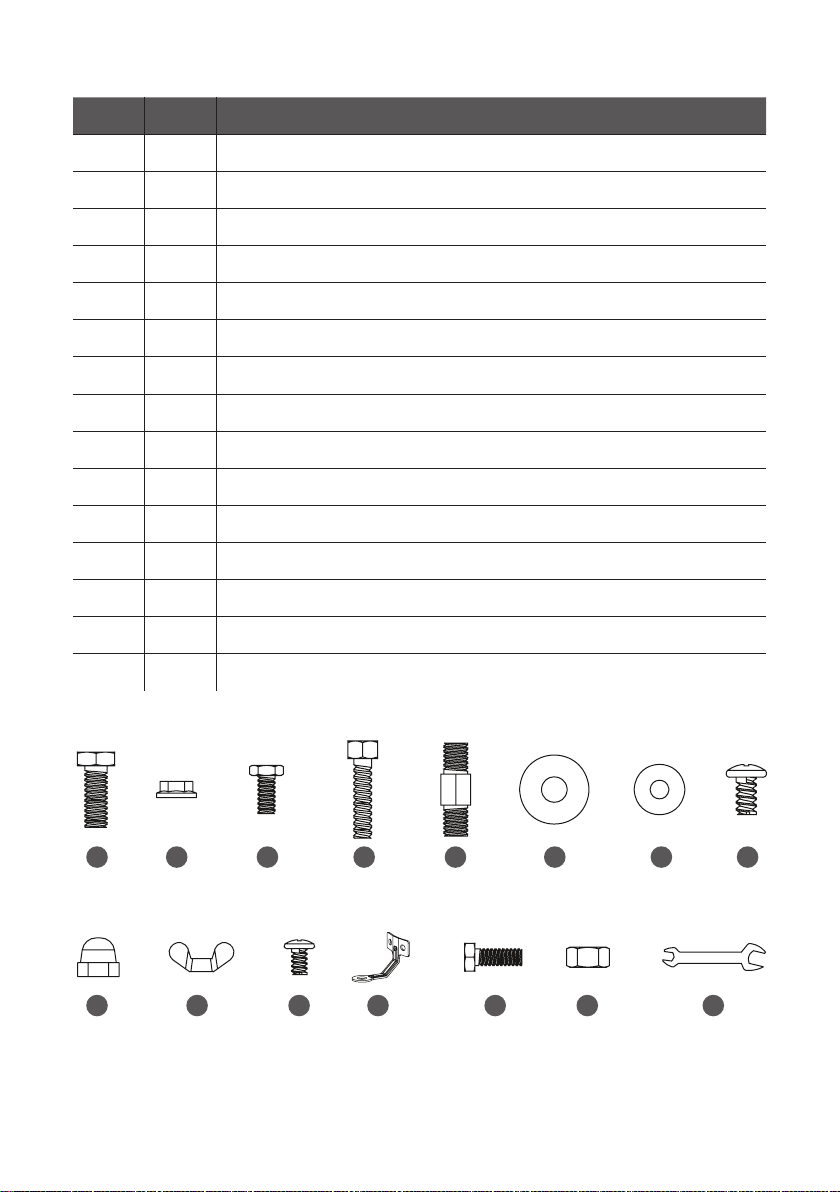

REF QTY DESCRIPTION
AA 3 M8 x 16 Bolt
BB 6M6 Flange Nut
CC 4 Stainless Steel Bolt
DD 6 M6 x 30 Bolt
EE 3Reflector Spacer
FF 9 8 mm Washer
GG 15 6 mm Washer
HH 9 M6 x 10 Screw
II 9 Cap Nut
JJ 3Wing Nut
KK 43/16" Screw
LL 3Ground Fixtures
MM 6 M6 x 10 Bolt
NN 6M6 Nut
OO 1Wrench
AA GGCC
II MM
EE
KK OO
BB HHDD
JJ NN
FF
LL

12  www.blueskyoutdoorliving.com

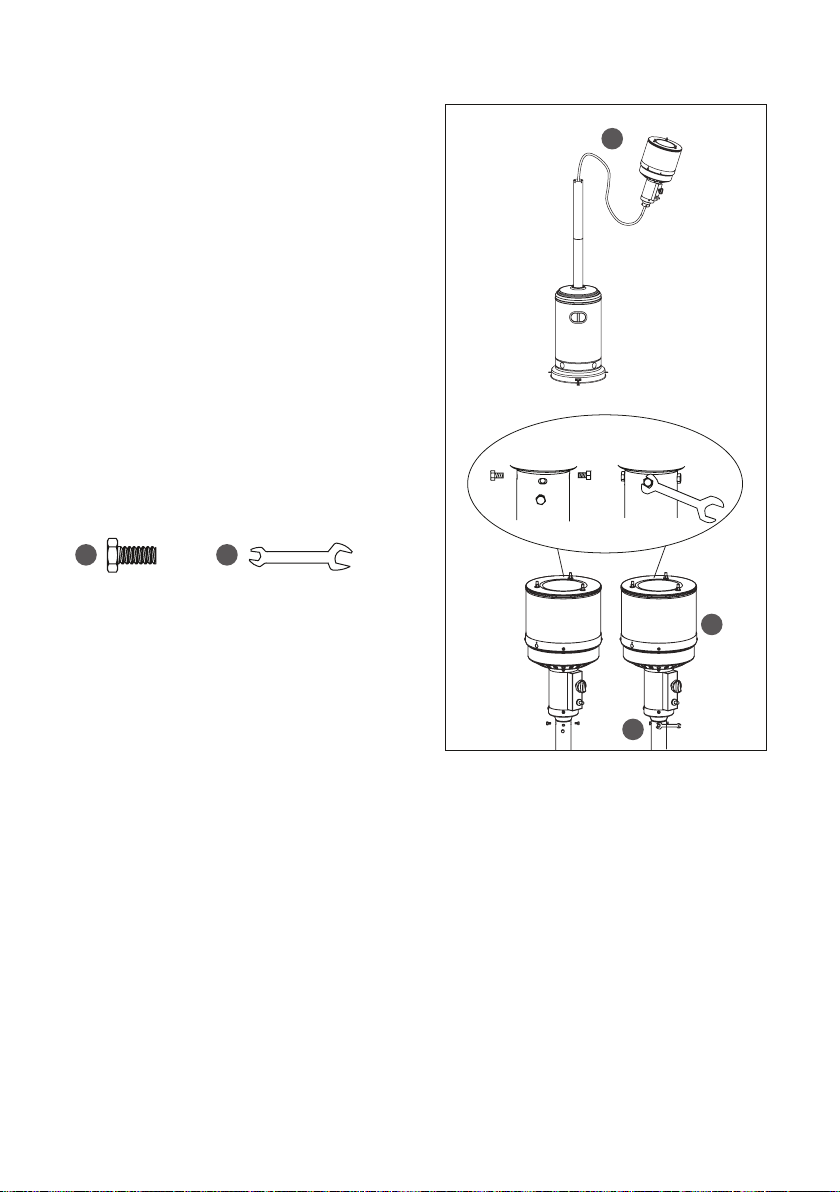

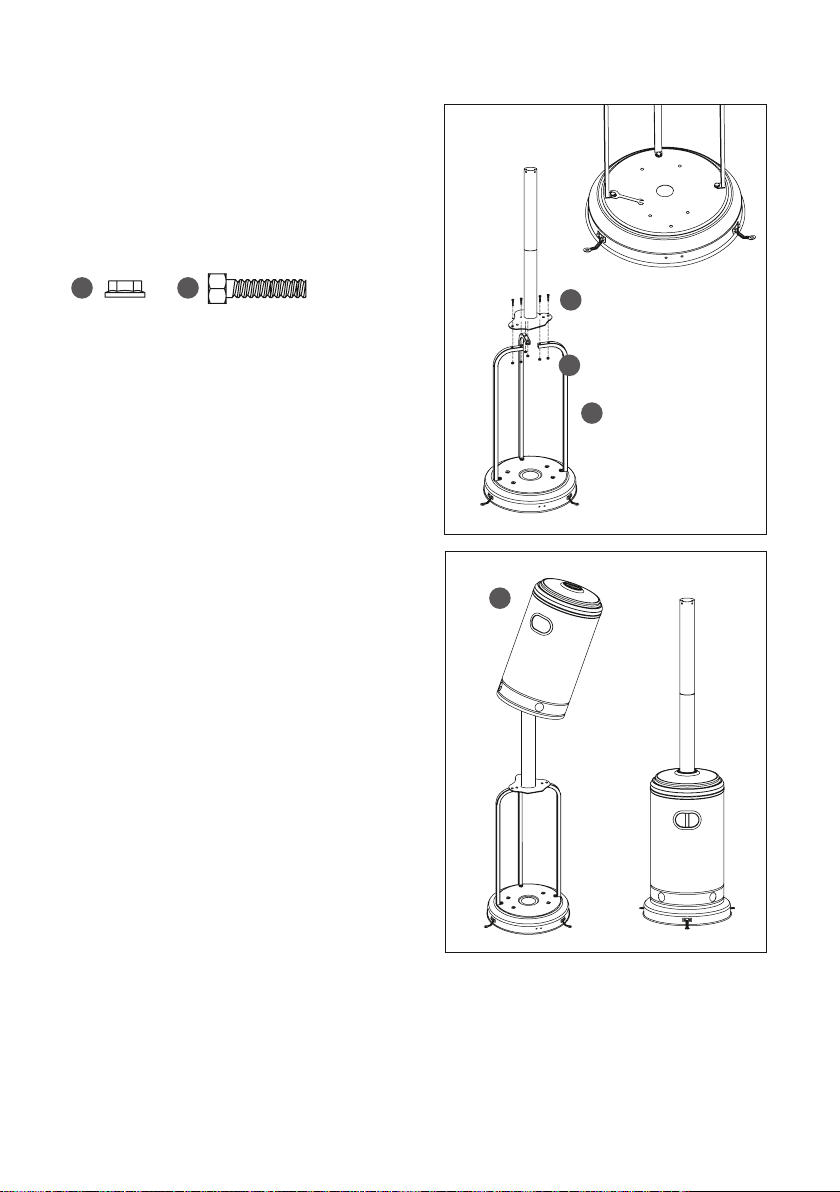

ASSEMBLY
WARNING
This product contains sharp edges. Please assemble with care.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
• Phillips screwdriver with medium blade
• Leak detection solution (described later in the instructions)
STEP 1
NOTE: Fastening hardware to secure
this heater to a flat surface are not
included. Consult your local hardware
dealer for advice on the proper
fasteners needed to secure your heater.
Flip the base [J] over. Attach the
ground fixtures [LL] to the base using
two M6 x 10 bolts [MM], two 6 mm
washers [GG] and two M6 nuts [NN].
Turn the base upright.
GG
MM
NN
J
OONN
LL
LL
LLGG MM

13
J
I
STEP 2
To attach the three support
brackets [I] to the base [J], loosely
insert three M8 x 16 bolts [AA]
downward through the support
brackets and into the base.
STEP 3
Insert the upper pole [G] into the
lower pole [H]. The warning label on
the upper pole should be on the same
side as the flat plate on the lower pole.
Use four 3/16" screws [KK] to firmly
secure the two poles together.
AAAA
G
H
KKKK

14  www.blueskyoutdoorliving.com
STEP 4
Attach the assembled pole to the
three support brackets [I] using six
M6 x 30 bolts [DD] and M6 flange
nuts [BB]. Fully tighten.
STEP 5
Slide the cylinder housing [D] over the
assembled pole and all the way down
over the support brackets [I].
D
I
DD
DD BB BB

15
STEP 6
Place one 8 mm washer [FF] over a
hole in the top of the head assembly
[C]. Screw one reflector spacer [EE]
through the washer and into the top of
the head assembly. Tighten.
Repeat the same steps with the
other two 8 mm washers and reflector
spacers. Tighten.
STEP 7
Unscrew the stainless steel bolts [CC]
from the head assembly [C].
C
FF
FF
EE
EE
C
CC
CC OO

16  www.blueskyoutdoorliving.com
STEP 8
Insert the gas hose [E] into the pole,
then insert the head assembly [C]
into the pole.
Attach the head assembly to the pole
using the stainless steel bolts [CC],
which were removed in step 7.
NOTE: The control knob on the head
assembly should be above the decal
on pole.
When applicable, visually check
portions of the hose assembly located
within the confines of the heater post.
C
CC
E
CC OO

17
STEP 9
WARNING
Remove the protective film
before assembling.
Secure all fastening hardware loosely
and tighten when reflector assembly is
properly aligned.
Slide two reflector panels [A] together.
Insert one M6 x 10 screw [HH] into the
reflector panels. Slide one 6 mm washer
[GG] over the threaded end of the screw,
then screw on one cap nut [II].
STEP 10
Put the reflector plate [B] in the center
of reflector panels.
Slide in the third reflector panel [A].
Insert one M6 x 10 screw [HH] into
each reflector panel. Slide a 6 mm
washer [GG] over the threaded end
of each screw, then loosely screw on
a cap nut [II].
Attach the reflector plate to the three
reflector panels using six M6 x 10
screws [HH], 6 mm washers [GG]
and cap nuts [II].
Fully tighten all screws.
A
AB
II
II
II
GG
GG
GG
HH
HH
HH
II
GG
HH

18  www.blueskyoutdoorliving.com
STEP 11
Slide one 8 mm washer [FF] over each
of the exposed ends of the reflector
spacers [EE], which are sticking out of
the head assembly [C].
Place the reflector assembly on the
three spacers.
Slide one 8 mm washer over each
of the exposed ends of the reflector
spacers, which are sticking through the
top of the reflector assembly.
Then securely tighten a wing nut [JJ]
to each of the threaded ends of the
reflector spacers.
Do not overtighten.
JJ
JJ
EE
C
EE
FF
FF
FF

19
STEP 12
Before connecting your propane cylinder, please read these
important instructions.
• The propane gas and cylinder are sold separately. Use a standard 20 lb.
propane cylinder only – approximately 12.2" (31 cm) in diameter and
17.9" ( 45.5 cm) high.
• Use only propane gas set up for vapor withdrawal.
• The maximum inlet gas supply pressure: 250 psi/1750 kPa. The minimum
inlet gas supply pressure: 25 psi /175 kPa. Manifold pressure with
regulator provided: 11 inch W.C/2.74 kPa. The pressure regulator and
hose assembly supplied with the appliance must be used.
• The propane cylinder must be constructed and marked in accordance
with the specifications for LP gas cylinders of the U.S. Department of
Transportation (in the United States) or the standard for cylinders, spheres
and tubes for transportation of dangerous goods and commission, CAN/
CSA-B339 (in Canada). Never connect an unregulated propane cylinder to
the heater.
• The cylinder must have a connection device compatible with the
connection for this appliance.
• The cylinder used must include a collar to protect the cylinder valve.
• The cylinder must have a listed overfilling prevention device.
• Never fill the propane cylinder beyond 80 percent full.
• Never install or remove the propane cylinder while heater is lit, near flame,
pilot lights or other ignition sources, or while heater is hot to touch.
• A dented, rusted or damaged propane cylinder may be hazardous and
should be checked by your cylinder supplier. Never use a propane cylinder
with a damaged valve connection.
• For more information, see chapter 5 of the standard for storage and
handling of liquefied petroleum gas, ANS/NFPA 58. Your local library or
fire department should have this book.

20  www.blueskyoutdoorliving.com

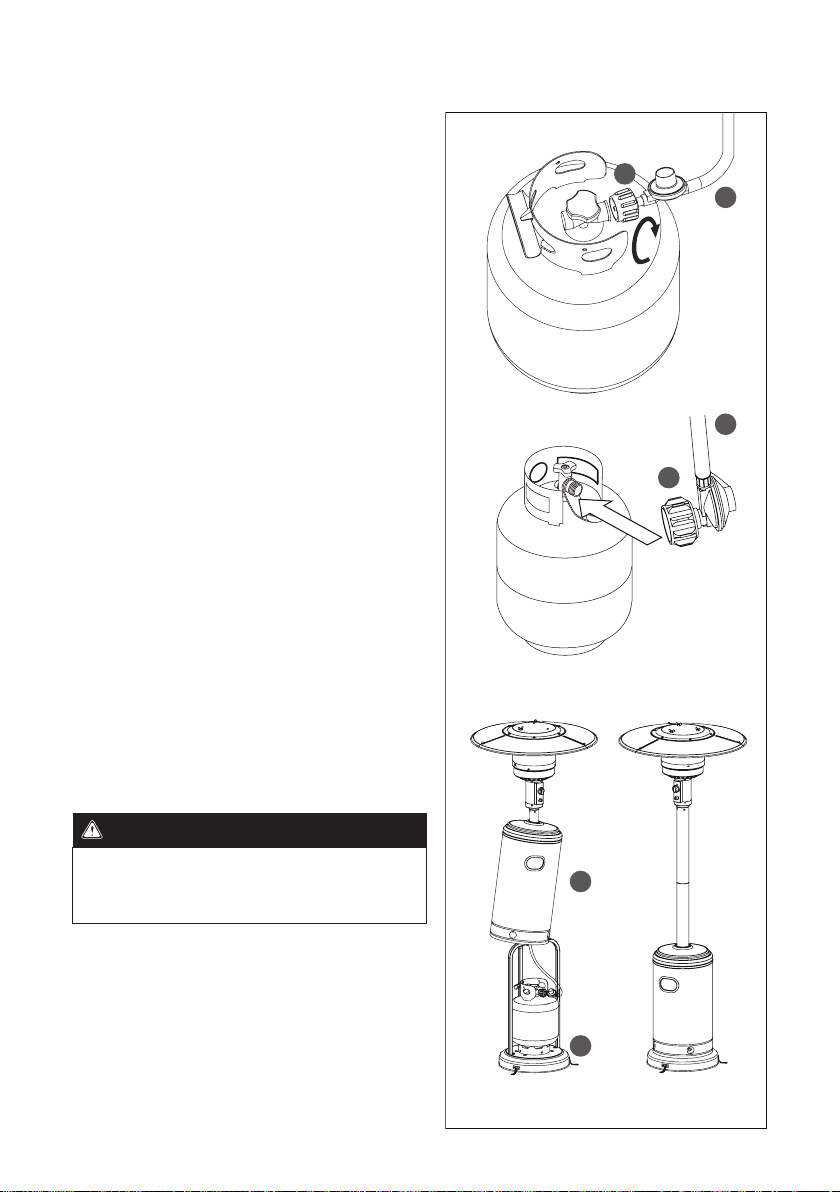

Make sure that the knob on the LP
tank is closed and turned clockwise
to a full stop. The cylinder supply
system must be arranged for vapor
withdrawal. Check that the control
knob on the control unit is turned o.
Hold the gas hose [E] and regulator
[F] in one hand and insert the nipple
into the valve outlet. Be sure the
nipple is centered in the valve outlet.
The coupling nut connects to the
large outside threads on the valve
outlet. Hand-tighten the coupling nut
clockwise until it comes to a full stop.
Firmly tighten by hand only. Do not
cross-thread.
Carefully lower the cylinder housing
[D] into place over the tank. Make sure
it is sitting evenly on the base [J].
To disconnect, fully close the tank
valve by turning clockwise. Turn the
coupling nut counterclockwise until
the gas hose and regulator detaches.
WARNING
Do not store a spare LP gas cylinder
under or near this heater.
F
D
J
F
E
E
