Bobike maxi Tour User manual

2 Gebruiksaanwijzing
6 User Instructions
10 Gebrauchsanweisung
14 Mode d’emploi
18 Instrucciones para el uso
22 Brugsanvisning
26 取り扱い説明書
A. legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
B. 12 stappen /12 steps /12 Schritten /12 étappes /12 pasos /12 skridt /12 ステップ
legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
A
B
C
D
E
F
G
H
I J
K
L
NL A Zitje
BGordelinsteek
CGordel
DBekleding
EOpbergvak
FSpaakafscherming
GVoetengordel
HVoetenbak
IVoetenbak verstelling
JDraagbeugel
KVergrendeling
LMontagebeugel
FR A Siège
BFente pour ceinture
CCeinture de sécurité
DRevêtement
ECasier à rangement
FProtèges-rayons
GCeinture des pieds
HRepose-pieds
IRéglage repose-pieds
JBarre de support
KVerrouillage
LFixation
A.
www.bobike.com
Bobike
P.O. Box 18
6980 AA Doesburg
The Netherlands
T+31 (0) 313 47 86 30
F+31 (0) 313 47 40 30
E[email protected]
Iwww.bobike.com
GB A Seat
BSlot for inserting safety belt
CSafety belt
DSeat cover
EStorage compartment
FSpoke protector
GFootstrap
HFootrest
I Footrest adjustment
J Bearing bracket
KLocking units
L Mounting bracket
ES A Asiento
B Ranura para cinturón
C Cinturón
D Revestimiento
E Compartimento para guardar
F Protección contra los radios de la bicicleta
GCorrea de pie
H Receptáculo para los pies
I Ajuste del receptáculo para los pies
J Brida de soporte
K Bloqueo
L Brida de montaje
DE A Sitz
BGurteinstecklöcher
CGurt
DKissen
E Schließfach
F Speichenschutz
GFußriemen
H Fußstützen
I Fußstützenverstellung
JTragebügel
KVerriegelung
LMontagebügel
DK A Stol
B Indstik til sele
C Sele
D Betræk
E Opbevaringsrum
F Egerbeskytter
G Fodrem
H Fodstøtte
I Justering af fodstøtte
J Bærebøjle
K Lukkemekanisme
L Montagebøjle
JP A シート
B ベルトバックル差し込み口
C シートベルト
D シ ートカ バー
E コンパ ー トメント
F 車輪接触防止プロテクター
G フットス テップ
H フットレスト
I フットレストアジャスター
J ベ アリン グ ブ ラ ケット
K ロッキ ング ユ ニット
L マ ウン ティン グ ブ ラ ケット
GBA-maxi City/Tour-01-2011
Bobike maxi City Bobike maxi Tour
Bobike is a registered trademark
of Dremefa B.V.
Bobike maxi City Bobike maxi Tour

2 Gebruiksaanwijzing
6 User Instructions
10 Gebrauchsanweisung
14 Mode d’emploi
18 Instrucciones para el uso
22 Brugsanvisning
26 取り扱い説明書
A. legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
B. 12 stappen /12 steps /12 Schritten /12 étappes /12 pasos /12 skridt /12 ステップ
legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
A
B
C
D
E
F
G
H
I J
K
L
NL A Zitje
BGordelinsteek
CGordel
DBekleding
EOpbergvak
FSpaakafscherming
GVoetengordel
HVoetenbak
IVoetenbak verstelling
JDraagbeugel
KVergrendeling
LMontagebeugel
FR A Siège
BFente pour ceinture
CCeinture de sécurité
DRevêtement
ECasier à rangement
FProtèges-rayons
GCeinture des pieds
HRepose-pieds
IRéglage repose-pieds
JBarre de support
KVerrouillage
LFixation
A.
www.bobike.com
Bobike
P.O. Box 18
6980 AA Doesburg
The Netherlands
T+31 (0) 313 47 86 30
F+31 (0) 313 47 40 30
E[email protected]
Iwww.bobike.com
GB A Seat
BSlot for inserting safety belt
CSafety belt
DSeat cover
EStorage compartment
FSpoke protector
GFootstrap
HFootrest
I Footrest adjustment
J Bearing bracket
KLocking units
L Mounting bracket
ES A Asiento
B Ranura para cinturón
C Cinturón
D Revestimiento
E Compartimento para guardar
F Protección contra los radios de la bicicleta
GCorrea de pie
H Receptáculo para los pies
I Ajuste del receptáculo para los pies
J Brida de soporte
K Bloqueo
L Brida de montaje
DE A Sitz
BGurteinstecklöcher
CGurt
DKissen
E Schließfach
F Speichenschutz
GFußriemen
H Fußstützen
I Fußstützenverstellung
JTragebügel
KVerriegelung
LMontagebügel
DK A Stol
B Indstik til sele
C Sele
D Betræk
E Opbevaringsrum
F Egerbeskytter
G Fodrem
H Fodstøtte
I Justering af fodstøtte
J Bærebøjle
K Lukkemekanisme
L Montagebøjle
JP A シート
B ベルトバックル差し込み口
C シートベルト
D シ ートカ バー
E コンパ ー トメント
F 車輪接触防止プロテクター
G フットス テップ
H フットレスト
I フットレストアジャスター
J ベ アリン グ ブ ラ ケット
K ロッキ ング ユ ニット
L マ ウン ティン グ ブ ラ ケット
GBA-maxi City/Tour-01-2011
Bobike maxi City Bobike maxi Tour
Bobike is a registered trademark
of Dremefa B.V.
Bobike maxi City Bobike maxi Tour

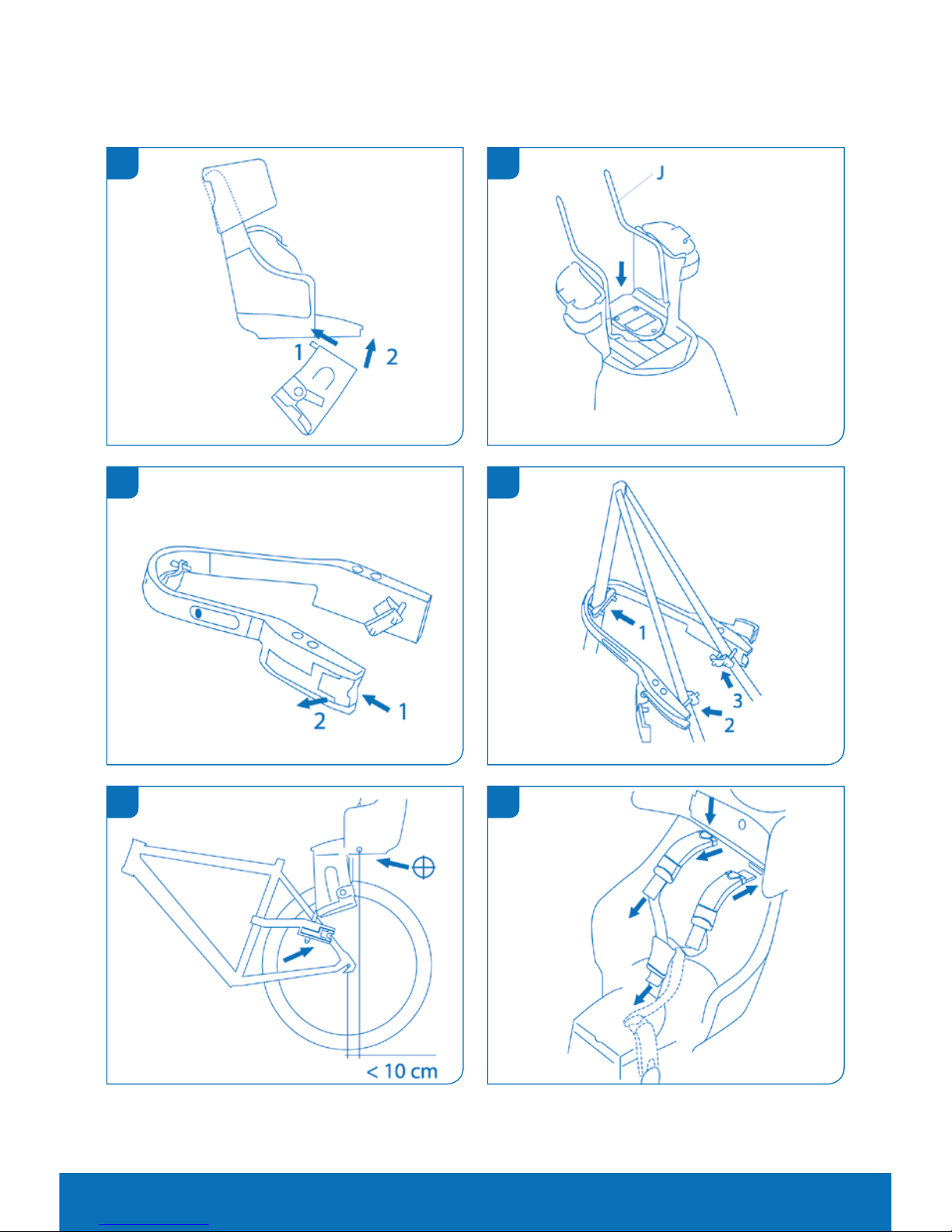

12 stappen /12 steps /12 Schritten /12 étappes /12 pasos /12 skridt /12 ス テップ
B.
1 3
5 7
911
2 4
6 8
10 12
Nederlands
U op de fiets, uw kind in een fietsstoeltje achterop en
rijden maar. Soms fietsen we puur omdat het leuk is, soms
omdat het nuttig is en we een duidelijke bestemming
hebben. Wat de reden van een fietstocht ook is, de
veiligheid van uw kind staat voorop. Met de aanschaf
van de Bobike maxi City of maxi Tour, goedgekeurd
volgens de Europese veiligheidsnorm EN 14344, heeft u
een goede keuze gemaakt. Voor een correcte en veilige
montage is het belangrijk deze gebruiksaanwijzing
eerst aandachtig door te lezen en vervolgens de voor-
schriften nauwkeurig op te volgen. Bewaar deze
gebruiksaanwijzing goed, zodat u deze later nog eens
kunt raadplegen. Dremefa, producent van de Bobike
maxi City en maxi Tour, wenst u vele leuke en vooral
veilige fietstochten toe.
Van 9 maanden tot 6 jaar
De Bobike maxi City en maxi Tour zijn geschikt voor
kinderen van 9 maanden tot 6 jaar. Bobike raadt aan het
zitje pas te gebruiken als uw kind minimaal de duur van
de fietstocht goed zelfstandig kan zitten. Het maximale
gewicht van een kind in de Bobike maxi City en maxi Tour
is 22 kilo. Voor kinderen ouder dan 6 jaar of zwaarder
dan 22 kilo is er de Bobike junior. Wilt u uw Bobike
maxi City of maxi Tour op meerdere fietsen gebruiken,
informeer dan bij uw dealer naar de extra montage-
beugel.
Onderhoud
Het onderhoud van Bobike kinderfietszitjes is eenvoudig.
De bekleding is vastgehaakt en met een dopje bevestigd
en kunt u verwijderen door het dopje naar voren te
trekken. De bekleding kan met de hand gewassen worden
en het zitje maakt u schoon met een lauw sopje.
Gebruik geen agressieve schoonmaakmiddelen.
Garantie
Bobike garandeert dat het geleverde zitje van deugdelijk
materiaal is vervaardigd en onder een strenge kwaliteits-
controle is geproduceerd. Daarom geeft Bobike één jaar
garantie op dit product. In voorkomende gevallen kunt u
zich met de aankoopbon wenden tot de leverancier.
Andere Bobike producten en accessoires
• Bobike mini+
• Bobike maxi+
• Bobike junior
• Windscherm Bobike mini+
• Losse bekledingen
• Gordelpads
• Zadelveerbeschermer
• Jasbeschermer
• Stuurtje met kussen Bobike mini+
• Voetrusten
• Bandenlichters
• Zomerhoes
• Heupgordel Bobike junior
• Poncho
• Helm
• Achterdrager
Wijze van montage
De Bobike maxi City en maxi Tour zijn niet geschikt
voor montage op een fiets met een carbonframe of op
een bromfiets. U mag het zitje alleen monteren op die
fietsen, die geschikt zijn om het extra gewicht van het
zitje en kind te dragen. Raadpleeg daarom de hand-
leiding van uw fiets of vraag uw fietsfabrikant of
-leverancier om advies. Bij montage met de montage-
beugel mag de diameter van de zadelbuis maximaal
52 mm zijn. De breedte van de bagagedrager mag
maximaal 160 mm zijn.
Mocht u nog vragen hebben, raadpleeg dan uw Bobike
leverancier of bezoek www.bobike.com.
In twaalf stappen naar een correct gemonteerde
Bobike maxi City of maxi Tour
De Bobike maxi City en maxi Tour voldoen aan de
Europese veiligheidsnorm EN 14344 en zijn zeer veilige
kinderfietszitjes. Hiervoor geldt wel dat de montage op
de juiste wijze uitgevoerd moet zijn. De nummers van de
stappen komen overeen met de nummers van de bijbe-
horende tekeningen. Op tekening 1 staat bijvoorbeeld
afgebeeld wat in stap 1 wordt beschreven.
2. www.bobike.com www.bobike.com 31.
Bobike maxi City en maxi Tour:
een veilige keuze

12 stappen /12 steps /12 Schritten /12 étappes /12 pasos /12 skridt /12 ス テップ
B.
1 3
5 7
911
2 4
6 8
10 12
Nederlands
U op de fiets, uw kind in een fietsstoeltje achterop en
rijden maar. Soms fietsen we puur omdat het leuk is, soms
omdat het nuttig is en we een duidelijke bestemming
hebben. Wat de reden van een fietstocht ook is, de
veiligheid van uw kind staat voorop. Met de aanschaf
van de Bobike maxi City of maxi Tour, goedgekeurd
volgens de Europese veiligheidsnorm EN 14344, heeft u
een goede keuze gemaakt. Voor een correcte en veilige
montage is het belangrijk deze gebruiksaanwijzing
eerst aandachtig door te lezen en vervolgens de voor-
schriften nauwkeurig op te volgen. Bewaar deze
gebruiksaanwijzing goed, zodat u deze later nog eens
kunt raadplegen. Dremefa, producent van de Bobike
maxi City en maxi Tour, wenst u vele leuke en vooral
veilige fietstochten toe.
Van 9 maanden tot 6 jaar
De Bobike maxi City en maxi Tour zijn geschikt voor
kinderen van 9 maanden tot 6 jaar. Bobike raadt aan het
zitje pas te gebruiken als uw kind minimaal de duur van
de fietstocht goed zelfstandig kan zitten. Het maximale
gewicht van een kind in de Bobike maxi City en maxi Tour
is 22 kilo. Voor kinderen ouder dan 6 jaar of zwaarder
dan 22 kilo is er de Bobike junior. Wilt u uw Bobike
maxi City of maxi Tour op meerdere fietsen gebruiken,
informeer dan bij uw dealer naar de extra montage-
beugel.
Onderhoud
Het onderhoud van Bobike kinderfietszitjes is eenvoudig.
De bekleding is vastgehaakt en met een dopje bevestigd
en kunt u verwijderen door het dopje naar voren te
trekken. De bekleding kan met de hand gewassen worden
en het zitje maakt u schoon met een lauw sopje.
Gebruik geen agressieve schoonmaakmiddelen.
Garantie
Bobike garandeert dat het geleverde zitje van deugdelijk
materiaal is vervaardigd en onder een strenge kwaliteits-
controle is geproduceerd. Daarom geeft Bobike één jaar
garantie op dit product. In voorkomende gevallen kunt u
zich met de aankoopbon wenden tot de leverancier.
Andere Bobike producten en accessoires
• Bobike mini+
• Bobike maxi+
• Bobike junior
• Windscherm Bobike mini+
• Losse bekledingen
• Gordelpads
• Zadelveerbeschermer
• Jasbeschermer
• Stuurtje met kussen Bobike mini+
• Voetrusten
• Bandenlichters
• Zomerhoes
• Heupgordel Bobike junior
• Poncho
• Helm
• Achterdrager
Wijze van montage
De Bobike maxi City en maxi Tour zijn niet geschikt
voor montage op een fiets met een carbonframe of op
een bromfiets. U mag het zitje alleen monteren op die
fietsen, die geschikt zijn om het extra gewicht van het
zitje en kind te dragen. Raadpleeg daarom de hand-
leiding van uw fiets of vraag uw fietsfabrikant of
-leverancier om advies. Bij montage met de montage-
beugel mag de diameter van de zadelbuis maximaal
52 mm zijn. De breedte van de bagagedrager mag
maximaal 160 mm zijn.
Mocht u nog vragen hebben, raadpleeg dan uw Bobike
leverancier of bezoek www.bobike.com.
In twaalf stappen naar een correct gemonteerde
Bobike maxi City of maxi Tour
De Bobike maxi City en maxi Tour voldoen aan de
Europese veiligheidsnorm EN 14344 en zijn zeer veilige
kinderfietszitjes. Hiervoor geldt wel dat de montage op
de juiste wijze uitgevoerd moet zijn. De nummers van de
stappen komen overeen met de nummers van de bijbe-
horende tekeningen. Op tekening 1 staat bijvoorbeeld
afgebeeld wat in stap 1 wordt beschreven.
2. www.bobike.com www.bobike.com 31.
Bobike maxi City en maxi Tour:
een veilige keuze

www.bobike.com XX.
6. www.bobike.com
www.bobike.com 7.
2., 3. and 4. Mounting the bearing bracket
Place the bearing bracket under the seat (2). To mount
the bearing bracket (J), open the storage compartment
(3). Ensure that the bolt holes align with the nuts in the
bracket. Insert the nuts into the holes and hand-tighten
them (4).
5. and 6. Attaching the mounting bracket to your
bicycle
Attach the mounting bracket (L) to the saddle tube and
the upright rear fork of your bicycle. Open the locking
units (K) left and right of the bracket (5). Loosen the bolts,
and place the bracket on the frame. Hand-tighten the
bolts so that you can adjust the bracket. The middle section
of the bracket should be positioned horizontally (6).
7. Adjusting the height of the mounting bracket
The height of the mounting bracket is adjustable, so you
can adjust the distance (height) properly. The distance
between the upper surface of the luggage carrier and
the seat should be about 2 cm. If your bicycle has no
luggage carrier, maintain a distance of at least 8 cm
above the rear wheel. The mounting bracket must be in
the same position on both sides. Tighten all bolts firmly
(with a torque of 9 Nm).
8. Placing the seat onto the bicycle
Open the locking units (K) of the mounting bracket (1).
Insert the seat’s bearing bracket into the openings in the
front (2) of the mounting bracket. Insert the bearing
bracket in the front openings of the mounting bracket.
Push the seat so far down that the bearing bracket on
the underside of the mounting bracket is visible. Close
the locking units. You should hear a definite click.
9. The seat’s centre of gravity
Check that the centre of gravity of the Bobike maxi City
or maxi Tour does not lie more than 10 cm behind the
rear axle. Carry out this check before you go on a first
test ride with your child. The symbol for the centre of
gravity ( ) can be found on the sides of the seat (A).
You can adjust the location of the centre of gravity by
partially loosening the bearing bracket’s bolts in the
seat (see Point 4), so that the seat can be moved back
and forth over the bearing bracket. Once you have
found the proper position, tighten the bolts firmly (with a
torque of 5 Nm).
Check that the surface of the seat is horizontal, and that
the back of the seat is tilted somewhat to the rear. This is
the case when the mounting bracket is in a horizontal
position. If this is not the case, you can adjust the position
of the Bobike maxi City or maxi Tour by readjusting the
mounting bracket (see Points 6 + 7).
10. Adjusting the safety belt
Sit your child in the Bobike maxi City or maxi Tour and
check that the chosen setting is correct. If you want to
change the setting, always remove your child from the
seat first. The unique safety belt system (C) of your Bobike
maxi City or maxi Tour ensures that your child will remain
seated safely in the seat. First pull out the safety belt
system in length as far as it will go. Place your child in
the seat. Insert the safety belt clips into the recesses
above your child’s shoulders. Make sure that your child
can still move freely but safely in the seat. The safety
belt clips should be inserted, even if you go for a ride
without your child. This keeps loose parts from coming
into contact with the moving parts of the bicycle. You
can insert the safety belt clips into the seat or into the
spoke protectors.
11. Head support (maxi Tour only)
For the Bobike maxi Tour, make sure that the head
support is adjusted to the height of your child before
inserting the belt clips into the head support. You can
adjust the head support by squeezing the grey handle
(1) on the back whilst simultaneously moving the head
support (2) to the right height. Tighten the belt by pulling
on the ends. The Bobike maxi Tour is equipped with LED
lighting. To operate this, you will have to install 2 AAA
batteries yourself. The lighting can be turned on by
pressing the grey button.
12. Adjusting the height of the footrests
The Bobike maxi City and maxi Tour are equipped with
easily adjustable footrests (H). You can adjust the footrests
You on the bike, your child in a bicycle seat behind you,
and off you ride. Sometimes we cycle purely for the fun
of it, sometimes because we need to and we have a
specific destination. Whatever the reason for a bike ride,
your child’s safety is paramount. By purchasing the
Bobike maxi City or maxi Tour, approved according to
European safety standard EN 14344, you have made a
good choice. To ensure proper and safe fitting, it is im-
portant to read this user manual carefully first, and then
follow the instructions carefully. Keep this user manual in
a safe place in case you need to refer to it at a later date.
Dremefa, the manufacturer of the Bobike maxi City and
maxi Tour, wishes you many happy, and above all safe,
bicycle rides.
From 9 months to 6 years
The Bobike maxi City and maxi Tour are suitable for
children aged from 9 months to 6 years. We recommend
that you use the seat only when your child is able to sit
well on its own, at least for the duration of the ride. The
maximum weight of a child in the Bobike max City or
maxi Tour is 22 kilograms. For children older than 6 years
or heavier than 22 kilograms, we offer the Bobike junior.
If you want to use your Bobike maxi City or maxi Tour
on more than one bike, ask your dealer about the extra
mounting bracket.
Maintenance
Bobike child bicycle seats are simple to maintain. The seat
cover is held in place and attached by a cap that can
be removed by pulling it forward. The seat cover can be
washed by hand and the seat cleaned with a mild
detergent. Do not use any abrasive cleaning agents.
Guarantee
Bobike guarantees that the supplied child’s cycle seat is
manufactured from durable materials and subject to
strict quality controls. Bobike therefore guarantees this
product for a period of one year. In certain cases, you
can present your receipt to your supplier.
Other Bobike products and accessories
• Bobike mini+
• Bobike maxi+
• Bobike junior
• Windscreen for Bobike mini+
• Separate seat cushions
• Safety belt pads
• Saddle spring protector
• Jacket protectors
• Handlebar with cushion for Bobike mini+
• Footrests
• Tyre levers
• Summer cover
• Safety belt for Bobike junior
• Poncho
• Helmet
• Rear carrier
Method of mounting
The Bobike maxi City and maxi Tour are not suitable for
mounting on a bicycle with a carbon frame or on a
moped. You must only mount the seat on bicycles that
are suitable for carrying the extra weight of the seat
and child. You should therefore consult your bicycle’s
manual or ask your bicycle manufacturer or supplier for
advice. When mounting using the mounting bracket, the
diameter of the seat tube may not exceed 52 mm. The
width of the luggage carrier may not exceed 160 mm.
Should you have any further queries, please refer to
your Bobike supplier or visit www.bobike.com.
Twelve steps to a correctly mounted Bobike maxi
City or maxi Tour
The Bobike maxi City and maxi Tour comply with
European safety standard EN 14344 and are very safe
child bicycle seats. Of course, the assembly must be
carried out in the correct way. The numbers of the steps
match the related drawings. For example, drawing 1
illustrates what is described in step 1.
1. Mounting the spoke protectors
The spoke protectors (F) must be inserted into the
underside of the seat. Insert them into the seat (1) and
then turn them forward until they click solidly into
place (2).
English
Bobike maxi City and maxi Tour:
a safe choice

www.bobike.com XX.
6. www.bobike.com
www.bobike.com 7.
2., 3. and 4. Mounting the bearing bracket
Place the bearing bracket under the seat (2). To mount
the bearing bracket (J), open the storage compartment
(3). Ensure that the bolt holes align with the nuts in the
bracket. Insert the nuts into the holes and hand-tighten
them (4).
5. and 6. Attaching the mounting bracket to your
bicycle
Attach the mounting bracket (L) to the saddle tube and
the upright rear fork of your bicycle. Open the locking
units (K) left and right of the bracket (5). Loosen the bolts,
and place the bracket on the frame. Hand-tighten the
bolts so that you can adjust the bracket. The middle section
of the bracket should be positioned horizontally (6).
7. Adjusting the height of the mounting bracket
The height of the mounting bracket is adjustable, so you
can adjust the distance (height) properly. The distance
between the upper surface of the luggage carrier and
the seat should be about 2 cm. If your bicycle has no
luggage carrier, maintain a distance of at least 8 cm
above the rear wheel. The mounting bracket must be in
the same position on both sides. Tighten all bolts firmly
(with a torque of 9 Nm).
8. Placing the seat onto the bicycle
Open the locking units (K) of the mounting bracket (1).
Insert the seat’s bearing bracket into the openings in the
front (2) of the mounting bracket. Insert the bearing
bracket in the front openings of the mounting bracket.
Push the seat so far down that the bearing bracket on
the underside of the mounting bracket is visible. Close
the locking units. You should hear a definite click.
9. The seat’s centre of gravity
Check that the centre of gravity of the Bobike maxi City
or maxi Tour does not lie more than 10 cm behind the
rear axle. Carry out this check before you go on a first
test ride with your child. The symbol for the centre of
gravity ( ) can be found on the sides of the seat (A).
You can adjust the location of the centre of gravity by
partially loosening the bearing bracket’s bolts in the
seat (see Point 4), so that the seat can be moved back
and forth over the bearing bracket. Once you have
found the proper position, tighten the bolts firmly (with a
torque of 5 Nm).
Check that the surface of the seat is horizontal, and that
the back of the seat is tilted somewhat to the rear. This is
the case when the mounting bracket is in a horizontal
position. If this is not the case, you can adjust the position
of the Bobike maxi City or maxi Tour by readjusting the
mounting bracket (see Points 6 + 7).
10. Adjusting the safety belt
Sit your child in the Bobike maxi City or maxi Tour and
check that the chosen setting is correct. If you want to
change the setting, always remove your child from the
seat first. The unique safety belt system (C) of your Bobike
maxi City or maxi Tour ensures that your child will remain
seated safely in the seat. First pull out the safety belt
system in length as far as it will go. Place your child in
the seat. Insert the safety belt clips into the recesses
above your child’s shoulders. Make sure that your child
can still move freely but safely in the seat. The safety
belt clips should be inserted, even if you go for a ride
without your child. This keeps loose parts from coming
into contact with the moving parts of the bicycle. You
can insert the safety belt clips into the seat or into the
spoke protectors.
11. Head support (maxi Tour only)
For the Bobike maxi Tour, make sure that the head
support is adjusted to the height of your child before
inserting the belt clips into the head support. You can
adjust the head support by squeezing the grey handle
(1) on the back whilst simultaneously moving the head
support (2) to the right height. Tighten the belt by pulling
on the ends. The Bobike maxi Tour is equipped with LED
lighting. To operate this, you will have to install 2 AAA
batteries yourself. The lighting can be turned on by
pressing the grey button.
12. Adjusting the height of the footrests
The Bobike maxi City and maxi Tour are equipped with
easily adjustable footrests (H). You can adjust the footrests
You on the bike, your child in a bicycle seat behind you,
and off you ride. Sometimes we cycle purely for the fun
of it, sometimes because we need to and we have a
specific destination. Whatever the reason for a bike ride,
your child’s safety is paramount. By purchasing the
Bobike maxi City or maxi Tour, approved according to
European safety standard EN 14344, you have made a
good choice. To ensure proper and safe fitting, it is im-
portant to read this user manual carefully first, and then
follow the instructions carefully. Keep this user manual in
a safe place in case you need to refer to it at a later date.
Dremefa, the manufacturer of the Bobike maxi City and
maxi Tour, wishes you many happy, and above all safe,
bicycle rides.
From 9 months to 6 years
The Bobike maxi City and maxi Tour are suitable for
children aged from 9 months to 6 years. We recommend
that you use the seat only when your child is able to sit
well on its own, at least for the duration of the ride. The
maximum weight of a child in the Bobike max City or
maxi Tour is 22 kilograms. For children older than 6 years
or heavier than 22 kilograms, we offer the Bobike junior.
If you want to use your Bobike maxi City or maxi Tour
on more than one bike, ask your dealer about the extra
mounting bracket.
Maintenance
Bobike child bicycle seats are simple to maintain. The seat
cover is held in place and attached by a cap that can
be removed by pulling it forward. The seat cover can be
washed by hand and the seat cleaned with a mild
detergent. Do not use any abrasive cleaning agents.
Guarantee
Bobike guarantees that the supplied child’s cycle seat is
manufactured from durable materials and subject to
strict quality controls. Bobike therefore guarantees this
product for a period of one year. In certain cases, you
can present your receipt to your supplier.
Other Bobike products and accessories
• Bobike mini+
• Bobike maxi+
• Bobike junior
• Windscreen for Bobike mini+
• Separate seat cushions
• Safety belt pads
• Saddle spring protector
• Jacket protectors
• Handlebar with cushion for Bobike mini+
• Footrests
• Tyre levers
• Summer cover
• Safety belt for Bobike junior
• Poncho
• Helmet
• Rear carrier
Method of mounting
The Bobike maxi City and maxi Tour are not suitable for
mounting on a bicycle with a carbon frame or on a
moped. You must only mount the seat on bicycles that
are suitable for carrying the extra weight of the seat
and child. You should therefore consult your bicycle’s
manual or ask your bicycle manufacturer or supplier for
advice. When mounting using the mounting bracket, the
diameter of the seat tube may not exceed 52 mm. The
width of the luggage carrier may not exceed 160 mm.
Should you have any further queries, please refer to
your Bobike supplier or visit www.bobike.com.
Twelve steps to a correctly mounted Bobike maxi
City or maxi Tour
The Bobike maxi City and maxi Tour comply with
European safety standard EN 14344 and are very safe
child bicycle seats. Of course, the assembly must be
carried out in the correct way. The numbers of the steps
match the related drawings. For example, drawing 1
illustrates what is described in step 1.
1. Mounting the spoke protectors
The spoke protectors (F) must be inserted into the
underside of the seat. Insert them into the seat (1) and
then turn them forward until they click solidly into
place (2).
English
Bobike maxi City and maxi Tour:
a safe choice

www.bobike.com XX.
8. www.bobike.com
www.bobike.com 9.
to the proper height by pulling on the handle (I) in the
footrest. Secure your child’s feet with the foot straps (G).
These are also easy to adjust in length.
Extra attention to safety
• Check whether all parts are properly mounted and
set. Tighten the screws and check regularly that all
attachments are still firmly and safely secured.
• After fi tting the Bobike maxi City or maxi Tour, check
whether all the components of the bicycle are still
working properly.
• After fi tting the Bobike maxi City or maxi Tour, go on
a short test ride with your child.
• Bobike recommends only using the seat when your child
is able to sit independently for at least the duration of
the ride.
• An additional mounting bracket is available separately
enabling your Bobike maxi City or maxi Tour to be
used on more than one bicycle. You can ask your
Bobike supplier for advice about this.
• Check whether the bicycle is suitable for mounting the
Bobike maxi City or maxi Tour on.
• Check whether the use of the Bobike maxi City or
maxi Tour is legally permitted for conveying children
in the country where you wish to use it.
• The cyclist must be at least 16 years old in order to
carry a child in the Bobike maxi City or maxi Tour.
The law in this area can vary according to country.
• The centre of gravity on the seat must never exceed
10 cm behind the rear wheel axle (also see point 9 in
the mounting instructions).
• Check from time to time that your child is not too
heavy for the Bobike maxi City or maxi Tour. The
greatest permissible weight is 22 kilograms. You can
carry heavier children in the Bobike junior.
• Before each ride, check that no body parts or articles
of clothing interfere with rotating or moving parts of the
bicycle. This will prevent, for example, a foot coming
between the spokes or a finger in the brake mechanism.
• Ensure that your child cannot touch any sharp parts
such as frayed brake cables.
• Ensure that your child is always properly protected
against the cold and rain when in the seat. Remember
that your child is sitting still in the seat and will therefore
get colder more quickly than the cyclist.
• Ensure that your child always wears a properly fi tting
safety helmet.
• The seat can become very hot if it is exposed to direct
sunlight for any length of time. Remember this before
sitting your child in the Bobike maxi City or maxi Tour.
• If the bicycle is transported on top of or on the back of
a moving car, the Bobike maxi City or maxi Tour must
be removed. The air turbulence can damage the seat
and the mounting, resulting in a hazardous situation.
• Check that your child cannot operate any locks or
other blocking devices present on the bicycle while
seated in the Bobike maxi City or maxi Tour.
• Never convey several children in a single seat.
• The seat must always be replaced following an
accident, even if there is no visible damage. Ask your
supplier for information about this.
• Cover the saddle springs so that your child cannot
poke its fingers between them.
• Warning: Do not attach any extra baggage to the
Bobike maxi City or maxi Tour. Whenever you carry
extra baggage, secure it to the other end of the bicycle,
so that the weight is evenly distributed. Use the
baggage carrier designed for the front of the bicycle.
• Warning: The seat and/or the components must not
be modified. To do so will void any claim under
guarantee and/or liability.
• Warning: A bicycle seat such as the Bobike maxi City
or maxi Tour influences the way you ride on your bicycle.
Pay extra attention therefore to steering, balancing and
braking.
• Warning: Never leave your child alone in the seat if
you leave the bicycle parked against a wall or on its
stand. The child could have a nasty fall.
• Warning: If a part of the Bobike maxi City or maxi
Tour fails, you should no longer use the seat. Have the
part repaired or replaced by your supplier.
• Warning: Always use the safety belt and the foot
straps when carrying your child in the Bobike maxi
City or maxi Tour. Always check whether the safety
belt and straps are closed before you set off.
Bobike
P.O. Box 18
6980 AA Doesburg
The Netherlands
T [phone]
F [phone]
E [e-mail]
I www.bobike.com
Bobike is a registered trademark of Dremefa B.V.
For more information and a list of products:
www.bobike.com.

www.bobike.com XX.
8. www.bobike.com
www.bobike.com 9.
to the proper height by pulling on the handle (I) in the
footrest. Secure your child’s feet with the foot straps (G).
These are also easy to adjust in length.
Extra attention to safety
• Check whether all parts are properly mounted and
set. Tighten the screws and check regularly that all
attachments are still firmly and safely secured.
• After fi tting the Bobike maxi City or maxi Tour, check
whether all the components of the bicycle are still
working properly.
• After fi tting the Bobike maxi City or maxi Tour, go on
a short test ride with your child.
• Bobike recommends only using the seat when your child
is able to sit independently for at least the duration of
the ride.
• An additional mounting bracket is available separately
enabling your Bobike maxi City or maxi Tour to be
used on more than one bicycle. You can ask your
Bobike supplier for advice about this.
• Check whether the bicycle is suitable for mounting the
Bobike maxi City or maxi Tour on.
• Check whether the use of the Bobike maxi City or
maxi Tour is legally permitted for conveying children
in the country where you wish to use it.
• The cyclist must be at least 16 years old in order to
carry a child in the Bobike maxi City or maxi Tour.
The law in this area can vary according to country.
• The centre of gravity on the seat must never exceed
10 cm behind the rear wheel axle (also see point 9 in
the mounting instructions).
• Check from time to time that your child is not too
heavy for the Bobike maxi City or maxi Tour. The
greatest permissible weight is 22 kilograms. You can
carry heavier children in the Bobike junior.
• Before each ride, check that no body parts or articles
of clothing interfere with rotating or moving parts of the
bicycle. This will prevent, for example, a foot coming
between the spokes or a finger in the brake mechanism.
• Ensure that your child cannot touch any sharp parts
such as frayed brake cables.
• Ensure that your child is always properly protected
against the cold and rain when in the seat. Remember
that your child is sitting still in the seat and will therefore
get colder more quickly than the cyclist.
• Ensure that your child always wears a properly fi tting
safety helmet.
• The seat can become very hot if it is exposed to direct
sunlight for any length of time. Remember this before
sitting your child in the Bobike maxi City or maxi Tour.
• If the bicycle is transported on top of or on the back of
a moving car, the Bobike maxi City or maxi Tour must
be removed. The air turbulence can damage the seat
and the mounting, resulting in a hazardous situation.
• Check that your child cannot operate any locks or
other blocking devices present on the bicycle while
seated in the Bobike maxi City or maxi Tour.
• Never convey several children in a single seat.
• The seat must always be replaced following an
accident, even if there is no visible damage. Ask your
supplier for information about this.
• Cover the saddle springs so that your child cannot
poke its fingers between them.
• Warning: Do not attach any extra baggage to the
Bobike maxi City or maxi Tour. Whenever you carry
extra baggage, secure it to the other end of the bicycle,
so that the weight is evenly distributed. Use the
baggage carrier designed for the front of the bicycle.
• Warning: The seat and/or the components must not
be modified. To do so will void any claim under
guarantee and/or liability.
• Warning: A bicycle seat such as the Bobike maxi City
or maxi Tour influences the way you ride on your bicycle.
Pay extra attention therefore to steering, balancing and
braking.
• Warning: Never leave your child alone in the seat if
you leave the bicycle parked against a wall or on its
stand. The child could have a nasty fall.
• Warning: If a part of the Bobike maxi City or maxi
Tour fails, you should no longer use the seat. Have the
part repaired or replaced by your supplier.
• Warning: Always use the safety belt and the foot
straps when carrying your child in the Bobike maxi
City or maxi Tour. Always check whether the safety
belt and straps are closed before you set off.
Bobike
P.O. Box 18
6980 AA Doesburg
The Netherlands
T [phone]
F [phone]
E [e-mail]
I www.bobike.com
Bobike is a registered trademark of Dremefa B.V.
For more information and a list of products:
www.bobike.com.

2 Gebruiksaanwijzing
6 User Instructions
10 Gebrauchsanweisung
14 Mode d’emploi
18 Instrucciones para el uso
22 Brugsanvisning
26 取り扱い説明書
A. legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
B. 12 stappen /12 steps /12 Schritten /12 étappes /12 pasos /12 skridt /12 ステップ
legenda /legend /Legende /légende /leyenda /signaturforklaring /取り扱い説明書
A
B
C
D
E
F
G
H
I J
K
L
NL A Zitje
BGordelinsteek
CGordel
DBekleding
EOpbergvak
FSpaakafscherming
GVoetengordel
HVoetenbak
IVoetenbak verstelling
JDraagbeugel
KVergrendeling
LMontagebeugel
FR A Siège
BFente pour ceinture
CCeinture de sécurité
DRevêtement
ECasier à rangement
FProtèges-rayons
GCeinture des pieds
HRepose-pieds
IRéglage repose-pieds
JBarre de support
KVerrouillage
LFixation
A.
www.bobike.com
Bobike
P.O. Box 18
6980 AA Doesburg
The Netherlands
T+31 (0) 313 47 86 30
F+31 (0) 313 47 40 30
E[email protected]
Iwww.bobike.com
GB A Seat
BSlot for inserting safety belt
CSafety belt
DSeat cover
EStorage compartment
FSpoke protector
GFootstrap
HFootrest
I Footrest adjustment
J Bearing bracket
KLocking units
L Mounting bracket
ES A Asiento
B Ranura para cinturón
C Cinturón
D Revestimiento
E Compartimento para guardar
F Protección contra los radios de la bicicleta
GCorrea de pie
H Receptáculo para los pies
I Ajuste del receptáculo para los pies
J Brida de soporte
K Bloqueo
L Brida de montaje
DE A Sitz
BGurteinstecklöcher
CGurt
DKissen
E Schließfach
F Speichenschutz
GFußriemen
H Fußstützen
I Fußstützenverstellung
JTragebügel
KVerriegelung
LMontagebügel
DK A Stol
B Indstik til sele
C Sele
D Betræk
E Opbevaringsrum
F Egerbeskytter
G Fodrem
H Fodstøtte
I Justering af fodstøtte
J Bærebøjle
K Lukkemekanisme
L Montagebøjle
JP A シート
B ベルトバックル差し込み口
C シートベルト
D シ ートカ バー
E コンパ ー トメント
F 車輪接触防止プロテクター
G フットス テップ
H フットレスト
I フットレストアジャスター
J ベ アリン グ ブ ラ ケット
K ロッキ ング ユ ニット
L マ ウン ティン グ ブ ラ ケット
GBA-maxi City/Tour-01-2011
Bobike maxi City Bobike maxi Tour
Bobike is a registered trademark
of Dremefa B.V.
Bobike maxi City Bobike maxi Tour
