Life Gear 91201 User manual

MAGNETIC ELLIPTICAL
CLIMBER MACHINE
ITEM NO.: 91201
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice. 2019, Oct.

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE AND TOOLS KIT ------------------------------------------------------- 7
EXPLODED VIEW ----------------------------------------------------------------------- 8
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9
HOW TO MOVE THE CLIMBER MACHINE --------------------------------------- 17
OPERATING THE COMPUTER ------------------------------------------------------ 18
ADJUSTMENTS -------------------------------------------------------------------------- 19
MAINTENANCE -------------------------------------------------------------------------- 20
TROUBLESHOOTING ----------------------------------------------------------------- 20
WARM UP AND COOL DOWN ROUTINE ---------------------------------------- 21

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. We recommend that two people be available for assembly of this equipment.
4. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
5. Please wear proper clothes and footwear when using this equipment; do not wear
clothes that may catch any part of the equipment; always wear correct footwear, such
as running, walking, or cross-training shoes.
6. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
7. Do not use the equipment outdoors.
8. This equipment is for household use only. It is not a commercial model.
9. Only one person at a time should use this equipment.
10. Keep both feet firmly and securely on the foot pedals while exercising.
11. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
12. Care should be taken in using, mounting, dismounting, or assembling the equipment.
Loss of balance may result in a fall and serious bodily injury.
13. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. The minimum free space required for safe operation
is not less than two meters.
14. The maximum weight capacity for this product is 110 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 019 Bearing 6200RS 4
002 Front Stabilizer
40x80x1.5Tx540mm 1 020 Roller Ø65x25 2
003 Rear Stabilizer
40x80x1.5Tx540mm 1 021 Hexagon Socket Should Bolt M8x12xØ10x32 2
004 Hexagon Socket Pan Head Cap
Bolt M8x55 8 022 Roller Ø10.5xØ16x28 2
005 Spring Washer Ø8 8 023 Nylon Nut M10 2
006 Washer Ø8xØ16x1.5T 22 024 Square End Cap 2
007 Stabilizer End Cap 4 025 Hexagon Socket Pan Head Cap
Bolt M8x50 3
008 Adjustable Leveler Ø50xM10x25 4 026 Hexagon Socket Pan Head Cap
Bolt M8x35 4
009L Left Foot Pedal Arm
30x30x2.0Tx850mm 1 027 Sensor Bracket 1
009R Right Foot Pedal Arm
30x30x2.0Tx850mm 1 028 Lock Cap 1
010L Left Foot Pedal 1 029 Cross Recessed Pan Head
Tapping Screw ST4.2x18 2
010R Right Foot Pedal 1 030 Washer Ø5xØ12x1.0T 2
011 Hexagon Head Bolt M8x50 4 031 Bottle Holder 1
012 Nylon Nut M8 15 032 Cross Recessed Pan Head Bolt
M5x10 (Ø10) 2
013 Bushing Ø28xØ24xØ16.1 4 033 Hand Pulse Sensor with Wire
(L=800mm) 2
014 Aluminum Track 30x370x1.5T 2 034 Handlebar Foam Grip
Ø24xØ30x310 2
015 Hexagon Socket Pan Head Cap
Bolt M6x45 4 035 Handlebar End Cap Ø25 2
016 Nylon Nut M6 9 036 Handlebar Foam Grip
Ø31xØ37x320 2
017 Round End Cap Ø32 6 037 Handlebar 1
018 Hexagon Socket Pan Head Cap
Bolt M10x50 2 038 Handlebar Foam Grip Ø31xØ37x190 2

5
PARTS LIST
No. Description Qty No. Description Qty
039 Front Post 1 061 Magnet Bracket 1 Set
040 Washer Ø16x Ø28x2.0T 2 062 Transport Wheel Ø41xØ8.5x20 2
041 Computer 1 063 Hexagon Socket Pan Head Cap
Bolt M8x38 2
042 Computer Bolt M5x10 2 064 Brake Block 60x35x3 1
043 Washer Ø8xØ28x2.0T 2 065 Brake Pad 30x30x2 1
044L Left Crank 1 066 Hexagon Socket Cheese Head
Cap Bolt M6x50 1
044R Right Crank 1 067 Spring Ø10x70 1
045 Bearing 6203ZZ 2 068 Hexagon Socket Cheese Head
Cap Bolt M5x12 2
046 Hexagon Socket Cheese Head
Cap Bolt M6x15 4 069L Left Cover 1
047 Belt Pulley Shaft Ø17x182 1 069R Right Cover 1
048 Belt Pulley Ø200 1 070L Left Decorate Cover 1
049 Spacer Ø8xØ6x44 1 070R Right Decorate Cover 1
050 Wave Washer Ø21xØ17.5x0.3T 1 071 Front Fender 1
051 Spring Clip Ø17 2 072
Cross Recessed Pan Head
Drilling Screw with Tapping
Screw Thread ST4.2x20
9
052 Crank Cap 2 073 Cross Recessed Pan Head Bolt
M4x10 2
053 Flange Nut M10x1.25 2 074 Cross Recessed Pan Head Bolt
M5x10 2
054 Flywheel Shaft M10x138 1 075 Cross Recessed Pan Head
Tapping Screw ST4.2x20 11
055 Bearing 6000RS 2 076 Tension Control Knob
(L=1170mm) 1
056 Flywheel Ø460x33 1 077L Left Handlebar Cover 1
057 Hexagon Nut M10x1.0 4 077R Right Handlebar Cover 1
058 Eyebolt M6x40 2 078 Cross Recessed Pan Head Bolt
M5x20 1
059 Flange Nut M10x1.0 2 079 Belt (415PJ6) 1
060 Hexagon Nut M6 6 080 Sensor Wire (L=1300mm) 1

6
PARTS LIST
No. Description Qty No. Description Qty
081 Washer Ø8.5xØ19x2.0T 2 084 Spring Washer Ø6 4
082 Washer Ø5xØ12x1.5T 1 085 Hexagon Nut M10 (S17) 4
083 Hexagon Head Bolt M6x70 1

7
HARDWARE AND TOOLS KIT
(72) Cross Recessed
Pan Head Drilling Screw
with Tapping Screw
Thread
2 PCS
(75) Cross Recessed Pan
Head Tapping Screw
4 PCS
STEP 4
STEP 9
(32) Cross Recessed
Pan Head Bolt
2 PCS
Multi Hex Tool with
Phillips Screwdriver
1 PC
Allen Wrench with
Phillips Screwdriver
1 PC
STEP 8
(73) Cross Recessed
Pan Head Bolt
2 PCS
(75) Cross Recessed Pan
Head Tapping Screw
2PCS
(4) Hexagon Socket
Pan Head Cap Bolt
8 PCS
(5) Spring Washer
8 PCS
(6) Washer
8 PCS
STEP 1
(12) Nylon Nut
4 PCS
(6) Washer
4 PCS
(11) Hexagon Head Bolt
4 PCS
STEP 2
(25) Hexagon Socket
Pan Head Cap Bolt
2 PCS
(6) Washer
4 PCS
(12) Nylon Nut
2 PCS
STEP 3
(26) Hexagon Socket
Pan Head Cap Bolt
4 PCS
(12) Nylon Nut
4 PCS
(6) Washer
4 PCS
STEP 5

8
EXPLODED VIEW
15
16
16
15
16
44R
53 52 12
46
50 51
43
52 53
12
1
3
6
5
4
2
6
5
4
7
9L
10L
10R
13 13
14
16
22 21
24
25
27
29 30
32
33
31
34
38
38
39
41
44L
47
48
54
56
61
66
64
65
67
68
69L
69R
71
74
72
74
72
72
76
77R
78
80
81
49
81
42
37
19
20
19
18
6
11
12
24
23
23
18
6
12
11
9R
55
55
57
58
59
60
57 58 59
17
17
17
17
17
77L
72
75
75
75
75
73
6
6
6
12
12
14
21 22
26
33
36
36
40
60
70L
70R
82
83
84
28
7
7
7
8
12
12
85
62 63
62
63
79
73
75
26
612
72
34
8
85 8
85 8
85
72
75
75
75
45
45 51
43
13
13 40
19
20
19
60
16
15
72
72
80
76
15
16
33

9
ASSEMBLY INSTRUCTIONS

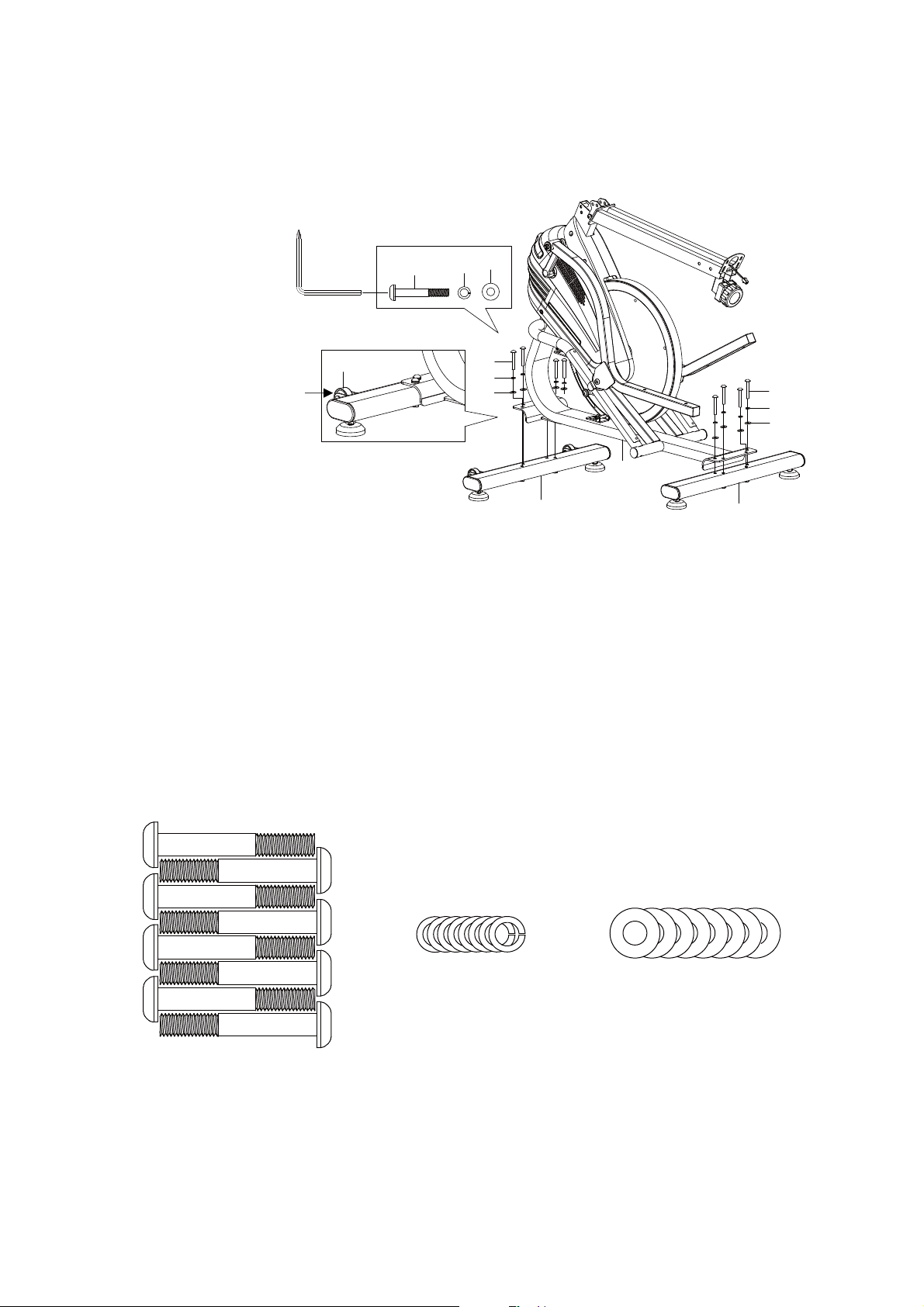

STEP 1
Position the Front Stabilizer (2) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (2) onto the front curve of the Main Frame (1) with two Hexagon
Socket Pan Head Bolts (4), two Spring Washers (5), and two Washers (6). Tighten bolts
with the Allen Wrench with Phillips Screwdriver provided.
Position the Rear Stabilizer (3) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (3) onto the rear curve of the Main Frame (1) with two Hexagon
Socket Pan Head Bolts (4), two Spring Washers (5), and two Washers (6). Tighten bolts
with the Allen Wrench with Phillips Screwdriver provided.
Hardware:
(4) Hexagon Socket
Pan Head Cap Bolt
8 PCS
(5) Spring Washer
8 PCS
(6) Washer
8 PCS
2
6
5
4
3
6
5
4
1
86
456
Transport Wheel (86)

10

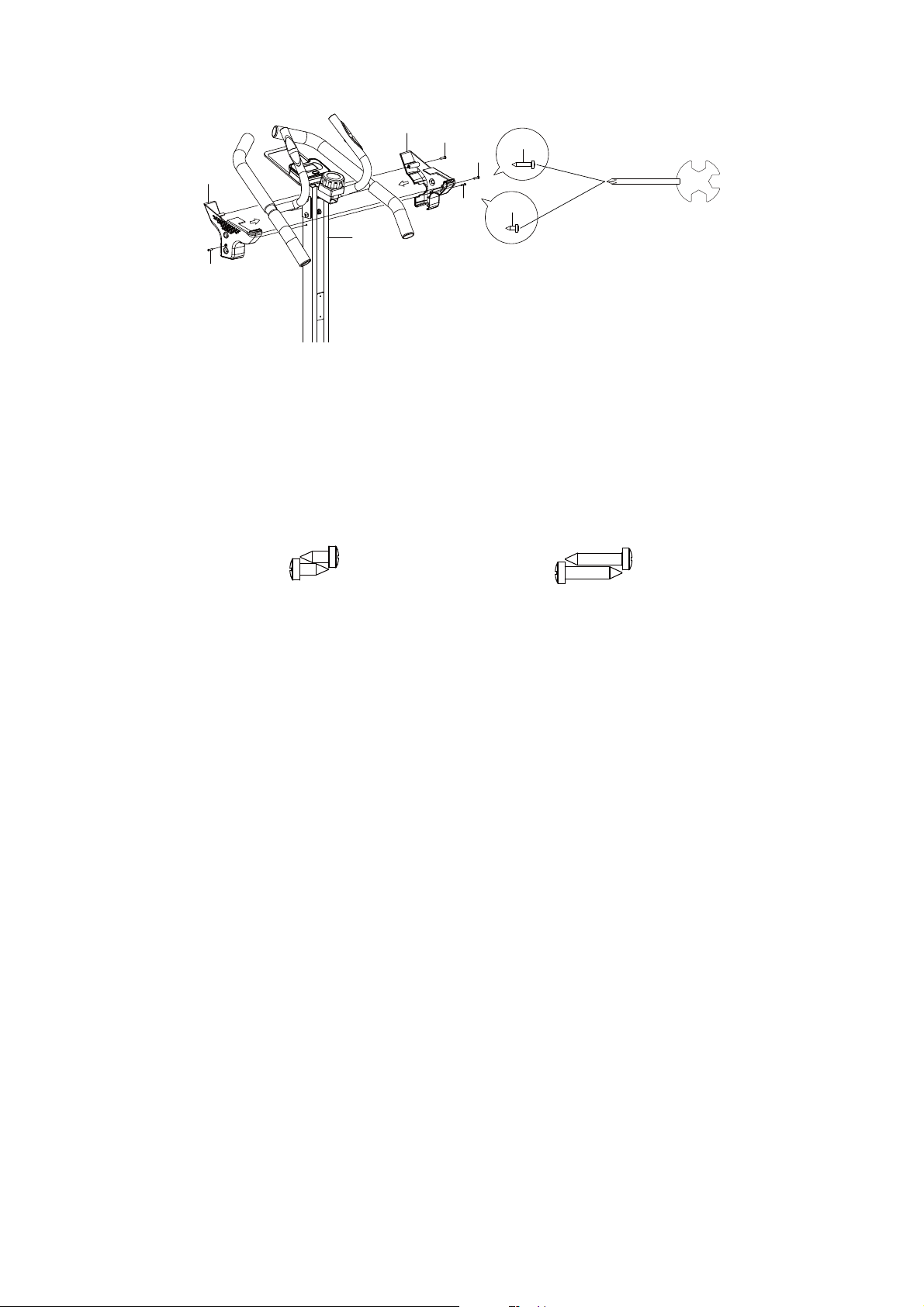

STEP 2
The Left and Right Foot Pedals (10L, 10R) are marked with the letter L for the Left and
R for the Right.
Attach both Left and Right Foot Pedals (10L, 10R) onto both Left and Right Foot Pedal Arms
(9L, 9R) with four Hexagon Head Bolts (11), four Washers (6), and four Nylon Nuts (12).
Tighten nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
(12) Nylon Nut
4 PCS
(6) Washer
4 PCS
(11) Hexagon Head Bolt
4 PCS
1
9L
9R
10L
6
11
12
9L
10R
6
12
11
9R
11 612

11

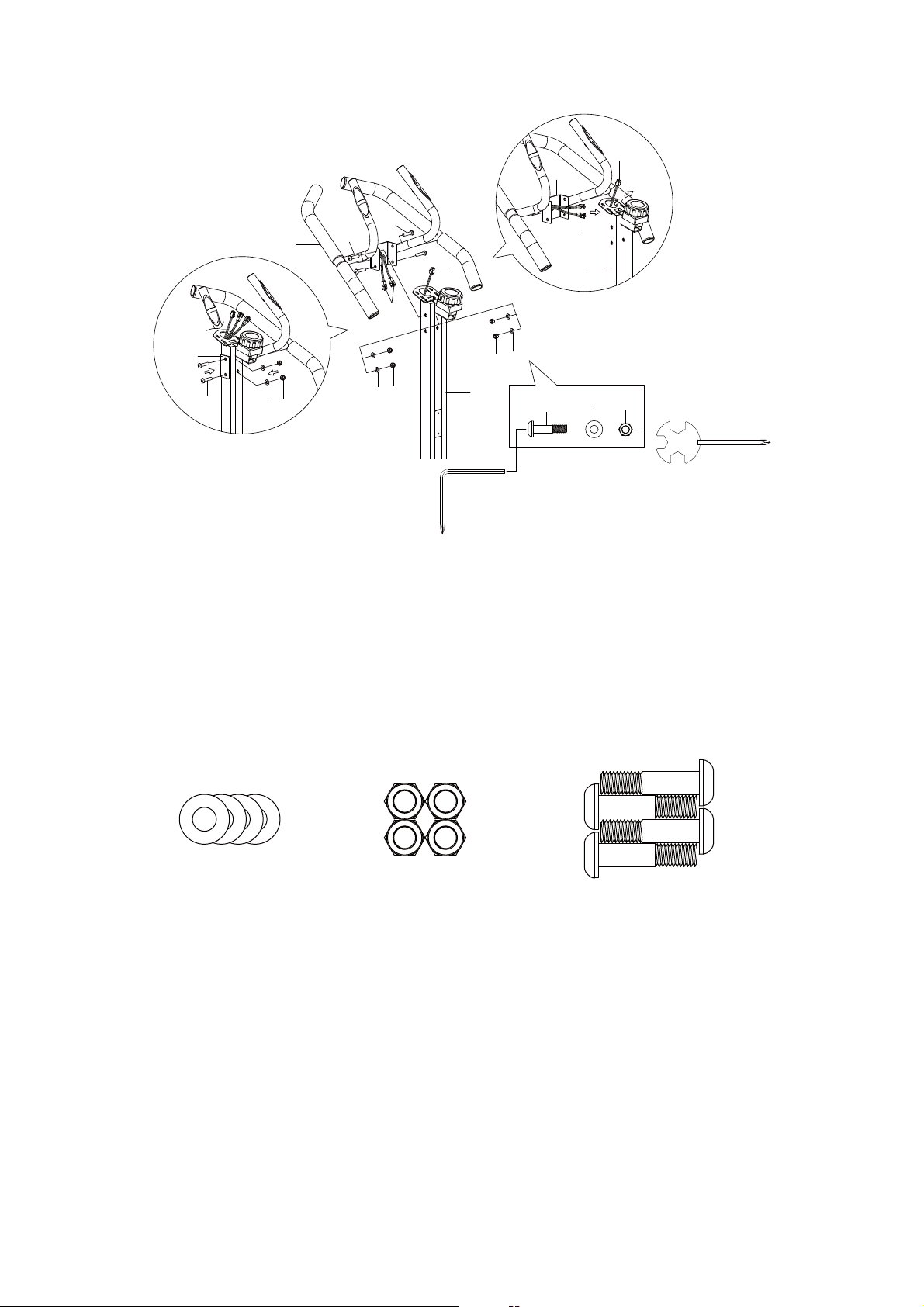

STEP 3
Pull the Front Post (39) all the way up and align bolt holes.
Attach the Front Post (39) to the Main Frame (1) with two Hexagon Socket Pan Head Bolts
(25), four Washers (6), and two Nylon Nuts (12). Tighten bolts and nylon nuts with the
Allen Wrench with Phillips Screwdriver and the Multi Hex Tool with Phillips Screwdriver
provided.
Hardware:
(25) Hexagon Socket
Pan Head Cap Bolt
2 PCS
(6) Washer
4 PCS
(12) Nylon Nut
2 PCS
25 6
612
39
1
39
1
612
25

12
STEP 4
Attach the Left Decorate Cover (70L) and Right Decorate Cover (70R) onto the Main Frame
(1) with two Cross Recessed Pan Head Drilling Screws with Tapping Screw Thread (72) and
four Cross Recessed Pan Head Tapping Screws (75). Tighten screws with the Multi Hex
Tool with Phillips Screwdriver provided.
Hardware:
1
72
75
75
75
70L
70R
72
39
75
72
(72) Cross Recessed Pan
Head Drilling Screw with
Tapping Screw Thread
2 PCS
(75) Cross Recessed Pan
Head Tapping Screw
4PCS

13
STEP 5
Insert the Hand Pulse Sensor Wires (33) from the Handlebar (37) into the hole on the
Front Post (39) and then pull them out from the top end of the Front Post (39).
Attach the Handlebar (37) onto the Front Post (39) with four Hexagon Socket Pan Head
Cap Bolts (26), four Washers (6), and four Nylon Nuts (12). Tighten bolts and nylon nuts
with the Allen Wrench with Phillips Screwdriver and the Multi Hex Tool with Phillips
Screwdriver provided.
Hardware:
6
12
612
26
26
39
37
33
26 612
80
37
39
37
33
80
612
26
(26) Hexagon Socket
Pan Head Cap Bolt
4 PCS
(12) Nylon Nut
4 PCS
(6) Washer
4 PCS

14
STEP 6
Remove two Computer Bolts (42) from the Computer (41). Remove bolts with the Multi Hex
Tool with Phillips Screwdriver provided.
STEP 7
It is recommended to have a second person assist with this step. One person should hold
the Computer (41) in place while the other person to connect the wires.
Connect the Hand Pulse Sensor Wires (33) and Sensor Wire (80) to the wires that come
from the Computer (41).
Attach the Computer (41) onto the top end of the Front Post (39) with two Computer Bolts
(42) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver
provided.
41
42
33
39
41
80
33
80
41
39
41
42

15
STEP 8
Attach the Left Handlebar Cover (77L) and Right Handlebar Cover (77R) onto the Front Post
(39) with two Cross Recessed Pan Head Bolts (73) and two Cross Recessed Pan Head
Tapping Screws (75). Tighten screws with the Multi Hex Tool with Phillips Screwdriver
provided.
Hardware:
77R
77L
75
73
73
75
39
75
73
(73) Cross Recessed
Pan Head Bolt
2 PCS
(75) Cross Recessed Pan
Head Tapping Screw
2PCS

16
STEP 9
Attach the Bottle Holder (31) onto the Front Post (39) with two Cross Recessed Pan Head
Bolts (32). Tighten screws with the Multi Hex Tool with Phillips Screwdriver provided.
Hardware:
(32) Cross Recessed
Pan Head Bolt
2 PCS
32
31
39
32

17
HOW TO MOVE THE CLIMBER MACHINE
This machine has a pair of Transport Wheels on the front stabilizer and can be carefully tilted
onto its Transport Wheels for easy moving and storage.
To move the climber machine, firmly grasp the Handlebar with both hands. Next, carefully
push the climber machine down until it rolls freely on the Transport Wheels.
CAUTION: It is suggested you always use the aid of a second person when moving
the climber machine.
Handlebar
Transport Wheel

18
OPERATING THE COMPUTER
USING YOUR COMPUTER
The computer can be activated by pressing the button or by pedaling.
If you leave the equipment idle for 4-5 minutes, the power will turn off
automatically.
BUTTON FUNCTIONS:
Press the button to select the functions of the computer.
Press and hold the button for 2-3 seconds to reset all data values to
zero except the ODO (ODOMETER) data values.
COMPUTER FUNCTIONS:
SCAN: Automatically scans each function in sequence.
TMR (TIMER): Displays your elapsed workout time in minutes and seconds.
SPD (SPEED): Displays the current training speed.
DIS (DISTANCE): Displays the cumulative distance travelled during workout.
CAL (CALORIES): Displays approximate amount of calories burned during workout.
(This data is a rough guide for comparison of different exercise sessions and should not be
used in medical treatment).
ODO (ODOMETER): Displays the total accumulative distance travelled.
(PULSE): Displays your current heart rate figures after you grip the handlebar pulse
sensors with both your hands during exercise. To ensure the pulse readout is more precise,
please always hold on to the handlebar pulse sensors with two hands instead of just with
one hand only when you try to test your heart rate figures.
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover on the back of the computer.
2. Place two size AAA batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are in proper contact with
batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appears, remove batteries and wait 15
seconds before reinstalling.

19
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the tension, turn the tension
control knob in a clockwise direction.
To decrease the tension, turn the tension
control knob in a counterclockwise direction.
Adjusting the Adjustable Leveler
Turn the adjustable leveler on the front or rear
stabilizer as needed to level the climber
machine.
Tension Control Knob
Adjustable Leveler
