Pro-Form XP THINLINE 480 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
odel No. 831.23844.0
Serial No.
Write the serial number in the
space above for reference.
• Assembly
• Operation
• aintenance
• Part List and Drawing
Sears, Roebuck and Co., Hoffman Estates, IL 60179
ELLIPTICAL EXERCISER
Userʼs anual

TABLE OF CONTENTS
WARNINGDECALPLACE ENT ..............................................................2
I PORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSE BLY ...............................................................................5
HOWTOUSETHEELLIPTICALEXERCISER ..................................................12
AINTENANCEANDTROUBLESHOOTING ...................................................21
EXERCISEGUIDELINES ...................................................................22
PARTLIST ..............................................................................24
EXPLODEDDRAWING ....................................................................26
ORDERINGREPLACE ENTPARTS ..................................................BackCover
90DAYFULLWARRANTY ..........................................................BackCover
2
WARNING DECAL PLACE ENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, call 1-888-533-1333 and request
a free replacement decal. Apply the
decal in the location shown. Note: The
decal(s) may not be shown at actual size.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
ake sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 275 lbs.
(124 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. Sears assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
I PORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
PROFOR XP™ THINLINE 480 elliptical exerciser.
The THINLINE 480 elliptical exerciser provides a wide
array of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the back
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Pedal Disc
Wheel
Ramp Handle
Pedal
Water Bottle Holder*
Console
Fan
*Water bottle is not included

5
ASSE BLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it has been preassembled. If a part is
missing, call 1-888-533-1333.
M4 x 16mm
Screw (84)–14
M4 x 32mm Screw
(95)–2
M4 x 16mm Flat Head
Screw (94)–4
M10 Split
Washer (78)–10
M6 Nylon
Locknut (77)–4
M6 x 16mm Patch
Screw (80)–6
M10 x 20mm Patch
Screw (79)–4
M10 x 70mm Patch Screw (75)–6M10 x 41mm Shoulder
Patch Screw (63)–2
Wave Washer
(88)–6
M6 Large
Washer (90)–4
M6 x 38mm Button
Bolt (76)–4

6
2. Identify the Right Frame Cover (49), which is
marked with a “Right” sticker. Then, orient the
Right Frame Cover with the rounded side in the
indicated location. While another person lifts the
rear of the Frame (1), attach the Right Frame
Cover with two 4 x 16mm Screws (84).
Repeat this step for the Left Frame
Cover (48).
1.
Pull the ramp handle outward and lower the
Ramp (104) until it rests on the Frame (1).
Attach a Wheel (50) to the front of the Frame
(1) with an 10 x 41mm Shoulder Patch Screw
(63).
Attach the other Wheel (not shown) in the
same way.
1
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
1
63
50
Ramp
Handle
104
2
48
Rounded
Side
1
Rounded
Side
84
49

7
4. Orient the Water Bottle Holder (5) as shown
and slide it onto the Upright (2). Attach the
Water Bottle Holder with two 4 x 32mm
Screws (95).
Tip: Do not pinch the Wire Harness (100).
Slide the Console Cover (96) onto the Upright
(2) and move it downward to the Water Bottle
Holder. Then, insert the Console Bracket (3)
into the top of the Upright. Attach the Console
Bracket with four 4 x 16mm Screws (84).
4
3.Tip: Do not pinch the Wire Harness (100).
Start all screws before tightening any of
them.
Have another person hold the Upright (2) near
the Frame (1). Locate the wire tie in the Upright.
Tie the lower end of the wire tie to the Wire
Harness (100). Next, pull the upper end of the
wire tie upward out of the top of the Upright.
Then, untie and discard the wire tie. Tip: To
prevent the Wire Harness from falling inside
the Upright, secure the Wire Harness with a
rubber band.
Attach the Upright (2) to the Frame (1) with four
10 x 20mm Patch Screws (79), and four 10
Split Washers (78). Do not tighten the Patch
Screws yet.
3
Do not pinch the
Wire Harness (100)
Do not pinch the
Wire Harness (100)
2
1
100
78
78
78
79
79
84
84
95
100
96
3
5
Wire Tie
2
79

8
5. The Console (4) can use four 1.5V “D” batteries
(not included); alkaline batteries are recom-
mended. I PORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the screws, remove the
battery cover, insert the batteries into the bat-
tery compartment, and then reattach the battery
cover. ake sure to orient the batteries as
shown by the diagram inside the battery
compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
5
6. While a second person holds the Console (4)
near the Upright (2), connect the console wire
to the Wire Harness (100).
Tip: Do not pinch the wires. Attach the
Console (4) with four 4 x 16mm Flat Head
Screws (94).
6
4
4
2
94
96 94
100
Console Wire
Batteries
Batteries
Cover
Do not pinch
the wires during
this step
Screws

9
8
7
7. Slide the Console Cover (96) (see the drawing
in step 6) upward to the Console (4). Attach the
Console Cover with four 4 x 16mm Screws
(84).
96
84
84
4
8. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Slide a Wave Washer (88) onto each end of the
Pivot Axle.
Identify the Left Upper Body Leg (6), which is
marked with a “Left” sticker. Slide the Left
Upper Body Leg onto the Pivot Axle (16). Attach
the Left Upper Body Leg with an 6 x 16mm
Patch Screw (80) and a Large Axle Cover (20).
Attach the Right Upper Body Leg (31) in the
same way.
80
20
6
88
16
88
31
20
80
2
Grease

10
10
10. Apply a small amount of grease to two Wave
Washers (88) and to the axles on a Pedal Arm
Axle (21).
Identify an Upper Body Leg Spacer (113), which
has a curved side. Slide a Wave Washer (88)
and the Upper Body Leg Spacer onto the indi-
cated axle of the Pedal Arm Axle (21); make
sure that the curved side of the Upper Body
Leg Spacer is facing away from the Pedal
Arm Axle.
Identify a Pedal Leg Spacer (114), which has a
flat side. Slide a Wave Washer (88) and the
Pedal Leg Spacer onto the other axle of the
Pedal Arm Axle (21); make sure that the flat
side of the Pedal Leg Spacer is facing away
from the Pedal Arm Axle.
Repeat this step for the other Pedal Arm
Axle (not shown).
9
114
113
Grease
Grease
Curved Side
Flat Side
88
88
21
9. Attach the Left Pedal (12) to the left Pedal Arm
(14) with three 10 x 70mm Patch Screws (75),
three 10 Split Washers (78), and an 4 x
16mm Screw (84).
Repeat this step for the other side of the
elliptical exerciser.
14
75
78
78
12
84

11
13. ake sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12
11
12. Identify the Right Upper Body Arm (9), which is
marked with a “Right” sticker. Orient the Right
Upper Body Arm as shown; make sure that
the hexagonal holes in the Right Upper
Body Arm are in the indicated location.
Slide the Right Upper Body Arm (9) onto the
Right Upper Body Leg (31). Attach the Right
Upper Body Arm with two 6 x 38mm Button
Bolts (76) and two 6 Locknuts (77); make
sure that the Locknuts are inside the hexag-
onal holes.
Repeat this step for the Left Upper Body
Arm (8) and the Left Upper Body Leg (6).
77
9
31
76 Hexagonal
Holes
6
8
11. At the same time, insert a Pedal Arm Axle (21)
into the Right Upper Body Leg (31) and into the
right Pedal Arm (14); make sure that the
Upper Body Leg Spacer (113) and the Pedal
Leg Spacer (114) are in the indicated loca-
tions.
Attach the Right Upper Body Leg (31) with an
6 x 16mm Patch Screw (80) and an 6 Large
Washer (90).
Then, attach the right Pedal Arm (14) with an
6 x 16mm Patch Screw (80) and an 6 Large
Washer (90).
Repeat this step for the other side of the
elliptical exerciser.
See step 3. Tighten the four 10 x 20mm
Patch Screws (79). Tip: Tighten the two Patch
Screws on the front of the elliptical exercis-
er before tightening the other two Patch
Screws.
90
90
31
14
80
80
21
114
113

12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO OVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical exercis-
er, moving it requires two persons. Stand in front of
the elliptical exerciser, hold the upright, and place one
foot against one of the front wheels. I PORTANT: Do
not place your foot on the ramp cover. Pull on the
upright and have a second person lift the base until
the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
location, and then lower it to the floor.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion. Note: The crank arms can turn in either
direction. It is recommended that you turn the
crank arms in the direction shown by the arrow
below; however, for variety you can turn the crank
arms in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Place
your foot
here
Upright
Wheel
Pedals
Crank Arm
Upper Body Arms
Lift here

13
HOW TO CHANGE THE INCLINE OF THE RA P
To vary the motion of the pedals, you can change the
incline of the ramp. To change the incline, pull the
ramp handle outward, raise or lower the ramp, and
engage the ramp pin into one of the adjustment holes
in the front of the frame.
Ramp
Handle
Ramp
Ramp
Pin

14
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console offers three interactive cross training
workouts designed to help you to burn calories and
enhance your cardiovascular system while toning and
strengthening your muscles. The cross training work-
outs automatically control the resistance of the pedals
and prompt you to perform a variety of strength exer-
cises during your workout. Note: The strength exercis-
es require the use of dumbbells and an inflatable exer-
cise ball (not included). To purchase dumbbells or
an exercise ball, call 1-888-533-1333.
The console also offers two target toning workouts
designed to work specific areas of the body. The con-
sole guides you through each workout with a variety of
exercise instructions while automatically changing the
resistance of the pedals.
In addition, you can use three calorie goal workouts
designed to help you burn 300 or 400 calories in 30-
or 45-minute workouts. The calorie goal workouts
automatically control the resistance of the pedals and
prompt you to vary your pace while counting the calo-
ries you burn.
The console also has a high performance workout that
automatically changes the resistance of the pedals
and prompts you to vary your pace as it guides you
through an effective workout.
To use the manual mode, see page 15. To use a
cross training workout, see page 16. To use a tar-
get toning workout, see page 18. To use a calorie
goal workout, see page 19. To use the high perfor-
mance workout, see page 20.

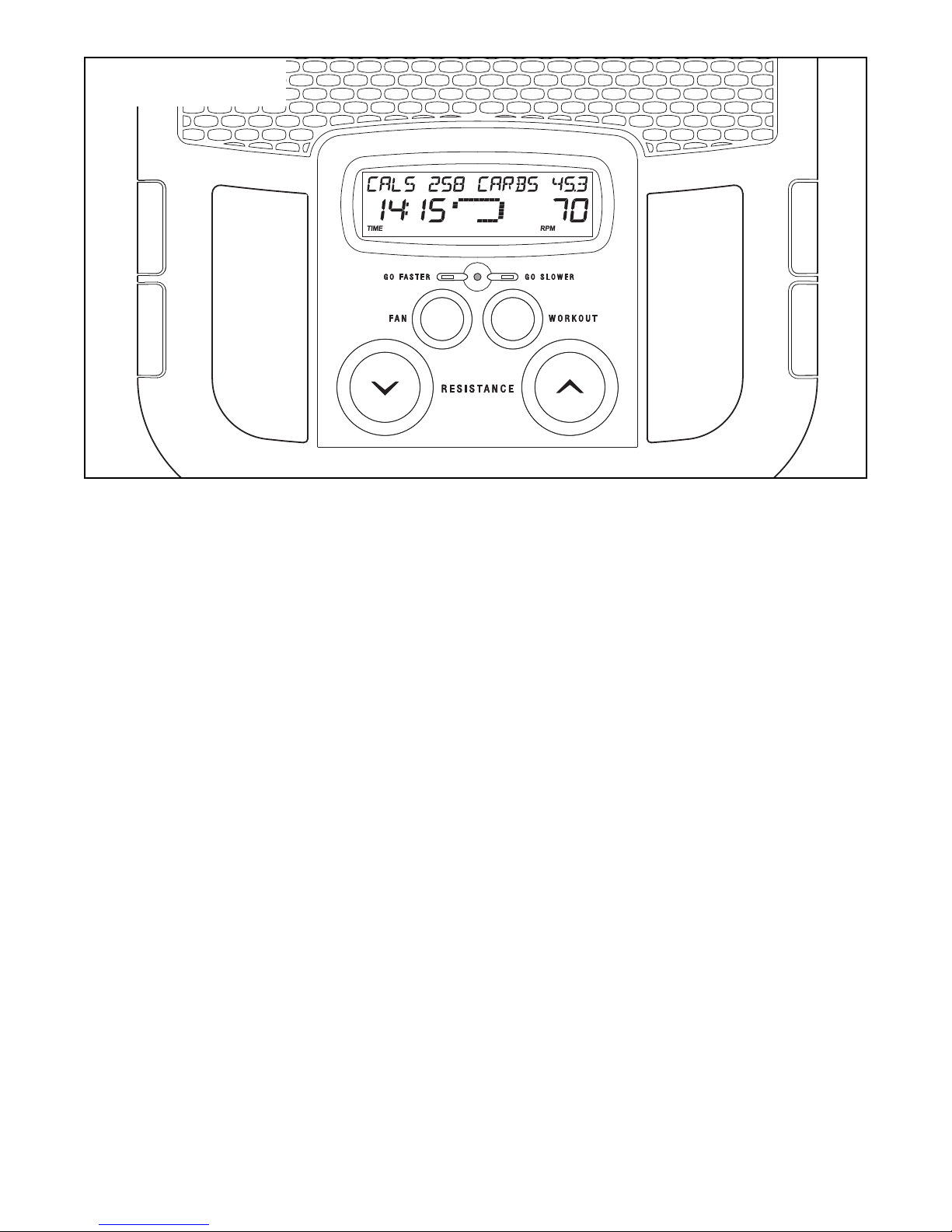

CONSOLE DIAGRA

15
HOW TO USE THE ANUAL ODE
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
1. Press the Resistance decrease button or begin
pedaling to turn on the console.
A moment after you turn on the console, the dis-
plays will light.
2. Select the manual mode.
Each time you turn on the console, the manual
mode will be selected automatically. If you have
selected a workout, reselect the manual mode by
pressing the Workout button repeatedly until the
words ANUAL ODE appear in the upper
display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons repeatedly. There are ten resistance lev-
els. Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the displays.
The left display—This
display will show the
elapsed time. Note:
When you select a
workout, the display
will show the time
remaining in the workout instead of the elapsed
time.
The left display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 16).
When you select a workout, the left display will also
show the approximate number of calories you have
burned.
The center display—
When you select the
manual mode, the cen-
ter display will show a
track that represents
640 revolutions. As you
exercise, indicators will appear in succession
around the track until the entire track appears. The
track will then disappear and the indicators will
again begin to appear in succession.
The center display will
also show the resis-
tance level of the ped-
als for a few seconds
each time the resis-
tance level changes.
The right display—
This display will show
the distance (total revo-
lutions) you have ped-
aled and your pedaling
pace, in revolutions per
minute (rpm).
The upper display—When you select the manual
mode, the upper display will show the approximate
number of calories you have burned and the
approximate number of grams of carbs you have
burned.

16
5. easure your heart rate if desired.
If there are sheets of
clear plastic on the
metal contacts on the
handgrip pulse sen-
sor, remove the plas-
tic. To measure your
heart rate, hold the
handgrip pulse sensor
with your palms resting
against the metal con-
tacts. Avoid moving your hands or gripping the
contacts tightly.
When your pulse is
detected, a heart-
shaped symbol will
flash in the left display.
Each time your heart
beats, one or two
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate read-
ing, hold the contacts for at least 15 seconds. Note:
If you continue to hold the handgrip pulse sensor,
the display will show your heart rate for up to 30
seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off auto-
matically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for about five minutes,
the console will turn off and the display will be
reset.
HOW TO USE A CROSS TRAINING WORKOUT
1. Turn on the console.
See step 1 on page 15.
2. Select a cross training workout.
To select a cross training workout, press the
Workout button repeatedly until the words UPPER
BODY, LOWER BODY, or WHOLE BODY appear
in the upper display.
When you select a cross training workout, the
name of the workout and the workout time will
appear in the displays and a profile of the resis-
tance levels of the workout will scroll across the
center display.
3. Begin pedaling to start the workout.
Each workout is divided into 25 or 45 one-minute
segments. One resistance level and one target
rpm (revolutions per minute) setting are pro-
grammed for most segments. (Note: The same
resistance level and/or target rpm setting may be
programmed for consecutive segments.) During
other segments, the console will prompt you to per-
form strength exercises.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
Profile
etal Contacts

17
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the upper display or the GO
FASTER indicator on the pace guide is lit,
increase your pace. When the words PEDAL
SLOWER appear or the GO SLOWER indicator is
lit, decrease your pace. When the words PEDAL-
ING IN RANGE appear or when the center indica-
tor is lit, maintain your current pace.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your actu-
al pace may be slower than the target rpm set-
tings. ake sure to pedal at a pace that is com-
fortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance decrease and
increase buttons. However, when the current seg-
ment ends, the pedals will automatically adjust to
the resistance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
4. Perform the first strength exercise when
prompted.
When the first strength exercise segment begins,
the name of the first strength exercise will appear
in the upper display for a few seconds. The time
will pause and flash in the left display.
Next, the upper display will show the recommend-
ed number of repetitions for the first strength exer-
cise.
Step off the elliptical exerciser and prepare to
begin the first strength exercise. Every few sec-
onds, the console will sound a tone; when a tone
sounds, perform one repetition of the exercise.
Exercise with a slow, steady motion; do not per-
form more than one repetition each time a tone
sounds. The display will count down the repetitions
as you perform them.
Note: Refer to a weight training manual or exer-
cise guide if you are unfamiliar with the correct
form for each strength exercise. When performing
lunges, alternate legs with each repetition. When
performing dumbbell rows, perform half the repeti-
tions with your right arm and half the repetitions
with your left arm. The strength exercises require
the use of dumbbells and an inflatable exercise
ball (not included). To purchase dumbbells or an
exercise ball, call 1-888-533-1333.
5. Continue the cross training workout.
When you have performed the recommended
number of repetitions, the words START PEDAL-
ING will appear in the upper display. To continue
the cross training workout, step onto the elliptical
exerciser and start pedaling. The pedals will auto-
matically adjust to the resistance level for the next
segment.
The workout will continue in this way until the last
segment ends. Then, the words PROGRA
DONE will appear in the upper display.
6. Follow your progress with the displays.
See step 4 on page 15.
7. easure your heart rate if desired.
See step 5 on page 16.
8. Turn on the fan if desired.
See step 6 on page 16.
9. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.

18
HOW TO USE A TARGET TONING WORKOUT
1. Turn on the console.
See step 1 on page 15.
2. Select a target toning workout.
To select a target toning workout, press the
Workout button repeatedly until the words TAR-
GET TONING 1 or TARGET TONING 2 appear in
the upper display.
When you select a target toning workout, the
name of the workout and the workout time will
appear in the displays and a profile of the resis-
tance levels of the workout will scroll across the
center display.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute seg-
ments. One resistance level and one target rpm
(revolutions per minute) setting are programmed
for each segment. Note: The same resistance level
and/or target rpm setting may be programmed for
consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
As you exercise, the console will display a variety
of exercise instructions that will help you get the
most benefit from your workout. For example, the
console may instruct you to PEDAL BACKWARD,
USE UPPER BODY, or FOCUS LOWER BODY
during certain segments of the workout.
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the upper display or the GO
FASTER indicator on the pace guide is lit,
increase your pace. When the words PEDAL
SLOWER appear or the GO SLOWER indicator is
lit, decrease your pace. When the words PEDAL-
ING IN RANGE appear or when the center indica-
tor is lit, maintain your current pace.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your actu-
al pace may be slower than the target rpm set-
tings. ake sure to pedal at a pace that is com-
fortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance decrease and
increase buttons. However, when the current seg-
ment ends, the pedals will automatically adjust to
the resistance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the last segment of the workout ends, the
words PROGRA DONE will appear in the upper
display.
4. Follow your progress with the displays.
See step 4 on page 15.
5. easure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
Profile

19
HOW TO USE A CALORIE GOAL WORKOUT
1. Turn on the console.
See step 1 on page 15.
2. Select a calorie goal workout.
Press the Workout button repeatedly until the
name of the desired calorie goal workout appears
in the upper display. When you select a calorie
goal workout, the name of the workout and the
workout time will appear in the displays and a pro-
file of the resistance levels of the workout will
scroll across the center display.
3. Begin pedaling to start the workout.
Each workout is divided into 30 or 45 one-minute
segments. One resistance level and one target
rpm (revolutions per minute) setting are pro-
grammed for each segment. Note: The same
resistance level and/or target rpm setting may be
programmed for consecutive segments. The dis-
plays for a calorie goal workout will work in the
same way as the displays for a cross training
workout (see step 3 on page 16).
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the upper display or the GO
FASTER indicator on the pace guide is lit,
increase your pace. When the words PEDAL
SLOWER appear or the GO SLOWER indicator is
lit, decrease your pace. When the words PEDAL-
ING IN RANGE appear or when the center indica-
tor is lit, maintain your current pace.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your actu-
al pace may be slower than the target rpm set-
tings. ake sure to pedal at a pace that is com-
fortable for you. Note: If you manually override
the resistance settings of a calorie goal workout,
you may not reach your calorie goal.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the last segment of the workout ends, the
words PROGRA DONE will appear in the upper
display.
4. Follow your progress with the displays.
See step 4 on page 15.
5. easure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
Profile

20
HOW TO USE THE HIGH PERFOR ANCE WORKOUT
1. Turn on the console.
See step 1 on page 15.
2. Select the high performance workout.
Press the Workout button repeatedly until the words
HIGH PERFOR ANCE appear in the upper dis-
play. The workout time will appear in the left dis-
play and a profile of the resistance levels for the
workout will scroll across the center display.
3. Begin pedaling to start the workout.
The workout is divided into 45 one-minute seg-
ments. One resistance level and one target rpm
setting are programmed for each segment. Note:
The same resistance level and/or target rpm (revo-
lutions per minute) setting may be programmed for
consecutive segments. The displays for the high
performance workout will work in the same way as
the displays for a cross training workout (see step 3
on page 16).
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the upper display or the GO
FASTER indicator on the pace guide is lit,
increase your pace. When the words PEDAL
SLOWER appear or the GO SLOWER indicator is
lit, decrease your pace. When the words PEDAL-
ING IN RANGE appear or when the center indica-
tor is lit, maintain your current pace.
I PORTANT: The target rpm settings are
intended only to provide motivation. Your actu-
al pace may be slower than the target rpm set-
tings. ake sure to pedal at a pace that is com-
fortable for you.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the last segment of the workout ends, the
words PROGRA DONE will appear in the upper
display.
4. Follow your progress with the displays.
See step 4 on page 15.
5. easure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
Profile
