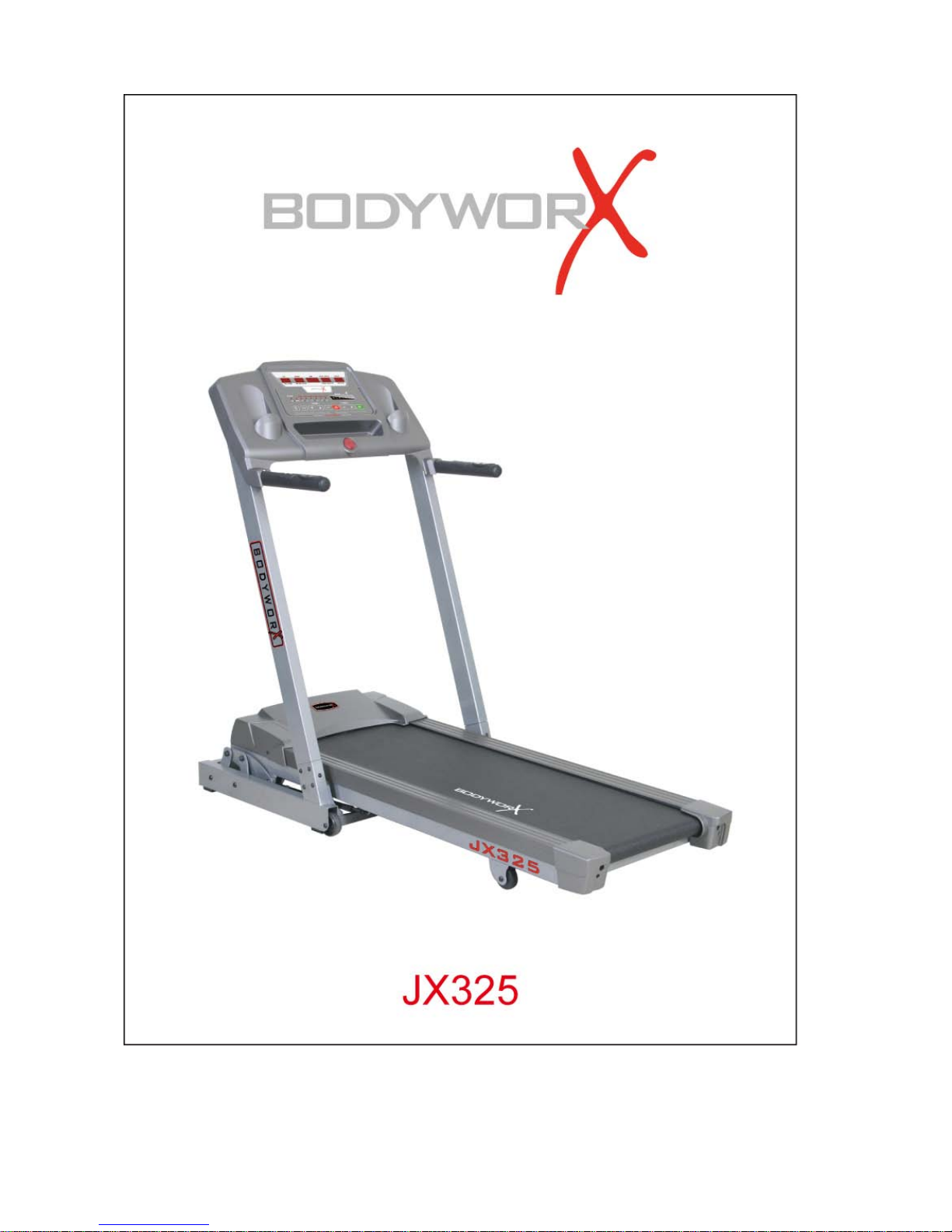

Bodyworx JX325 User manual

1
INDEX
1. OVERVIEW DRAWING..............................................................................2
2. IMPORTANT SAFETY INSTRUCTIONS..................................................3
3. GROUNDING INSTRUCTIONS ................................................................4
4. PRE-ASSEMBLY CHECK LIST.................................................................5
5. ASSEMBLY STEPS.....................................................................................7
6. CAUTION ....................................................................................................8
7. MAINTENANCE.........................................................................................9
8. COMPUTER OPERATION INSTRUCTIONS.....................................................10

2
1. OVERVIEW DRAWING
Safety Key / Clip
Computer Console
On-off Switch
Circuit Breaker
Grip Pulse Sensor
Frame
Rear End Cape

3
2. IMPORTANT SAFETY INSTRUCTIONS
When using this product, basic precautions should always be followed, including the
following:
Please read the instruction carefully before starting to use this product.
Danger– To reduce the risk of electric shock：
1. Always unplug this product from the electrical outlet immediately after using and before
cleaning.
Warning – To reduce the risk of burns, fire, electric shock, or physical injury：
1. The product should never be left unattended while plugged in. Unplug the product from the
outlet when not in use.
2. Close supervision is necessary when this product is used by or near children, invalids, or
disabled persons.
3. Be sure to use the product only for its intended use as described in this manual. Do not use any
attachment not recommended by the manufacturer in order to avoid any danger or accidents.
4. Never operate the product if it has a damaged cord or plug, if it is not working properly, if it
has been damaged, or dropped into water. Please return the product to the service center of
seller for examination and repair.
5. Do not carry this product by the supply cord or use the cord as a handle.
6. Keep the cord away from hot surfaces or ground.
7. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc.
8. Never drop or insert any objects into any openings.
9. Do not use or operate outdoors.
10. Do not operate where aerosol (spray) products are being used or where oxygen is thin.
11. Before turning the product power off, turn all controls to the off position then remove the plug
from the outlet.
12. Connect the product to a properly grounded outlet only.
13. The product is only intended for household use.
14. If the power cord is damaged, be sure to ask the manufacturer for replacement to avoid
accidents. The seller and correlative qualified professionals are as well as eligible.

4
3. GROUNDING INSTRUCTIONS
The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a
path of least resistance for electric current to reduce the risk of electric shock.
The product is equipped with a cord having an equipment-grounding conductor and a grounding
plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger – Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
products are properly grounded. Do not modify the plug provided with the product – if it will not fit
the outlet, have a proper outlet install by a qualified electrician.
The products is for use on nominal 220-240 volt and has a grounding plug that looks like the
plug illustrated in the figure . Make sure that the product is connected to an outlet having the same
configuration as the plug.
There is no need to use any adapter for this product.
Figure
Grounding methods
GROUNDED
OUTLET

5

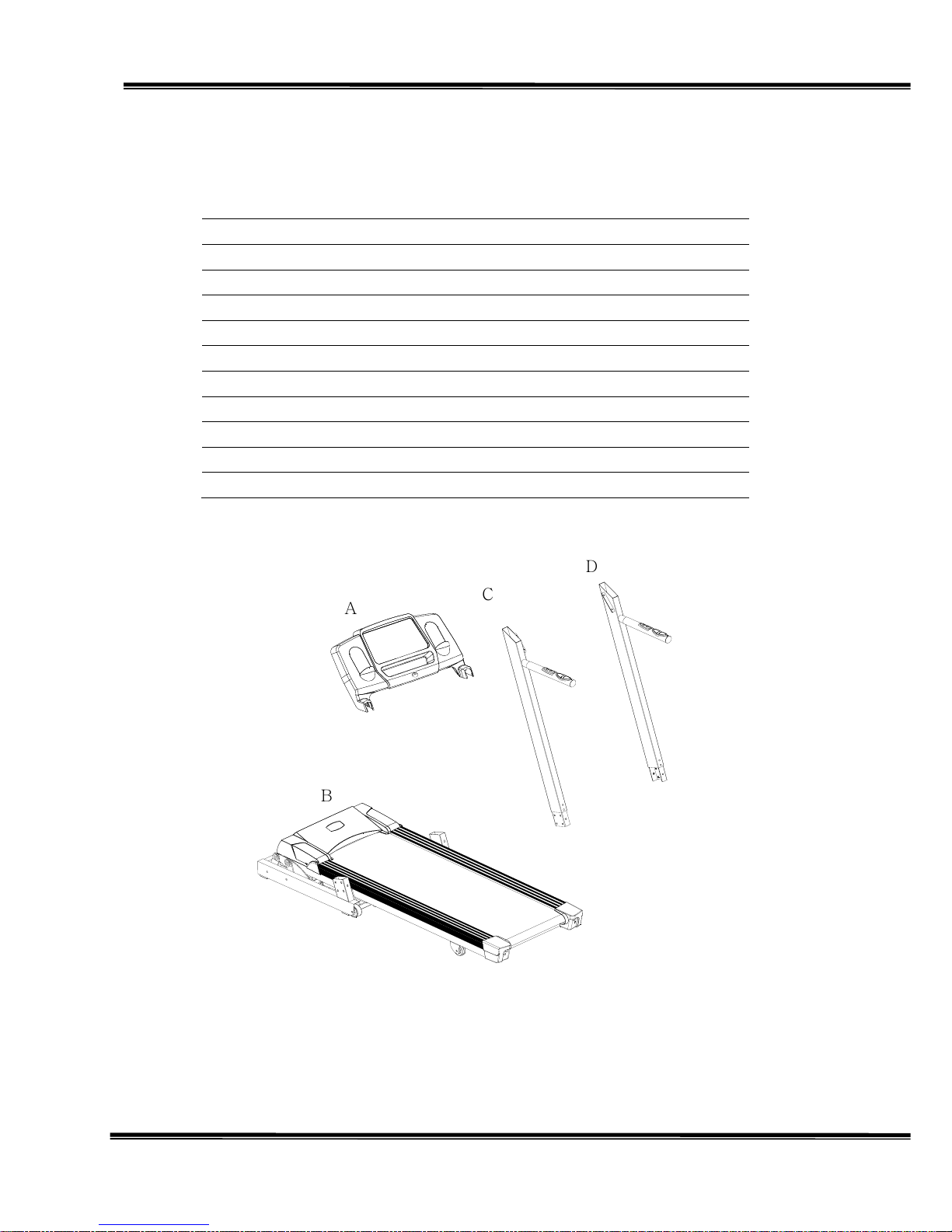

4. PRE-ASSEMBLY CHECK LIST
A
C
D
B
ITEM Description Qty
A Computer Console 1
B Frame 1
C Upright (L) 1
D Upright (R) 1
E
F
G
H
I
J
K

6
a
bc
de
f
g
ITEM Description Qty
a Allen Bolt M8xP1.25x15 12
b Allen Wrench 6mm 1
c Allen Wrench 5mm 1
d Safety Key/Clip 1
e SILICON 1
f Bottle 1
g Allen Bolt M8xP1.25x40 4
h
i
j
k
l
m
n

7
5. ASSEMBLY STEPS
Two persons are required to finish the
assembly steps.
(Caution!! Please follow exactly the
assembly steps below to avoid injury. )
1. After pull out Control Wire with Guide
Thread in right Upright (D), cap it into the
wire clip and fix it inside hole of right
Upright. After insert left and right Uprights
(C, D) to the proper place, tighten with
Allen Bolt (a) according to right drawing.
Ps.1. To avoid unexpected accident, always
assemble the treadmill with an assistant, do
not assemble by oneself.
Ps.2. When assemble the Upright, one person
should hold the Upright to prevent it from
falling.
C
D
a
a
2. To assemble the Computer：
Connect control wires between left and
right Handrails and the Computer. Then
insert left and right Handrails (C, D) into
the Computer (A), tighten with Allen Bolt
(g) according to right drawing.
A
C
D
g
g

8
6. CAUTION:
Note: The Cylinder is made of high pressure, so it must be
extra careful not to impact with other objective to
avoid deformation.
Note: When the cylinder is hit, possibly will cause the
damage and make the usage not smooth.
This treadmill have the foldable mechanism for storage,
when storage must stop all movement (include treadmill
belt stop, take off the power cord). Then fold the main
frame as the direction shown in the picture. Be sure the
foot plate inserts the tube of base frame. Opposite, if want
to use treadmill，step on the fixing plate as the direction.
When it disjoins from tube of base frame, be careful to pull
down the main frame. One person stands beside the
treadmill, the main frame will be slowly to the ground
automatically.
(Ps.1 To prevent from causing danger, be careful if the
kids are around. If you want to move the treadmill,
fold the treadmill at first, hold the rear adjust cap with
your hands, then let the treadmill descend and do not
move the treadmill until the roller can be moved
smoothly.)
(Ps.2. Do not move the treadmill on uneven ground.)
(Ps.3. To prevent the injury, the main body should be
put on the even ground. Person can’t stand under the
frame.)

9
7. MAINTENANCE

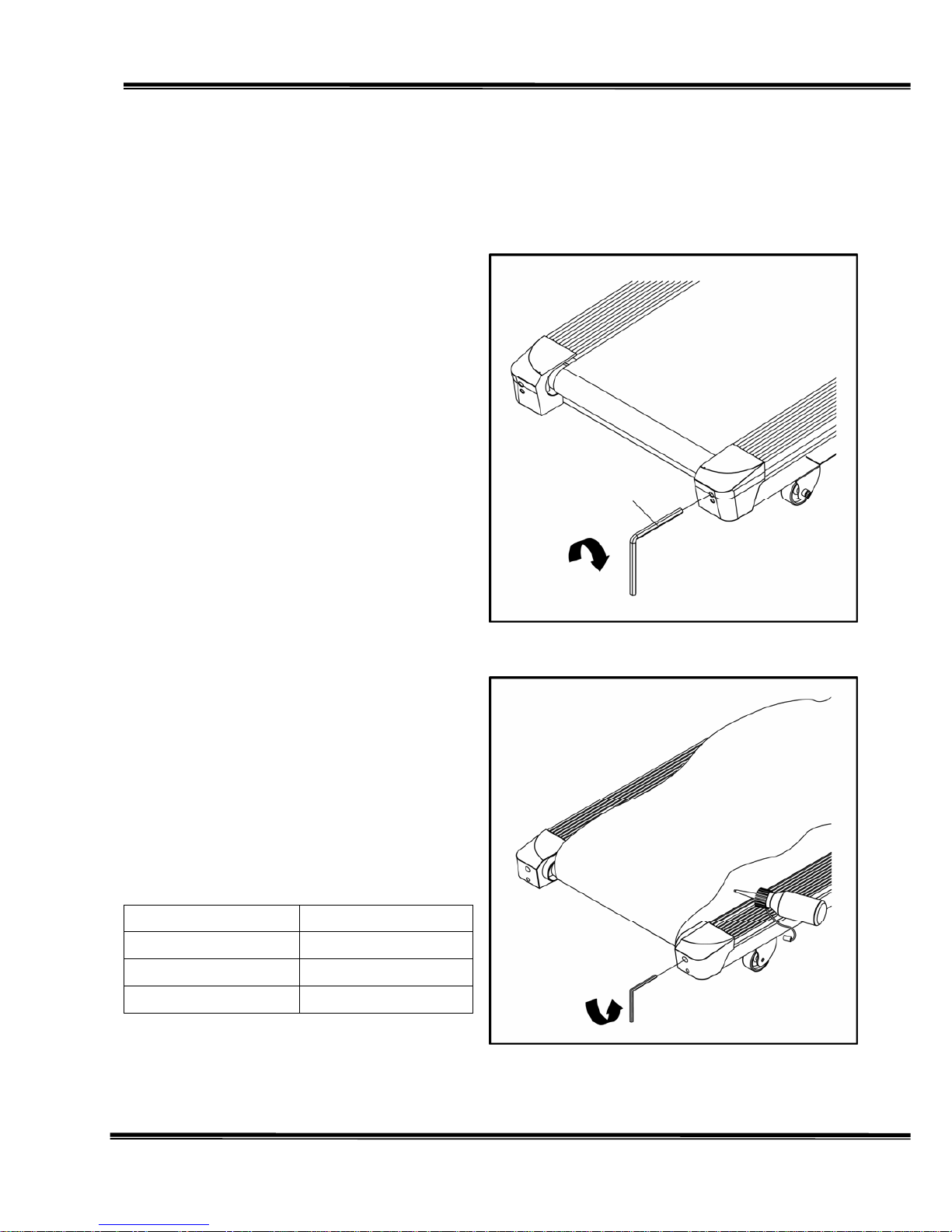

1. When running belt is off the center, stop the
treadmill immediately, use Allen Wrench to
adjust the hex head screw. For example, the
running belt is offset to the left it should adjust
1/4 circle clockwise; if the running belt is offset
to the right, adjust 1/4 circle counterclockwise.
After adjustment, start the treadmill again, if the
running belt still off the center, repeat the
adjusting procedure till the running belt is in the
center position.
(Ps.1. This action is very important, if a deviated
belt is found, be sure to follow above
procedure.)
(Ps.2. Belt may move away from center status
due to user’s weight and running condition. The
belt needs not to be adjusted as long as it doesn’t
rub against the parts aside.)
2. It is strongly suggested to follow the below table
to apply lubrication on running board. Please use
Allen Wrench to loosen bolts in rear adjusting
boxes. Pull up the running belt and apply
lubrication evenly on the center of the running
board, then adjust the belt to the center of deck,
follow by tighten the screw to the original set up.
(Ps. When the belt is sliding, please follow
the above method to apply lubricant on the
running board. )
Speed Interval
1~6 km 1 year
6~12 km 6 months
12~16 km 3 months

10

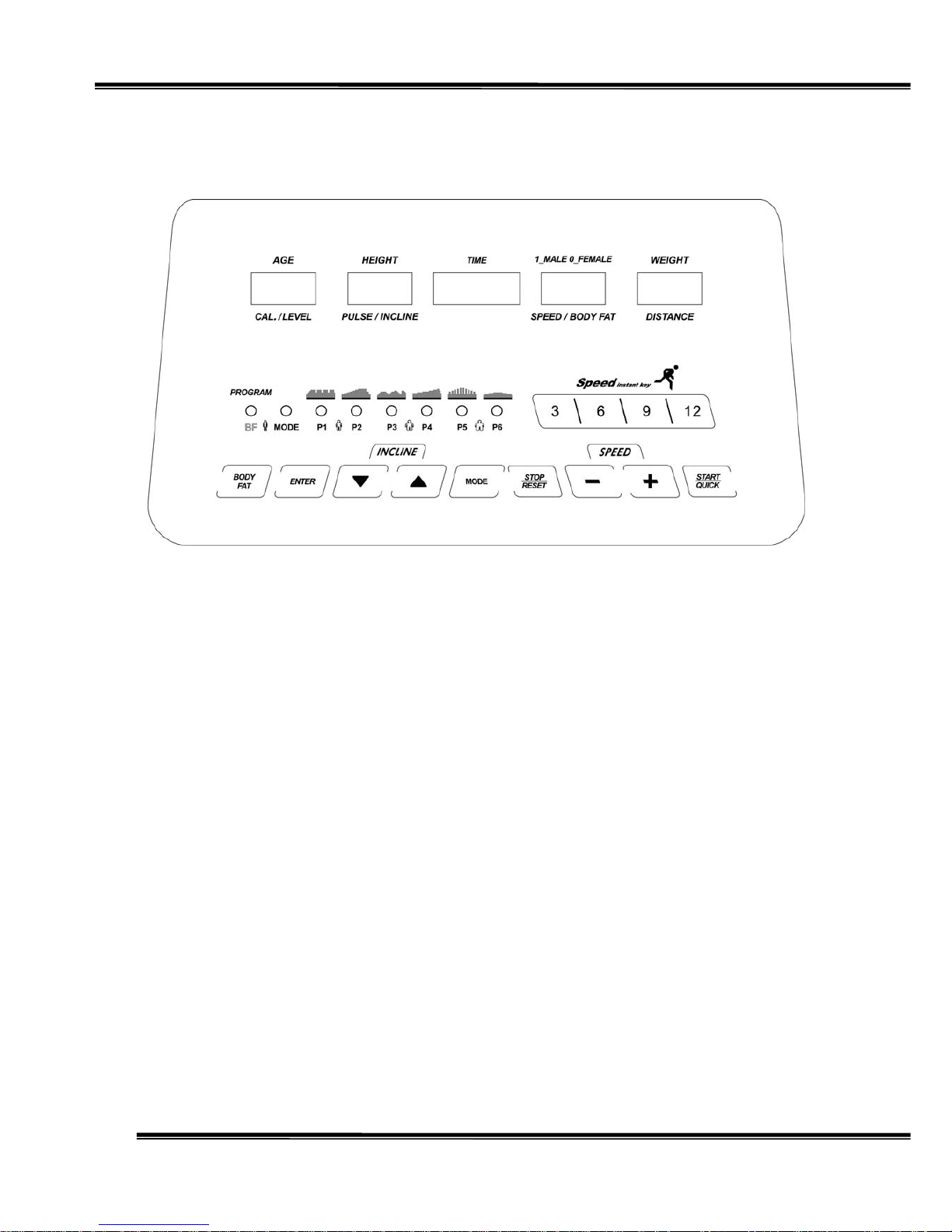

8. B12OA25RS1-J8 COMPUTER OPERATION INSTRUCTIONS
General Operation：
1. Turn on the treadmill.
2. Put the safely key in the recess of the console.
The beeper will sound and all windows will display values, the initial values are 0, and not
blinking, this present treadmill is under START/READY position, under this situation, user can
hold the grip pulse sensor to detect heart rate value directly.
**If safety key/ clip doesn’t place in the recess of the console, the TIME window will display
“----“, then the treadmill can’t be operated normally.
**During work out, if the safely key/clip is off, then the beeper will sound for warning, then the
treadmill will stop operation. At this moment, put the safety key back to the recess of console,
then all the values will back to initial values.
**Under START/READY condition, if you did not hold grip pulse sensor, then PULSE window
will display HP, when you hole the both sides of grip pulse sensor, you will see the PULSE

11
window display the heart rate values.
** PULSE value range：40~240 Beats/min
**Check list below for different age and heart rate values：
170 OVER
150 166 MIDDLE
120 146 162 LOW
117 143 157
114 137 153
111 135 149
108 131 145
105 128 140
102 124 136
99 120 132
96 116
HEART BEATS/MIN
93
20 25 30 35 40 45 50 55 60 65 (Age)
3. Press to start treadmill, the treadmill will start with a speed of 1.0km/hr, at this time
press or keys to increase/ decrease speed( also can press fast speed buttons
to instantly choose the speed you need), press once to pause your
workout( press one time, all values stop to change, treadmill pause 4 minutes and back to
START/ READY condition, after press one time, then press the second time and hold
the button for 3 seconds, treadmill will automatically go back to the START/READY
position.)
4. Press ,key to control the incline angles of the treadmill, press and hold the
,buttons, treadmill will change angles accordingly, when reach the angles you need,
just release the buttons then the treadmill elevation will stop changing.
5. In addition to press the buttons on computer console for selection, also can press the switch
located on handrail adjustment to adjust the speed and angles, left button is for angles
adjustment, right button is for speed adjustment.
**Speed range：1.0~16 KM/H, Step is 0.2 KMPH.

12
B. MODE operation instruction (Under this mode total have MANUAL and 6 PROGRAM
installed program):
1. MANUAL： Under this mode, you can set up the time, distance as your need, operation method
are as below：
1.1. Press , when see the light of MANUAL LED light is linking, press , then into
the MANUAL mode.
1.2. At this moment you can press ,to set up time, after finished, you can press
directly to operate, or press to distance.
Program pre-set values is 20 min
Time range：5~99 min，Step is 1 min
1.3. At this time you can press ,to set up distance, after finished, you can
press directly to operate, or press back to MODE option.
Program pre-set value is 5 km
Distance range：1~9.9 km ,Step is 0.1 km
2. PROGRAM：Under this mode, including P1~P6 total 6 modes, you can choose your favorite
mode, operation as following：
2.1 Press , when see MANAUL LED light is blinking, you can press ,to
choose P1~P6 any one of mode, then press then can into the mode you choose,
2.2 After into the mode, you can see the LEVEL window begins to blink, under
PROGRAM mode, P1~P6 each mode have 3 LEVEL, you can choose your favorite
mode.
2.3 At this time you can press ,to choose LEVEL, after finished, press then
the treadmill will begin to operate, or press into PROGRAM time setting.
2.4 After into the time setting, you can press ,to set up time, after finished, can
press directly to operate, or press and back to MODE option.

13
2.5 Program pre-se 32 min
Time range：5~99 min，Step is 1 min

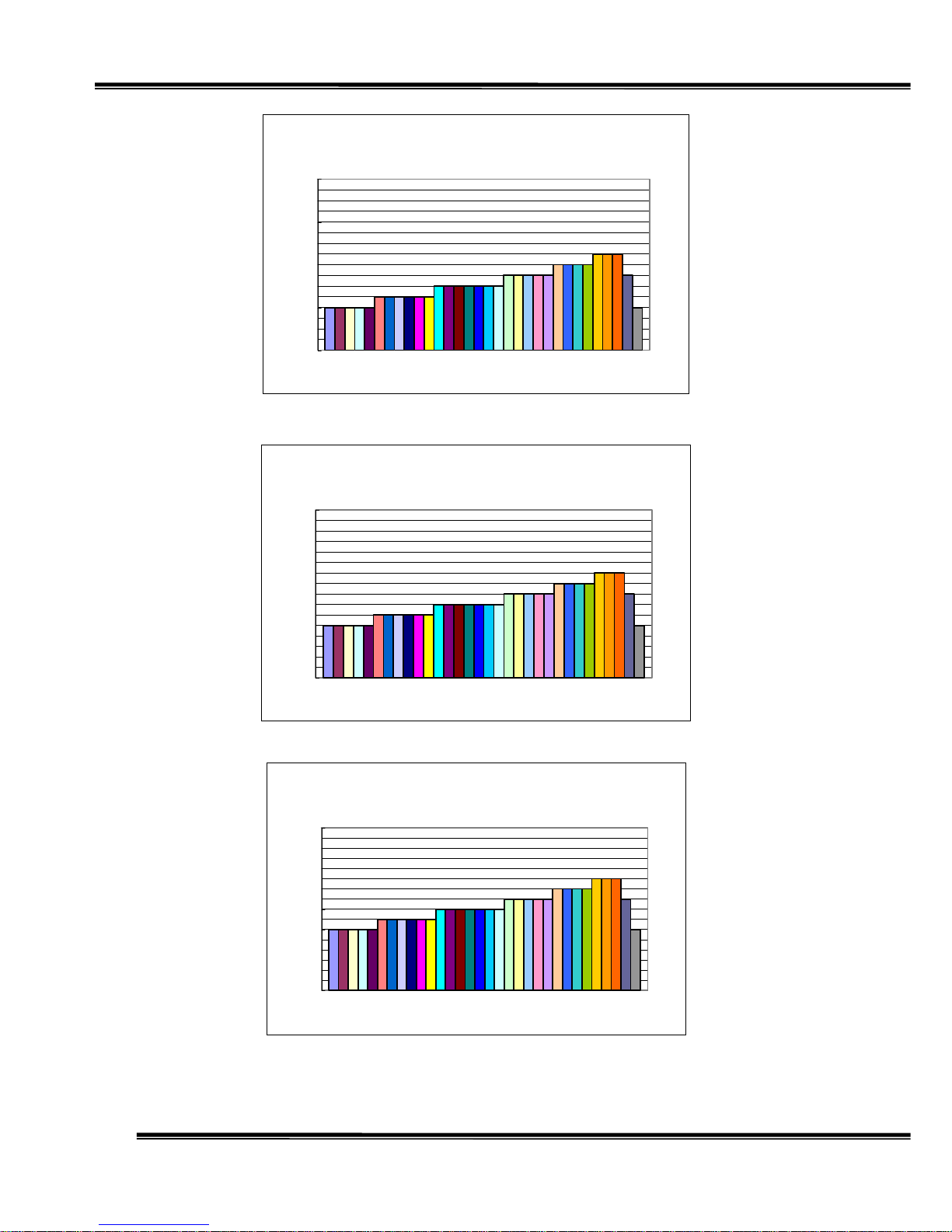

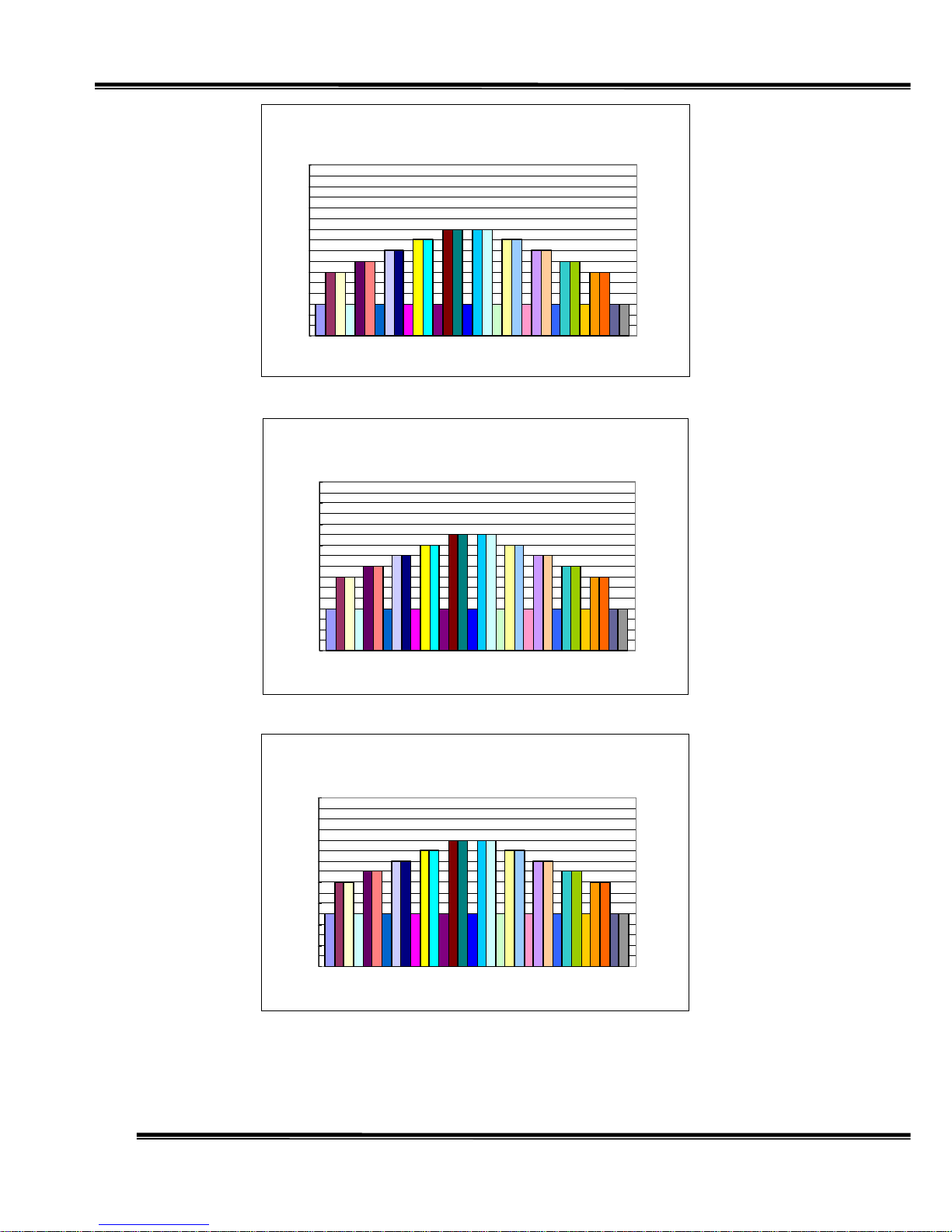

2.6 Regarding to the P1~P6 installed values, please refer to the last page List1~ List 6
C、Body fat:
1. Under START/READY condition, press , you can see the Body Fat LED light is
blinking, present you are in to Body Fat function.
2. When you choose this function, program will require to enter following values.
◎Age：Pre-set value is 30, range：13~80，Step is 1, press ,to adjust, choose correct
value, then press , into next value setting.
◎Height：Pre-set is 170 cm, range：130~200 cm ,Step is 1 cm, press ,then can
adjust, after choose correct value then press , into the next value setting.
◎Sex：Pre-set value is (Male),press ,to change 1 (Male),0(Female), to choose the
correct option, press , into the next value setting,
◎Weight：Pre-set values is 70 kg, range：30~130kg, Step is 1 kg, press ,to adjust,
choose correct value, press ,put both hands straight and hold the grip pulse sensor
about 15seconde, after 15, Body Fat window will display your Body Fat value, in the same
time, on the computer panel left side the LED light will display figure evaluation.
3. As the male and female has different fat, so the figure evaluate light also different, below
provide a list for reference：
Light
Sex
1.(Male) 0.0~4.9 5.0~9.9 10.0~14.9 15.0~19.9 20.0~24.9 25.0~29.9 30.0~34.9 35.0above
0.(Female) 0.0~14.9 15.0~19.9 20.0~24.9 25.0~29.9 30.0~34.9 35.0~39.9 40.0~44.9 45.0above

14
Annex 1
P1-L1
0
2
4
6
8
10
12
14
16
MIN
Km/h
P1-L2
0
2
4
6
8
10
12
14
16
MIN
Km/h
P1-L3
0
2
4
6
8
10
12
14
16
MIN
Km/h
Annex 2

15
P2-L1
0
2
4
6
8
10
12
14
16
MIN
Km/h
Annex 3

16
Annex 4

17
P4-L1
0
2
4
6
8
10
12
14
16
MIN
Km/h
P4-L2
0
2
4
6
8
10
12
14
16
MIN
Km/h
P4-L3
0
2
4
6
8
10
12
14
16
MIN
Km/h
Annex 5

18
P5-L1
0
2
4
6
8
10
12
14
16
MIN
Km/h
P5-L2
0
2
4
6
8
10
12
14
16
MIN
Km/h
P5-L3
0
2
4
6
8
10
12
14
16
MIN
Km/h
Annex 6

19
P6-L1
0
2
4
6
8
10
12
14
16
MIN
Km/h
P6-L2
0
2
4
6
8
10
12
14
16
MIN
Km/h
P6-L3
0
2
4
6
8
10
12
14
16
MIN
Km/h
