bon BLM Series User manual

Operating Instructions
Operating Instructions
Multi Format
Multi Format HD Broadcast Monitor HD Broadcast Monitor
BLM-084(8.4”)
BLM-170(17”)
BLM-190(19”)
BLM-200(20”)
BLM-240(24”)
BLM-260(26”)
BLM-320(32”)
BLM-420(42”)
BLM-470(47”)
BLM-550(55”)
BON Series :
(BASIC MODEL)

-- 2 --
• Resolution 1024 X 768
• Aspect ratio 4:3
• Contrast 400:1
• Viewing Angle : 170 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power : 12V DC (11V-17V)
• Rack Kit, V-Mount, Hood
• Resolution 1280 X 768
• Aspect ratio 15:9
• Contrast 400:1
• Viewing Angle : 176 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power:12V DC (11V-17V) / AC100-230V
• Rack Kit, V-Mount, Hood
• Dual Link Model” (Option)
• Resolution 1920 X 1200
• Aspect ratio 16:10
• Contrast 700:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
• Resolution 1920 X 1200
• Aspect ratio 16:10
• Contrast 800:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
BLM 240
( 24 Inch HD LCD Monitor )
BLM 260
( 26 Inch HD LCD Monitor )
• Resolution 1440 X 900
• Aspect ratio 16:10
• Contrast 1000:1
• Viewing Angle : 160 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Rack Mount
BLM 190
(19 Inch HD LCD Monitor )
BLM 170
( 17 Inch HD LCD Monitor )
BLM- BASIC Series:
• Resolution 1920 X 1200
• Aspect ratio 16:10
• Contrast 700:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
BLM 200
( 20 Inch HD LCD Monitor )
( 8.4 Inch HD LCD Monitor )
BLM 084

-- 3 --
• Resolution 1920 X 1080
• Aspect ratio 16:9
• Contrast 1200:1
• Viewing Angle : 178 ˚
( 55 Inch HD LCD Monitor )
• Input : SDI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : SDI(1EA,BNC)
Analog(3EA,BNC)
• Powe : AC100-230V
• Dual Link Model (Option), Wall B acket
BLM 550
• Resolution 1920 X 1080
• Aspect ratio 16:9
• Contrast 1000:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
BLM 470
( 47 Inch HD LCD Monitor )
• Resolution 1920 X 1080
• Aspect ratio 16:9
• Contrast 900:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
( 42 Inch HD LCD Monitor )
BLM 420
• Resolution 1366 X 768
• Aspect ratio 16:9
• Contrast 1000:1
• Viewing Angle : 178 ˚
• Input : DI(2EA,BNC)
Analog(3EA,BNC), DVI-I(1)
• Output : DI(1EA,BNC)
Analog(3EA,BNC)
• Power: AC100-230V
• Dual Link Model (Option), Wall Bracket
BLM 320
( 32 Inch HD LCD Monitor )

-- 4 --
IMPORTANT SAFETY INSTRUCTIONS
1. Read all of these instructions.
2. ave these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause
hazards.
6. Do not use this appliance near water “ for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table.
The appliance may fall, causing serious injury to a child or adult, and
serious damage to the appliance.
Use only with a cart or stand recommended by the manufacturer, or
sold with the appliance.
Wall or shelf mounting should follow the manufacturer instructions, and
should use a mounting kit approved by the manufacturer.
An appliance and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the appliance
and cart combination to overturn.
PORTABLE CART WARNING
(symbol provided by RETAC)
8. lots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure
reliable operation of the appliance and to protect it from overheating, these openings must not be
blocked or covered.
The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar
surface.
This appliance should not be placed in a built-in installation such as a bookcase unless proper
ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your dealer or local power
company. For appliance designed to operate from battery power, refer to the operating instructions.
10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third
(grounding) pin).
This plug will only fit into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your electrician to replace obsolete outlet.
Do not defeat the safety purpose of the grounding plug.
11. For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system.
This will prevent damage to the product due to lightning and power-line surges.
12. Do not allow anything to rest on the power cord.
Do not locate this appliance where the cord will be abused by persons walking on it.
13. Follow all warnings and instructions marked on the appliance.
14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
15. Never push objects of any kind into this appliance through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the appliance.
16. Do not attempt to service this appliance yourself as opening or removing covers may touch
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

-- 5 --
17. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the appliance.
c. If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment
of other controls may result in damage and will often require extensive work by a qualified
technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been damaged.
f . When the appliance exhibits a distinct change in performance this indicates a need for service.
18. When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
19. Upon completion of any service or repairs to this appliance, ask the service technician to perform
routine safety checks to determine that the appliance is in safe operating condition.
FCC NOTICE
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions :
(1)This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instruction and do not make any unauthorized
modifications.
Note:
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The user may find the booklet “ omething About Interference” available from FCC local regional offices
helpful.
Warning :
To assure continued FCC emission limit compliance, the user must use only shielded interface cables when
connecting to host computer or peripheral devices. Also, any unauthorized changes or modifications to this
equipment could void the user’s authority to operate this device.

-- 6 --
THIS EQUIPEMNT MUST BE GROUNDED
To ensure safe operation, the three-pin plug must be
inserted only into a standard three-pin power outlet
which is effectively grounded through normal
household wiring. Extension cords used with the
equipment must have three cores and be correctly
wired to provide connection to the ground. Wrongly
wired extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily
does not imply that the power outlet is grounded or
that the installation is completely safe.
For your safety, if you are in any doubt about the
effective grounding of the power outlet, please
consult a qualified electrician.
CAUTION:
THE AC RECEPTACLE (MAIN OCKET OUTLET)
HALL BE IN TALLED NEAR THE EQUIPMENT
AND HALL BE EA ILY ACCE IBLE.
TO COMPLETELY DI CONNECT THI
EQUIPMENT FROM THE AC MAIN ,
DI CONNECT THE POWER CORD PLUG FROM
THE AC RECEPTACLE.

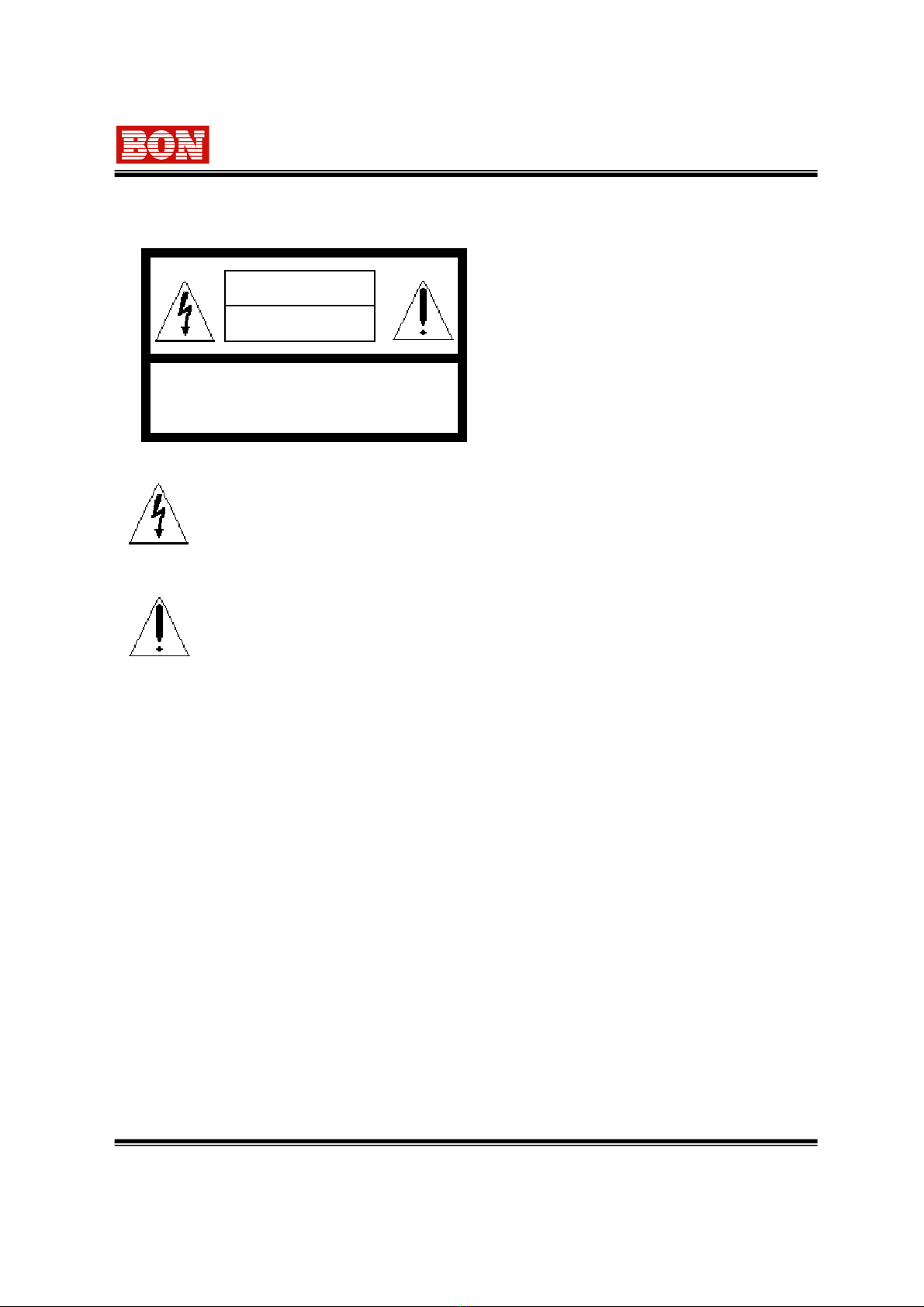

SAFETY PRECAUTIONS
The lightening flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE ELECTRICK SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARNING :
-TO REDUCE THE RI K OF FIRE OR HOCK
HAZARD, DO NOT EXPO E THI
EQUIPMENT TO RAIN OR MOI TURE.
-TO REDUCE THE RI K OF FIRE OR HOCK
HAZARD, KEEP THI EQUIPMENT AWAY
FROM ALL LIQUID . U E AND TORE ONLY
IN LOCATION WHICH ARE NOT EXPO ED
TO THE RI K OF DRIPPING OR PLA HING
LIQUID , AND DO NOT PLACE ANY LIQUID
CONTAINER ON TOP OF THE EQUIPMENT.
CAUTION :
In order to maintain adequate ventilation, do not
install or place this unit in a bookcase, built-in
cabinet or any other confined space. To prevent
risk of electric shock or fire hazard due to
overheating, ensure that curtains and any other
materials do not obstruct the ventilation.
CAUTION :
TO REDUCE THE RI K OF FIRE OR HOCK
HAZARD AND ANNOYING INTERFERENCE,
U E THE RECOMMENDED ACCE ORIE
ONLY.
CAUTION :
This apparatus can be operated at a voltage in
the range of 100-240 V AC.
Voltage other than 120V are not intended for
U. .A and Canada.

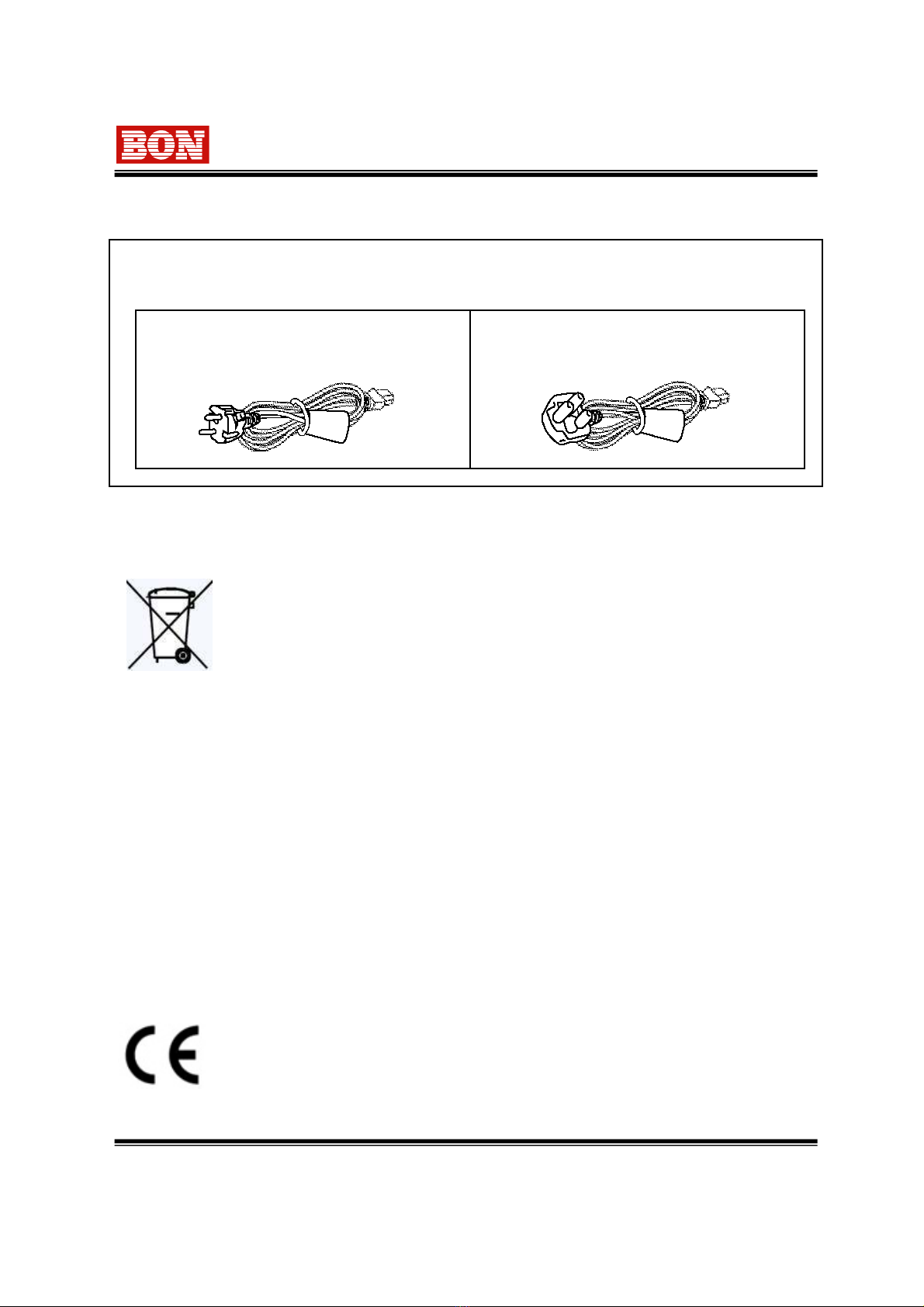

CAUTION :
Operation at a voltage other than 120V AC may
require the use of a different AC plug. Please
contact either a local service center for
assistance in selecting an alternate AC plug.
Notice U.S.A. only) :
This product has a fluorescent lamp that
contains a small amount of mercury. It also
contains lead in some components. Disposal of
these materials may be regulated in your
community due to environmental considerations.
For disposal or recycling information please
contact your local authorities, or the Electronics
Industries Alliance: <http://www.eiae.org.>

-- 7 --
FOR U.K. ONLY
If the plug supplied is not suitable for your socket
outlet, it should be cut off and appropriate one
fitted.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
Caution for AC Power Cord
FOR YOUR AFETY PLEA E READ THE FOLLOWING TEXT CAREFULLY.
Appropriate AC Power Cord must be used in each local area.
Information on Disposal for Users of Waste Electrical & Electronic Equipment
private households)
This symbol on the products and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated
collection points, where they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling. Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
CE NOTICE
This is Class B product. In a domestic environment this may cause radio interference in
which case the user may be required to take adequate measures.
The apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.

-- 8 --
Contents
1. Outline • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 9
2. Main Features • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 9
3. Controls and Functions BLM-084,170~550) • • • • • • • • • • • • 10
3-1. Front Panel • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 10
3-2. Rear Panel • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 12
3-3. Tally & Audio • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 14
3-4. Function Buttons for FUNCTION 1 and FUNCTION 2 • • • • • • 15
4. Display Status • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 15
5. INPUT Select Menu • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 16
6. Control and Use of OSD Menu • • • • • • • • • • • • • • • • • • • • • • 17
6-1. Video • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 17
6-2. Display • • • • • • • • • • • • • • • • • • • • • • • • • • • • 18
6-3. Color • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 19
6-4. Marker • • • • • • •• • • • • • • • • • • • • • • • • • • • • • 20
6-5. Audio • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 20
6-6. GPI Control • • • • • • • • • • • • • • • • • • • • • • • • • • 21
6-7. System Configuration • • • • • • • • • • • • • • • • • • • • • • • • • • 21
7. How to use Program Update Port • • • • • • • • • • • • • • • • • • • • • 22
8. Remote Terminal Assignment • • • • • • • • • • • • • • • • • • • • • • • 22
9. List of Compatible Signal Formats • • • • • • • • • • • • • • • • • • • • • 24
10. Specifications• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 25
11. IR Remote Controller • • • • • • • • • • • • • • • • • • • • 29
12. Dimensions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 30
13. Troubleshooting • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 34
14. Maintenance • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 34
15. Up version and Modification of Product • • • • • • • • • • • • • • • • 34

-- 9 --
1. Outline
This product is the multi-format Digital LCD HD Monitor to display various kind of
digital video input signal as HD/SD-SDI Digital and analog signal such as Composite
YC, RGB DVI/PC-RGB and Component.
This is also High Definition Broadcasting Monitor which can make it available to do
output of stable video signal with the menu of considering convenient user interface
and the easy control for brightness and color, and by EQ function of HD-SDI input part.
2. Main Features
Native HD Resolution, Gamma Compensation, 178 Wide View Angle
Multi-Format HD/SD SDI , HD 2k format, 1080p and 1080i,etc
Diagonal Line Compensation by MADI Motion Adaptive De- interlace) and LADI
Low Angle Diagonal Interpolation)
High Speed Response / Fast Mode / Response Time of 8ms GTG
EBU SMPTE-C and ITU-R BT.709 based Broadcasting Standard Color
Auto Color Calibration Software with BLM Series
Color Temperature - 3200’, 5400’, 6500’,9300’,User
Waveform, Time Code Display, Under Scan/ Zero Scan / Over Scan / Zoom
Pixel to Pixel Display BLM-084/170/190 Models)
PiP Picture in Picture)-D Model & PaP “ Picture and Picture)
Audio Input/Out, Audio Metering Display, Built In Speaker, Ear Phone Jack
Closed Caption Decoder Basic Model:608 Mode . Dual Model: 708,608)
HDMI D Model) & Various Marker Display
Tally Lamp Function / Picture Adjustment / Easy OSD Menu
External Control RJ-45), Serial/Upgrade Port RJ-11)
Dual Link 4:4:4 Format Option)
Optional Accessory :
- ND Filter BLM-S/D Models)
- Wall Mount BMT-10W, BMT-20W, BMT-30W, BMT-50W) -
- Rack Mount BLM-084/ BLM-170/ BLM-190/ BLM-200/ BLM-240)
- V Mount BLM-084/BLM-170) / HOOD BLM-084/ BLM-170)
- Carrying Case

-- 10 --
3. Controls and Functions

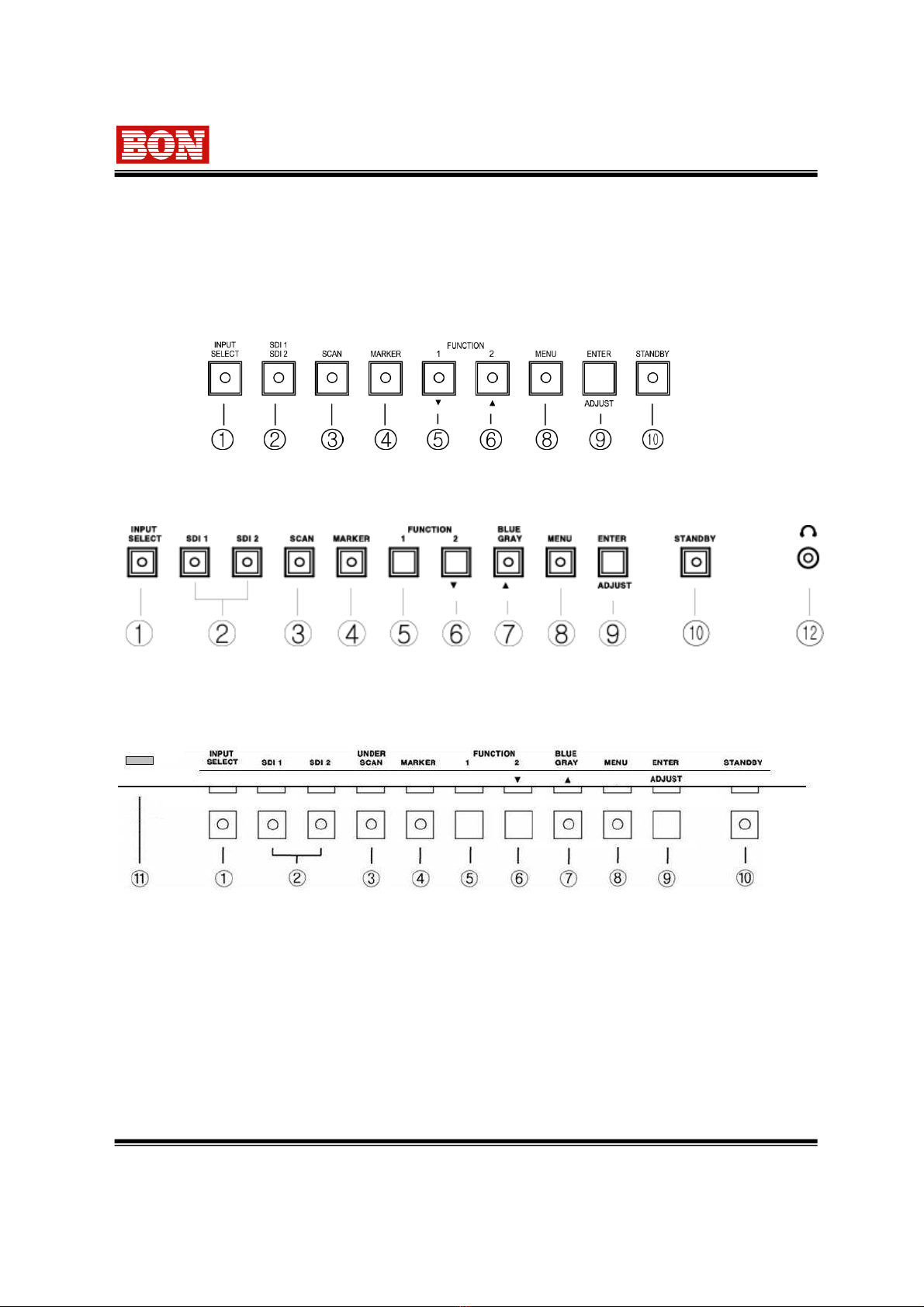

3.1. Front Panel
Front Panel BLM-084)
①INPUT SELECT
This is used to select Analog input and O D menu is displayed for this.
②SDI 1, SDI 2 INPUT SELECT : This is for selecting DI CH1 and CH2 input.
③SCAN : This function is for converting into Under can or Zero can or Over can Mode or
Zoom.
Front Panel BLM-170, BLM-190, BLM-200, BLM-240, BLM-260)
Front Panel BLM-320, BLM-420, BLM-470, BLM-550)

-- 11 --
④MARKER
For Marker selecting button, ‘Marker’ is displayed on screen.
In case input signals are DVI ,RGB, PC-RGB and YUV, Marker is not displayed.
⑤FUNCTION 1 F1)
Function buttons are selected from Y TEM menu. They are operated by F1, F2 Buttons.
⑥FUNCTION 2 F2)
1) In case it is not O D Menu working, it works to be the selected function on the Y TEM
Menu.
2) When O D Menu setting, it works as a DOWN (▼) Button.
⑦BLUE / GRAY
1) Each time, user can press the button, the mode changes as follows.
(BLUE Only -> GRAY -> Normal)
2) When on O D Menu, it works as a UP(▲) Button.
* BLUE Only : Only Blue signal is displayed on screen.
* GRAY : with color off, only Luminance is displayed.
GRAY Mono) function operates in SDI1,2, CVBS1,2,3 and YC mode.
⑧MENU
When pressing button, O D menu is displayed.
⑨ENTER / ADJUST
1) O D Menu setting is by Enter key. ave setting functions, after that, move to next step.
2) Except for Menu operation, each time you press the ADJU T button, it changes sequentially.
” Brightness” ->”Contrast”-> “Phase(Hue)”-> “ aturation”-> “ harpness” -> peaker Volume
and then, control Bar is displayed on screen bottom and the set Button of UP(▲) , Down (▼) button
can change and can be saved to be function of ENTER/ADJU T button.
⑩STANDBY
It can be used to be power on/ off button.
⑪IR Remote receiver BLM-320,420,470,550)
This is for BLM-320 to BLM-550 products.
!
Brightness
Contrast Possible to control 6 types.
Volume
Hue (Phase)
aturation
harpness
peaker Volume, Hue,
aturation and harpness could
not be supported by option.

-- 12 --
Rear BLM-084)
Side BLM-170)

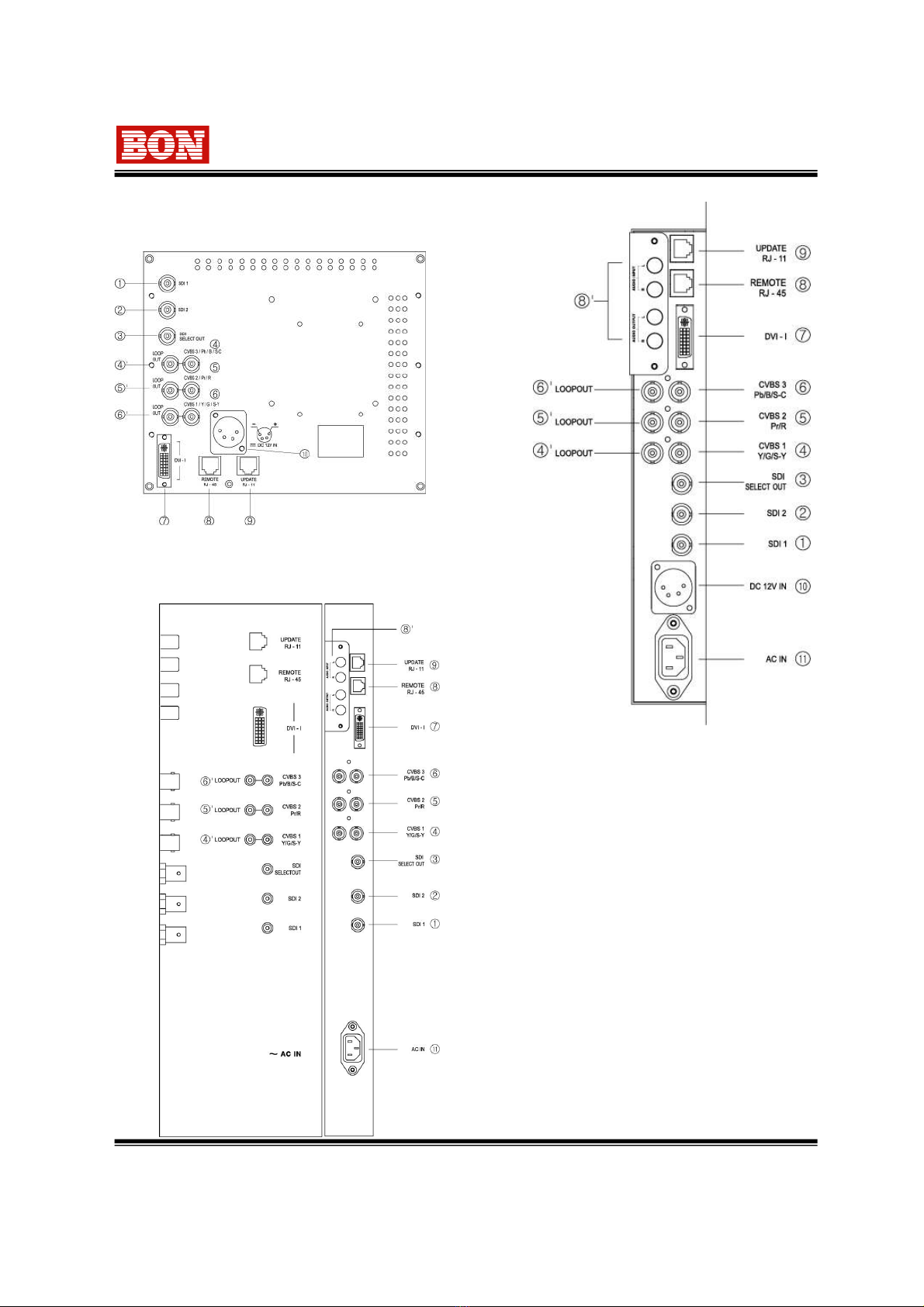

3.2 Rear Panel
Real/Side BLM-190~550)

-- 13 --
BLM- Series
①② SDI 1 , SDI 2 Input Terminal BNC)
These function are for HD/ D- DI input terminal and provide MPTE standard and
16ch audio signal .
③SDI SELECTOUT Terminal BNC)
Output terminal for the HD/ D- DI signals.
It do not output when the monitor is off. (Active elect Output)
④,⑤,⑥: CVBS Composite) 1,2,3 /Y, Pb, Pr / R, G, B / Y,C Input Terminal BNC)
These are for Analog input terminal. Possible to use 3 types of input signal.
1) Composite 1,2,3.
2) Component Y,U,V(Y,Pb,Pr) and R,G,B.
3) -Video Y,C signal.
④’,⑤’,⑥’ : LOOPOUT Terminal BNC)
Loop output terminal of Analog input signal.
In case user do not connect Loop output terminal, make Analog Loop NO in the
O D menu.
⑦DVI-I / PC-RGB Input Terminal DVI-I Jack)
1) Terminal for input DVI digital signal.
2) When DVI to VGA Gender using, it is possible to input PC-RGB(VGA) signal.
⑧REMOTE Terminal, RJ-45 Jack-Through RJ-45) Terminal
Terminal for controlling the monitor by an external control. (Make/Trig type)
⑧’ : Audio Input/Output Terminal
In/Output terminal for the external Audio and Embedded Audio signal.
⑨ UPDATE Terminal (RJ-11 Jack)
Terminal for changing or upgrade the monitor of working program.
⑩ DC INPUT Terminal (BLM-084,BLM-170)
Use for 12V DC power (12V~17V).
⑪AC INPUT Terminal
upply AC power
Do not use AC and DC power together. It may be cause of fire or product defective.
!
!
Use only the power cord designated to ensure safety and EMC
regulation of each countries.

-- 14 --
3-3 Tally & Audio
1) Tally
Tally colors are 2 types. (Red, Green).
It can be selected by external contact terminal.
Tally Lamp
① Analog Audio L/R Input Terminal (RCA Phone)
The external audio signal is output through the speaker by Menu setting.
② Analog Audio L/R Output Terminal (RCA Phone)
Terminal for output of De-embedded Analog Audio signal from SDI.
16ch Audio Signal output is available with menu setting.
2) Audio Input BMA-20A)
The function of Audio In/Out is option.
( Not fo 8.4”)

-- 15 --
3-4 Function Buttons for FUNCTION 1 and FUNCTION 2
Used to select the functions to be assigned to individual buttons F1 to F2 (front-panel buttons)
Double function for FUNCTION 1 and
FUNCTION 2 are prohibited.
!
Note :
In case input modes are DVI,PC-RGB,
YPbPr and RGB, the following functions are not
operated.
1) H/V Delay
2) GRAY(MONO)
3) MARKER
1080/60i

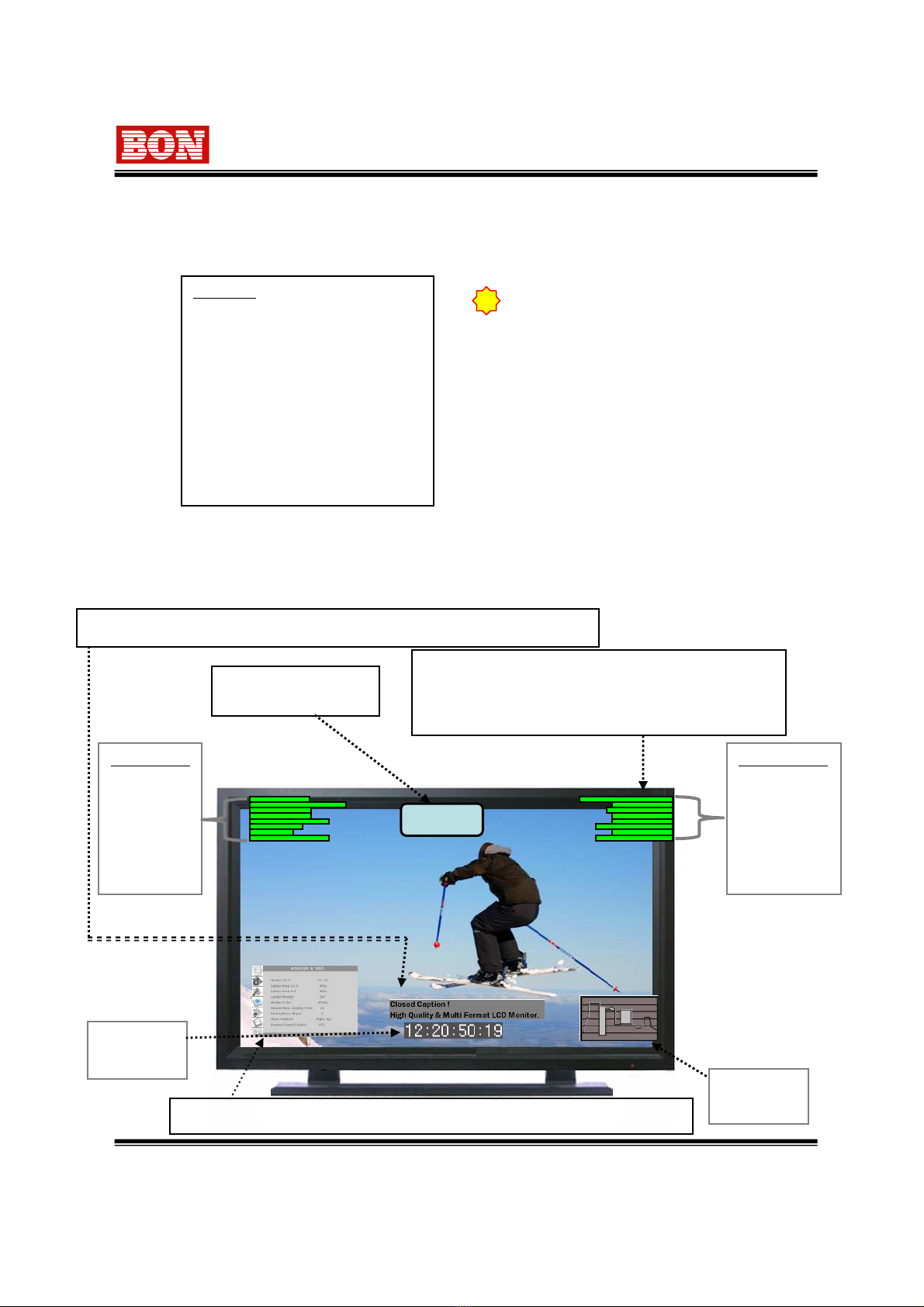

4. Display Status
The function of displaying the mode to confirm the operating status of product.
ome functions are not able to support according to option.
Display up to 16 channels ( L/R each 8channels) of
audio level by De-Embedded of HD/ D- DI’s serial
Audio ignal.
Display signal format
selected.
Display Left
CH-1
CH-3
CH-5
CH-7
CH-9
CH-11
CH-13
CH-15
Display Right
CH-2
CH-4
CH-6
CH-8
CH-10
CH-12
CH-14
CH-16
Video
Waveform
Option)
Time Code
Display
Option)
Functions
1. H/V Delay on,off)
2. BLUE/GRAY
3. Audio Display on/off)
4. Pixel to Pixel on,off)
5. Anamorphic on,off)
6. PaP On/Off
7. Waveform Display
8. Time Code Display
9. SD Aspect 16:9,4:3)
10. 1 : 1 Scan
11. Audio Mute on/off
Menu Position: Left-Top, Left-Bottom, Right-Top, Right-Bottom, Center
Closed Caption Display : tandard 608(CVB & Component: NT C/PAL)

-- 16 --
O D window as selecting INPUT elect
Button.
Move the menu position by using UP (▲),
DOWN (▼) and INPUT button. Convert to
another menu or mode by pressing ENTER
button.
5. Input Select Menu
•YPbPr input signal is common with Composite signal(CVB 1,2,3).
•Composite and YC( -VIDEO) signal are not recognized in YPbPr mode.
1) Audio Level Display Mode BLM-084/170/190/240/260/320/420/470/550)
Used Audio Level Display Mode from Audio etup Menu as selecting On/Off.
On : Left (even channel), Right (odd channel) OFF : Make Off of Level Bar.
Display Position : Possible to display at the top/bottom of the screen.
2) Waveform Monitor Display BLM-084/170/190/240/260/320/420/470/550)
Use on/off and position on the setting of the Waveform Display Menu.
Display Position : Display at the top/bottom of the screen.
3) Time Code Display BLM-084/170/190/240/260/320/420/470/550)
Use on/off and position on the setting of the Display Menu.
Display Position : Display at the middle of the screen.
!when changing input signal, there is possibility not to be detected signal or
mode indication and screen size are displayed wrong.

-- 17 --

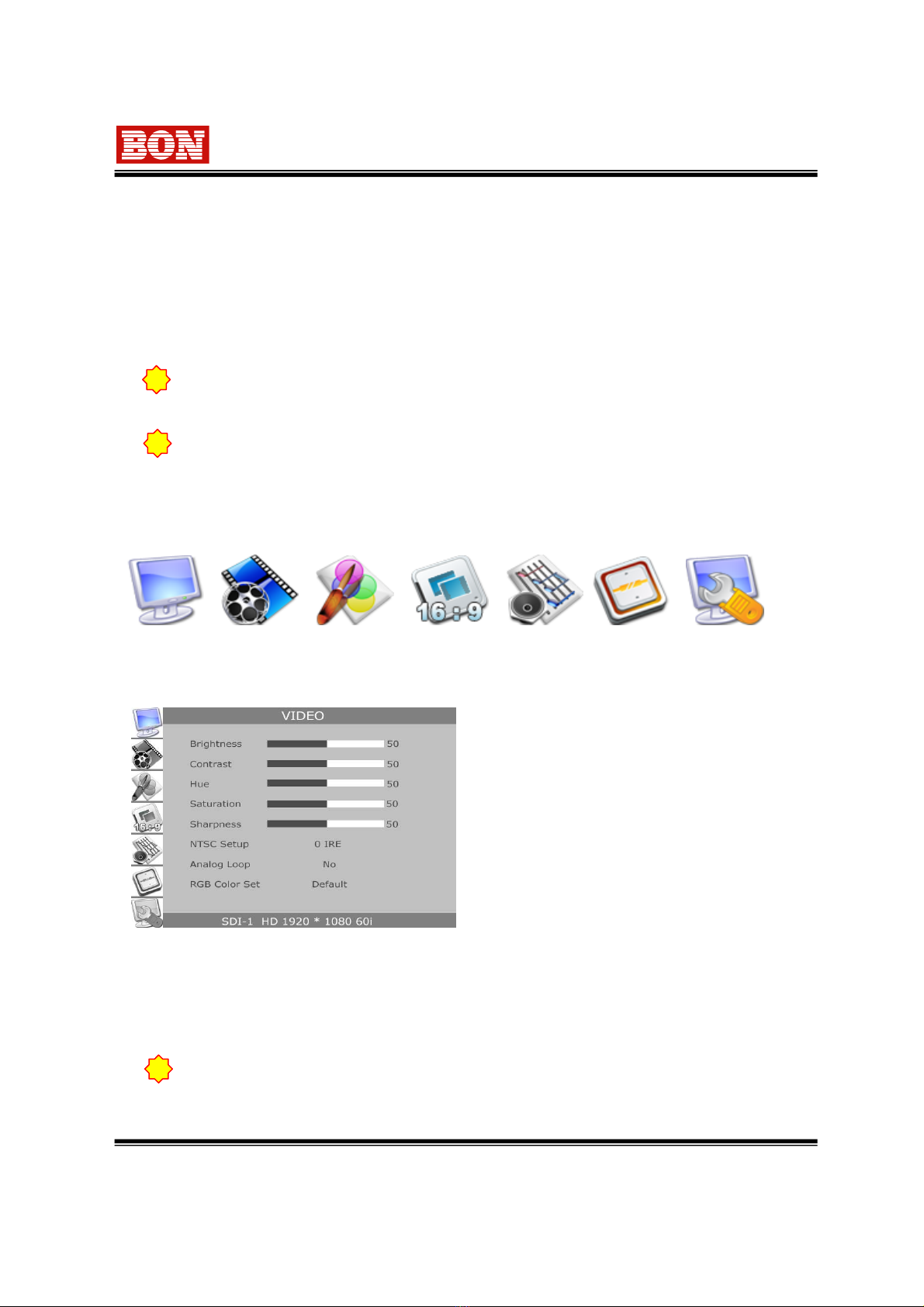

6-1. VIDEO
▪Brightness
▪Contrast : Adjust contrast.
▪Hue
▪Saturation
▪Sharpness
▪RGB Color Set : Control RGB each Level
in YPbPr,RGB and PC-RGB input mode.
There are Default and User Adjust.
6. Control and Use of OSD Menu
1. Press “MENU” button for O D Display .
2. Press “ENTER” button after menu selection by using UP (▲) / DOWN (▼) button.
3. Adjust status on the selected item with ENTER and UP (▲) / DOWN (▼) button.
4. Move to previous menu by using MENU button and O D screen is finished as pressing menu
continuously.
OSD Menu ICON
VIDEO DISPLAY COLOR MARKER AUDIO GPI CONTROL SYSTEM
!When user does not use Loop terminal, select Analog Loop ‘No’.
!In case there is no input signal or no detected signal, the menu can be erased.
When you set menu in inaccurate signal status, it may cause disorder.
MENU setting value is according to input signal mode. Therefore, please check the
input mode from the bottom of menu when changing condition which is set.
!
▪NTSC Setup : elect 0 IRE,7.5 IRE. It operates in 7.5IRE -> NT C or YUV mode.
▪Analog Loop : It only works with the product which has loop terminal.
et up On/Off impedance of Analog Loop output terminals.
Yes ->using Loop output. No -> Not using Loop output.

-- 18 --
6-1-1. VIDEO RGB,YPbPr)
It is displayed as selecting RGB Color Adjust
to User Adjust when PbPr,RGB and PC-RGB
input mode.
▪Red Gain : Control gain of Red input.
▪Green Gain :Control gain of Green input.
▪Blue Gain : Control gain of Blue input.
▪Red Bias : Control bias of Red input.
▪Green Bias : Control bias of Green input.
▪Blue Bias : Control bias of Blue input.
▪Auto Color Balance : It sets Gain Bias of RGB automatically.
* Factory default is standard value for RGB Gain and Bias.
6-2. DISPLAY
et screen size mode or display status.
▪SD Aspect : et screen mode 16:9 or 4:3.
▪1:1 Scan :
ON-> Output the screen with input Pixel
size in D mode.
OFF ->Output the screen with LCD size
in D mode.
▪Anamorphic : Make vertical resize to
see Anamorphic screen (2.35:1) on
720/50P,59.94P mode.
▪PaP Main : elect input of left main screen from PaP mode.
Possible to select all input signals. ( DI1, 2, CVB 1, 2, 3, -VIDEO, YPbPr, RGB, PC-RGB, DVI)
▪PaP Sub : elect input of right sub-screen from PaP mode.
It moves to input mode automatically which can be operated when selecting main screen.
Main and sub-screen have limitation to select.( the same signal and type are not possible)
▪Waveform Display : (BLM-084/170/190/240/260/320/420/470/550)
Display Video wave of HD/ D- DI input signal on the screen.
elect 4 display position.
▪Time Code Display : (BLM-084/170/190/240/260/320/420/470/550)
Display Time Code of VITC area at HD/ D- DI input signal.
elect display position. (Upper/Lower)
▪Pixel to Pixel : Available 8.4”, 17” and 19 product only. The output of 1920*1080 is done
without scale down. You are able to set the position of screen to Left Upper, Right Upper,
Left Button, Right Button and Center.

-- 19 --
6-2-1. DISPLAY PC-RGB)
This is displayed when PC-RGB signal is
selected.
▪PC SCAN : et output status as
Fill or Aspect mode.
▪V. Position : Adjust position of screen in
PC mode input.
▪H. Position : Adjust horizontal position of
screen.
▪Phase : Adjust digital converting of C of
input signal.(VGA)
▪Clock : Used to adjust digital converting clock in PC-RGB mode.(VGA)
▪AUTO Adjust : Used to adjust the best display position automatically in PC-RGB mode.(VGA)
▪PaP Main, PaP Sub Option) : elect input of right (Main) /left ( ub) screen in PaP mode.
6-3. COLOR
▪Color Temperature
et the white balance or color
temperature on screen among
U ER,3200°K,5400°K,6500°K,9300°K, and VAR.
▪VAR Number-> electable from 1 to 63 step and
from 3000°K to 9300°K.
▪USER-> Adjust RGB Level and color temperature.
▪R,G,B Gain : Control each R, G, B Gain in U ER
mode.
▪R,G,B Bias : Control each R, G, B Bias in U ER
mode.
* Use professional measure to adjust Color Temperature (White Balance) for precise adjustment.
Color Temperature is adjusted by specializing measurement machine to set precisely.
* Color matrix Parameters take ITU tandard color.
In addition EBU color is set considering the feature of LCD panel and the realization of best color is
made on the basis of the standard of DTV(ITU-RBT.601) & HDTV(ITU-RBT.709)

-- 20 --
6-4. MARKER
▪Marker 16:9
et the type of marker in case
the aspect ratio setting is16:9.
- Type of Marker
: 4:3,15:9,14:9,13:9, 1.85:1,2.35:1, OFF
▪Safety Area 16:9
elect the range of AFETY AREA in
16 : 9 HD screen.
- afety Area : 95%,93%,90%, 88%,85%
80%, OFF
▪Safety Area 4:3
elect the range of afety Area in 4:3
D mode.
- afety Area : 95%,93%,90%,88%,85%,
80%, OFF
▪Center Marker : elect ON/OFF for center marker.
▪Marker Color : elect Marker color. Color -> White, Red, Green, Blue, Gray, Black
▪Marker Back Color : elect marker of area for safety in among Normal, Half tone or Black.
▪Status/Menu Display : et time and menu information.
elect one of 5sec,10/15/20/25/30~60 sec
▪Status/Menu Blend : et transparency of menu and indication window on the screen.
Menu Position: elect for Center, Left Top, Right Top, Left Button, Right Button
Analog Closed Caption: elect for OFF, CC1, CC2. This is for 608 tandard. The function provides
for composite, component signal as 525/60,625/50(NT C,PAL)
6-5. AUDIO
▪Embedded Audio L : left)
elect Digital Audio (L) output from 1 to 16
channels when DI input.
▪Embedded Audio R : right)
elect Digital Audio (R) from 1 to 16
channels when DI input.
▪Audio Level Meter
elect ON/OFF for the function which can
display Embedded Audio signal of DI
input to display a Level bar on the screen.
▪Level Meter Position : elect position of level
display with upper or Lower.
▪Speaker Source : elect peaker output between Line (external input) and DI
(De-embedded).
▪Speaker Output : elect peaker output status among L, R, L/R, MIX and OFF.
▪Speaker Volume : elect peaker output level.
Speaker setting men is valid only for the option prod ct.
!
