bon BSM-093N3G User manual

Multi-Format Broadcast Monitor
BSM-093N3G, BSM-173N3G, BSM-183N3G,
BSM-213N3G, BSM-243N3G
User s Guide

Contents
Safety Instructions.......................................................................................................................3
Front............................................................................................................................................4
Rear.............................................................................................................................................6
MENU Description.....................................................................................................................8
VIDEO........................................................................................................................................9
DIS LAY 1...............................................................................................................................10

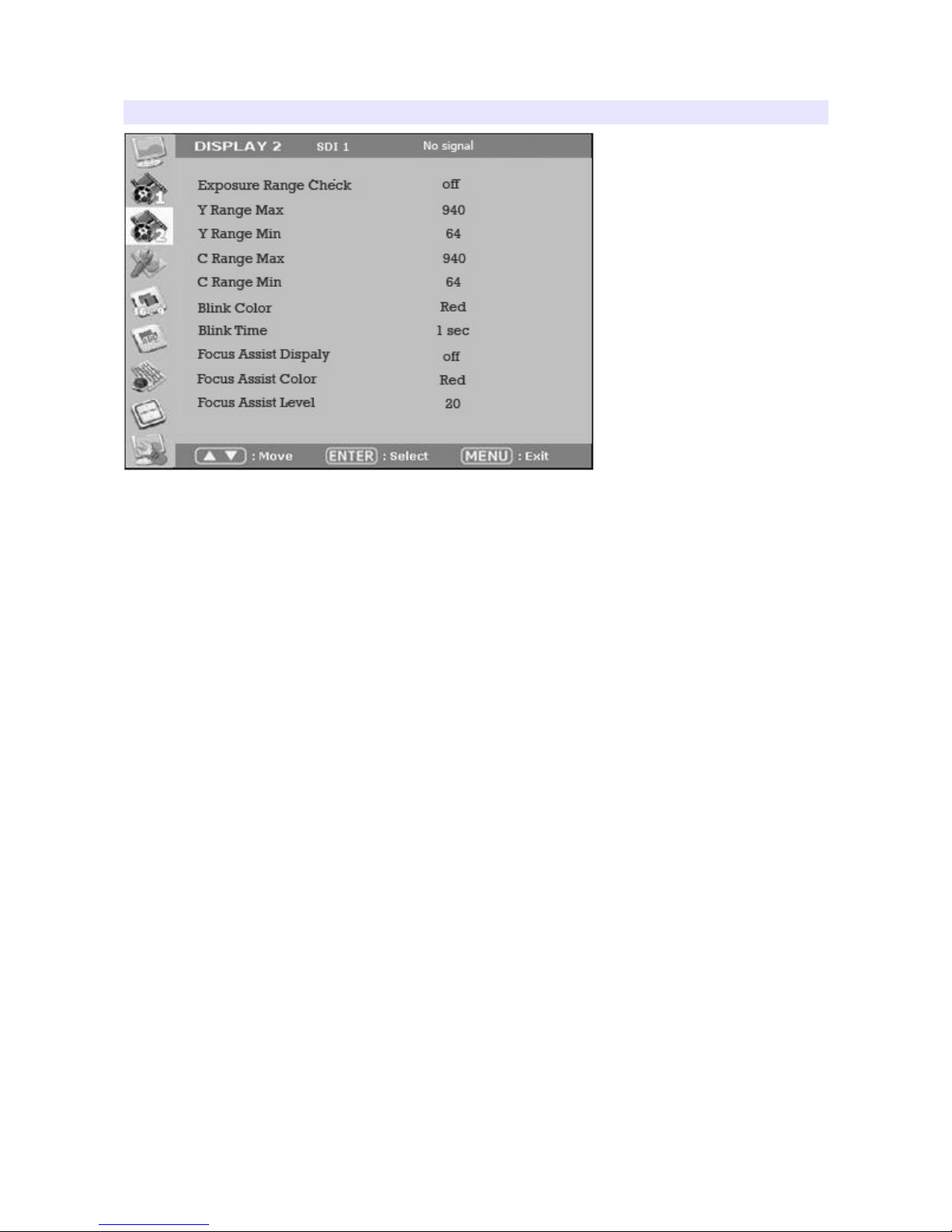

DIS LAY 2...............................................................................................................................12

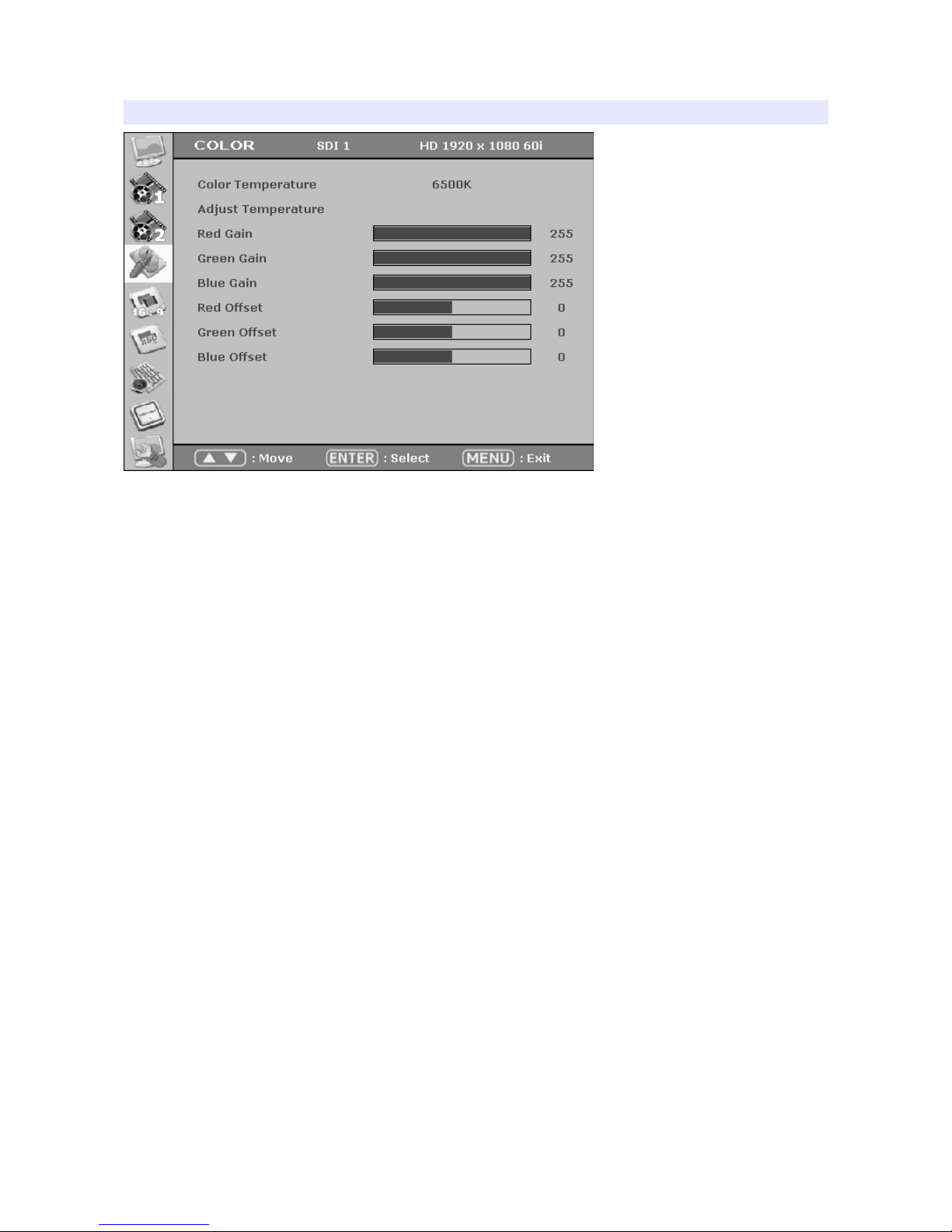

COLOR.....................................................................................................................................14
MARKER..................................................................................................................................15

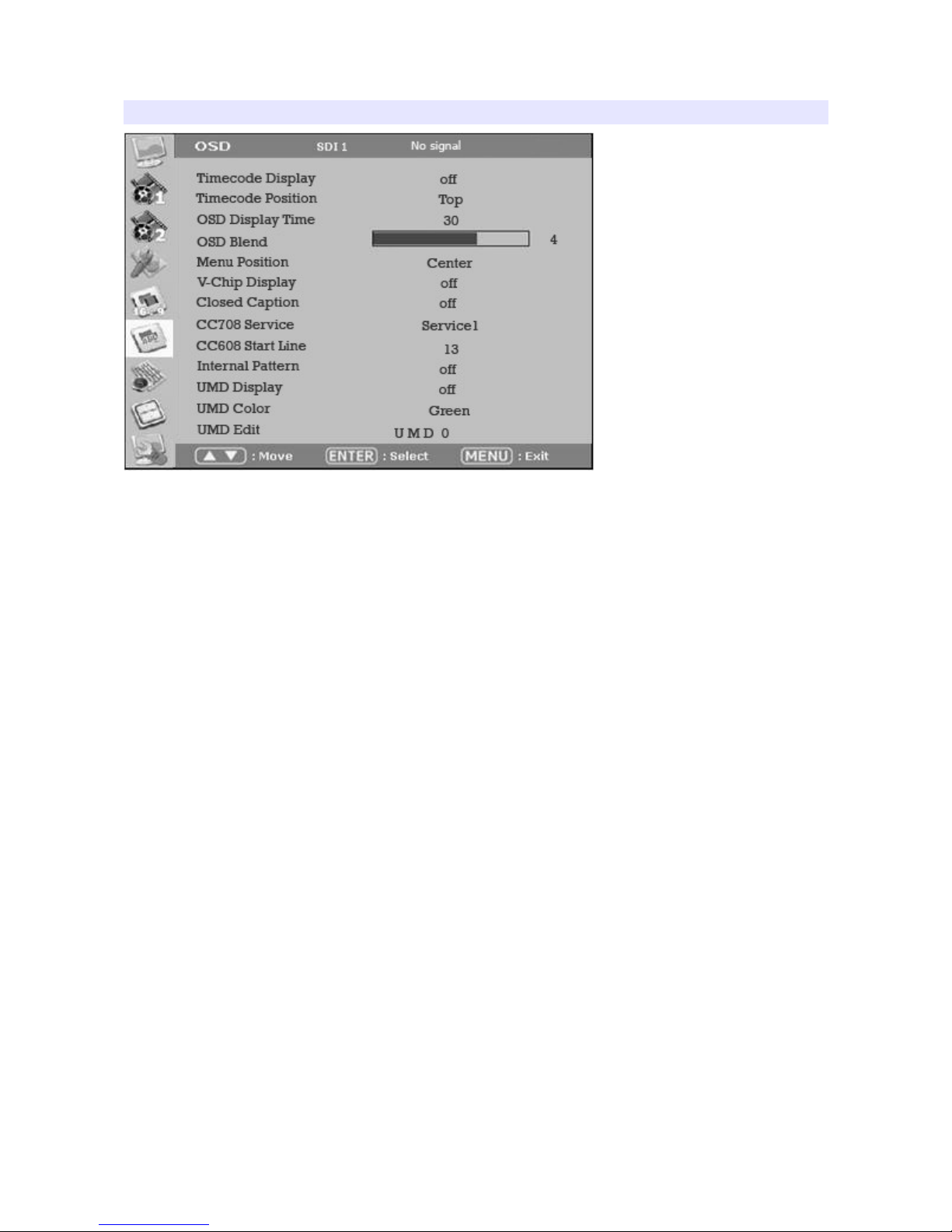

OSD...........................................................................................................................................17
OSD 2........................................................................................................................................19
AUDIO......................................................................................................................................20
G I............................................................................................................................................22
SYSTEM...................................................................................................................................24
USB Firmware Update..............................................................................................................26
External Remote Control..........................................................................................................27
List of Compatible Video Formats (HDMI/Composite)...........................................................29
List of Compatible Video Formats (SDI)..................................................................................30
Specifications............................................................................................................................32
Dimensions................................................................................................................................35
Troubleshooting........................................................................................................................36
Warranty Information................................................................................................................38
Modification of roduct............................................................................................................38
Caution on Menu Operation......................................................................................................38
Caution for Monitor lacement.................................................................................................38
Caution for Usage.....................................................................................................................38
2

Safety Instructions
•To help avoid damaging your monitor, connect only one power (AC or DC) in
operation.
•Rough handling of product may cause physical damage or malfunction.
•Never insert anything metallic into the monitor openings. Doing so may create
the danger of electric shoc .
•To avoid electric shoc , never touch the inside of the monitor. Only a qualified
should open the monitor’s case.
•Openings in the monitor cabinet are provided for ventilation. To prevent
overheating, these openings should not be bloc ed or covered.
•Minimum 50cm (20 inches) room to wall is necessary to prevent overheating
when the monitor is installed to wall.
•Put your monitor in a location with low humidity and a minimum of dust. Avoid
places li e damp basement or dusty hallways.
•Place the monitor on a solid surface and treat it carefully. The screen is made of
glass and can be damaged if dropped or sharply hit.
•Do not attempt to remove the bac cover, as you will be exposed to a shoc
hazard. The bac cover should only be removed by qualified service personnel.
•Unplug the monitor power before you connect external devices to the monitor.
•If your monitor does not operate normally, or if there are any unusual sounds or
smells coning from it, unplug it immediately and contact us.
•Please do not disassemble the monitor. No service will be provided in that case.
•Displaying fixed picture for a long time may cause an afterimage or dead spots.
To recover LCD pixels, display whole white picture on screen for a n hour or
two and pixels will be recovered.
•No service will be provided for user’s own color calibration.
3

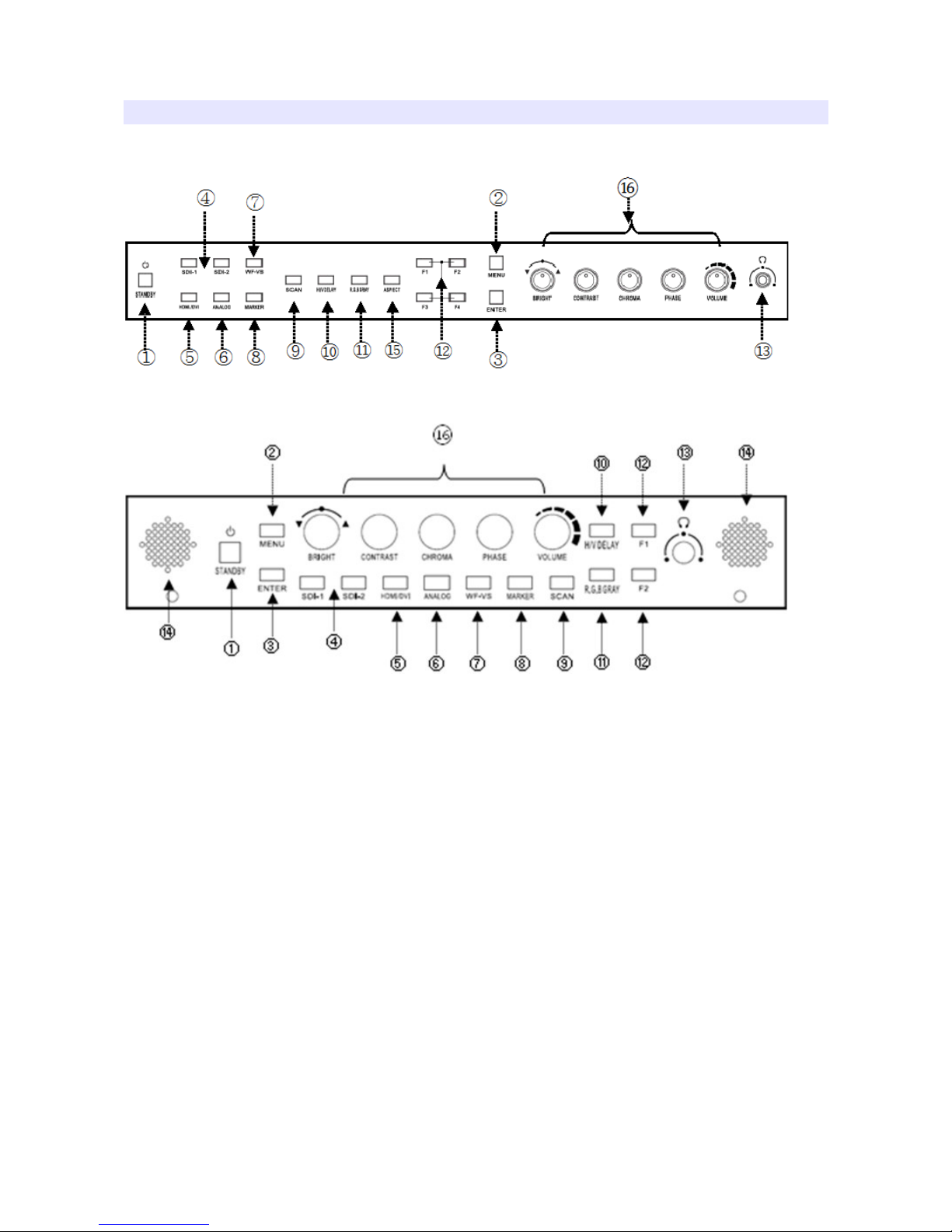

Front
1) Power
2) Menu
3) Enter
4) SDI 1, SDI 2 Input
5) HDMI/DVI Input
6) Analog
Switch analog input in the order of CVBS1 -> CVBS2 -> CVBS3 -> SVIDEO ->
YPbPr -> RGB -> VGA.
7) WF/VS
Waveform / Vectorscope display selection button.
4

8) Marker On/Off
9) Scan
Switch scan mode among Zero Scan, Under Scan, Over Scan, Pixel to Pixel in HD
resolution. Zero Scan, Under Scan, Over Scan, Pixel to Pixel in SD resolution.
10) H/V Delay
11) R/G/B Gray
Switch for Red/Green/Blue/Gray only.
12) Function Keys
User-assigned function eys.
13) Headphone Jack
14) Speaker
15) Aspect
Adjust aspect ratio in the order of 4:3, 16:9, Fill, Native.
16) Knob for Adjustment or Enter
Knob used to adjust Brightness / Contrast / Chroma / Phase or Enter button.
5

Rear
1,2) SDI Port
3) Component YPbPr/RGB or CVBS 1,2,3 Port
4) HDMI Port
5) DVI-I Port
6) Loop-Through Out for SDI-1/SDI-2 or YPbPr
7) AC Input
Please chec Power Cord, Power Voltage, Supply power for power input are
suitable for the standard before use.
6
⑥
①
②
③
④
⑤
⑦⑧
⑨⑩ ⑪ ⑫

Please do not mix AC power and DC power as it may cause the defects or fire.
8) DC Input
For DC power supply. Chec the DC Input voltage. In case of using the Battery
power, DC 11 ~ 27V is usable.
9) Update Port
The Serial communication terminal that for changing the operating
program(Firmware) of the body or controlling the monitor.
10) Remote Ethernet Port
External control via PC is able with this port by using 'Wall Control Program'.
Firmware is also updatable through this port.
11) USB Port
USB Firmware Update Port.
12) Power Button
Power turns off when pressed for one second.
13) Tally Lamp
Tally lamp displays Red, Green, Amber color tally.
14) Focus Assist
Displays focus area when pressed. The focus sensitivity is adjustable on the
display menu.
15) R/G/B/Gray Only
Displays Red, Green, Blue or Gray only as the button is pressed.
16) Audio Out
Stereo phone jac for audio output.
17) Menu Button
Menu and Exit button.
18) Knobs
Brightness, Contrast, Chroma, Volume adjustable nobs. The brightness nob is
also used as arrow nob to move up and down on the menu, User Zoom, etc.
7

MENU Description
General Cautions for OSD menu or Display
The menu may not be displayed even when user pressed Menu button if there's No
Signal, or in unclear signal status.
The menu selection may be saved for each input signal mode, so sometimes user
should do menu selection again.
8

VIDEO
Brightness, Contrast, Chroma, Phase, Sharpness
Adjust color representation values.
SDI 3G Mode
Turns on SDI 3G mode to accept 3G signal.
SDI Switching
Normal : Use Normal in general condition but the screen might be blin ing on
screen change when you use Matrix or Routing Switcher.
Fast : Use Fast to minimize blin ing on screen change.
NTSC Setup
Select IRE among 0 or 7.5 (Default)
HDMI UV Swap
Sometimes color might be swapped on some HDMI input such as PC RGB. Turn
this mode on to return to correct color.
Fast Mode
Use this mode to minimize afterimage on very fast video.
Dithering
Turn this mode on to view motion pictures smoothely when the source has low
quality.
9

DISPLAY 1
Aspect
Set the aspect ratio of the screen. 16:9, 4:3, Native(Original) are selectable.
1:1 Scan
Set this on to display picture in 1:1 pixel mapping.
AFD
Set this mode to set aspect ratio.
Waveform Display
Select waveform display mode. Choose Normal to analyze whole screen, choose
Line Select to analyze a specific line of the screen.
Waveform Line Select
Select the line when you select Line Select mode for Waveform display.
Waveform Select
Select waveform line to display among Y, Cb, Cr.
Waveform Color Mode
Select waveform color mode among Single or Mix.
10
