bora Classic 2.0 CKA2 User manual

EN Operating instructions Classic 2.0
000098-10006
bora.com

2bora.com
Contents
1 General information 4
1.1 Validity of the operating and installation
instructions ................................................................4
1.2 Liability ....................................................................... 4
1.3 Product conformity .................................................... 4
1.4 Data protection ..........................................................4
1.5 Presentation of information ......................................4
1.5.1 Safety and warning instructions ................................. 4
1.5.2 Figures........................................................................ 4
2 Safety 5
2.1 Intended use ..............................................................5
2.2 People with limited abilities ...................................... 5
2.3 General safety instructions ....................................... 5
2.4 Safety instructions – operation................................. 6
2.4.1 Safety instructions – cooktop extractor operation...... 7
2.4.2 Safety instructions – cooktop operation..................... 8
2.5 Safety instructions – cleaning and maintenance ..... 9
2.5.1 Safety instructions – cleaning and maintenance of
cooktop extractors ..................................................... 9
2.5.2 Safety instructions – cleaning and maintenance of
cooktops..................................................................... 9
2.6 Safety instructions – repairs, servicing and spare
parts .........................................................................10
3 Appliance description 11
3.1 Cooktop extractor....................................................11
3.1.1 Model description..................................................... 11
3.1.2 Structure .................................................................. 11
3.1.3 How it works............................................................. 11
3.1.4 Overview of features and functions .......................... 11
3.1.5 USB interface ........................................................... 12
3.1.6 Interface for external devices ................................... 12
3.2 System description ..................................................12
3.2.1 Operating panel and operating principle...................12
3.2.2 Symbols.................................................................... 13
3.2.3 7-segment display .................................................... 13
3.2.4 Colour concept ......................................................... 13
3.2.5 Lighting..................................................................... 14
3.2.6 Sounds ..................................................................... 14
3.2.7 Filter service display ................................................. 14
3.3 Cooktops ..................................................................14
3.3.1 Model description..................................................... 14
3.3.2 Structure .................................................................. 15
3.3.3 How the induction cooktops work ............................ 18
3.3.4 How the Hyper and HiLight cooktops work............... 19
3.3.5 How the gas glass ceramic cooktop works............... 19
3.3.6 How the Tepan stainless steel grill works ................. 20
3.3.7 Function overview..................................................... 20
3.4 Safety features.........................................................21
3.4.1 Safety shut-down...................................................... 21
3.4.2 Residual heat indicator ............................................. 21
3.4.3 Overheating protection............................................. 21
3.4.4 Child lock.................................................................. 21
4 Functions and operation 22
4.1 General and specific operating instructions...........22
4.1.1 Special operating instructions for the Tepan stainless
steel grill................................................................... 22
4.1.2 Special operating instructions for the gas cooktop... 22
4.2 Touch control ...........................................................23
4.3 Operating the system ..............................................23
4.3.1 How it works............................................................. 23
4.3.2 Switching on............................................................. 23
4.3.3 Switching off............................................................. 24
4.3.4 Control lock .............................................................. 24
4.3.5 Cleaning lock ............................................................ 24
4.3.6 Child lock.................................................................. 24
4.3.7 Short-time timer ....................................................... 24
4.4 Operating the cooktop extractor ............................25
4.4.1 Setting the fan power levels ..................................... 25
4.4.2 Fan power setting ..................................................... 25
4.4.3 Automatic extractor function.................................... 25
4.4.4 Switching the fan off................................................. 25
4.4.5 Automatic after-run .................................................. 26
4.5 Operating the cooktops...........................................26
4.5.1 Selecting cooking zones ........................................... 26
4.5.2 Setting cooking zone power levels............................ 26
4.5.3 Switching off the cooking zone................................. 26
4.5.4 Automatic heat up function ...................................... 27
4.5.5 Power setting............................................................ 27
4.5.6 Two-ring connection on cooktops CKCH and CKCB.. 27
4.5.7 Bridging function ...................................................... 27
4.5.8 Heat retention function............................................. 28
4.5.9 Cleaning function on the Tepan stainless steel grill .. 28
4.5.10 Cooking zone timer................................................... 29
4.5.11 Pause function.......................................................... 29
4.5.12 Pan size recognition.................................................. 29
5 User menu 30
5.1 Menu overview.........................................................30
5.2 How to use the menu...............................................30
5.3 Basic configuration ..................................................30
5.4 Standard menu.........................................................31
5.4.1 Menu item 1: volume of the acoustic signals............ 31
5.4.2 Menu item 2: Child lock............................................ 31
5.4.3 Menu item 3: Automatic extractor control................ 31
5.4.4 Menu item 4: Duration of the cleaning lock.............. 32
5.4.5 Menu item 5: Duration of the automatic after-run
function .................................................................... 32
5.4.6 Menu item 6: Software version................................. 32
5.4.7 Menu item 7: Hardware version................................ 32
5.4.8 Menu item 8: System software update ..................... 33
5.4.9 Menu item 9: Data export......................................... 33
5.4.10 Menu item A: Recirculation filter service life ............ 34
5.4.11 Menu item B: Show filter, change filter type and reset
filter status ............................................................... 34
5.4.12 Menu item H: Air Extraction system configuration.... 35
5.4.13 Menu item J: Ftyp Select filter type........................... 35
5.4.14 Menu item L: Fan configuration ................................ 35
6 Extended menu 37
6.1 Operating the extended menu ................................37
6.1.1 Access code required ............................................... 37
6.1.2 Calling up the extended menu .................................. 37
6.1.3 Exiting the extended menu ....................................... 37
6.2 Extended menu items..............................................37
6.2.1 Menu item D: Demo mode........................................ 37
6.2.2 Menu item E: Display and button test....................... 38
6.2.3 Menu point F: factory reset ...................................... 38
6.3 Gas configuration.....................................................38
6.3.1 Menu item P: PGU .................................................... 39
6.3.2 Menu item S: GASt ................................................... 39
6.3.3 Menu item T: GAS..................................................... 39
7 Cleaning and maintenance 41
7.1 Cleaning agents .......................................................41
7.1.1 Cleaning products for glass ceramic cooktops ......... 41
7.1.2 Cleaning products for the Tepan stainless steel grill
................................................................................. 41
7.2 Looking after your appliances.................................41

bora.com 3
7.3 Cleaning the cooktop extractor...............................41
7.3.1 Removing the components ....................................... 41
7.3.2 Cleaning the components......................................... 42
7.3.3 Fitting the components............................................. 42
7.3.4 Replace the activated charcoal filter ........................ 42
7.4 Cleaning the cooktops.............................................42
7.4.1 Cleaning glass ceramic............................................. 42
7.4.2 Cleaning the surface of the Tepan stainless steel grill
................................................................................. 43
7.4.3 Cleaning the components on the gas cooktop.......... 43
8 Troubleshooting 45
8.1 System troubleshooting ..........................................45
8.2 Cooktop extractor troubleshooting.........................45
8.3 Cooktop troubleshooting.........................................46
8.4 Gas cooktop troubleshooting..................................46
8.5 Dealing with errors ..................................................47
9 Warranty, technical service, spare
parts, accessories 48
9.1 BORA manufacturer’s warranty...............................48
9.1.1 Warranty extension................................................... 48
9.2 Service......................................................................48
9.3 Spare parts...............................................................48
9.4 Accessories ..............................................................48
10 Identification plates 50
11 Energy data sheets 51
11.1 CKA2 energy data sheet ..........................................51
11.2 CKFI energy data sheet ...........................................52
11.3 CKI energy data sheet .............................................52
11.4 CKCH energy data sheet..........................................52
11.5 CKCB energy data sheet..........................................53
11.6 CKG energy data sheet ............................................53

General information
EN
4bora.com
1 General information
These instructions contain important information to protect you from
injury and prevent damage to the appliance. Please read these
instructions carefully before installing or using the appliance for the
first time.
Other documents apply alongside these instructions. Please by all
means adhere to all documents that form part of the scope of
delivery.
Assembly, installation and commissioning must always occur in line
with national laws, regulations and standards. The work must be
performed by qualified specialists who know and comply with the
additional regulations of the local energy supply companies.
All safety and warning information as well as the handling instructions
in the accompanying documents must be observed.
1.1 Validity of the operating and
installation instructions
These instructions describe the BORA Classic 2.0 system with
software version 03.00.
These instructions apply to several appliance versions. It is therefore
possible that some of the features described do not apply to your
appliance. The details of the figures contained herein may differ from
some appliance versions and are to be understood as schematic
diagrams.
1.2 Liability
. BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC
Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as
BORA – do not assume any liability for damage arising from disregard
for or non-adherence to the documents included in the scope of
delivery!
Furthermore, BORA shall not be held liable for damage caused by
improper installation or failure to observe the safety and warning
information!
1.3 Product conformity
Directives
The appliances meet the following EU/EC directives:
T 2014/30/EU EMC Directive
T 2014/35/EU Low Voltage Directive
T 2009/125/EC Ecodesign Directive
T 2011/65/EU RoHS Directive
Regulations
Gas appliances meet the following EC directives:
T (EU) 2016/426 regulation on appliances burning gaseous fuels
1.4 Data protection
During operation your cooktop extractor saves pseudonymised data
such as menu settings entered by you, operating hours of the
individual technical units and the number of functions selected.
Furthermore, your cooktop extractor documents errors in
combination with the number of operating hours. Data can only be
read out manually via your cooktop extractor. This decision is
therefore your responsibility. These saved data then enable a rapid
error search and troubleshooting in the event of servicing.
1.5 Presentation of information
We use standard formatting, numbering, symbols, safety instructions,
terms and abbreviations so that you can work quickly and safely
when using this manual. The article described in these instructions is
hereinafter also referred to as an appliance.
Instructions are indicated with an arrow.
u Always follow all instructions in the prescribed order.
Enumerations are indicated with a bullet point at the start of the line:
T Enumeration 1
T Enumeration 2
Information notes point to special features that must be taken
into account.
1.5.1 Safety and warning instructions
The safety and warning instructions in this manual are emphasised
with symbols and signal words. Safety and warning instructions are
structured as follows:
öDANGER
Type and source of danger
Results of non-compliance
u Measures to minimise risk
Please note:
T warning symbols draw attention to a high risk of injury.
T The signal word indicates the severity of that risk.

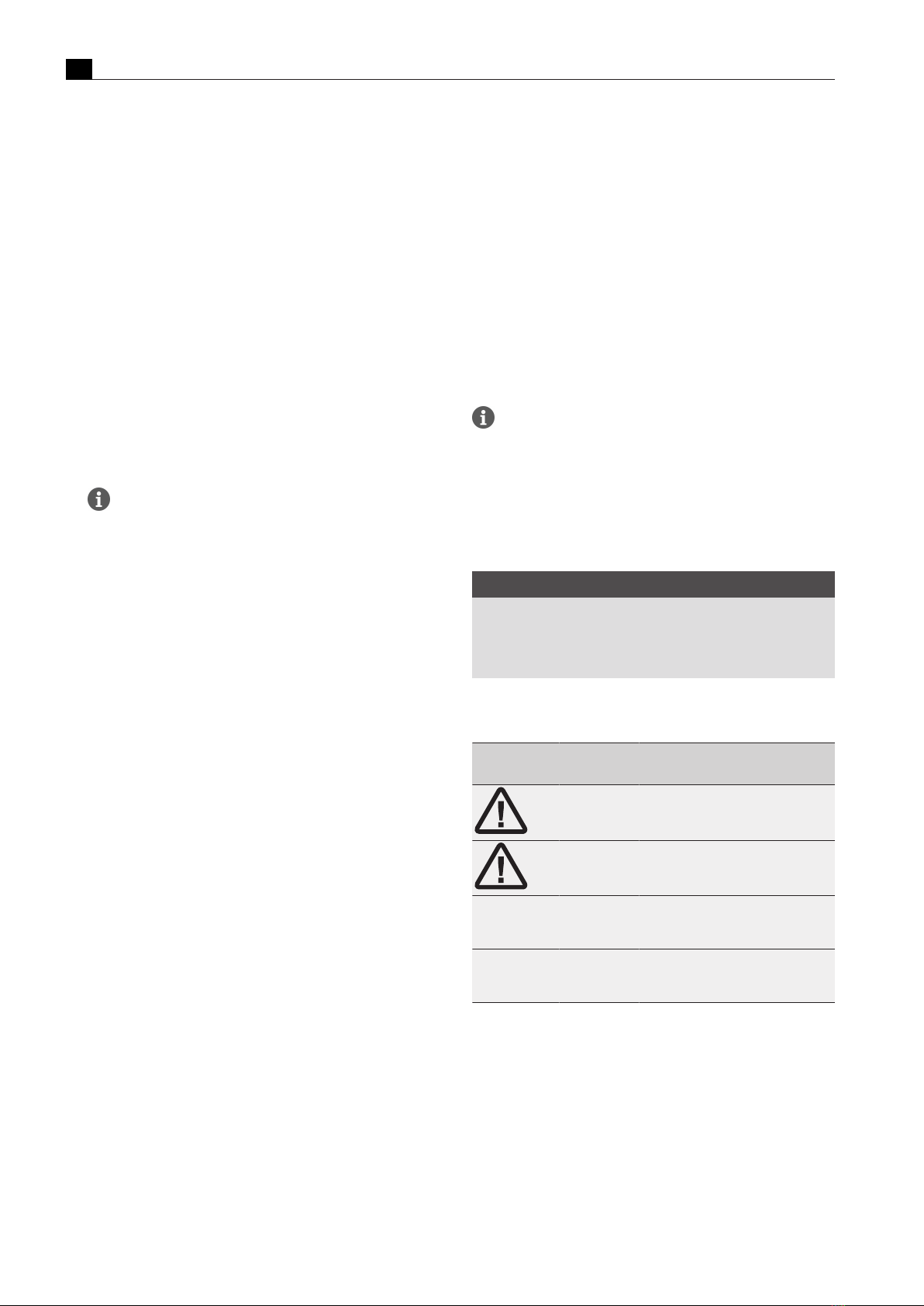

Warning
symbol
Signal word Risk
Danger Indicates an immediate, hazardous
situation which causes death or
serious injury if not respected.
Warning Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Caution Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Note Indicates a potentially hazardous
situation which can cause property
damage if not respected.
Tab.1.1 Meaning of the warning symbols and signal words
1.5.2 Figures
All measurements are provided in millimetres.

Safety EN
bora.com 5
2 Safety
The appliance complies with the stipulated safety requirements. The
user is responsible for the safe use of the appliance, cleaning and
maintenance. Improper use can lead to personal injury and damage
to property.
2.1 Intended use
The appliance is solely intended for preparing food in private
households.
This appliance is not intended for:
T outdoor use
T heating rooms
T cooling, ventilating or dehumidifying rooms
T use in mobile installation sites such as motor vehicles, ships or
aeroplanes
T use with an external timer or a separate remote control system
(except for emergency shutdown in the case of the cooktop
extractor)
T use at altitudes of over 2000m (metres above sea level)
T use when not fully installed
Any other use or any use that goes beyond that which is described
here is classed as unintended.
BORA does not assume any liability for damages caused by
incorrect installation, improper use or incorrect operation.
All misuse is prohibited!
2.2 People with limited abilities
Children
The appliance can be used by children aged 8 and over if they are
supervised or have been instructed how to use the appliance safely
and understand the resultant risks. Children must not play with the
appliance.
u Use the childproofing feature in order to prevent children from
switching on the appliance or changing the settings when they are
unattended.
u Supervise children in the vicinity of the appliance.
u Do not store any items that could be of interest to children in
storage spaces above or behind the appliance. Otherwise, they will
be tempted to climb onto the appliance.
Any work involving cleaning and maintenance must not be
carried out by children unless they are supervised at all times
while doing so.
People with reduced physical, sensory or mental
capacities
The appliance can be used by people with reduced physical, sensory
or mental capacities or a lack of experience and/or knowledge if they
are supervised or have been instructed how to use the appliance
safely and understand the resultant risks. Operation can be restricted
using the child lock.
öDANGER
Risk of burns from hot cookware and food
Handles projecting over the edge of the worktop are
asking to be grabbed.
u Keep children away from hot cooking zones or
ensure they are supervised at all times.
u Do not turn pot and pan handles so they stick out
beyond the work surface.
u Make sure that hot pots and pans cannot be
pulled down.
u If necessary, use suitable stove guards or covers.
u Only use stove guards and covers that are
approved by the appliance manufacturer;
otherwise, there is a risk of accidents.
u To choose a suitable stove guard, contact your
specialist retailer or the BORA Service Team.
2.3 General safety instructions
öDANGER
Packaging components are a choking hazard
Packaging components (e.g. film, polystyrene) can
be life-threatening for children.
u Store all packaging components out of reach of
children.
u Dispose of the packaging properly and
immediately.
öDANGER
Risk of electric shock or injury from damaged
surfaces
The underlying electronics can be exposed or
damaged due to fissures, fractures or cracks in
appliance surfaces (e.g. damaged glass), particularly
in the vicinity of the operating unit. This can cause
an electrical shock. Furthermore, a damaged
surface can cause injuries.
u Do not touch the damaged surface.
u If there are any cracks, fissures or fractures,
switch the appliance off immediately.
u Securely disconnect the appliance from the
mains using the circuit breaker, fuses, automatic
circuit breakers or contactor.
u Contact BORA Service.

Safety
EN
6bora.com
öWARNING
Risk of injury or damage due to incorrect
components or unauthorised modifications
Incorrect components can lead to personal injury or
damage to the appliance. Modifications, additions or
alterations to the appliance can lead to safety risks.
u Only use original components.
u Do not make any modifications, additions or
alterations to the appliance.
öWARNING
Risk of injury due to mechanical damage on the
appliance
Mechanical damage (e.g. cracks, deformation,
separation of adhesive seals, etc.) to the appliance,
as well as to cables and accessories can cause
injuries.
u Do not operate the appliance.
u Do not try to repair or replace damaged
components yourself.
u Contact BORA Service.
CAUTION
Appliance components can cause injury if
dropped
Appliance components can cause injury if you drop
them.
u Place any appliance components that have been
removed in a safe place near the appliances.
u Ensure that no components removed from the
appliances can fall on the floor.
CAUTION
Risk of injury from heavy lifting
If not handled correctly, carrying and installing
appliances can cause injury to the limbs or torso.
u If necessary, carry and install the appliance with
another person.
u Use appropriate aids to prevent damage or injury.
CAUTION
Damage from improper use
The appliance surfaces must not be used as work or
storage surfaces. This can damage the appliances
(particularly in the case of hard and sharp objects).
u Never use the appliances as work or storage
surfaces.
u Keep hard or sharp objects away from the
appliance surfaces.
PLEASE NOTE
Faults and errors
In the event of faults or incorrect use, error
messages will be displayed.
u In the case of faults and errors, follow the
instructions in the “Troubleshooting” chapter.
u In the event of any faults or errors that are not
mentioned, switch the appliance off and contact
BORA Service.
PLEASE NOTE
Appliance damage caused by pets
Pets may damage the appliance or injure
themselves.
u Keep pets away from the appliance.
2.4 Safety instructions – operation
öDANGER
Risk of fire from overheated oil or fat
Oil or fat in the pot can quickly heat up and ignite.
u Never leave the appliance unattended when
cooking with oil or fat.
u Never extinguish oil and fat fires with water.
u Switch off the appliance.
u Extinguish the fire using a pan lid or a fire
blanket, for example.
öWARNING
Risk of burning from hot appliances
Certain appliances and their exposed parts become
hot during use. They should be left to cool down
completely after switching off. Touching hot
surfaces can cause serious burns.
u Do not touch hot appliances.
u Pay attention to the residual heat indicator.

Safety EN
bora.com 7
öWARNING
Risk of burns due to power cut
During or after a power cut a cooktop that was
previously in operation may still be hot.
u Do not touch the appliance while it is still hot.
u Keep children away from the hot appliance.
öWARNING
Risk of burning and fire from hot objects
The appliance and its exposed parts are hot during
operation and the cooling phase. Objects in contact
with hot appliance components heat up very quickly
and can cause severe burns (this particularly applies
to metal objects such as knives, forks, spoons, lids
or appliance components) or catch fire.
u Do not place any items on the appliance.
u Please use suitable accessories (pot holders,
oven gloves).
u Do not simply rely on the pan size recognition
function on induction cooktops; always switch
the appliance off after use.
CAUTION
Damage caused by hot cookware
Hot cookware can damage certain components in
the appliance.
u Do not put hot cookware down in the area of the
operating panel or cooktop display.
u Keep hot cookware away from the air inlet nozzle.
PLEASE NOTE
Appliance damage
Incorrect use may cause damage to the appliance.
u Make sure that the base of the cookware as well
as the appliance surfaces are clean and dry.
u Always lift (do not drag) cookware to prevent
scratching and abrasion on the appliance surface.
u Do not use the appliance as a storage surface.
u Always switch off the appliance after use.
2.4.1 Safety instructions – cooktop
extractor operation
öDANGER
Risk of smoke inhalation
When the cooktop extractor is used in exhaust air
mode, it draws in air from the room it is installed in
and from neighbouring rooms. Without sufficient air,
there will be a drop in air pressure. When used at
the same time as a fireplace that is dependent on
the air in the room, noxious gases can be sucked
into the living areas from the chimney or outlet
shaft.
u Make sure that there is always a sufficient air
supply.
u Only use reliable, tried-and-tested switching
devices, (e.g. window contact switch, low
pressure warning device) and have them
approved by a qualified expert (certified chimney
sweep).
öWARNING
Fire risk from flambéing
While the cooktop extractor is working, it sucks up
grease from cooking. Flambéing food can cause the
grease to catch fire.
u Clean the cooktop extractor regularly.
u Never work with a naked flame while the cooktop
extractor is running.
CAUTION
Damage caused by objects or paper suctioned
in
Small and light items, such as cleaning cloths made
from material or paper, can be suctioned into the
cooktop extractor. This can damage the fan or
impair the exhaust performance.
u Do not store any items or paper on the cooktop
extractor.
u Only operate the integrated cooktop extractor
with the grease filter fitted.
CAUTION
Damage caused by grease and dirt deposits
Grease and dirt deposits can prevent the cooktop
extractor from functioning properly.
u Never use the cooktop extractor without a
correctly fitted stainless steel grease filter.

Safety
EN
8bora.com
PLEASE NOTE
Increased humidity
When cooking, additional moisture is released into
the ambient air. In recirculation mode, only a slight
amount of moisture is removed from the cooking
vapour.
u When using the recirculation mode, ensure a
sufficient supply of fresh air, e.g. by opening a
window.
u Ensure a normal and comfortable room climate
(humidity of 45 – 60%), e.g. by opening natural
ventilation openings or using domestic ventilation
systems.
2.4.2 Safety instructions – cooktop
operation
öDANGER
Danger of fire caused by leaving the cooktop
unattended
Oil or fat in the pot can quickly heat up and ignite.
u Never leave oil or fat to heat up unattended.
u Never extinguish oil and fat fires with water.
u Switch off the cooktop.
u Extinguish the fire using a pan lid or a fire
blanket, for example.
öDANGER
Danger of explosion caused by flammable
liquids
Flammable liquids in the vicinity of a cooktop can
explode and cause serious injury.
u Do not spray aerosols near the appliance when it
is in use.
u Do not place any flammable liquids in the vicinity
of a cooktop.
öDANGER
Risk of explosion and asphyxiation from gas
Leaking gas can lead to an explosion and severe
injuries, or asphyxiation.
u If you smell gas while using the appliance, switch
it off immediately.
u Keep sources of ignition (naked flames, electric
fires) away and do not operate any light switches,
or switches on electrical appliances.
u Do not remove plugs from sockets (risk of
sparking).
u Close the gas supply immediately and turn off the
mains supply.
u Ensure there is a good supply of fresh air (open
doors and windows).
u Inform Customer Care or your gas installer
immediately.
öDANGER
Fire risk from naked flame
A naked flame can cause adjacent objects to catch
fire.
u Turn the gas flame down to the lowest level if you
remove pots or pans briefly from the hob.
u Never leave a naked flame unattended.
u Extinguish any fire using a lid or a fire blanket, for
example.
u Close the gas supply and turn off the mains
supply.
öWARNING
Risk of burns from hot cooktop extractor when
using gas cooktops
The cooktop extractor and its exposed parts (in
particular the cover flap, stainless steel grease filter
and grease filter tray) become hot when an adjacent
gas cooktop is in use. The cooktop extractor must
be left to cool down after the gas cooktop has been
switched off. Touching hot surfaces can cause
serious burns.
u Never touch the cooktop extractor when it is hot.
u Keep children away from the cooktop extractor
when it is hot or ensure they are supervised at all
times.

Safety EN
bora.com 9
öWARNING
Risk of burns from hot liquids boiling over
Unattended pans can boil over allowing hot liquids
to escape.
u Keep an eye on pans when cooking.
u Avoid over-cooking.
u Always switch off the appliance after use.
öWARNING
Risk of burns from hot steam
Liquid between the cooking zone and cookware
base can evaporate and cause burns.
u Make sure that the cooking zone and the
cookware base are always dry.
PLEASE NOTE
Damage caused by sugary and salty foods
Sugary and salty foods and juices can damage the
hot cooking zone.
u Make sure sugary and salty foods or juices do not
get onto the cooking zone while it is hot.
u Remove sugary and salty foods and juices from
the hot cooking zone immediately.
CAUTION
Electromagnetic radiation
Effect on pace makers, hearing aids and metal
implants. Induction cooktops generate a high-
frequency electromagnetic field in the area of the
cooking zones. The cooking zones may affect
pacemakers, hearing aids or metal implants
negatively or disturb their function when in close
proximity.
u If in doubt, contact the manufacturer of your
medical device or your doctor.
2.5 Safety instructions – cleaning
and maintenance
PLEASE NOTE
Appliance damage due to soiled appliances
Dirt can lead to damage, restriction of functions, or
bothersome odours.
u Clean the appliance regularly.
u Remove dirt immediately.
u When cleaning, only use non-abrasive detergents
to prevent scratching and abrasion on the
surface.
u When cleaning, ensure that no water penetrates
the appliance. Use only a slightly damp cloth.
Never spray the appliance with water. Water
penetration can cause damage.
u Do not use a steam cleaner for cleaning. Steam
can cause a short circuit on live parts and thus
lead to property damage.
u Please follow all instructions in the “Cleaning and
Maintenance” chapter.
2.5.1 Safety instructions – cleaning and
maintenance of cooktop
extractors
öDANGER
Risk of fire from fat deposits
The risk of fire can be increased by failure to clean
the grease filter properly and on a regular basis, or if
the filter change is overdue.
u Clean and replace the filter at regular intervals.
PLEASE NOTE
Appliance damage and malfunctions
Soiled ventilation openings can lead to component
damage and malfunctions.
u Keep all ventilation openings open and clean.
2.5.2 Safety instructions – cleaning and
maintenance of cooktops
öWARNING
Risk of burns from hot surfaces
There is a risk of burns when cleaning hot cooktops.
u Only clean the cooktops once they have cooled.
u Pay attention to the residual heat indicator.

Safety
EN
10 bora.com
2.6 Safety instructions – repairs,
servicing and spare parts
öDANGER
Risk of injury when carrying out repairs
Insufficient expertise can lead to injury when
carrying out repairs.
u The appliance must only be repaired and serviced
by trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local utility
companies.
u Safely disconnect the appliance from the mains
supply.
u Work on electrical components must only be
conducted by trained electrical personnel.
u A damaged power supply cable must be replaced
by a suitable power supply cable.
öWARNING
Risk of injury or damage from improper repairs
Incorrect components can lead to personal injury or
damage to the appliance. Modifications, additions or
alterations to the appliance can lead to safety risks.
u Only use original spare parts for repairs.
u Do not make any modifications, additions or
alterations to the appliance.
CAUTION
Risk of injury during repair of gas appliances
Insufficient expertise can lead to injury when
disassembling the appliance.
u The gas connection must only be worked on by
reliable trained specialists who are familiar with
and comply with the standard national
regulations and supplementary regulations of the
local utility companies.

Appliance description EN
bora.com 11
3 Appliance
description
u Observe all safety and warning information (see"2Safety").
3.1 Cooktop extractor
The cooktop extractor is the central component and contains
all of the electronics for operating the entire system. It is not
possible to operate the system or individual components
without a cooktop extractor.
3.1.1 Model description
Model Long description
CKA2 Classic cooktop extractor
flexible system with separate control unit, can be
combined with the Classic cooktops and other Universal
components
CKA2AB Classic cooktop extractor All Black
flexible system with separate control unit, can be
combined with the Classic cooktops and other Universal
components
Tab.3.1 Model description
3.1.2 Structure
1
2
3
4
Fig.3.1 Classic cooktop extractor
[1] Air inlet nozzle
[2] Grease filter unit
[3] Cooktop extractor
[4] Control unit
3.1.3 How it works
Depending on the model you purchased, the cooktop extractor can
be operated as an exhaust air or a recirculating air version.
Exhaust air
The air suctioned away is purified by the grease filter and expelled
into the open air via a duct system.
The exhaust air must not be expelled into:
T a smoke or exhaust gas flue that is in operation
T a shaft used for the aeration of rooms where fireplaces are
installed.
If the exhaust air is to be directed into a smoke or exhaust gas flue
that is not in use, the installation must be checked and approved by
the responsible heating engineer.
If the cooktop extractor is used in an exhaust air system, the
extractor power is automatically increased for the first 20
seconds when set on a lower power level (wall sleeve
function).
Recirculation
The air suctioned away is purified by the grease filter and an activated
charcoal filter and fed back into the room in which the appliance is
installed.
To prevent odours in recirculation mode, an odour filter must be
used. For health and hygiene reasons, the activated charcoal filter
must be replaced at the recommended intervals (Cleaning and
maintenance).
In recirculation mode, ensure sufficient ventilation and
aeration to expel humidity.
If the cooktop extractor is used in a recirculating air system,
when a power level is set the operating time is automatically
deducted from the recirculation filter service life. The
remaining filter service life can be seen in the menu.
3.1.4 Overview of features and functions
Features CKA2 / CKA2AB
Automatic fan detection 3
Electronic power adjustment 3
Interface communication 3
Compact grease filter unit 3
Functions
Automatic after-run 3
Power setting 3
Automatic extractor function 3
Filter service indicator (recirculation mode) 3
Safety features
Control lock 3
Safety shut-down 3
Active error monitoring 3
Tab.3.2 Overview of features and functions

Appliance description
EN
12 bora.com
3.1.5 USB interface
The USB port is only designed for updates or data export and
only has sufficient power supply for these processes. It is not
possible to charge devices or carry out other functions.
The system has a USB port. This port is only suitable for mass storage
devices (USB sticks). These USB sticks must be formatted with the
FAT32 data system.
3.1.6 Interface for external devices
The internal interface can be used for extended control options. This
has a Home In and a Home Out contact (see the Installation chapter).
T The Home-In contact can be used for the signal input from external
switch devices (e.g. window contact switch).
T The Home Out contact can be used to control external
installations.
3.2 System description
u Always use the latest system software to operate the BORA Classic
2.0 system.
The latest software is available free of charge on the BORA
website (www.bora.com – Products – BORA Classic 2.0 –
BORA Classic cooktop extractor CKA2/CKA2AB –
Documents).
u If necessary, query the installed software version (see"5.4.6Menu
item 6: Software version").
u Update the system software if necessary (see"5.4.8Menu item 8:
System software update").
3.2.1 Operating panel and operating
principle
The system is operated via the operating panel on the
cooktop extractor.
1 or 2 cooktops can be controlled and operated by a single
cooktop extractor.
How it works and its functions are described in more detail in
the “Functions and operation” chapter.
The cooktop extractor and cooktops are operated via a central
operating panel. The operating panel is fitted with electronic sensor
buttons and display panels. The sensor buttons respond to finger
contact (touch zones).
Fig.3.2 Central touch/slider operating panel
1
2
3
4
5
6
7
4
8
9
Fig.3.3 Touch zones
[1] Switching on/off
[2] Higher-level functions
[3] Navigation
[4] Power level setting zone plus/minus
[5] Cooking zone selection (x 4)
[6] Touch slider (power level setting zone)
[7] Bridging function (2x)
[8] Fans
[9] Additional cooking functions and menu

Appliance description EN
bora.com 13
1
2
3
4
5
Fig.3.4 Indicator zones
[1] Multi-function display
[2] Hot cooking zone or residual heat indicator (4x)
[3] Cooking zone indicator (4x)
[4] Bridging function indicator (2x)
[5] Additional cooking function indicator (4x4)
3.2.2 Symbols
General
symbols
Designation Function/operation
Power button Switching on/off
Pause button Activating/deactivating the pause
function
Cleaning button Activating/deactivating the
cleaning lock
Start button Starting the timer
Short-time timer
button
Setting the short-time timer (egg
timer)
Lock button Control lock
Slider Setting values
Plus button Increasing values
Minus button Decreasing values
Forwards button Navigation to the right
Backwards button Navigation to the left
Fan button Activating/deactivating the
automatic extractor function,
cancelling the after-run function
Menu button Calling up the menu, closing the
menu
Tab.3.3 General symbols (icons)
Cooking
zone
symbols
Designation Function/operation
Ring button 2-ring additional switching
Timer button Setting the cooking zone timer
Heat-up button Automatic heat up function
activation/deactivation
Warming button Heat retention function
activation/deactivation
Bridging button Bridging function
activation/deactivation
Bridging indicator Bridging function active
Hot indicator The cooking zone is heating up or
is still hot
Tab.3.4 Cooking zone symbols (icons)
3.2.3 7-segment display
Fan display Meaning
- Power levels
Power setting
Automatic extractor function
Multi-function display Meaning
e.g. ° Temperature indicator (only on CKT)
: : Remaining time on the timer or short-time
timer
e.g. Error code
Cooking zone indicator Meaning
- Power levels
Power setting
Heat retention level 1
Heat retention level 2
Heat retention level 3
Inactive
Residual heat indicator (cooking zone is
switched off but still hot)
Cleaning (only on the Tepan stainless steel grill
CKT)
Error
Animations Meaning
Pan size recognition (only on induction
cooktops)
Cleaning (only on the Tepan stainless steel grill
CKT)
Tab.3.5 Meaning of the 7-segment display
3.2.4 Colour concept
Fundamentally, all fan setting ranges are shown in blue and all
cooking zone setting ranges are shown in red in the operating
panel. Other colours are used for functions and messages.
List of all colour indicators:

Appliance description
EN
14 bora.com

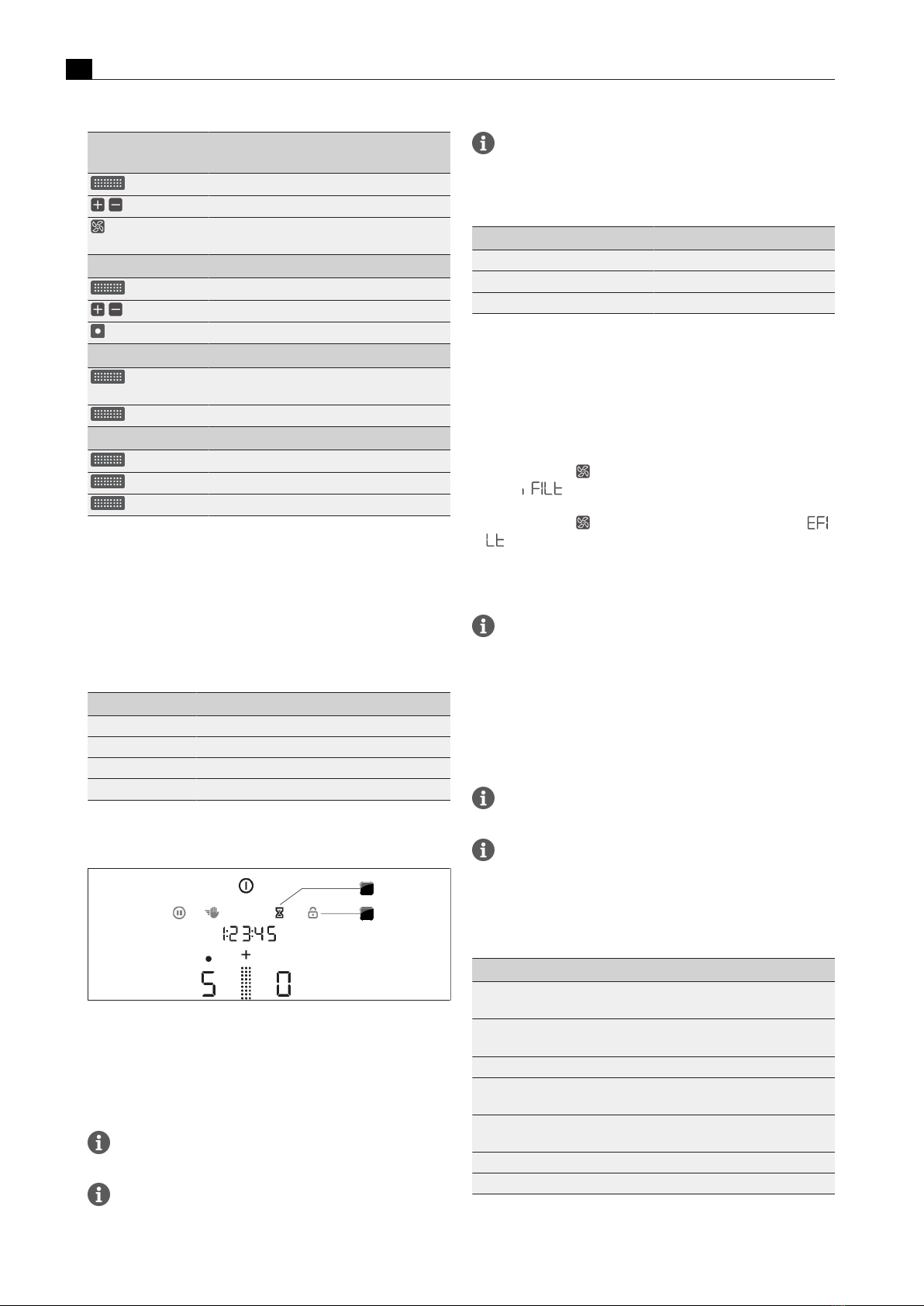

Indicator Fan (cooktop
extractor)
Colour
Slider Blue
Plus/minus Blue
Fan symbol/automatic
extractor function
Blue
Indicator Cooking zones Colour
Slider Red
Plus/minus Red
Cooking zone hot Signal red
Indicator Functions Colour
Switch animation on/
off
Beige
Set timer Beige
Indicator Messages Colour
Warnings Orange
Error Signal red
OK Green
Tab.3.6 Colour indicator
3.2.5 Lighting
The operating panel has 4 different levels of lighting. (100%, 75%, 50%
and 0%).
On principle the system adapts the lighting to the current operating
scenario. Relevant display elements are more brightly lit and
irrelevant ones are dimmed. Unavailable functions are faded out.
Lighting Use
100% Function is active and selected
75% Function is active but not selected
50% Function is inactive and can be selected
0% Function is unavailable
Tab.3.7 Lighting
Example:
1
2
Fig.3.5 Operating panel lighting
[1] Active and selectable function (brightly lit, 75%)
[2] Inactive but selectable function (dimmed, 50%)
3.2.6 Sounds
The volume of the acoustic signals can be set in the menu
(10% to 100% ).
Safety-relevant acoustic signals are always emitted with the
volume at 100%.
The acoustic signals from the cooking zone timer and short-
time timer are always emitted with the volume at 100%.
The system basically differentiates between three different types of
acoustic signals:
Acoustic signal Purpose
Short beep (0.25 s ) Confirmation of a selection
Sequence of beeps Interaction required
Long beep (0.75 s ) End of a function
Tab.3.8 Sounds
3.2.7 Filter service display
The maximum service life of the recirculation filter is defined by the
filter type configured in the system (filter service life). Depending on
the type of filter fitted, the filter service display will be activated after
300 or 600 operating hours.
T If the fan symbol lights up yellow and the multi-function display
shows after switching on the cooktop extractor, this is
informing you that the filter needs to be changed soon.
T If the fan symbol lights up in signal red and the error code
is shown in the multi-function display after switching on the
cooktop extractor, the end of the filter service life has been
reached and the filter must be replaced (see"7.3.4Replace the
activated charcoal filter").
If the service life of the activated charcoal filter is exceeded,
the correct functioning of the system may be affected. It is
still possible to use the cooktop extractor, however, the
warranty and guarantee claims shall then be invalid. The
components of the grease filter require regular cleaning
regardless of the filter service display.
3.3 Cooktops
The cooktops are the variable components for the system and
can only be operated in conjunction with the cooktop extractor.
You can see exactly which appliances have been installed in
your system on the penultimate page of the Operating
instructions (see"10Identification plates").
3.3.1 Model description
Model Long description
CKFI Classic surface induction glass ceramic cooktop with 2
cooking zones
CKI Classic induction glass ceramic cooktop with 2 cooking
zones
CKIW Classic induction glass ceramic wok
CKCH Classic Hyper glass ceramic cooktop with 2 cooking
zones 1-ring/2-rings
CKCB Classic HiLight glass ceramic cooktop with 2 cooking
zones 1-ring/2-ring/roaster
CKG Classic gas glass ceramic cooktop with 2 cooking zones
CKT Classic Tepan stainless steel grill with 2 cooking zones
Tab.3.9 Model description

Appliance description EN
bora.com 15
3.3.2 Structure

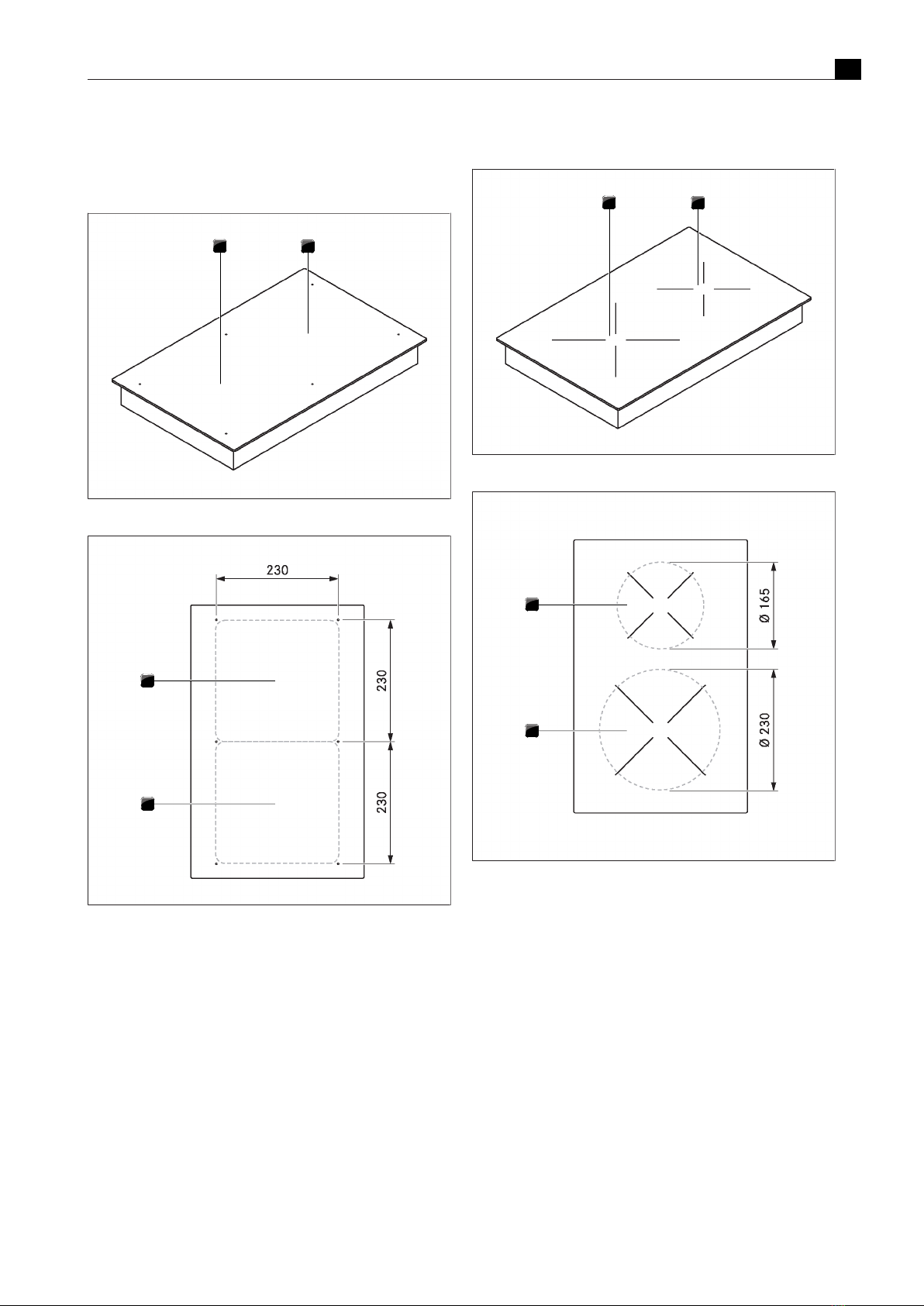

Cooktop CKFI
12
Fig.3.6 Classic cooktop CKFI
1
2
Fig.3.7 Size of the cooking zones
[1] Front surface induction cooking zone (zone 1)
[2] Rear surface induction cooking zone (zone 2)
Cooktop CKI
12
Fig.3.8 Classic cooktop CKI
1
2
Fig.3.9 Size of the cooking zones
[1] Front induction cooking zone (zone 1)
[2] Rear induction cooking zone (zone 2)

Appliance description
EN
16 bora.com

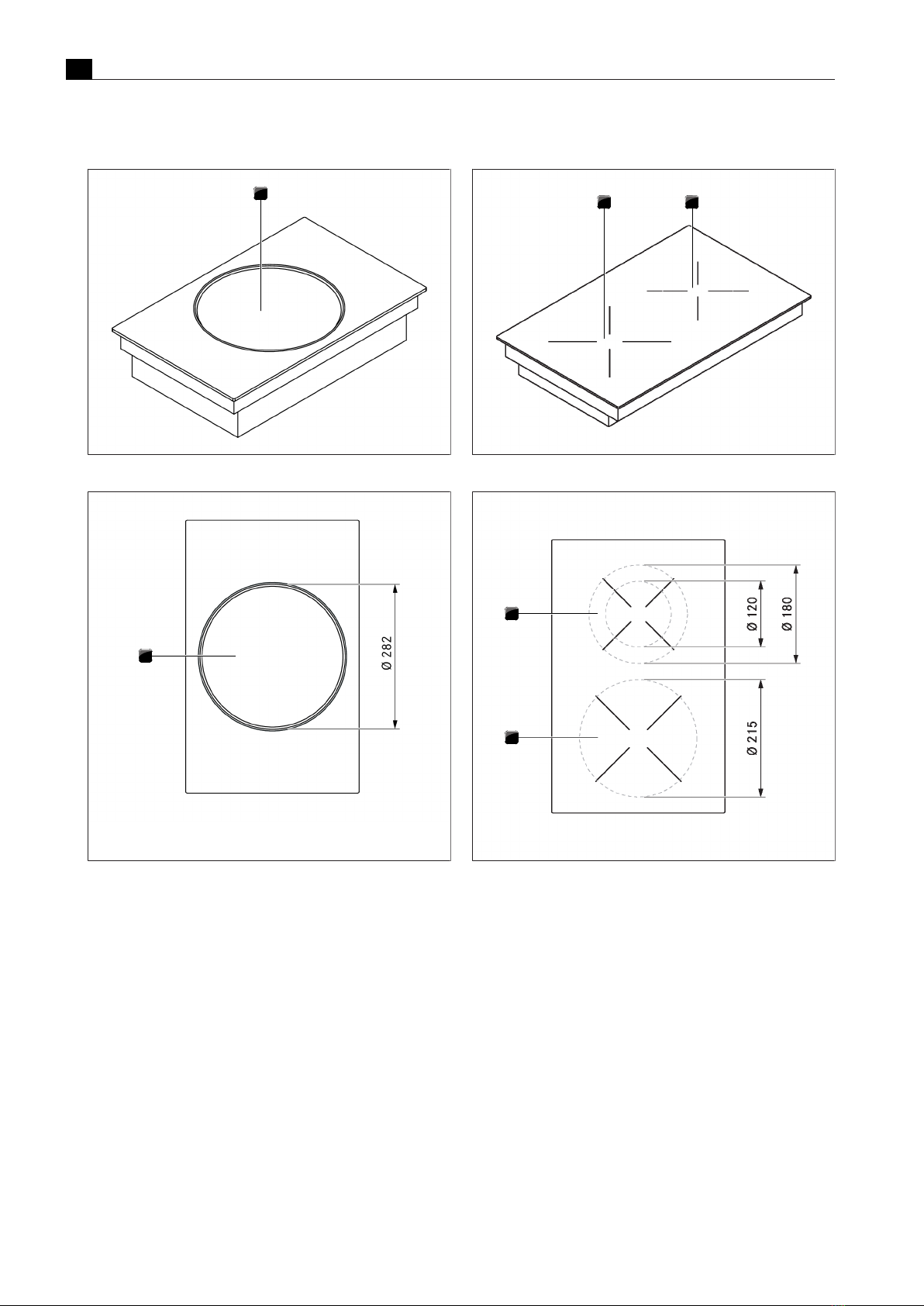

Cooktop CKIW
1
Fig.3.10 Classic cooktop CKIW
1
Fig.3.11 Size of the cooking zone
[1] Induction wok cooking zone
Cooktop CKCH
1 2
Fig.3.12 Classic cooktop CKCH
1
2
Fig.3.13 Size of the cooking zones
[1] Hyper front cooking zone (zone 1)
[2] 2-ring rear cooking zone (zone 2)

Appliance description EN
bora.com 17

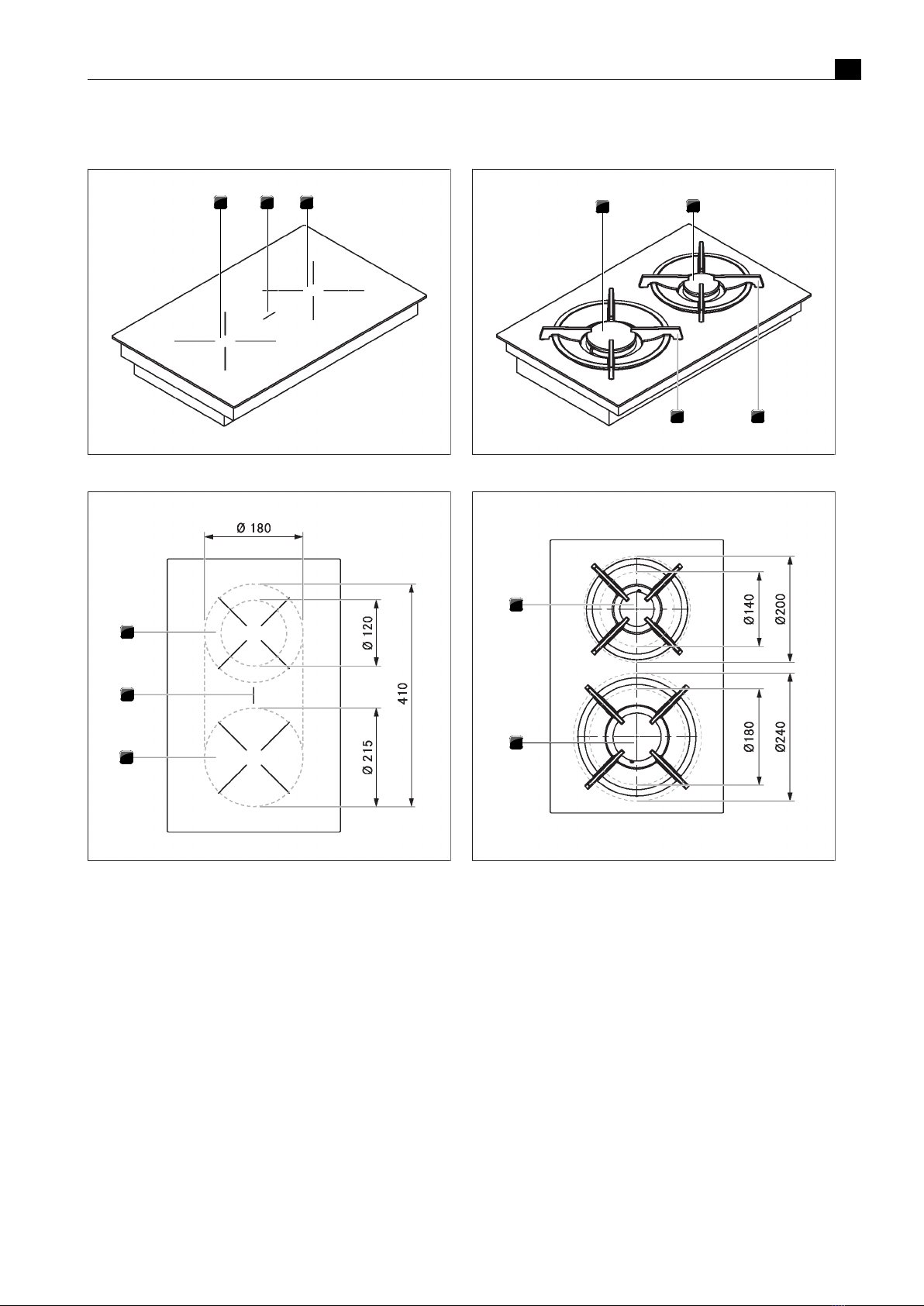

Cooktop CKCB
123
Fig.3.14 Classic cooktop CKCB
1
2
3
Fig.3.15 Size of the cooking zones
[1] Front cooking zone (zone 1)
[2] Roaster cooking zone
[3] Front cooking zone (zone 1)
Cooktop CKG
12
34
Fig.3.16 Classic gas glass ceramic cooktop CKG
1
2
3
4
Fig.3.17 Size of the cooking zones
[1] Front high-power burner
[2] Normal rear burner
[3] Rear pan support
[4] Front pan support

Appliance description
EN
18 bora.com
Cooktop CKT
1 2
Fig.3.18 Classic Tepan stainless steel grill CKT
1
2
Fig.3.19 Size of the cooking zones
[1] Front grilling zone (zone 1)
[2] Rear grilling zone (zone 2)
3.3.3 How the induction cooktops work
An induction coil is located underneath an induction cooking zone. If
the cooking zone is switched on, this coil creates a magnetic field
that acts directly on the base of the pot thus heating it up. The
cooking zone is only indirectly heated up by the heat emitted by the
pot. Cooking zones with induction only work if the cookware has a
magnetisable base.
Induction automatically takes into account the size of the cookware
used which means that only the area in the cooking zone covered by
the base of the pot is heated up.
u Observe the minimum pot base diameter.
Power levels
The high power output of induction cooktops results in the very quick
heating up of cookware. In order to avoid burning food, slight
adjustment is needed in comparison to conventional cooking systems
when selecting the power level.
Activity Power level
Melting butter and chocolate, breaking up gelatine
Keeping sauces and soups warm, soaking rice -
Cooking potatoes, pasta, soups and ragouts,
steaming fruit, vegetables and fish, defrosting food
-
Frying in coated pans, moderate frying (without
overheating the fat) of pork cutlets or fish
-
Heating up fat, browning meat, cooking thickened
sauces and soups, making omelettes
-
Cooking large amounts of liquids, grilling steaks
and heating water
Heating up water
Tab.3.10 Recommendations for power levels
The specifications provided in the table are standard values.
Depending on the cookware and filling quantity, it is recommended to
either decrease or increase the power level.
Suitable cookware
Cookware with this symbol is suitable for induction cooktops. The
cookware used for the induction cooktop must be made of metal,
feature magnetic properties and possess an ample base.
Suitable cookware is made of:
T stainless steel with a magnetisable base
T enamelled steel
T cast iron
Appliance Cooking zone Minimum cookware
base diameter
CKFI Front 120 mm
Back 120 mm
CKI Front 120 mm
Back 90 mm
CKIW Wok 210mm
Tab.3.11 Minimum cookware diameter
u Perform a magnet test, if necessary. If a magnet sticks to the base
of the utensils, they are normally induction compatible.
u Pay attention to the cookware base. The base of the cookware
should not show any sign of curvature (exception: wok cooktops).
Due to incorrect hob temperature monitoring, this curvature may
cause the cookware to overheat. To avoid scratching the cooktop,
the base of the cookware must not have any sharp grooves or
sharp edges.
u Place the cookware (without a mat or similar) directly onto the
glass ceramic.
The heating and heat-through times for the cookware base, as
well as the cooking results, are significantly influenced by the
structure and material of the cookware.
u The induction wok (HIW1) is ideal for the Induction wok cooktop
and is available as an accessory.

Appliance description EN
bora.com 19
Noises
The following noises may occur in the cookware when using induction
cooking zones, depending on the material and the finish of the base:
T Humming may occur when using a high power level. This decreases
or disappears when the power level is decreased.
T Crackling or whistling may occur due to cookware bases being
made of different materials (e.g. sandwich base).
T Clicking sounds may occur during electronic switching procedures,
especially at low power levels.
T Whirring may occur when the cooling fan is switched on. In order
to increase the service life of the electronic system, the cooktop is
equipped with a cooling fan. The cooling fan switches on
automatically if the cooktop is used intensively. You will hear a
whirring sound. The cooling fan may continue to run after the
appliance has been switched off.
3.3.4 How the Hyper and HiLight
cooktops work
Under the cooking zone is a radiant heating element with a heating
tape. When the cooking zone is switched on, the heating tape
generates radiant heat, which radiates to the cooking zone and heats
it up.
Power levels
Activity Power level
Melting butter and chocolate, breaking up gelatine
Keeping sauces and soups warm, soaking rice -
Cooking potatoes, pasta, soups and ragouts,
steaming fruit, vegetables and fish, defrosting food
-
Frying in coated pans, moderate frying (without
overheating the fat) of pork cutlets or fish
-
Heating up fat, browning meat, cooking thickened
sauces and soups, making omelettes
-
Cooking large amounts of liquids, grilling steaks
and heating water
Heating up water
Tab.3.12 Recommendations for power levels
The specifications provided in the table are standard values.
Depending on the cookware and filling quantity, it is recommended to
either decrease or increase the power level.
Power setting on the Hyper cooktop
The front cooking zone on the Hyper glass ceramic cooktop is fitted
with a temporary power setting.
T is displayed.
The power setting can be used in order to quickly heat up large
quantities of water. If the power setting is activated, the cooking
zones will run at extra high power. After 10 minutes, the cooking zone
automatically switches back to power level 9.
Suitable cookware
Cookware with this symbol is suitable for radiant heating
elements. The cookware used for radiant heating surfaces must be
metal and have good heat conducting properties.
Suitable cookware is made of:
T stainless steel, copper or aluminium
T enamelled steel
T cast iron
u Pay attention to the cookware base. The bottom of the cookware
should not show any sign of curvature. Due to incorrect hob
temperature monitoring, this curvature may cause the cookware to
overheat. To avoid scratching the cooktop, the base of the
cookware must not have any sharp grooves or sharp edges.
u Place the cookware (without a mat or similar) directly onto the
glass ceramic.
The heating and heat-through times for the cookware base, as
well as the cooking results, are significantly influenced by the
structure and material of the cookware.
3.3.5 How the gas glass ceramic
cooktop works
If a cooking zone is switched on, the flame generates heat, which
directly heats the base of the cookware. The gas flame is controlled
by a highly accurate electronic gas control system (e-gas system).
Among other things, servomotors are used to accurately control each
gas burner. These servomotors calibrate themselves from time to
time and typical humming noises can be heard that are totally normal
and do not constitute a malfunction. The advantage of this electronic
gas control system is the optimum, repeatable heat regulation, which
means that the selected power levels are identical in every cooking
session. In addition, a clean, constantly increasing flame is formed at
every power level. Furthermore, if necessary, it can be automatically
reignited.
The cooktop has automatic ignition.
Power levels
The power is adjusted using power levels 1 – 9 and P. The output of
gas cooktops means that food is heated quickly. In order to avoid
burning food, slight adjustment is needed in comparison to
conventional cooking systems when selecting the power level.
Activity Power level
Keeping cooked meals warm -
Browning chopped vegetables, fried eggs, veal,
poultry
-
Grilling prawns, corn on the cob, schnitzel, beef,
fish or burgers
-
Bringing large amounts of liquid to the boil,
searing steaks
-
Heating up water
Tab.3.13 Recommendations for power levels
The specifications provided in the table are standard values.
Each gas cooking zone is equipped with a safety
thermocouple. This element detects if the flame has gone out
(e.g. if a pan has boiled over or there is a strong draught). The
gas supply is then turned off and the burner is automatically
reignited. If reignition is not possible, the gas supply is
stopped. A gas leak is therefore prevented.
Suitable cookware
Cookware with this symbol is suitable for gas cooktops.
Suitable cookware is made of:

Appliance description
EN
20 bora.com
T copper
T stainless steel
T aluminium
T cast iron
Adhere to the dimensions in the table:
Burner Minimum pan
diameters
Recommended pan
diameter
Normal burner 120 mm 140–200mm
High-power burner 160 mm 180–240mm
Tab.3.14 Pan diameters
Only use cookware with a diameter that is within the given
dimensions. If the diameter is too large, the hot gases flowing
outwards from under the base may damage the worktop or
any non-heat-resistant wall, e.g. with panelling, as well as part
of the cooktop and the cooktop extractor. Bora shall not be
held liable for any such damage.
The heating and heat-through times for the cookware base, as
well as the cooking results, are significantly influenced by the
structure and material of the cookware. Cookware with a
thick base ensures more even heat distribution. In the case of
a thin base there is a risk of the food becoming overheated in
places. The cooktop may also become damaged.
Take special care not to overheat the cookware as the base
can become deformed. For this reason, you should never heat
up cookware when empty.
Cookware with an uneven base may tip over. A slight wobble
can never be completely ruled out.
3.3.6 How the Tepan stainless steel grill
works
Under each grilling zone there is a heating element. When a grilling
zone is switched on, the heating element generates heat that directly
heats the grill surface.
Power levels and temperature ranges
The power is adjusted via power levels that are also shown in the
operating panel display in °C (temperature display).
Power level Temperature in °C
1 = 150
2 = 160
3 = 170
4 = 180
5 = 190
6 = 200
7 = 210
8 = 220
9 = 230
P = 250
Tab.3.15 The temperatures corresponding to the power levels
The power output of the Tepan stainless steel grill heats food
extremely quickly. A slight adjustment is needed in comparison to
conventional cooking systems when selecting the temperature in
order to avoid burning food.
Activity Temperature in °C
Steaming fruit, e.g. apple slices, peach halves,
banana slices
-
Browning chopped vegetables, fried eggs, veal, poultry
-
Browning breaded or battered fish, pancakes,
sausages, pork, lamb
-
Browning potato fritters, prawns, corn on the cob
and escalopes
-
Fast browning beef, fish, meatballs -
Browning steaks (Power
setting)
Tab.3.16 Temperature recommendations (the specifications provided
in the table are standard values)
3.3.7 Function overview
The BORA Classic 2.0 cooktops have the following features and
functions:
Features CKFI CKI CKIW CKCH CKCB CKT CKG
Electronic power
adjustment
3333333
Power setting 3 3 3 3*3 3
Short-time timer
(egg timer)
3333333
Automatic ignition
and autom.
reignition
3
Electronic gas
adjustment system
(e-gas system)
3
Cooking functions
Automatic heat up
function
33333 3
Pan size recognition 333
Keep warm 3333333
Bridging function 3 3 3
Timer function 33333 3
Pause function 3333333
2-ring additional
switching (rear
cooking zone)
3 3
Cleaning lock (wipe
function)
3333333
Cleaning function 3
Safety features
Child lock 3333333
Residual heat
indicator
3333333
Safety shut-down 3333333
Overheating protection 3333333
Tab.3.17 Function overview
