4
Introduction
Congratulations! You are the official owner of a Boretti wine cabinet. In the
years to come you will discover that the use of a Boretti wine cabinet gives a
new dimension to cooling. We advise you to read this manual carefully before
taking the cabinet in use to get to know all the ins and outs of this beautiful
appliance. Please inform us if you have any questions. You are welcome to
visit our Experience Center anytime, we are happy to inspire and help with

We wish you a lot of cooling pleasure! Enjoy the aperitivo’s and dinners like
never before!
Boretti
Product Registration
To register ownership, please ensure you complete the online registration form
www.boretti.com.
ENBoretti Wine Cabinets / User guide - Installation advice

5
Contents
* 1. Important safety issues .......................................................................................... 6
* 2. Installation ................................................................................................................. 9
* 3. Usage of product....................................................................................................17
* 4. Care & Cleaning ...................................................................................................... 23
* 5. Troubleshooting...................................................................................................... 24
ENBoretti Wine Cabinets / User guide - Installation advice

6
1. Important safety issues
*To prevent damage to the door and door gasket, make sure the door

*Do not move the wine cabinet when it is loaded with wine, you might
distort the appliance.
*If the power supply cord becomes damaged it should only be replaced
by the manufacturer or qualifed person.
*Never allow children to operate on playing with the appliance.
*
*
liquids in the vicinity of this or any other appliance. This can create

*Always remember to unplug the appliance before cleaning. When
disconnecting from the electricity supply, pull the plug, not the power
cord.
*Do not use anything electrical inside the wine cabinet.
*All repairs must be carried out by a qualifed service engineer.
Inadequate repairs may result in a major source of danger for the user
and invalidate any warranty.
*Never store anything dangerous inside the appliance, such as
combustibles, explosives, strong acid or alkali etc.
*Always keep any ventilation openings clear of obstruction. Should they
become blocked, clear them straight away.
*Make sure that the plug is in an accessible place when installation is
complete.
*Only use this appliance for domestic purposes in accordance with
these instructions.
*The wine cabinet is suitable for storing wine (or other bottled

*If the refrigerant of these appliances are R600a, Flammable and
explosive articles should not be put in or near the cabinet, to
avoid the fire or explode caused.
Warning
Do not allow the refrigerant circuit to become damaged while using
or installing the appliance. Should it become damaged, do not use

Refrigerant can ignite or cause damage to the eye when leaking.
ENBoretti Wine Cabinets / User guide - Installation advice

7
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive
on Waste Electrical and Electronic Equipment (WEEE). By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please contact your
local council, your household waste disposal service or the retailer where you
purchased the product.
CE declaration of confirmity
Hereby, Boretti B.V. declares that this appliance has been
manufactured to the standards of the CE guidelines and
directives applicable for CE conformity.
Warranty
Your new wine cabinet is covered by warranty. Registration can be completed
online by visiting www.boretti.com. Spare parts are only available from Boretti

ENBoretti Wine Cabinets / User guide - Installation advice

8
Technical fiche
This appliance conforms to all current and applicable energy regulations. To
view the Technical Fiche that supports the energy labelling data, please visit the
product page on our website www.boretti.com. Or scan the QR-code to contact
the EPREL database.
MLWC82
ENBoretti Wine Cabinets / User guide - Installation advice

9
2. Installation
2.1 Before use
Before connecting the wine cabinet to the power source, let it stand upright for
at least 6 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Read the instructions supplied with the appliance – failure to install or use of
the appliance in accordance with the instructions may invalidate any warranty.
Boretti does not accept any liability for damage caused through improper use,
or incorrect installation. Do not install this appliance if it has been damaged
during transportation. This includes the plug and supply cord.
Please keep these instructions in a safe place for future reference.
2.2 Installation of the wine cabinet
1. Place you wine cabinet on a flat floor that is strong enough to support
it when it is fully loaded.
2. This appliance uses flammable refrigerant. Never damage the cooling
pipework during transportation and installation.
3. Locate the wine cabinet away from direct sunlight and sources of heat
(stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating
and heat sources may increase electrical consumption. Extreme cold
ambient temperatures may also cause the unit not to perform properly.
4. Avoid locating the unit in moist areas.
5. Put the plug of the wine cabinet into an appropriate socket. Should
the plug require changing, get help from a qualifed service technician.
6. Ensure the product is correctly ventilated (See section 1.3).
7. Plug the wine cabinet into an exclusive, properly installed-grounded wall
outlet. Do not under any circumstances cut or remove the third (ground) pin
from the plug. Any questions concerning power and/or grounding should
be directed toward a certified electrician or Customer Service Boretti.
ENBoretti Wine Cabinets / User guide - Installation advice

10
2.3 Ventilation
The MLWC82 is already equipped with a vent slot on the front side. This model
is also recessed to fit a kitchen plinth. If fitting a kitchen plinth is desired, please
remove the air grid by removing both screws in front. A 55mm high vent slot is
required in the plinth to ensure air is able to ventilate properly. See the diagram
below.
Failure to include this vent slot will invalidate the guarantee. Please note that
the appliance doesn’t come with a grille which slots-onto the kitchen plinth.
2.4 Appliance dimensions
ENBoretti Wine Cabinets / User guide - Installation advice

11
* Measurement will be deeper if the front is installed on the cabinet
Length of power cord: 200cm
Maximum door opening angle: 100°
ENBoretti Wine Cabinets / User guide - Installation advice

12
2.5 How to change the door opening
This appliance has reversible doors but is delivered with a right hand hinged
door. Should wish to reverse the hinge on your unit, follow the directions below:

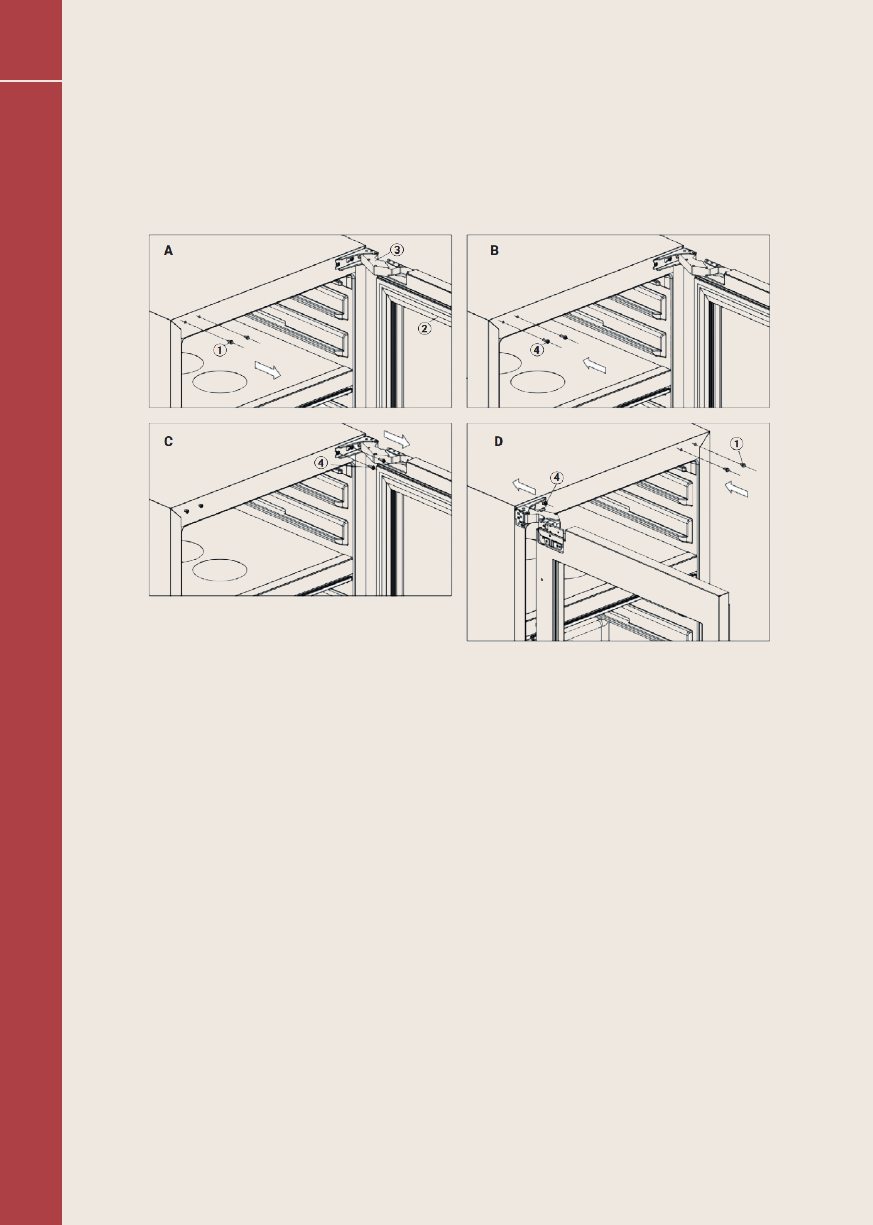

1.Decorative screws 2. Door 3.Door Hinge 4.Screws
1. Open the door and remove the decorative covers (1) on the left hand side
as shown in Fig. A.
2. Fix the screws into these positions a per Fig.B, but do not fasten the screws.
3. Remove all screws from both the upper and lower hinge, and then remove
the door.
4. Rotate the door 180 degrees, and place the hinges into the screws fixed
in Fig.B. Once slotted onto these screws, tighten the screws to secure the
hinges (Fig D).
5. Placed the decorative covers in the right hand side and screw holes as
shown in Fig.D
2.6 Installing the appliance
Place you wine cabinet on a floor that is strong enough to support it when it
 The kitchen unit must be aligned horizontally and vertically.
You will need to install a furniture door frame to the front of the wine cabinet
once wine cabinet has been installed.
ENBoretti Wine Cabinets / User guide - Installation advice

13
The furniture door frame can be custom made (by the kitchen reseller) to line
up with your other furniture doors in the kitchen. The door must be finished on
both sides in order to prevent warping.
Note:
The door panel must not weight more than 10kg.
Note:
We recommend the door thickness does not exceed 18mm. If a thicker
door is used, the door may make contact with the adjacent furniture door
when opened.
Steps
1. If you want to adjust the height over 820mm, please install the product
using the foot sliders provided. These are provided to help prevent the

BACK
FRONT
2. To level you wine cabinet, adjust the front and back by leveling adjustable
legs at the bottom of the cabinet (to 4mm less than the recess or handlebar

noises.
3. Slide in the appliance until the front surface of the appliance door is behind
the cabinet fronts. Place the furniture door frame on the cabinet to determine
the right installation depth. Please make sure when sliding in the appliance,
that the power supply cord is not damaged.
4. The included bracket will keep the product secure and help prevent it moving
when in use. Line the fixing bracket with the two holes at the top of the wine
cabinet. Use the screws to secure into position. Use the screws to secure the
bracket to the side of the kitchen cabinet.
ENBoretti Wine Cabinets / User guide - Installation advice

14
5. Installing the furniture door
If a handle is required, please ensure this is installed in an appropriate
position before the furniture door is installed on the cabinet door.
i. Fully open door.
ii. Starting at the corner, pull the gasket away from the door. Continue to pull
the gasket free from the gasket channel.
iii. Upon removal, lay gasket down on a flat surface.
iv. Align the furniture door panel with the cabinet doors. Secure the furniture
door to the appliance door using clamps.
v. Using a 3 mm drill bit, drill 6 pilot holes into the wood panel 12 mm deep
using the holes in the door frame as a guide.
Note:
It is important to ensure that all drilled holes are drilled to the
correct depth in order to avoid splits in the wood when hardwood
is installed. You must also take care not to drill all the way through
the door.
vi. Locate 6 of the M4x34 mm screws provided with your unit.
vii. Use a screwdriver, place one screw into each of the 6 pilot holes and screw
into the door, Be careful not to over tighten screws. Ensure the screws sit

Note:
If panel requires additional adjustment after removing clamps,
slightly loosen each screw and adjust panel as necessary. Tighten
screws upon completion.
viii. Starting at the corners, re-install the gasket into the gasket channel in the

into the channel.
ENBoretti Wine Cabinets / User guide - Installation advice

15
2.7 Example inframe style door
This is an example of a X13 Raster size handleless kitchen cabinet door.
The height of the furniture door will need to be adjusted to ensure it lines up
with the other kitchen cabinet doors, therefore these dimensions will vary.

Note:
The furniture door can extend beyond the appliance door, however you
must ensure a gap of at least 75mm is left between the bottom of the

ENBoretti Wine Cabinets / User guide - Installation advice

16
2.8 Permitted room temperature
The permitted room temperature depends on the appliance’s climate class.

Climate Class Permitted room temperature
SN 10°C – 32°C
N16°C – 32°C
ST 16°C – 38°C
T16°C – 43°C
SN-ST 10°C – 38°C
SN-T 10°C – 43°C
The appliance is fully functional within the permitted room temperature. If
an appliance with climate class SN is operated at colder room temperatures,

ENBoretti Wine Cabinets / User guide - Installation advice

17
3. Usage of product
3.1 Touch control keys and symbols
To switch the wine cabinet on/off. Press and hold this button for
approximately 1 second to turn the wine cabinet on. Press and hold
this button for approximately 3 seconds to turn the wine cabinet off.
To turn the lock function on/off. Press and hold this button for
approximately 3 seconds to activate/deactivate. When activated

+/-




Once the required temperature is selected, the LED display will temporarily flash for
5 seconds, then reverts back to the normal display, and the temperature is now set.
Note
Press and hold +/- for 3 seconds, to change the display from °C to °F.
This button is used to toggle between the different light functions.
When selected, the relevant symbol will illuminate:
The internal light will switch on when the door is opened, and
off when the door is closed.
The internal light is continuously on. However after 3 minutes
the light will dim.
The internal light will remain on for 10 minutes once the door is
closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key
for 3 seconds until flashes. Then use the +/- keys to adjust
the brightness of the internal light.
ENBoretti Wine Cabinets / User guide - Installation advice

18
This Button is used to toggle between the different operational
functions. When selected the relevant symbol will illuminate:
Standard Mode – Select this function to operate the wine cabinet in
standard mode.
ECO Mode – An energy saving mode where both the inner light and
control panel lights are off. The LED display is also switched off, until
you change the temperature using the +/- and +/- keys, this will be


Intelligent mode – In Intelligence mode, the wine cabinet will adjust the fan
speed according to the ambient temperature. This will reduce noise levels
and save money.
DEMO Mode – When Demo mode is selected, the compressor and PTC
heater will be disabled, and the fan input voltage reduces to 9V. The HI/
LO temperature alarm is also disabled during DEMO mode.
The cooling symbol will illuminate to show when the wine cabinet is
currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will
activate when either the door has been left open for a long period of time,

in display to confirm this).
ENBoretti Wine Cabinets / User guide - Installation advice

19
3.2 Bottle stacking
The maximum storage capacity for Bordeaux style of bottles (0,75L) is 35


section 2.4 how storage racks can be removed.
Note:
If you wish to store other type of bottles, the maximum storage capacity
will be less than as shown above.
11 BORDEAUX
6 BORDEAUX
6 BORDEAUX
6 BORDEAUX
6 BORDEAUX
5 CHAMPAIGN
11 BORDEAUX
6 BORDEAUX
6 BORDEAUX
ENBoretti Wine Cabinets / User guide - Installation advice

20
3.3 How to replace the charcoal lter
All MLWC82 models are fitted with a charcoal filter, which ensure optimum air
quality within the appliance. The charcoal filter should be replaced every 6-9
months depending on the unit’s exposure level to odour.
1. Open the door and remove the top 2 shelves (see removing the shelves).
2. Turn the filter as per Fig A.
3. As per Fig B, the filter should line up with the notches as shown.
4. Pull filter out as per Fig. C.
5. Insert replacement filter and twist as per Fig. Ato lock into position.
6. Re-install the shelves.
ENBoretti Wine Cabinets / User guide - Installation advice
