Bosch ISC-CDL1-WA15G User manual

Commercial Series TriTech+
Motion Detector with Anti-mask
ISC-CDL1-WA15G, ISC-CDL1-WA15G-CHI, ISC-CDL1-WA15H,
ISC-CDL1-WA15K, ISC-CDL1-WA12G, ISC-CDL1-WA12G-CHI
en Reference Guide
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

3
Commercial Series TriTech+ Motion Detector with Table of contents | en
Anti-mask
Table of contents 
1 Safety  4
2 Introduction  5
2.1 About documentation  5
2.2 Bosch Security Systems, Inc. product manufacturing dates 5
3 Detector overview 7
4 Installation considerations 8
5 Installation 11
5.1 Self-locking cam 11
5.2 Install options 12
5.3 Wire knockouts 14
5.4 Bubble level 15
6 Wiring 16
6.1 Wiring overview 16
6.1.1 Input Power terminals 16
6.1.2 Alarm terminals 16
6.1.3 Tamper terminals 17
6.1.4 Trouble terminals 17
6.2 EOL resistors overview 17
6.3 EOL resistor loop combinations 21
6.3.1 Single EOL loop — Alarm and Tamper 21
6.3.2 Double EOL loop — Alarm and Tamper 22
6.3.3 Double EOL loop — Alarm and Tamper with separate Trouble Input 22
6.3.4 Triple EOL loop — Alarm, Tamper, and Trouble Input 23
7 Configuration and walk test 24
7.1 Look-down zone 24
7.2 Walk test LED 24
7.3 Anti-mask 25
7.4 Walk test 26
7.4.1 Establish the PIR and microwave coverage 26
7.4.2 Establish the coverage pattern 27
7.4.3 Adjustable Cloak and Camouflage Detection Technology sensitivity 27
7.4.4 Adjustable microwave sensitivity 28
7.5 Self test 29
8 Troubleshooting  30
8.1 Motion detector does not appear to respond to motion  30
8.2 Motion detector is in continuous alarm  30
8.3  Motion detector does not appear to detect motion in the space directly under it 30
8.4  Motion detector does not appear to detect motion near the edge of the coverage area 30
8.5  Motion detector does not appear to detect motion in the farther section of the 30
coverage area
8.6  Motion detector LED flashes continuously 30
8.7  Motion detector LED flashes three times in a row repeatedly 31
8.8  Motion detector LED flashes four times in a row repeatedly 31
8.9  Motion detector LED flashes five times in a row repeatedly 31
9 Coverage pattern  32
Bosch Security Systems, Inc  Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

4 en | Safety Commercial Series TriTech+ Motion Detector with
Anti-mask
1 Safety
Changes or modifications not expressly approved by Bosch Security Systems, Inc. can void the
user’s authority to operate the equipment.
At least once per year, vary the range and coverage. To ensure continual daily operation,
instruct the end user to walk through the far end of the coverage pattern. This ensures an
alarm output prior to arming the system.
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
ROHS
For use in China: CHINA ROHS DISCLOSURE TABLE
Sensors
Hazardous substance table according to SJ/T 11364-2014
Pb
(Pb)
Hg
(Hg)
Cd
(Cd)
Cr 6+
(Cr 6+)
PBB
(PBB)
PBDE
(PBDE)
PCB XOOOOO
Electronic components XOXXOO
PCBA XOXOXX
Cables XOXOXX
Plastic materials OOOOXX
Metal materials XOXXOO
Glass material (lenses) XOOOOO
Terminal block XOXXOO
This table was created according to the provisions of SJ/T 11364
O: The content of such hazardous substance in all homogeneous materials of such
component is below the limit defined in GB/T 26572
X: The content of such hazardous substance in a certain homogeneous material is above the
limit defined in GB/T 26572
The manufacturing datecodes of the products are explained in:
http://www.boschsecurity.com/datecodes/
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

5
2.2
Commercial Series TriTech+ Motion Detector with Introduction | en
Anti-mask
2 Introduction
This document provides installation, configuration, and operation information for Commercial
Series motion detectors. Throughout this document, the words "motion detectors” refer to all
motion detectors covered by this document (ISC-CDL1-WA15G, ISC-CDL1-WA15H, ISC-CDL1-
WA15K, ISC-CDL1-WA15G-CHI. ISC-CDL1-WA12G, ISC-CDL1-WA12G-CHI).
Review the content within the following sections before installing the motion detector:
– Detector overview, page 7
– Installation considerations, page 8
– Wiring, page 16
2.1 About documentation
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is protected by
copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
Notifications
This document uses Notices, Cautions, and Warnings to draw your attention to important
information.
Notice!
These include important notes for successful operation and programming of equipment, or
indicate a risk of damage to the equipment or environment.
!
Caution!
These indicate a hazardous situation which, if not avoided, could result in minor or moderate
injury.
!
Warning!
These indicate a hazardous situation which, if not avoided, could result in death or serious
injury.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems, 
Inc. website at http://www.boschsecurity.com/datecodes/. 
The following image shows an example of a product label and highlights where to find the 
manufacturing date within the serial number. 
Bosch Security Systems, Inc Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

6 Commercial Series TriTech+ Motion Detector with en | Introduction Anti-mask
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

7
3
Commercial Series TriTech+ Motion Detector with Detector overview | en
Anti-mask
Detector overview
1
2
3
4 3 2 1
12 k
2.2 k
J
33 k
2.2 k 1.0 k
2.2 k
1.0 k
3
1
ON
OFF
LED
2
HI
LO
1 2 3
ON
8
5
6
7
4
Figure3.1: Interior view - base (left), Interior view - body (right)
Callout — Description Callout — Description
1 — Removable terminal block 5 — Look-down adjustment
2 — Removable bubble level 6 — Resistor jumpers
3 — Wall Tamper 7 — Configuration switches
4 — Self-locking cam lock 8 — Microwave adjustment
Bosch Security Systems, Inc Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

8 en | Installation considerations Commercial Series TriTech+ Motion Detector with
Anti-mask

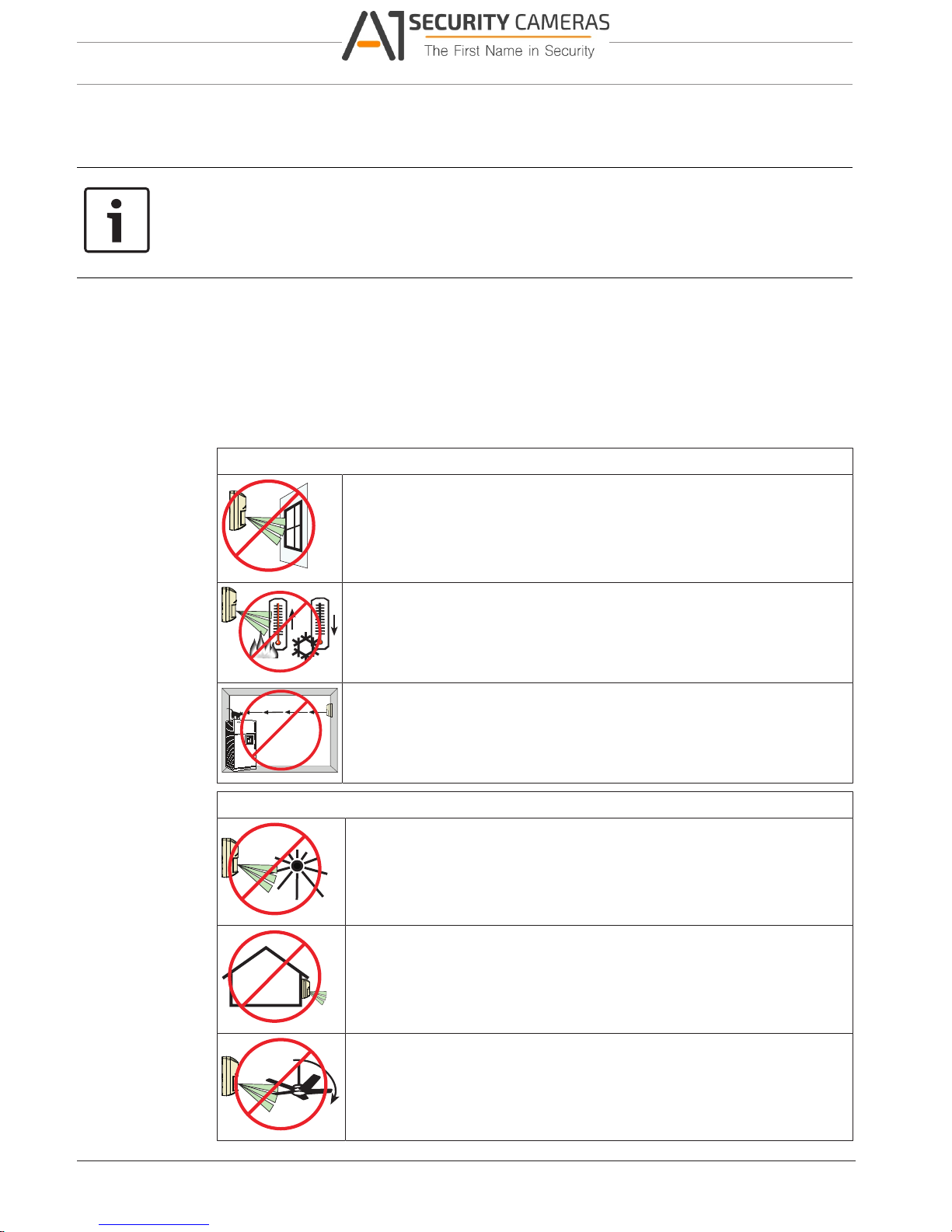

4 Installation considerations
When installing the detector, observe the following installation considerations.
Notice!
Bracket use
Using a mounting bracket might reduce catch performance. Reduced catch performance
might invalidate regulatory certification on the installation. Regulatory agencies do not
approve bracket use.
Microwave energy passes through glass and most common non-metallic construction walls.
The PIR detector reacts to objects rapidly changing temperature within its field-of-view.
Detectors utilizing passive infrared (PIR) detector technology make use of the fact that all
objects give off (emit) infrared energy, and that the warmer an object is, the greater the
amount of infrared energy emitted. The PIR receiver technology is designed to detect the
change in infrared energy caused when a target of a different temperature from a stable
background passes through its field of coverage.
Point the motion detector away from:
Glass exposed to the outdoors.
Objects that might change temperature rapidly such as heat sources, air
conditioning outlets, or surfaces heated by sunlight.
Objects that small animals such as birds and mice might climb on (stairs,
shelves, ledges, furniture) and appear in the upper zones of the PIR which
are more sensitive. Small animals in close proximity in the field of view of
the detector might also cause false alarms.
Do not install:
In a location where direct sunlight shines onto the detector.
Outdoors.
Near rotating machines or other moving objects within the coverage
pattern.
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

9
Commercial Series TriTech+ Motion Detector with Installation considerations | en
Anti-mask

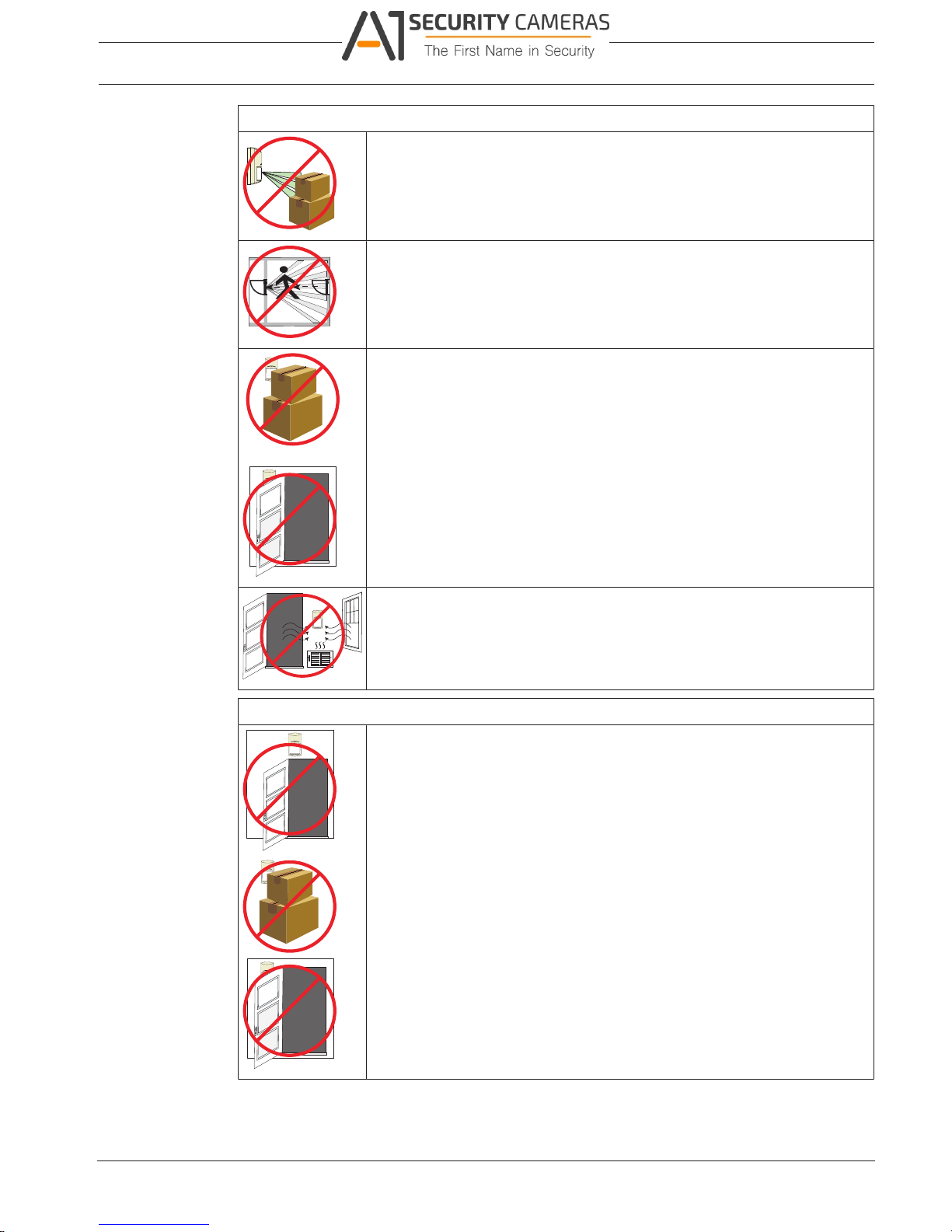

Do not install:
Near objects that can block the field of view.
Where an intruder would walk only directly toward or away from the
detector.
In a location where the detector’s field of view is blocked by movable
objects such as boxes, furniture, doors or windows. The PIR detector
does not detect through glass.
Near doors and windows or other openings where cold or warm air can
flow onto the detector.
Do not install:
Above doors where an object can appear within 30 cm (1 ft) in front of
and/or underneath the detector to avoid false anti-mask alarms.
In a location where the detector would be too close to any movable
object that may cause anti-mask alarms.
Bosch Security Systems, Inc Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with
10 en | Installation considerations Anti-mask

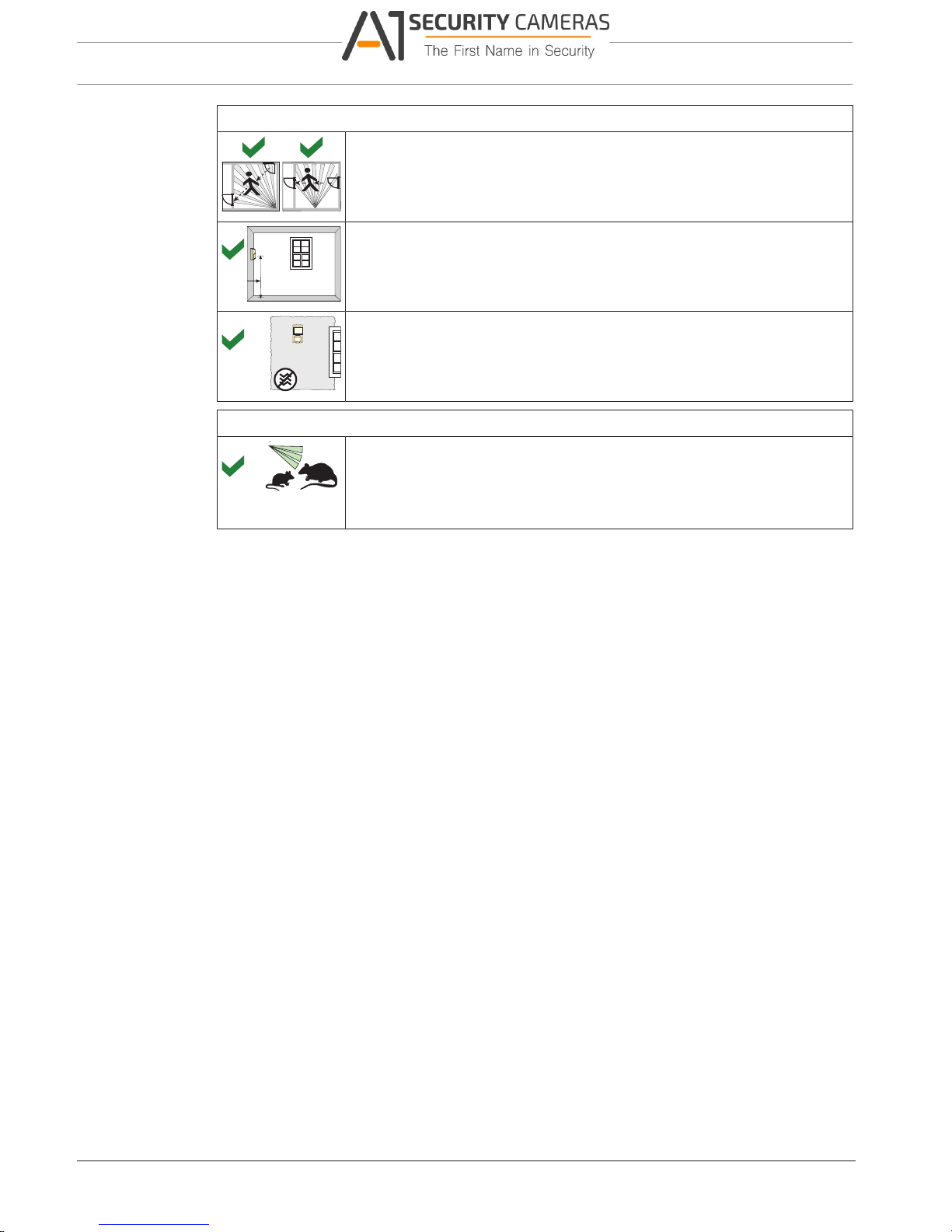

Do install:
Where an intruder is most likely to cross through the coverage pattern.
Within recommended installation height range measured from the floor.
[2 m - 3 m (7 ft - 10 ft)]
On solid, vibration-free surface.
Additional notes:
≤ 4.5 kg (10 lb)
The detector is immune to small animals such as rodents up to 4.5 kg (10
lbs) when installed according to the installation considerations listed in
this document.
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with Installation | en 11
Anti-mask
5 Installation
This section includes hardware details and the instructions you need to install the motion
detector base.
5.1 Self-locking cam
The detector includes a self-locking cam for easy installation. Refer to the following
information to open and close the detector.
Open the detector and remove the base
1. Insert a flathead screwdriver into the locking tab hole.
2. Turn to the unlock position.
3. Slide, then lift the detector from the base.
Figure5.1: Unlocking the base and removing the detector
Put the detector onto the base
Notice!
When you remove the detector from the base, the cam automatically returns to the locked
position. When you place the detector onto the base, the cam must remain in locked position.
Do not manually change the cam once you remove the detector from the base; doing so
unlocks the detector and prevents you from putting the detector correctly onto to base.

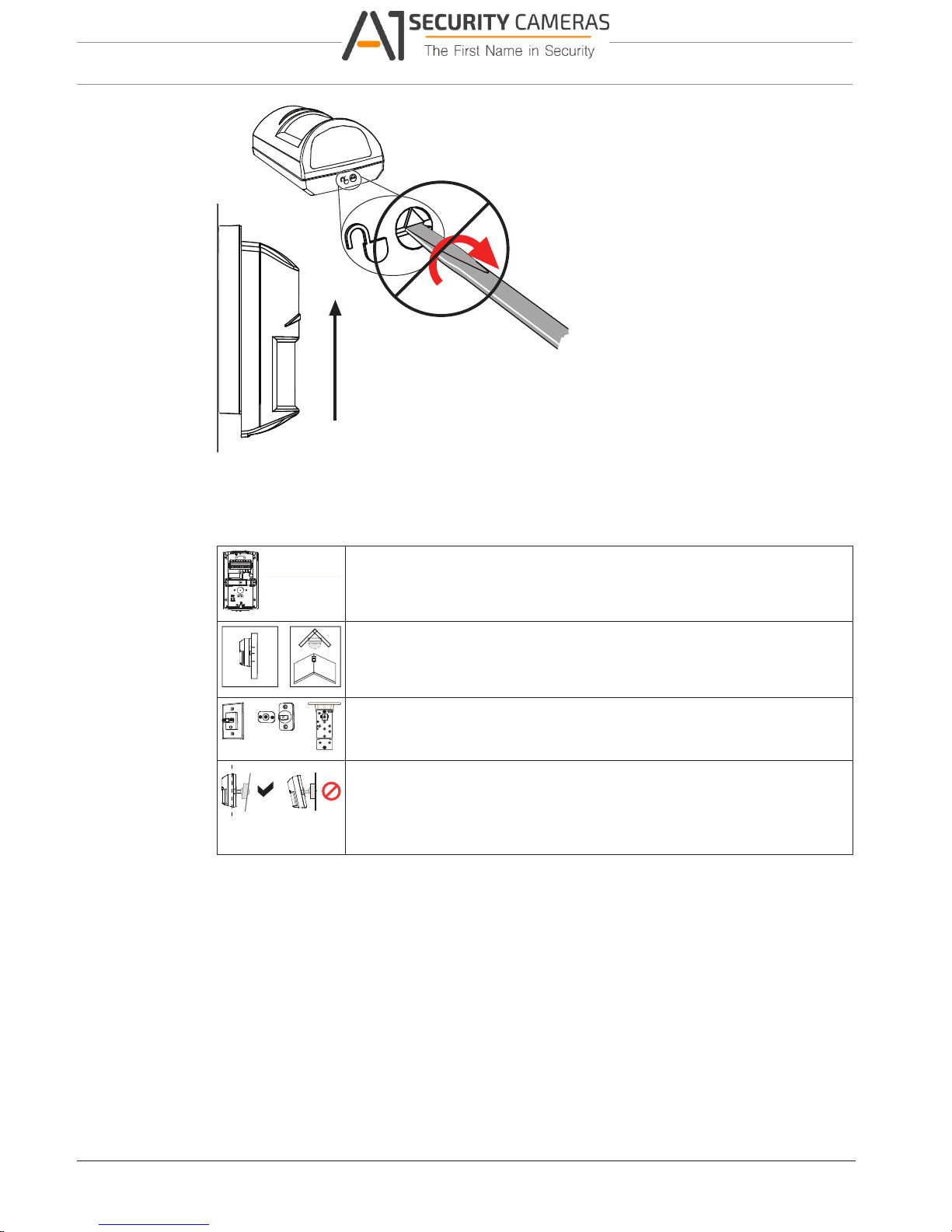

1. Put detector onto the base.
2. Slide the detector up until you hear it "click."
Bosch Security Systems, Inc Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

5.2
Commercial Series TriTech+ Motion Detector with
12 en | Installation Anti-mask
1
Figure5.2: Putting the detector onto the base

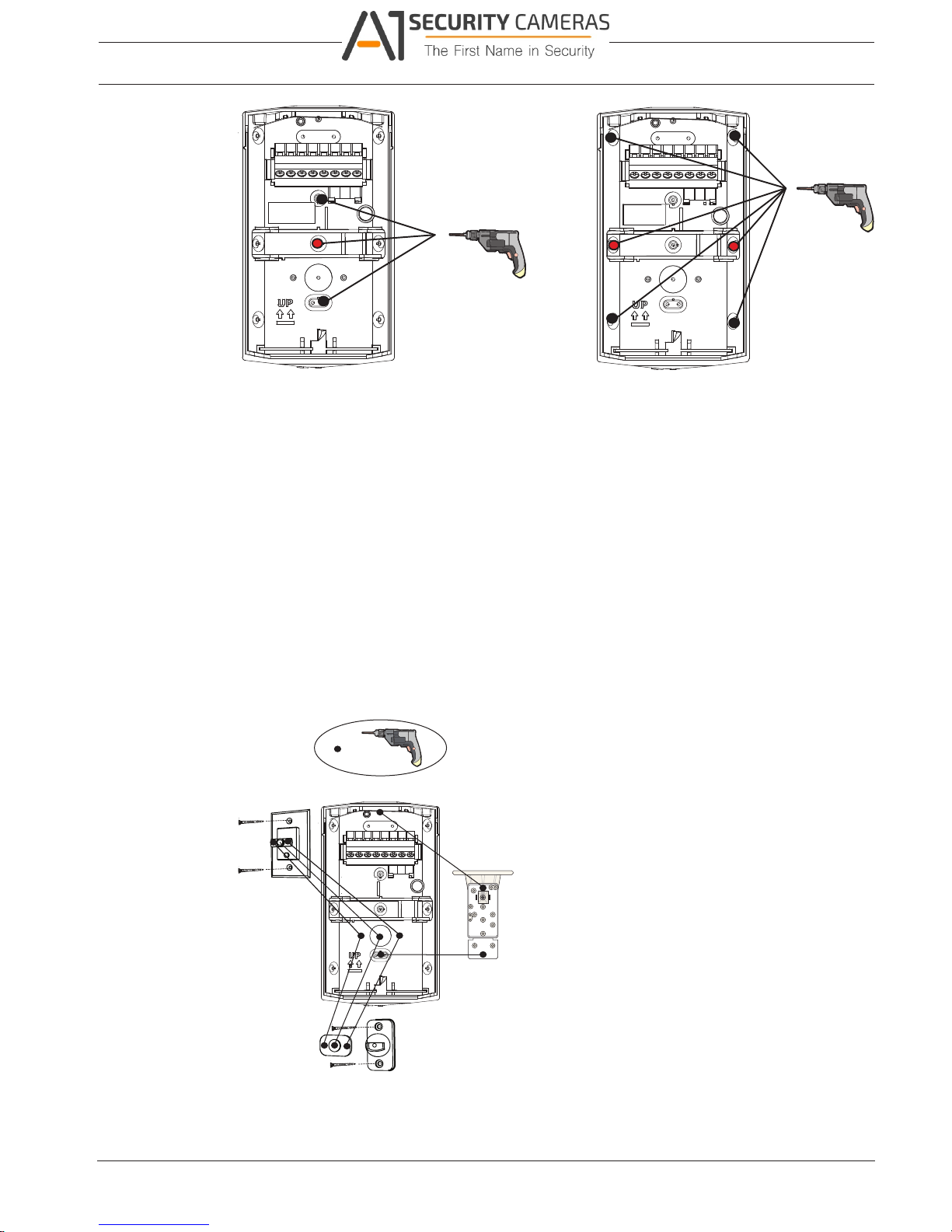

Install options
The following table is an overview of install information and options.
Install the detector using the detector base.
Install the detector on a flat wall or in a corner. Refer to .
Install the detector using a bracket. Refer to .
Detector coverage patterns are designed for optimal performance when
installed vertically. The detector base includes a removable bubble level
which helps you align the unit. Before drilling the installation holes, use
the bubble level to align the detector. Refer to Bubble level, page 15.
Install directly to the surface
When installing onto a flat surface mounting, select the installation holes shown in the figure. 
Drill the holes or tap them out with a screwdriver. 
To use the wall tamper feature, use one of the installation holes shown in red in the following 
figure. 
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with Installation | en 13
Anti-mask
Figure5.3: Left: wall installation; right: corner installation
Install on a bracket
Mounting brackets help align the detector to a vertical angle and to correct imperfections 
(non-perpendicular angles) of installation surfaces. 
Choosing a mounting bracket: 
–  The B335 bracket allows a vertical pivot range of +10º to -20º and a horizontal pivot
range of ±25º.
–  The B328 bracket installs on a single-gang box and allows rotation of the detector. The
bracket allows you to insert the wiring through the black tube section in the center of the
bracket mounting plate and through the back of the detector base.
–  The B338 bracket designed for ceiling mounting allows a vertical pivot range of +7º to
-16º and a horizontal pivot of ±45º. The bracket allows you to insert the wiring through
the ceiling cavity and into the detector base.
When using a mounting bracket, pre-drill or tap out all of the mounting holes shown for that
bracket in the following figure.
=
B338
B328
B335
Figure5.4: Installation holes used with optional brackets
Bosch Security Systems, Inc  Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

5.3
Commercial Series TriTech+ Motion Detector with
14 en | Installation Anti-mask
Notice!
Using a mounting bracket might reduce catch performance. 
Always mount the detector within the recommended mounting height, with or without a 
mounting bracket. 
Brackets are not investigated by UL. 
Brackets are not EN50131 compliant. 
Notice!
Do not use the bracket to tip the detector vertically, unless you intend to compensate for a
non-vertical surface. It may cause false alarms or reduced catch performance.
Wire knockouts
Use the following figure to determine the knockouts to use for the desired installation.
1
2
3
4
Figure5.5: Wire knockout locations
Callout ᅳ Description
1 ᅳ Surface wiring knockout, detector’s left side
2 ᅳ Through-the-wall wiring knockout
3 ᅳ Surface wiring knockout, detector’s right side
4 ᅳ Through-B328-bracket wiring knockout*
* If you use the bracket mount knockout for wires, run the wires between the walls marked
in red in the figure. With the wiring between the walls and behind the terminal block, other
features, such as EOL resistor jumper pins, cannot interfere with or puncture the wires.
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

5.4
Commercial Series TriTech+ Motion Detector with Installation | en 15
Anti-mask
Bubble level
The detector’s coverage pattern performs optimally when installed vertically. The detector
base includes a removable bubble level which helps you align the unit. Before drilling the
mounting holes in the surface, use the bubble level to align the detector.
Figure5.6: Leveling the detector
Using the bubble level:
1.  Position the detector base on the surface and install it in place using one screw only. Do
not over-tighten the screw.
2.  Make sure the base is level from side to side.
3.  Remove the bubble level and place it into the round cavity on the right side of the base.
Make sure the base is level and not tipped forwards or back.
4.  Make adjustments until the base is level, and mark the remaining surface hole locations.
5.  Remove the bubble level and place it back to its original position.
Notice!
Do not leave the bubble level in the circular holder. You cannot properly place the detector 
body onto the mounting base with the bubble level in the circular holder. 
Do not use a bracket to tip the detector in any direction as it might cause false alarms or 
reduced catch performance. 
6. Secure the detector body with the remaining screws.
Bosch Security Systems, Inc  Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

6
6.1
Commercial Series TriTech+ Motion Detector with
16  en | Wiring Anti-mask
Wiring
!
Caution!
Apply power only after you have made and inspected all connections. Do not coil excess
wiring inside the motion detector.

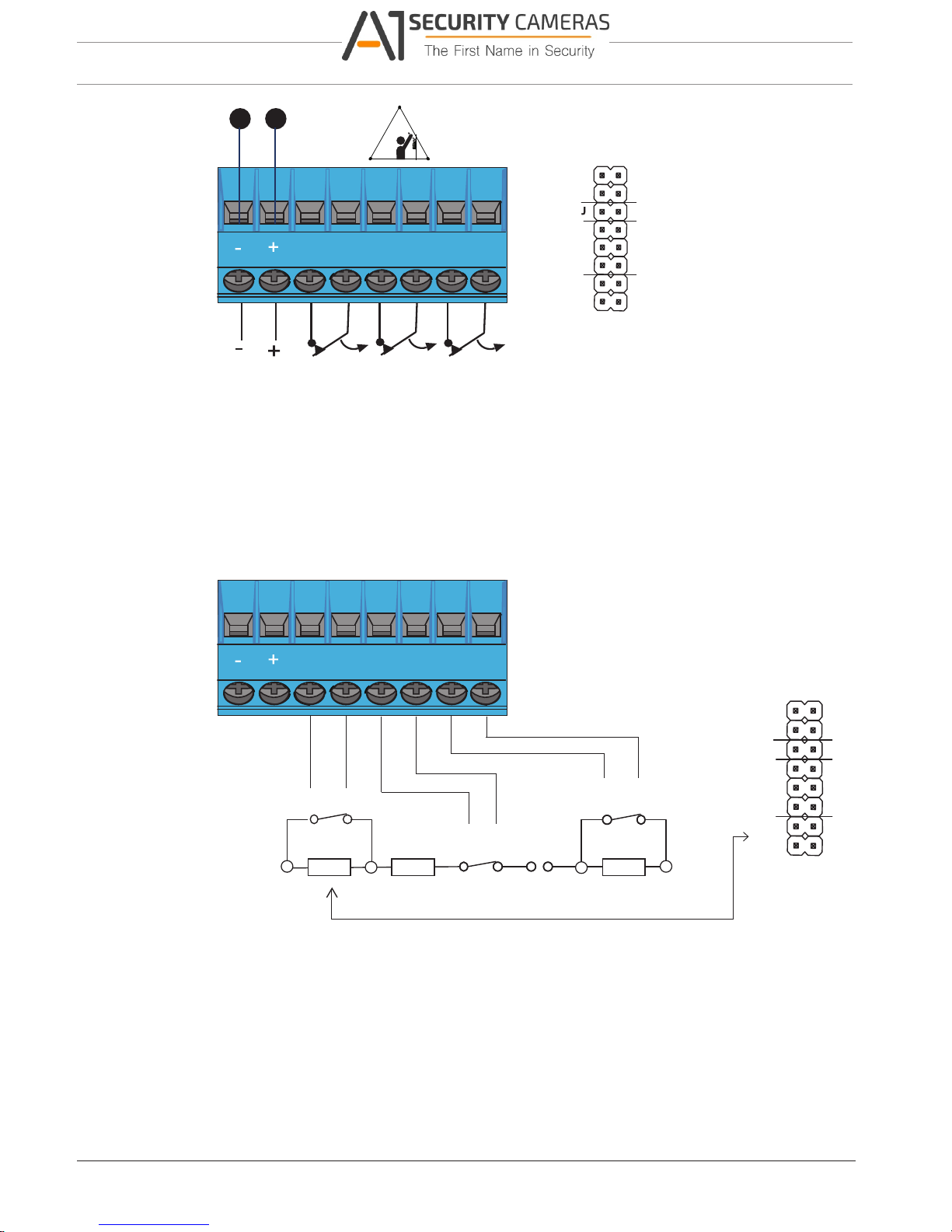

Wiring overview
NC NC T T TRTR
1234
Figure6.1: Terminal strip overview
Callout — Description
1 — Input power terminals. Voltage limits are 9 to 15 VDC. Use no smaller than 0.4 mm (26
AWG) wire pair between the detector and the power source.
2 — Alarm terminals. Solid State output. Normally closed relay rated at 25 VDC, 100 mA, 2.5
W. Do not use with capacitive or inductive loads.
3 — Tamper terminals. Normally closed switch rated at 25 VDC, 100 mA, 2.5 W.
4 — Trouble terminals. Solid State output. Normally closed relay rated at 25 VDC, 100 mA, 2.5
W. Do not use with capacitive or inductive loads.
6.1.1 Input Power terminals
Input power must use only an approved limited power source.
6.1.2 Alarm terminals
–  Normally closed solid state voltage-free (dry contact) relay. The contacts are closed
(shorted) during the warm-up period and during normal operation when no alarm is
detected, or if only one technology (PIR or Microwave) is active.
–  The alarm contacts change to open status under the following conditions:
–  Insufficient input power
–  Motion alarm condition (both PIR and microwave activity)
–  Anti-mask alarm condition
Notice!
When using the built-in resistors between the alarm terminals, there is a resistance value
instead of an open circuit. Jumper selection determines the resistance value.
2017.09 | 03 | F.01U.309.350 Reference Guide  Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

6.2
Commercial Series TriTech+ Motion Detector with Wiring | en 17
Anti-mask
6.1.3 Tamper terminals
–  Normally closed voltage-free (dry contact) switch. The tamper terminals change to an
open state if the motion detector is separated from the mounting base.
–  When using the appropriate wall tamper mounting holes, the tamper terminals change to
an open state if the motion detector is removed from the wall surface and the wall
tamper block separates from the mounting base.
Notice!
The wall tamper feature is not functional when the motion detector is mounted on a bracket.
6.1.4 Trouble terminals
–  Normally closed solid state voltage-free (dry contact) relay. The contacts are closed
(shorted) during the warm-up period and during normal operation when no trouble
condition is detected.
–  The trouble contacts change to open status under the following conditions:
–  Insufficient input power
–  Self test fault condition
–  Anti-mask alarm condition
–  Low power level detected
Notice!
When using the built-in resistors between the trouble terminals, there is a resistance value 
instead of an open circuit. Jumper selection determines the resistance value. 
Connect the alarm, tamper, and trouble contacts to a SELV circuit only. Do not use with 
capacitive or inductive loads. 
EOL resistors overview
The detector includes multiple built-in status resistors to simplify the wiring when matching
the alarm outputs with the control panel input loop resistance specifications. Use the
selection pin block by placing jumpers across specific pins to match the loop circuit shown in
the alarm control panel documentation.
Notice!
Built-in resistor values cannot meet every control panel resistor value requirement. If the
connected control panel resistor values and loop structure do not match the combinations
allowed by the built-in resistors, make sure to remove the jumpers and use only external
resistors.
Notice!
When using external resistors for the following triple loops, use the pin block section 3 (J) to
complete the circuit: EOL resistor.
Bosch Security Systems, Inc  Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with
18 en | Wiring Anti-mask
NC NC T T TRTR
1
2
3
4
12 k
2.2 k
1.0 k
2.2 k
33 k
J
2.2 k
1.0 k
Figure6.2: Terminal block overview – no EOL resistors
Follow the instructions and figures in this document to ensure proper jumper installation.
Alarm resistors (pin block section 1)
Use the selection pins labeled 1 when wiring to control panels with the following 
configuration: dual or triple EOL resistor. 
When placing a jumper across the desired pins, the corresponding resistance value is 
connected in parallel with the alarm contact. 
During normal operation the alarm contact is either in shorted condition or alarm resistance 
value condition. 
The available resistance values are 1 kΩ and 2.2 kΩ. 
1
2
3
4
12 k
2.2 k
1.0 k
2.2 k
33 k
J
2.2 k
1.0 k
NC NC
TT
TR TR
NC NC T T TRTR
1
Figure6.3: Alarm resistors overview
Tamper/EOL resistors (pin block section 2)
Use the selection pins labeled 2 when wiring to control panels with the following
configuration: single, dual, or triple EOL resistor.
When placing a jumper across the desired pins, the corresponding resistance value is
connected in series with the alarm and tamper terminals adjacent to each other (from left to
right the fourth (NC) and fifth (T) terminals).
During normal operation, the control panel verifies the continuity of the alarm loop with the
help of this resistor. The loop continuity breaks and indicates a tamper condition if any of the
following occurs: the tamper switch opens, the detector body is removed from the base, or
the wire is cut.
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with Wiring | en 19
Anti-mask
The available resistance values are 1 kΩ, 2.2 kΩ, and 33 kΩ.
Notice!
When using single EOL loops, this resistor represents: EOL resistor. Refer to the control
panel documentation to verify whether individual outputs signaling different conditions
(alarm, tamper, or trouble) should be connected on the same loop. Single EOL loops with
multiple outputs connected in series with the resistor cannot determine which output
contacts opened the loop.
1
2
3
4
12 k
2.2 k
1.0 k
2.2 k
33 k
J
2.2 k
1.0 k
NC NC
TT
TR TR
NC NC T T TRTR
2
Figure6.4: Tamper resistors overview 
Alarm loop jumper (pin block section 3) 
The selection pin labeled 3 is intended to complete the loop continuity when wired to control 
panels with the following configuration: triple EOL resistor. 
When placing a jumper across the pins, the tamper and trouble terminals adjacent to each 
other (from left to right the sixth (T) and seventh (TR) terminals) are connected (shorted). 
Notice!
When using the following configureation, use this jumper to complete the circuit: triple EOL
resistors.
Bosch Security Systems, Inc Reference Guide 2017.09 | 03 | F.01U.309.350
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Commercial Series TriTech+ Motion Detector with
20 en | Wiring Anti-mask
1
2
3
4
12 k
2.2 k
1.0 k
2.2 k
33 k
J
2.2 k
1.0 k
NC NC
TT
TR TR
NC NC T T TRTR
3
Figure6.5: Alarm loop jumpers overview
Trouble resistors (pin block section 4)
Use the selection pins marked with “4” when wiring to control panels with the following 
configuration: dual or triple EOL resistor. 
When placing a jumper across the desired pins, the corresponding resistance value is 
connected in parallel with the trouble contact. 
During normal operation, the trouble contact is in either shorted condition or alarm resistance 
value condition. 
The available resistance values are 2.2 kΩ and 12 kΩ. 
1
2
3
4
12 k
2.2 k
1.0 k
2.2 k
33 k
J
2.2 k
1.0 k
NC NC
TT
TR TR
NC NC T T TRTR
4
Figure6.6: Trouble resistors overview
2017.09 | 03 | F.01U.309.350 Reference Guide Bosch Security Systems, Inc
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
