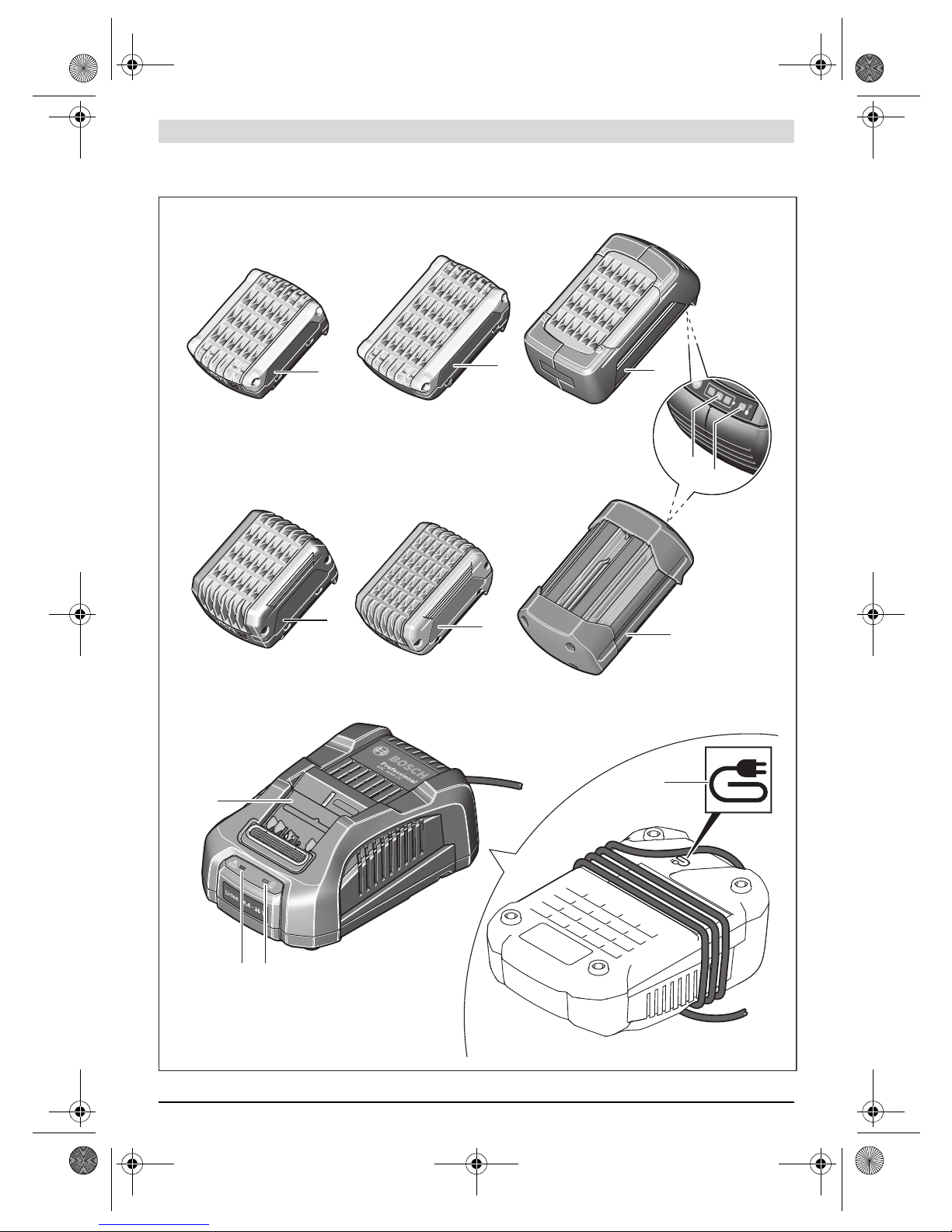

| 3
Bosch Power Tools 1 609 92A 28G | (2.12.15)
4
32
7
1
1
1
1
1
1
6
5
GAL 3680 CV
GBA 14,4 V ...
GBA 36 V ...
GBA 18 V ...
GBA 14,4 V ...
GBA 18 V ... GBA 36 V ...
OBJ_BUCH-2529-002.book Page 3 Wednesday, December 2, 2015 1:19 PM

1 609 92A 28G | (2.12.15) Bosch Power Tools
4|
4
32
7
1
1
1
1
GAL 1880 CV
GBA 14,4 V ...
GBA 18 V ...
GBA 14,4 V ...
GBA 18 V ...
OBJ_BUCH-2529-002.book Page 4 Wednesday, December 2, 2015 1:19 PM

8| English
1 609 92A 28G | (2.2.16) Bosch Power Tools
English
Product Description and Specifica-
tions
Read all safety warnings and
all instructions. Failure to fol-
low the warnings and instruc-
tions may result in electric
shock, fire and/or serious inju-
ry.
Save these instructions.
Use the battery charger only when you fully understand and
can perform all functions without limitation, or have received
appropriate instructions.
Safety Notes
Thischargerisnotintendedforuse
by children and persons with phy-
sical,sensoryormental limitations
or a lack of experience or know-
ledge. This charger can be used by
children aged 8 and above and by
persons who have physical, senso-
ry or mental limitations or a lack of
experience or knowledge if a per-
son responsible for their safety su-
pervises them or has instructed
them in the safe operation of the
charger and they understand the
associated dangers. Otherwise,
there is a danger of operating errors
and injuries.
Supervise children during use,
cleaningandmaintenance.This will
ensure that children do not play with
the charger.
Only charge Bosch lithium-ion
batteries with a capacity of 1.3 Ah
or more (4 battery cells or more).
The battery voltage must match
the battery charging voltage of the
charger. Do not charge non-re-
chargeable batteries. Otherwise
there is danger of fire and explosion.
Keep the battery charger away from rain or
moisture. Penetration of water in the battery
charger increases the risk of an electric shock.
Keep the battery charger clean. Contamination can lead
to danger of an electric shock.
Before each use, check the battery charger, cable and
plug. If damage is detected, do not use the battery
charger. Never open the battery charger yourself.
Have repairs performed only by a qualified technician
and only using original spare parts. Damaged battery
chargers, cables and plugs increase the risk of an electric
shock.
Do not operate the battery charger on easily inflamma-
ble surfaces (e. g., paper, textiles, etc.) or surround-
ings. The heating of the battery charger during the charg-
ing process can pose a fire hazard.
In case of damage and improper use of the battery, va-
pours may be emitted. Ventilate the area and seek
medical help in case of complaints. The vapours can irri-
tate the respiratory system.
Do not cover the ventilation slots of the battery charg-
er. Otherwise, the battery charger can overheat and no
longer operate properly.
Products sold in GB only: Your product is fitted with a
BS 1363/A approved electric plug with internal fuse (ASTA
approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an author-
ised customer service agent. The replacement plug should
have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains sock-
et elsewhere.
Product Features
The numbering of the product features refers to the illustra-
tion of the battery charger on the graphics page.
1Battery pack*
2Green battery charge indicator
3Red battery charge indicator
4Charging compartment
5Battery charge-control indicator*
6Temperature control indicator*
7Cable reel
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
OBJ_BUCH-2529-002.book Page 8 Tuesday, February 2, 2016 2:48 PM

English | 9
Bosch Power Tools 1 609 92A 28G | (2.2.16)
Technical Data
Operation
Starting Operation
Observe the mains voltage! The voltage of the power
supply must correspond with the data given on the name-
plate of the battery charger. Battery chargers marked with
230 V can also be operated with 220 V.
Charging Procedure
The charging procedure starts as soon as the mains plug of
the battery charger is plugged into the socket outlet and the
battery 1is inserted into the charging compartment 4.
Due to the intelligent charging method, the charging condi-
tionofthebatteryisautomaticallydetectedand the batteryis
charged with the optimum charging current, depending on
battery temperature and voltage.
This gives longer life to the battery and always leaves it fully
charged when kept in the charger for storage.
Meaning of the Indication Elements
Flashing Green Battery Charge Indicator 2
The rapid-charging procedure is signalled by a
flashing green battery charge indicator 2.
The battery can be removed at any time and
used.
Note: The charging procedure is only possible when the bat-
tery temperature is within the allowable charging tempera-
ture range, see “Technical Data” section.
Once approx. 80 % of the battery capacity has
been reached, the flashing of the green battery
charge indicator slows down. The rapid-charg-
ing process is now completed. If the battery re-
mains in the charger, the charging process will be completed
in the Long Life charging mode.
Continuous Lighting of the Green Battery Charge Indica-
tor 2
Continuous lighting of the green battery
charge indicator 2indicates that the battery is
fully charged.
Afterwards, the battery can be removed for immediate use.
When the battery is not inserted, continuous lighting of the
battery charge indicator 2indicates that the mains plug is in-
serted in the socket and that the battery charger is ready for
operation.
ContinuousLightingoftheRed BatteryChargeIndicator3
Thecontinuouslightoftheredbatterycharge
indicator 3shows that the temperature of the
battery is outside of the permitted charge-tem-
perature range, see section “Technical Data”.
The charging process begins as soon as the permitted tem-
perature range has been reached.
Flashing Red Battery Charge Indicator 3
A flashing red battery charge indicator 3indi-
cates a different malfunction of the charging
procedure, see section “Troubleshooting –
Causes and Corrective Measures”.
Indications on 36 V Batteries
During the charging procedure, the three green charge-con-
trol indicators 5 of the battery light up one after the other
and briefly go out. The battery is fully charged when the three
green indicators light up continuously. After approx.
5 minutes after the battery hasbeen fully charged, the three
green indicators go out again.
Battery Charger GAL 3680 CV GAL 1880 CV
Article number 2 607 225 ...
2 607 226 ...
2 607 225 9..
2 607 226 0..
Battery charging voltage (automatic voltage detection) V 14.4–36 14.4–18
Charging current A8.08.0
Allowable charging temperature range °C 0–45 0–45
Charging time for battery capacity, approx. (80%) 100% (80%) 100%
–1.3Ah min (10) 25 (10) 25
–1.5Ah min (10) 25 (10) 25
–2.0Ah min (15) 30 (15) 30
–2.6Ah min (15) 30 (15) 30
–3.0Ah min (20) 35 (20) 35
–4.0Ah min (25) 35 (25) 35
–5.0Ah min (35) 45 (35) 45
–6.0Ah min (35) 55 (35) 55
Number of battery cells 4–30 4–10
Weight according to EPTA-Procedure 01:2014 kg 0.9 0.7
Protection class / II / II
80 %
OBJ_BUCH-2529-002.book Page 9 Tuesday, February 2, 2016 2:48 PM

10 | English
1 609 92A 28G | (2.2.16) Bosch Power Tools
When the red temperature control indicator 6 lights up
when placing the battery into the charger, the temperature of
the battery is not within the charge-temperature range (see
section “Technical Data”). The battery cannot be charged un-
til after the allowable operating temperature range has been
reached.
Troubleshooting – Causes and Corrective Mea-
sures
Working Advice
With continuous or several repetitive charging cycles without
interruption, the charger can warm up. This is not meaningful
and does not indicate a technical defect of the battery charg-
er.
A significantly reduced working period after charging indi-
cates that the battery is used and must be replaced.
Battery Cooling (Active Air Cooling)
The fan control integrated into the charger monitors the tem-
perature of the inserted battery. As soon as the battery tem-
perature is above approx. 0 °C, the battery will be cooled by
a fan. The fan generates a ventilation sound when switched
on.
If the fan does not run, it is defective or the battery tempera-
ture is <0 °C. This can increase the charging time.
Maintenance and Service
Maintenance and Cleaning
If the replacement of the supply cord is necessary, this has to
be done by Bosch or an authorized Bosch service agent in or-
der to avoid a safety hazard.
After-sales Service and Application Service
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Bosch’s application service team willgladlyanswerquestions
concerning our products and their accessories.
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the nameplate of
the product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: [phone]
E-Mail: boschse[email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: [phone]
Fax: [phone]
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: [phone]
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: [phone]
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Cause Corrective Measure
Flashing red battery charge indicator 3
No charging procedure possible
Battery not (properly)
inserted Properly insert battery into battery charger
Battery contacts
contaminated Clean the battery contacts (e.g. by inserting and remov-
ing the battery several times)
or replace the battery
Battery pack defective Replace the battery
Battery charge indicators 2 or 3 do not light up
Mains plug of battery charger
not plugged in (properly) Insert mains plug (fully) into the socket outlet
Socket outlet, mains cable or
battery charger defective Check the mains voltage; have the battery charger
checked by an authorised
after-sales service agent for
Bosch power tools
OBJ_BUCH-2529-002.book Page 10 Tuesday, February 2, 2016 2:48 PM

Français | 11
Bosch Power Tools 1 609 92A 28G | (2.2.16)
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]osch.com
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: [phone]
Fax: [phone]
E-Mail: rbsa-hq.[email protected]
Disposal
Battery chargers, accessories and packaging should be sort-
ed for environmental-friendly recycling.
Do not dispose of battery chargers into household waste!
Only for EC countries:
According to the European Guideline
2012/19/EU for Waste Electrical and Elec-
tronic Equipment and its implementation
into national right, battery chargers that are
no longer usable must be collected sepa-
rately and disposed of in an environmental
correct manner.
Subject to change without notice.
Français
Description et performances du
produit
Il est impératif de lire toutes
les consignes de sécurité et
toutes les instructions. Le
non-respect des avertisse-
mentsetinstructionsindiqués
ci-après peut conduire à une électrocution, un incendie et/ou
de graves blessures.
Garder précieusement ces instructions.
N’utilisez le chargeur qu’après vous être familiarisé avec
toutessesfonctionsetquevousêtescapabledel’utilisersans
réserves ou après avoir reçu des instructions correspon-
dantes.
Avertissements de sécurité
Ce chargeur n’est pas prévu pour
être utilisé par des enfants ni par
des personnes souffrant d’un han-
dicap physique, sensoriel ou men-
tal ou manquant d’expérience ou
de connaissances. Ce chargeur
peut être utilisé par les enfants
(âgés d’au moins 8 ans) et par les
personnessouffrantd’un handicap
physique, sensoriel ou mental ou
manquant d’expérience ou de
connaissances, lorsque ceux-ci
sont sous la surveillance d’une per-
sonneresponsable de leursécurité
ou après avoir reçu des instruc-
tions sur la façon d’utiliser le char-
geur en toute sécurité et après
avoir bien compris les dangers in-
hérents à son utilisation. Sinon, il
existe un risque de blessures et d’uti-
lisation inappropriée.
Ne laissez pas les enfants sans sur-
veillance lors de l’utilisation, du
nettoyage et de l’entretien. Faites
ensorte quelesenfantsnejouentpas
avec le chargeur.
N’utilisez le chargeur que pour re-
charger des accus Lithium-Ion
Bosch d’une capacité d’au moins
1,3 Ah (à partir de 4 cellules). La
tension des accus doit corres-
pondre à la tension de charge du
chargeur. Ne rechargez pas de
piles non rechargeables.Il existe si-
non un risque d’explosion et d’incen-
die.
Ne pas exposer le chargeur à la pluie ou à l’hu-
midité. La pénétration d’eau dans un chargeur
augmente le risque d’un choc électrique.
Maintenir le chargeur propre. Un encrassement aug-
mente le risque de choc électrique.
OBJ_BUCH-2529-002.book Page 11 Tuesday, February 2, 2016 2:48 PM
