Bosch AMC2 Series User manual

AMC2 enclosure with 2 DIN rails
AEC‑AMC2‑UL02
en Installation manual

AMC2 enclosure with 2
DIN rails Table of contents | en 3
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
Table of contents
1System overview 4
1.1 Components of the enclosure 4
1.2 Parts included 6
1.3 Cables to be assembled 8
2Mounting the enclosure 10
3Connections 12
3.1 Connecting the devices 12
3.2 Connecting the cables 14
3.3 Connections for supporting Universal Power Supply 16
3.3.1 12 V mode operation 17
3.3.2 24 V mode operation 19
4Appendices 21
4.1 UL requirements 21
4.2 Cable assembly 22

4en | System overview AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
1 System overview
1.1 Components of the enclosure
15
10 14
2 4
6
13
7
3
8
11
12
9
Figure1.1: Components of the enclosure
Position Description
1 Cover grounding point
2 Main grounding point

AMC2 enclosure with 2
DIN rails System overview | en 5
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
Position Description
3 Mounting rail for power supply unit (PSU)
and Access Modular Controller (AMC2)
4 AMC2 grounding point
5 Cable knock-outs for reader and signal cables
6 Tamper contact
7 Temperature sensor bracket
8 Fixing bracket for rechargeable batteries
9 AMC-EXT grounding point
10 Label
11 Knock-out for the power cable connection
12 Three pin connector
13 Bracket for LED
14 Name plate

6en | System overview AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
1.2 Parts included
x1
E
x3 x1
x1
x2A
BC
D

AMC2 enclosure with 2
DIN rails System overview | en 7
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
Position Description
A Cable ties to secure cables
B Three screw anchors S8 and M6 × 50 screws
C Bracket for cable fixing
D Fuse and fuse holder
E LED

8en | System overview AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.

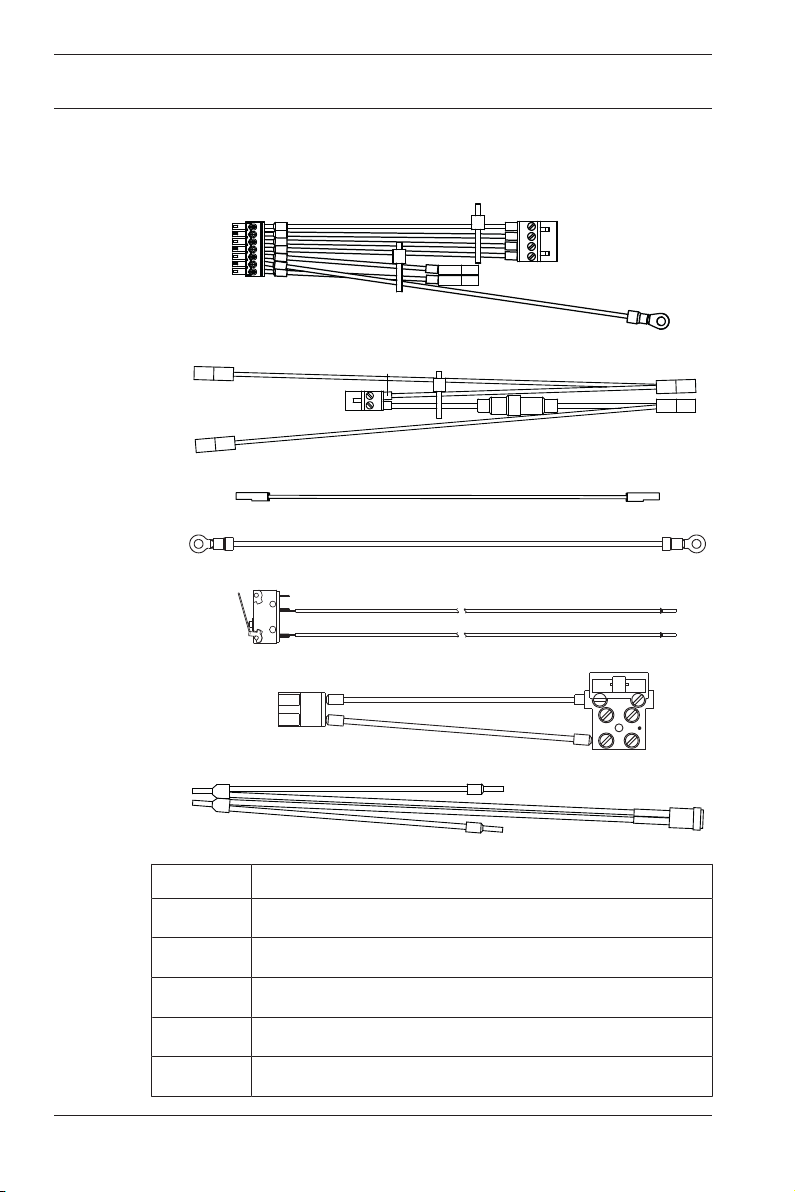

1.3 Cables to be assembled
E
A
C
D
B
F
G
Position Description
A Power supply cable (AMC2)
B Power supply cable (battery)
C Battery cable
D Cover ground cable
E Cover contact wired

AMC2 enclosure with 2
DIN rails System overview | en 9
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
Position Description
F Power cable
G Power cable with LED indicator (UL required)

10 en | Mounting the enclosure AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
2 Mounting the enclosure
The enclosure is designed to be mounted on a wall.
1. Open the door lock of the enclosure with the provided key.
2. Hold the enclosure at the desired position against the wall.
3. Mark the mounting holes on the wall with a pencil.
4. Put the enclosure aside.
5. Drill the holes at the points that you previously marked on
the wall.
6. Insert the screw anchors in the drilled holes.
7. Drive the screws halfway into the top and bottom left screw
anchors.
8. Hang the enclosure on the wall, according to the position of
the screw anchors.
9. Drive the third screw into the anchor on the bottom right.
10. Tighten all screws.
– The enclosure is installed.

AMC2 enclosure with 2
DIN rails Mounting the enclosure | en 11
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
86,5 mm
3,406 in
352,5 mm
13,878 in
536 mm
21,102 in
401 mm
15,787 in
200,5 mm
7,894 in
10 mm
0,394 in
5 mm
0,197 in
5 mm
0,197 in
10 mm
0,394 in
Figure2.1: Dimensions of the enclosure

12 en | Connections AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
3 Connections
3.1 Connecting the devices
Precondition: Install readers and other peripheral devices as
described in the corresponding technical documentation.
N G L1
AC BAT RTH
Power Supply
AMC2
DC
RS-485 EXT T
---- OK ----
L N + - + - + -C DC BAT AC 1 2 3 4 5 6 7
1 2 3 4 5 6 1 2
AMC2
RS-485 EXT T
1 2 3 4 5 6 7
1 2 3 4 5 6 1 2
2
1

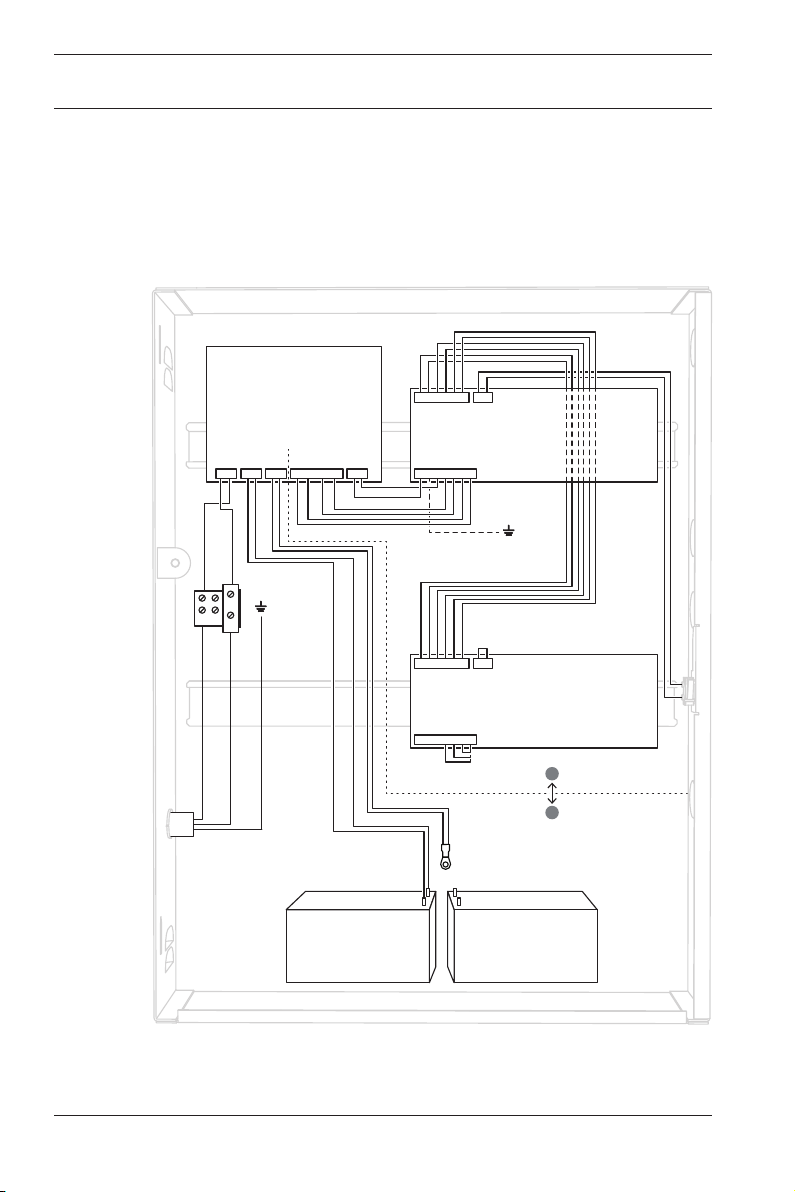

Figure3.1: Connections in the enclosure

AMC2 enclosure with 2
DIN rails Connections | en 13
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
1. Insert the cables of the device through the knock-outs at
the top-right side wall of the enclosure, or through the rear
of the enclosure.
2. Provide an appropriate disconnect device to the supply
line.
!
Warning!
Risk of electric shock!
Disconnect the mains supply voltage before you work on the
devices inside the enclosure.
Installing the components
1. Mount the Access Modular Controller (AMC2) on the right-
hand side of the mounting rail.
2. Mount the power supply unit on the left-hand side of the
mounting rail.
3. If you are using rechargeable batteries, install the batteries
at the bottom of the enclosure and secure them with a
fixing bracket.

14 en | Connections AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
3.2 Connecting the cables
Notice!
See chapter Cable assembly, page 22 for a list of UL
approved/listed cables and UL authorized suppliers.
Connecting the AMC2 power cable (A)
1. Connect the 7-pin plug A7 (Figure 4.1) to the power supply
connector (label: POWER) of the AMC2.
2. Attach connector A8 (Figure 4.1) to the power supply
connection labeled OK.
3. Attach connector A9 (Figure 4.1) to the power supply
connection DC.
4. Connect the grounding cable A6 (Figure 4.1) to the AMC2
grounding point.
Connecting the AC power cable (F)
1. Use the cables to connect the three-pin connector (Figure
1.1, position 12) to the AC connector (Figure 4.6, position
F4) of the power supply.
2. Connect the blue wire to the port marked with N (Figure
3.2, positions 2 and 4).
3. Connect the brown wire to the port marked with L (Figure
3.2, positions 1 and 3).
AC
N G
L1
BAT RTH
L N + -

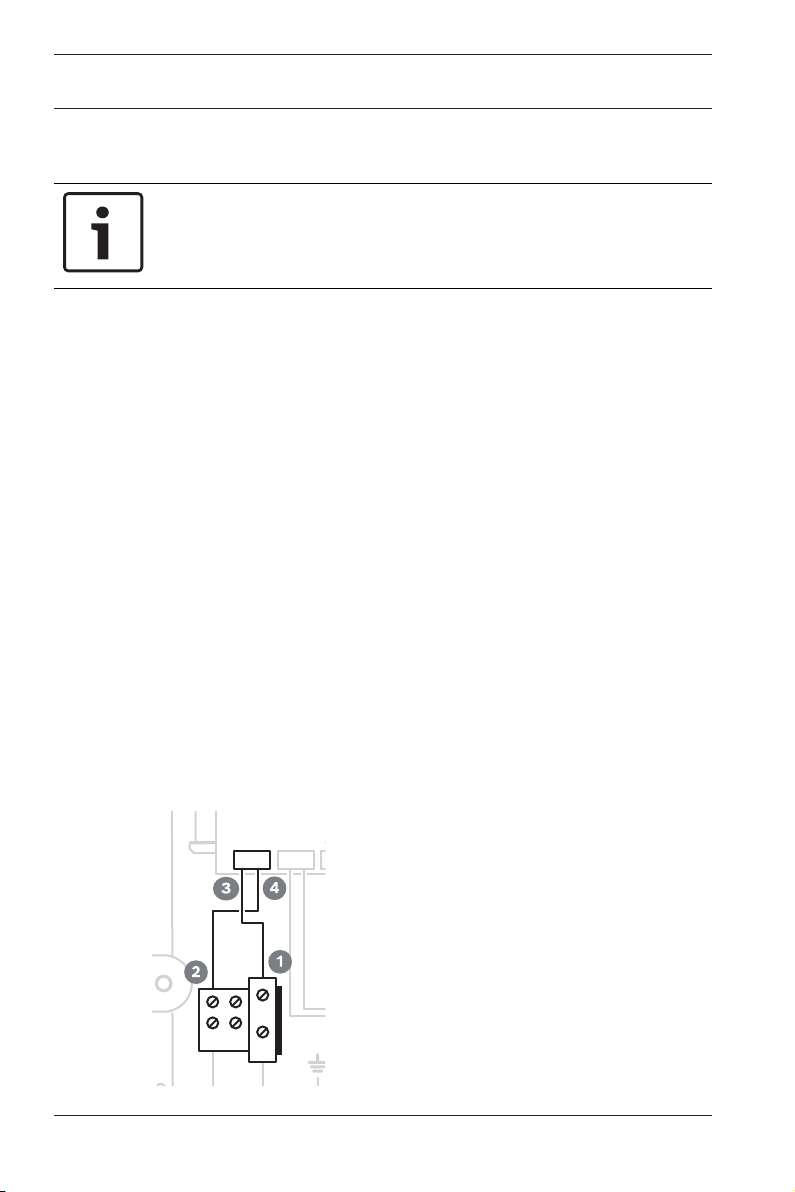

Figure3.2: Connections of the LED indicator

AMC2 enclosure with 2
DIN rails Connections | en 15
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
Mounting and connecting the power cable with LED indicator
(G)
Notice!
Use this cable (G) instead of cable F if you are installing a
system that is to be UL approved.
1. Pass the cable end through the front of the LED bracket
hole (Figure 1, position 13).
2. Carefully pull the cable through the back of the LED
bracket.
3. Make sure that the LED reaches and fits the LED bracket
hole.
4. Connect the single brown wire to position 3, marked with L
(Figure 3.2).
5. Connect the other end from the brown wire to position 1,
marked with L1 (Figure 3.2).
6. Connect the single blue wire to the position 4, marked with N
(Figure 3.2).
7. Connect the other end from the blue wire to the position 2,
marked with N (Figure 3.2).
Connecting the tamper contact (E)
1. Mount the micro switch with two screws M2 x 10 mm
(Figure 1.1, position 6) at the right side of the enclosure.
2. Connect the loose ends of the tamper contact cable to the
two-pin screw connector (marked with T) at the top of the
AMC2.
3. Position the cable in the space between the housing and
the mounting rail.
Danger!
Risk of electric shock
Make sure that all wires have zero potential.

16 en | Connections AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
Connecting the main AC supply X
1. Connect the ground cable to the main grounding point
(Figure 1.1, position 2).
2. Connect the neutral wire to terminal N (Figure 3.2).
3. Connect the phase wire to terminal L1 (Figure 3.2).
4. Shorten the external supply wires so that the ground wire
is a minimum of 20 mm longer than the live wires.
– This will prevent the ground wire from being
accidentally disconnected.
Connecting the cover grounding cable (D)
1. Connect the grounding cable D to the cover grounding
point (Figure 1.1, position 1) and to the grounding point on
the cover of the enclosure.
2. Close the cover.
3.3 Connections for supporting Universal
Power Supply
Precondition: Before switching to battery operation, disconnect
the AC power cable.
Notice!
Use 12V 7 (7,2)Ah lead batteries only.
Notice!
Change the lead batteries every 5 years.

AMC2 enclosure with 2
DIN rails Connections | en 17
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
3.3.1 12 V mode operation
Notice!
Make sure that the power supply has the correct output voltage
(12V).
+ -
B12
B7a
B8a
B7b B8b
+ - + -
B12
B7a B7b B8a B8b

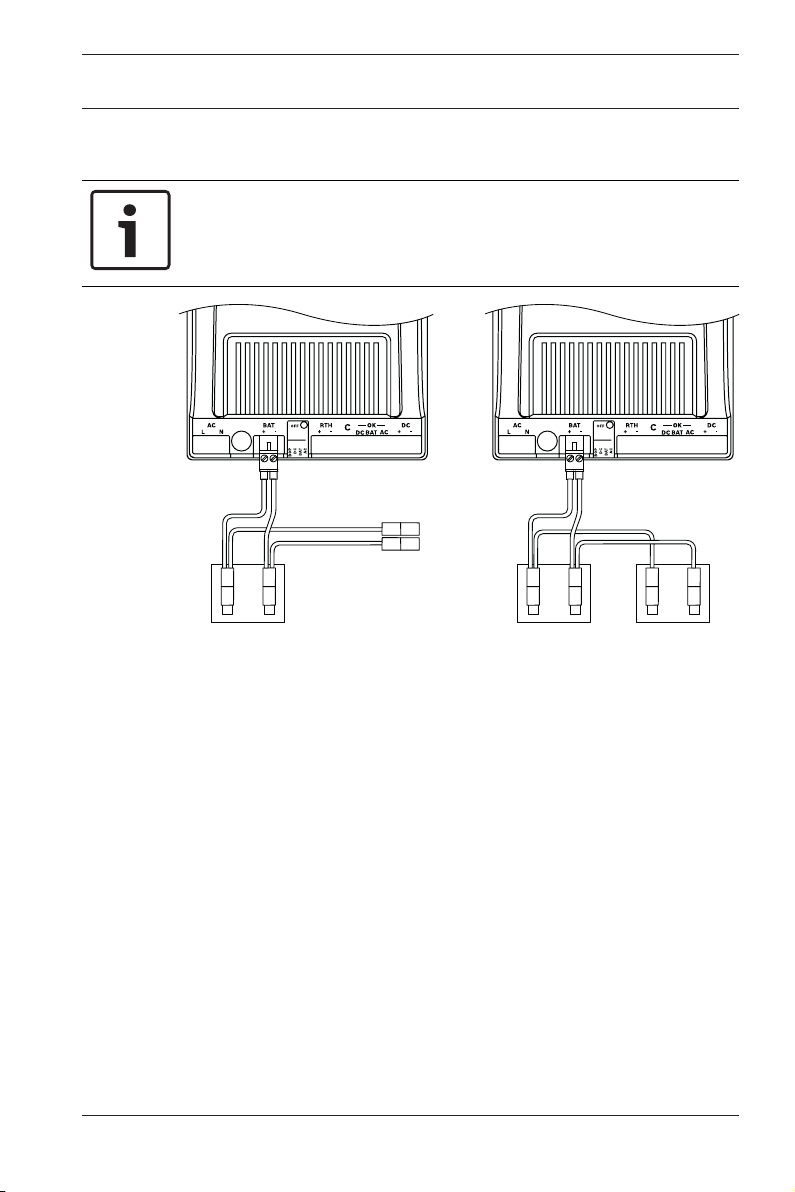

Figure3.3: 12V mode with one battery (left); 12 V mode with two batteries
(right)
12V mode operation using one battery
1. Set the switch of the power supply unit to 12V.
2. Connect B12 to the power supply interface labeled BAT.
3. Connect B7b (black) to the rechargeable negative (-)
terminal of the battery.
4. Connect B7a (red) to the rechargeable positive (+) terminal
of the battery.
5. Attach the bracket to the back of the housing next to the
batteries.
6. Attach the connectors B8a and B8b to the bracket.

18 en | Connections AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
12 V mode operation using two batteries
1. Set the switch of the power supply unit to 12V.
2. Connect B12 to the power supply interface labeled BAT.
3. Connect B7b (black) to the rechargeable negative (-)
terminal of the battery.
4. Connect B7a (red) to the rechargeable positive (+) terminal
of the battery.
5. Connect B8b (black) to the second rechargeable negative
(-) terminal.
6. Connect B8a (red) to the second rechargeable positive (+)
terminal of the battery.

AMC2 enclosure with 2
DIN rails Connections | en 19
Bosch Security Systems B.V. 2019-12 | V03 | F.01U.330.017
3.3.2 24V mode operation
Notice!
Make sure that the power supply has the correct output voltage
(24V).
+ - + -
B12
C1
B7a B7b
Figure3.4: 24V mode
Connecting the battery cables
1. Set the switch of the power supply unit to 24V.
2. Connect B12 to the power supply interface labeled BAT.
3. Connect B7a (red) to the positive (+) pin of the first
rechargeable battery.
4. Connect B7b to the negative (-) pin of the second
rechargeable battery.
5. With cable C1 (black), connect the negative (-) pin of the
first rechargeable battery to the positive (+) pin of the
second rechargeable battery.
6. Attach the connectors B8a and B8b to the bracket.

20 en | Connections AMC2 enclosure with 2
DIN rails
2019-12 | V03 | F.01U.330.017 Bosch Security Systems B.V.
7. Attach the bracket to the back of the housing next to the
batteries.
