6 | English
English
Safety Instructions
All instructions must be read and observed in order for the meas-
uring tool to function safely. The safeguards integrated into the
measuring tool may be compromised if the measuring tool is not
used in accordance with these instructions. Never make warning
signs on the measuring tool unrecognisable. SAVE THESE IN-
STRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASUR-
ING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.
uWarning! If operating or adjustment devices other than those specified here are
used or other procedures are carried out, this can lead to dangerous exposure to
radiation.
uThe measuring tool is delivered with a laser warning sign (marked in the illustra-
tion of the measuring tool on the graphics page).
uIf the text of the laser warning label is not in your national language, stick the
provided warning label in your national language over it before operating for the
first time.
Do not direct the laser beam at persons or animals and do not
stare into the direct or reflected laser beam yourself. You could
blind somebody, cause accidents or damage your eyes.
uIf laser radiation hits your eye, you must close your eyes and immediately turn
your head away from the beam.
uDo not make any modifications to the laser equipment.
uDo not use the laser goggles as protective goggles. The laser goggles make the
laser beam easier to see; they do not protect you against laser radiation.
uDo not use the laser goggles as sunglasses or while driving. The laser goggles do
not provide full UV protection and impair your ability to see colours.
uHave the measuring tool serviced only by a qualified specialist using only ori-
ginal replacement parts. This will ensure that the safety of the measuring tool is
maintained.
uDo not let children use the laser measuring tool unsupervised. They could acci-
dentally dazzle someone.
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 7
uDo not use the measuring tool in explosive atmospheres which contain flam-
mable liquids, gases or dust. Sparks may be produced inside the measuring tool,
which can ignite dust or fumes.
Product Description and Specifications
Please observe the illustrations at the beginning of this operating manual.
Intended Use
The measuring tool is intended for measuring distances, lengths, heights and clearances,
and for calculating areas, volumes and heights.
The measuring tool is suitable for indoor use.
Product features
The numbering of the product features shown refers to the illustration of the measuring
tool on the graphic page.
(1) Display
(2) Measuring button
(3) "–" button
(4) Function button
(5) On/off button
(6) "+/–" button
(7) Battery compartment cover
(8) Locking mechanism of the battery compartment cover
(9) Serial number
(10) Laser warning label
(11) Reception lens
(12) Laser beam output

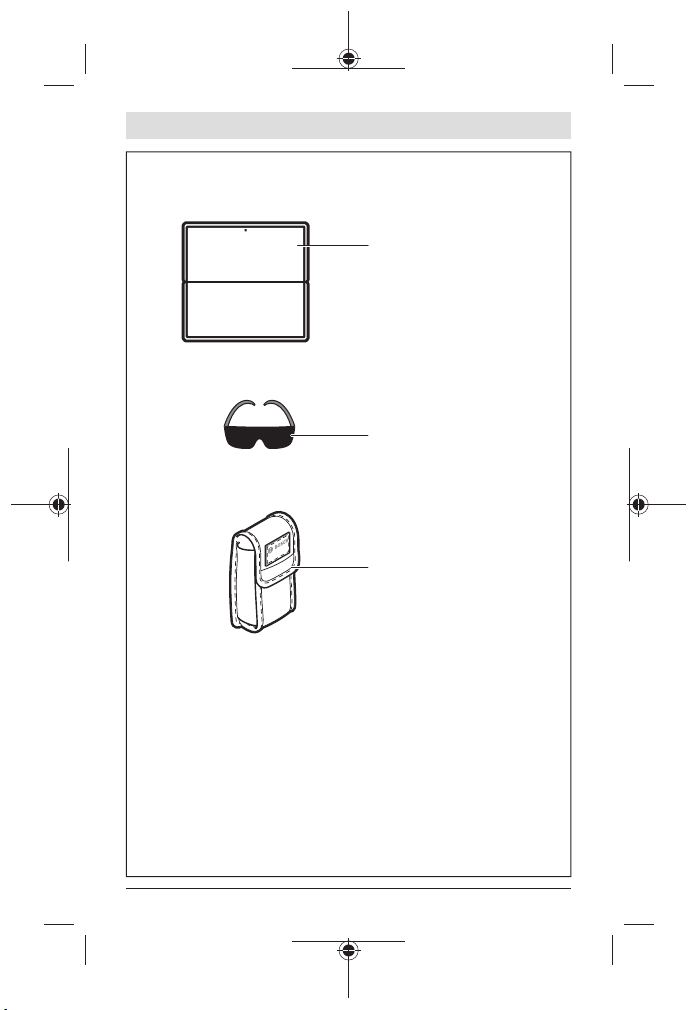

(13) Laser target plateA)
(14) Laser viewing glassesA)
(15) Protective bagA)
A) The accessories illustrated or described are not included as standard delivery.
Display elements
(a) Temperature warning
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

8 | English
(b) Battery warning
(c) Measuring functions
Length measurement
Continuous measurement
Area measurement
Volume measurement
Simple Pythagoras measurement
(d) Reference level of measurement
(e) Unit of measurement
(f) Current measured value
(g) Memory value display
(h) Previous measured value
(i) "Error" indicator
Technical data
Digital laser measure GLM 40
Article number 3601K72980 3601K729K0 3601K729C0
Measuring range (typical) 0.15–40mA) 0.15–40mA) 0.15–40mA)
Measuring range (typical, unfa-
vourable conditions)
20mB) 20mB) 20mB)
Measuring accuracy (typical) ±2.0mmA) ±2.0mmA) ±2.0mmA)
Measuring accuracy (typical,
unfavourable conditions)
±3.0mmB) ±3.0mmB) ±3.0mmB)
Smallest display unit 1mm 1mm 1mm
Operating temperature –10°C to +45°C –10°C to +45°C –10°C to +45°C
Storage temperature –20°C to +70°C –20°C to +70°C –20°C to +70°C
Relative air humidity max. 90% 90% 90%
Max. altitude 2000m 2000m 2000m
Pollution degree according to
IEC61010-1
2C) 2C) 2C)
Laser class 2 2 2
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 9
Digital laser measure GLM 40
Laser type 635nm, <1mW 635nm, <1mW 635nm, <1mW
Laser beam diameter (at 25°C) approx.
– 10m distance 9mmD) 9mmD) 9mmD)
– 40m distance 36mmD) 36mmD) 36mmD)
Automatic switch-off after approx.
– Laser 20s 20s 20s
– Measuring tool (without
measurement)
5min 5min 5min
Weight according to EPTA-Pro-
cedure 01:2014
0.09kg 0.09kg 0.09kg
Dimensions 105 x 41 x
24mm
105 x 41 x
24mm
105 x 41 x
24mm
Protection rating IP 54 (dust and
splash-proof)E)
IP 54 (dust and
splash-proof)E)
IP 54 (dust and
splash-proof)E)
Batteries
Rechargeable batteries
2 x 1.5V LR03
(AAA)
2 x 1.2V HR03
(AAA)
2 x 1.5V LR03
(AAA)
2 x 1.2V HR03
(AAA)
2 x 1.5V LR03
(AAA)
2 x 1.2V HR03
(AAA)
Individual measurements per
set of batteries
5000 5000 5000
Unit of measurement setting – ● ●
Sound setting ● ● ●
A) For measurements from the rear edge of the measuring tool, applies to high reflectivity of the
target (e.g. a white-painted wall), weak backlighting and 25°C operating temperature. In addi-
tion, a deviation influence of ± 0.05mm/m needs to be taken into account.
B) For measurements from the rear edge of the measuring tool, applies to low reflectivity of the tar-
get (e.g. black cardboard), strong backlighting and -10°C to +45°C operating temperature. In
addition, a deviation influence of ± 0.15mm/m needs to be taken into account.
C) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by
condensation is expected.
D) At an operating temperature of 25 °C
E) Except battery compartment
The serial number (9) on the type plate is used to clearly identify your measuring tool.
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

10 | English
Fitting
Inserting/Changing the Batteries
It is recommended that you use alkaline manganese or rechargeable batteries to operate
the measuring tool.
With 1.2 V batteries fewer measurements could be possible than with 1.5 V batteries.
Press the locking mechanism (8) to open the battery compartment cover (7) and re-
move the battery compartment cover. Insert the batteries. When inserting, pay attention
to the correct polarity according to the representation on the inside of the battery com-
partment.
If the battery symbol appears on the display for the first time, at least another 100 in-
dividual measurements are possible. When the battery symbol flashes, you have to re-
place the batteries because measurements are no longer possible.
Always replace all the batteries at the same time. Only use batteries from the same man-
ufacturer and which have the same capacity.
uTake the batteries out of the measuring tool when you are not using it for a pro-
longed period of time. The batteries can corrode and self-discharge during pro-
longed storage.
Operation
Start-Up
uNever leave the measuring tool unattended when switched on, and ensure the
measuring tool is switched off after use. Others may be dazzled by the laser beam.
uProtect the measuring tool from moisture and direct sunlight.
uDo not expose the measuring tool to any extreme temperatures or variations in
temperature. For example, do not leave it in a car for extended periods of time. In
case of large variations in temperature, allow the measuring tool to adjust to the ambi-
ent temperature before putting it into operation. The precision of the measuring tool
may be compromised if exposed to extreme temperatures or variations in temperat-
ure.
uAvoid subjecting the measuring tool to violent jolts and falls. Always carry out an
accuracy check before continuing work if the measuring tool has been subjected to
severe external influences (see "Accuracy Check of the Distance Measurement",
page16).
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 11
Switching On/Off
– To switch on the measuring tool and the laser, briefly press the measuring button(2).
– To switch on the measuring tool without the laser, briefly press the on/off button(5).
uDo not direct the laser beam at persons or animals and do not stare into the laser
beam yourself (even from a distance).
To switch off the measuring tool, press and hold the on/off button (5).
The measured values in the memory are retained when you switch the measuring tool off.

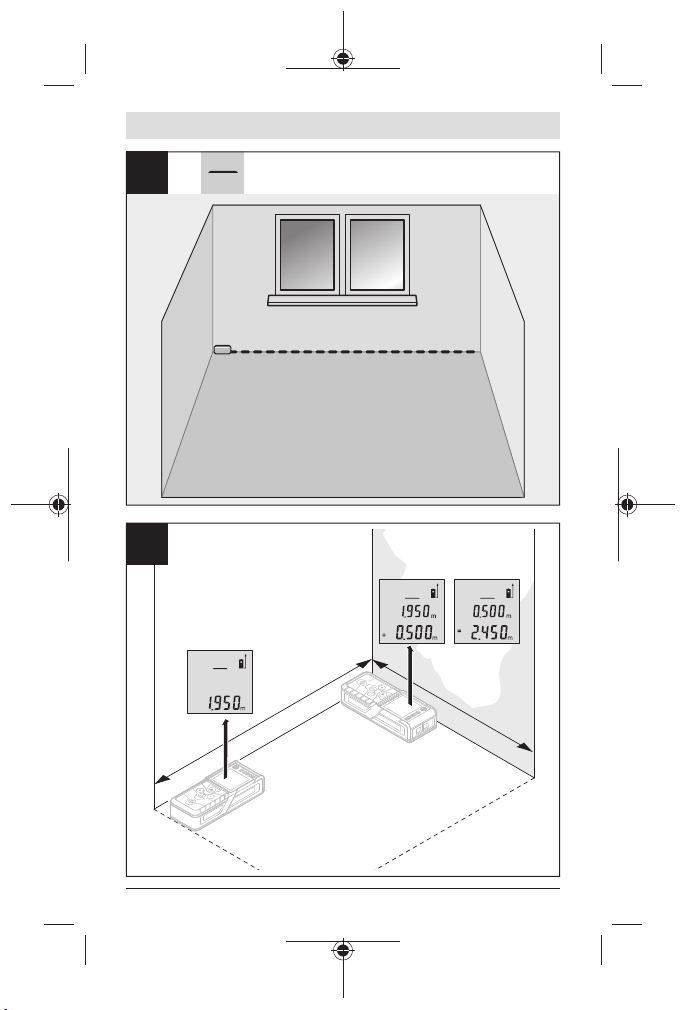

Measuring process (seefigureA)
Once switched on, the measuring tool is in the length measurement function. You can set
other measuring functions by repeatedly pressing the (4) (see "Measuring functions",
page11) button.
The rear edge of the measuring tool is always the reference level for the measurement.
Apply the measuring tool to the point at which you want to start the measurement (e.g.
wall).
Note: If the measuring tool has been switched on using the on/off button (5), briefly
press the measuring button (2) to switch the laser on.
To initiate the measurement, briefly press the measuring button (2). Then the laser
beam is switched off. To switch the laser beam on again, briefly press the measuring but-
ton (2). To initiate a further measurement, briefly press the measuring button (2) again.
uDo not direct the laser beam at persons or animals and do not stare into the laser
beam yourself (even from a distance).
In the continuous measurement mode, the measurement begins immediately upon
switching on the function.
Note: The measured value typically appears within 0.5seconds and no later than
4seconds. The duration of the measurement depends on the distance, the lighting con-
ditions and the reflective properties of the target surface. Upon completion of the meas-
urement, the laser beam is automatically switched off.
Measuring functions
Measuring length
For length measurements, repeatedly press the button (4) until the indicator for length
measurement appears on the display (1).
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

12 | English
To measure, briefly press the measuring button (2). The measured
value will be shown at the bottom of the display.
Continuous measurement
In continuous measurement mode, the measuring tool can be moved relative to the tar-
get, during which the measured value will be updated approx. every half a second. You
can, for example, move the required distance away from the wall while reading off the
current distance at all times.
For continuous measurements, repeatedly press the button (4) until the indicator for
continuous measurement appears on the display (1) . The laser is switched on and the
measurement starts immediately.
Move the measuring tool until the required distance is shown at the
bottom of the display (1).
Briefly press the measuring button (2) to end continuous measure-
ment. The last measured value will be shown at the bottom of the dis-
play.
Continuous measurement automatically switches off after
fiveminutes. The last measured value remains indicated at the bottom on the display.
Area measurement
For surface measurements, repeatedly press the button (4) until the indicator for sur-
face measurement appears on the display (1).
Then measure the width and length one after the other as with a length measurement.
The first measured value will be shown at the bottom of the display. The laser beam re-
mains switched on between the two measurements.
After the second measurement has been completed, the area will be
automatically calculated and displayed. The end result will be shown
at the bottom of the display, while the current measured value will be
shown above it.

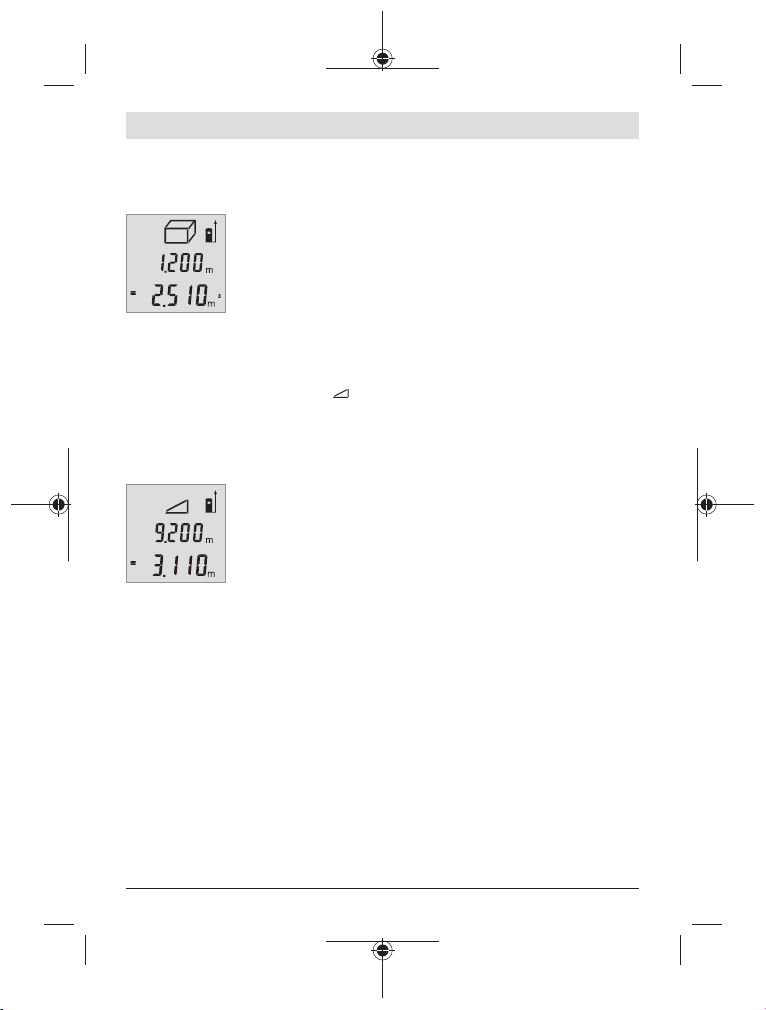

Volume measurement
For volume measurements, repeatedly press the button (4) until the indicator for volume
measurement appears on the display (1).
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 13
Then measure the width, length and depth one after the other as with a length measure-
ment. The first measured value will be shown at the bottom of the display. The laser
beam remains switched on between the three measurements.
After the third measurement has been completed, the volume will be
automatically calculated and displayed. The end result will be shown
at the bottom of the display, while the current measured value will be
shown above it.
Simple Pythagoras measurement
For simple Pythagoras measurements, repeatedly press the button (4)until the indicator
for single Pythagoras measurement appears on the display(1).
Make sure that there is a right angle between the sought distance (height) and the hori-
zontal distance (depth)! Then measure the depth and diagonal one after the other as
with a length measurement. The first measured value will be shown at the bottom of the
display. The laser beam remains switched on between the two measurements.
After the second measurement has been completed, the height will
be automatically calculated and displayed. The end result will be
shown at the bottom of the display, while the current measured value
will be shown above it.
Deleting measured values
In any measuring function, you can delete the most recently recorded individual meas-
ured value by briefly pressing the on/off button (5). Repeatedly pressing the on/off but-
ton (5) briefly will delete the measured values in reverse order.
Memory functions
Memory value display
The memory value display is only available when a length measurement has been per-
formed. Maximum 10measured values can be retrieved.
To display memory values, repeatedly press the button (4) until "M" appears on the dis-
play (1).
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

14 | English
The number of the measured value is displayed after "M", and the re-
spective measured value is displayed underneath.
Press the button (6) to browse forwards through the saved measured
values.
Press the button (3) to browse backwards through the saved meas-
ured values.
If no measured value is available in the memory, "0.000" is shown in the bottom line of
the display and "M0" in the line above.
Deleting the memory
To delete the contents of the memory, first press the button (4) so that "M" appears on
the display. Then briefly press the on/off button (5) to delete the displayed measured
value.

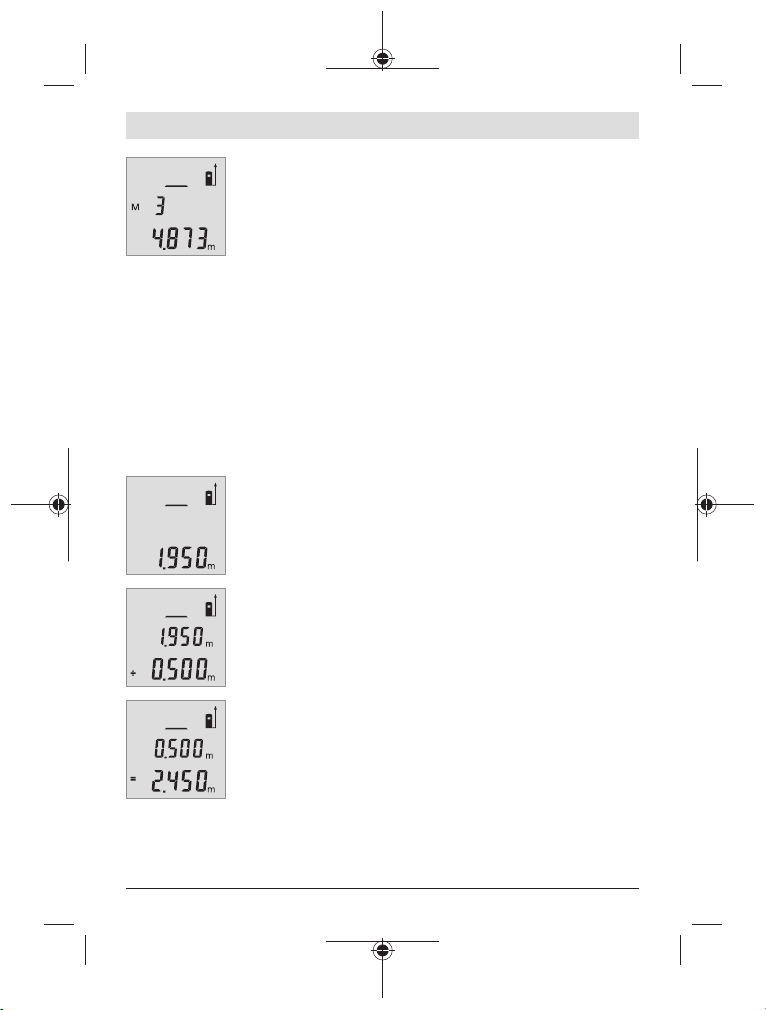

Adding/subtracting measured values (see figureB)
Measured values can be added or subtracted only in length measurement. A warning sig-
nal will sound if you use it in other measuring functions.
To measure, briefly press the measuring button (2). The measured
value will be shown at the bottom of the display.
Press the button (6) to add measured values or press the button (3)
to subtract measured values. "+" or "–" will appear at the bottom of
the display. Take another measurement. The current measured value
will be shown at the bottom of the display, and the previous meas-
ured value will be shown above it.
Press the button (6) to add measured values or press the button (3)
to subtract measured values. The result will be shown at the bottom
of the display after "=", and the current measured value will be
shown above it.
Press the button (4) to exit addition/subtraction.

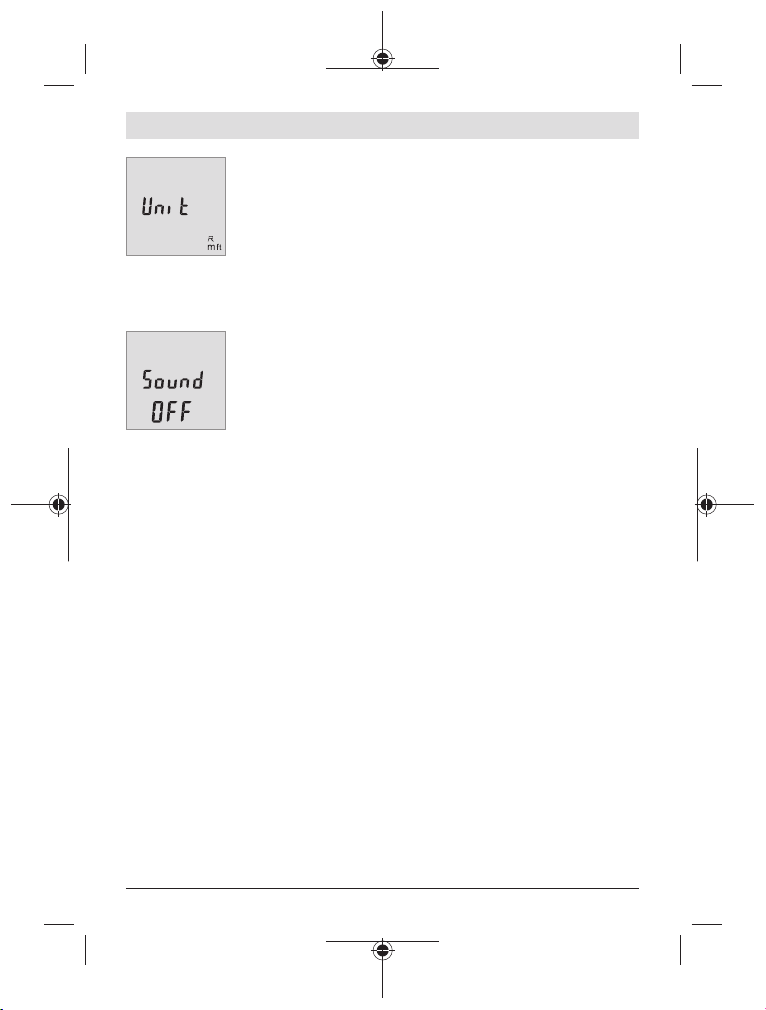

Changing the unit of measurement (3601K729K0, 3601K729C0)
Switch the measuring tool off.
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 15
Hold down the on/off button (5). When the required unit of measure-
ment is displayed, release the on/off button (5). After releasing, the
measuring tool switches itself on with the selected setting.
Switching sound on/off
The sound is switched on by default.
Switch the measuring tool off.
Hold down the measuring button (2) until "Sound OFF" appears on
the display (1). After releasing, the measuring tool switches itself on
with the selected setting.
Switch the measuring tool off to switch the sound back on. Hold
down the measuring button (2) until "Sound On" appears on the dis-
play (1). After releasing, the measuring tool switches itself on with
the selected setting.
Display Illumination
The display illumination is continuously switched on. When no button is pressed, the dis-
play illumination is dimmed after approx. 10seconds to preserve the batteries. When no
button is pressed for after approx. 30seconds, the display illumination goes out.
Practical Advice
General Advice
The reception lens (11) and the laser beam output (12) must not be covered during the
measuring process.
The measuring tool must not be moved while a measurement is being taken. For this
reason, place the measuring tool against or on a firm surface whenever possible.
Influences on the Measuring Range
The measuring range depends on the lighting conditions and the reflective properties of
the target surface. For better visibility of the laser beam in bright extraneous light, use
the laser viewing glasses (14) (accessories) and the laser target plate (13) (accessories)
or shade the target area.
Influences on the Measurement Result
Due to physical effects, the possibility of inaccurate measurements when measuring vari-
ous surfaces cannot be excluded. These include:
– Transparent surfaces (e.g. glass, water)
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

16 | English
– Reflective surfaces (e.g. polished metal, glass)
– Porous surfaces (e.g. insulating materials)
– Structured surfaces (e.g. roughcast, natural stone).
If necessary, use the laser target plate (13) (accessories) on these surfaces.
Inaccurate measurements are also possible where the laser is pointed at target surfaces
diagonally.
Layers of air at different temperatures and indirectly received reflections can also influ-
ence the measured value.
Accuracy Check of the Distance Measurement
You can check the accuracy of the measuring tool as follows:
– Choose a measuring section of approx. 3–10 m in length that is permanently un-
changed, the exact length of which is known to you (e.g. room width, door opening).
The measurement should be taken under favourable conditions, i.e. the measuring
section should be indoors and the target surface for the measurement should be
smooth and reflect well.
– Measure the section ten times in succession.
The deviation of the individual measurements from the mean value must not exceed
±4mm over the entire measuring section in favourable conditions. Record the measure-
ments in order to be able to compare the accuracy at a later date.
Errors – Causes and Corrective Measures
Cause Corrective measures
Temperature warning(a) flashes, measurement not possible
Measuring tool is outside of the operating
temperature range of –10°C to +45°C.
Wait until the measuring tool has reached
operating temperature
"Error" indicator in the display
No measured value available in the memory Save measured values
Target surface is too reflective (e.g. mirror)
or not reflective enough (e.g. black mater-
ial), or ambient light is too bright.
Use the laser target plate(13) (accessor-
ies)
The laser beam output(12) and/or recep-
tion lens(11) are fogged up (e.g. due to a
rapid temperature change).
Wipe the laser beam output(12) and/or re-
ception lens(11) dry with a soft cloth
Measurement result implausible
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 17
Cause Corrective measures
Target surface reflection not distinct (e.g.
water, glass).
Cover the target surface
Laser beam output(12) and/or reception
lens(11) are covered.
Keep the laser beam output(12) and/or re-
ception lens(11) clear
Obstruction in the path of the laser beam The laser point must be fully on the target
surface.
The indicator remains unchanged or the measuring tool reacts unexpectedly when
a button is pressed
Software error Remove the batteries, reinsert them and
restart the measuring tool.
The measuring tool monitors for correct operation in every measurement. If a defect is
detected, all indicators on the display will flash. In this case, or if you are unable to rectify
an error using the corrective measures above, send the measuring tool to Bosch cus-
tomer service via your dealer.
Maintenance and Service
Maintenance and Cleaning
Keep the measuring tool clean at all times.
Never immerse the measuring tool in water or other liquids.
Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.
Take particular care of the reception lens (11), which must be handled with the same
level of care you would give to a pair of glasses or a camera lens.
If you discover a fault or require a repair, send the measuring tool to an authorised Bosch
after-sales service agent.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of
your product as well as spare parts. You can find explosion drawings and information on
spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about
our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article
number given on the nameplate of the product.
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

18 | English
Cambodia
Robert Bosch (Cambodia) Co., Ltd
Unit 8BC, GT Tower, 08th Floor, Street 169,
Czechoslovakia Blvd, Sangkat Veal Vong
Khan 7 Makara, Phnom Penh
VAT TIN: 100 169 511
Tel.: [phone]
Tel.: [phone]
www.bosch.com.kh
People’s Republic of China
China Mainland
Bosch Power Tool (China) Co. Ltd.
Bosch Service Center
567, Bin Kang Road
Bin Kang District
Hangzhou, Zhejiang Province
China 310052
Tel.: [phone] / 5588
Fax: [phone] x 5566# / 5588#
E-Mail: [email protected]
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: [phone]
E-Mail: [email protected]
www.bosch-pt.com.hk
India
Bosch Service Center
69, Habibullah Road, (Next to PSBB School), T. Nagar
Chennai– 600077
Phone: [phone]
Bosch Service Center
18, Community Center
Phase 1, Mayapuri
New Delhi– 110064
Phone: [phone]
1 609 92A 5DY | (02.07.2020) Bosch Power Tools

English | 19
Bosch Service Center
Shop no 7&8, Aspen garden
Walbhat road , Goregaon (E)
Near to Ram Mandir Railway Station
Mumbai– 400063
Mobile: [phone]
Indonesia
PT Robert Bosch
Palma Tower 10th Floor
Jalan RA Kartini II-S Kaveling 6
Pondok Pinang, Kebayoran Lama
Jakarta Selatan 12310
Tel.: [phone]
www.bosch-pt.co.id
Malaysia
Robert Bosch Sdn. Bhd.(220975-V) PT/SMY
No. 8A, Jalan 13/6
46200 Petaling Jaya
Selangor
Tel.: [phone]
Toll-Free: 1800 880188
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.my
Pakistan
Robert Bosch Middle East FZE – Pakistan Liaison Office
2nd Floor Plaza # 10, CCA Block, DHA Phase 5
Lahore, 54810
Phone: [phone]
Email: [email protected]
Philippines
Robert Bosch, Inc.
11th Floor Ten West Campus
20 LeGrand Ave., McKinley West
Fort Bonifacio, Taguig City 1634
Tel.: [phone]
www.bosch-pt.com.ph
Bosch Power Tools 1 609 92A 5DY | (02.07.2020)

20 | English
Singapore
Powerwell Service Centre Ptd Ltd
Bosch Authorised Service Centre (Power Tools)
4012 Ang Mo Kio Ave 10, #01-02 TECHplace
Singapore 569628
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.powerwellsc.com
www.bosch-pt.com.sg
Thailand
Robert Bosch Ltd.
FYI Center Tower 1, 5th Floor,
2525 Rama IV Road, Klongtoei,
Bangkok 10110
Tel.: [phone]
Fax: [phone]
www.bosch.co.th
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Tel.: [phone]
Fax: [phone]
Vietnam
Branch of Bosch Vietnam Co., Ltd in HCMC
14th floor, Deutsches Haus, 33 Le Duan
Ben Nghe Ward, District 1, Ho Chi Minh City
Tel.: [phone]
Fax: [phone]
Hotline: [phone]
Email: [email protected]
www.bosch-pt.com.vn
Bahrain
EA Juffali and Brothers for Technical Equipment Company.
Kingdom of Bahrain, Al Aker - Block 0624 - Road 2403 - Building 0055D
1 609 92A 5DY | (02.07.2020) Bosch Power Tools
