1Preface
1.1 About this Manual
This manual is intended for persons responsible for the installation and operation of the
VideoJet X40. International, national and any regional electrical engineering regulations must
be followed at all times. Relevant knowledge of network technology is required. The manual
describes the installation and operation of the unit.
1.2 Conventions in this Manual
In this manual, the following symbols and notations are used to draw attention to special
situations:
1.3 Intended Use
The VideoJet X40 network video server transfers video, audio and control signals over data
networks (Ethernet LAN, Internet). There are various memory options for recording the
images captured by the connected camera. The unit is intended for use with CCTV systems.
Various functions can be triggered automatically by incorporating external alarm sensors.
Other applications are not permitted.
In the event of questions concerning the use of the unit which are not answered in this
manual, please contact your sales partner or:
Bosch Security Systems
Robert-Koch-Straße 100
85521 Ottobrunn
Germany
www.boschsecurity.com
!
CAUTION!
This symbol indicates that failure to follow the safety instructions described may endanger
persons and cause damage to the unit or other equipment.
It is associated with immediate, direct hazards.
i
NOTICE!
This symbol refers to features and indicates tips and information for easier, more convenient
use of the unit.

8en | Preface VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
1.4 EU Directives
The VideoJet X40 network video server complies with the requirements of EU Directives 89/
336 (Electromagnetic Compatibility) and 73/23, amended by 93/68 (Low Voltage Directive).
1.5 Rating Plate
For exact identification, the model name and serial number are inscribed on the bottom of the
housing. Please make a note of this information before installation, if necessary, so as to have
it to hand in case of questions or when ordering spare parts.

VideoJet X40 Safety Information | en 9
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
2 Safety Information
2.1 Electric Shock Hazard
– Never attempt to connect the unit to any power network other than the type for which it
is intended.
– Use only power supply units with UL approval and a power output according to LPS or
NEC Class 2.
– Never open the housing.
– Never open the housing of the power supply unit.
– If a fault occurs, disconnect the power supply unit from the power supply and from all
other units.
– Install the power supply and the unit only in a dry, weather-protected location.
– If safe operation of the unit cannot be ensured, remove it from service and secure it to
prevent unauthorized operation. In such cases, have the unit checked by Bosch Security
Systems.
Safe operation is no longer possible in the following cases:
– if there is visible damage to the unit or power cables,
– if the unit no longer operates correctly,
– if the unit has been exposed to rain or moisture,
– if foreign bodies have penetrated the unit,
– after long storage under adverse conditions, or
– after exposure to extreme stress in transit.
2.2 Installation and Operation
– The relevant electrical engineering regulations and guidelines must be complied with at
all times during installation.
– Relevant knowledge of network technology is required to install the unit.
– Before installing or operating the unit, make sure you have read and understood the
documentation for the other equipment connected to it, such as cameras. The
documentation contains important safety instructions and information about permitted
uses.
– Perform only the installation and operation steps described in this manual. Any other
actions may lead to personal injury, damage to property or damage to the equipment.
2.3 Maintenance and Repair
– Never open the housing of the VideoJet X40. The unit does not contain any user-
serviceable parts.
– Never open the housing of the power supply unit. The power supply unit does not contain
any user-serviceable parts.
– Ensure that all maintenance or repair work is carried out only by qualified personnel
(electrical engineers or network technology specialists).

10 en | Safety Information VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VideoJet X40 Product Description | en 11
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3 Product Description
3.1 Scope of Delivery
– VideoJet X40 network video server (with or without integrated hard drive)
– 4 terminal blocks
– Drilling template
– Quick Installation Guide
– Product CD with the following content:
– Quick Installation Guide
–Manual
– System Requirements document
– Further documentation on Bosch Security Systems products
– Configuration Manager
–MPEGActiveXcontrol
– Player and Archive Player
– DirectX control
– Microsoft Internet Explorer
– Sun JVM
– Adobe Acrobat Reader
i
NOTICE!
Check that the delivery is complete and in perfect condition. Arrange for the unit to be
checked by Bosch Security Systems if you find any damage.

12 en | Product Description VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
3.2 System Requirements
General Requirements
– Computer with Windows XP or Windows Vista operating system
– Network access (Intranet or Internet)
– Screen resolution 1,024 × 768 pixels
– 16- or 32-bit color depth
– Installed Sun JVM
Additional Configuration Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Installed Configuration Manager program (version 2.0 or higher)
Additional Operational Requirements
– Microsoft Internet Explorer (version 6.0 or higher)
or
– Receiver software, for example VIDOS (version 3.11 or higher) or Bosch Video
Management System (version 2.02 or higher)
or
– MPEG-4 compatible hardware decoder from Bosch Security Systems (for example
VIP XD) as a receiver and connected video monitor
– For playing back recordings: connection to storage medium
i
NOTICE!
Also note the information in the System Requirements document on the product CD
supplied. If necessary, you can install the required programs and controls from the product
CD supplied (see Section 3.1 Scope of Delivery, page 11).
The Web browser must be configured to enable Cookies to be set from the IP address of the
unit.
In Windows Vista, deactivate protected mode on the Security tab under Internet Options.
You can find notes on using Microsoft Internet Explorer in the online Help in Internet Explorer.

VideoJet X40 Product Description | en 13
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
3.3 Overview of Functions
Network Video Server
The VideoJet X40 is a compact network video server for four connected video sources. It is
primarily designed for encoding video, audio and control data for transfer over an IP network.
With its encoding in the MPEG-4 format, the VideoJet X40 is ideally suited for making existing
analog CCTV cameras IP-compatible and for remote access to digital VCRs and multiplexers.
The use of existing networks means that integration with CCTV systems or local networks can
be achieved quickly and easily.
Two units, for example a VideoJet X40 as a sender and a VIP XD as a receiver, can create a
standalone system for data transfer without a PC. Video images from a single sender can be
received simultaneously on multiple receivers. Audio signals can also be transmitted from and
to compatible units.
The VideoJet X40 features industrial standard, robust equipment and is therefore equally
suited to stationary as well as mobile use in rail or other vehicles.
Receiver
Compatible MPEG-4 enabled hardware decoders (for example the VIP XD) can be used as
receivers. Computers with decoding software such as VIDOS or computers with the Microsoft
Internet Explorer Web browser can also be used as receivers.
Video Encoding
The VideoJet X40 uses the MPEG-4 and H.264 video compression standards. Thanks to
efficient encoding, the data rate remains low even with high image quality and can also be
adapted to local conditions within wide limits.
Dual Streaming
Dual Streaming allows the incoming data stream to be encoded simultaneously according to
two different, individually customized profiles. This feature creates two data streams per
camera that can serve different purposes, for example one for recording and one optimized
for live transmission over the LAN.
Multicast
In suitably configured networks, the multicast function enables simultaneous real-time video
transmission to multiple receivers. The UDP and IGMP V2 protocols must be implemented on
the network for this function.
Encryption
The VideoJet X40 offers a variety of options for protection against unauthorized reading. Web
browser connections can be protected using HTTPS. You can protect the control channels via
the SSL encryption protocol. With an additional license, the user data itself can be encrypted.

14 en | Product Description VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
Remote Control
For remote control of external units such as pan or tilt heads for cameras or motorized zoom
lenses, control data is transmitted via the VideoJet X40's bidirectional serial interface. This
interface can also be used to transmit transparent data.
Tamper Detection and Motion Detectors
The VideoJet X40 offers a wide range of configuration options for alarm signaling in the event
of tampering with the connected cameras. An algorithm for detecting movement in the video
image is also part of the scope of delivery and can optionally be extended to include special
video analysis algorithms.
Snapshots
Individual video frames (snapshots) can be called up as JPEG images by the VideoJet X40,
stored on the computer's hard drive or displayed in a separate browser window.
Recordings
Various local memory options enable the VideoJet X40 to be used as a digital VCR. The
VideoJet X40 supports ANR technology, which guarantees seamless recording without gaps
via VIDOS-NVR, even during network failures. A connection to an appropriately configured
iSCSI system enables long-term recordings with high image quality over the network.
Backup
A function for storing the video images displayed on the hard drive of your computer is
available on the LIVEPAGE as well as on the RECORDINGS page. Video sequences can be
stored by means of a mouse click and can be redisplayed using the Player supplied as part of
the scope of delivery.
Integrated Network Switch
The integrated switch functionality of the VideoJet X40 permits the ETH 1, ETH 2 and SFP
interfaces to be used alternatively, redundantly or for cascading other units.

VideoJet X40 Product Description | en 15
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
Summary
The VideoJet X40 provides the following main functions:
– Video and data transmission over IP data networks
– Dual Streaming function for the encoder for simultaneous encoding with two individually
definable profiles
– Multicast function for simultaneous image transmission to multiple receivers
– Four analog BNC composite video inputs (PAL/NTSC)
– Video encoding to international standard MPEG-4
– Two redundant integrated Ethernet ports (10/100 Base-T)
– SFP slot for mini-GBIC modules (1 Gbps)
– Integrated switch functionality
– CF slot for CompactFlash cards for local storage
– Optional, integrated robust hard drive for local storage
– USB interfaces for future WAN or WLAN connections
– Transparent, bidirectional data channel via RS-232/RS-422/RS-485 serial interface
– Configuration and remote control of all internal functions via TCP/IP, also secured via
HTTPS
– Password protection to prevent unauthorized connection or configuration changes
– Extensive, flexible storage options
– Four alarm inputs and four relay outputs
– Built-in video sensor for motion and tamper alarms
– Event-controlled automatic connection
– Convenient maintenance via uploads
– Flexible encryption of control and data channels
– Authentication according to international standard 802.1x
– Transmission and receipt of audio signals
– Bidirectional audio (mono) for line connections
– Audio encoding to international standard G.711

16 en | Product Description VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
3.4 Connections on the Front Panel
1USB1/2interfaces
for future expansion of functions
2VideoIn1to Video In 4 video inputs
BNC sockets for connecting video sources
3 Audio In audio line input
3.5 mm stereo socket for connecting an audio line input signal
4 Audio Out audio line output
3.5 mm stereo socket for connecting an audio line output signal
5 Connect LED
flashes green when the unit is connected to a video
6HDDLED
flashes orange when hard drive activity is detected
(only on units with a hard drive installed)

VideoJet X40 Product Description | en 17
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06

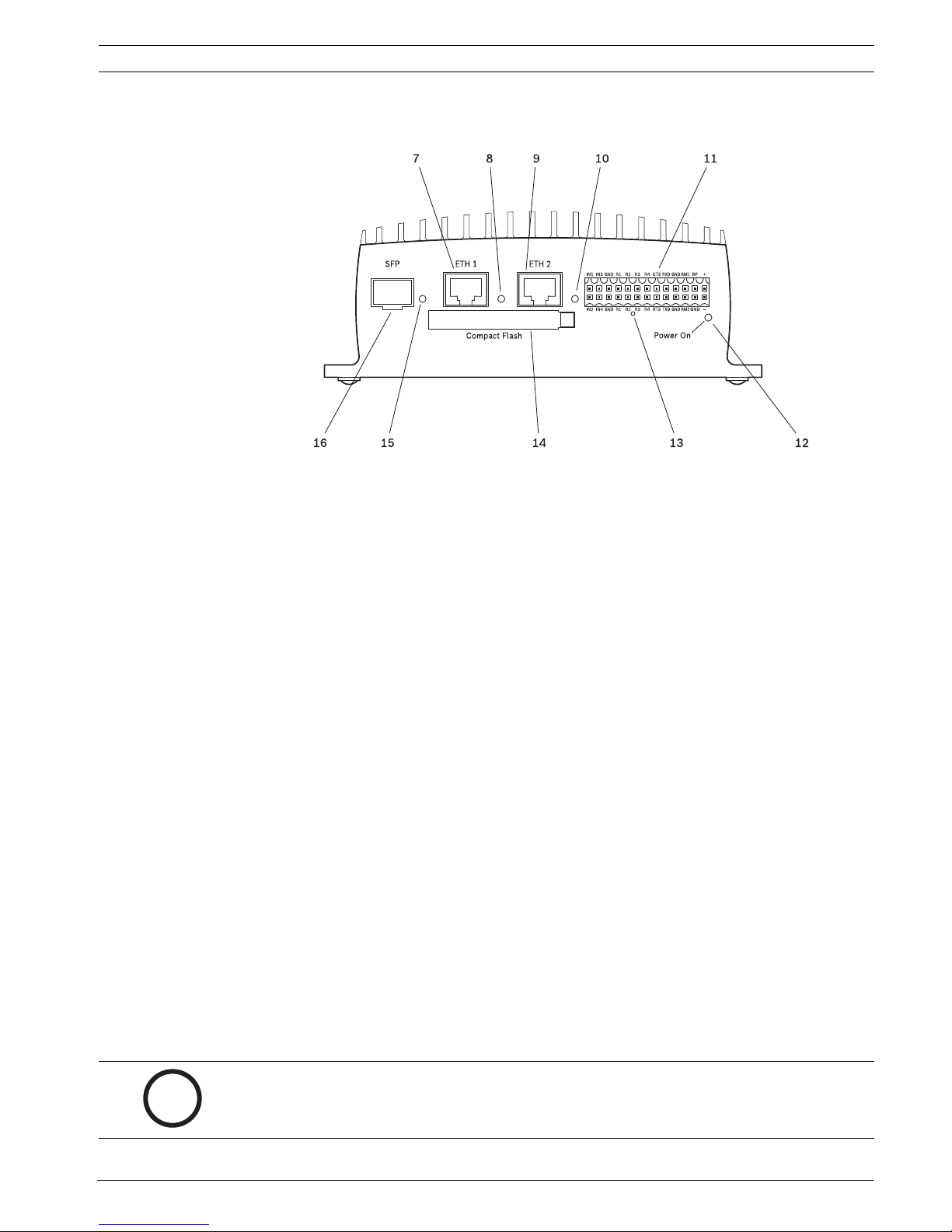

3.5 Connections on the Rear Panel
7ETH1RJ45 socket
for connecting to an Ethernet LAN (local network), 10/100 MBit Base-T
8ETH1LED
lights up yellow when the unit is connected to the network via ETH 1
9ETH2RJ45 socket
for a redundant connection to the network or to an iSCSI system
10 ETH 2 LED
lights up yellow when the unit is connected to the network via ETH 2
11 Terminal block
for alarm inputs, relay outputs, serial interface and power supply
12 Power On LED
lights up green when ready for operation
13 Factory reset button
to restore factory default settings
14 Compact Flash slot
for a CF card type I or type II
15 SFP LED
lights up yellow when the unit is connected via SFP
16 SFP slot
for mini-GBIC module
i
NOTICE!
For more information about the LEDs, see Section 8.4 LEDs, page 113.
For terminal block assignment, see Section 8.8 Terminal Block, page 115.

18 en | Product Description VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

VideoJet X40 Installation | en 19
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06
4 Installation
4.1 Preparations
The VideoJet X40 features industrial standard equipment and is therefore suitable for both
stationary installation and mobile installation in vehicles.
Please ensure the following installation conditions:
– Do not install the unit close to heaters or other heat sources. Avoid locations exposed to
direct sunlight.
– Allow sufficient space for running cables.
– Ensure that the unit has adequate ventilation.
– When making connections, use only the cables supplied or use appropriate cables
immune to electromagnetic interference.
– Position and run all cables so that they are protected from damage, and provide
adequate cable strain relief where needed.
– Avoid impacts, blows and severe vibrations that exceed the specification limits (see
Section 9 Specifications, page 119), as these can irreparably damage the unit.
4.2 Mounting
The VideoJet X40 can be permanently mounted to walls, below ceilings or other load-bearing
locations using the four drillings in the unit's base.
!
CAUTION!
The unit is intended for use indoors or in housings.
Select a suitable location for installation that guarantees to meet the environmental
conditions. The ambient temperature must be between –30 and +60 °C (–22 and +140 °F).
The relative humidity must not exceed 95%.
The VideoJet X40 generates heat during operation, so you should ensure that there is
adequate ventilation and enough clearance between the unit and heat-sensitive objects or
equipment.
!
CAUTION!
The front panel of the VideoJet X40 (video inputs) must not be pointing upwards, as internal
heat dissipation is not guaranteed in this position. All other installation positions are
permitted.
Make sure that the mounting location (for example wall or ceiling) can reliably hold the unit.
The load bearing capacity must be adequate for four times the weight of the unit.
For mounting on metal, use screws with the following minimum specification:
M4 × 8, 8.8, DIN ISO 4017.
For mounting on concrete, use screws with the following minimum specification:
M4 × 40 mm (1.57 in) and 6 mm (0.23 in) plastic dowels, for example fischer S4, type 50106.

20 en | Installation VideoJet X40
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems
4.3 Connections
Cameras
You can connect four video sources to the VideoJet X40. Any cameras and other video sources
that produce a standard PAL or NTSC signal are suitable.
1. Connect the cameras or other video sources to the BNC sockets Video In 1 to Video In 4
using a video cable (75 Ohm, BNC plug).
2. If the video signal is not looped through, termination is performed by a software setting if
necessary (see Section 5.17 Advanced Mode: Video Input, page 46).
Audio Connections
The VideoJet X40 has two audio ports for audio line signals.
The audio signals are transmitted two-way and in sync with the video signals. As a result, you
can connect a speaker or door intercom system at the destination point, for example. The
following specifications should be complied with in all cases.
The stereo plugs must be connected as follows:
1. Connect two audio sources with line level to the Audio In socket of the VideoJet X40
with a 3.5 mm stereo plug.
2. Connect a unit with line-in connection to the Audio Out socket of the VideoJet X40 with a
3.5 mm stereo plug.
Network
You can connect the VideoJet X40 to a 10/100 Base-T network using a standard UTP category
5 cable with RJ45 plugs. The second Ethernet interface can be used to create a redundant
connection to the network.
1. Connect the VideoJet X40 to the network via the ETH 1 socket.
2. Connect the VideoJet X40 to a redundant switch or hub on the same network via the
ETH 2 socket.
2 × Line In: Impedance 9 kOhm typ., 5.5 Vp-p max. input voltage
1 × Line Out: Impedance 10 kOhm typ., 3.0 Vp-p max. output voltage,
impedance 16 Ohm min., 1.7 Vp-p max. output voltage
Contact Line In function Line Out function
Tip Channel 1 Channel 1
Middle ring Channel 2 –
Lower ring Ground Ground
i
NOTICE!
You cannot create a connection to a second network.
