ATM/POS Bridge Description | en 9
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
2 Description
The ATM/POS Bridge provides an interface between a digital
recorder and either Automatic Teller Machines (ATM) or Point-
of-Sale (POS) equipment such as cash registers. Both single-
and multi-drop ATM networks are supported. This allows
financial transaction data to be recorded and linked to specific
camera images.
The bridge supports up to four (4) serial connections to directly
connect devices to each ATM/POS bridge. The bridge also
supports connection to a TCP/IP network. In this configuration,
the bridge can transmit transactional data from any terminal on
the same network to a digital video recorder.
2.1 Parts List
The ATM/POS Bridge package contains the following
components:
– 1 ATM/POS Bridge unit
– 1 External DC power supply
–1Mountingkit
– 2 Connection cables
– 1 Console cable
– CD-ROM with software utilities
– Installation manual
2.2 Supported Protocols
The ATM/POS Bridge is designed to operate with many
different terminals. If you have any questions regarding the
suitability of the firmware for your terminal or any other
questions, contact your Bosch Security Systems, Inc.
representative.

10 en | System Overview ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
3 System Overview

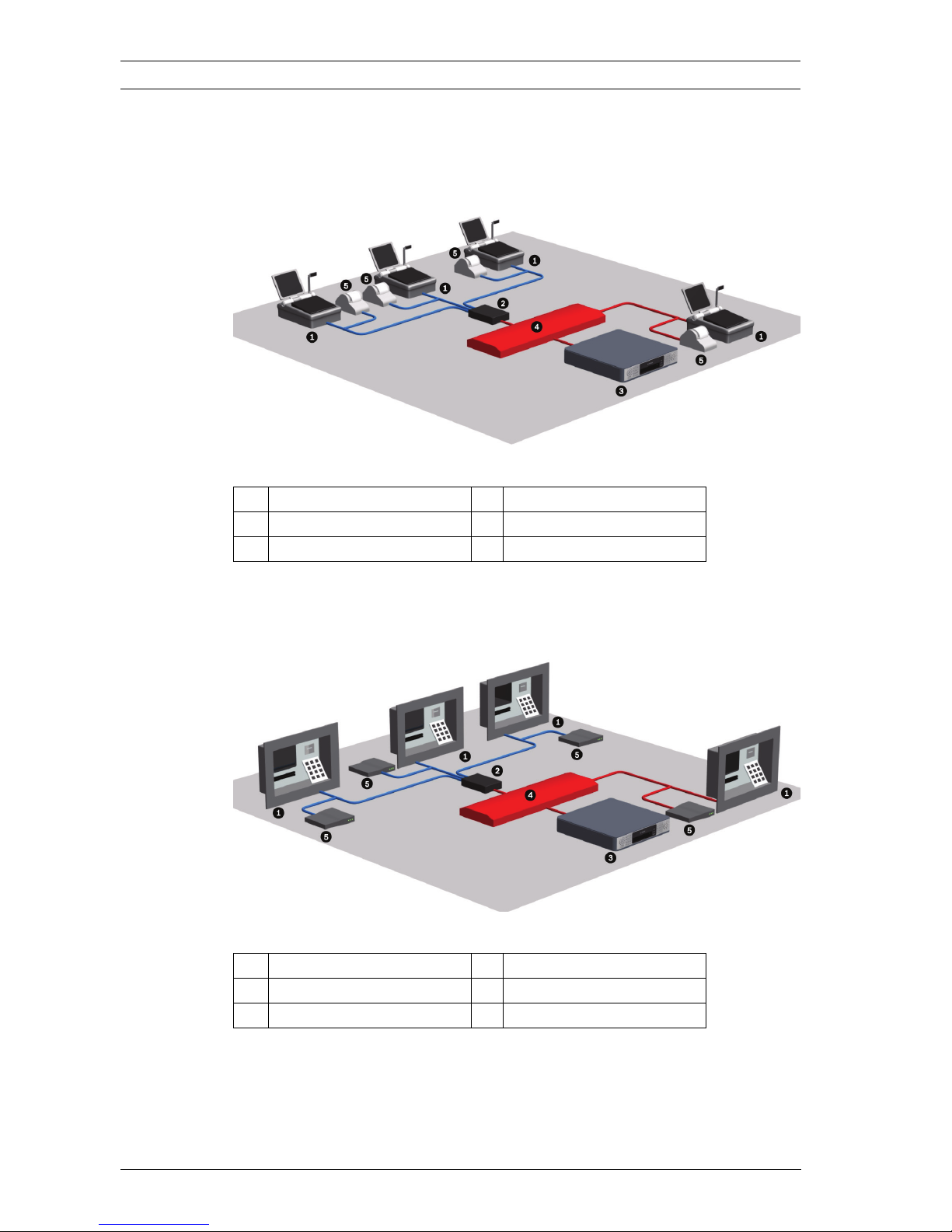

The following illustration shows an example of how a bridge is
used in a network of digital video recorders and POS terminals.
Figure 3.1 POS terminal network
The following illustration shows an example of how a bridge is
used in a network of digital video recorders and ATM terminals.
Figure 3.2 ATM terminal network
1 POS Terminal 4 TCP/IP Network
2 ATM/POS Bridge 5 Printer
3 Recording Device
1 ATM Terminal 4 TCP/IP Network
2 ATM/POS Bridge 5 ATM Modem
3 Recording Device

ATM/POS Bridge Installation | en 11
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
4 Installation
This section details the physical installation of the ATM/POS
Bridge.
4.1 Mounting the Bridge
Determine a location where all incoming connections can reach
the ATM/POS Bridge.
Using the screws provided, attach the two mounting brackets
to the sides of the bridge. Secure the brackets to a solid fixture.

12 en | Installation ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
4.2 Making Connections to the Bridge
Use the following illustration to make the appropriate
connections to the ATM/POS Bridge:
Figure 4.1 ATM/POS Bridge connectors
1 Ethernet RJ45 connector
2 COM 3 RS-232 connector (console port)
3 DC power input connector
4 Activity indicator
5 COM 4 RS485 connector
6 COM 2 RS232 connector
7 COM 1 RS232 connector

ATM/POS Bridge Installation | en 13
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
1. Connect the supplied DC power adapter unit to the DC
power input connector of the bridge.
2. Connect the RJ45 connector of the bridge via a straight
Ethernet CAT5 network cable to a network switch or hub
that supports 10BaseT.
3. Connect your terminal to COM ports 1, 2, 3, or 4 of the
bridge using the supplied cable. Refer to Section 4.3 COM
Connector Detail, page 14 for pin-out details.
Note: Choose COM port 4 on the bridge if your connection
protocol is RS485.
4. Use the supplied splitter cable if the terminal device is also
connected to a printer.
a. Remove the existing cable that connects the terminal
to a printer.
b. Using the splitter cable, connect one male connector
to the terminal.
c. Connect the other male connector to the printer.
d. Connect the cable from the bridge to the open
connector on the splitter cable.
5. Refer to Section 5 Configuration, page 15 to configure the
communication and terminal settings.

14 en | Installation ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
4.3 COM Connector Detail
The four COM connectors on the bridge are all 9-pin SubD-type
male connectors.

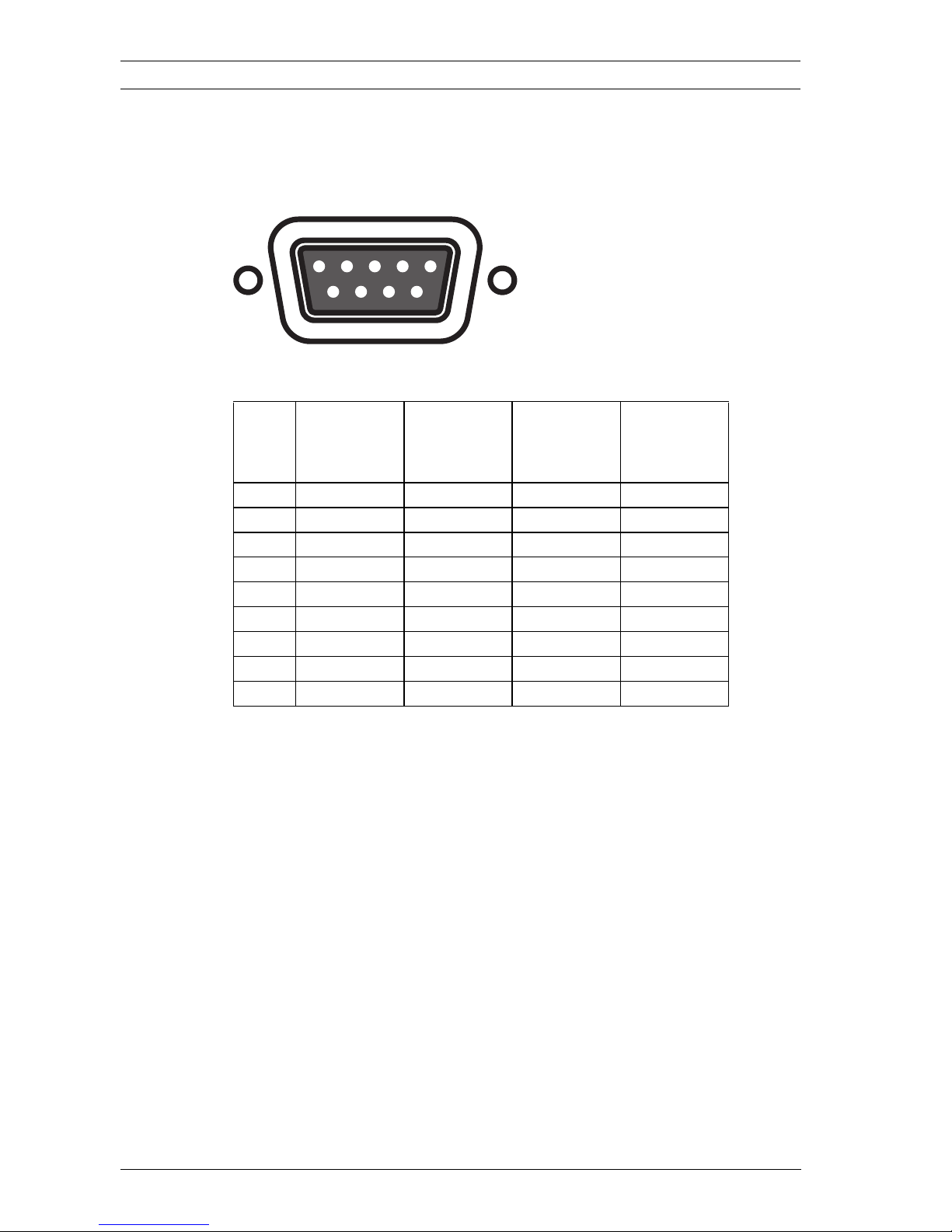

Figure 4.2 COM connector detail
Note: The console cable has pin 9 connected to pin 5 (GND).
When pin 9 of COM 3 (console) is at GND level on power-up,
the bridge enters firmware download mode.
Pin COM 1
RS232
COM 2
RS232
COM 3
(console)
RS232
COM 4
RS485
1
2RxRxRxD2+
3TxTxTxD2-
4
5GND GND GND GND
6
7RxC RxC
8 TxC TxC
9INIT
15
69

ATM/POS Bridge Configuration | en 15
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
5 Configuration
You must configure the ATM/POS Bridge network settings to
ensure proper communication on an existing TCP/IP network.
This section provides configuration details using the Web-based
interface.
To configure the bridge using a HyperTerminal session, refer to
Section 6 Configuration Using HyperTerminal, page 24.
For instructions to update the ATM/POS Bridge firmware, refer
to Section A Updating Bridge Firmware, page 36.
5.1 Configuring the Bridge for a Network
Connection
The ATM/POS Bridge allows two methods to configure network
settings:
– Use the Bridge Detector utility (supplied on the CD-ROM)
to set the network settings (the Device Detection
parameter must be set to Enable, refer to
Section 5.2.2 Network Setup, page 19).
or
– Use a cross-over Ethernet cable to allow an APIPA-enabled
workstation to connect to the bridge. The default network
setting for the bridge falls within the APIPA address
ranges.
5.1.1 Using the Bridge Detector Utility
1. Connect the supplied DC power adapter unit to the DC
power input connector of the bridge.
2. Connect the RJ45 connector of the bridge via a straight
Ethernet CAT5 network cable to a network switch or hub
that supports 10BaseT.
NOTICE!
Contact your local network administrator for a valid IP Address,
Subnet Mask, and a Gateway IP Address.

16 en | Configuration ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
3. From a PC connected to the same network, launch the
BridgeDetector.exe application, located on the CD.

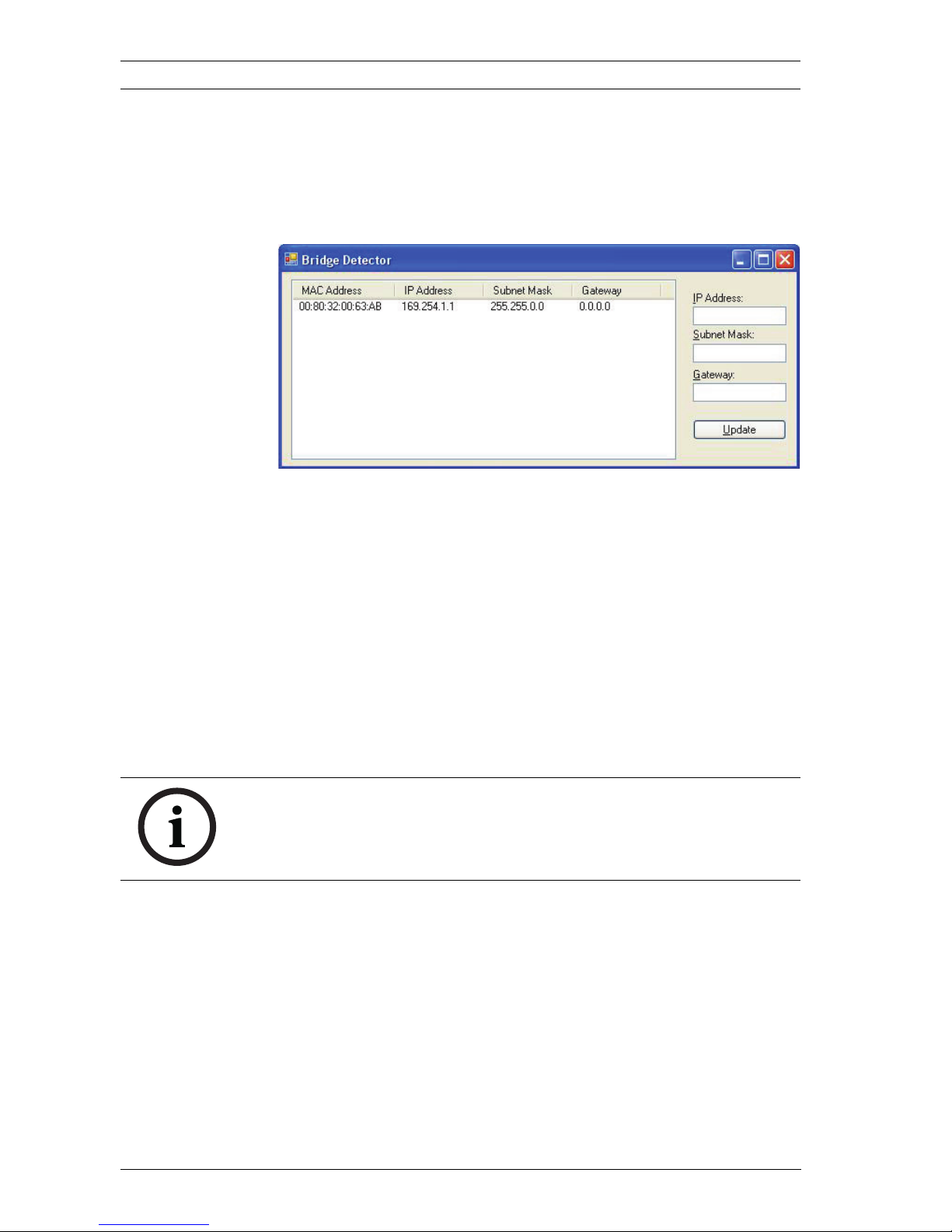

The PC opens the Bridge Detector window that displays
the MAC Address and the default IP Address, Subnet Mask,
and Gateway for the bridge.
4. To change the network settings for the bridge, first select a
bridge. Then, type a valid IP Address, Subnet Mask, and
Gateway in the input boxes on the right side of the Bridge
Detector window.
Note: The MAC Address cannot be changed.
5. Click the Update button to accept the network settings
and to apply these settings to the bridge.
5.1.2 Using the Direct Connection
The ATM/POS Bridge allows network configuration via an
APIPA-enabled computer.
1. Ensure that the PC is configured to use DHCP.
2. Connect the supplied DC power adapter unit to the DC
power input connector of the bridge.
3. Connect the bridge directly to a PC using an RJ45 cross-
over Ethernet CAT5 network cable.
4. Reboot the PC after you connect to the bridge with the
cross-over Ethernet cable.
NOTICE!
Contact your local network administrator for a valid IP Address,
Subnet Mask, and a Gateway IP Address.

ATM/POS Bridge Configuration | en 17
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
5. Launch Internet Explorer and navigate to the default bridge
IP Address: 169.254.1.1
Internet Explorer displays the ATM/POS Bridge interface.
6. Click the Network Setup link in the navigation pane.
7. Type an optional name for the bridge in the Bridge Name
input box. This name facilitates recognition of the bridge
on the network.
8. To change the network settings for the bridge, type a valid
IP Address, Subnet Mask, and Gateway in the appropriate
input boxes.
Note: The MAC Address cannot be changed.
9. Click the Save button to accept the network settings and
to apply these settings to the bridge.

18 en | Configuration ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
5.2 Configuring Operation via a Network
After the bridge is properly configured for network access, you
can configure the COM and Terminal settings via Internet
Explorer.
To access the bridge configuration page:
1. Launch Internet Explorer and navigate to the IP address for
the bridge.
Internet Explorer displays the ATM/POS Bridge interface.
2. Use the menu in the left pane to navigate to the various
configuration pages.
3. Refer to the following sections for details about each
configuration page.
4. Click Save on each page to accept the changes.
5.2.1 System Menu

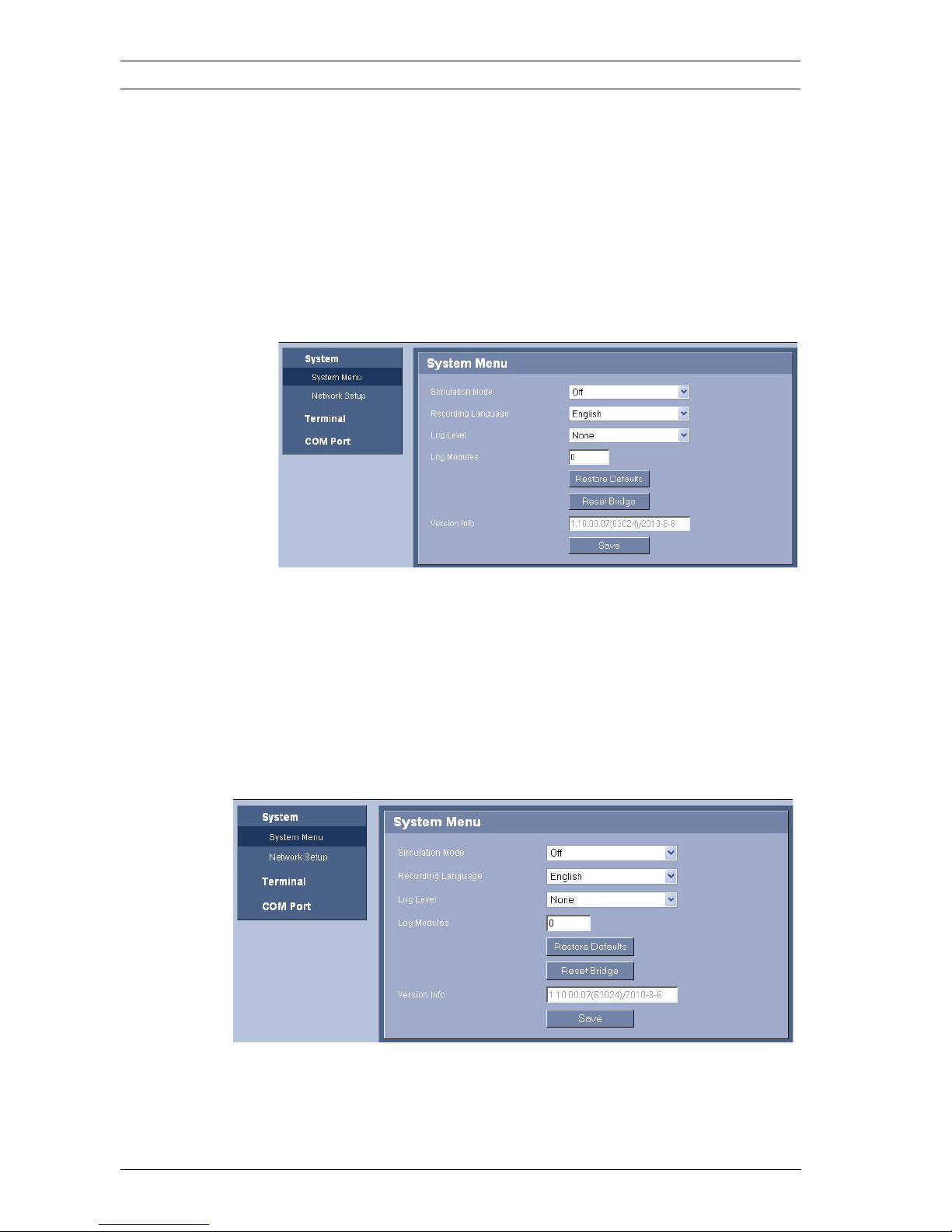

The System Menu contains settings for bridge operation.

ATM/POS Bridge Configuration | en 19
Bosch Security Systems, Inc. Installation Manual F.01U.171.816 | 1.0 | 2010.09
–Simulation Mode: Select the type of device to test the
connection between the bridge and the digital recorder.
Select this mode to send sample data from the bridge to
the digital recorder.
–Recording Language: Select the language that is set on the
digital recorder to ensure that characters display correctly.
–Log Level: Ensure that the Log Level setting is None. This
setting is used for diagnostic purposes only.
–Log Modules: Ensure that the Log Module setting is zero
(0). This setting is used for diagnostic purposes only.
–Restore Defaults: Resets all COM and Terminal settings to
factory defaults. This button does not reset the Network
settings.
–Reset Bridge: Reboots the bridge by cycling the power.
–Version Info: Displays the firmware release level for the
bridge.

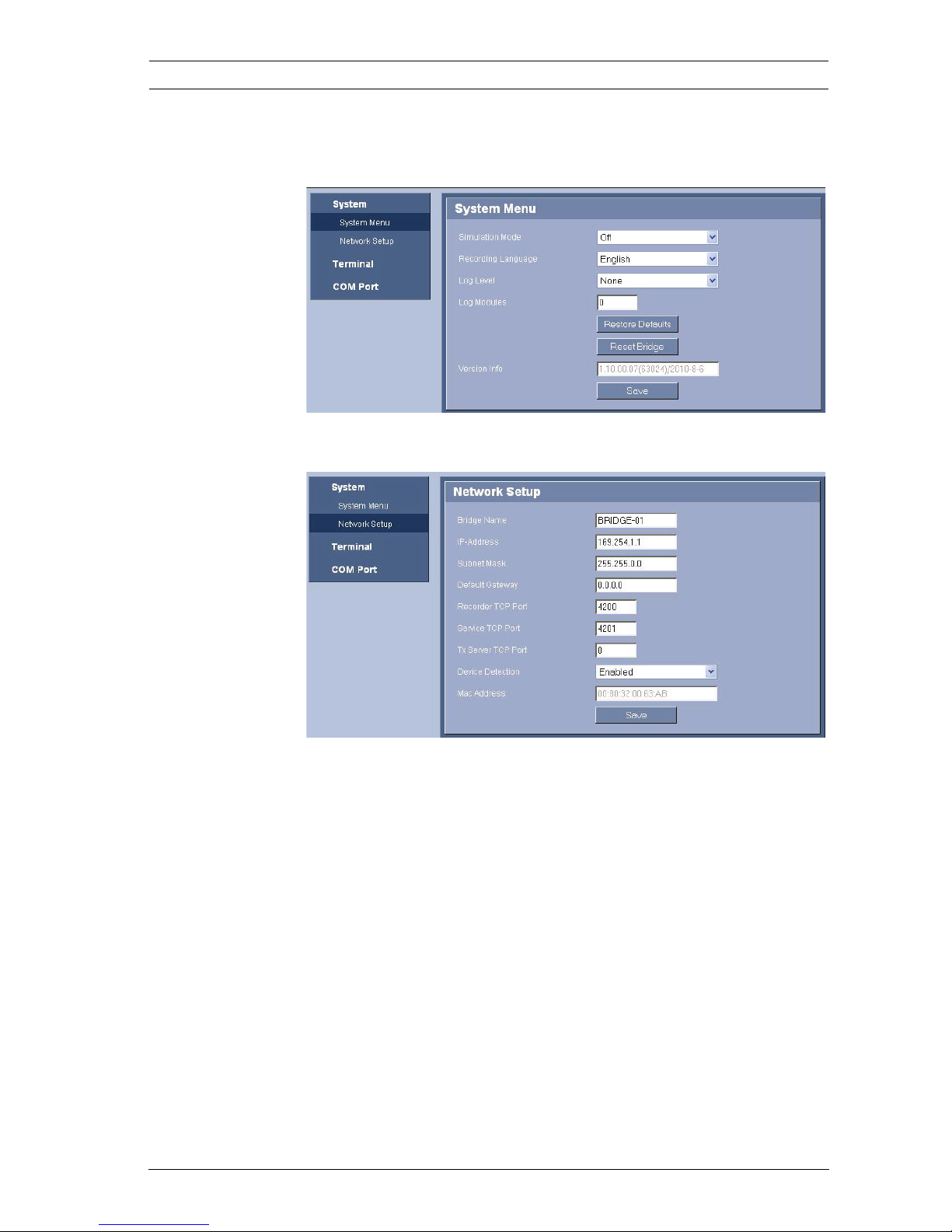

5.2.2 Network Setup
The Network Setup enables you to provide a label for the bridge
and to configure network settings.
CAUTION!
Changing a parameter on the Network Setup page may
interrupt the operation of the ATM/POS Bridge. Contact your
network administrator before making any changes.

20 en | Configuration ATM/POS Bridge
F.01U.171.816 | 1.0 | 2010.09 Installation Manual Bosch Security Systems, Inc.
–Bridge Name: Type an optional name for the bridge in the
Bridge Name input box. This name facilitates recognition of
the bridge on the network.
–IP Address: Displays the current IP Address for the bridge.
You can type a new IP Address in the input box.
–Subnet Mask: Displays the current Subnet Mask for the
bridge. You can type a new Subnet Mask in the input box.
–Default Gateway: Displays the current Gateway Address
for the bridge. You can type a new Gateway Address in the
input box.
–Recorder TCP Port: Displays the TCP port number where
the recorder listens for the bridge device. You can type a
new port number in the input box.
–Service TCP Port: Displays the TCP port where the bridge
listens for CLI commands. (The bridge supports CLI
commands which are used to read and change settings in
the bridge.)
–Tx Server TCP Port: Displays the TCP port number where
the bridge listens for the server that receives transaction
data from the POS or ATM devices on the network. You can
type a new port number in the input box.
–Device Detection: Enables or disables the Bridge
Detection utility to find the bridge on a network.
–MAC Address: Displays the MAC Address for the bridge.
This value cannot be changed.
NOTICE!
It is recommended to disable this feature once the network
settings are configured.
