1 Using this Manual
This document contains the basic information that a trained
installer needs to install the wireless Local SecurityNetwork
(wLSN). It supplements the documents listed in Table 1.1,
Page 5.
This manual contains:
– A description of the wLSN general installation procedure
(Section 2 Installation Considerations, page 6)
– Device-specific installation procedures
(Section 5.1 wLSN Installation Tool, page 17 through
Section 5.13 wLSN Glass Break Detector, page 49)
– A description of the icons used in the wLSN
documentation (Section 6.2 Icons and Symbols, page 56).
Use this manual together with the control panel’s
documentation and each device’s installation instructions to
complete the installation process.
Table 1.1 wLSN Products and Instructions
Product wLSN Device Manual Part Number
ISW-BIT1-HAX, HBX, HCX Installation Tool F01U008748
ISW-BHB1-WX Hub F01U500915
ISW-BPR1-W13PX PIR Motion Detector F01U500908
ISW-BDL1-W11PGX, PHX,
PKX
Dual Motion Detector F01U500901
ISW-BMC1-R135X Recessed Door-Window Contact F01U011878
ISW-BMC1-S135X Door-Window Contact F01U500909
ISW-BMC1-M82X Mini Door-Window Contact F01U011876
ISW-BIN1-S135X Inertia Detector F01U011980
ISW-BKF1-H5X Key Fob F01U001565
ISW-BRL1-WX Relay Module F01U009264
ISW-BSR1-WX Siren F01U009265
ISW-BSM1-SX Smoke Detector F01U012075
ISW-BGB1-SAX Glassbreak F01U027173
ISW-BSR1-WIX Indoor Siren F01U132671
ISW-BSR1-WOX Outdoor Siren F01U132670
ISW-BWL1-SX Water Sensor/Low Temperature
Sensor
F01U075110

6en | Installation Considerations wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
2 Installation Considerations
– With the exception of the ISW-BSR1-WOX Outdoor Siren,
wLSN devices are intended only for indoor, dry
applications.
– Avoid mounting wLSN devices in areas with large metallic
objects, electrical panels (for example: control panel or
fuse box) or electric motors. They might reduce the radio-
frequency (RF) range of a wLSN device.
– Avoid installing the devices where excessive humidity or
moisture, or temperatures outside of the acceptable
operating range exist.
– When installing a wLSN Network, plan your installation
based on the control panel and wLSN specifications, and
the radio frequency signal strength (RFSS) between
remote devices and the wLSN Diversity Hub.
Table 2.1 wLSN General Specifications
NOTICE!
Refer to the control panel’s documentation for detailed
instructions on wLSN programming and device setup.
Humidity Range 0% to 95%
Frequency Band 868 to 869 MHz European Security Band

wLSN Installation Considerations | en 7
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
Note for Customers in the European Union
As a manufacturer of batteries or devices containing batteries,
we are obliged to inform you of the following in accordance
with the Battery Ordinance:
– Batteries must not be disposed of in household waste.
– As a consumer, you are legally obliged to take batteries to
a suitable collection point.
– You can return used batteries free of charge to the point of
sales or to a communal collection point.
– Batteries can contain substances that are hazardous to the
environment or health.
– Only dispose of discharged batteries in the container
provided and, in the case of lithium batteries, mask the
poles.
Batteries are identified with a crossed out trash can symbol.
If the batteries contain specific harmful substances, the
chemical symbols are also indicated:
–Cd-Cadmium
–Pb-Lead
– Hg - Mercury

8en | RFSS Mode (RF Signal Strength) wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
3 RFSS Mode (RF Signal Strength)
Perform a radio frequency signal strength (RFSS) test to
determine the best installation locations for the wLSN Diversity
Hub and each wLSN device.
To perform the RFSS test:
1. Prepare the wLSN Diversity Hub for RFSS testing.
Refer to Section 3.1 Page 9.
2. Conduct an RFSS test using the wLSN Diversity Hub and
Installation Tool. Refer to Section 3.2 Page 10.
CAUTION!
When testing for RF signal strength, the wLSN Diversity Hub
and the control panel must be set to the same EN50131
Security Grade.
CAUTION!
If you have wLSN devices that you will not immediately install,
reinsert the battery tabs or remove the batteries to prevent
battery depletion.
NOTICE!
Do not permanently install the wLSN Diversity Hub or any wLSN
devices until you receive acceptable, or better, signal strength
readings between the wLSN Diversity Hub and all wLSN device
locations.
If you receive unacceptable or marginal readings at several
wLSN device locations, move the wLSN Diversity Hub to a
different location and re-test for RFSS until you receive at least
acceptable readings at all wLSN device locations.

wLSN RFSS Mode (RF Signal Strength) | en 9
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
3.1 Prepare the wLSN Diversity Hub for RFSS
Testing
1. Unlock the locking mechanisms on the bottom of the hub.
Refer to Figure 3.1.
2. To remove the hub from the base, push gently down on the
hub and slide it off the base. Refer to Figure 3.1.

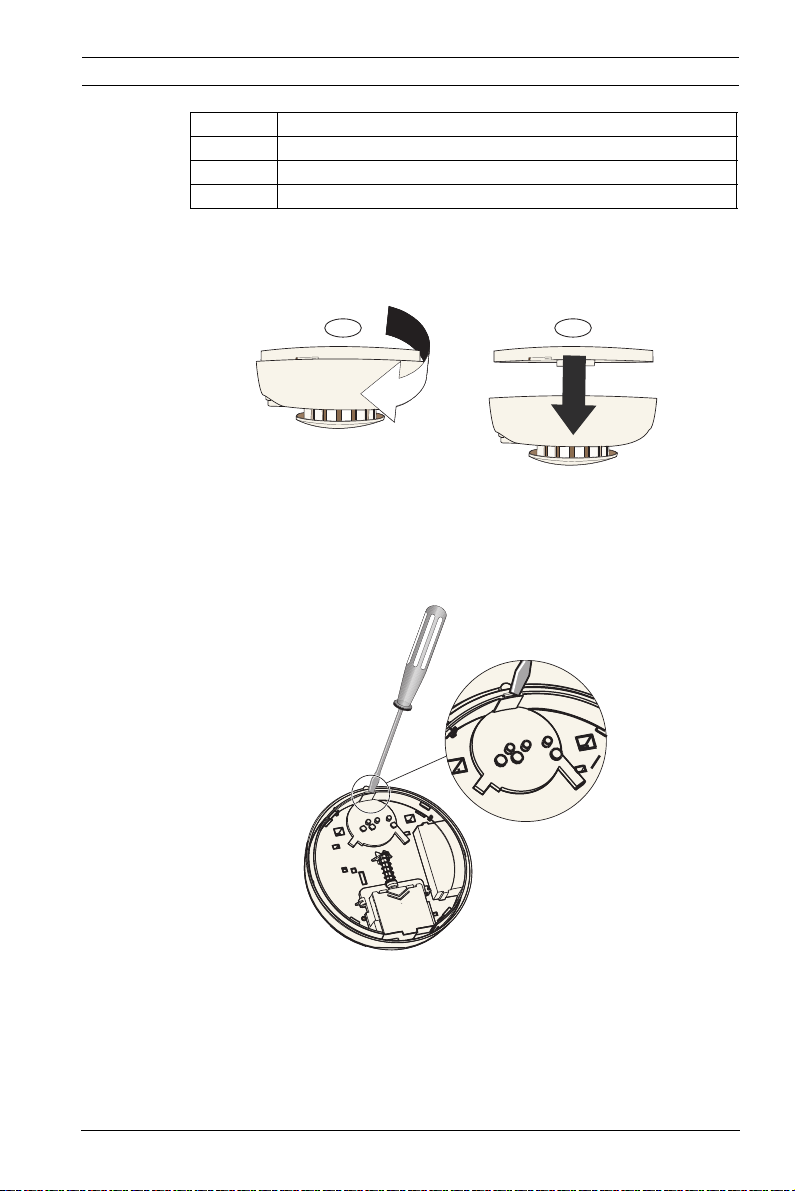

Figure 3.1 Removing the wLSN Diversity Hub from the Base
3. Set the S1 rotary switch to the appropriate position
according to the RF power level or EN50131 security grade
you wish to use. Refer to Table 3.1 for RFSS Mode switch
settings. Refer to Figure 5.2, Page 20 for the location of the
rotary switches.
Table 3.1 S1 Switch RFSS Mode Settings
Refer to the individual device’s specification for the EN50131
classification.
4. Find a suitable location for the hub base and apply power
by connecting it to the control panel (refer to the control
panel’s installation instructions), or by temporarily
connecting a 9 VDC to 12 VDC battery.
5. Insert the wLSN Diversity Hub onto the base.
The wLSN Diversity Hub is now ready for RFSS testing.
Callout Description
1 Unlock hub
2 Slide hub off of base
Switch Position Operation
4 RFSS Mode, Antenna 1, full power
5 RFSS Mode, Antenna 1, Grade 2 (6 dB attenuation)
6 RFSS Mode, Antenna 2, full power
7 RFSS Mode, Antenna 2, Grade 2 (6 dB attenuation)
1 2

10 en | RFSS Mode (RF Signal Strength) wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
3.2 RFSS Test using the wLSN Diversity Hub
and wLSN Installation Tool
1. Go to the installation location for the first wLSN device.
2. Press any key on the wLSN Installation Tool to turn it on.
The screen shows the start-up display.
3. Press and hold the [*] and [#] keys to enter RFSS Mode.
Select Mode 3 to test RFSS.
4. Press [3] to select Mode 3.
Mode 3 determines the signal strength based on the signal-
to-noise ratio (SNR).
SNR is measured in decibels (dB):
–Unacceptable: <30 dB
–Acceptable: 35 dB
–Good: 40 dB
–Very Good: 45 dB
–Excellent: 50 dB
5. Hold the wLSN Installation Tool at the installation location
for at least 10 sec.
CAUTION!
When testing for RF signal strength, the wLSN Diversity Hub
and the control panel must be set to the same EN50131
Security Grade.
NOTICE!
When testing RFSS for the wLSN smoke detector, you must use
the wLSN Installation Tool. The wLSN smoke detector cannot
measure RFSS.

wLSN RFSS Mode (RF Signal Strength) | en 11
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
6. If the reading on the wLSN Installation Tool is at least
acceptable, mount the base for the wireless device.
If the reading on the wLSN Installation Tool is is either
unacceptable or marginal, find a better location for the
wireless device.
7. Repeat Step 5 until all bases are mounted in acceptable
locations.
Do not mount the wireless devices onto the bases at this
time.
8. Set the rotary switch on the wLSN Diversity Hub to normal
operation:
– Position 1 for Data Bus Address 50 (default)
– Position 2 for Data Bus Address 51
9. Configure the wLSN devices as instructed in your control
panel documentation.

12 en | Discovering and Defaulting a wLSN Device wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
4 Discovering and Defaulting a wLSN
Device
4.1 Discovering a wLSN Device
Discovery is the process by which the wLSN Diversity Hub
identifies and includes new devices into a system.
For the wLSN network to operate properly, the following
process must occur:
For specific information on the discovery process, refer to your
control panel documentation.
To default a device that is already enrolled into an existing
wLSN network, refer to Section 4.2 Defaulting a wLSN Device,
page 13.
Discover Devices
Establish Network
Configure Network
Configure Devices
Test Devices

wLSN Discovering and Defaulting a wLSN Device | en 13
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
4.2 Defaulting a wLSN Device
Defaulting a wLSN device returns it to an undiscovered state.
After a device is defaulted, it can be enrolled into a wLSN
network.
Defaulting a Door-Window Contact, Motion Detector, Siren
(ISW-BSR1-WX), Relay Module, or Water Sensor/Low-
Temperature Sensor
1. Remove the batteries.
2. Press and hold the tamper switch button.
3. Reinsert the batteries while holding the tamper switch
button.
The LED on the wLSN device turns on.
4. Release the tamper switch button within five sec after the
LED on the wLSN device turns on.
The LED on the wLSN device briefly turns off and then on,
indicating that the wLSN device was successfully
defaulted.
Defaulting a Glass Break Detector or Siren (ISW-BSR1-WIX
and -WOX)
If the wall tamper tab is removed and you must default the
Glass Break Detector, Indoor Siren (ISW-BSR1-WIX), or
Outdoor Siren (ISW-BSR1-WOX):
1. Remove or disconnect the batteries from the device.
2. Place the device on a flat surface to depress the wall
tamper switch. Refer to Figure 4.1, and Figure 4.2 on page
Page 14.
3. Press and hold the cover tamper switch. Refer to
Figure 4.1, and Figure 4.2, Page 14.
NOTICE!
When the Inertia Detector is defaulted, its LED briefly turns off
and on, and then the detector enters Test Mode. Refer to
Section 5.7.2 Test Mode, page 33 for more information.
To default a key fob, delete the user from the control panel, and
then re-enter the user without the key fob. Refer to the control
panel documentation for instructions.

14 en | Discovering and Defaulting a wLSN Device wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
4. While both tamper switches are depressed, reinsert or
reconnect the batteries. The RFSS Mode LED turns on.
Refer to Figure 4.1 for the location of the RFSS Mode LED.
5. Release the cover tamper switch within five sec after the
RFSS Mode LED turns on. The device is now defaulted.
Figure 4.1 wLSN Glass Break Tamper Switches and RFSS Mode LED
Figure 4.2 ISW-BSR1-WIX, -WOX Tamper Switches and RFSS Mode LED
Callout Description
1 Wall tamper switch (back of detector)
2 RFSS LED (inside of detector)
3Covertamperswitch(inside of detector)
3
1
12
O N
CTS-2
TEST
SW4
ID:000000000
RF1100E
+-
+-
2
BAT1
BAT 2 -HP+ AP_AR
1
2
3

wLSN Discovering and Defaulting a wLSN Device | en 15
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
Defaulting a Smoke Detector
1. Rotate the detector counter-clockwise to remove it from
the mounting base.
Figure 4.3 Remove Smoke Detector from Base
2. Remove the batteries.
3. Separate the housing cover and base by inserting a flat
head screwdriver between the cover and base.
Figure 4.4 Separate Housing Cover and Base
4. Turn the housing base over and locate the transmitter
printed circuit board (PCB).
5. Remove the jumper from the transmitter PCB and reinsert
it over both pins.
Callout Description
1 Wall tamper switch (back of siren)
2 Cover tamper switch (inside of siren)
3 RFSS LED (inside of siren)
1 2

16 en | Discovering and Defaulting a wLSN Device wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
Figure 4.5 Transmitter PCB and Jumper Pins
6. Reinsert the batteries. Do not close the housing base. The
detector is now defaulted.
7. Remove the jumper and replace it over one pin (normal
operating position).
8. Replace the housing cover on the housing base. Align the
sounder with the notch on the housing cover and push
firmly until the cover and base snap into place.
9. Close the battery case and mount the detector onto its
mounting base.
Callout Description
1Housingbase
2TransmitterPCB
3 Jumper plug in normal operating position
(plug covers a single pin)
4 Jumper plug removed from pin
5 Jumper plug covering both pins
1
3
2
4 5

wLSN wLSN Devices | en 17
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
5 wLSN Devices
5.1 wLSN Installation Tool
(ISW-BIT1-HAX, ISW-BIT1-HBX, ISW-BIT1-HCX)
Use the wLSN Installation Tool to determine the best
installation locations for wLSN device installation.
The Installation Tool communicates signal strength and packet
success ratios through an LCD display.
Table 5.1 wLSN Installation Tool Specifications
The status LED indicates charging status when placed in a
docking station.
Figure 5.1 wLSN Installation Tool
Specification Value
Power Docked 12 VDC nominal, 7 VDC to 14 VDC
(12 VDC plug-in power pack supplied)
Batteries 3 AAA NiMH rechargeable batteries that
require an initial charge of at least 7 hours
of charging.
Operating Life: Up to 50 hours of
continuous use on a single charge.
EN Classification EN50131-1 Environmental Class II

18 en | wLSN Devices wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
Callout Description
1 2 line x 16 character LCD display
The display flashes and beeps every four sec to indicate a
status change.
2PowerIndicator
–On: Batteries are fully charged
–Off: Installation tool is operating on only battery power
–Flashing: Batteries are charging
3StatusLED
LED flashes when battery power is low.

wLSN wLSN Devices | en 19
Bosch Security Systems, Inc. System Reference Guide F01U138553 | 01 | 2010.05
5.2 wLSN Diversity Hub
(ISW-BHB2-WX)
The wLSN Diversity Hub acts as the link between wLSN devices
and the control panel. As the wireless network master, the
wLSN Diversity Hub provides network timing and
synchronization, monitors wLSN devices and network status,
and sends configuration data to the wLSN devices as required.
Multiple antennas inside the wLSN Diversity Hub provide
spatial diversity for improved RF signal quality in transmit and
receive modes.
An LED on the front provides device status.
Table 5.2 wLSN Diversity Hub Specifications
Specification Value
Wire Gauge 0.14 (24 AWG) to 1.5 mm (18 AWG)
Power 12 VDC nominal, 7 to 14 VDC
Wire Length 300 m (1000 ft)
Current Draw Maximum 60 mA
Wall and Cover
Tamper Switch
Transmits a tamper signal when the detector is
removed from its base or pulled away from the wall
EN Classification EN50131-1 Security Grade 2, Environmental Class II
NOTICE!
For more information on wire length and the number of devices,
refer to the control panel’s documentation.

20 en | wLSN Devices wLSN
F01U138553 | 01 | 2010.05 System Reference Guide Bosch Security Systems, Inc.
Rotary Switches
There are three rotary switches on the wLSN Diversity Hub: S1,
S2, and S3. Use S1 to make the following settings:
– Set the data bus address for hub-to-control panel
communication during normal operation
– Set the antenna strength when the hub is in RFSS Mode
S2 and S3 are reserved for future use.
Refer to Figure 5.2 for switch location, and Table 5.3 for switch
settings.
Figure 5.2 wLSN Diversity Hub Rotary Switch
Table 5.3 S1 Settings
Switch Position Operation
1 (Default) Data Bus Address 50
2 Data Bus Address 51
4 RFSS Mode, Antenna 1, full power
5 RFSS Mode, Antenna 1, Grade 2 (6 dB attenuation)
6 RFSS Mode, Antenna 2, full power
7 RFSS Mode, Antenna 2, Grade 2 (6 dB attenuation)
9 Default the hub
0, 3, 8 Reserved for future use
S1 S2 S3
NOTICE!
Assign a different address to each data bus device.
