Bosch RE005EV2 User manual

Note: The button functions are fixed and cannot be changed as per the
diagram below.
Panic Function: The fob can generate a panic on the Solution panel. Holding
down buttons 1 and 2 for a period of 2 seconds will cause a panic alarm.
AWAY Arm/Disarm STAY Arm/Disarm
Output 1 Relay Output 2 Relay
Specifications
Receiver
Operating Voltage 9 - 15VDC
Current Consumption 9mA Standby
43mA Both relays operating
Relay Rating SPDT 1Amp Maximum carry @ 12VDC
Reverse Polarity protection Yes. Diode
Operating Frequency 433.92mhz
Receiver Type Superheterodyne AM ASK
Bandwidth 250khz
Antenna 165mm solid core insulated wire
Fob Storage EEPROM Maximum 21 Fobs
Transmitter (Fob)
Operating Voltage 3V Lithium Battery CR2032
Operating Frequency 433.92mhz
Bandwidth 260khz
Tuning SAW resonator locked
Channels 4
Weight 33g including battery
Visual Indicator Blue LED
RE005EV2
RF Arming Kit for SolutionTM 16
N2127
Overview
The RE005EV2 RF Arming Kit is designed to provide a convenient ON/OFF
Control for the Solution16 alarm panels. Provision is also made for the control of
up to two (2) external devices via on board relays.
Features
* Code Hopping RF security ( 4.2 billion combinations)
* Simple installation
* Superheterodyne receiver (less interference)
* Robust attractive keyfobs
* Two onboard programmable relays
+ - CLK
Connect to +12
Connect to GND
Connect to CLK
Connection for antenna.
17cm wire or coax to external 434mhz
antenna. Coax shield connects to GND Learn/Delete
Switch
SPDT relays x 2
Microprocessor
Led
Connection to relays.
1 Amp maximum @
12VDC
RE005EV2
Installation and Set up
1. Select a location to install the ABS bulkhead case of the receiver which
is non metallic. Metal objects close to the receiver may affect range.
2. Connect wiring to Solution 16 keypad bus.
3. In the installer programming of the Solution 16 set;
Location 666 = Option 1 enabled Location 665 = Option 8 enabled
if horn speaker beeps are required.
4. The supplied fobs are already learned to the RE005EV2 with both relays
set for momentary operation. If however a different relay set up is required
then the fobs will need to be deleted and learned again as below.
TO DELETE FOBS - Press and hold the Learn/Delete switch. Note that
the LED will light and then extinguish after 4 seconds. The EEPROM
memory is now erased. Individual fob deletion is not possible.
TO LEARN FOBS - Press the Learn/Delete switch once. Note that the
LED will flash rapidly. Now press the button on the FIRST fob to be
learned corresponding to the relay functions required ( see below). The
LED will come on solid whilst receiving the transmission and then flash
once to confirm learning. Repeat for additional fobs ( maximum 21). It is
not important which button is pressed on fobs learned after the FIRST as
the relay functions are set by the FIRST learned fob.
Relay Programming
Button 1 = Both outputs momentary
Button 2 = Output 1 toggling, Output 2 momentary
Button 3 = Output 2 toggling, Output 1 momentary
Button 4 = Both outputs toggling
5. Press the Learn/Delete button once when finished learning fobs. Note that
if no RF activity occurs the RE005EV2 will leave learn mode automatically
after 20 seconds.
6. Test Operation.

Other manuals for RE005EV2

1

Other Bosch Receiver manuals

Bosch LR 6 User manual

Bosch

Bosch LR 6 User manual

Bosch LE10 User manual

Bosch

Bosch LE10 User manual

Bosch EN4216R User manual

Bosch

Bosch EN4216R User manual

Bosch Conettix D6600 Owner's manual

Bosch

Bosch Conettix D6600 Owner's manual

Bosch Coach smartPanel NAFTA 7 620 210 046 Technical manual

Bosch

Bosch Coach smartPanel NAFTA 7 620 210 046 Technical manual

Bosch RFRC-OPT User manual

Bosch

Bosch RFRC-OPT User manual

Bosch ISW-EN4216R User manual

Bosch

Bosch ISW-EN4216R User manual

Bosch RFRC-OPT User manual

Bosch

Bosch RFRC-OPT User manual

Bosch LE10 Installation and operating instructions

Bosch

Bosch LE10 Installation and operating instructions

Bosch RF3224 User manual

Bosch

Bosch RF3224 User manual

Bosch FA400 User manual

Bosch

Bosch FA400 User manual

Bosch LR 2 Professional User manual

Bosch

Bosch LR 2 Professional User manual

Bosch LR 1 Professional User manual

Bosch

Bosch LR 1 Professional User manual

Bosch RE005EV2 User manual

Bosch

Bosch RE005EV2 User manual

Bosch LR 2 Professional User manual

Bosch

Bosch LR 2 Professional User manual

Bosch LR30 User manual

Bosch

Bosch LR30 User manual

Bosch Professional GCT 30-42 User manual

Bosch

Bosch Professional GCT 30-42 User manual

Bosch RFRC-OPT User manual

Bosch

Bosch RFRC-OPT User manual

Bosch ISW-EN4200 Serial User manual

Bosch

Bosch ISW-EN4200 Serial User manual

Bosch WE800EV2 RF User manual

Bosch

Bosch WE800EV2 RF User manual

Bosch BLE 130 Professional User manual

Bosch

Bosch BLE 130 Professional User manual

Bosch LTC 8561 Series User manual

Bosch

Bosch LTC 8561 Series User manual

Bosch LE10 User manual

Bosch

Bosch LE10 User manual

Bosch Radion B810 User manual

Bosch

Bosch Radion B810 User manual

Popular Receiver manuals by other brands

Becker Centronic VarioControl VC320 Assembly and operating instructions

Becker

Becker Centronic VarioControl VC320 Assembly and operating instructions

THOMSON THS222 user manual

THOMSON

THOMSON THS222 user manual

JRC NRD-525 instruction manual

JRC

JRC NRD-525 instruction manual

Marantz AV7005 Firmware upgrade guide

Marantz

Marantz AV7005 Firmware upgrade guide

Pioneer VSX-9130TXH-K - 140 Watts A/V Receiver operating instructions

Pioneer

Pioneer VSX-9130TXH-K - 140 Watts A/V Receiver operating instructions

CYP PU-305BDA-TX Operation manual

CYP

CYP PU-305BDA-TX Operation manual

Sony HCD-DH7BT - Dvd Receiver For Cmtdh7bt Micro... Service manual

Sony

Sony HCD-DH7BT - Dvd Receiver For Cmtdh7bt Micro... Service manual

AMX UDM-RX02N quick start guide

AMX

AMX UDM-RX02N quick start guide

Triax T-HD505 VA Start

Triax

Triax T-HD505 VA Start

Allo RemoteControl NICE TT1N instructions

Allo RemoteControl

Allo RemoteControl NICE TT1N instructions

Hyundai H-1611 instruction manual

Hyundai

Hyundai H-1611 instruction manual

Bang & Olufsen Beomaster 5500 user manual

Bang & Olufsen

Bang & Olufsen Beomaster 5500 user manual

Samsung DSB-B350S Instructions for use

Samsung

Samsung DSB-B350S Instructions for use

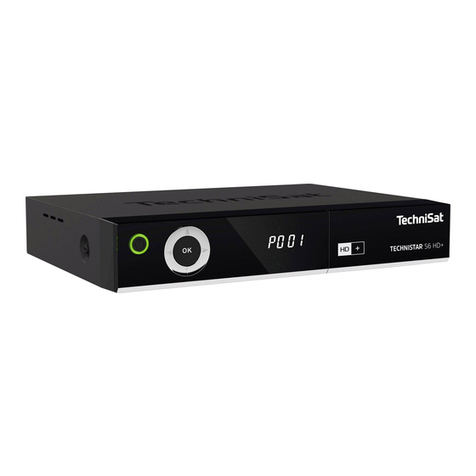

TechniSat TECHNISTAR S6 How-to

TechniSat

TechniSat TECHNISTAR S6 How-to

Sailor 6217 VHF installation guide

Sailor

Sailor 6217 VHF installation guide

AMX DXF-TX-MMD instruction manual

AMX

AMX DXF-TX-MMD instruction manual

Jameson JS-2012 user manual

Jameson

Jameson JS-2012 user manual

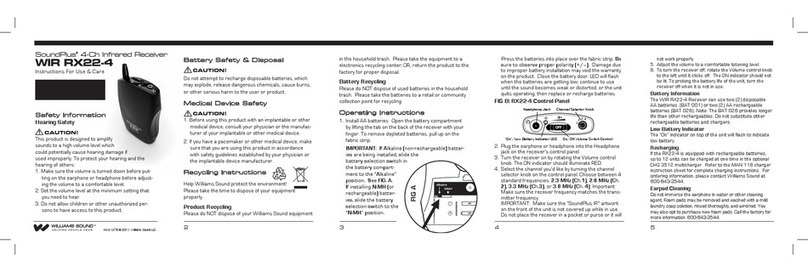

Williams Sound SoundPlus WIR RX22-4 Instructions for use & care
