Boss Audio Systems BV7330 User manual

BV7330
OWNER’S MANUAL
MobileAudio/VideoSystem
y3.2" TFT Monitor
yDVD Player with Radio
yFold down detachable Panel
yMemory Card Interface
yUSB Interface
yAUX IN interface on the front panel
yParental Control
yRemote Control
1

CONTENTS
SAFETY INFORMATION................................................................... 3
DISC NOTES ..................................................................................... 5
INSTALLATION.................................................................................. 6
USING THE DETACHABLE FRONT PANEL.................................... 9
CONNECTIONS................................................................................. 10
LOCATIONS AND FUNCTION OF THE PLAYER............................. 11
LOCATIONS AND FUNCTION OF THE REMOTE CONTROL......... 12
OPERATION ...................................................................................... 15
BASIC OPERATION....................................................................................... 15
DVD OPERATION............................................................................................ 16
USB PLAY OPERATION.................................................................................. 21
MEMORY CARD OPERATION........................................................................ 22
RADIO OPERATION ........................................................................................ 22
AUX IN OPERATION........................................................................................ 23
TROUBLE SHOOTING...................................................................... 24
SPECIFICATIONS ............................................................................. 26
2

Features
Compatible with PAL DVD (Video CD)
and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
zL/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
zSupplied remote handles
multi-function software
(multi-language audio-track/subtitle,
multi-angle, etc.), plus all basic
functions.
Use This Product Safely
This set has been designed and
manufactured to assure personal safety.
Improper use can result in electric
shock or fire hazard. The safeguards
incorporated in this unit protect you if
you observe the following procedures
for installation, use and servicing. This
unit doesn’t contain any parts that can
be repaired by the user.
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce
very high temperatures inside your
vehicle. Give the interior a chance to
cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system.
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise
mechanism of this unit.
Use Authorized Service Centers
Do not attempt to disassemble or adjust
this precision product. Please refer to
the Service Center list included with this
product for service assistance.
For Installation
The unit should be installed in a
horizontal position with the front end up
at a convenient angle, but not more
than 300.
3

SAFETY INFORMATION
CAUTION:
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
WARNING:
yTO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN
OR MOISTURE.
yTO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
yTHIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
Region Management Information
Region Management Information: This
Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
4

DISC NOTES
Handling and Cleaning
yDirt, dust, scratches and warping discs
will cause wrong operation.
yDo not place stickers or make
scratches on discs.
yDo not warp discs.
yA disc should always be kept in its case
when not in use to prevent from
damage.
yDo not place discs in the following
places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. On the seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, using a soft cloth
slightly dip with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on the way it is
handled and conditions in the usage
environment. Note these scratches are
not an indication of any problem with the
player.

Preparing New Discs with
Rough Spots
A new disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance by
using a ballpoint pen or pencil as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
5

6
INSTALLATION
Notes:
yChoose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
yBefore finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
yUse only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
yConsult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
yInstall the unit where it does not get in
the driver’s way and cannot injure the
passenger.
yIf installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
yAvoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN
Front-mount) or “Rear” (DIN Rear-mount
installation, utilizing threaded screw holes
at the sides of the unit chassis). For details,
refer to the following illustrated installation
methods.
TAKE OUTSCREWBEFORE INSTALLATION
Before Installing the unit, please remove the
two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release
button on the front
panel and remove the control panel
(see the steps of “removing the front
panel”).
4. Lift the top of the outer trim ring then
pull it out to remove it.

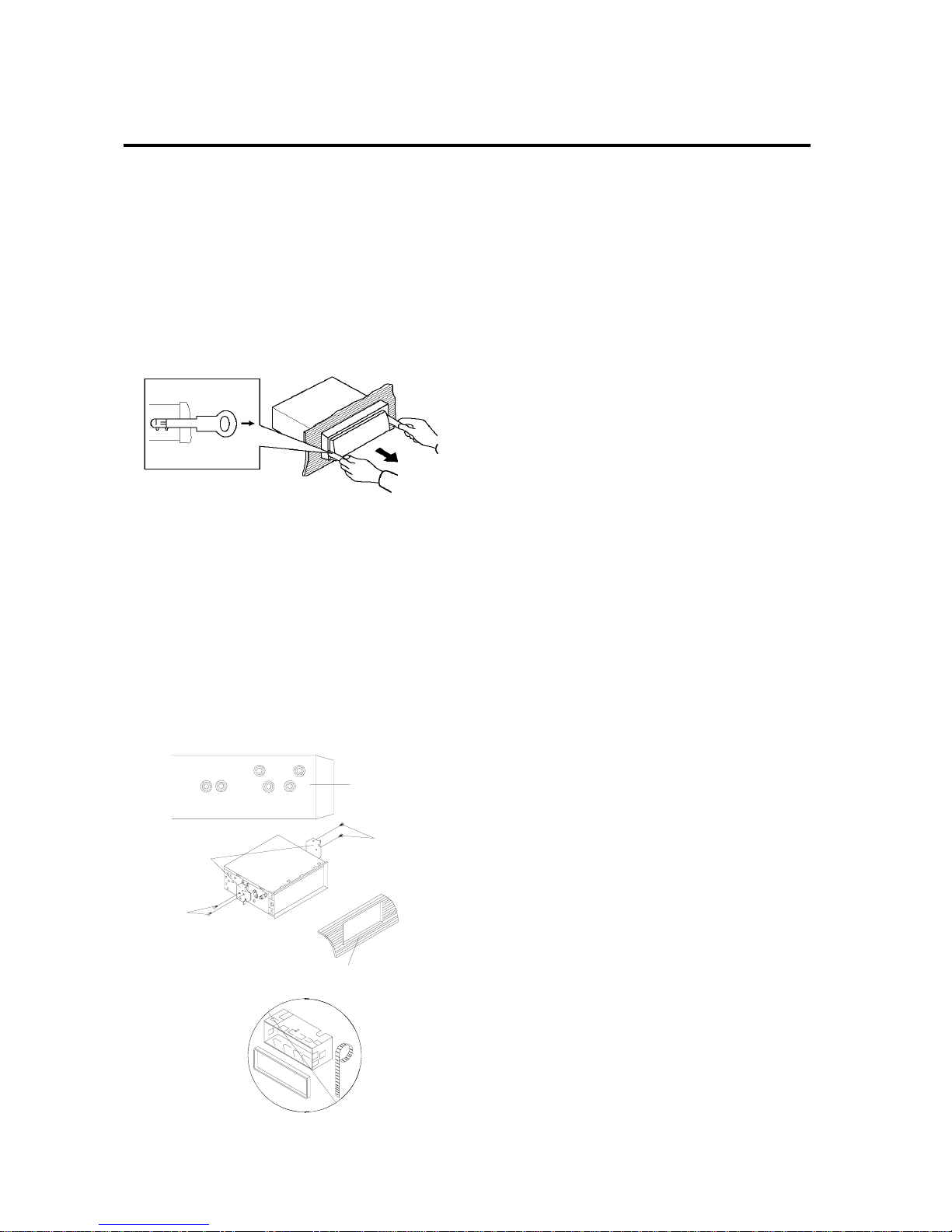

5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
30
Take out screw
before installation.

7
INSTALLATION
they will go (with the notches facing up)
into the appropriate slots at the middle
left and right sides of the unit. Then slide
the sleeve off the back of the unit.
(1) Front Panel; (2) Outer Trim Ring;
(3) Sleeve; (4) L key; (5) R key.
6. Mount the sleeve by inserting the
sleeve into the opening of the
dashboard and bend open the tabs
located around the sleeve with a
screwdriver. Not all tabs will be able to
make contact, so examine which ones
will be most effective. Bending open the
appropriate tabs behind the dashboard
to secure the sleeve in place.
(1) Dashboard (2) Taps
7. Reconnect the wire harness and the
antenna and be careful not to pinch any
wires or cables.
8. Slide the unit into the sleeve until it
locks into place.
9. To further secure the unit, use the
supplied metal strap to secure the
back of the unit in place. Use the
supplied hardware (Hex Nut (M5mm)
and Spring Washer) to attach one end of
the strap to the mounting bolt on the
back of the unit. If necessary, bend the
metal strap to fit your vehicle’s mounting
area. Then use the supplied hardware
(Tapping Screw (5x25mm) and Plain
Washer) to attach the other end of metal
strap to a solid metal part of the vehicle
under the dashboard. This strap also
helps ensure proper electrical grounding
of the unit.
Note to install the short threading
terminal of the mounting bolt to the back
of the unit and the other long threading
terminal to the dashboard.
(1) Metal Strap; (2) Mounting Bolt;
(3) Hex Nut; (4) Spring Washer;
(5) Tapping Screw; (6) Plain Washer
10. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring and install
the unit’s front panel (see the steps of
“installing the front panel”).
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).

8
INSTALLATION
3. Press the release button to remove the
front panel.
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. Insert both of the supplied keys into the
slots at the middle left and right sides of
the unit, then pull the unit out of the
dashboard.
DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on both sides of the unit
to fasten the unit to the factory radio
mounting brackets supplied with your
vehicle.
Dashboard or Console
Screw
Factory Radio
Mounting Bracket
Side View showing
Screw Holes marked
T, N
Screw
To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.

9

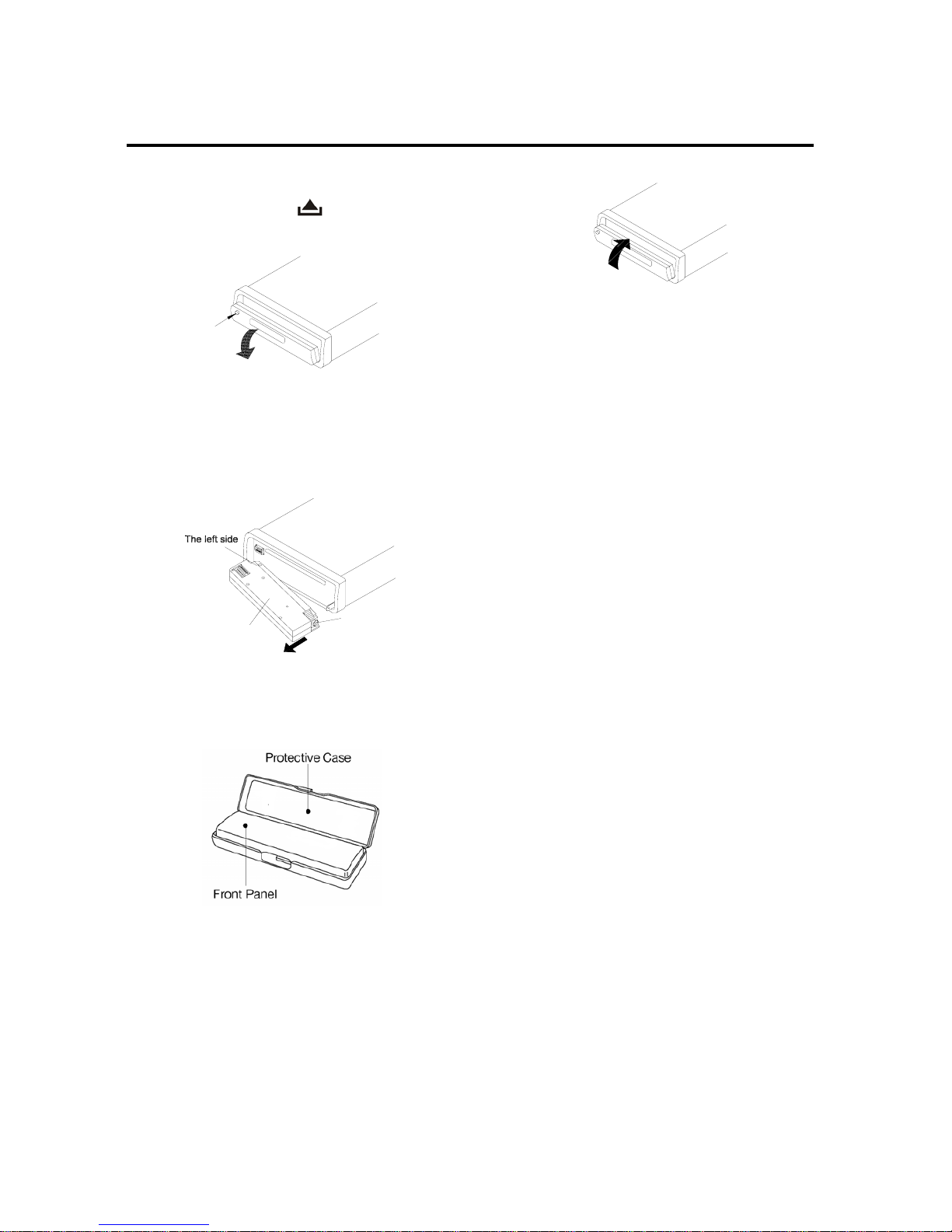

To Detach the Front Panel
1. Press the release ( ) button, then the
front panel will be folded down.
OPEN
2. To remove the front panel, lift it up at a
little angle from horizontal position, then
first pull out the right side and then pull
out the left side.
Front Panel
The right side
3. For safekeeping, store the front panel in
the supplied protective case immediately
after being removed.
To Install the Front Panel
1. To install the front panel, first insert the
left side into proper position then insert
the right side into place.
2. When the two sides fixed into place,
push the front panel into main unit.
3. Note that if the front panel fails to lock in
position properly, pressing control button
may not function and the display may be
missing some segments. Press the
release button and then reinstall the front
panel again.
Precautions when handling
1. Do not drop the front panel.
2. Do not put pressure on the display or
control buttons when detaching or
re-installing the front panel.
3. Do not touch the contacts on the front
panel or on the main unit body. It may
result in poor electrical contact.
4. If any dirt or foreign substances
adhered on the contacts, they can be
removed with a clean and dry cloth.
5. Do not expose the front panel to high
temperatures or direct sunlight in
anywhere.
6. Keep away any volatile agents (e.g.
benzene, thinner, or insecticides) from
touching the surface of the front panel
7. Do not attempt to disassemble the
front panel.
USING THE DETACHABLE FRONT PANEL
Release button
