USER MANUAL
AHDS-7810v2
Wireless HD Observation System

2
Wireless Monitor - Controls
• Press to cycle between 5
camera views (CH 1, CH 2, CH 3,
CH4, and SPLIT SCREEN)
• Press and Hold to enter
“PAIRING MODE” to pair the
wireless camera
• Press to turn the monitor on/o
• Press to open the Menu Screen
• Press within menu screens to
go back
• Press within menu screens to
open selections
• Press to decrease brightness on
the camera screen
• Press to move selection to the
left (-), and right (+) within menu
screens
• Press from the camera screen to
open the SD Card menu
CAM: :
MENU: ENTER:
- / +: CARD:

3
Wireless Camera - Pairing
Note: Once the camera is powered, you will have
45 seconds to initialize the pairing process.
power indicator
light sensor
manual pairing button
Single Camera Pairing:
Multiple Camera Pairing:
1. Power both the monitor and camera on. To check if the camera is
properly powered, look for the RED light on the camera body.
2. Cycle the CAM button until you are on the specific channel you wish
to pair the camera to.
3. Press and Hold the CAM button until the pairing process begins.
1. When pairing multiple cameras, you will need to use the PAIRING
BUTTON located on the bottom of the camera housing.
2. Cycle the CAM button until you are on the specific channel you wish
to pair the camera to.
3. Press the MANUAL PAIRING BUTTON on the camera, then Press
and Hold the CAM button on the monitor until the pairing process
begins.

4
Recording Setup
Setting the Time/Date:
DVR Recording:
1. Press the MENU button to open the display menu options.
2. Select SYSTEM from the main menu.
3. Select TIME and program using - / + and ENTER.
1. Insert the SD card into the side of the monitor. You can use up to a
128GB SD card.
2. Press CAM to view the input that you would like recorded.
3. The monitor will automatically begin recording once an SD card is
inserted into the unit.
4. For SD Card options, select RECORD form the main menu
Note: If the camera is not visible on the screen,
the monitor will not capture that video input. Only
active cameras are recorded.

5
Viewing Recordings
Monitor Playback:
Computer Playback:
1. Press the CARD button or press the MENU and select PLAY
2. Press ENTER to open 100MEDIA Folder to view recorded video files
1. Remove SD card from the monitor
2. Insert the SD card into a computer
3. Use the computer’s default media player to open .mp4 files

6
Main Menu
• Select the MENU button to open the Main Menu.
• You can use the - and + buttons to navigate your selection left and right. To select
an option, click the ENTER button. To deselect an option or go back, click the MENU
button
• Adjust various settings related to the monitor picture quality: Brightness, Hue, and
Contrast
• Adjust the volume of the monitor’s built in speakers

7
Mirror-Flip
• Select multiple orientations to display the video on the monitor. This is helpful
for those who have mounted their cameras in alternative orientations.
1. After pairing each camera, open the MENU and set
each side marker camera view to the FLIP setting
to see video in the correct orientation if side marker
lights have to be mounted upside down.
Side Marker Camera Alternative Mounting Option:
Note: This operation is only recommended for owners of the
AHDS-7812 Side Marker Light Cameras that have an obstruction
preventing installation of their system.
camera blocking cargo door cargo door clear of camera

8

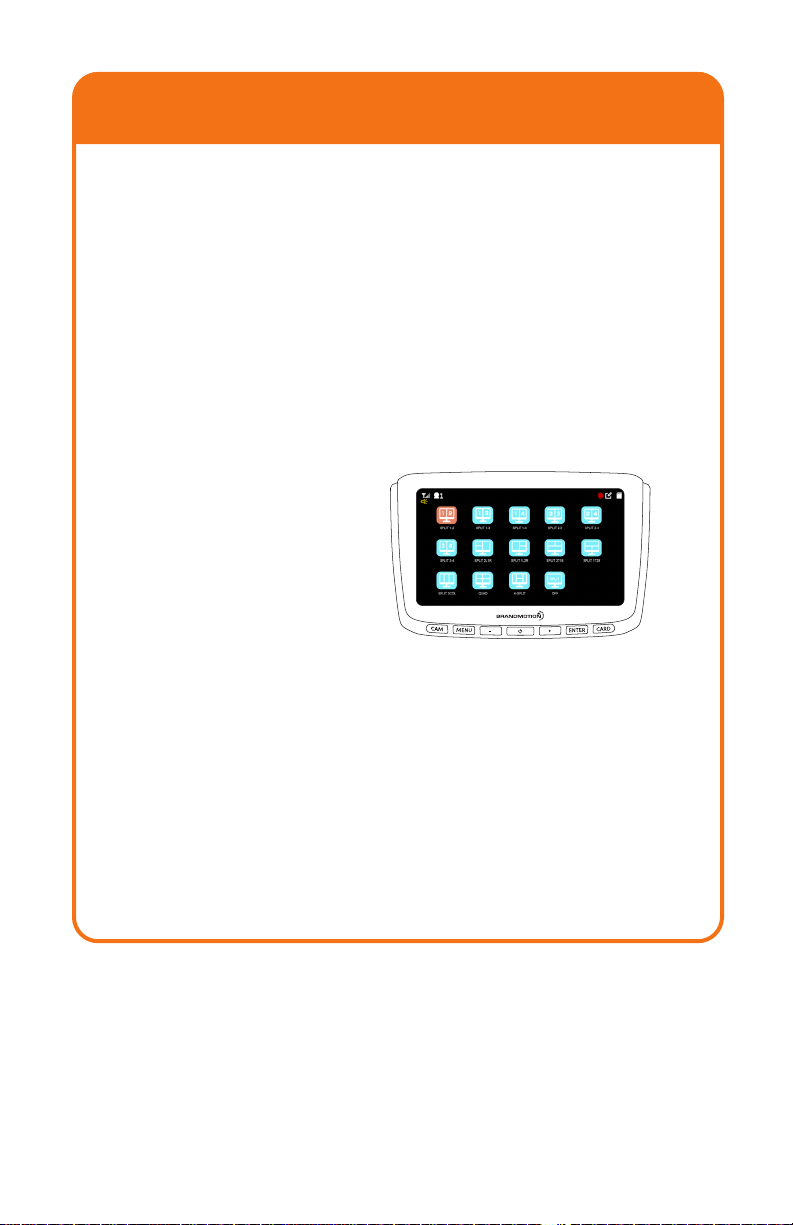

Mode
Cam-Setup
• From the Main Menu, select MODE to choose from a variety of 14 Split Screen
combinations.
• The Split Screen option you select is what will be displayed as the 5th camera view
when you cycle the camera input with the CAM button
• Select OFF to disable the mode input
• Toggle what Camera Inputs are active when the CAM button is pressed
• Toggle AUTO SCAN to enable the monitor to automatically switch to a live camera
when no signal is detected on the active input. This is useful for vehicles with
cameras installed on multiple trailers.

9
System
• Toggle system settings such as Time, Language, and AUTO-DIM
• Toggle Parking Lines overlay for camera views
• Preform a Factory Reset on the monitor to restore default settings
parking lines example

10
Frequently Asked Questions
• No, the monitor will only record the active video being displayed on the
screen. If there is no live video on the screen, there will be no data recorded.
• When viewing a single camera, the system can record up to 50 hours
of video content on a 32GB card before automatically overwriting old
recordings.
• 1 Live Camera = 50 hours
• 2 Live Cameras = 25 hours
• 3 Live Cameras = 15 hours
• 4 Live Cameras = 12 Hours
• The DVR output is a single video that shows all four cameras in their native
video perspective. Menus, unique perspectives, and sound is not recorded.
For more information, please see page 5.
Q: Will the system record with the screen o?
Q: How many hours of recording will I get from a 32GB SD Card?
Q: How do I change what cameras I view on the split screen?
Questions? Call the technical support line at
[phone]
Note: The monitor can support up to a 128GB SD Card

11
COMPLETE YOUR
OBSERVATION SYSTEM
AHDS-7811V2
WIRELESS HD OBSERVATION CAMERA
AHDS-7812
WIRELESS HD SIDE MARKER LIGHT CAMERAS
