Brandt KV373WE1 User manual

Operating instructions
for your new cooker
Cookers
References KV373WE1 - KV373XE1
99628651_GB_A.qxd 12/05/03 16:07 Page 1

displays safety instructions
displays tips and hints
2
Dear Customer,
Thank you for purchasing a BRANDT cooker.
Our research teams have designed for you a new generation of appliances for pleasurable
cooking every day.
Featuring a pure styling and modern design, your new cooker blends perfectly into your
kitchen, combining ease of use with cooking performance.
You will also find in the Brandt range a wide selection of ovens, extractor hoods, dishwashers
and refrigerators that you can coordinate with your new Brandt cooker.
Of course, constantly concerned with better satisfying your requirements, our customer
service department can answer all your questions and welcomes all your suggestions (details
at the end of this booklet).
At the cutting edge of innovation, Brandt contributes to the quality of daily life by giving you
constantly improving products that are simple to use, respect the environment and are
well-designed and reliable.
BRANDT.
Editorial
In this Manual,
List of contents
The layout of your cooker 3-11
Oven cook settings 12-13
Cooking guide 14-15
After Sales Service 16
99628651_GB_A.qxd 12/05/03 16:07 Page 2

The layout of your cooker
3
Chaleur résiduelle
Foyer radiant arrière gauche
750/2200 W
diam.120/210 mm
Foyer radiant arrière
droit
1500 W
diam.180 mm
Foyer radiant avant droit
750/1700 W
diam.120/180 mm
Foyer radiant avant
gauche
1200 W
diam.145 mm
Sélecteur des fonctions du four
Programmateur
Manette du thermostat du four
Voyant de thermostat du four
Manette du foyer avant gauche
Manette du foyer avant droit avec extension
Manette du foyer arrière droit
Voyant de mise sous tension des foyers radiants
Manette du foyer arrière gauche avec extension
Témoins de chaleur résiduelle
de chaque zone de cuisson
These cookers have been designed for private use in the home.
Please read these instructions before installing and using your
cooker.
With a view to constantly improving our products, we reserve the right to
make any changes in their technical, functional or aesthetic characteristics as a
result of technical developments.
These cookers are designed exclusively for the cooking of drinks and
foodstuffs.
These products do not contain any asbestos-based component parts.
You must always keep an eye on your cooking.
Please read
Rear right radiant cooking zone
750/2200 W - diameter 120/210 mm
Front right radiant cooking
zone
1200 W - diameter 145 mm
Residual heat indicators for
each cooking zone
Front left radiant cooking zone
750/1700 W - diameter 120/180 mm
Rear left radiant
cooking zone 1500 W -
diameter 180 mm
Programmer
Rear left cooking zone knob
Oven temperature regulator
Hob hot indicator for
each cooking zone
Oven function
selector Front right cooking zone knob
“Power on” indicator for cooking zones
Front right ring knob with extension
Rear left ring knob with extension
99628651_GB_A.qxd 12/05/03 16:07 Page 3

4
Using your cooker in all simplicity
Using the radiant cooking zones:
●Details of cooking positions
A high setting is needed for:
- Large quantities
- Cooking with uncovered recipients
- Using glass or ceramic saucepans.
DOUBLE COOKING ZONE
Turn the control knob for the
chosen cooking zone (back left or front
right) as far as it will go (with the notch
beyond point 9) in a clockwise direction to
turn on the additional heating zone, then
return to the chosen position.
Position 1, 2, 3
- Used for continuous cooking, for
reheating or for keeping certain dishes
warm.
Position 4, 5, 6
- Used for simmering and for cooking
larger quantities.
Position 7, 8, 9
- Used for roasting, frying and bringing to the
boil.
For rapid heating or roasting
- Set the switch for the hotplate or cooking
zone to position 9. When it has heated up,
turn the switch back to the appropriate
position.
POSITION
0
1
2 - 3
4
5 - 6
7
8 - 9
ODE
OFF
WARMING
SIMMERING
SLOW COOKING
MEDIUM COOKING
HIGH
ULTRA-HIGH
DISHES
Keeping dishes
warm, dishes
ready-to-serve,
slow simmering.
White sauce,
stews, pulses, rice
pudding, medium
simmering,
reheating.
Pasta, mashed
potatoes, soup,
jam, broth/stock.
Escalopes,
croquettes, fresh
vegetables, soup,
fried frozen foods,
sauté potatoes.
Omelettes, boiling
milk.
Lamb chops, grilled
meat, steaks, fried
dishes.
1
9
0
3
5
7
99628651_GB_A.qxd 12/05/03 16:07 Page 4

5
Using your cooker in all simplicity
How to use your programmer
●Introduction to the programmer
TIME
(DISPLAY FROM 0H00 To 23H59)
COOKING TIME
END OF COOKING
TIMER
(59 MIN 30S)
AUTOTIMER PROGRAMMING
BUTTON
DURATION
99628651_GB_A.qxd 12/05/03 16:07 Page 5

When turning on the power at the
mains (❶)
➡ Set the time with +and -(keeping the key
pressed makes the time scroll) (❷).
- Example : 12h30.
➡ Press on the ^key to validate (❸).

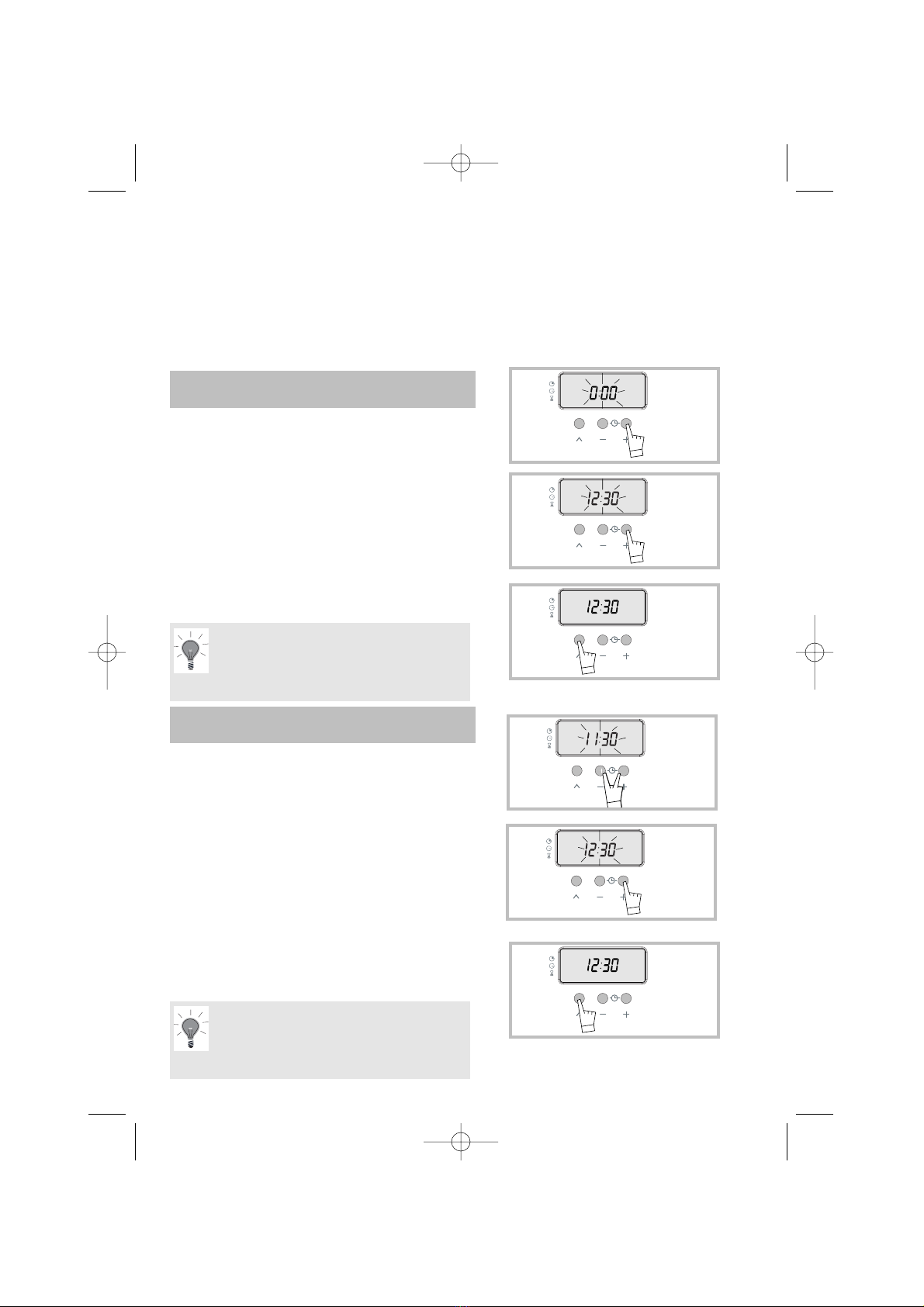

Setting the clock
➡Press simultaneously on the +and -keys for
a few seconds until the display blinks (❶).
➡ Adjust the time with the +or - keys (❷).
➡Press on the ^key to validate (❸).
6
Using your cooker in all simplicity
How to use your programmer
●How to set the time
If the ^key does not validate, it is
automatically recorded after a few
seconds.
If the ^key does not validate, it is
automatically recorded after a few
seconds.
❶
❷
❸
❶
❷
❸
99628651_GB_A.qxd 12/05/03 16:07 Page 6

7
Immediate cooking without programming
The timer must onlydisplay the time ; it must not
be blinking (❶).
Select the cooking mode.
➡ Turn the oven controls to the chosen setting.
●e.g.: "TRADITIONAL" setting (❷).
Select the cooking temperature.
➡ Turn the thermostat (temperature selector) to
the recommanded temperature of your recipe.
●e.g. : temperature mark 210 (❸).
Following these operations , the oven will heat
and the thermostat display will light up.
Using your cooker in all simplicity
How to use your programmer
Following a cooking cycle, the cooling
turbine will continue running for a
certain time, in order to guarantee the
reliability of your oven.
- All cooking is carried out with the
door closed.
55˚
210˚
150˚
100˚
2
7
0
˚
❷
❸
❶
99628651_GB_A.qxd 12/05/03 16:07 Page 7

55˚
210˚
150˚
100˚
2
7
0
˚
8
Programming your cooking for a set
length of time
Select the cooking mode.
➡ Turn the oven controls to the chosen setting .
●e.g.: "TRADITIONAL" setting (❶).
Select the cooking temperature.
➡ Turn the thermostat (temperature selector) to
the recommanded temperature of your recipe.
●e.g. : temperature mark 210 (❷).
Select the cooking time.
➡ Press once on the ^key (❸).
The cooking time (at 0H00) and the associated
symbol both blink to show that setting is now
possible. (Cooking time can be set up to 23h59).
➡ Press on the +or -keys to adjust the chosen
time.
●e.g. : 30 minutes cooking (❹).
The timing starts immediately after releasing the
+or -keys.
The symbol is steady and the clock reappears on the
display (❺).
Following these operations the cooking will stop
according to the set cooking time.
At the end of cooking,
- the oven stops,
- the cooking time symbol is off,
- cooking is displayed at 0:00 (❻),
- a series of pips can be heard for a few
minutes.
The pips can be stopped by pressing on any key
and the clock will reappear (❼). CAUTION : AT THIS
MOMENT YOUR OVEN WILL START HEATING AGAIN.
Turn off the heat :
➡ Set the temperature selectors (❽) (thermostat)
and function selectors to the OFF position (❾).
Using your cooker in all simplicity
How to use your programmer
Cooking time can be modified at any
time by carrying out the operation
described above.
❸
❹
❺
❻
❼
❽❾
55˚
210˚
150˚
100˚
2
7
0
˚
❶❷
99628651_GB_A.qxd 12/05/03 16:07 Page 8

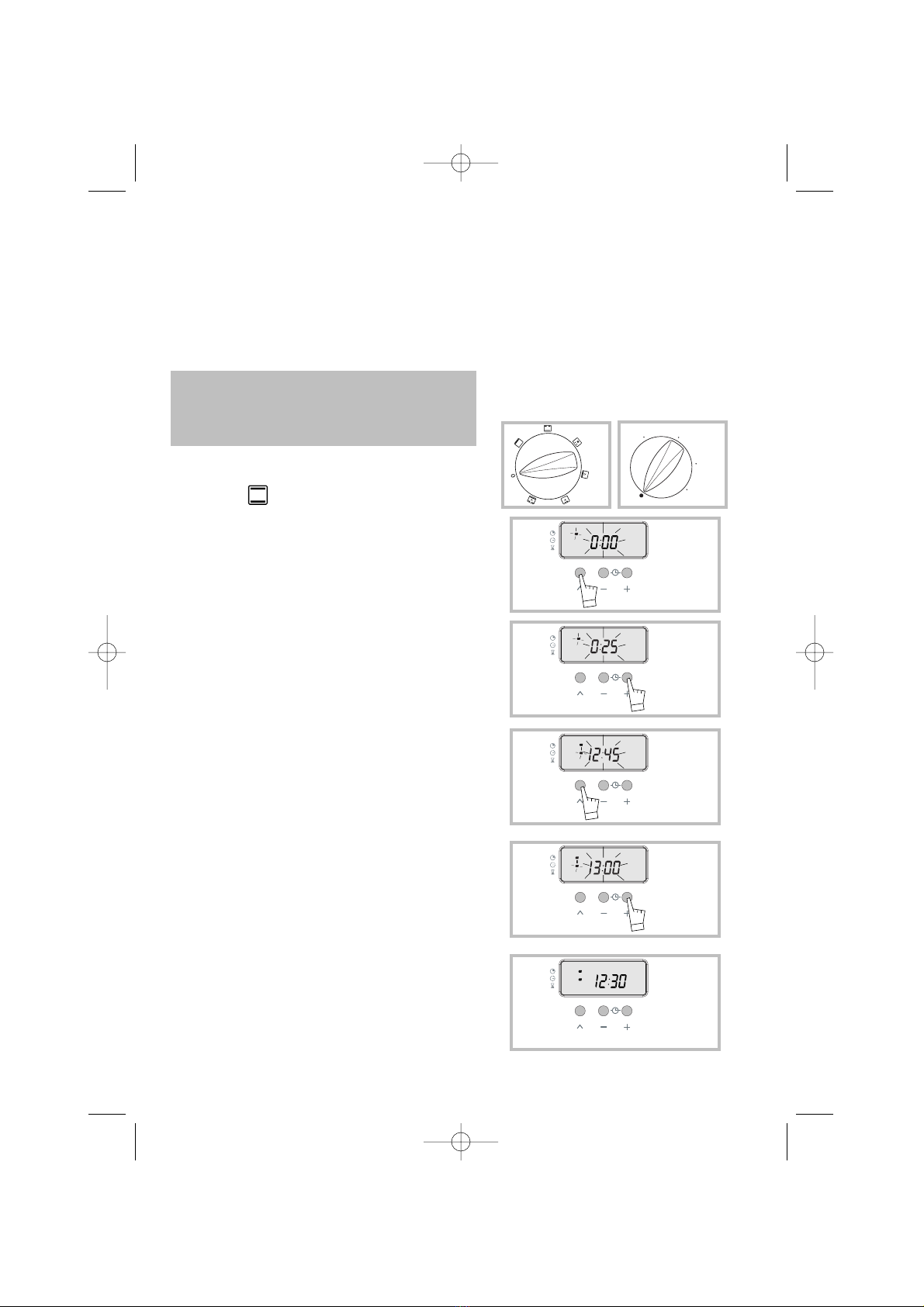

Cooking for a set time with a pre-set
end of cooking time.
➡ Adjust the temperature and
➡ Set the cooking time
●e.g. : "TRADITIONAL" setting (❶).
temperature mark 210 (❷).
➡ Press once on the ^ key (❸).
the cooking time blinks at 0H00.
➡Press on the +or -(❹) keys to set the
required time.
●e.g. : 25 mn cooking.
On pressing +, the blinking will stop.
➡ Press the ^(❺) key until the end of cooking
time blinks with its associated symbol.
Adjustment is now possible.
➡ Set the end of cooking time required by
pressing the +or - keys (❻).
●Example shown : end of cooking at 13h00.
The end of cooking is automatically recorded after
a few seconds.
The clock shows on the display (❼).
9
Using your cooker in all simplicity
How to use your programmer
❸
❹
❺
❻
❼
55˚
210˚
150˚
100˚
2
7
0
˚
❶❷
99628651_GB_A.qxd 12/05/03 16:07 Page 9

10
Cooking for a set time with a pre-set
end of cooking time (cont’d).
Following these operations, the heating of the
oven is delayed so that cooking ends at the set
time (e.g. : 13h00) (❽).
When the cooking starts the end of cooking
symbol is off.
End of cooking symbol is off.
End of cooking,
- the oven stops heating,
- the end of cooking symbol is off,
- the cooking time display is at 0:00,
- a series of pips are heard for a few minutes.
The pips can be stopped by pressing on any key
and the clock will reappear (❾). CAUTION : AT THIS
MOMENT YOUR OVEN WILL START HEATING AGAIN.
Turn off the heat :
➡ Set the temperature selectors (❿)and function
selectors to the OFF position ( ).
Using your cooker in all simplicity
How to use your programmer
❾
55˚
210˚
150˚
100˚
2
7
0
˚
❿
❽
99628651_GB_A.qxd 12/05/03 16:07 Page 10

11
The programmer on your oven can be used
as an independent timer, showing a
countdown without the oven operating.
➡Leave the oven function selector on "Off".
➡Press on the ^(❶) key until the timer symbol
and corresponding display blink.
➡Adjust the required time by pressing the +or
- keys (❷). Adjustment is carried out by 30
second slots and the time displayed is in mi-
nutes/seconds (0 to 59 min 30 s ).
Keeping the key pressed scrolls the time.
The timing will start a few seconds after the end
of the setting and will be permanently visible on
the display.
Using your cooker in all simplicity
How to use your programmer
Using the programmer as a
stand-alone timer
At the end of the time a series of pips
will be heard (display 0:00).
The pips can be stopped by pressing
any key.
❶
❷
❸
99628651_GB_A.qxd 12/05/03 16:07 Page 11

12
Your oven is equipped with an automatic preheating function. This function enables you to
place the dish to be cooked into the oven at the beginning of the heating cycle, without having
to wait for the oven to reach the set temperature. This automatic preheating function is not
available for the GRILL functions.
Oven cook settings
TRADITIONAL CONVECTION
•
The top and bottom elements perform cooking to which the air
propeller is added to guarantee even cooking;
•
Fast rise in temperature : food preparations can be placed directly in the cold oven.
•
Temperatures recommended are lower than in cooking modes not using the propeller.
•
Less fat burnt. Less spattering, less risks of smoking.
•
Limites the loss in weight of the food. Fragile vegetables (stuffed tomatoes) will not
be squashed, or burst, potatoes au gratin will be soft and browned.
•
Controls adapted to cooking identical or different dishes on two levels at the same
temperature. The flavours of both will be kept apart.
GRILL CONVECTION
•
The top element performs cooking to which the air propeller is added to guarantee an
even distribution of colour.
•
A large cut of meat can be roasted (chicken, duck...) laid on the rack; turn it once
while cooking. Place the enamel drip pan on the 1st runner to collect the cooking juices.
FLOOR CONVECTION
•
Cooking is performed from underneath, the air propeller is added to guarantee even
cooking, colouring and browning of the dish.
•
Cooking mode recommended for pizzas, quiches,juicy fruit tarts, milk bread, cakes...
Wet cake mixes will be perfectly cooked underneath. Doughs (milk loaf...),
risen cake mixes (cakes...), soufflés will not be prevented from rising by the formation
of a crust.
99628651_GB_A.qxd 12/05/03 16:07 Page 12

13
ACCESSORIES : your appliance is fitted with a multipurpose dripping pan, a hollow dish, a flat
tip-proof shelf, an arched shelf, a removal system and with an optional spit.
DEFROSTING
•
Food can be defrosted with a limited amount of heat, the propeller accelerates the
exchanges of heat.
•
This mode is particularly adapted to delicate food to be eaten raw (strawberries, rasp-
berries...).
•
The defrosting temperature can be increased to defrost food to be cooked following
the defrosting (meat...). Proceed with care to avoid cooking the surface of the meat.
Place the cuts on the rack on the 2nd runner, and the multi-purpose dripping-pan on
the 1st runner so that they are not in contact with the juices from defrosting.
* TRADITIONAL
•
Top and bottom elements perform cooking without air convection.
•
Baked eg custard, flans, caramel creams can be cooked to perfection in the dripping-
pan used as a bain-marie, without forgetting burnt caramel creams stood a few
minutes under the grill after sprinkling with sugar.
•
After preheating cook roasts, vegetable dishes such as browned potaotes, baked
stuffed tomates, fish poultry and tarts.
GRILL (high-power)
•
Mode adapted to grilling :
• Preheat for 5 min.with the rack in the oven then place the food on it and place on a
suitable runner (depending on size).
• Place the dripping-pan on the 1st runner.
Pour a glass of water into it ; this tip has the advantage of reducing smoke and smells
particularly when grilling meat, sausages…
•
Ideal for making toast.
* Sequence(s) used for the statement featured on the energy label, in conformity with
European standard EN 50304 and European directive 2002/40/CE.
Oven cook settings
99628651_GB_A.qxd 12/05/03 16:07 Page 13

14
Cooking guide
DISHES
TRADITIONAL COOKING
COOKING SHOULD ALWAYS BE CARRIED OUT WITH THE DOOR CLOSED AND UNDER YOUR SUPERVISION.
MEAT Roast pork(1kg) Roast Veal (1kg) Roast beef Lamb (Leg of lamb, Shoulder 2,5 kg) Poultry (1 kg) Large poultry pieces Chicken legs Pork and veal chops Beef ribs (1 kg) Mutton chops FISH Grilled fish Cooked fish (Sea bream) Fish cooked in tinfoil VEGETABLES Gratins (cooked dishes) Browned potatoes Lasagnes Stuffed Tomatoes VARIOUS Kebabs Paté in terrines Pizza (shortcrust base) Pizza (bread base) Quiches Soufflé Pies Bread Toasted bread Casseroled dishes (lidded)
Thermostat
*180
*180
*240
210
180
180
*180
*240
*180
*180
*180 *210
*210
*240
*210 *210
*210
180
2
2
2
1
2
1 2
2-3
2
2
2 2
2
3
2 2
1 1
Thermostat
*240
180
*210
1 1 1
Thermostat
210
210
*210
*210-240
210-240
*270
*270
*270
*270
*270
RS
RS
3
3
3-4
4
4
3-4
4
4-5
180
180
180
180
*210
180
180
180
*180
210
*210
180
180
180
*210
150
2
2
2
2
2-3
2
2
2 2
2
3
2
1
2
1 1
*240
180
*210
2
1
1
210
180
210 210
210
210
240
240 210 240
*270
2
2
RS
3
3
3
4
4
2-3
4
4-5
90
60-70
30-40
50-55
50-70
90-120
15-25
15-20
25-30
10-20
15-20
35-45
10-15
30
55-60
40-45
40-45
15-20
80-100
30-40
15-18
30-45
50
40-45
30-50
1-2
90-180
Add a little water
Instructions overleaf
Placed on the grill
Earthenware dish
Double boiler pan
30 cm baking tin
Multipurpose dish
30 cm baking tin
21 cm baking tin
On the grill
Depending on the preparation
Cooking time
in minutes
indications
MULTIFUNCTION COOKING
Runner
Runner
Runner
Runner
Runner
Runner
Thermostat
Thermostat
Thermostat
99628651_GB_A.qxd 12/05/03 16:07 Page 14

15
Cooking guide
EQUIVALENCE : THERMOSTAT SETTING
➜➜
°C
Number 1 2 3 4 5 6 7 8 9 maxi C° 55 75 100 125 150 180 210 240 270
*Preheat to the temperature shown in sequence or according to model. •Do not cook meat in the dripping pan: risk of spatter. •When using a double boiler pan, you should always begin with boiling water: do not overfill the dish. •When using the GRILL function, place the item to be grilled on the grill or the rotary spit, with the dripping pan on the level below to catch the juices. •RS = Rotary spit (depending on the model).
Your cooker is equipped with five levels.
For the grill function, using the rotary spit do not exceed 210°C (temperature recommended in this guide) and grill with the door closed.
!
4
3 2
1
5
Capacity available: 50,4 l
PASTRY Sponge cake Sponge roll Brioche Brownies Cake - Pound cake Clafoutis (fruit in batter) Creams Cookies - Biscuits Kugelhopf (Alsatian cake) Meringues Madeleines Choux pastry Small pastry cakes Savarin Shortcrust pastry tarts
*210
*180
*180
*180
*180
*180
*180
100
*210
*180
*210
*180
*210
*240
*210
3
1
2
1
2
2
3 2
2
3
3
2
2
2
2
180 180
180
180 180
180
1 1
2
1 1
1
180
150
180 100
*210
*180
*210
210
*210
*180
2
2
3 2
2
3
3 2
2
2
180 180
180
180 180
*210
180
210
1 1
2
1 1 2
1
2
35-45
5-10
25-30
25-30
55-60
35-45
20-45
15-18
45-50
90
5-10
30-40
10-15
30-40
30-40
15-25
35-45
Large glass dish
Double boiler pan
Multipurpose dish
Plates on the grill
depending on size
30 cm baking tin
Multipurpose dish
Multipurpose dish
99628651_GB_A.qxd 12/05/03 16:07 Page 15

9962-8651 - 05/03
After Sales Service
Caution! Be sure to keep these instructions in a safe place after having copied the
information from the identification plate on the cooker housing (open the lower
door or the draw).
Serial number
BRANDT APPLIANCES SAS
7 RUE HENRI BECQUEREL
92500 RUEIL MALMAISON
TYPE
99628651_GB_A.qxd 12/05/03 16:07 Page 16
