Brant Radiant Heaters BAH Series Owner's manual

WARNING
!
!
Keep these instructions for future reference.
LIOBAH-Rev. 0522
BAH Series Manual
Brant Radiant Heaters Limited
All persons involved with the installation, operation, and maintenance of the heater system must read and
understand the information in this manual.
Overhead Electric Infrared Heater
Installation, Operation, Maintenance, and Parts
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read and understand the installation, operating,
and maintenance instructions thoroughly before installing or servicing this equipment.
L’installation incorrecte, l’ajustement, le changement, le service ou le maintien peuvent causer
des dégâts de propriété, la blessure ou la mort. Lisez et comprenez l’installation, opérant et des
instructions de maintien à fond avant l’installation ou l’entretien de cet équipement.

BAH Series Manual
2
Contents
1.0 Safety ...................................................................3
Safety Symbols..........................................................3
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Model Number Designation Chart ...........................................4
Available Models and Operational Specifications...............................4
Clearances to Combustibles ...............................................5
Safety Signs and Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standards, Certifications, and Government Regulations . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Outdoor Application ......................................................10
Heater Mounting ........................................................11
Lamp Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Mounting Bracket Assembly ...............................................14
Electrical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.0 Maintenance.................................................................16
Troubleshooting Guide ....................................................17
Replacement Element Chart ...............................................18
Notes..................................................................19
4.0 Limited Warranty .............................................................20

BAH Series Manual
3
Safety Symbols
Safety is the most important consideration during installation, operation, and maintenance of the infrared
heater. You will see the following symbols and signal words when there is a hazard related to safety or
property damage.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, serious injury, or death. Read and understand the installation,
operating, and maintenance instructions thoroughly before installing or servicing
this equipment. Only trained, qualified personnel with proper electrical experience
may install or service this equipment.
1.0 Safety •Safety Symbols •Applications
Applications
Commercial / Industrial (Indoors)
Infrared heaters are designed and certified for use in industrial and commercial buildings such as
warehouses, manufacturing plants, aircraft hangars, and vehicle maintenance shops. For maximum safety,
the building must be evaluated for potential hazards before installing the heater system. A critical safety
factor to consider before installation is the clearances to combustibles.
Garage Only
This heater is NOT approved for use in an indoor residential application. This includes, but is not limited to,
living quarters, solariums, home offices, etc. Consult the local fire marshal and/or insurance provider if
unsure of your application.
Not For Indoor Residential Use.
Installation of this infrared heater system in residential indoor spaces, RVs, mobile homes,
etc. may result in property damage, fire, serious injury, or death.
1.0 Safety
Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or injury.
Caution indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate injury.
Notice indicates a potentially hazardous situation
which, if not avoided, could result in property
damage.
NOTICE
WARNING
!
!
CAUTION
!
WARNING
!
!
WARNING
!
!

BAH Series Manual
4
Available Models and Operational Specifications
Model Number Designation Chart
Model Configuration Examples:
BAH-25-B-10
1.0 Safety •Model Number Designation Chart • Available Models
Series Voltage;
Phase kW Watts Amp BTU/h Weight Length Width Height
BAH-18 -A-05 120; 1ph 0.5 500 4.2 1,700 8 lbs. 18”
6.75” 6.4”
BAH -25 - A-10 120; 1ph
1.0 1,000
8.3
3,400 10 lbs. 25”
BAH -25 - B -10 208; 1ph 4.8
BAH -25 - C -10 240; 1ph 4.2
BAH -35 - A-17 120; 1ph
1.7 1,750
14.0
5,900 13 lbs 35”
BAH -35 - B -17 208; 1ph 8.3
BAH -35 - C -17 240; 1ph 7.0
BAH -35 - G -17 480; 1ph 3.6
BAH-45-B-25 208; 1ph
2.5 2,500
12.0
8,500 16 lbs. 45”
BAH-45-C-25 240; 1ph 10.0
BAH-45-G-25 480; 1ph 5.2
BAH-60-B-30 240; 1ph
3.0 3,000
14.0
10,200 20 lbs. 60”
BAH-60-C-30 480; 1ph 12.0
BAH-60-G-30 240; 1ph 6.2
BAH-60-C-40 240; 1ph
4.0 4,000
16.5
13,500 20 lbs. 60”
BAH-60-G-40 480; 1ph 8.3
BAH-60-D-40 575; 1ph 7.0
Series Length Voltage Code Lamp Wattage Code
BAH
18
A = 120 VAC
B = 208 VAC
C = 240 VAC
G = 480 VAC
D = 575 VAC
05 = 500 W
10 = 1,000 W
17 = 1,750 W
25 = 2,500 W
30 = 3,000 W
40 = 4,000 W
25
35
45
60

BAH Series Manual
5
Combustible Items Include: Moving Objects Include:
• Wood • Overhead doors
• Paper • Vehicles on lifts
• Fabric • Cranes
• Chemicals • Hoists
• Wall or roof insulation • Car wash equipment
When installing the infrared heater system, the minimum clearances to combustibles must be maintained.
These distances are shown in Chart 1.1 and on page 6. If you are unsure of the potential hazards, consult
your local fire marshal, fire insurance carrier, or other qualified authorities on the installation of infrared
heaters for approval of the proposed installation.
A critical safety factor to consider before installation is the clearances to combustibles. Clearance to
combustibles is defined as the minimum distance you must have between the indicated surface and the
combustible item. Considerations must also be made for moving objects around the infrared heater. The
following is a partial list of items to maintain clearances from:
Hazards Include:
For maximum safety the building must be evaluated for hazards before installing the heater system.
Examples include, but are not limited to:
• Gas and electrical lines
• Combustible and explosive materials
• Chemical storage areas
• Areas of high chemical fume concentrations
• Provisions for accessibility to the heater
• Adequate clearances around air openings
• Vehicle parking areas
• Vehicles with lifts or cranes
• Storage areas with stacked materials
• Lights
• Sprinkler heads
• Overhead doors and tracks
• Dirty, contaminated environment
Signs shall be posted specifying the maximum permissible stacking height in order to
maintain clearances to combustibles.
Placement of explosive objects, flammable objects, liquids, and vapours close to the heater
may result in explosion, fire, property damage, serious injury, or death. Do not store, or use,
explosive objects, liquids, and vapour in the vicinity of the heater.
Failure to comply with the published clearances to combustibles could result in personal
injury, death, and/or property damage.
The outside surfaces of the heater are hot during operation and after operation. If contact is
made, permanent skin damage may occur. Do not move, handle, or service the unit during
operation or while hot.
CAUTION
!
1.0 Safety •Clearances to Combustibles
Clearances to Combustibles
WARNING
!

BAH Series Manual
6
Side
Model
Wattage
Mounting
Angle Front Behind End Top Below
All Models
0° 18” (46) 18” (46) 24 (61) 12 (30) 24 (61)
20° 18” (46) 18” (46) 24 (61) 12 (30) 24 (61)
1.0 Safety •Clearances to Combustibles
Space Heating: Mount bottom of heater 8 feet above grade or floor.
** Mounting angles exceeding 0° must use the angle brackets or additional field-supplied brackets,
spacers, chains, etc. as necessary to maintain clearances to combustables.
NOTE: Ensure that building materials with a low heat tolerance (i.e, awnings, fabrics, plastics, sprinklers,
insulation, etc.) are protected against degradation. This may require the heater to be mounted at a distance
in excess of the published clearances to combustibles. Contact the material manufacturer for specific
details.
SIDE
SIDE
BELOW
TOP

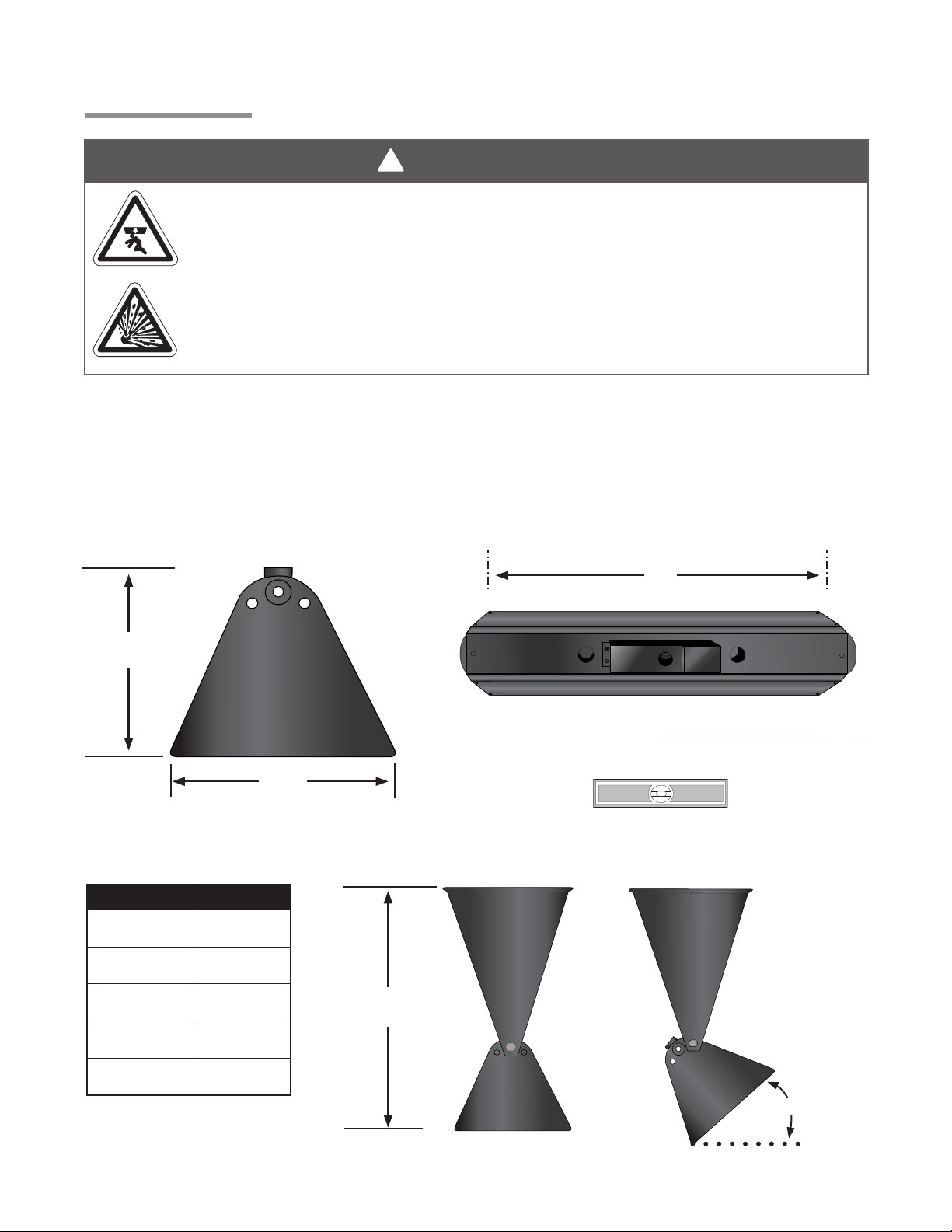

Figure 1.1 •Clearances to Combustibles
SIDE
TOP VIEW •0°
SIDE
FRONT
BELOW
BEHIND
TOP
Chart 1.1 • Clearances to Combustibles in Inches (cm) (see Figure 1.1)
END VIEW
20° Mounting Angle
END VIEW
0° Mounting Angle

BAH Series Manual
7
CAUTION:
Use Supply Wires Suitable for 90°C
ATTENTION:
Employer des câbles électriques résistant à 90°C
BRANT RADIANT HEATER LIMITED
34SCOTT AVE., PARIS,ONTARIO, CANADA
MODEL/MODELE
VOLTS/VOLTS
AMPS/AMPERES
WATTS/WATTS
FREQUENCY/FREQUENCE
SERIAL/SERIE
CONFORMSTOUL STD 2021 CERTIFIED TO CSA STD C22.2#
CAUTION:Mountat least 12 inches from ceiling and 18 inches from verticle
walls.Aminimum of 24 inches must be maintained between the heater and
anycombustiblematerial directly radiated by the heater.
ATTENTION:Installeza au moins 12 pouces du plafond et 18 pouces des
mursverticaux.Un minimum de 24 pouces doit etre maintenu entre le
radiateuret tous materiaux.
BAH-35-A-17
120
13.8
1750
60Hz
MAY.21
5008644
CAUTION:Mount with bottom of heater at least 8 feet above
floor or grade.
ATTENTION:Installez a au moins 8 pieds du plancher.
Safety Signs and Labels
It is important to provide warnings to alert individuals to potential hazards and safety actions. Signs should
state the hazards for the particular application and be legible to the building occupants. Consult the
factory or a factory representative for additional information on signage compliance.
Safety warning labels must be maintained on the infrared heater. Illustrations of the safety labels, and their
locations, are pictured below. When no longer legible, they must be replaced. Contact either your local
distributor or the product manufacturer for obtaining replacement signs or labels.
1.0 Safety •Safety Signs and Labels
Top View
Rating Plate
SAMPLE
BRANT RADIANT HEATER LIMITED
34 SCOTT AVE., PARIS, ONTARIO, CANADA
MODEL/MODELE
VOLTS/VOLTS
AMPS/AMPERES
WATTS/WATTS
FREQUENCY/FREQUENCE
SERIAL/SERIE
CONFORMS TO UL STD 2021 CERTIFIED TO CSA STD C22.2#
CAUTION: Mount at least 12 inches from ceiling and 18 inches from verticle
walls. A minimum of 24 inches must be maintained between the heater and
any combustible material directly radiated by the heater.
ATTENTION: Installez a au moins 12 pouces du plafond et 18 pouces des
murs verticaux. Un minimum de 24 pouces doit etre maintenu entre le
radiateur et tous materiaux.
BAH-35-A-17
120
13.8
1750
60 Hz
MAY. 21
5008644
Mounting Label
Ground Screw Label
Wire Label
CAUTION: Mount with bottom of heater at least 8 feet
above floor or grade.
ATTENTION: Installez a au moins 8 pieds du plancher.
GROUND
SCREW
INSIDE
CAUTION:
Use Supply Wires Suitable for 90°C
ATTENTION:
Employer des câbles électriques résistant à 90°C

BAH Series Manual
8
1.0 Safety •Standards, Certifications, and Government Regulations
Standards, Certifications, and Government Regulations
Installation of this infrared heater must comply with all applicable local, province, and national
specifications, regulations, and building codes. Contact the local building inspector and/or fire marshal for
guidance.
The heater must be electrically grounded in accordance with the following codes:
Canada: Refer to Canadian Electrical Code CSA C22.1 Part 1 (latest edition).
United States: Refer to National Electrical Code®, ANSI/NFPA 70 (latest edition).
Wiring must conform to the latest edition of National Electrical
Code®, local ordinances, and any special diagrams from the manufacturer.
Brant Radiant Heaters Limited’s units comply or are certified by one or more of the following
organizations or standards:
• CSA STD 22.2
• UL STD 2021

BAH Series Manual
9
2.0 Installation •Design
Read and understand, the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Design
To ensure a safe, properly designed heating system, a layout should be developed for the correct
placement of the infrared heater(s).
Aside from safety factors such as clearances to combustibles (see Chart 1.1 on page 6), you should also
take into consideration the environment (e.g., cold/drafty, average, protected), heat coverage (sq. ft.)
needed, heater centers, and the distance behind a person or work station(s). Also, the effective infrared
surface temperature of a person or object may be diminished with wind above 5 mph. Wind barrier(s) may
be required. Most importantly, clearances to combustibles must always be maintained! Refer to hazards
on page 5.
When positioning the heaters, keep in mind combustible materials, lights, sprinkler heads, overhead doors,
storage areas with stacked materials, gas and electrical lines, parked vehicles, cranes, etc. Refer to Page
6 for minimum clearances to verify that a safe installation exists.
This installation manual, along with national, state, provincial, and local codes, address these issues. It is
critical that you read, understand, and follow all guidelines and instructions. Always inspect and evaluate
the mounting conditions, application, and wiring.
When heated, materials high in hydrocarbons (solvents, paint thinner, mineral spirits, formaldehydes, etc.)
can evaporate and/or degrade. This may result in odors or fumes being emitted into the environment. To
correct this problem, clean the area and/or introduce additional ventilation. Heaters installed and serviced
in accordance with the installation manual do not emit foul odors into the environment.
IMPORTANT: Fire sprinkler heads must be located at an appropriate distance from the heater to avoid an
inadvertent discharge. This distance may exceed the published clearances to combustibles. Certain
applications may require the use of high temperature sprinkler heads or relocation of the heaters.
Fire sprinkler systems containing propylene glycol, antifreeze, or other potentially flammable substances
shall not be used in conjunction with this heater without careful consideration for and avoidance of
inadvertent discharge hazards. For further information consult NFPA 13. Always observe applicable
state and local codes.
CAUTION
!
2.0 Installation
WARNING
!
!

BAH Series Manual
10
2.0 Installation •Outdoor Application
Chart 2.1 • Outdoor Comfort Heating Application Chart
*Clearances to combustibles must be maintained at all times. If infrared heaters are mounted too low or too
high, they may result in discomfort or lack of heat.
Chart 2.2 • Indoor Spot Heating Application Chart
Heater installation shall comply with all IOPM, NEC, ANSI/NFPA-70, CEC, and local restrictions.
Figure 2.1 • Heating Application
When comfort heating people, two heaters should be used to heat both sides of the individual. Heater
installation shall comply with all IOPM, NEC, ANSI/NFPA-70, CEC, and local restrictions.
12 INCHES
18 INCHES
24 INCHES
Heat Pattern
Mounting
Height
Areas Heated in Feet
1 kW 1.75 kW 2.5 kW 3 & 4 kW
7 feet 8 x 10 8 x 11 8 x 12 8 x 13
8 feet 9½ x 11½ 9½ x 12 9½ x 13 9½ x 14½
9 feet 10½ x 12½ 10½ x 13 10½ x 14 10½ x 15½
10 feet - 11½ x 14½ 11½ x 15½ 11½ x 16½
11 feet - 12½ x 15 12½ x 16 12½ x 17½
12 feet - - 14 x 18 14 x 19
13 feet - - 15 x 18.9 15 x 20
14 feet - - - 16 x 21
15 feet - - - 17½ x 22½
Watts Density At Floor Level
Mounting
Height
Density in Watts
1 kW 1.75 kW 2.5 kW 3 kW 4 kW
7 feet 12.4 20.0 26.5 28.8 38.4
8 feet 9.2 16.1 20.1 22.0 29.4
9 feet 7.6 13.4 16.8 18.6 24.9
10 feet - 11.1 14.5 16.0 21.6
11 feet -9.3 12.5 14.0 18.7
12 feet - - 10.0 11.2 15.0
13 feet - - 8.8 10.0 13.3
14 feet - - - 8.9 11.9
15 feet - - - - 10.9
Estimating Required Loading
Type of Building Watts Required Per Square Foot At Floor Level
Insulated building 10
Uninsulated 16
Outdoor Sheltered 25-30
Outdoor Unsheltered 45

BAH Series Manual
11
2.0 Installation •Heater Mounting
WARNING
!
Heater Mounting
Improper suspension of the infrared heater may result in collapse and being crushed.
Always suspend from a permanent part of the building structure that can support the total
force and weight of the heater.
Failure to maintain minimum clearances to combustibles may result in fire and/or explosion,
property damage, serious injury, or death. Always maintain minimum clearances and post
signs adjacent to heaters controller. Signs should state the hazards for the particular
application and be legible to the building occupants. Consult the factory or a factory
representative for additional information on signage compliance.
The heater can be suspended with chains or bracket mounting. When chain mounting, the off-center holes
may be used to adjust the mounting angle by 20°. Optional brackets are available for wall or ceiling surface
mounting. Consult all applicable codes before installation.
The heater must be level from side to side and may be 0° to 20° on horizontal. Refer to figures 2.2 and 2.3.
Figure 2.2 •Heater Dimensions in Inches (cm)
6.75”
(17)
A
Mount Heater Level
- Side to Side -
Model No. A
BAH -18 18” (46)
BAH-25 25” (63)
BAH-35 35” (89)
BAH-45 45” (114)
BAH-60 60” (152)
6.375”
(16)
Chart 2.2 •Physical Dimensions in Inches (cm)
14.25”
(36)
Figure 2.3 •Heater Dimensions
20°

BAH Series Manual
12
2.0 Installation •Lamp Installation
Figure 2.5 •Lamp Installation
Lamp Installation
Disconnect power prior to installing or replacing supplied quartz lamp(s). The elements can and should
be installed prior to mounting the heater.
1Do NOT remove element from cardboard tubing by pulling on ceramic end cap. It may crack and/or
cause damage to the element.
2Do NOT remove protective plastic sleeve from element until it’s installed. The plastic sleeve will protect
the element from any fingerprints that may happen during installation.
3Remove the end reflectors and guard to uncover the element clamps and wiring terminals.
4Press the element into clamps and attach wire wire terminals. To attach wire terminals, remove nut and
washer, slip on wire terminal, washer and nut, then tighten nut by holding ceramic end cap firmly.
5Do NOT over tighten the nut.
6Remove plastic covering from element. Reinstall guard and end reflectors.
CAUTION
!
Terminal Eyelet
and Wire
Terminal Element Clamp
* Element gets
clamped to the
element glass.
Unscrew Nut and
Washer from Element
End

BAH Series Manual
13
2.0 Installation •Lamp Installation
Figure 2.6 •Lamp Installation
NOTE: BAH Series heaters are designed for use with quartz lamp infrared heating elements only. They
are NOT intended to be used with straight metal rod heating elements. Replace lamps with parts
from Brant Radiant Heaters Limited only.
Place terminal wire eyelet between
nut and washer. Fasten items in
place with nut. Do not overtighten
nut.
Nut
Washer
Terminal Wire
Eyelet
Nut

BAH Series Manual
14
Mounting Bracket Assembly
1Attach the mounting brackets to the top end caps. On each end, place (1) 1/4” x 3/4” bolt through the
bottom hole of the mounting bracket and through the top hole of the end cap. Place (1) 1/4” lock washer
and (1) 1/4” lock nut on each bolt. Do not tighten completely. Refer to figure 2.4.
NOTE: The mounting brackets are NOT required for chain suspension.
2Adjust mounting brackets to desired mounting angle.
3Once desired mounting angle is achieved tighten lock nuts to bolt.
Figure 2.4 •Mounting Bracket Assembly
1/4” x 3/4” Bolt
1/4” x 3/4” Bolt
2.0 Installation •Mounting Bracket Assembly

BAH Series Manual
15
2.0 Installation •Wiring Diagrams
Electrical Wiring
When installed, the heater must be electrically grounded in accordance with the Canadian Electrical Code
C22.1 (latest edition).
Applications in Canada must conform to the Canadian Electrical Code C22.1 (latest edition) when an
external electrical source is used.
Applications in United States must conform to the National Electrical Code ANSI/NFPA 70 (latest edition).
Refer to rating label on heater for the required amperage rating.
Under no circumstance is the electrical supply line to the heater to provide any assistance in the
suspension of the heater.
Neither the electrical supply line or sprinkler heads shall be located within the minimum clearances to
combustibles.
A
B
L1 L2 (or Neutral)
FROM PANEL
BLACK
L2
L1
HEATER
THERMOSTAT
BLACK
HEATER
L2
L1
A
THERMOSTAT
B
FROM PANEL
L1 L2
B
A
BLACK
WHITE
TYPICAL 120 volt INSTALLATION FOR
SINGLE LINE BREAK THERMOSTAT
Single Phase
TYPICAL 240, 208 volt INSTALLATION FOR
DOUBLE LINE BREAK THERMOSTAT
Single Phase
Typical 120 Volt Installation For
Single Line Break Thermostat.
Single Phase
Typical 240, 208 Volt Installation
For Double Line Break Thermostat
Single Phase

BAH Series Manual
16
3.0 Maintenance
1Clean reflector surface with a damp cloth.
2Ensure heater is secure on all hanging points.
3Maintain clearances to combustibles at all times. Immediately remove objects in violations of the
published clearances to combustibles.
4Check electrical wires and connections for wear or any kind of damage.
It is recommended that the following become a standard yearly procedure to obtain maximum operating
efficiency and trouble free operation.
During long periods of non-usage, remove or cover heater with a polyethylene bag and disconnect from
power supply. If further service to the heater is desired, contact your representative or the factory.
3.0 Maintenance •Maintenance

BAH Series Manual
17
3.0 Maintenance •Troubleshooting Guide
Is there too much heat?
Troubleshooting Guide Key
Start
Question
Process
Question
Corrective
Action
Turn Heater on from power source.
Does the heating
lamp turn on?
Is the heating lamp
physically damaged?
Is the heating lamp
wired as indicated in
the manual?
Find the source of the electrical problem between panel and heater.
No
No
Yes
Yes
Is there a sufficient
amount of heat? Is the supply voltage correct for the
model type on the rating label?
Is the heater mounted within the
recommended height?
No
No
Mount heater within the
recommended mounting heights.
Yes
No
No
Yes
Yes
No
Yes
Replace heating lamp.
Rewire the lamp as
indicated in this manual.
Supply correct voltage
Heater size and/or quantity of
heaters may be incorrect for
application.
Troubleshooting ends.
Yes

BAH Series Manual
18
3.0 Maintenance •Replacment Element Chart
Replacement Element Chart
Heater Model Watts Volts BTU Amps Replacment Element
BAH-18 -A-05 500 120 1,700 4.2 QT-18-A- 05
BAH -25 - A-10 1,000 120 3,400 8.3 QT-25 - A-10
BAH -25 - B -10 1,000 208 3,400 4.8 QT-25 - B-10
BAH -25 - C -10 1,000 240 3,400 4.2 QT-25 - C -10
BAH -35 - A-17 1,750 120 5,900 14.0 QT-35-A-17
BAH -35 - B -17 1,750 208 5,900 8.3 QT-35-B-17
BAH - 35 - C -17 1,750 240 5,900 7. 0 QT-35-C-17
BAH -35 - G -17 1,750 480 5,900 3.6 QT-35-G-17
BAH-45-B-25 2,500 208 8,500 12.0 QT-45-B-25
BAH-45-C-25 2,500 240 8,500 10.0 QT-45-C-25
BAH-45-G-25 2,500 480 8,500 5.2 QT-45-G-25
BAH-60-B-30 3,000 208 10,200 14.0 QT-60-B-30
BAH-60-C-30 3,000 240 10,200 12.0 QT-60-C-30
BAH-60-G-30 3,000 480 10,200 6.2 QT-60-G-30
BAH-60-C-40 4,000 240 13,500 16.5 QT-60-C-40
BAH-60-G-40 4,000 480 13,500 8.3 QT-60-G-40
BAH-60-D-40 4,000 575 13,500 7.0 QT-60-D-40

BAH Series Manual
19
3.0 Maintenance •Notes
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
Notes

4.0 Limited Warranty
4.0 Limited Warranty
One-Year Limited Warranty. Brant Radiant Heaters Limited (hereinafter referred to as the Company) warrants to the
original purchaser or original user that all Brant Radiant Gas Infrared Heaters sold by it and all parts thereof are
free from defects in material or workmanship under normal use and service. The Company’s sole obligation under
this warranty shall be limited to furnishing replacement parts, F.O.B. Paris, Ontario, for 12 months from the date of
initial installation of the heater, but not to exceed 18 months from the date of shipment by the Company of the
heaters, for any parts which the Company’s examination shall disclose to its satisfaction to be defective. Defective
parts are to be returned to the Company, transportation charges prepaid.
General Conditions. The warranties set out in this certificate are the exclusive remedy of the original owner or user
in lieu of all other warranties written, oral or implied (including any warranty of merchantability or fitness for the
purpose) and all other obligations or liabilities on the part of the Company, and the Company neither assumes nor
authorizes any person to assume for it any other obligation or liabilities on the part of the Company, and the
Company neither assumes nor authorizes any person to assume for it any other obligation or liability in connection
with the sale, installation or use of the heater or any parts thereof.
The Company will not be responsible for labour charges for the analysis of a defective condition in the heater or for
the installation of replacement parts. The warranties provided herein will not apply if the input of the heater exceeds
the rated input at time of manufacturing or if the heater in the judgment of the Company has been subjected to
misuse, excessive dust, improper conversion, negligence, accident, corrosive atmospheres, excessive thermal
shock, excessive vibration, physical damage to the heater, alterations by unauthorized service personnel, operation
contrary to the Company’s instructions or if the serial number has been altered, defaced, or removed. The
Company shall not be liable for any default or delay in the performance of these warranties caused by contingency
beyond its control, including war, government restriction or restraints, strikes, fire, flood, short or reduced supply of
raw materials, or parts.
The warranties herein shall be null and void if the heater is not installed by a competent heating contractor and/
or if the heater is not installed according to Company instructions, normal industry practices and/or if the heater
is not maintained and repaired according to Company’s instructions. Normal product degradation and wear (rust,
oxidation, etc.) does not constitute a material defect and applicable warranty claim.
Written permission is required for the return of any parts or equipment and any such return must be made on the
basis of transportation charges prepaid. Shipment may be refused unless prior written permission is obtained and
goods returned prepaid.
© 2022 Brant Radiant Heaters Limited
34 Scott Ave. Paris, ON N3L 3R1 Canada
Voice: [phone]
Fax: [phone]
Website: www.brantradiant.com
