BraunAbility Century 2 NCL Series User manual

405312 Rev. A
November
2019
W
ARNING
Read manual
before installing
or servicing lift.
Failure to do so
may result in
serious bodily
injury and/or
property damage.
ual
Man
“DOT — Public Use Lift” veries that this platform lift meets the
“public use lift” requirements of FMVSS No. 403. This lift may be
installed on all vehicles appropriate for the size and weight of the
lift, but must be installed on buses, school buses, and multi-
purpose passenger vehicles other than motor homes with a gross
vehicle weight rating (GVWR) that exceeds 4,536 kg (10,000 lb).
DOT — Public Use Lift
www.braunability.com
631 West 11th Street, Winamac, IN 46996, USA
Phone: [phone] • Fax: [phone]
Service Manual
Manufacturing Revision Level: Rev. I
Century 2
NCL

Warranty and Registration Instructions
Immediately upon receiving the lift, examine the unit
for any damage. Notify the carrier at once with any
claims.
Login to BraunAbility portal to submit warranty
registration. A copy of the warranty is provided in
the back of this manual.
Sample Serial Number Identication Tag
Model No.
Serial No.
Rev.
Date of Manufacture
BraunAbility®
INDIANA, USA
BRAUNABILITY.COM
REV
XXXXXXX
SERIAL NUMBER
XXXX Use Lift
Max. Lifting Capacity - XXX lb
XXXXXXX
MODEL NUMBER
MFG DATE
XXXXXXX X
Two BraunAbility® Serial No. identication tags
(shown below) are posted on the lift. One I.D.
tag is posted on the opposite pump side vertical
arm. A second I.D. tag is located on the opposite
pump side tower. I.D. tags have the product
identication information needed to le a warranty
claim or to order parts. Record the information in
the space provided below.

Page 1
Troubleshooting and Maintenance
Lift Terminology................................................................ 2
Switch and Sensor Locations ......................................... 3
Certication Checklist Diagnostic Procedures................. 4
Platform Fold Pressure Adjustment................................. 5
Platform Angle Adjustment .......................................... 6-7
Platform Stop Blocks ...................................................... 7
Tower Microswitch Adjustment ........................................ 8

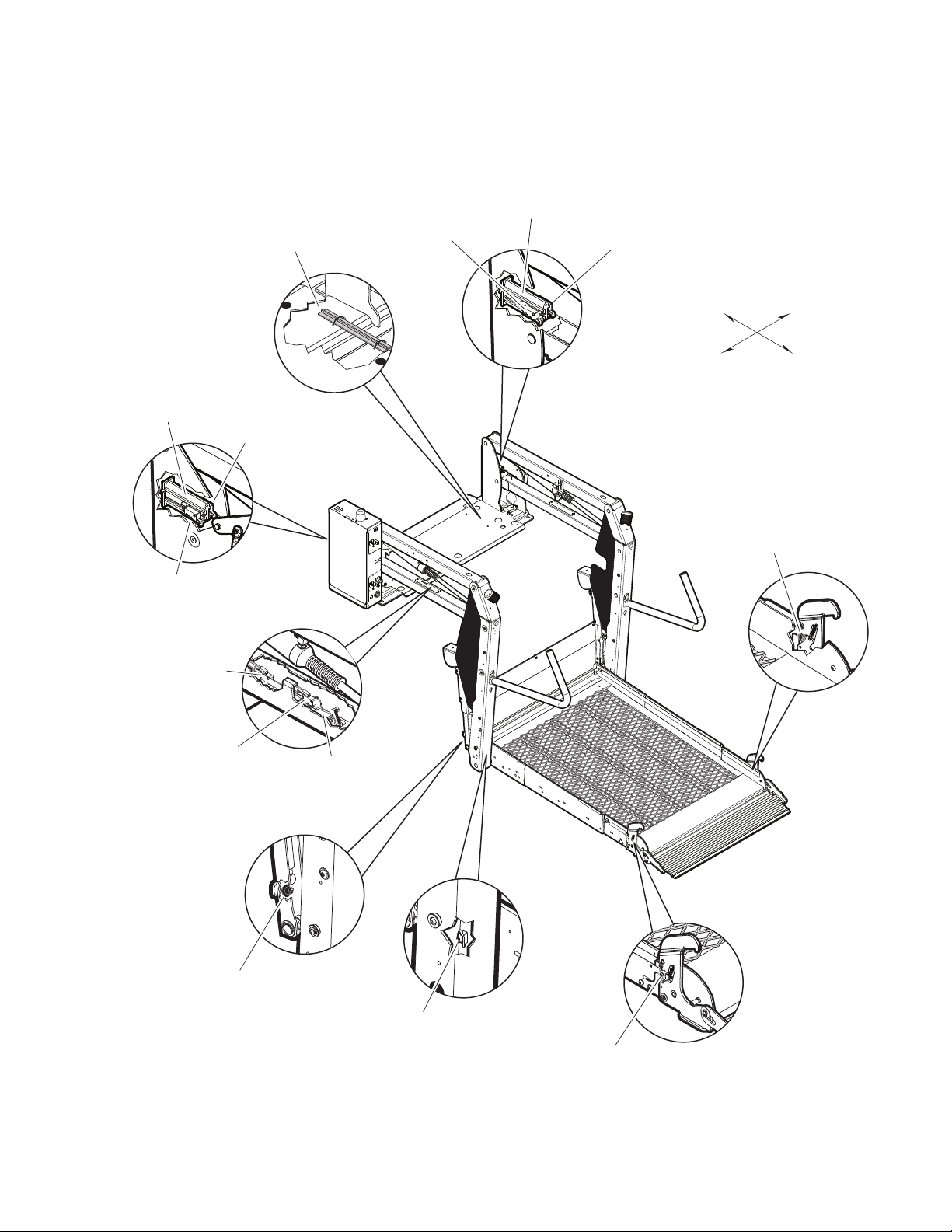

Lubrication Diagram ...................................................... 10
Maintenance and Lubrication Schedule.....................11-14

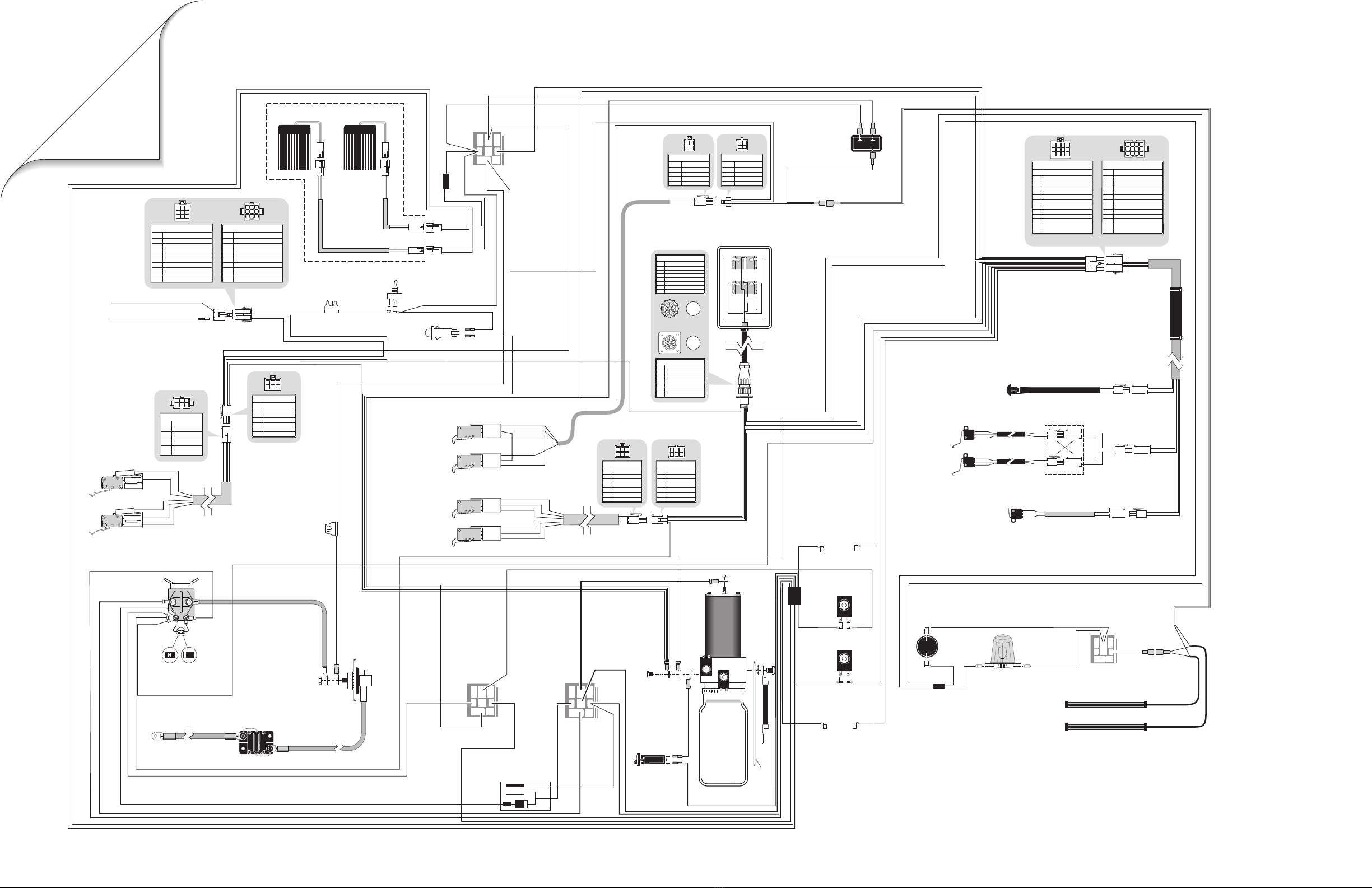

Lift Electrical Schematic ............................................... 15
Lift Wiring Diagram ....................................................... 16
Hydraulics
Hydraulic Schematic ..................................................... 17
Hydraulics Parts List ..................................................... 18
Hydraulics Diagram ...................................................... 19
Repair Parts
Pump Module
Pump Module Parts List .......................................... 20
Pump Module Diagram ........................................... 21
Lift Exploded Views and Parts Lists
Base Plate Assembly ......................................... 22-25
Top Parallel Arm Assembly....................................... 26
Bottom Parallel Arm Assembly ................................. 27
Hydraulic Cylinder Assembly - Main......................... 28
Vertical Arm Assembly.............................................. 29
Arm Cover Assembly................................................ 30
Handrail Assembly ................................................... 31
Platform Assembly....................................................32-35
Warranty
BraunAbility®Limited Warranty................................. 36-38
Contents

Page 2
UP
DOWN
32819
FOLD
UNFOLD
32820
Pump Module
(Rear)
Hand-Held
Pendant
Control
Base Plate
Top Parallel Arms (2)
Adjustable Quiet-Ride Stow Blocks (2)
Main Cylinders (2)
Vertical Arm Covers (4)
Opposite Pump Side
Vertical Arm
Handrails (2)
Outer Barrier
Pump Side
Vertical Arm
Bottom Parallel
Arms (2)
Platform Lights (2)
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/30°-30°”6-13-90
(of vehicle)
(of vehicle)
Outboard
Right (Front)
Lift-Tite™
Latches (2)
Unfold Assist Compression Springs (2)
Outer Barrier
Activation Foot
Outer Barrier
Latches (2)
Platform Side Plates (2)
Platform
Left (Rear)
Inboard
Towers (2)
Threshold
Warning
Plate
Audible
Threshold
Warning
(not visible)
Visual
Threshold
Warning
Inner Roll Stop

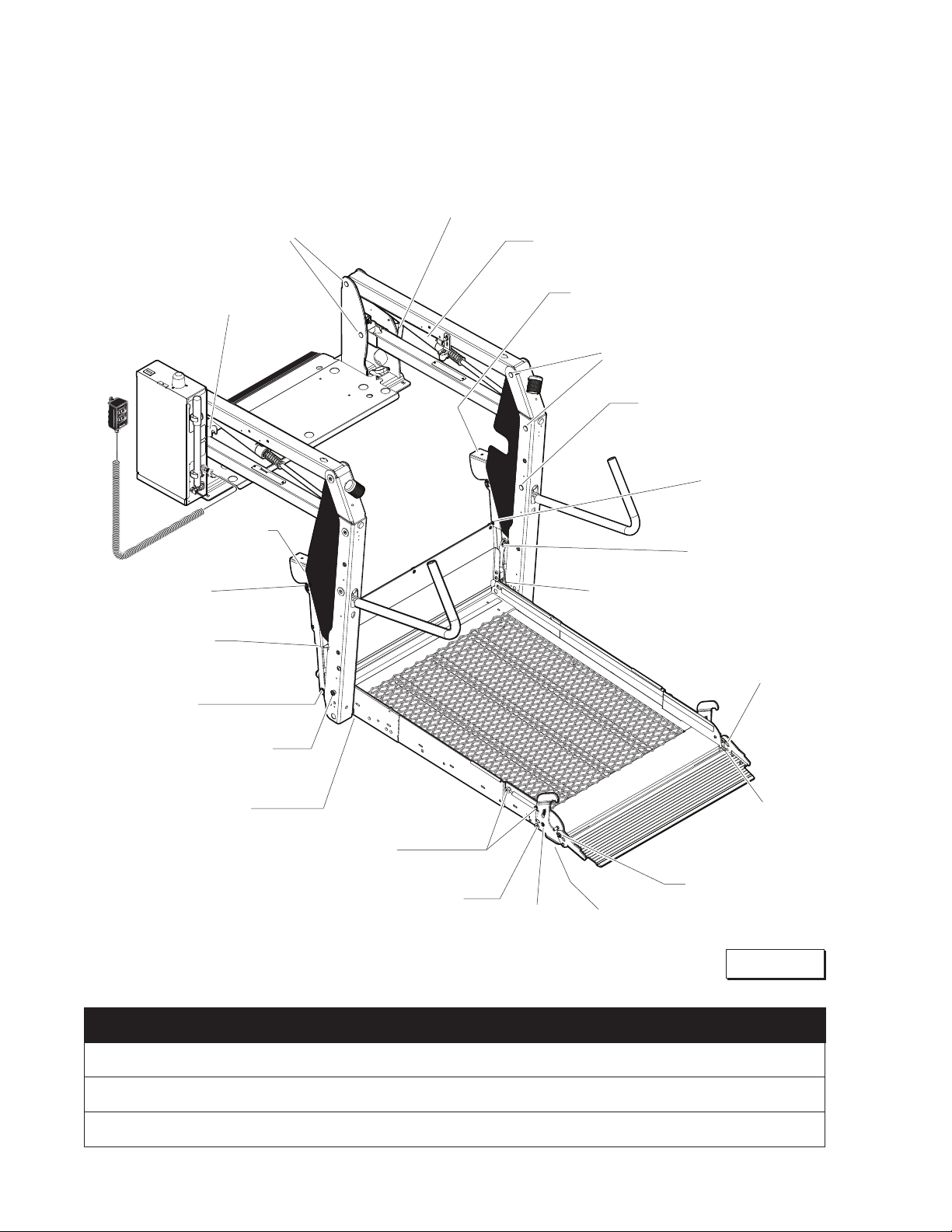

Lift Terminology
Saddle (2)
Outer Fold Arm (2)
Inner Fold Arm (2)

Page 3
Switch and Sensor Locations
Inboard
Outboard
Right (Front)
Left (Rear)
Threshold Strip Switch
33337A (2 strips per)
*Up Microswitch
*Unfold
Microswitch
*Up & Unfold
Microswitch Assy.
975-4121A
IB Raised Switch
32519A
Outer Barrier
Occupied / Raised
Microswitch (Rear)
33775A
*Note: Mirror image for
right (front) pump lifts.
Outer Barrier
Occupied / Raised
Microswitch (Front)
400374A
IB Occupied
Microswitch
Stow Interlock
Microswitch
IB Occupied &
Stow Interlock Assy.
403685AKS
Bridging
Microswitch
33689KS
*Threshold Alarm
Microswitch
*Threshold Alarm
& Partial Fold
Microswitch Assy.
975-4121A
*Partial Fold
Microswitch

Page 4
The following operations and conditions must be functionally veried in order for the lift to be FMVSS
403/404 compliant. If an operation does not function as described or a condition is not met, follow the refer-
enced procedures to correct the problem or contact BraunAbility Aftersales.
• Vehicle movement is prevented unless the lift door is closed, ensuring the lift is stowed.
1. Verify on the pump module mounted interlock connecter that the lift stowed signal - pin 9 has a
ground signal OR lift not stowed signal - pin 5 has an open signal (depends on interlock used).
2. Refer to the interlock installation instructions.
• Lift operation shall be prevented unless the vehicle is stopped and vehicle movement is prevented.
1. Verify vehicle secure signal (pin 6) has a +12 volt signal.
2. Refer to the interlock installation instructions.
• The platform will not fold/stow if occupied.
- Refer to Platform Fold Pressure Adjustment procedures.
• The inner roll stop will not raise if occupied.
• The outer barrier will not raise if occupied.
• Verify platform lighting when lift is deployed and pendant illumination when lift is powered.
• A visual and audible warning will activate if the threshold area is occupied when the platform is greater
than 1" below oor level.
1. Verify Tower 3 (Alarm) Switch Adjustment on page 8.
2. Remove the threshold warning plate.
3. Verify the threshold strip switch connector is securely connected.
4. Reinstall threshold warning plate.
5. Test threshold warning (push down on plate). If warning is not activated, see Step 5.
6. Remove the threshold warning plate and replace non-functioning threshold switch.
7. Repeat Step 4. If warning is still not activated, call BraunAbility Aftersales.
• Platform movement is prohibited beyond the position where the inner roll stop is fully deployed (up).
• Platform movement shall be interrupted unless the outer barrier is deployed (up).
Certication Checklist Diagnostic Procedures

Page 5
Platform Fold Pressure Adjustment
Platform Fold
Adjustment
Allen Screw
Do not adjust this valve.
(located beside solenoid valves)
Note: Secure adjustment
screw and tighten hex
nut following adjustment.
1. Verify Tower 4 (Fold) Switch Adjustment on page 8.
2. Position the platform at the oor level loading position.
3. Loosen the hex nut on the adjustment screw (do not remove hex nut).
4. Turn the adjustment screw counter clockwise until the platform does not fold when the Fold button
is pressed.
5. Turn the adjustment screw clockwise in 1/4 turn increments and press the Fold button until the
platform folds completely. Note: Return the platform to oor level position after each attempt to
fold the platform.
6. Turn the adjustment screw an additional 1/8 turn after the platform folds successfully.
7. Tighten the hex nut without moving the adjustment screw.
8. Verify the platform will not stow while occupied.
Figure A

Page 6
Platform Angle Adjustment
Figure B

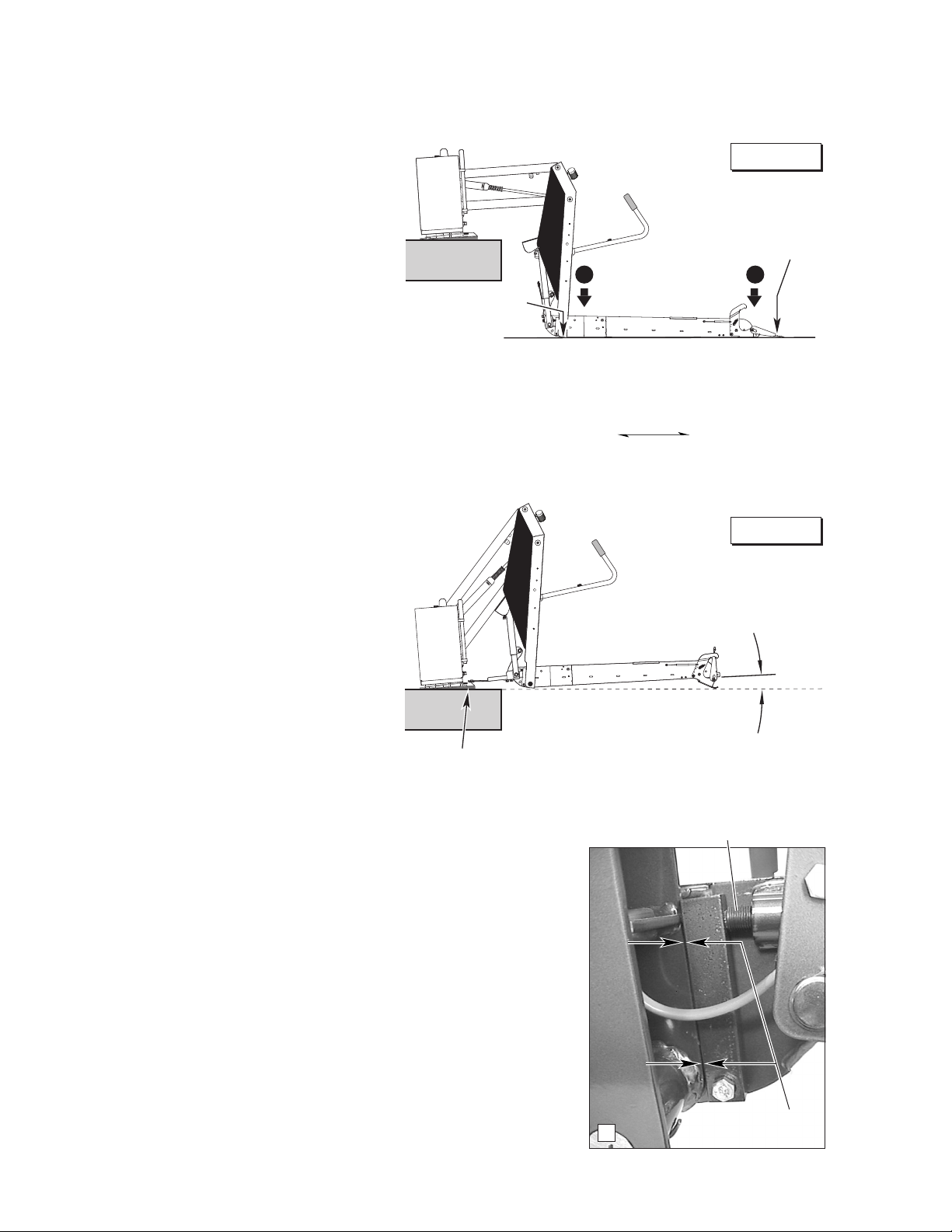

Lowering Sequence Requirements
Adjustment Procedure:
Platform angle adjustment Allen
screws are provided on each side
of the platform (see photo at right
and details on following page).
Turn adjustment screws clock-
wise to raise the outboard end
of the platform. Turn adjustment
screws counterclockwise to lower
the outboard end of the platform.
Both adjustment screws must be
adjusted equally. Apply Loctite®
to adjustment screws following
adjustment.
Platform Stop Blocks: When
adjusting platform angle, en-
sure both stop blocks are mak-
ing full contact with the vertical
arms (see photo at right and
details on following page).
Floor Level Adjustment: Fol-
lowing platform angle adjust-
ment, set platform oor level
positioning as detailed in Tower
Microswitch Adjustment.
Stop
Block
Vertical
Arm
Adjustment Screw
Stop blocks must
make full contact.
(Heel) Inboard Outboard (Toe)
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/Direction
(of vehicle)
(of vehicle)
Heel
Ground Level
Barrier must
unfold fully.
Platform heel
must lower fully.
Barrier
Floor
Level
Wedges (option)
Figure C
2 1
1. The outboard end (toe)
of the platform must contact
the ground rst to ensure the
spring-loaded outer barrier
unfolds fully. See Figure B.
2. The inboard end (heel) of
the platform must lower fully
(vertical arms must contact
ground when fully lowered).
See Figure B.
The angle of the platform at
ground level directly affects
the angle of the platform when
positioned at oor level.
Raise the platform to oor
level. Note the angle of the
platform.
The platform at oor level
should have a slight upward
angle as shown in Figure C.
Adjust platform angle as de-
tailed below.
A

Page 7
Platform Angle
Adjustment Screws
Adjustment Screw Allen Head
B
C
Platform Angle Adjustment
Adjustment Allen screws are
provided on each side of the lift
platform for adjusting the platform
angle. Adjust platform angle as
specied on previous page.
Platform Stop Blocks
Must make full contact. Gap not permitted.
Both stop blocks must
make full contact with the
edge of vertical arms.
DE
Stop Block Guideline
All Lift Models
Right Wrong
Turn
clockwise
to raise
outboard
end of
platform
When adjusting platform
angle, setting oor level
position or adjusting
bridging microswitch -
ensure both stop blocks
are making full contact
with the vertical arms.
Stop
Block
Vertical
Arm Stop
Block
Vertical
Arm
Turn
counter-
clockwise
to lower
outboard
end of
platform
To raise the outboard end of
platform - turn adjustment
screw clockwise.
To lower the outboard end
of platform - turn adjustment
screw counterclockwise.
Note: Both adjustment screws
must be adjusted equally.

Page 8
TOWER
1
TOWER
2
31130
TOWER
3
TOWER
4
31131
TOWER
2
TOWER
1
32942
TOWER
4
TOWER
3
32943
Tower 3 (Alarm) Switch Adjustment
Threshold Alarm Switch
1. Position platform at the fully raised
(oor level) position using the pen-
dant control.
2. Place pressure on the threshold
warning plate (base plate). Con-
tinue applying pressure to threshold
plate and turn switch adjustment
screw clockwise until alarm sounds.
If alarm sounds when pressure is
rst applied go to Step 3.
3. Continue applying pressure to
threshold plate and slowly turn
switch adjustment screw coun-
terclockwise until the alarm stops
sounding.
Tower 4 (Fold) Switch Adjustment
Partial Fold Switch
1. Position platform at 45˚ angle using
the manual hand pump or pendant
control.
2. View the Tower 4 microswitch inside
the lift tower (see Photo G). Turn
the switch adjustment screw in or
out as needed until the radius of the
microswitch blade rides on the apex
of the activation plate.
3. Verify proper adjustment. Criteria
below must be met.
Proper Adjustment Criteria:
• Apply pressure (push down) on
outboard end of platform by press-
ing the hand pendant FOLD switch.
The platform should not fold (stow)
with light pressure applied.
• When folding fully, the platform
should stow tightly (snug with stow
blocks).
Figure D Note: Left (rear) pump lift
depicted. Right (front) pump
lift is a mirrored image.
Note: Review adjustment
procedures below and adjust
as needed only.
Tower 1 (Unfold) Switch Adjustment
Floor Position from Stow
1. Position platform at the fully stowed
position using the manual hand
pump or pendant control.
2. Turn switch adjustment screw clock-
wise 3 full turns.
3. Press pendant UNFOLD switch (con-
tinue pressing switch until platform
stops unfolding).
4. When platform stops unfolding, turn
switch adjustment screw coun-
terclockwise while pressing the
pendant UNFOLD switch. Platform
position will change. Repeat adjust-
ment until criteria below is met.
Proper Adjustment Criteria:
• Bridge plate should just rest on
threshold plate (base plate).
• Should be an approximate 1/8˝
clearance between outboard end
of the saddle and the lower parallel
arm. See Photo F.
Tower 2 (Up) Switch Adjustment
Floor Position from Below Floor
1. Lower platform a minimum of 6˝
below oor level position using the
manual hand pump or pendant
control.
2. Turn switch adjustment screw coun-
terclockwise 3 full turns.
3. Press pendant UP switch (continue
pressing switch until platform stops).
4. When platform stops, turn switch
adjustment screw clockwise while
pressing the pendant UP switch.
Platform position will change. Ad-
just platform to meet criteria listed
for Tower 1 Switch "Proper Adjust-
ment Criteria".
F
G
Radius of Tower 4 Micro-
switch Blade activated by
Apex of Activation Plate.
1/8˝
TOWER
2
TOWER
1
32942
TOWER
2
TOWER
1
32942
TOWER
4
TOWER
3
32943
TOWER
4
TOWER
3
32943
Tower Microswitch Adjustment

Page 9
NOTES
This page intentionally left blank.

Page 10
UP
DOWN
32819
FOLD
UNFOLD
32820
Maintenance and Lubrication
Lubrication Diagram
Handrail Pivot Pin
Bearings (4)
LO
Parallel Arm
Pivot Pin Bearings (16)
LO
Lift-Tite™Latches
(Tower Pivot Points - 2)
LO
Lift-Tite™ Latch Dampening Spring
(2 springs - 4 Points) LO
Parallel Arm
Pivot Pin Bearings (16)
LO
Inner Roll Stop
Pivot Bearings (2)
LO
Outer Barrier
Pivot Bearings (2)
LO
Outer Barrier Latch
Pivot Points (2)
LO
Outer Barrier Gas Springs
(2 Springs - 4 Places)
LO
Platform Pivot Pin
Bearings (4)
LO
Inner Fold Arm
Bearings (8)
LO
Saddle
Bearing (2)
DE
Saddle
Suppport
Bearings (8)
LO
Lift-Tite™Latch Rollers (2)
LO
Outer Barrier
Latch Roller
Bearing (2)
LO
Outer Fold Arm
Cam Followers (4)
LO
Outer Fold Arm
Roller Pins (2)
LO
Hydraulic Cylinder
Pivot Bushings (8) LO
Inner Roll Stop
Lever Bearings (2)
and Slots (2)
LO
Outer Barrier
Switch Lever
Pivot Points (2)
LO
See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
Outer Barrier
Activation Foot
Bearings (4)
LO
Inner/Outer Fold Arm
Contact Area (2)
LG
Specied (recommended) Available BraunAbility
Lubricant Type Lubricant Amount Part No.
LO - Light Oil
LG - Light Grease
DE - Door-Ease
15807
15806
15805
Light Penetrating Oil
(30 Weight or equivalent)
LPS2, General Purpose
Penetrating Oil
16 oz.
Aerosol Can
Stainless Stick
Style (tube)
Door-Ease
Stick (tube) 1.68 oz.
Light Grease
(Multipurpose) Lubriplate 14 oz. Can
Outer Barrier
Arm Slots (2)
LG
Figure E

Page 11
Maintenance and Lubrication Schedule
Maintenance and
lubrication procedures
must be performed
as specied by a
BraunAbility autho-
rized service techni-
cian. Failure to do so
may result in serious
bodily injury and/or
property damage.
Proper maintenance is necessary to ensure safe,
trouble-free operation. Inspecting the lift for any wear,
damage or other abnormal conditions should be a part
of the transit agency daily service program. Simple
inspections can detect potential problems.
The maintenance and lubrication procedures specied
in this schedule must be performed by a BraunAbil-
ity authorized service representative at the scheduled
intervals according to the number of cycles.
BraunAbility dual parallel arm lifts are equipped with
hardened pins and self-lubricating bushings to de-
crease wear, provide smooth operation and extend the
service life of the lift.
When servicing the lift at the recommended intervals,
inspection and lubrication procedures specied in the
previous sections should be repeated. Clean compo-
nents and the surrounding area before applying lubri-
cants. Clean only with water, and then when cleaned,
lubricate as directed in the lubrication diagram. Do not
use solvents to clean.
LPS2 General Purpose Penetrating Oil is recom-
mended where Light Oil is called out. Use of improper
lubricants can attract dirt or other contaminants which
could result in wear or damage to the components.
Platform components exposed to contaminants when
lowered to the ground may require extra attention.
Lift components requiring grease are lubricated during
assembly procedures. When these components are
replaced, grease must be applied during installa-
tion procedures. Specied lubricants are available
from BraunAbility (part
numbers provided on
previous page).
All listed inspection,
lubrication and main-
tenance procedures
should be repeated at
750 cycle intervals fol-
lowing the scheduled
4500 cycle maintenance
procedures. These
intervals are a general
guideline for scheduling
maintenance procedures
and will vary according
to lift use and conditions. Lifts exposed to severe con-
ditions (weather, environment, contamination, heavy
usage, etc.) may require inspection and maintenance
procedures to be performed more often than specied.
Cycle Counter: NCL-2 Series lift models are
equipped with a cycle counter located on the top of
the pump module. This cycle counter allows the lift
attendant/operator to easily track the number of cycles
during daily inspections of the lift.
Discontinue lift use immediately if maintenance and
lubrication procedures are not properly performed,
or if there is any sign of wear, damage or improper
operation. Contact your sales representative or call
BraunAbility at 1-800-946-7513. One of our Aftersales
representatives will direct you to a BraunAbility autho-
rized service technician who will inspect your lift.
Outer barrier pivot points (2)
Outer barrier latch pivot points (2)
Outer barrier switch lever pivot points (2)
Outer barrier latch roller bearing (2)
Outer barrier arm slots (2)
Outer barrier gas springs (2 springs - 4 points)
Lift-Tite™ latches (tower pivot points - 2)
Lift-Tite™ latch gas (dampening) spring pivot
points (2 springs - 4 points)
Inspect Lift-Tite™latches and gas (dampening)
springs for wear or damage (bent, deformed or mis-
aligned), positive securement (lock nuts / external
snap rings) and proper operation
Inspect outer barrier for proper operation
Apply Light Oil - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Apply Light Grease - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Apply Light Oil - See Lubrication Diagram
Resecure, replace damaged parts or otherwise
correct as needed. Note: Apply Light Grease to
Lift-Tite™ latch tower pivot point if replacing latch.
Correct or replace damaged parts.
750
Cycles
W
ARNING
continued

Page 12
750
Cycles
1500
Cycles
Maintenance and Lubrication Schedule
Apply grease (synthetic) to contact areas between
inner/outer fold arms. See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Apply Light Oil - See Lubrication Diagram.
Correct, replace damaged parts and/or relubricate.
See Lubrication Diagram.
Resecure, replace or correct as needed. See
Platform Angle Instructions and Tower Microswitch
Adjustment Instructions.
Replace damaged parts.
Resecure, replace or adjust as needed. See
Microswitch Adjustment Instructions.
Realign towers and vertical arms. Lubricate or
correct as needed.
Replace damaged parts. Apply Light Oil to inner
roll stop lock pivot point.
Inner/outer fold arms (2)
Platform pivot pin bearings (4)
Inner fold arm bearings (8)
Inner roll stop pivot bearings (2)
Inner roll stop lever bearings (2)
Inner roll stop lever slot (2)
Saddle support bearings (8)
Outer fold arm roller pins (2)
Outer fold arm cam followers (4)
Parallel arm pivot pin bearings (16)
Handrail pivot pin bearings (4)
Hydraulic cylinder pivot bushings (8)
Inspect Lift-Tite™ latch rollers for wear or damage,
positive securement and proper operation (2).
Inspect inner roll stop for:
• Wear or damage
• Proper operation. Roll stop should just rest on
top surface of the threshold plate.
• Positive securement (both ends)
Inspect handrail components for wear or damage,
and for proper operation.
Inspect microswitches for securement and proper
adjustment.
Make sure lift operates smoothly.
Inspect inner roll stop locks (2) and torsion
springs (2) for wear or damage and for proper
operation.
continued
continued
Perform all procedures listed in previous section also
Correct or replace damaged parts and/or relubri-
cate. See Lubrication Diagram.
See Platform Fold Pressure Adjustment
See Certication Checklist Diagnostic Procedures
Correct as needed.
Correct as needed.
Inspect outer barrier latch for proper opera-
tion, positive securement, detached or missing
spring(s) and missing latch spacers
Adjust fold pressure
Verify FMVSS 403/404 Certication Checklist
Inspect lift for wear, damage or any abnormal
condition
Inspect lift for rattles

Page 13
Perform all procedures listed in previous section also
4500
Cycles
Hydraulic Fluid (Pump) - Check level. Note: Fluid
should be changed if there is visible contamination.
Inspect the hydraulic system (cylinder, hoses, t-
tings, seals, etc.) for leaks if uid level is low.
Inspect cylinders, ttings and hydraulic connections
for wear, damage or leaks.
Inspect parallel arms, bearings and pivot pins for
visible wear or damage.
Inspect parallel arm pivot pin mounting bolts (8).
Inspect platform pivot pins, bearings and vertical
arms for wear, damage and positive securement.
Inspect inner/outer fold arms, saddle, saddle sup-
port and associated pivot pins and bearings for
visible wear or damage.
Inspect gas springs (cylinders - 6) for wear or dam-
age, proper operation and positive securement.
Inspect saddle bearing (UHMW - 2).
Inspect vertical arm plastic covers.
Maintenance and Lubrication Schedule
1500
Cycles
continued
continued
Inspect external snap rings:
• Inner fold arm mounting (6)
• Lift-Tite™latch rollers (2)
• Lift-Tite™latch gas (dampening) springs (4)
• Outer barrier latch gas springs (2)
• Outer barrier latch pivots (2)
• Outer barrier switch lever pivots (2)
• Outer barrier latch rollers (2)
• Outer fold arm cam followers (4)
• Outer fold arm roller pins (4) & lock assy pins (4)
• Inner roll stop lever bracket pins (2)
Inspect inner fold arm pins (2), bearings (8) and
platform fold pins (2) for wear or damage and posi-
tive securement.
Remove pump module cover and inspect:
• Hydraulic hoses, ttings and connections for wear
or leaks.
• Harness cables, wires, terminals and connections
for securement or damage.
• Relays, fuses, power switch and lights for
securement or damage.
Resecure or replace if needed.
Replace damaged parts and resecure as needed.
Apply Light Oil.
Resecure, replace or correct as needed.
Use BraunAbility 32840-QT (Exxon® Univis HVI
26). Do not mix with Dextron III or other hydraulic
uids. Check uid level with platform lowered fully.
Fill to maximum uid level indicated on reservoir
(specied on decal). Do not overll. If uid level
decal is not present - measure 1-3/8" from the ll
port to locate uid level.
Tighten, repair or replace if needed.
Replace if needed. Apply Light Grease during
reassembly procedures.
Tighten or replace if needed.
Replace damaged parts and resecure as needed.
Apply Light Grease during reassembly procedures.
Replace if needed.
Tighten, replace or correct as needed.
Apply Door-Ease or replace if needed. See Lubri-
cation Diagram.
Resecure or replace if needed.

Page 14
4500
Cycles
Repeat all previously listed inspection, lubrica-
tion and maintenance procedures at 750 cycle
intervals.
Consecutive
750 Cycle
Intervals
Inspect power cable
Mounting
Decals and Antiskid
Resecure, repair or replace if needed.
Check to see that the lift is securely anchored to
the vehicle and there are no loose bolts, broken
welds, or stress fractures.
Replace decals if worn, missing or illegible. Re-
place antiskid if worn or missing.
Maintenance and Lubrication Schedule
continued
Lift
Disposal
Procedure
No lift components contain unacceptable amounts of lead,
cadmium, mercury, or hexavalent chromium.
1. Lower platform to ground.
2. Open pump module manual relief valve.
3. Disconnect power from lift.
4. Capture and recycle hydraulic uid.
5. Disassemble lift and recycle components.
Refer to exploded views in manual.

Page 15
Lift Electrical Schematic
UP/FOLD
SOLENOID
PUMP
1
2
CIRCUIT
SENTRY
(CIRCUIT BREAKER)
INTERLOCK
HYDRAULIC
(UP)
M
POWER
STUD CHASSIS
GROUND
CHASSIS
GROUND
TO ALL
CIRCUIT
BREAKER
(CB1) GROUNDS
TO ALL
COMMON (C1)
GROUNDS
DOWN
SOLENOID
(N.C. Valve)
M
BATTERY
CHASSIS GROUND
CIRCUIT BREAKER/FUSE
JUNCTION
MOTOR
SWITCH
CONNECTER
FLASHER
SOLENOID
NOTES:
1) JUNCTIONS ONLY OCCUR AT
MARKED INTERSECTIONS.
UP
MICROSWITCH
UNFOLD
MICROSWITCH
COUNTER
FOLD RELIEF
SOLENOID
( N.O. Valve)
FOLD
RELAY
NO
NC
C
NO
NC
C
POS.+
E
NEG. -
4
3
THRESHOLD/ALARM
MICROSWITCH
PARTIAL FOLD
MICROSWITCH
NO
NC
C
NO
NC
C
00000
6 7
7
5
4 3
6
5
4 3
2
2
1
1
2
1
4
3
5
6
7
8
9
2
1
4
3
5
6
7
8
9
2
1
2
1
THRESHOLD
STRIP SWITCHES
LIFT
POWER SWITCH
MICROSWITCH
CAPACITOR
DIODE
SYMBOLDESCRIPTION
COUNTER
RELAY
LIGHT
BEEPER
NO
NC
C
+
E
-
00000
UP
DOWN
UNFOLD
FOLD
L
G
LIFT
SWITCH BOX
FUSE
FUSE
REDUNDANT
POWER
RELAY
85
86
87
87A
30
NO
NC
C
INNER ROLL STOP
RAISED SWITCH
STOW INTERLOCK
MICROSWITCH
NO
NC
C
BRIDGING
MICROSWITCH
85
86
87
87A
30
85
8685
87
87
87A
30
LIGHT
RELAY
85 86
87
87A
30
VEHICLE SECURE SIGNAL
LIFT STOWED SIGNAL
LIFT NOT STOWED SIGNAL
(GROUND)
YL/LT. BU(18)
YL/LT. BU(18)
GY/RD(18) BK(16)
WH(18)
WH(18)
WH(18)
WH(18)
GN(18)
BU(18)
BU(18) DK. BU(18) DK. BU(18)
TN/OR(18)
RD(18)
BK(18)
RD/WH(18)
RD/WH(18)
GOLD(22) GOLD(22)
SILVER(22)SILVER(22)
RD/WH(18)
GN(18) GN(18)
GN(18)
WH(18)
OR(18)
GN(18)
RD(18)
WH(18)
BK(18)
GN(18)
WH(18)
GN(18)
GN(18)
BK(20) BK(20)
DK. BU(20)
BK(16)
CB1
RD(20)
RD(18)
RD(18) BK(18)
RD(20)
GN(20)
RD(18)
RD(18)RD(18)
BU(18)
BK(18)
GN(18)
WH(18)
RD(18)
WH(18)
BK(18)
BK(18)
WH(18)
WH(18)
DK. BU(18)
WH(18)
LT. BU/GN(18)
GN(18)
GN(20)
WH(18)
WH(18) GN(18)
GN(18)
WH(18)
BK(18)
RD(18)
RD(18)
OR(12)OR(12)
OR(12)
OR(12)
OR(12)
RD(18)
RD(18)
RD(18)
BK(18)
GN(18)
GN(18)GN(18)
RD(18)
BK(20)
BK(18)
BK(18)
BK(20)BK(20)
GN(14)
GN(18)
GN(18)
BK(22)
RD(22)
BK(20)
BU(20)
BN(20)
BN(20)
BN(20)
BN(20)
BN(20) GN(20)
BK(18)
BU(20)
BU(20)
BU(20) NOT USED
RD(10)
CIRCUIT
BREAKER
GN(14) YL(14) BK(4)
RD(10)
RD(10)
BK(20)
RD(2)RD(4)RD(4)
RD(4)
GN(20)
GN(20)
GN(20)
GN(10)
BN(20)
BK(20)
VT(20)
VT(20)
VT(20)
WH(20)
WH(20)
BU(20)
WH(20)
WH(18)
BK(18)
BK(18)
WH(18)
WH(20)
BK(20)
RD(20)
RD(20)
RD(18)
RD(18)
RD(20)
RD(20)
GN(18)
GN(18)
BU(20)
BU(20)
BK(20)
GN(18)
GN(18)
GN(20)
GN(20)
WH(18)
WH(18)
WH(20)
WH(20)
WH(20)
WH(20)
BK(20)
BK(20)
TN/OR(18)
TN/OR(18)
OR(20)
OR(20)
GN(20)
RD(18)
RD(18)
BK(18)
RD(18) BK(18)
RD(18)
RD(18)
RD(18)
(GROUND)
(+12V INPUT)
INNER ROLL STOP
OCCUPIED
MICROSWITCH
NO
NC
C
FLASHER THRESHOLD
WARNING
LIGHT
THRESHOLD
WARNING
BEEPER
1
3
5
4
1
3
5
4
2
2
6
6
1
5
2
3
1
5
2
3
4
4
6
6
1
3
1
3
2
2
4
4
LIFT READY
LED
1
2
1
2
1
2
2
1
4
3
5
6
7
8
9
2
1
4
3
5
6
7
8
9
1010
1212
1111
C1
C1
C1
C1
CB1
CB1 CB1
CB1
CB1
CB1
NOT USED
+
-
+
-
PLATFORM LED LIGHTS
(OPTION)
2
1
2
1
2
1
2
1
2
1
2
1
WH(18)
BK(18)
WH(18)
BK(18)
RD(18)
BK(18)
RD(18)
BK(18)
+-
+
-
C1 VT(20)
NO
NC
C
OUTER BARRIER
OCCUPIED / RAISED
MICROSWITCH
(REAR)
BU(20)
BK(20) 1
2
1
2
1
2
BU(20)
BU(20)
BU(20)
BU(20)
BK(20)
BK(20)
1
2
1
2
1
2
NO
NC
C
OUTER BARRIER
OCCUPIED / RAISED
MICROSWITCH
(FRONT)
BU(20)
BK(20) 1
2
Note: Interchangeable
connections.

AI/fold-out art
1-92
Unfold for:
Lift Electrical
Schematic
Lift Wiring Diagram
Page 16
SOLID BUS
Circuit Sentry
(Circuit Breaker)
Bat.
Aux.
Lift
Power Cable
33688A
Pump Module
Power Feed
26082A-4
Connects to
Vehicle Battery
(+) Positive Post
Lead Wire
13362A
GN(20)
GN(20)
RD(10)
BK(20)
WH(18)
DK. BU(18)
BK(20)
VT(20)
or
Note polarity of diode.
It must be oriented as shown
relative to the GN(20) wire above.
Detail shows two different styles
of diode identification.
GN(18)
GN(18)
GN(14)
GN(18) RD/WH(18)
Ground
BU(20)
WH(18)
GN(18) SILVER(22)
SILVER(22)
RD/WH(18)
SILVER(22)
GOLD(22)
GOLD(22)
SILVER(22)
Beeper
Threshold
Warning
Light
Back
Plate
(Front view of
solenoids removed
from pump.)
Hydraulic
Pump
B
A
T
A U
X
GN(20)
GN(20)
GN(20)
GN(20) NOT USED
NOT USED
GN(14)
YL(14)
GN(14)
Threshold
Strip
Switches
Inner Roll Stop
Occupied
Microswitch
Counter
Interlock
Connection
Down
Flasher
WH(20)
BN(20)
Fold
Relief
Up
Microswitch
Unfold
Microswitch
Power
Stud
GN(18)
BK(18)
WH(18)
BU(18)
RD(10)
RD(10)
RD(10)
OR(18)
33337A
VEHICLE SECURE SIGNAL +12V INPUT
RD(18)
RD(4)
RD(2)
RD(4)
Partial Fold
Fuse
Microswitch
NO
COM
NC
Threshold / Alarm
Microswitch
BK(18)
WH(18)
RD(20)
RD(18)
GN(18)
BK(16) BK(16)
RD(18)
31797A GY/RD(18)
37009A
37014A
33659A
404346A
RD(18)
RD(18)
GN(20)
BK(18)
WH(18) BK(18)
BK(18)BK(18)
RD(18)31033A54
31033A99
BK(18) RD(18)
WH(18)
RD(18)
BK(18)
RD(18)
BK(18)
4
GN(18)
GN(18)
BU(18)
WH(18)
WH(18)
GN(18)
N.O.
COM.
N.C.
+-
-
E
GN(20)
+
FUSE HOLDER BK(16)
WHITE(18)
NOT USED
NOT USED
NOT USED
NOT USED
6
5
4
3
2
1
COLORNO.
9-COND WIRE CODE
GREEN(18)
NOT USED
NOT USED
9
8
7
VEHICLE SECURE +12V INPUT
LIFT NOT STOWED GROUND SIGNAL
NOT USED
NOT USED
NOT USED
NOT USED
6
5
4
3
2
1
COLORNO.
9-COND WIRE CODE
LIFT STOWED GROUND SIGNAL
NOT USED
NOT USED
9
8
7
12 3
456
789
2
11
2
1
2
2
1
1
2
21
1
2
21
123
456
789
LT. BU / GN(18)
GN(10)
Redundant
Power
Relay
OR
BU
Fold/Unfold
Switch
WH
BK
GN RD
L
G
Up/Down
Switch
Switch Box
(As Viewed From Terminal
Side of Switch)
NOT USED
BLACK - 6 COND. (DOWN)
RED - 6 COND. (UNFOLD)
GREEN - 6 COND. (FOLD)
ORANGE - 6 COND. (UP)
BLUE - 6 COND. (-)
WHITE - 6 COND. (+)
6
5
4
3
2
1
COLORNO.
7-COND WIRE CODE
7
NOT USED
WHITE(18)
RED(18)
GREEN(18)
TAN/ORANGE(18)
GREEN(18)
BLACK(20) and BLACK(20)
6
5
4
3
2
1
COLORNO.
7-COND WIRE CODE
7
2 1
5 4 3
7 6
C-H
COM
NO
NC
Stow
Interlock
Microswitch
BU(18)
GN(18)
BK(18)
RD(18)
WH(18)
N.O.
N.C.
C-H
COM
NO
NC
N.O.
N.C.
COM.
COM.
33257ARP
Lift Power
Switch
Down
Fold
Relief
Up/Fold
Solenoid
+
-
87a
86
87
30
85
GN(20)
LIFT STOWED / NOT STOWED GROUND SIGNAL
(Located in cavity #5 or #9 - see chart above)
31798A YL/LT. BU(18)
NOTES:
1) JUNCTIONS ONLY OCCUR AT
MARKED INTERSECTIONS.
1
345
67
2
1 2
3 4 5
6 7
1
3 4 5
6 7
2
NOT USED
BROWN(20) JUMPER
NOT USED
BLACK(20)
NOT USED
BROWN(20) JUMPER
6
5
4
3
2
1
COLORNO.
12-COND WIRE CODE
WHITE(20)
VIOLET20)
RED(20)
9
8
7
VIOLET(20)
BLACK(18)
WHITE(20)
BLACK(20)
BLUE(20)
BROWN(20)
6
5
4
3
2
1
COLORNO.
12-COND WIRE CODE
BLACK(18)
BLACK(18)
RED(18)
9
8
7
BLUE(20)
BROWN(20)
NOT USED
12
11
10
WHITE(18)
WHITE(18)
NOT USED
12
11
10
12 4
568
910 12
3
7
11
123
567
91011
4
8
12
2 1
5
3
64
GREEN(18)
BLACK(20)
DK. BLUE(18)
RED(18)
4
WHITE(18)
5
NOT USED
6
3
2
1
COLORNO.
6-COND WIRE CODE
4 5
1 2
6
3
GREEN(18)
BLACK(18)
BLUE(18)
RED(18)
4
WHITE(18)
5
NOT USED
6
3
2
1
COLORNO.
6-COND WIRE CODE
Lift
Ready
LED
RD(18)
RD(18)
RD(18) RD(18)
RD(18)
RD(20) RD(18)
RD(18)
OR(12)
OR(12)
OR(12) OR(12)
Light
Relay
85
87a
87
30
BK(18)
BK(18)
RD(18)
RD(18)
+-
WH(18)
BK(18)
Fold
Relay
85
87a
86
87
30
GN(18)
LT. BU/GN(18)
4
3
2
1
COLORNO.
4-COND WIRE CODE
NOT USED
RED(18)
WHITE(18)
BLACK(18)
3 4
1 2
4
3
2
1
COLORNO.
4-COND WIRE CODE
NOT USED
WHITE(18)
BLUE(18)
BLACK(18)
2 1
43
2 1
5
3
64
ORANGE(18)
WHITE(18)
RED(18)
BLUE(18)
4
GREEN(18)
5
BLACK(18)
6
3
2
1
COLORNO.
6-COND WIRE CODE
4 5
1 2
6
3
TAN/ORANGE(18)
WHITE(18)
RED(18)
DK. BLUE(18)
4
GREEN(18)
5
BLACK(18)
6
3
2
1
COLORNO.
6-COND WIRE CODE
OR(12)
)4(KB
dnuorGpmuP
22166A
Fuse
SOLID BUS
87a
86
87
30
85
RD/WH(18)
Circuit
Breaker
35217A
NO
COM
NC
3N.O.
COM.
N.C.
NO
COM
NC
N.O.
COM.
N.C.
NO
COM
NC
N.O.
COM.
N.C.
2
1
Platform LED Lights (Option)
86
RD(22)
BK(22)
Outer Barrier
Occupied / Raised
Microswitch (Rear)
Inner Roll Stop
Raised Switch
RD(20) BU(20)
BN(20)
BK(20)
RD(20)
VT(20)
WH(20)
BU(20)
BU(20)
BK(20)
BK(20)
RD(20)
BU(20)
BK(20)
NC
COM
NO
Bridging
Microswitch BU(20)
BK(20) 1
2
NC
COM
NO
33775A
400340A
Note: Interchangeable
connections.
34294A
1
2
1
2
1
2
1
2
1
2
BU(20)
BU(20)
BU(20)
BU(20)
BK(20)
BK(20)
1
2
Outer Barrier
Occupied / Raised
Microswitch (Front)
BU(20)
BK(20)
RD(20)
BU(20)
BK(20)
NC
COM
NO
400374A
1
2
1
2
1
2
404427FA - FRONT PUMP
404427RA - REAR PUMP
32519KS

Page 17
Orifice
Pump Side
Cylinder
BACKUP
PUMP
2500
PSI
Down
Valve
1900
PSI
PUMP
Opposite
Pump
Cylinder
Fixed Displacement
Pump
Vented Reservoir
Backup Pump
Single Acting Cylinder
Check Valve
Manual
Shutoff Valve
2 Way 2 Position
Solenoid Valve
Pressure Compensated
Flow Control
Relief Valve
Description Symbol Description Symbol
Filter Screen
Unfold Orifice
M
Pump Motor
Hydraulic Port
M
Orifice
1200
PSI
Secondary
Valve
Folding
Relief Valve
Lifting
Relief Valve
Orifice
Pump Side
Cylinder
BACKUP
PUMP
2500
PSI
Down
Valve
1900
PSI
PUMP
Opposite
Pump
Cylinder
Fixed Displacement
Pump
Vented Reservoir
Backup Pump
Single Acting Cylinder
Check Valve
Manual
Shutoff Valve
2 Way 2 Position
Solenoid Valve
Pressure Compensated
Flow Control
Relief Valve
Description Symbol Description Symbol
Filter Screen
Unfold Orifice
M
Pump Motor
Hydraulic Port
M
Orifice
1200
PSI
Secondary
Valve
Folding
Relief Valve
Lifting
Relief Valve
Hydraulic Schematic

Page 18
Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M-268-0145) 120G / 12V / Dual Relief w/Lee Check 404863
2 1 Solenoid, 4-Post Trombetta - Angle 35310
3 1 Motor, Pump - 12 Volt - Low RPM 29690
4 1 Valve Assembly, “Dual Relief" (complete) 31120K
5 1 Cartridge (only), “Dual Relief" Valve - (shown below) 31121
6 2 Coil w/Suppresion (only) - (shown below) 400783
7 1 Valve Assembly, “Down” (complete) 31348K
8 1 Cartridge (only), “Down” Valve - (shown below) 26078
9 3 Screw, 1/4-20 x 2-1/4", Allen Head 26080
10 1 Hand Pump (Backup) with O-Rings (Item 11) 26074
11 4 O-Ring (only), Hand Pump Mounting 17351
12 1 Clamp, Reservoir - H-48 (M259) 17069
13 1 Reservoir, Hydraulic Fluid 30160
14 1 Cap, Reservoir Filler - Screw On 30167
15 1 Fitting, 90° - 1/8" NPT x 1/8" Barb - Plastic 87563
16 1 Clamp, Hose - Solenoid Mounting 29663
17 2 Cap, Barbed Fitting CAP10-3
18 1 Handle with Grip 17206A
19 1 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
20 1 Elbow, 7/16-20 JIC 37 Female Swivel (1) - 7/16-20 JIC 37° Male (2) 26579
21 1 Hose Assembly, 1/8" (Opposite-Pump-Side) 16004A-086
22 1 Hose Assembly, 1/8" (Pump-Side) 16004A-046
 23 2 Elbow,90°,7/16-20SAEO-RingMale-7/16-20JIC37°Male,Orice 26667
24 2 Cylinder 402948
25 1 Diode Assembly, Up Solenoid 73906A
26 1 Kit, Hydraulic Port Service Cap 27049K
5
Cartridge
#31121
6
Coil
#400783
“Dual Relief” Valve
(complete)
4
8
Cartridge
#26078
6
Coil
#400783
“Down” Valve
(complete) 7
Hydraulic Fluid
When adding or chang-
inghydraulicuid,use
BraunAbility 32840-QT
(Exxon®Univis HVI 26)
hydraulicuid(donotmix
with Dextron III or other
hydraulicuids).
