Bray FlowTek F30 Series User manual

FLOW-TEK SERIES FF
 PIECE FLANGED FULL PORT BALL VALVES
Installation Operation and Maintenance Manual
BRAY.COM THE HIGH PERFORMANCE COMPANY

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
2 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
CONTENTS
 DEFINITION OF TERMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 SECTION VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 GENERAL INFORMATION FOR ON-SITE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 SAFETY TIPS AND WARNINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 SHORT AND LONG-TERM STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 STEM SEAL ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 BALL SUPPORT PACKING ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 DISASSEMBLY AND CLEANING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 DISASSEMBLY FOR STEM AND SEAL REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 VISUAL INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
 RETURN MERCHANDISE AUTHORIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
3 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 DEFINITION OF TERMS
All information within this manual is relevant to the safe operation
and proper care of your Bray valve Please understand the
following examples of information used throughout this manual
DANGER
Indicates a potentially hazardous situation which if not avoided
will result in death or serious injury
WARNING
Indicates a potentially hazardous situation which if not avoided
could result in death or serious injury
CAUTION
Indicates a potentially hazardous situation which if not avoided
could result in minor or moderate injury
NOTICE
Used without the safety alert symbol indicates a potential
situation which if not avoided may result in an undesirable result
or state including property damage
READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY
SAVE THIS MANUAL FOR FUTURE USE

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
4 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 INTRODUCTION
The design features of this valve include a split body two piece
construction allowing ease of maintenance without special tools
These valves feature a “free floating” ball The ball is not fixed
but is free to move with the line pressure
As a result of this feature these valves are capable of tight shut-
o with flow in either direction or dead-ended regardless of the
position of the valve in the line
The downstream seat opposite the pressurized side of a closed
valve must carry the load exerted by the line pressure on the
ball while the upstream seat is subject to little load or wear For
this reason it is sometimes possible to increase useful seat life by
turning the valve end-for-end in the pipeline

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
5 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 PARTS IDENTIFICATION
ITEM NAME
Body
End Cap
Ball
Seat
Stem
Body Seal
Body Nut
Body Stud
Anti-Static Device
 Packing Protector
 Thrust Washer Protector
 Thrust Washer
 Stem Bearing
 Stem Packing
 Packing Gland
 Packing Follower
 Gland Bolt
 Belleville Washer
 Tab Lock Washer
 Travel Stop Housing
 Housing Bolt
 Travel Stop
 Travel Stop Sleeve
 Travel Stop Bolt
 Handle
 Lock Nut
 Handle Set Screw
 Handle Sleeve
 Locking Device
 Snap Ring
 Pipe Handle Junction
 Stem bolt
 Handle bolt
5
11
12
9
5
6
2
7
8
7
8
4
3
4
25
28
23
24
29
14
10
15
18
19
26
26
1
 –  Valves
12
11
5
4
3
4
6
8
7
1
2
14
10
15
16
17
20
21
22
30
13
25 27
9
 –  Valves
SIZE RANGE HANDLE STYLE
 -  Bent plate handle
 -  Cast style handle
 -  Pipe style handle




Handle Assembly for
 –  Valves

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
6 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 SECTION VIEWS
SECTION VIEW  -  VALVES
Dimensions may be found in product literature
SECTION VIEW - -  VALVES
A
D
N-øT
øB øF øS
C1
C
E
A
E
D
4-øT
C
øF
C1
øS
øB

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
7 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 GENERAL INFORMATION FOR ON-SITE INSTALLATION
The valve may be installed in any orientation on the pipeline and
should be installed in the full open position
Before installing the valves the pipes must be flushed clean of
dirt burrs and welding residues or the seats and ball surface
will be damaged If for any reason the valve is installed prior to
flushing of the piping system the valve must remain in the full
open position until the piping system has been fully flushed clean
of debris
For hydrostatic testing of the piping system the valves must be
placed in the half open position prior to pressurizing the system
If the valve is installed in a dead-end position on the piping the
valve must be placed in the half open position and equipped with
a blind flange prior to pressurizing the system
NOTICE
Hydrostatic system testing with the valve in the closed position
may result in damage to the valve seats aecting their ability
to create a proper seal Failure to implement the installation and
testing instructions as outlined resulting in a valve failure will
void the warranty coverage of the product
 Use
The valve should be maintained as part of a preventative
maintenance program and in accordance with manufacturer’s
recommended pressure temperature and corrosion limits to
insure a long service life During shipment storage and in
operation the valve should be fully open or fully closed (“open”
is preferred for shipping and storage) Do not use in throttling
service without investigating flow and pressure conditions
WARNING
Before installing this equipment confirm that it is suitable for the
intended service
The identifications tags describe the maximum allowable service
conditions for this product
Be sure that the installation is protected by appropriate pressure
control and safety devices to insure that acceptable limits are not
exceeded

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
8 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 SAFETY TIPS AND WARNINGS
 Before installation confirm that valve is suitable for the
intended service
 Make sure that line is depressurized and drains are open
monitored during installation
 Before working on valve being in service make sure that
service media has been flushed and line is safe Make sure
that all applicable MSDS sheets are available Follow all safety
related procedures
 Before disassembly valve shall be cycled several times to
assure there is no pressure trapped in body cavity
 During assembly make sure that all threaded connections are
safe and have proper engagement
 During the pressure test of reassembled valve follow all safety
precautions to avoid possible injury (Use of proper test
equipment correct parts assemblies follow test procedures)
 While line is under pressure DO NOT remove packing gland
or any other valve parts

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
9 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 SHORT AND LONG-TERM STORAGE
 Short-Term Storage
Short-term storage is defined as storage of products and
equipment to be used in the construction of a project for periods
of one to three months Short-term storage must be carried out
in a controlled manner as follows
 Valves must be stored in a closed clean and dry
environment
 Ball valves should be stored in the fully open position to
protect the ball and seats
 Ball valves should remain in the original shipping container
and be placed on pallets of wood or other suitable materials
End protectors should remain on the valve ends to prevent
the entrance of dirt and removed only at time of installation
 Long-Term Storage
Long-term storage is defined as storage of products andor
equipment for periods longer than  months Long-term storage
must be carried out in a controlled manner as follows
 Valves must be stored in a closed clean and dry
environment
 Ball valves should be stored in the fully open position to
protect the ball and seats
 Ball valves should remain in the original shipping container
and be placed on pallets of wood or other suitable materials
End protectors should remain on the valve ends to prevent
the entrance of dirt and removed only at time of installation
 Periodically the valves should be checked to ensure the
above conditions are maintained
These are general guidelines for valve storage Please consult the
factory for information regarding specific requirements

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
10 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 OPERATION
Operation of the valve is done by turning the handle a  turn
( degree turn) clockwise (CW) to close counter clockwise
(CCW) to open
 Valve Open Position
The handle is parallel with the pipeline
 Valve in closed Position
The handle is perpendicular to the pipeline
Valves with actuators should be checked for actuator -valve
alignment Misalignment will result in high operational torque and
damage to valve stem and seals

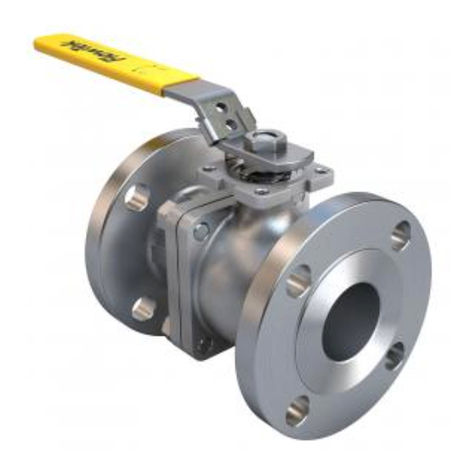

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
11 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 STEM SEAL ADJUSTMENT
Stem seal leakage may be corrected without disassembly by
tightening the packing nut  gland bolts until such leakage stops
If the leakage continues or valve operating torque becomes
excessive the seals are worn and replacement will be necessary
For -  if slight leakage is noted at stem straighten lock
washer tab tighten packing nut to flatten Belleville Washers
back packing nut o  turn secure lock washer tab For
standard valve trims see Table  for recommended assembly
torque values For Fugitive Emissions or API  qualified trims
see Table  for recommended assembly torque values
For sizes larger than  simply tighten gland bolts evenly
until leak stops Do not over tighten For standard valve trims
see Table  for recommended assembly torque values For
Fugitive Emissions or API  qualified trims see Table  for
recommended assembly torque values
WARNING
DO NOT remove packing gland or any other valve parts while line
is under pressure!
Table  -Packing Nut Assembly Torque
Valve Size
NPS Recommended Torque lbs-in Valve Size DN Recommended Torque N m
   
   
  
-   
  
Table  - Gland Bolt Assembly Torque
Valve Size
NPS Recommended Torque lbs-in Valve Size DN Recommended Torque N m
-   
  
  
  
  
   
   

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
12 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
Valve
Size
NPS
Recommended Torque (lbs-in)
Combination
Packing Standard Packing (Graphite RPTFE)
 
 

- 

Valve
Size
DN
Recommended Torque (N m)
Combination
Packing Standard Packing (Graphite RPTFE)
 
 
 
 
 
Table  - Packing Nut Assembly Torque - Fugitive Emissions & API  Trim
Valve
Size
NPS
Recommended Torque (lbs-in)
Combination
Packing Standard Packing (Graphite RPTFE)
-  
 
 


 Consult Engineering
 Consult Engineering
Valve
Size
DN
Recommended Torque (N m)
Combination
Packing Standard Packing (Graphite RPTFE)
  
  
  
 
 
 Consult Engineering
 Consult Engineering
Table  - Gland Bolt Assembly Torque - Fugitive Emissions & API  Trim

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
13 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 BALL SUPPORT PACKING ADJUSTMENT
Ball Support packing adjustment may be required in the
rare event that the pin packing develops a leak The below
instructions should be followed in the event of a leak to adjust the
packing Note that the position of the ball support comes pre-set
from the factory Adjustment of the pin seat position may only be
required if the ball support components have been replaced
 Loosen the set nut () on the tuning screw () by turning
the nut counter-clockwise while holding the screw stationary
with an open end wrench
 With the set nut () loose turn the support nut ()
clockwise to compress pin packing () as necessary to stop
leakage of line media around support nut threads
 Using finger pressure only rotate the tuning screw () in the
clockwise direction until resistance is felt from the support
pin seat () contacting the ball surface Then rotate the
tuning screw ()  turn in the counter-clockwise direction
 Lock the tuning screw () in position with the set nut ()
by holding the tuning screw () head stationary with an
open end wrench while firmly tightening the set nut () in
the clockwise direction
 Pin Seat
 Pin Packing
 Support Pin
 Support Nut
 Set Nut
 Turning Screw
Ball Support
Ball
Clockwise
Counter
Clockwise

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
14 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 DISASSEMBLY AND CLEANING PROCEDURE
CAUTION
Line must be depressurized before disassembly Valve should be
cycled to assure there is no pressure trapped in valve cavity Ball
valves can trap pressurized media when closed Flush line with
valve in the half open position to remove hazardous media
If the valve has been used to control hazardous media it must be
decontaminated before disassembly
It is recommended that the following steps be taken for safe
removal and assembly
As shipped from the factory valves contain silicone based
lubricant This is for break-in and may be removed by
disassembly and solvent washing if it is objectionable for a
particular application

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
15 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 DISASSEMBLY FOR STEM AND SEAL REMOVAL
Remove flange bolts and nuts and lift valve from line for
servicing
NOTE Care should be taken to avoid scratching or damaging
serrated flange face These valves are heavy!
They should be adequately supported before removal from the
line is begun
Loosen handle set screw and remove handle and stop plate Next
remove gland nuts gland flange and gland
Remove body end nuts using proper wrench size Lift o body
end One seat should come out with body end
Remove body seal
To take out the ball rotate stem so ball is in fully closed position
Lift ball from body using a strap and lift device if necessary
NOTE Extreme caution should be taken to avoid damage to the
ball
Take out other seat
Stem must be removed from inside the body - a tap on the top
of the stem should loosen it The thrust washer should come out
with the stem Then remove the stem packing

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
16 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 VISUAL INSPECTION
Clean and inspect metal parts It is not necessary to replace the
ball and stem unless the seating surfaces have been damaged by
abrasion or corrosion We strongly recommend replacement of all
soft parts whenever the valve is disassembled for reconditioning
to protect against subsequent leakage after valve reassembly
NOTE The valve may be assembled and operated dry where no
lubricants are allowed in the system however a light lubrication
of mating parts will aid in assembly and reduce initial operating
torque Lubricant used must be compatible with the intended line
fluid

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
17 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 ASSEMBLY
Install one seat in the body seat cavity with the spherical
curvature facing the ball
Install thrust washer on stem and slide the stem up through the
body Install packing and packing gland with packing gland bolt
Torque the packing gland nut with recommended values from
Table - accordingly (page)
Install stop plate handle and handle retainer nut
Turn the handle CW to the CLOSED position Line up the ball slot
with the stem tang and slide the ball into position For V-control
valves insert V-ball with V opening facing assembled seat in
point  V cut in the ball should be on downstream side (body)
seat following flow arrow marked on the body Turn the handle
CCW to the OPEN position to hold the ball in place
Install the remaining seat into end cap seat pocket
Put body seal gasket into shoulder counter bore at flange in valve
body
Put end cap back into body and line up end flange Because the
body flange bolt pattern is dierent from the line flange bolt
pattern it is possible to assemble the valve which the bolt holes
in the line flanges don’t line up Be certain to align end flanges
bolt holes to straddle valve center lines
NOTE Be careful not to damage body seal when assembling
end into body
Install body nuts and tighten in a crossing pattern to the torque
specified in Table 
TABLE  - Body Nut Torque
Valve
Size
Recommended Torque
lb-in
Valve
Size
Recommended Torque
N m
NPS F F DN F F
     
     
    
-     
    
-     
    
    
    
    
     
     

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
18 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
Assembly - Continued
WARNING
Extreme care must be exercised during adjustment of body
stud nuts to make sure that body studs are fully engaged There
should be at least one stud thread exposed beyond the flange on
the body side and beyond the nut on the cap side
Cycle the valve slowly with a gentle back and forth motion to
build gradually to the full quarter turn By cycling slowly the seat
lips will assume a permanent seal shape against the ball A fast
turning motion at this point may cut the seats before they have
a chance to form the proper seal
Test valve if possible prior to placing valve back into line
position
WARNING
If not properly secured the valve can become separated from
the pressure source resulting in possible injury Always join the
valve to flanges of the same pressure rating and secure with a full
set of flange bolts
TEST AS FOLLOWS
 Apply test flange to the valve with full set of flange bolts
and a suitable gasket Orient the valve with the bore in the
vertical position and the seat being tested facing up
 Introduce  to  psig air Partially cycle the valve under
pressure and then slowly close to make sure the cavity is
pressurized (use hearing protection) Pour water into the
upper port to cover the ball and visually check for bubbles
If bubbles appear pour the water out cycle the valve several
times and recheck To check for leakage in the other port
reverse the valve and introduce air pressure to the port just
checked
 Check stem seal at this time by coating the gland area with a
soapy water solution If leakage occurs tighten stem seal just
until leakage stops

FLOW-TEK SERIES F15/F30
2 PIECE FLANGED FULL PORT BALL VALVES
Installation, Operation, and Maintenance Manual
19 of 20©  BRAY INTERNATIONAL INC ALL RIGHTS RESERVED BRAYCOM The Information
contained herein shall not be copied transferred conveyed or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International Inc
 RETURN MERCHANDISE AUTHORIZATION
All products that are returned require a Return Merchandise
Authorization (RMA) Contact a Bray representative for instructions
and RMA forms to be completed prior to return of any product
The following information must be provided when submitting RMA
 Serial number
 Part number
 Month and year of manufacture
 Actuator specifics
 Application
 Media
 Operating temperature
 Operating pressure
 Total estimated cycles (since last installation or repair)
NOTE Product information is provided on identification tag
attached to device
NOTICE
Materials must be cleaned and sanitized prior to return MSDS
sheets and Declaration of Decontamination are required

HEADQUARTERS
BRAY INTERNATIONAL INC
 Westland East Blvd
Houston Texas 
Tel 
SINCE  BRAY HAS PROVIDED FLOW CONTROL SOLUTIONS
FOR A VARIETY OF INDUSTRIES AROUND THE WORLD
VISIT BRAYCOM TO LEARN MORE ABOUT
BRAY PRODUCTS AND LOCATIONS NEAR YOU
THE HIGH PERFORMANCE COMPANY
All statements technical information and recommendations in this bulletin are for general
use only Consult Bray representatives or factory for the specific requirements and material
selection for your intended application The right to change or modify product design or
product without prior notice is reserved Patents issued and applied for worldwide
Bray®is a registered trademark of Bray International Inc
©  BRAY INTERNATIONAL ALL RIGHTS RESERVED BRAYCOM
BRAY.COM
ENBRIOMBVFF--
