BREL motors is part of:
Manual Brel 35mm standard motor
Type MS35
Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and in ury in which warranty can’t be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it
It is important to follow this instruction for your own safety.

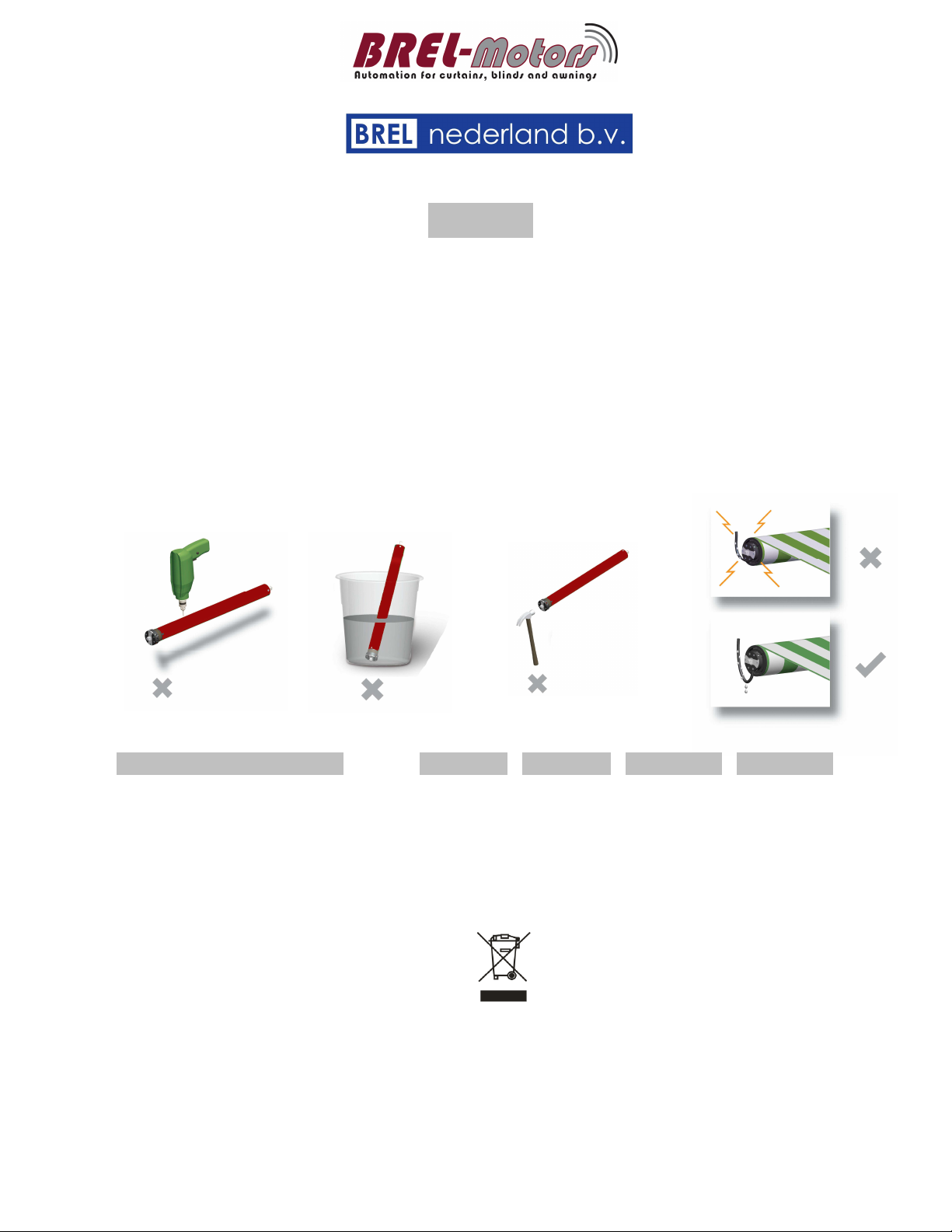

1 Do not operate the motor in humid surroundings
2 The motor must be installed correctly
3 The motor must be protected from direct moisture influences
4 The motor should be installed with the motor cable down in order to prevent moisture via the motor cable is running in the
motor See Figure 1
5 It is prohibited to connect two motors on a switch without using a relay control Figure 1
_________________________________________________________________________
Technical data of the motor Type MS35-3 Type MS35-6 Type MS35-10 Type MS35-13
• Motor Voltage: AC 230V AC 230V AC 230V AC 230V
• Power: 98 Watt 121 Watt 121 Watt 121 Watt
• Torque: 3 Nm 6 Nm 10 Nm 13 Nm
• Speed: 28 rpm 28 rpm 17 rpm 14 rpm
• Ampèrage: 0 43A 0 53A 0 53A 0 53A
• Moisture and dust: IP44 IP44 IP44 IP44
• Working temperature of the motor:
o Normal use: -10℃ tot +40℃
o Heavy use: -20℃ tot +70℃

Page 2
_______________________________________________________________________________
Installing the motor
Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel
is fixed to the motor
Install the motor with the motorbracket on the product and take care that it is secured
Place the motor in the tube of the roller/shutter
(These assemblies are usually already done in the factory)
Adapter
_________ Wheel
_______________________________________________________________________________
Setting the end limits of the motor
To determine where the motor must stop, you must use the supplied adjustment pin
The large arrow indicates in which direction you change the end limits
By turning to the Plus or Minus you can change the end limits
By turning to the Plus, the motor will make more rotations
By turning to the Minus, the motor will make les rotations
The setting needs to be done for both directions of rotation
If the motor is stopped by it selves, do not make more than one rotation to the minus
This can disrupt the adjustment
