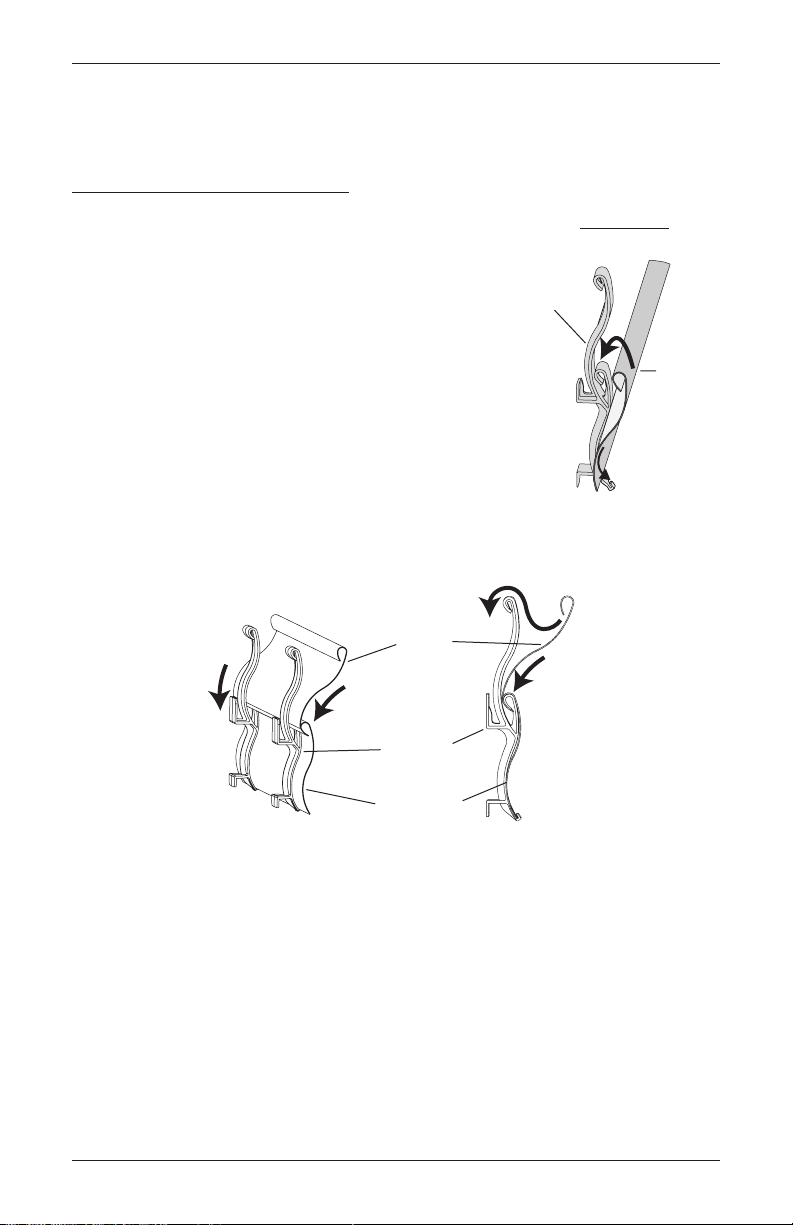

Attach Louvers.............................................................................11
Attach the Universal Cord Tensioner (Cord Loop Units Only) ...........11
Cord Adjustment ..........................................................................12
Valance Installation — Outside Mount Installations Only.................13
Operation:

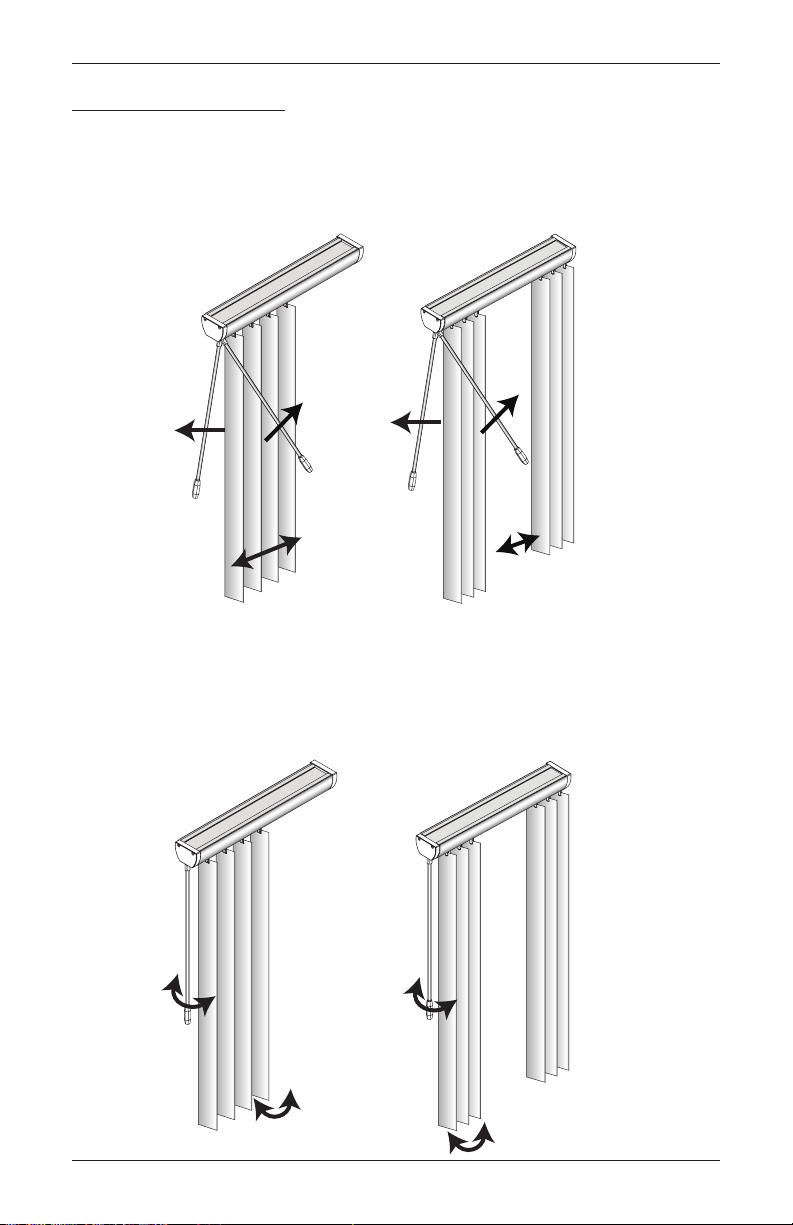

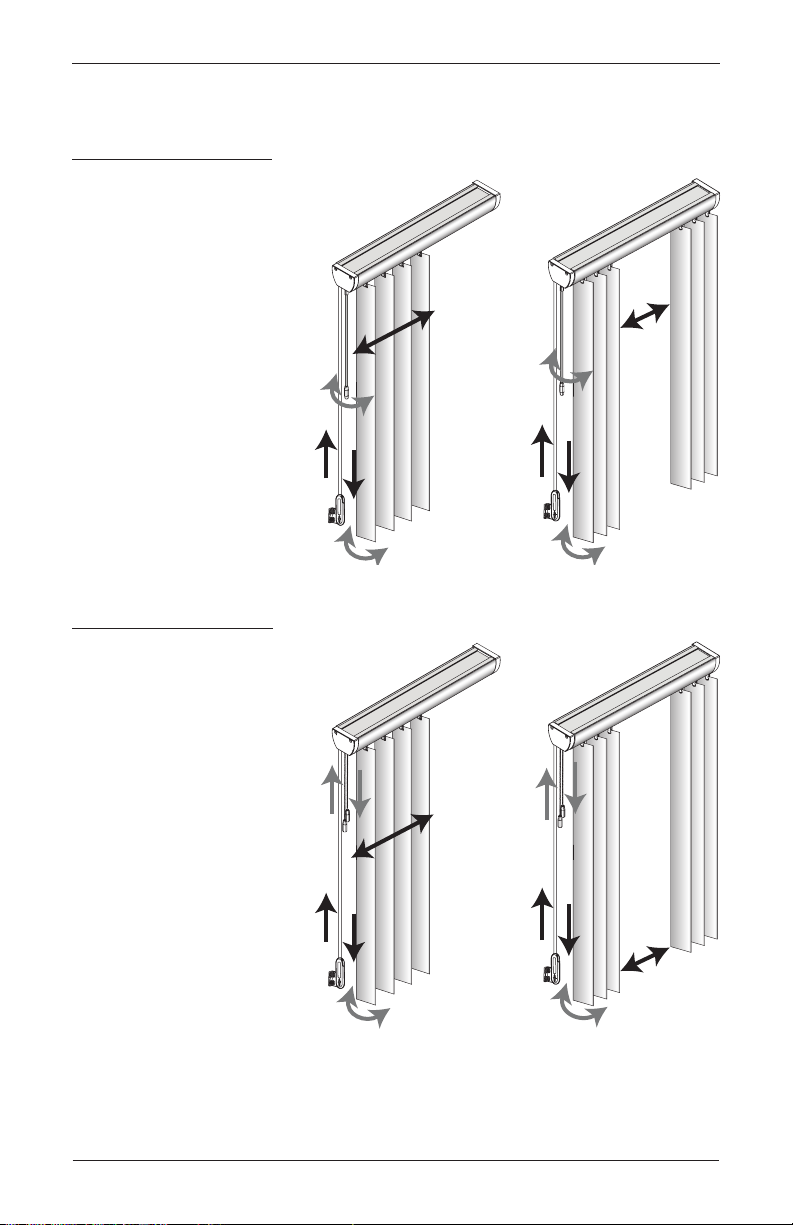

Blind Operation............................................................................14
Care:
Removing the Headrail .................................................................16
Cleaning Procedures ....................................................................16
Child Safety:
Warning ......................................................................................17
Cord Loop Panels.........................................................................17
© 2019 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their
respective owners.

GETTING STARTED
1

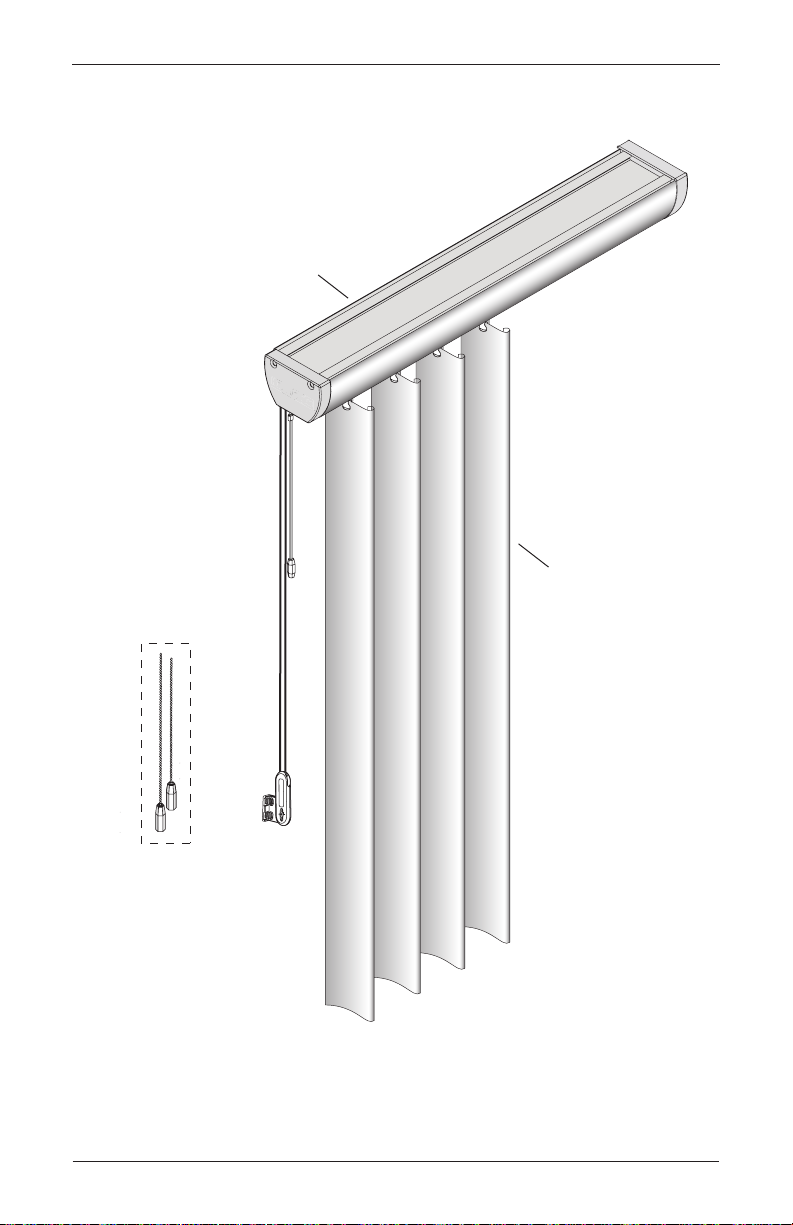

Product View
Headrail
Louvers
Cord and
Wand Control
System
Optional Chain Control
System Instead of Wand
Or
Wand Only System

2
GETTING STARTED
Product View — DualFold™Valance (Standard)
IMPORTANT: DualFold™Valances are not shipped assembled.
Thank you for purchasing Hunter Douglas Cadence®Soft Vertical Blinds. With proper installation,
operation, and care, your new blind will provide years of beauty and performance. Please
thoroughly review this instruction booklet and enclosed packing list before beginning the
installation.
■Remove headrail, louvers, and DualFold™valance from the package. Do not discard any of
the packaging material until the blind operates to your satisfaction.
■Contents of your hardware package may vary depending upon whether the headrail is
mounted inside or outside the window frame.
Cadence
Valance
Return
Left Cadence Corner
Valance Inserts
Right Cadence®
Corner
Dust Cover
Valance
Valance
Assembly
Clip

GETTING STARTED
3
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows very
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
Installation Components Needed
Check the packaging to be sure you have all the
components needed to install your blind.
IMPORTANT: For outside mount valance installations,
the short valance hanger, see “Optional Components”
on page 4, count will be the same as the headrail
installation brackets.
Required Components
■Installation Brackets:
➤EZ-On Installation Bracket. These installation brackets are
used for inside and ceiling mounts. They are also included with
the other two installation brackets shown below.
➤3½" L-Bracket with EZ-On Installation Bracket. These are
used as standard outside mount brackets.
➤Adjustable Bracket Assembly with EZ-On Installation
Bracket. These are used when the headrail needs to be further
from the wall than the distance the 31/2" L-Bracket can achieve.
■Short Valance Hanger. These are used with blinds that have a
valance and are in addition to the above mounting brackets.
Jamb
Outside Mount
The blind mounts
outside window
opening.
Inside Mount
The blind fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb
Blind Width
Brackets
Required
10" – 24" 2
241/8" – 48" 3
481/8" – 72" 4
721/8" – 96" 5
961/8" – 120" 6
1201/8" – 144" 7
1441/8" – 168" 8
1681/8" – 192" 9

4
GETTING STARTED
Optional Components
■Leveling Valance Bracket. These are used to help support the
valance if the returns are not long enough to contact the wall.
■Outside Mount Deluxe L-Bracket without EZ-On Installation
Bracket. These are used with the 41/2" slider extension plate listed
below. This is a heavier bracket than the adjustable bracket assembly
with the EZ-On installation bracket and will allow you to move the
headrail even further from the wall.
■41/2" Slider Extension Plate. These are used with the outside
mount deluxe L-bracket and will allow you to move the headrail even
further from the wall. Attach an EZ-On installation bracket to this
bracket to attach the headrail.
■4" Heavy-Duty Wall Bracket. These are vertical space-saving
brackets that will also allow you to extend the headrail beyond the
standard distance from the wall. Attach an EZ-On installation bracket
to this bracket to attach the headrail.
■Mounting Shim. These wedges are used in pairs to level a headrail.
■Screw and Nut. These are used to attach the EZ-On installation brackets
and the slider extension plates to other installation brackets.
Tools and Fasteners Needed
■Flat blade and Phillips screwdriver
■Measuring tape and pencil
■Level (laser level is recommended)
■Power drill and drill bits (1∕4" hex driver also recommended)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#8 Hex Head Screws (Provided). Two 2" screws are provided per
installation bracket.
■Longer #8 Hex Head Screws (Not Provided). Use #8 mounting
screws long enough for a secure attachment.
■Screws and Nuts (Provided). Extension plates come with screws
and nuts.
#8 x 2"
Hex Head Screw
(Provided)

INSTALLATION
5
Valance Assembly
Refer to the appropriate section below for your valance:
DualFold™ Double-Tiered Valance
IMPORTANT: The DualFold™Double-Tiered Valance should be assembled upside down.
■Slip the curved edge of the top valance insert over
the round end of the assembly clip.
■Slide the curved edge of the bottom valance insert
onto the bottom edge of the assembly clip.
IMPORTANT: The lower edge of the bottom valance insert should be between the top
insert and the assembly clip.
Valance
Assembly Clip
(Upside Down)
Top
Valance
Insert
Valance
Assembly
Clip
Top
Insert
Bottom
Insert

INSTALLATION
6
■Insert and slide the assembly clip into the clear grooves on the front of the dust cover.
■Install the valance corners and the returns.
IMPORTANT: Angle the corner as it is inserted into the louvers.
■The valance assembly is now complete.
Position the valance upright.
Dust Cover
Top Insert
Valance
Assembly Clip
Dust Cover
Side View
Dust Cover
Dust Cover
Corner
Corner
Corner
Valance
Assembly Clip
Top
Insert
Valance
Assembly Clip
Valance
Return
Top Insert Locks into
V
alance Assembly Clip Top Tabs

INSTALLATION
7
Inside or Ceiling Mount Installation
Measure and Mark Installation Bracket Location
■Mark installation bracket locations between 2" and 4" from each end of the headrail. Evenly
space intermediate installation brackets between end installation brackets at 24" to 30"
intervals.
IMPORTANT: If you do not have a mounting template, measure the depth and add 1⁄2"
clearance between the louver and the window (i.e. 21⁄2" for 3 5⁄8" louvers). Blinds having
widths greater than 120" will require additional brackets to support the stacked louvers.
Install Installation Brackets (and Assembled Valance)
IMPORTANT: The inside surface of the dust cover has three parallel grooves, use the center
groove to position drill holes.
■Drill pilot holes through the dust cover valance
at the installation bracket locations as marked.
■Turn the DualFold™Valance upright. Insert
the valance into the window opening with the
returns flush to the wall.
IMPORTANT: The returns may need to be
trimmed to the desired length.
■Hold the valance in position and drill through the valance into ceiling.
■Position an installation bracket at each hole and screw into place.
2"-4"
Space Evenly
30" Maximum
Jam
Jam
2"-4"
Space Evenly
30" Maximum
Center
Groove
Valance
Installation
Screw
Installation
Bracket

INSTALLATION
8
■Align and secure the valance against the ceiling into its finished mounting position.
Install the Headrail
■Center the headrail underneath the installation brackets.
■Tilt the headrail and insert it into the front edge of the installation brackets.
■Pull forward, then roll the headrail back toward the rear of the blind.
■Push up and snap into place.
Test the Headrail Operation
■For a headrail with the cord and chain control system, unpack the chain and cord.
■Check that the chain/wand will rotate the louver hooks.
■Check that the cord/wand will traverse the louver hooks.
Installation
Bracket
Side
View
Wall
Ceiling/Head Jamb
Louver
35/8"
21/2"
41/2"
DualF
old™
Valance
1/2"
Tilt Up and
Pull Into Place
Roll Up
Installation Bracket

INSTALLATION
9
Outside Mount Installation

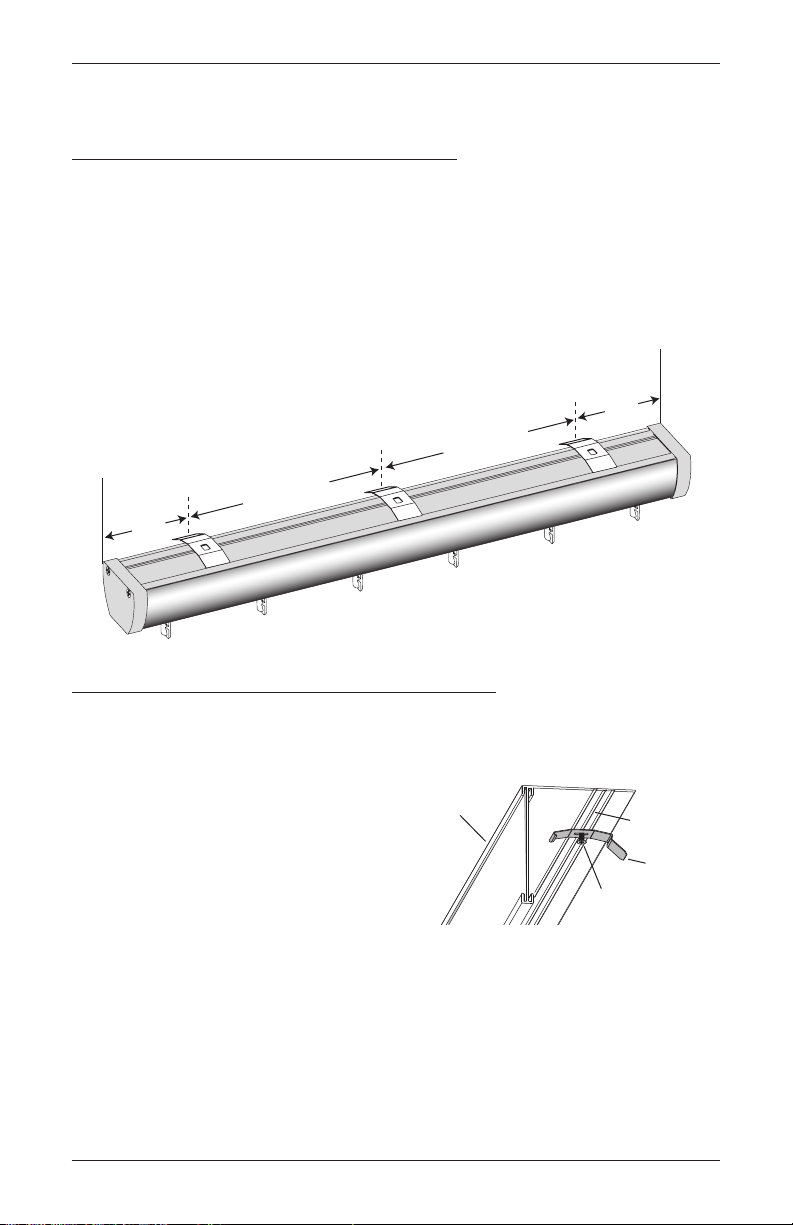

■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
■Mark the installation bracket locations between 2" and 4" from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly on wood, between the two end brackets and mark their location.
■Center each installation bracket on the marks and mark
the location for the screw holes (31/2" L-bracket shown,
all others are mounted in a similar fashion).
➤A minimum of 2" flat vertical surface is required to
mount the brackets.
➤The top of the installation brackets should be at
the desired height. The brackets should be level
andaligned.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Donot
mount brackets oncurved molding.
■Drill the screw holes using a 3∕32" drill bit.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
■Fasten installation brackets to the mounting surface using the hex head screws provided.

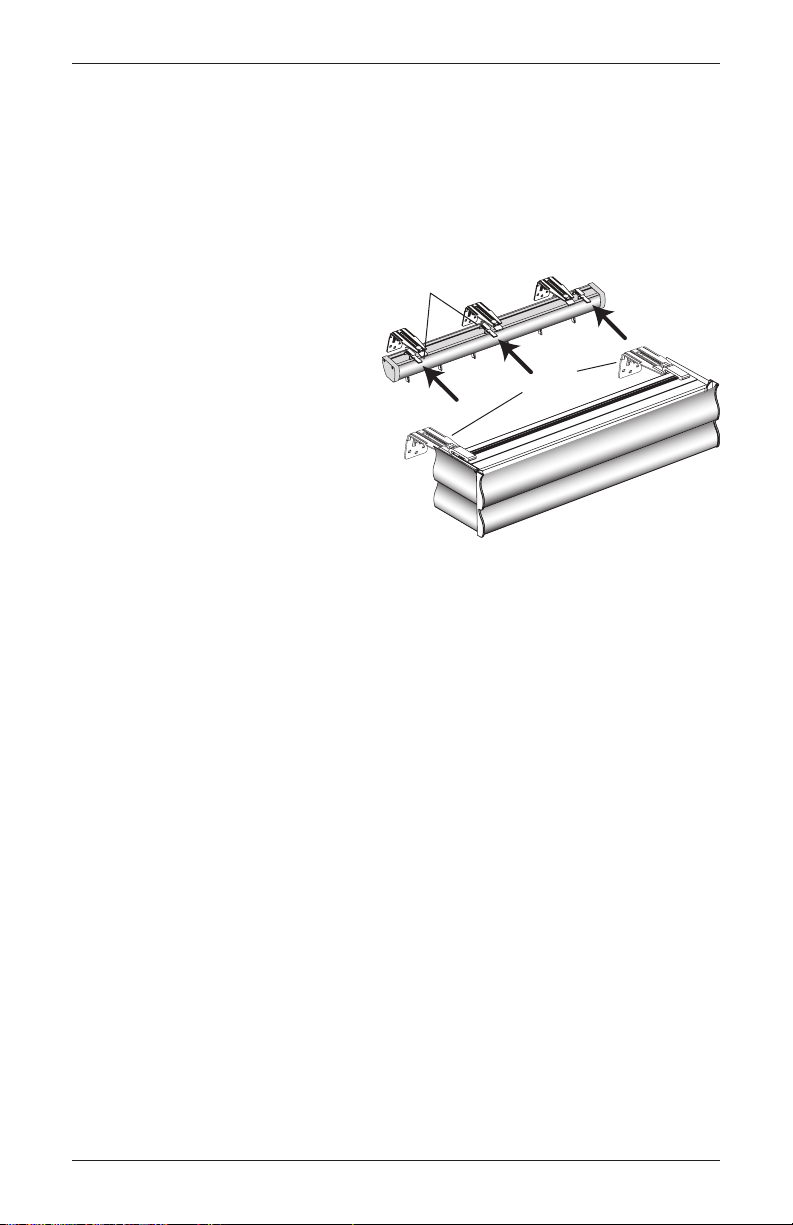

Install Short Valance Clips
IMPORTANT: This is only for outside mount blinds that include a valance.
■Space the short valance clips along the headrail near the positions of the headrail
installation brackets.
➤The short valance clips can be on either side of the installation brackets.
➤The end short valance clips need to be at least 1" in from the end of the headrail.
2"-4" 2"-4"Space Evenly (30"Maximum)Space Evenly (30" Maximum)
Headrail End Marks
Window Opening
End of
Headrail
Installation Bracket
Location Mark
2"-4"
2"(Min)

INSTALLATION
10

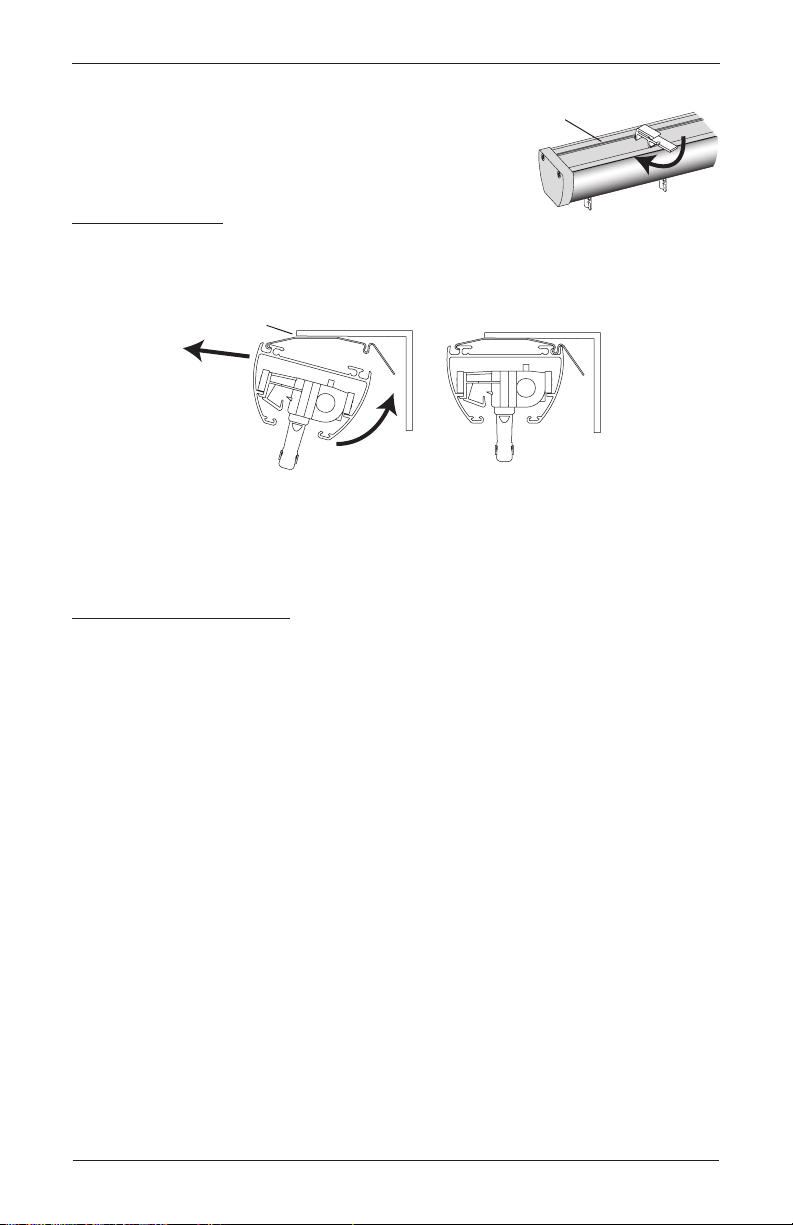

■Set the rear of the short valance clip against the back
track of the headrail and twist them into position.
Install the Headrail
■Center the headrail underneath the installation brackets.
■Tilt the headrail and insert it into the front edge of the installation brackets.
■Push back, then roll the headrail back up toward the rear of the blind.
■Push up and snap into place.
Test the Headrail Operation
■For a headrail with the cord and chain control system, unpack the chain and cord.
■Check that the chain/wand will rotate the louver hooks.
■Check that the cord/wand will traverse the louver hooks.
Headrail Back Track
Tilt Up and
Pull Into Place
Roll Up
Installation Bracket

INSTALLATION
11

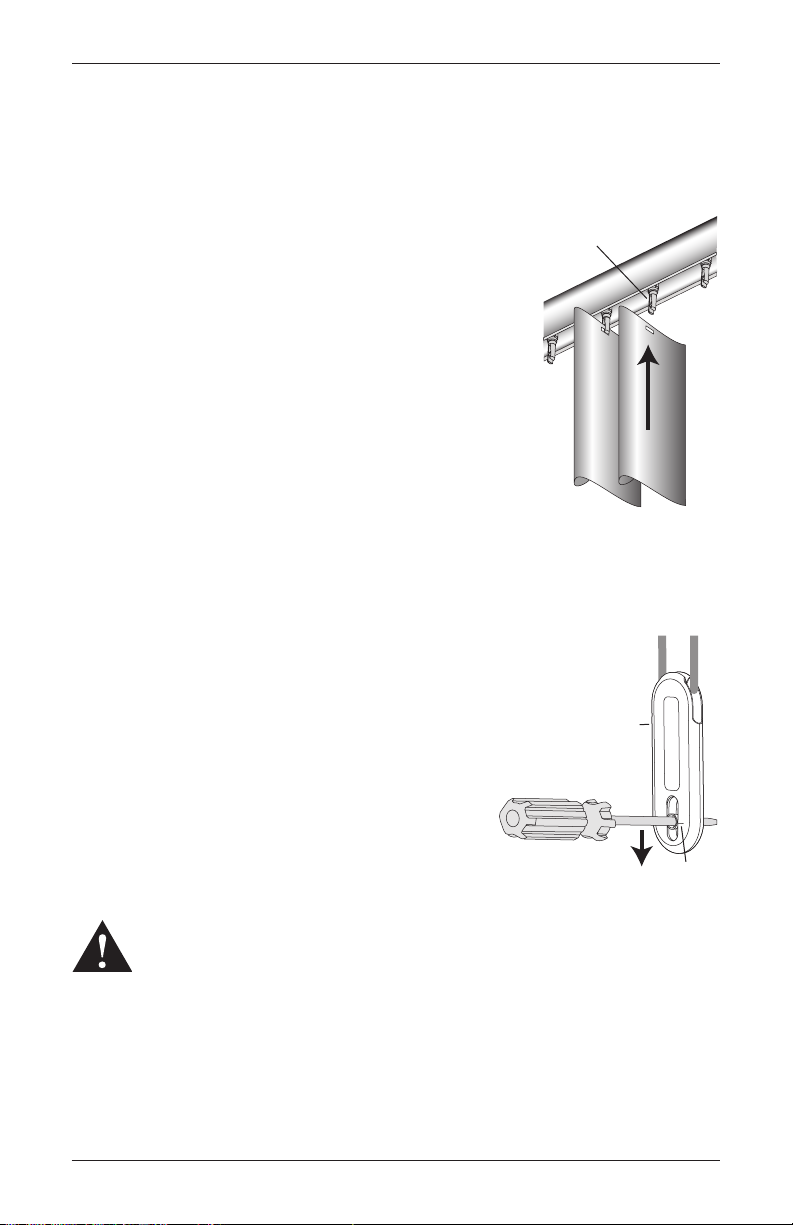

Attach Louvers
■Use the safety wand on the wand assembly (or the chains on a cord and chain control
system) to rotate the louver hooks so the slot between the long and the short prong of the
carriers are facingyou.
■Push the louver into the hooks until it “snaps” into place.
Attach the Universal Cord Tensioner (Cord Loop Units Only)
Before doing anything, you must first slide the cord tensioner to the bottom of the cordloop.
■Insert a small screwdriver, punch, or awl through the
screw hole at the bottom of the cord tensioner.
■Move the screw hole down to the indicator line to
release the safety mechanism.
■Slide the cord tensioner down to the bottom of the
cordloop.
■Attach the cord tensioner according to the instructions
provided with the Universal Cord Tensioner
Installation Kit.
WARNING: It is imperative that the cord tensioner be properly secured to
the wall or window frame to reduce children’s access to the cord loop.
Young children can strangle in cord loops. They can also wrap cords around
their necks and strangle.
CAUTION: The unit will not operate properly unless the cord tensioner is secured.
A Universal Cord Tensioner Installation Kit has been included with your unit.
Follow the instructions in the kit to correctly secure the cord tensioner.
Louver
Hook
Indicator
Line
Universal
Cord
Tensioner

INSTALLATION
12
Cord Adjustment
NOTE: Cord length and/or tension cannot be adjusted for PermaTilt®Wand Control System. It is
set in the factory to help ensure that the product meets cord safety standard.
To Reduce Cord Length on a Side Stack Blind — Cord and Chain Only
■Release the tension on the cord with the cord tensioner; see “Attach the Universal Cord
Tensioner (Cord Loop Units Only)” on page 11.
■Place the blind in the open position.
■Locate the cord knot in the front of the lead carrier.
■Loosen the adjusting screw until the cord moves.
■Pull the cord to the desired length.
■Tie a double knot.
■Tighten the adjusting screw.
■Reset the cord tension with the cord tensioner.
■Test for proper cord tension.
■Cut the excess cord.
To Reduce Cord Length on Split Stack Blinds
■Release the tension on the cord with the cord tensioner; see “Attach the Universal Cord
Tensioner (Cord Loop Units Only)” on page 11.
■Place the blind in the closed position.
■Locate the cord ends in the front of the lead carrier.
■Loosen the adjusting screw.
■Select the cord knot that adjusts the cord length only; if
carrier movement is observed, select the other cord.
CAUTION: Cutting the wrong cord will cause irreparable damage.
■Pull the cord to the desired length.
■Tie a double knot.
■Tighten the adjusting screw.
■Reset the tension with the cord tensioner.
■Test for proper cord tension.
■Cut the excess cord.
Screw and
Cord Knot
Side Draw
Carriers in
Open Position
Screw
Center Draw
Carriers Closed
Position

INSTALLATION
13
Valance Installation — Outside Mount Installations Only
After the headrail is installed, determine if the returns reach the back wall. If they do not, you will
have to use the leveling brackets. Place one at each end of the valance.
■Make sure that the headrail assembly is pulled out all the way and remains there while
installing the valance.
■Hold the valance assembly up to the
headrail.
■Push the edge of the dust cover into the
short valance clips.
■Push the entire valance assembly all
the way back toward the wall.
■The returns should meet the wall (if not,
install leveling brackets on both ends
just inside the returns). If pushing in the
valance assembly all the way causes
the valance to bow, trim the returns
using scissors.
Short
Valance
Clip
Leveling
Brackets
DualFold™Valance

OPERATION
14
Blind Operation
Cord and Wand Operated
■Traversing. Use the pull
cords attached to the cord
tensioner to open or close the
vanes (black arrows).
■Tilting. Twist the safety wand
to open or close the vanes
(gray arrows).
IMPORTANT: Do not over
torque the wand. It can cause
the louvers to kick out at
the bottom of the blind and
cause the louvers to look
misshapen.
Cord and Chain Operated
■Traversing. Use the pull
cords attached to the cord
tensioner to open and close
the blind (black arrows).
■Tilting. Use the tassels and
chains to rotate the vanes
open or closed (gray arrows).
Side Stack Split Stack
Side Stack Split Stack

OPERATION
15
PermAssure®Safety Wand
■Traversing. Push or pull the wand to open or close the vanes.
NOTE: Please do not bow the wand. Hold the wand at a 45˚ angle. Push or pull the wand to
open or close the vanes.
■Tilting. Twist the safety wand to open or close the vanes.
IMPORTANT: Do not over torque the wand. It can cause the louvers to kick out at the
bottom of the blind and cause the louvers to look misshapen.
Side Stack Split Stack
Open or Close Blind
Open or Close Blind
Open or Close Vanes
Side Stack Split Stack
Open or Close Vanes

CARE
16
Removing the Headrail
■Remove the louvers.
➤Push up on the louver.
➤Gently open the vane hook by inserting a ‘credit card’ sized piece of rigid plastic
between the vane and the long prong of the vane hook.
➤Carefully remove the louver.
■For cord and chain control units, disconnect the cord tensioner from its mounting place.
■Locate the rear tab on the installation bracket.
■Firmly holding the headrail, push up on the rear tab with your finger to release the headrail.
■Roll the headrail down at the rear and then push it toward the window, releasing it from the
installation brackets.
CAUTION: Removing long headrails will require more than one person to avoid damaging
the headrail.
Cleaning Procedures
Dusting
■Regular light dusting with a feather duster is all the cleaning that is needed in most
circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
Spot-Cleaning
■Spot-clean using a mild detergent solution (Cadence®Impressions™only).
Compressed Air
■You can use compressed air or a hair dryer (cool setting) to blow the dust off your valance.
Ultrasonic and Injection/Extraction
■Safe for all fabrics except Cadence Motif™.
■Do not use on any other louver type.
Tilt and
Push Back
Roll Down
Rear Tab
Push Up

CHILD SAFETY
17
Warning
Young children can STRANGLE in cord loops. They can also wrap cords around their
necks and STRANGLE.
■Always keep cords out of the reach of children.
■Move cribs, playpens and other furniture away from cords. Children can climb
furniture to get to cords.
Cord Loop Panels
■Attach the cord tensioner on the cord loop to the wall or window
casement. See “Attach the Universal Cord Tensioner (Cord Loop
Units Only)” on page 11. This can prevent children from pulling
cord loops around their necks.
■Hunter Douglas provides a cord tensioner installation kit with
instructions for attaching the cord tensioner. For the shade to
operate properly, the cord tensioner must be correctly mounted
andsecured.
■Fasteners provided in this kit may not be appropriate for all mounting surfaces.
Use appropriate anchors for the mounting surface conditions.
■Only Hunter Douglas supplied cord tensioners and hardware should be used.
Replacement parts may be obtained by contacting the Hunter Douglas Consumer
Support Center at 1-888-501-8364.
For more safety information call 1-888-501-8364
in the U.S. or 1-866-662-0666 in Canada.
WARNING

1005701 3/19
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE:In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERVICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
