Breville 800CPXL User manual

US Customers
Mail: 19400 S Western Ave
Torrance
CA 90501-1119
Phone: Customer Service:
1(866) BREVI E
Email Customer Service
[email protected]
Canada Customers
Mail: Anglo Canadian
2555, Avenue l’aviation
Pointe-Claire
(Montreal) Quebec
H9P 2Z2
Phone: Customer Service:
1(866) BREVI E
Email Customer Service
[email protected]
Breville Customer Service Center
www.brevilleusa.com w w w. b r e v i l l e . c a
Model 800CPX
Issue 4/09
is a registered trademark of Breville Pty Ltd. A.B.N. 98 000 092 928
19400 S estern Ave, Torrance, CA 90501-1119 USA
Tel 1 866 BREVILLE
2555, Avenue Aviation, Pointe-Claire (Montreal) Quebec, H9P 2Z2 CANADA
Tel 1 866 BREVILLE
© Copyright Breville Pty Ltd 2009
Due to continual improvements in design or otherwise, the product you purchase may differ slightly from the
one illustrated in this booklet.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page A

CITRUS PRESS
Ver. 03
25/05/07
10:15AM
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 1

CITRUS PRESS
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 2

3
CONTENTS
4Congratulations
5About your Breville Die Cast Citrus Press
6Breville recommends safety first
8Know your Breville Die Cast Citrus Press
9Assembling your Breville Die Cast Citrus Press
13 Operating your Breville Die Cast Press
16 Disassembling your Breville Die Cast Citrus Press
19 Care and cleaning
20 Trouble shooting guide
21 Tips on juicing
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 3

Congratulations
on the purchase of your new Breville Die Cast Citrus Press
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 4

5
From its superbly crafted and ultra-quiet motor right through to
its professionally styled casing, your Die Cast Citrus Press
represents a perfect balance of functionality, reliability and
absolute style.
In developing this booklet our goal was to provide you with the
perfect point from which you can start exploring the fabulous
benefits of the innovative 800CPX . We hope each page of this
booklet helps you gain enormous pleasure from a new world of
fresh citrus juicing.
We would just like to say thank you and…
enjoy.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 5

•Carefully read all instructions before operating
and save for future reference.
•Remove any promotional stickers before using
the Citrus Press.
•Always make sure the Citrus Press is properly
and completely assembled before connecting
to power outlet and operating. The unit will
not turn ‘ON’ unless properly assembled.
•Always use the Citrus Press
on a dry, level surface.
•Always switch the Citrus Press ‘OFF’, then
unplug from the power outlet if the appliance
- is to be left unattended, - if not in use, -
before cleaning, - before attempting to move
the appliance, disassembling, assembling and
when storing the appliance.
•Regularly inspect the supply cord, plug and
actual appliance for any damage. If found
damaged in any way, immediately cease use
of the appliance and call Breville Customer
Service at 1-866-BREVI E.
•The use of accessory attachments not
recommended by Breville may cause a risk
of injury to persons, fire or electric shock.
•When using this appliance, provide
adequate air space above and on all
sides for circulation.
•If the appliance is of the grounded type,
the extension cord should be a grounded
type and its electrical rating must be the
same or more wattage as the appliance.
•To protect against fire, electrical shock
and injury to persons do not immerse the
appliance, motor base, cord or plug in water
or any other liquid. Do not use a water jet
to clean the power cord or motor base.
•Do not leave the appliance unattended
when in use.
•Close supervision is necessary when any
appliance is used by or near children.
•Do not let the cord hang over the edge of a
table or counter, or touch hot surfaces or
become knotted.
•Do not place this appliance on or near a hot
gas or electric burner, or where it could touch
a heated oven.
•For any maintenance other than cleaning, call
Breville Customer Service at 1-866-BREVI E.
•Do not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.
•Strictly follow cleaning and care instructions.
•To disconnect, turn all controls to ‘OFF’, then
remove plug from power outlet.
•Use caution when operating the appliance –
do not place hands or fingers near moving
or rotating parts.
BREVILLE RECOMMENDS SAFETY FIRST
6BREVILLE RECOMMENDS SAFETY FIRST
We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind.
In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTA T SAFEGUARDS
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 6

BREVILLE RECOMMENDS SAFETY FIRST 7
•Portable – Unplug from outlet when not in
use before putting on or taking off parts.
Do not operate any appliance with a damaged
cord or plug, or after the appliance
malfunctions or is dropped or damaged in
any manner. Return appliance to the
nearest authorized service center/facility
for examination, repair, electrical or
mechanical adjustment.
•Avoid contact with moving parts.
ELECTRIC CORD STATEME T
Your Die Cast Series Citrus Press has a short
cord as a safety precaution to prevent personal
injury or property damage resulting from pulling,
tripping or becoming entangled with the cord.
Do not allow children to be near or use this
appliance without close adult supervision. If you
must use a longer cord or an extension cord
when using the appliance, the cord must be
arranged so it will not drape or hang over the
edge of a countertop, tabletop or surface area
where it can be pulled on by young children or
tripped over. To prevent electric shock, personal
injury or fire, the electrical rating of the extension
cord if you must use one must be the same or
more than the wattage of the appliance (wattage
is marked on the underside of the appliance).
WAR I G: AVOID PLACI G HA DS OR FI GERS EAR JUICI G PRESS ARM MECHA ISM AT REAR OF MOTOR BASE
WHE MOVI G JUICI G PRESS ARM I TO THE UPRIGHT POSITIO
SAVE THESE I STRUCTIO S FOR HOUSEHOLD USE O LY
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 7

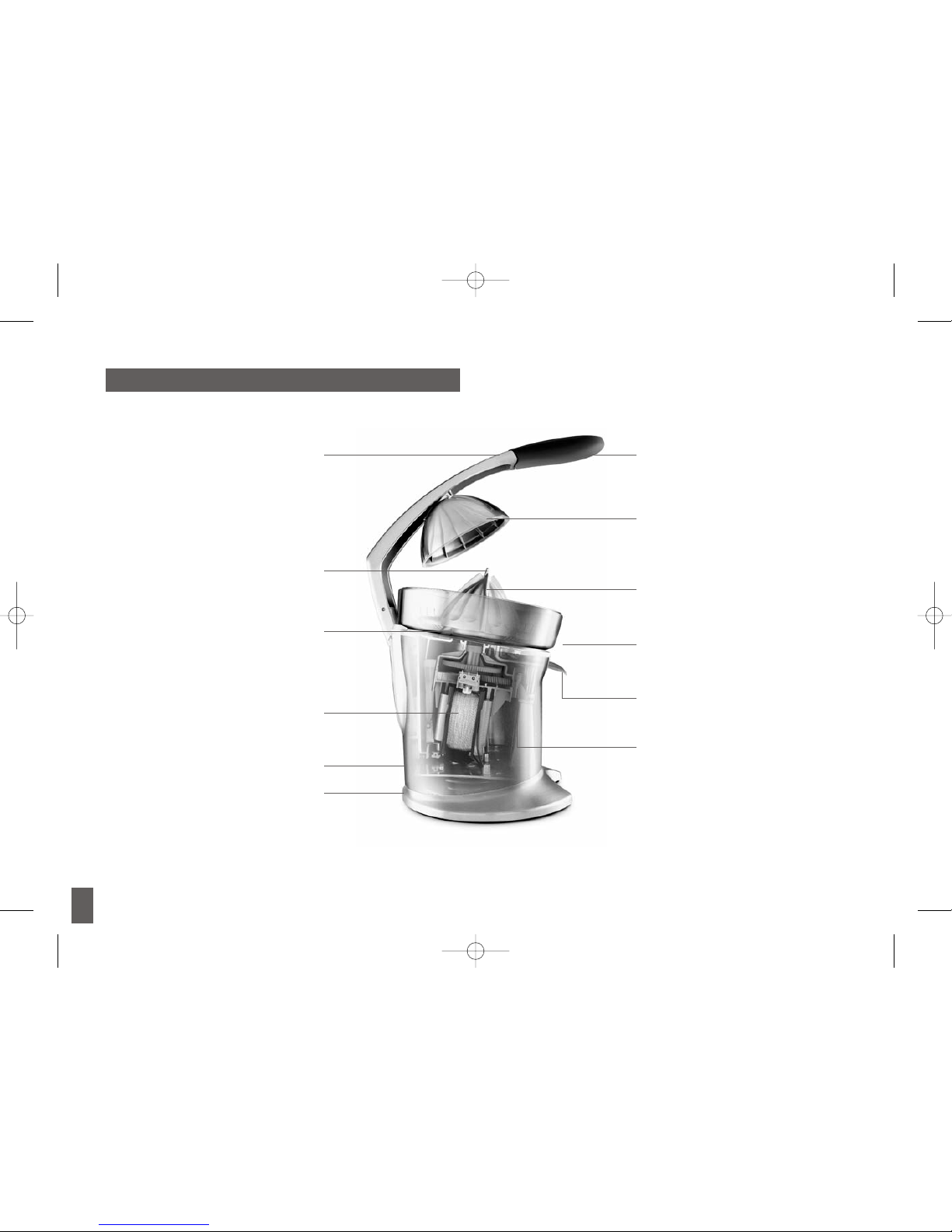

8KNOW YOUR BREVILLE DIE CAST CITRUS PRESS
KNOW YOUR BREVILLE DIE CAST CITRUS PRESS
Juicing Press Arm
patented juicing action ensures the Fruit
Dome comes straight down over the fruit
and swings back for easy access. Makes
juicing and cleaning quick and easy
2 Stainless Steel Filters
(dishwasher safe) allow the juice
to flow through while straining the pulp
and seeds. Control the amount of pulp
in your juice by selecting either the fine
or coarse filter
Powerful Motor
automatically starts when pressure
is applied to the Juicing Cone
Illuminated “ON/OFF” Button
Cord Storage
wraps around and clips into position under
Motor Base (not shown in picture)
Soft Grip Handle
makes juicing easy
Fruit Dome
(dishwasher safe) is easily removed
for cleaning
Dust cover
for hassle-free storage
(not shown in picture) Die Cast Stainless Steel Juicing Cone
(dishwasher safe) extracts the maximum
juice from all sized Citrus Fruit
Juice Collector
(dishwasher safe) collects the juice
to flow out the Juice Spout
Juice Spout
opens all the way for cleaning with
anti-drip stop function
Double Stage Switching System
juicer will NOT operate unless
it is correctly assembled for safety
and performance
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 8

9
ASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
ASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 1.
Pull the Juicer Press Arm up and backwards,
away from the Motor Base, until fully extended.
Step 2.
Place the Juice Collector onto the Drive Shaft
on top of the Motor Base. Ensure the Juice
Spout fits into the semi-circular groove
at the front of the Motor Base.
Step 3.
Insert the selected Stainless Steel Filter (fine
or coarse) into the Juice Collector, aligning
the indent with the arrow in the bottom of the
Filter over the corresponding tab with arrow
in the Juice Collector. Use the Coarse Filter for
maximum pulp content in the juice and the Fine
Filter to decrease the pulp content in the juice.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 9

10 ASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 4.
Place the Juicing Cone onto the Drive Shaft
and press down lightly to lock the Cone
into position.
Step 5.
Insert the Fruit Dome onto the underside of the
Juicing Press Arm by aligning the tab on top of
the Fruit Dome with the hole in the Juicing Press
Arm. Hold onto the Juicing Press Arm and press
the Fruit Dome up and backwards until the
Dome locks into position.
ote: The Fruit Dome is keyed, and
can only be inserted in one way
(this will ensure that it does not
rotate through operation).
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 10

11
ASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 6.
Ensure the Anti-drip Juice Spout is pushed down
into the pouring position.
Step 7.
Place a suitable sized glass or jug underneath
the Juice Spout.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 11

Operating
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 12

13
OPERATING YOUR BREVILLE DIE CAST CITRUS PRESS
OPERATING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 1.
Ensure the Die Cast Citrus Press is correctly
assembled with a glass or jug, placed under the
Juice Spout before juicing commences.
Step 2.
Cut the citrus fruit in half by cutting across the
fruit segments, rather than across the tip ends,
to ensure more efficient juicing.
For the best contact with the Fruit Dome,
smooth the outside of the fruit by trimming any
knobbly tip ends such as the ends of a lemon
or tangelo.
Step 3.
Plug the power cord into a 120v power outlet
and then switch the On/Off button to ON. This
begins operation of the Citrus Press.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 13

14 OPERATING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 4.
Place a citrus fruit half, cut side down, onto
the Juice Cone.
Step 5.
Grasp the Soft Grip Handle and slowly lower the
Juicing Press Arm and press down firmly until
the Fruit Dome is in contact with the fruit skin.
The motor will automatically start and the
Juicing Cone will begin to rotate. The juice will
be extracted from the fruit and flow through the
Juice Spout into the glass. The pulp and seeds
will collect in the Stainless Steel Filter.
TIP: Do not lower the Juicing Press
Arm too quickly or the motor
will hesitate and the Juicing
Cone will not spin.
This is because the Diecast
Series Citrus Press is fitted with
a motor that increases in
strength as the motor spins. It
is therefore better to push down
lightly for the first few seconds
to allow the motor to start
spinning. The motor can then
generate the strength necessary
to cut through tough pulp.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 14

15
OPERATING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 6.
The Die Cast Citrus Press juices very quickly so
each fruit half will be juiced in a few seconds. To
automatically stop the motor, lift the Juicing Press
Arm up and backwards to its extended position.
Step 7.
Remove the used fruit from the Juicing Cone.
Empty excess pulp and seeds from Stainless
Steel Filter as required.
Repeat Steps 4-7 to continue juicing.
OTE: The Stainless Steel Filter should
be emptied when full with pulp
and seeds. The Filter can be
emptied during juicing by
switching the Citrus Press “OFF”
at the On/Off button and
carefully removing the Juicing
Cone and Filter. Clean and
replace Stainless Steel Filter and
Juicing Cone before continuing
to juice.
Do not allow the Stainless Steel
Filter to overfill as this may
prevent correct operation or
damage the unit.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 15

16 DISASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
Step 1.
Switch the Citrus Press “OFF” at the On/Off
button and unplug the unit from the power
outlet.
Step 2.1
Pull the Juicing Press Arm up and backwards,
away from the Motor Base, until fully extended.
Step 2.2
Close the anti drip spout by pulling to
upper position.
Step 3.
Remove the Fruit Dome by pressing the button
marked “PRESS” on the Juicing Press Arm.
DISASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 16

Step 4.
ift the Juice Collector from the Motor Body with
the Stainless Steel Filter and Juicing Cone still in
place. Remove the Cone and Filter from the Juice
Collector over a sink for easier cleaning.
Step 5.
Follow recommended Care and Cleaning
guidelines and insert the Dust Cover before
storing.
17
DISASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:23 AM Page 17

Cleaning
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:24 AM Page 18

CARE, CLEANING AND STORAGE
19
• Always ensure that the Die Cast Citrus Press
is switched OFF at the On/Off button and the
plug is removed from the power outlet before
cleaning, disassembling, assembling and
storing the appliance.
• Follow these instructions to clean all surfaces
or parts that come into contact with food
during juicing:-
1. For easy cleaning – immediately after each
use rinse removable parts under warm water
to remove wet pulp. Allow parts to air dry
before reassembling.
2. For thorough cleaning - after disassembling
the appliance, all removable parts should be
washed in hot soapy water or on the top
shelf of the dishwasher. The Motor Base and
Juicing Press Arm should be wiped with a soft,
damp cloth. All parts should be dried
thoroughly before reassembling.
• Store the cleaned and reassembled Citrus
Press in an upright position in a cool, dry
place. Never place any items on top of the
Citrus Press.
CARE AND CLEANING
OTE: Do not soak the Stainless Steel
Filters or other removable parts
in bleach.
ever immerse the motor base
in water or any other liquid.
Do not use harsh abrasives.
OTE: Rinse or wash all removable
parts immediately after use.
Dried citrus pulp is difficult to
remove and may stain. If any
staining does occur, wipe the
affected part/s with undiluted
dishwashing liquid, rinse and
dry thoroughly.
800CPXL_IB_V1.qxd:800CP Book 19/8/09 9:24 AM Page 19
