Installation Instructions
& User Guide
Temperature Control Time
Flow Shower
Models covered: TFS 1 C

2
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert.
We have designed this product with your enjoyment in mind. To ensure that it works
to its full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and if you need any further help,
please do not hesitate to contact us.
Important Safety Information................................................... 3
Specifications ........................................................................... 4
Dimensions .............................................................................. 5
Pack Contents .......................................................................... 6
Installation................................................................................ 7-8
Operation & Temperature Setting ........................................... 9
Maintenance ............................................................................. 10-11
Troubleshooting ....................................................................... 12-13
Guarantee ................................................................................. 14-15
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are
installed, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•This fitting needs to be installed in accordance with, and meet the requirements of the
Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Remove all packaging and check the fitting for damage before starting installation.
•Warning: Before starting any installation please consider the following: before
drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
-
Unplug equipment
after use
•Important: Remember to turn off the mains water supply before connecting to any
existing pipe work. Fitting isolating valves to the inlet feeds is recommended for ease
of maintenance.
•Warning: Before installing the new fitting it is essential that you thoroughly flush
through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the fitting.
•Your fitting has a high quality finish and should be treated with care to preserve the
visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way
to clean your fitting is to wipe with a soft damp cloth. Stains can be removed using
washing up liquid. All bath cleaning powders and liquids will damage the surface of
your fitting, even the non-scratch cleaners.
Note: Never use abrasive detergents or disinfectants or those containing alcohol,
hydrochloric acid or phosphoric acid.
•This product must not be modified in any way as this will invalidate the guarantee.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

4
Specifications
Inlet Connections: 15mm Compression with 145-165mm between centres.
Outlet Connection: 22mm Compression.
Minimum working pressure: 1.0 bar
Maximum working pressure: 5.0 bar
Maximum static pressure: 10.0 bar
System Requirements:
Gravity fed hot & cold (Equal pressures)
Gravity fed hot & cold (Differential pressure, maximum ratio 5:1)
Unvented systems
Instantaneous water heater (Combination boiler)
Timed Flow: 30 Seconds ±5 Seconds
This product has been tested to the Water Regulations Advisory Scheme (WRAS) and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and
current bylaws.
For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory.
Designed to comply with and be used within systems designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas.
If the fitting is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the outlet to the underside of the cold tank should be at
least 10 metres to ensure adequate performance.
This shower should be installed in compliance with the Water Regulations. Where
the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the mains,
approved check valves must be fitted in the supply pipes.
For further details contact your Local Water Authority.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

5
Dimensions
Dimensions are in millimetres.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
882
45
32 80
G3/4"
145-165

6
Pack Contents
1 Shower Valve x1
2 Elbows x2
3 Olives x2
4 Compression Nuts x2
5 Shrouds x2
6 Filter Washers x2
7 8 L/P/M Flow Regulator x1
8 Screws x2
9 Wall Plugs x2
10 Riser Rail x1
11 Riser Clamp x1
12 Nut x1
13 Washer x1
14 Shower Head x1
1
2
5
8
11
14
3
4
6
7
10
12
13
9
Suggested Fittings (Not Supplied)
1/2" Female
Wall plate elbow
1/2" Female -
Copper
connector
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

7
1. Prepare water supply pipes
Terminate suitable pipework inside the
wall cavity / stud partition with
145-165mm pipe centres and 1/2" BSP
female connectors.
Flush through the pipework to ensure
removal of any debris.
Important: The pipework and 1/2" BSP
female connectors must be secure and
rigid so that it is unable to move. If
installing the pipework in a stud
partition, a wooden batton may be
required to secure the female connectors
(as shown).
The 1/2" BSP female connectors must be
installed in such a position that when the
elbow shrouds are screwed fully onto the
elbows and the valve is fitted to the wall,
the elbow shrouds are flush against the
finished wall surface. This is to ensure
that the valve can not move.
Note: If 1/2" female connectors are not
used the compression nut and olives can
be used however the pipework must be
secure and rigid so that it is unable to
move.
2. Finish Wall
Finish the wall surface using
plasterboard and tiles.
3. Fit Elbows
Screw the elbows into the 1/2" BSP
female connectors using a suitable thread
sealant.
Installation
Tiles
1/2" BSP
Female
Connection
Pipework
Supporting
Batton
Plaster Board
1/2" BSP
Female
Connection
Elbow
1/2" BSP
Female
Connection
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

8
Installation
Riser
Tube
Riser
Clamp

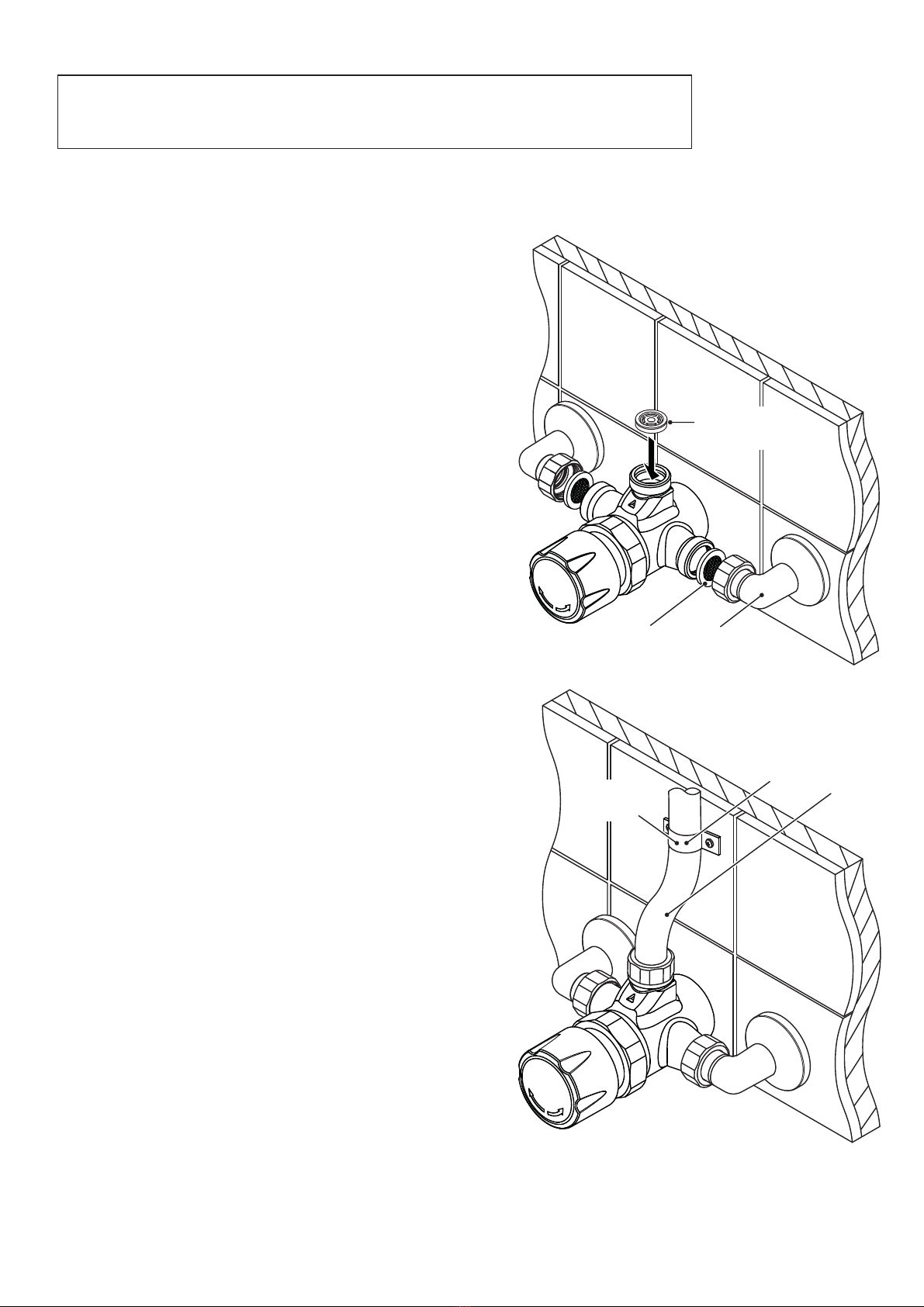

4. Fit Shower Valve
Place the shower valve body into position against
the wall and adjust the elbows to the valve body
ensuring the filter washers are fitted into the
elbow nuts. Tighten the elbow nuts ensuring
the are fully tightened with the use of a suitable
spanner.
Note: Take care not to damage the finish of the
fixing nuts. Protect the chromium plated surfaces
with a cloth.
Fit the 8 l/p/m flow regulator into the shower
valve outlet.
5. Fit Rigid Riser Tube
Screw the rigid riser tube onto the shower valve
outlet ensuring the washer is fitted.
Ensure vertical with the use of a sprit level and
tighten the nut fully using a suitable spanner.
Fit the riser clamp using the fixings supplied or
suitable fixings for wall / surface type.
Important: The riser clamp must be fitted
200mm above the centre of the shower valve to
ensure maximum security.
6. Fit Shower Head
Remove the grub screw from the top of the
showerhead and remove the backplate. Push the
backplate into the top of the riser ensuring the
nipple is fully fitted into the riser and mark the
position on the wall surface. Remove the
backplate from the riser tube and unscrew the
centre nut to reveal the backplate fixing.
Position the backplate fixing onto the wall at the
marked position and mark the fixing holes onto
the wall surface. Drill suitable holes and secure
the backplate to the wall using suitable
fixings (Not supplied).
Fit the backplate into the top of the riser tube
and onto the backplate fixing and secure with the
centre nut. Replace the shower head and secure
in position with the top grub screw.
200mm from
centre of valve
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
8 L/P/M Flow
Regulator
Filter
Washer
Elbow

9
Operation & Temperature Setting
Hotter
Colder
1. Flow Control
Tooperate the flow of water push the
central control knob firmly in and release.
The water will flow for approximately 30
seconds ±5 seconds.
2. Temperature
Turn the control knob clockwise for
a cooler temperature.
Turn the control knob anti-clockwise
for a hotter water temperature.
Maximum Temperature Setting
Loosen the body nut (1) by a quarter turn
to allow rotation of the inner ring (2).
Turn the control kbob to full cold and
press push in to obtain a flow of water.
Insert a Ø4.5mm rod into the adjustment
hole in the inner ring (2) and rotate anti-
clockwise until the ring cannot move any
more.
Rotate the control knob anti-clockwise
until the maximum water temperature is
obtained.
Tighten the body nut (1) fully ensuring the
adjustment position has been maintained.
Push and release
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
21

10
Maintenance
Your fitting has a high quality finish and should be treated with care
to preserve the visible surfaces. All surfaces will wear if not cleaned
correctly, the only safe way to clean your mixer is to wipe with a soft
damp cloth. Stains can be removed using washing up liquid. All bath
cleaning powders and liquids will damage the surface of your fitting,
even the non-scratch cleaners.
Note: Never use abrasive detergents or disinfectants or those
containing alcohol, hydrochloric acid or phosphoric acid.
Before carrying out any maintenance, turn
off both water supply or close any isolating
valves to the shower valve. Operate the
shower to release any built up water pressure
within the shower.

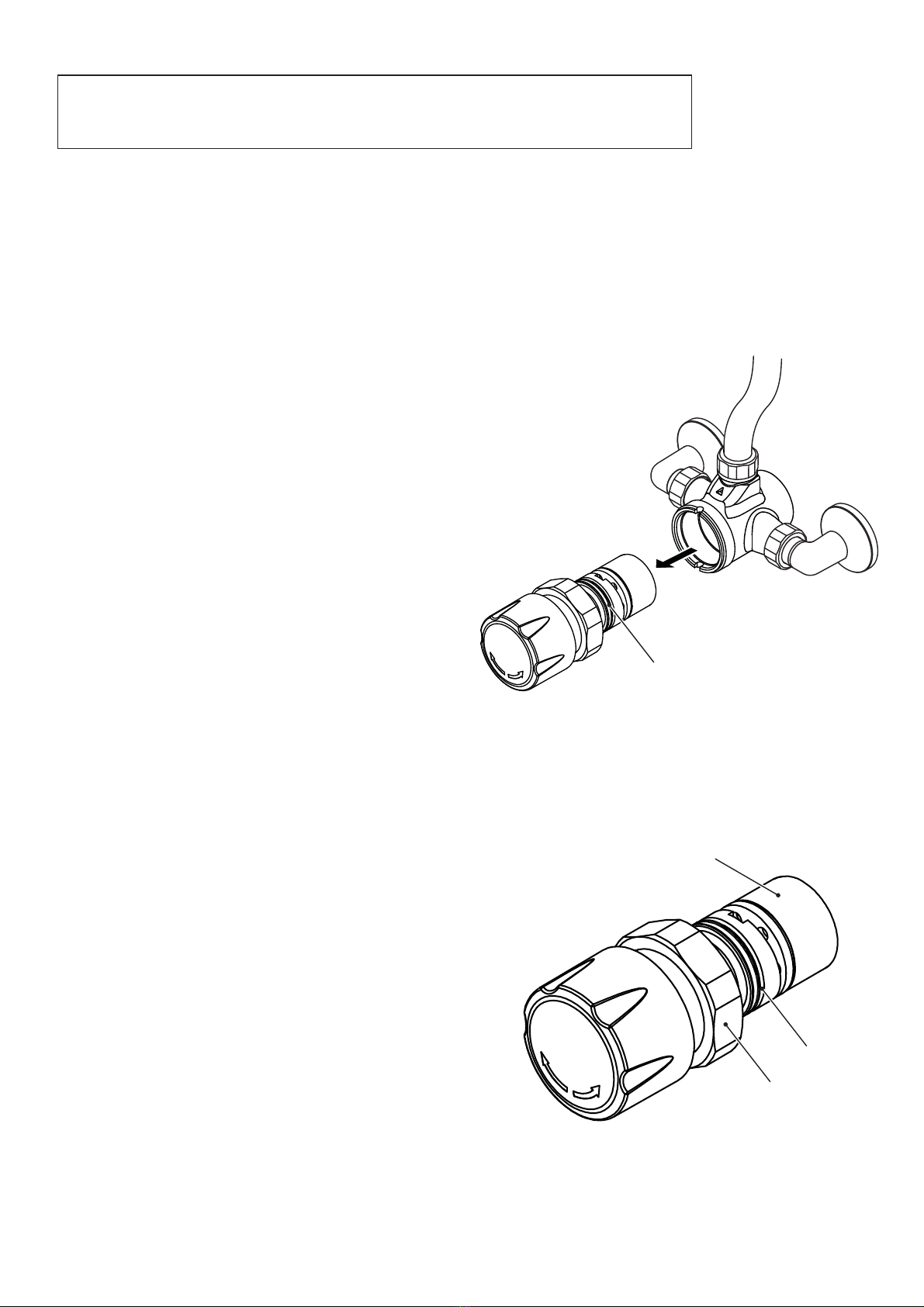

Loosen the large body nut using a suitable
spanner.
Note: Take care not to damage the finish
of the nut. Protect the chromium plated
surfaces with a cloth.
Pull the handle away from the body to remove
the cartridge assembly from the shower valve
body.
Clean any debris off the cartridge assembly
using clean running water only.
Grease the 'O' rings using a suitable silicon
grease and push the cartridge assembly back
into the shower valve body.
Note: The cartridge assembly has a locating
pin which needs to fitted into the body at the
bottom.
Tighten the large body nut securely using a
suitable spanner taking care not to damage
the chromium plated surface.
Turn on both water supplies and test the
shower valve.
Cleaning the Cartridge
General Cleaning
Cartridge Assembly
Cartridge Assembly
Cap
'O' Ring
Large body nut
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
