SPECIFICATION SHEET
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date

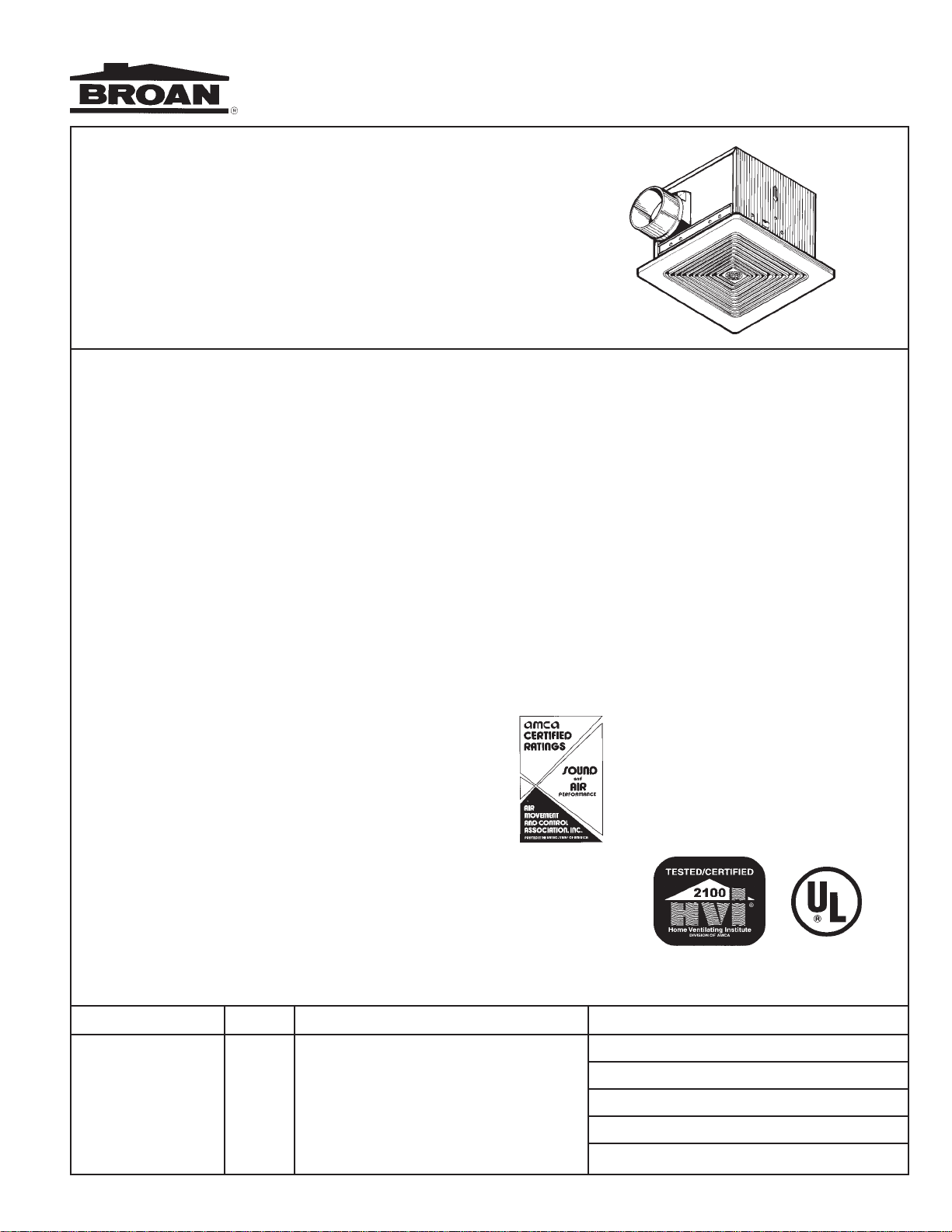

MODEL MS90 & MS130
SENSAIRE®
MOTION SENSING
BATH FANS
A modern-styled, high performance bath fan that turns
itselfONand OFFusingbuilt-inmotionsensingcircuitry.
FEATURES
GRILLE:
•Conceals interior
•Low profile styling blends well with any decor
•Non-yellowing matte white polymeric
•Torsion spring mounting - no tools required
BLOWER:
•Plug-in, permanently lubricated
•Dynamically balanced centrifugal blower wheel for quiet,
efficient performance
•Low RPM ultra-quiet operation
•Quick one-screw installation/removal
•Resilient anti-vibration motor mounts
HOUSING:
•Rugged 24 gage steel construction finished with black,
electrically-bonded epoxy paint
•Tapered,4"roundpolymericconnector-nometallicclatter
•7-5/8"heightallowsfor2"x8"(nominal)joistinstallations
•Mounts between joists or directly to joist
•Adjustable mounting brackets span up to 24"
MOTION SENSOR:
•Turns fan ON when motion is detected
•Remains ON for an adjustable 5 to 60 minutes after
motion is no longer detected
•Fan may be controlled automatically (using sensor) or
manually with accessory controls
•Prolongs fan life since fan runs only when necessary
•Saves energy because unit runs for the time required. A
unit controlled with a wall timer may keep fan ON longer
than required or turn it OFF before room is sufficiently
ventilated
CONTROLS: Designed by Broan for use with this product
(purchase separately)
•Model 68V, P68V(Ivory)/68W, P68W(White), 2-Function
Wall Control
U.L.listedforuseovertub/showerenclosurewhenconnected
to GFCI branch wiring.
TYPICAL SPECIFICATION
Ventilator shall be Broan Model MS90 (MS130).
The units will have a motion sensor that will turn fan "ON"
automatically when motion is detected. It shall be user-
adjustable to turn "OFF" 5-60 minutes after motion is no
longer detected.
Ventilator shall have steel housing finished with black
electrically-bonded epoxy paint. Mounting brackets to be
adjustable. It shall be ducted to a roof or wall cap using 4"
roundductwork.Automaticbackdraftdampershallbelocated
within duct connector.
Blowerassemblyshallberemovable,haveacentrifugal-type
blower wheel and a permanently lubricated motor, mounted
with resilient anti-vibration mounts.
Airdeliveryshallbenolessand soundlevelsnogreaterthan
listed for each model. All air and sound ratings shall be
certified by AMCA and/or HVI. Units shall be U.L. listed. For
use over tub/shower enclosure when connected to GFCI
branch wiring.
10A 99041860C
Broan-NuTone LLC certifies that the models shown
hereinarelicensed tobear theAMCA Seal.The ratings
shownarebasedontestsandprocedures performedin
accordance with AMCA Publication 211 and AMCA
Publication311andcomplywiththerequirementsofthe
AMCA Certified Ratings Program.

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
PERFORMANCE RATINGS - MODELS MS90 & MS130
"Broan-NuTone LLC certifies that the
models shown herein are licensed to
beartheAMCASeal.Theratingsshown
arebasedon tests andproceduresper-
formed in accordance with AMCA Pub-
lication211(andAMCAPublication311
if sound is also certified) and comply
with the requirements of the AMCA
Certified Ratings Program."
Model Sones @ CFM @ Static Pressure (Ps - Inches of H20) Total Duct
No.
0.0" S.P. 0.0 0.1 .125 .250 .375 Volts Watts RPM Size
MS90 3.0 98 94 93 84 52 120 50 1050 4" Dia.
MS130 5.6 145 134 130 109 89 120 90 1350 4" Dia.
AMCA LICENSED PERFORMANCE
AMPS
MODEL
NUMBER AMPS*
MS90 .70
MS130 .90
SONES
*Total Connected Load
Model HVI Sones AMCA Sones
Number @ 0.1" S.P.** @0.0" S.P.**
MS90 2.5 3.0
MS130 3.5 5.6
HVI PERFORMANCE
MODEL NUMBER SONES CFM @0.1'’ Ps
MS90 2.5 90
MS130 3.5 130
WEIGHT
MODEL NUMBER SHIPPING WT.
MS90 10.5 LBS.
MS130 10.5 LBS.
Theperformancesshownare with inletgrille,backdraft damper and outletduct.RPM shown isnominaland the performance isbasedon actual speed oftest.
The sound ratings shown are loudness values in fan sones at 5' (1.5m) in a hemispherical free field calculated per AMCA Std. 301. Values shown are for
installation Type B: free inlet fan sone levels.
*ThereisadifferencebetweensonevaluescertifiedbyHVI forresidentialuse
andbyAMCAforcommercial/industrialuse.Exactcomparisonofthesevalues
isnotpossible.Thisdifferenceismainlyduetotheproceduresusedtoconvert
measured sound to perceived sound. ANSI S3.4, used by both HVI and
AMCA, specifies a procedure for calculating loudness as perceived by a
typicallistenerunderspecificconditions. HVIestablishesvaluesata distance
of 5 feet from the fan in a “spherical free field’’; AMCA establishes values at a
distanceof5feetin a"hemisphericalfreefield".HVI andAMCAhavedifferent
rules for rounding sone values.
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by
the Home Ventilating Institute, for off-the-shelf
products,astheyareavailabletoconsumers.Product
performanceis ratedat 0.1in. staticpressure, based
on tests conducted in AMCA’s state-of-the-art test
laboratory. Sones are a measure of humanly-
perceived loudness, based on laboratory
measurements.
