Owner’s Manual FSW-20/FreshSpa Warm
bidé con temperatura doble | bidet à double température
MANUAL DEL PROPIETARIO | GUIDE D'UTILISATION

Table of Contents
Product Features . . . . . . . . . . . . . . . . Page 2
Parts List ........................Page 3
Conguration ...................Page 4
Installation .....................Page 5
Operation ......................Page 11
Maintenance ....................Page 12
Warranty .......................Page 13
Contact .........................Page 15

FreshSpa Warm Feature List:
Hygienic retractable nozzle
Self cleaning nozzle feature
Warm and cool water bidet washes
Nozzle positioning (3 settings)
Adjustable water pressure
Adjustable water temperature
All brass internal valve
High quality metal T-Valves
High quality hoses
Anti-bacterial ABS material with full body panel
Backow prevention valve
No electricity or batteries required
Easy installation and adjustable toilet t
All accessories included for standard installation
1 year warranty
2

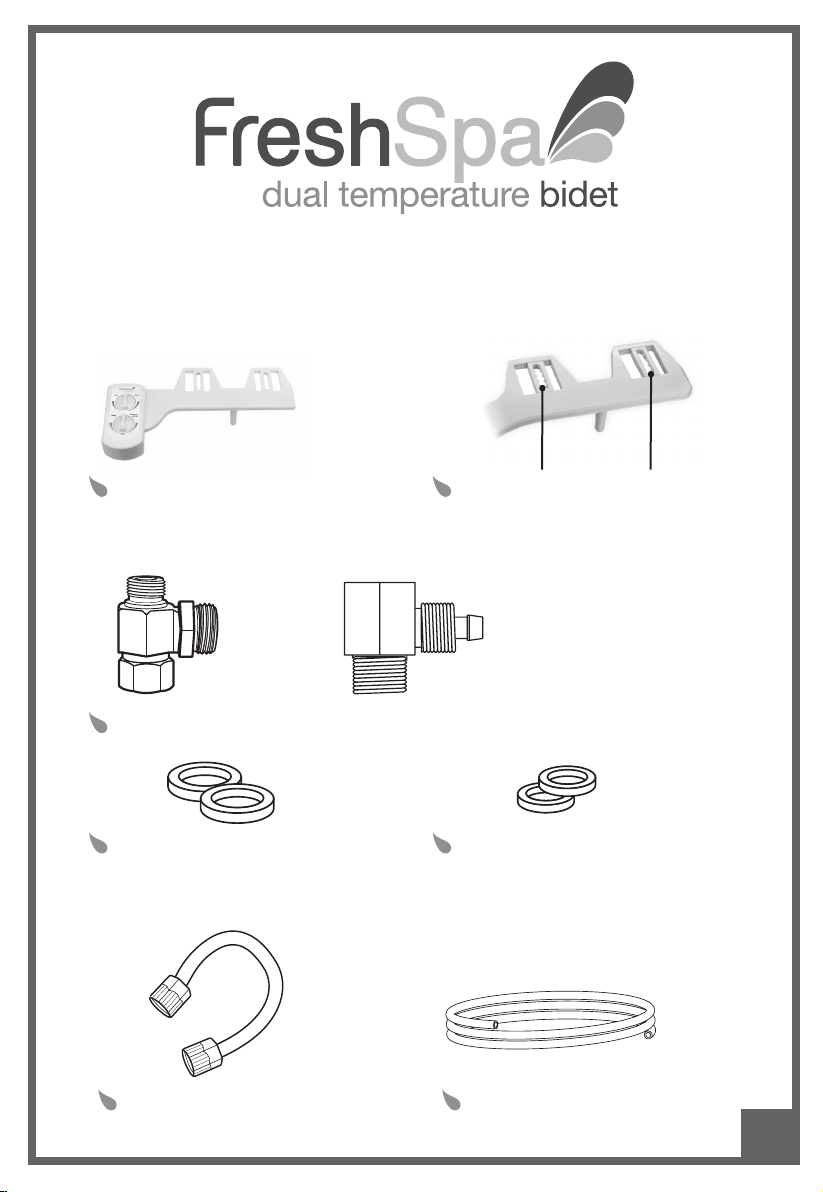

Parts List
3
2 ea small rubber washer
(may include extras)
Bidet attachment
with 2 turn dials
Adjustable brackets
Two T-valve connectors
Bidet hose Hot water ex tubing
2 ea large rubber washer
(may include extras)
cold water
7/8” T-valve
hot water 3/8” T-valve
w/pressure connector and cap

4

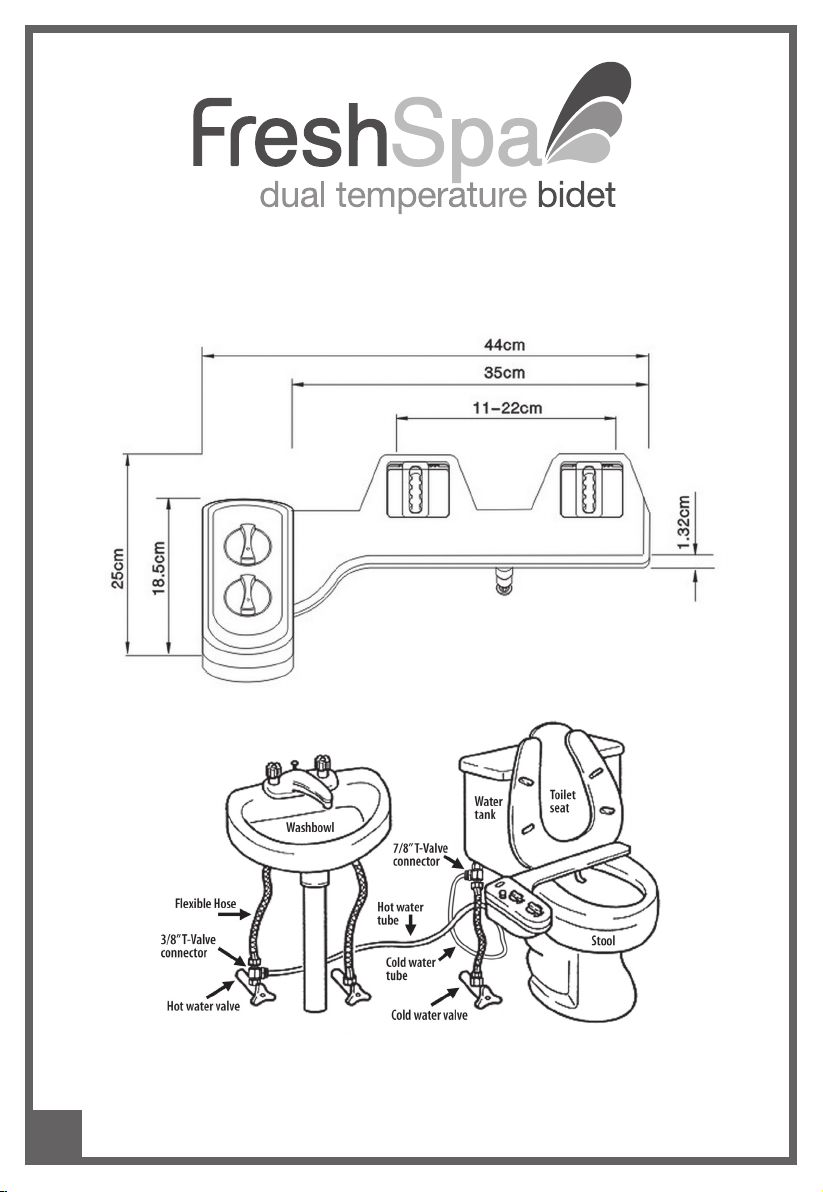

Conguration
Fully installed view with both HOT and COLD water connections

5
Installation
Check the size of the hot water supply connection (most likely
under the sink/wash basin). This needs to be a 3/8” connection
for our T-valve to install. Note: if the connection is a ½”
connection, you will need to purchase the following reducing
adapter available online and at many plumbing hardware stores:
Reducing Adapter, ½” Female NPT X 3/8” Male Compression.
Check Water Supply Line: Check the water supply line that
connects the toilet tank ll valve to the water shuto valve at
the wall. If it is a rigid pipe, you will need to purchase a exible
water supply hose to replace it before installing the FreshSpa.
The length of the hose may vary and the top connection size
should be 7/8” Ballcock to connect to the T-valve that you will
install under the toilet tank and the bottom connection will vary
(most common are 3/8” and1/2”female compression).
1) Remove Existing Toilet Seat
a. Lift hinge covers and use athead or Phillips head screwdriver
to remove the mounting bolts. Alternatively, you may need to
loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts and
hardware aside.

2) Hookup Cold Water Connection: Turn
O Water Supply Valve and Flush Toilet
a. Turn o water supply at the wall to stop
ow of water.
b. Flush toilet and hold down handle to
completely empty toilet tank.
c. Disconnect water supply hose from
the ll valve under the toilet tank.
3) Connect 7/8” T-Valve to Water Supply
Line and Fill Valve Under Toilet Tank.
a. Install the 7/8” T-valve with the rubber
washer to the incoming water connection
on the bottom of your toilet tank.
b. Connect the cold water supply line
coming from the wall to the bottom of
the T-valve.

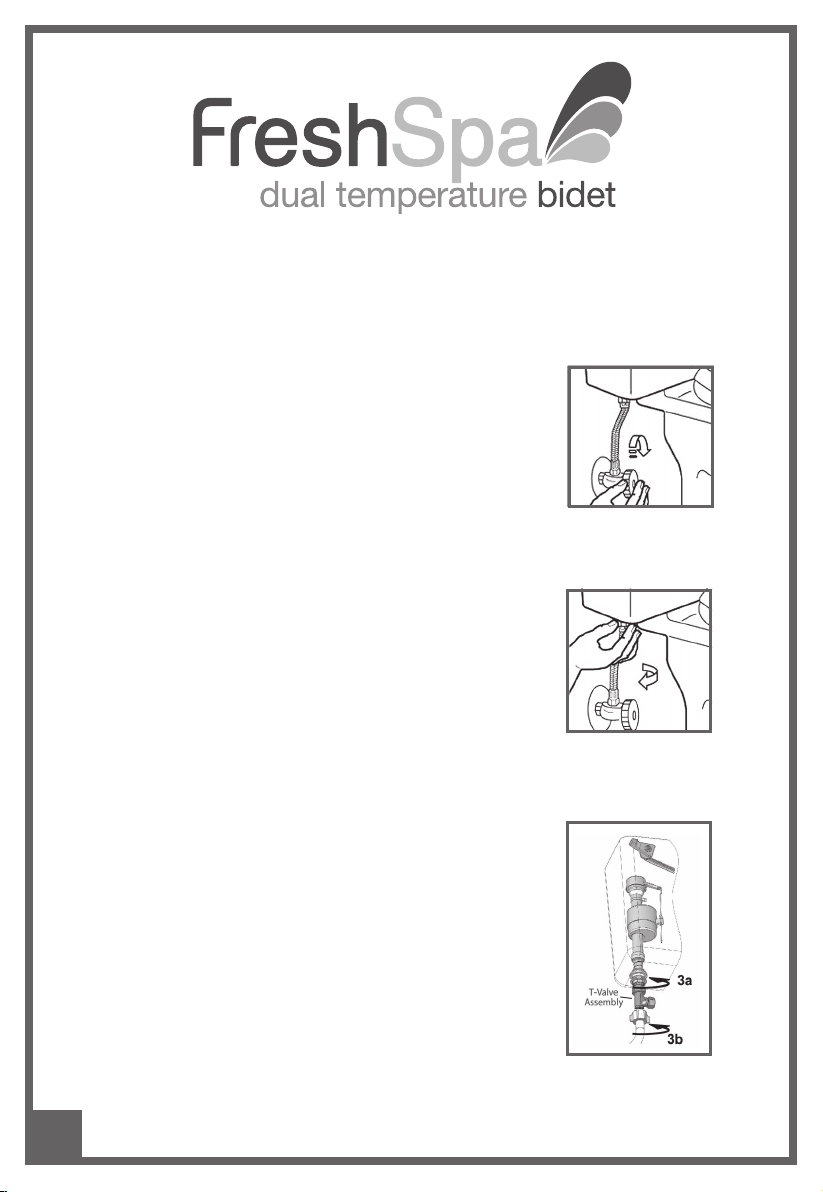

Step 2a
Step 2c
Step 3a & 3b
Installation
6

4) Connect the PVC Cold Water Bidet Hose
to Cold Water 7/8” T-valve
a. Connect one end of the white PVC
Cold Water Bidet Hose to the remaining
open side of the installed 7/8” T-valve.
5) Hookup Hot Water Connection
a. Locate the warm water supply line in your
bathroom under your sink/washbasin and
turn the water supply valve all the way o.
b. Drain the warm water line by turning
on the sink tap on the warm setting until
no more water comes out.
c. Disconnect warm water supply hose
to sink from shut off valve. You may
have to use a 3/8” compatible wrench or
a similar tool (not supplied). Note: there
may be some residual water in the hose,
use a small container or towel to catch
any residual water.
Installation
7
If you are only connecting the cold
water supply, then proceed to step 6.
If you wish to also connect your hot
water supply, then follow next step (5).

Installation

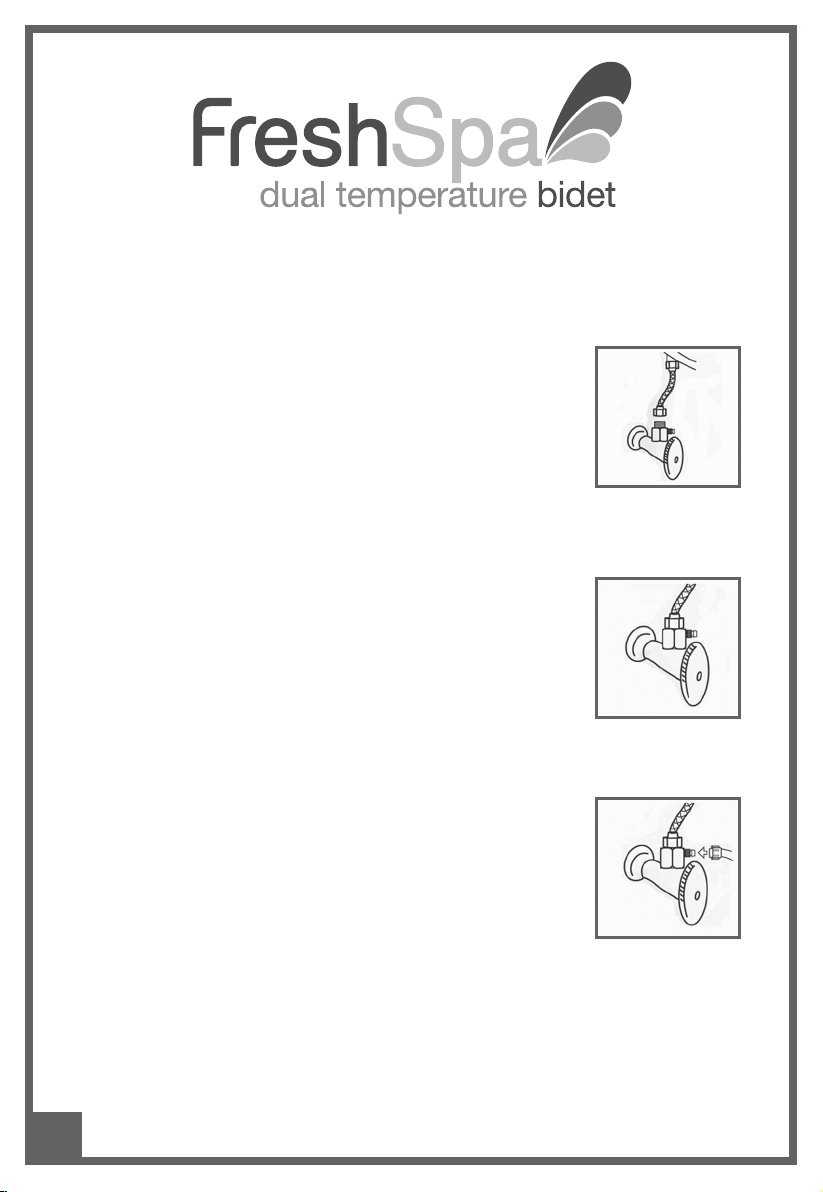

Step 5d-1
Step 5d-2
Step 5e-2
d) Connect Hot Water T-valve to water supply
1. Install the Hot Water T-valve and the small
rubber washer onto the hot water shut o
valve under the sink.
2. Reconnect hot water supply line to open
end (top) of T-valve (use the second small
rubber washer if needed).
e) Connect Hot Water Flex Tubing to T-valve
1. Remove brass pressure cap from open end
of T-valve and pop out small plastic plug to
open the hole.
2. Slide brass pressure cap over one end of Hot
Water Flex Tubing with inside screw threads
facing out.
3. Push Hot Water Flex Tubing onto open end
of T-valve (onto the pressure connector) until
tubing cannot go any further. It’s important
to make sure the tubing slides past the “lip” of
the pressure connector.
4. Slide the brass pressure cap down the Flex
Tubing and screw onto the T-Valve until secure
and tight, use caution not to over tighten this
connection and damage the tubing!
8

7) Connect Bidet Hose to Bidet Attachment
a. Remove pressure cap from COLD
connection on backside side of bidet
attachment and connect open end of Cold
Water Bidet Hose to COLD connection.
Installation
Step 7a
6) Install Bidet Attachment on Toilet
a. Place one of the large rubbers washers
over each of the open bolt holes on the
toilet xture.
b. Place bidet attachment over washers
so the nozzle is as close to the back of
the toilet bowl as it will go. This will vary
by toilet.
c. Make sure the adjustable brackets line
up with the holes in the toilet xture.
You may need to move the adjustable
brackets accordingly to line up properly.
d. Replace the toilet seat on top of bidet
attachment and secure using original
toilet seat hardware. Make sure to tighten
so that the bidet attachment and seat do
not move.
9

10
b. If you have connected the hot water supply, then remove the
pressure cap from the HOT connection on backside of the bidet
attachment and connect the open end of the Hot Water Flex Tubing
to the HOT connection using the same instructions from Step 5e.
8) Turn on Water Supply & Check for Leaks
a. Open the main water supply valve for all water connections (Cold
only or Hot and Cold) and check for leaks.
b. Wait 5-10 minutes, check again and if there are no leaks continue.
Note: if there is any leaking, check all rubber washers and make
sure all water connections are tight and secure. If necessary, you
can use plumbers tape for any leaking connections.
Installation

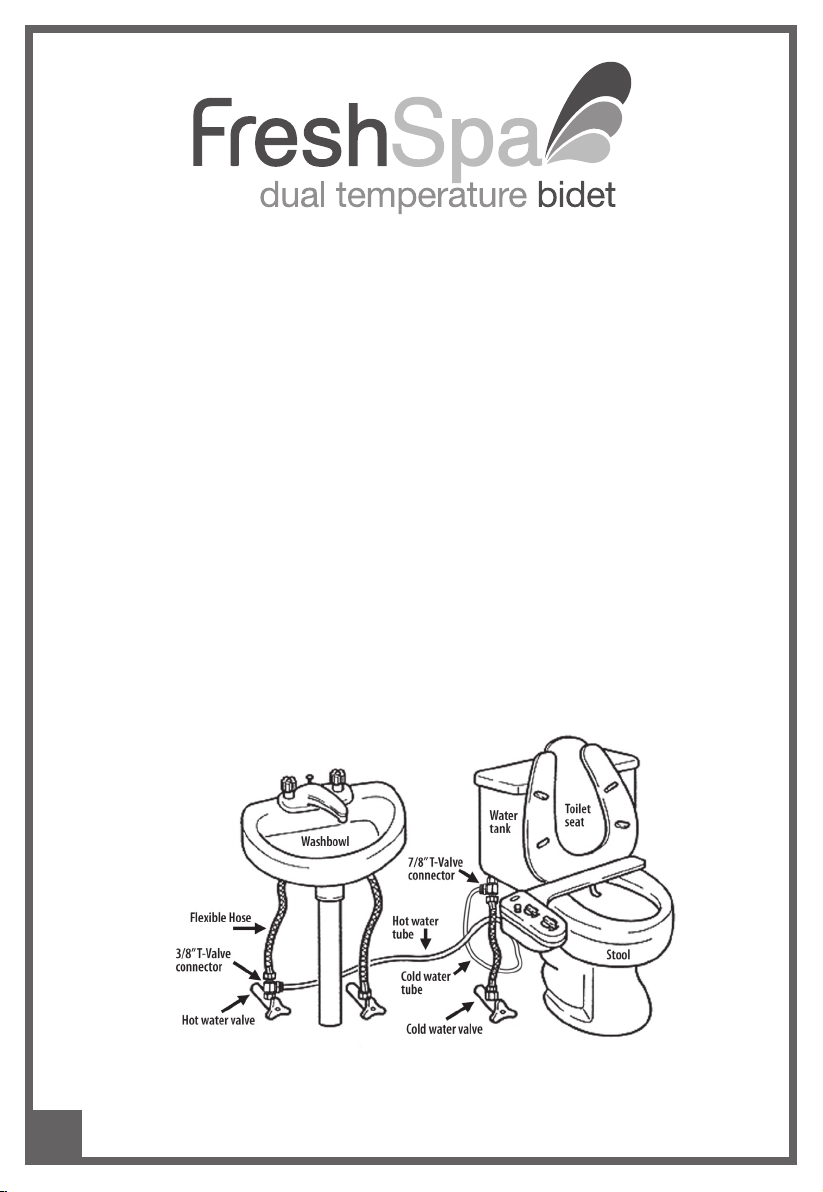

Fully installed view with both HOT and COLD water connections

Operation
Using the FreshSpa
If only connected to cold water, make sure that the temperature
dial on the bidet attachment is turned as far as it can go towards
“COLD” setting for best pressure adjustability.
For the general bidet wash function, turn the dial towards the
“Wash” position.
• The further the dial is turned, the higher the water pressure will be.
• To lower the water pressure, turn the nozzle back towards the center.
For a front wash function, women may need to tilt & bend forward
slightly in order for the spray to hit the appropriate areas.
To clean the bidet nozzle, turn the control dial towards the “Nozzle
Cleaning” position and water should wash over the nozzle.
To adjust water temperature (when hooked up to both Hot & Cold
connections), turn temperature dial slowly towards “HOT” until
the desired temperature is reached. Note: there may be a delay in
the warm water reaching the bidet attachment as the cold water
in your pipes clears and is replaced with hot water (same delay as
when the faucet is turned on).
Tip: for a quick and easy way to get warm water to the bidet, run
the “Nozzle Cleaning” function with the warm water turned on for
a short time until the water heats up, then use as normal.
Caution: If connected to the hot water line, use with caution to
prevent burns or injury! Brondell is not liable for any misuse of
the product.
11

Maintenance
To clean the nozzle, gently pull down on the head of the nozzle, and
use a toothbrush or soft cloth and mild detergent (such as dish soap)
to clean the nozzles. You may also unscrew the nozzle tip cap for a
more thorough cleaning or use a toothpick if any nozzle holes are
plugged with hard water buildup.
To clean the bidet, use a mild cleaner such as Simple Green or Windex
spray to clean the FreshSpa. Do not scrub or use harsh, abrasive
products to clean the FreshSpa, which may scratch the product.
1
2
3
Nozzle positioning
There are 3 dierent nozzle
positions that you can easily
adjust by gently pulling the
end of the nozzle forward
or backwards. Once desired
position is set, the nozzle will
remain in that position until
manually moved.
12

Warranty
Brondell products are backed by some of the most comprehensive warranties
in the industry. Brondell warrants that the FreshSpa shall be free from defects
in material and workmanship under normal use and service.
FreshSpa One-Year Limited Warranty
100% Coverage of all parts and labor for the entire product for the rst year
from original date of purchase
Exclusions and Limitations
1. BRONDELL warrants its products to be free from manufacturing defects under
normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL’s obligations under this warranty are limited to repairs or replacement,
at BRONDELL’s option, of products or parts found to be defective, provided that
such products were properly installed and used in accordance with instructions.
BRONDELL reserves the right to make such inspections as may be necessary in order
to determine the cause of the defect. BRONDELL will not charge for labor or parts in
connection with warranty repairs for the rst full year from date of purchase on all
products except those that may be subject to commercial use limitations.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or
reinstallation of products. This warranty does NOT apply to:
Damage or loss which occurs during shipment.
Damage or loss sustained through any natural or manmade causes beyond the
control of BRONDELL, including but not limited to re, earthquake, oods, etc.
Damage or loss resulting from sediments or foreign matter contained in a water system.
Damage or loss resulting from negligent or improper installation including
installation of a unit in a harsh or hazardous environment.
Damage or loss resulting from removal, improper repair, modication of the
product, or improper maintenance including damage caused by chlorine or
chlorine related products.
Damage or loss resulting from acts which are not the fault of Brondell or which
the Product is not specied to tolerate.
13

Warranty
4. This warranty gives you specic legal rights. You may have other rights which vary
from state to state.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE
REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE
FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR
CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR
LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS
BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT
TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES,
INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION
OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE
LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
How to Obtain Service
To obtain repair service under this warranty, you must contact an authorized
BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization)
number. Proof of purchase in the form of a copy of your original receipt must
accompany the returned unit for the warranty to be valid. Take or ship the unit pre-
paid to the closest Brondell authorized service center along with your RMA number
and proof of purchase.
To obtain your RMA number and locate the BRONDELL Service Center location
nearest you, call 1-888-542-3355.
14

Contact
For questions, contact
Brondell Customer Service:
1-888-542-3355
Brondell, Inc.
PO Box 470085
San Francisco, CA 94147-0085
Phone: [phone]
Email: [e-mail]
Web: www.brondell.com
15

bidé con temperatura doble | bidet à double température
lista de contenido
Características del producto . . . . . Página 2
Lista de piezas . . . . . . . . . . . . . . . . . . Página 3
Conguración ..................Página 4
Instalación ......................Página 5
Funcionamiento . . . . . . . . . . . . . . . . Página 11
Mantenimiento .................Página 12
Garantía ........................Página 13
Contacto .......................Página 15

bidé con temperatura doble | bidet à double température
2
Lista de características.
Boquilla higiénica retráctil
Función de autolimpieza de la boquilla
Lavado de bidé con agua tibia y fría
Posicionamiento de la boquilla (3 posiciones)
Presión de agua adaptable
Temperatura de agua adaptable
Válvula interna toda realizada en bronce
Valvula T en bronce
Manguera de PVC trenzado de alta calidad
Material ABS antibacterial con panel completo
Válvula de no retorno
No requiere energía eléctrica ni baterías
Fácil instalación y ajustable al inodoro
Todos los accesorios para una instalación estándar incluidos
1 año de garantía
