brondell SWASH CL950 Series User manual

OWNER’S MANUAL
Swash CL950 Advanced Bidet Toilet Seats
CL950-EW
CL950-RW
CL950-EW ITM./ART. 1244669
CL950-RW ITM./ART. 1244670

2
Attach Proof of Purchase to This Page
Adjunte prueba de compra a esta Página
Joindre une preuve d’achat à cette Page

1
CONTENTS
This manual contains important safety information. Before operating the bidet,
please read this manual thoroughly, and retain it for future reference.
PRODUCT INSTALLATION
GENERAL INFO
PRODUCT OPERATION
02 SAFETY INFORMATION
06
06
07
08
PRODUCT INFORMATION
Product Features
Product Dimensions
Product Parts
09
09
10
11
14
15
PRODUCT INSTALLATION
Installation Parts
Before Installation
Swash Installation
Remote Control Installation
External Bidet Filter Installation
16
16
18
19
21
OPERATING THE SWASH
CL950 Remote Control
CL950 Auxiliary Controls
Using the Swash CL950
Special Mode Operations
TECHNICAL INFO
TRANSLATIONS
22 PRODUCT SPECIFICATIONS
22
23
23
24
24
MAINTENANCE
Seat Cleaning & Removal
Nozzle Cleaning
Cleaning the Mesh Filter
Product Storage & Use
25 TROUBLESHOOTING
28 WARRANTY
29 CONTACT
01 ENGLISH
30 SPANISH
59 FRENCH

2
• Do not use a damaged power plug or plug into a loose electric outlet.
• Do not move the product by pulling the power cord.
• Do not handle the product or power plug with wet hands.
• Do not forcefully bend the power cord or place heavy objects on it to prevent it from being
damaged or deformed.
• Do not connect and pull out the power plug or cord repeatedly.
• Unplug the product before cleaning, repairing, inspecting, or replacing parts.
• Remove any dust or water from the power plug prior to plugging in.
• Do not plug the product into an electrical outlet or power strip that is being used by too many
other products. Use an electrical outlet adequate for the wattage of the product rated for a
minimum of 15 amps.
• If the power cord is damaged, do not attempt to repair, modify, or replace the cord yourself.
Contact the Brondell Service Center toll free at 888-542-3355 or email us through our website.
• If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately
from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire.
• Do not insert any wires or sharp objects into any product gaps. This may result in electric shock,
fire, or product damage.
• Do not place an electronic or gas heater near the product or dispose of any burning materials
such as a lit cigarette in the toilet. This may result in fire or product deformation. Do not place any
containers filled with water or other liquids, food, metallic objects, or any flammable material on
top of the product. If foreign material enters the product, this may result in electric shock or fire.
• Do not use the product in locations exposed to excessive moisture and do not splash water onto
the product.
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
DANGER
DANGER: If not observed, serious injury or even death may occur as a result.
WARNING: If not observed, serious physical injury or property damage may occur as a result.
CAUTION: If not observed, minor physical injury or property damage may occur as a result.
Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
READ ALL INSTRUCTIONS BEFORE USING
BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT
PROPERTY LOSS AND ENSURE SAFETY.
SAVE THESE INSTRUCTIONS

3
• While cleaning the bathroom, pull the power plug out of the electrical outlet and exercise caution
to ensure that water or cleaning supplies do not splash onto the bidet. Failure to do so may
result in electric shock or fire.
• If foreign material enters the product, pull the power plug out of the electrical outlet, turn o the
main water valve, and call the Brondell Service Center.
• Do not disassemble, repair, or modify the product yourself.
• Do not use the product while wet from bathing or showering.
• Do not place or store the product where it can fall or be pulled into a tub or sink.
• Do not place in or drop the product into water or any other liquid.
• Do not reach for the product if it has fallen into water. Unplug the product immediately and call
the Brondell Service Center.
• Do not use the product if it is not working properly. Please unplug the product immediately, close
the main water supply valve, and call the Brondell Service Center at 888-542-3355. Failure to
do so may result in electric shock, fire, or flooding.
• Do not plug in, operate, or store the unit in locations where flammable or combustible
materials are used or kept.
• Do not use industrial water, or gray water for the supply, as this may cause skin damage
or disease.
• Turn o the main water supply valve when cleaning.
• For children and seniors who may have diculties with adjusting temperatures or those
with sensitive skin or impaired heat sensitivity, set the temperature of the wash spray
and seat to “low” or “o” to prevent burning.
• Close supervision is necessary when this product is used by children, seniors, or persons
requiring general assistance.
• Do not press the buttons using excessive force.
• Do not stand on top of or place any heavy objects onto the seat cover.
• Use this product for its intended use only, as described in this manual. Do not use any
attachments that are not recommended by Brondell.
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
DANGER Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
WARNING Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
SAVE THESE INSTRUCTIONS

4
• Do not connect the main water supply to the hot water pipe or supply (only connect to the
cold water supply).
• After the installation, make sure to check all water supply connections for leaks. Rubber
washers should be in place for the water connection hoses & T-Valve.
• Do not open/close the seat or seat cover with excessive force.
• Exercise caution that urine does not come into contact with the product - failure to do so may
result in bad odors or malfunction.
• If the product will not be used for a long period of time, unplug the power cord, close the
main water supply valve, and drain any water in the water tank.
• Do not pull out the bidet hose using excessive force.
• Do not use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent on or
near the product. This may result in corrosion to the metal parts or discoloration or scratches
to the bidet body.
• This appliance is not intended for use by persons (including children and seniors) with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
CAUTION
• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Contact the Brondell Service Center for
examination and repair.
• Keep the cord away from heated surfaces and heating vents.
• Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, etc.
• Never drop or insert any object into any opening or hose.
• Do not use the product outdoors or operate where aerosol (spray) products are being used or a
room where it could be exposed to oxygen.
• Connect this product to a properly grounded outlet only. Refer to the Grounding Instructions in
the next pages of the manual.
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
WARNING Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
SAVE THESE INSTRUCTIONS

5

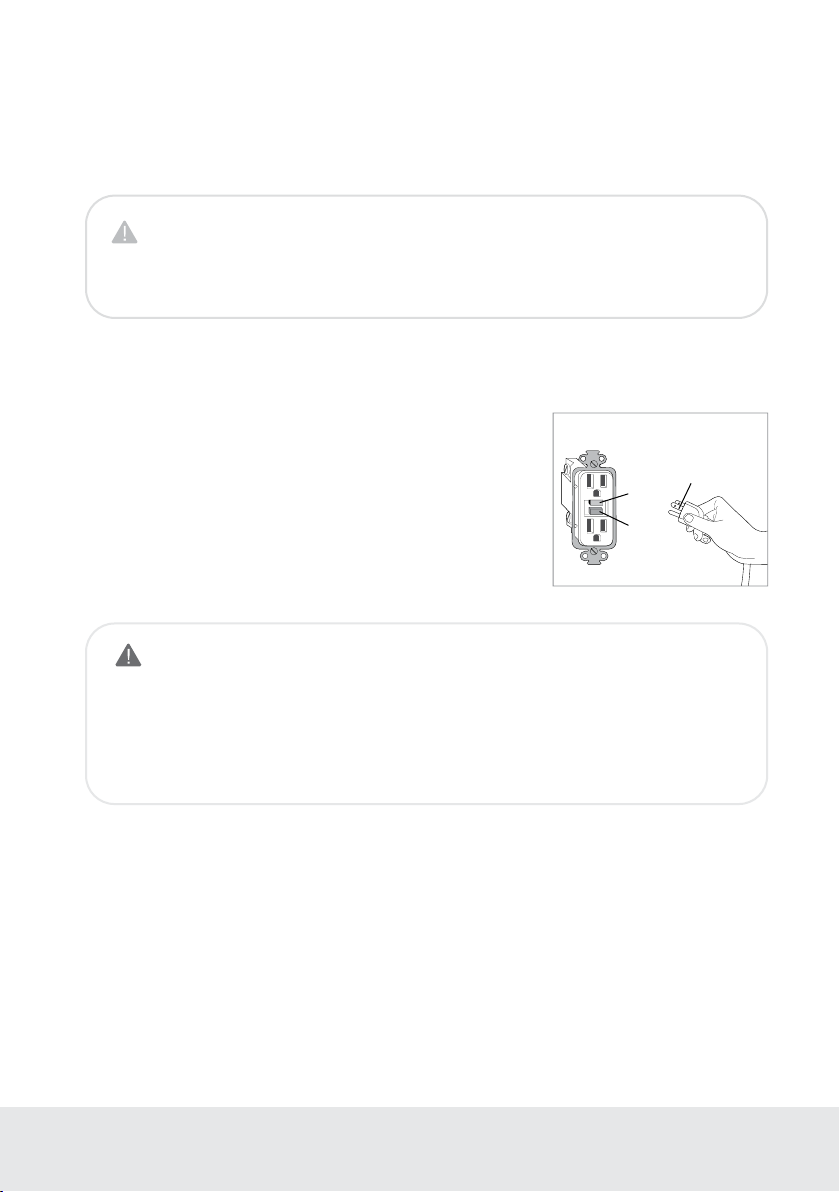

Ground GFCI Outlet
ATTENTION
This product should only be used with a grounded GFCI (Ground Fault
Circuit Interrupter) outlet and a grounded three-prong electrical cord
as shown to the right. In the event of an electrical short circuit, using a
grounded GFCI outlet reduces the risk of electric shock.
This product is equipped with a grounded cord and is for use on a
nominal 120V circuit only (minimum 15 amps) and must be plugged
into an outlet that is properly grounded with a GFCI breaker as shown.
Replace or repair a damaged cord immediately.
Test
Reset
Grounding Pin
IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.
• If repair or replacement of the cord or plug is necessary, do not connect the grounding wire
to either flat blade terminal. The wire with green insulation (either with or without a yellow
stripe) is the grounding wire.
• Check with a qualified electrician if the grounding instructions are not completely understood,
or if there is doubt if the product is properly grounded.
For those with certain medical or mobility issues in the bathroom,
we recommend our Swash 1400 or Swash 1000 bidet seats, as their
mounting systems are engineered for the most secure transitions from
wheelchairs or walkers.
GROUNDING AND GFI OUTLET INSTRUCTIONS
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
SAVE THESE INSTRUCTIONS

6
PRODUCT INFORMATION
Product Features
Stainless-Steel Nozzle System
Stainless steel resists soiling and bacterial
contamination for enhanced hygiene.
Posterior and Feminine Warm Water Wash
Experience the ultimate in clean with adjustable
temperature, position, pressure, massage, and
oscillation settings.
Positionable Nozzle
The nozzle has five dierent positions
to ensure the most comfortable and
complete wash.
Wireless Remote Control
The intuitive remote control allows the user
to easily select functions and settings.
Adjustable Water Temperature and Pressure
Each wash mode (Front and Rear) has four
available water temperature settings, and five
water pressure settings.
Massage
When activated, the water pressure
automatically increases and decreases to
provide a pulsating, cleaning spray.
Warm Air Dryer
Includes adjustable temperature with five
levels for a hands-free experience and toilet
paper reduction.
Nozzle Oscillation
The Move function provides a massaging,
oscillating cleanse during the wash cycle
ensuring a thorough and comfortable wash.
Auto Function
Activates a preset for a rear wash cycle
followed by a drying cycle.
Ergonomic Heated Seat
With four temperature settings
(High/Med/Low/O).
Illuminating Nightlight
The cool blue hue of the nightlight means no
more blinding lights during midnight trips to
the bathroom.
Gentle-Closing Seat and Lid
“Slam free” gentle closing seat and lid are
user friendly.
Eco Mode
When activated, this function automatically
lowers the water temperature and seat
temperature after the Swash was last used.
Deodorizer
The activated charcoal deodorizing filter
eliminates odors at the source. It does not
cover or mask odors, but eliminates them by
removing air from the toilet bowl, passing it
through the filter and expelling the clean air
through the vent in the back of the Swash.

7
PRODUCT INFORMATION

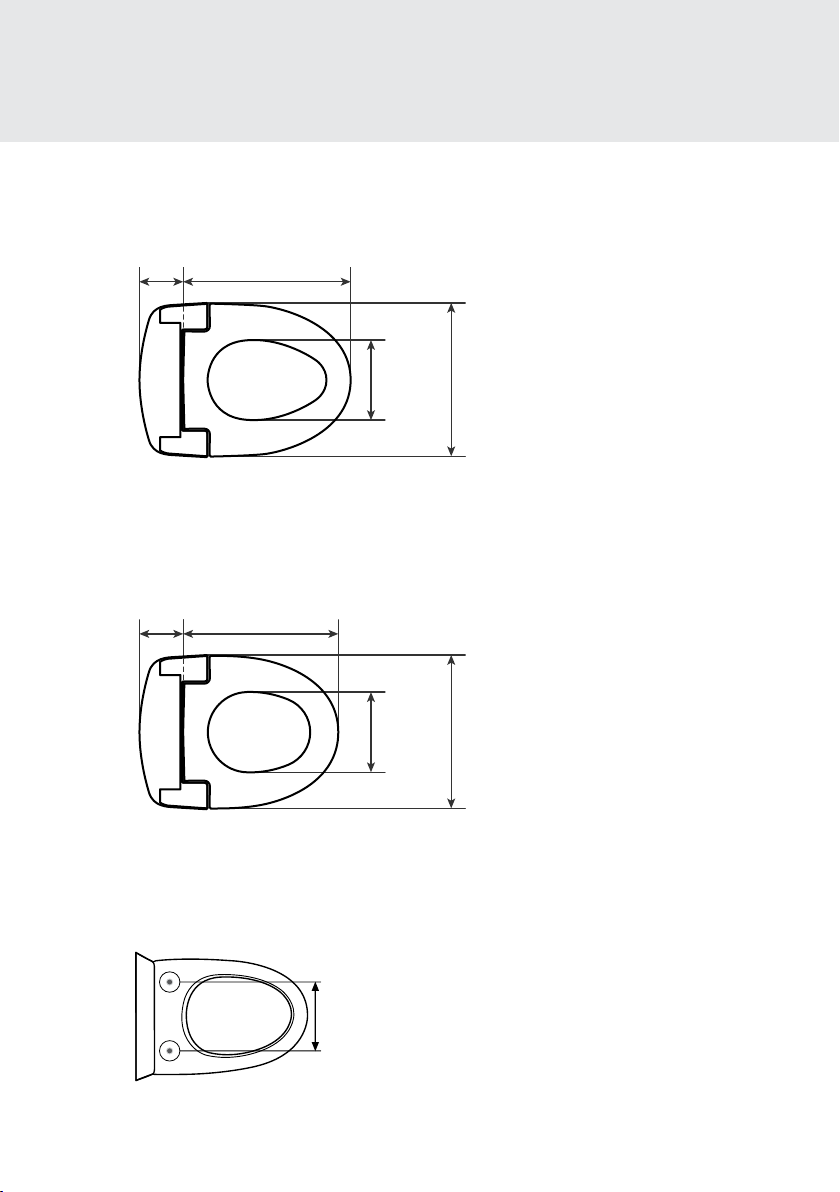

Product Dimensions
14 cm
5.5 in
Required Distance Between Mounting Holes
38.7 cm
15.25 in
38.7 cm
15.25 in
19.8 cm
7.8 in
19.8 cm
7.8 in
38.6 cm
15.2 in
41.7 cm
16.4 in
11 cm
4.3 in
11 cm
4.3 in
Elongated Top View
Round Top View

8
1. Lid
2. Seat Sensor
3. Warm Seat
4. Warm Air Dryer
5. Nozzle Assembly
6. LED Nightlight
7. Power Plug
8. Water Inlet with Mesh Filter
9. Auxiliary Control Panel
10. Drain Plug
11. Mounting Plate
12. IR Receiver (x2)
7
8
6
1
5
4
2
3
9
10
11
12
PRODUCT INFORMATION
Product Parts

9

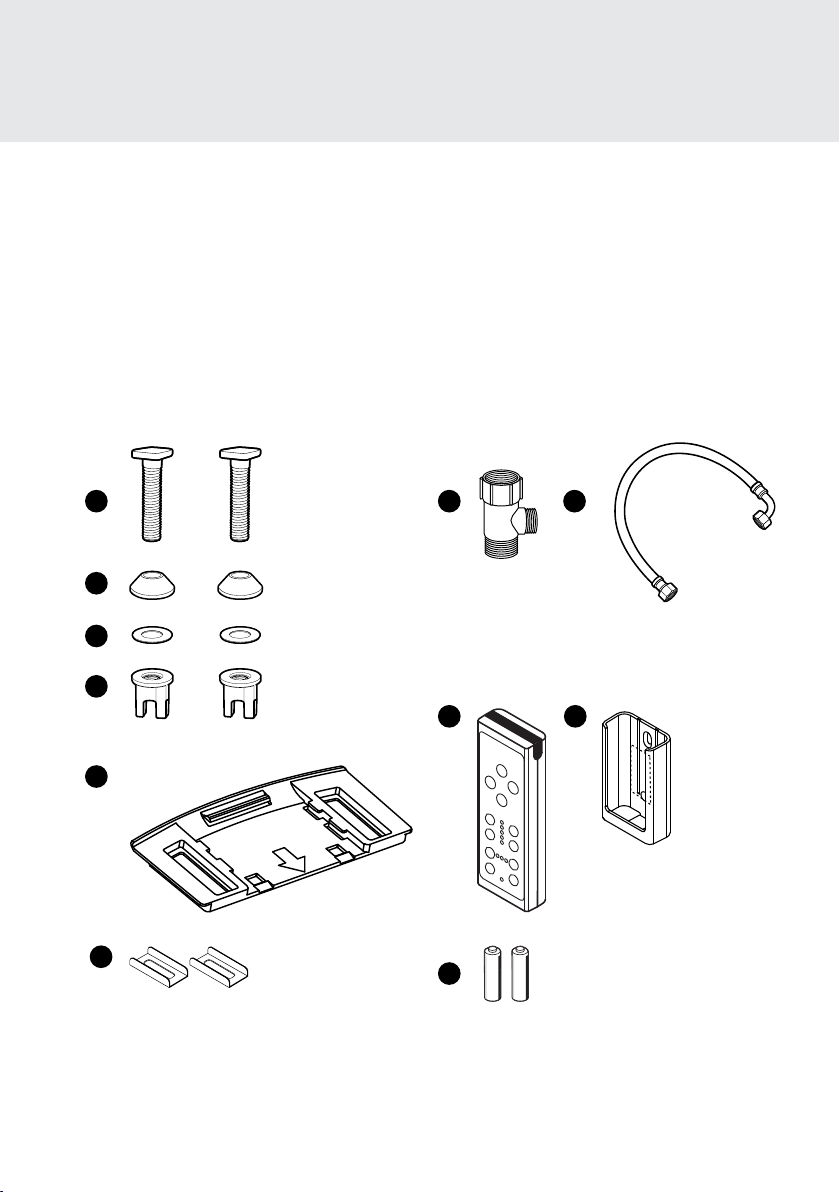

1. Mounting Bolt (2)
2. Rubber Cone Washer (2)
3. Flat Washer (2)
4. Nuts (2)
5. Mounting Plate
6. Top Mount Brackets
1
5
2
3
6
4
7. T-Valve Connector with
Rubber Washer
8. Bidet Hose
9. Remote Control
10. Remote Control Wall Mount
11. Batteries (2 x AAA)
8
10
11
9
7
PRODUCT INSTALLATION
Installation Parts

10
DO NOT PLUG THE PRODUCT IN WHILE THE UNIT IS UPSIDE DOWN
This may cause damage to the internal components.
WATCH OUR INSTALLATION VIDEO
Installation for all Swash products can be found online at brondell.com
CHECK BOLT SPREAD
This bidet seat can only be installed on toilets with a bolt hole spread of 14 cm / 5.5 in.
(see Product Dimensions on page 7 for more information).
CHECK FOR TOP MOUNT INSTALLATION
If your fixture only has top-side access to the mounting bolts that hold the seat to the toilet, use
the Top-Mount Brackets included in the hardware pack (see page 12).
CHECK FOR A CONCEALED TOILET FILL VALVE
Many modern toilets have sleek designs intended to cover and camouflage plumbing
connections, which makes a standard Swash installation dicult or impossible. For this, we
recommend using our Alternate Swash Bidet Seat T-Valve, found on brondell.com.
CHECK WATER SUPPLY LINE
Check the line that connects the toilet tank to the water shut o valve. If it is a rigid pipe, you may
need to purchase a flexible hose to replace it before installing the Swash. The length of the hose
and the size of the connectors will vary.
RESIDUAL MOISTURE IS NORMAL
Every product is tested with pure water during production to ensure the highest quality and
performance. It is normal to find a small amount of residual moisture on the product and in the
reservoir and filter.
TOOLS
A Phillips head or standard screwdriver may be needed to remove the existing toilet seat and a
standard wrench may be needed for tight water supply connections. Teflon tape can be helpful in
creating a water-tight seat between plumbing connections.
PRODUCT INSTALLATION
Before Installation

11
Please read these instructions carefully before installing the Swash.
Failure to do so could result in flooding, leaking or damage to the product.
NOTE: Steps may vary by type of seat and toilet
3. Connect the female side of the T-Valve to the incoming water
connection on the bottom of your toilet tank, ensuring the rubber
washer is properly seated.
4. Connect the water supply line coming from the wall to the bottom of
the T-Valve
5. Install Mounting Plate for Standard Installation (see page 12, step 6
for instructions on using the Top-Mount Brackets)
a. Place adjustable mounting plate over mounting holes on toilet,
rubber side facing down, arrow pointing to the toilet bowl.
b. Insert the mounting bolts through the mounting plate and
mounting holes of the toilet. Be sure that the square mounting
bolt head is even with the sides of the mounting plate.
NOTES
• The T-Valve connects to the fill valve directly under your toilet tank - it
does not connect at the wall.
• Only connect to the cold toilet water supply line.
• If your water supply line is rigid you may need to replace the water
supply line before continuing.
Steps 3-4
Toilet tank
T-valve
Cold
water
supply
line
NOTES
• You may wish to place a container under the tank to catch excess water.
• Do not continue without completing the above steps
• Failure to do so could result in flooding, leaking or damage to the Swash.
1. Existing Toilet Seat Removal
a. Lift hinge covers and use a screwdriver to remove the
mounting bolts.
b. Remove the toilet seat. Keep for future use.
2. Turn O Water Supply Valve and Flush Toilet
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.
c. Disconnect water supply hose from toilet tank. Do not
disconnect from the water supply valve.
Step 2c
PRODUCT INSTALLATION
Swash Installation
Steps 5b & 5c

12
9. Connect the open end of the Bidet Hose to the T-Valve.
10. Turn On Water Supply
a. Open the main water supply valve slowly and check for leaks.
b. Wait 5 minutes, check again and if there are no leaks continue.
Step 8b
Step 7a
Step 9
6. Install Mounting Plate for top-mounted toilet seats (see page 11,
step 5 for instructions on Standard Installation). This method will
use a combination of the included Top-Mount Brackets and the
original toilet seat mounting bolts.
a. Place adjustable mounting plate over mounting holes on toilet,
rubber side facing down, arrow pointing to the toilet bowl.
b. Place provided Top Mount Brackets, flat side down, into the
slots of the mounting plate, over the bolt holes.
c. Insert the original toilet seat mounting bolts through the
Top-Mount Brackets and into the threaded bolt holes of the
toilet, using a screwdriver to tighten.
7. Connect the Bidet Hose to the Seat
a. Connect the elbow side of the bidet hose to the water inlet.
Hand-tighten to secure. Take care not to twist the bidet hose,
excessively bend it, or strip the plastic screw threads when
screwing the hose onto the bidet seat.
8. Attach the Swash to the Mounting Plate
a. Set the Swash flat on the toilet bowl in front of the mounting
plate, and slide seat onto plate until it is secure.
b. If the seat appears too short or too long for the toilet, adjust
the mounting plate accordingly. To adjust the mounting plate,
loosen the nuts underneath the toilet and slide seat forward
or backwards as needed. Once the seat is lined up properly,
tighten the nuts to hold in place.
Steps 6b & 6c
NOTE: For those with mobility issues, we recommend our Swash 1400
or Swash 1000 bidet seats, as their mounting systems are engineered
for the most secure transitions from wheelcahairs or walkers.
PRODUCT INSTALLATION
Swash Installation
c. Slide rubber cone washer, flat washer, and then nut onto
mounting bolts under the toilet bowl. Tighten to keep
mounting plate in place.

13
NOTE: Make sure to only use a grounded GFCI (ground fault circuit
interrupter) electrical outlet. In the case of a short circuit, a grounded
GFCI outlet may help prevent electric shock or injury.
12. Fill the Water Reservoir Tank
a. Press either the “Rear” or “Front” button on the remote
control to fill the Water Reservoir Tank with water.
b. The Swash will beep continuously while the tank is filling and
will emit one long beep to indicate when the tank is full.
c. Wait 3-5 minutes for the water to heat up, and the Swash will
be ready for use.
13. Follow instructions on page 19 for using the Swash.
11. Plug the Power Cord into an Electrical Outlet
a. If the Power Indicator is not illuminated press any button on
the control panel.
PRODUCT INSTALLATION
Swash Installation

14

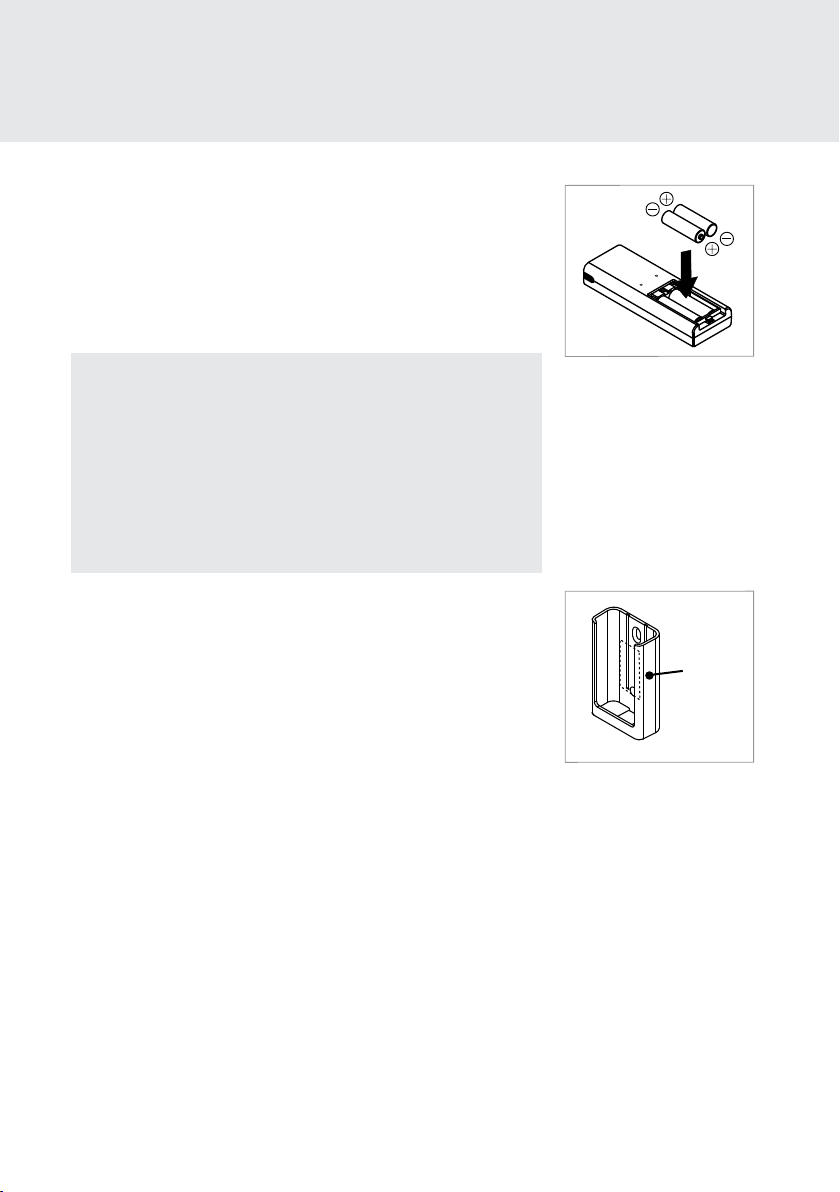

2. Mount Remote (optional)
a. Identify a location in the bathroom for the remote control that
is visible and reachable from the toilet.
b. Use the provided double-stick tape on the back of the remote
wall mount. Make sure the remote mount is fully secure so that
it does not fall and damage the remote control.
c. Slide the remote control into the mount.
Step 2b
double-stick
tape
(on back)
Step 1b
1. Battery Installation*
a. Remove the Remote Control from the Wall Mount.
b. Turn remote over and remove the battery compartment. Insert
the two included AAA batteries and replace battery cover.
c. To confirm the batteries are installed correctly, press and
release the DRY button. One of the center vertical LED lights
will illuminate for twenty seconds.
* IMPORTANT BATTERY INFORMATION
• Always purchase the correct size and grade of battery most
suitable for the intended use.
• Clean the battery contacts and also those of the device prior to
battery installation.
• Remove batteries from equipment which is not to be used for an
extended period of time.
• Remove batteries if consumed or if product is to be left unused for
a long time.
PRODUCT INSTALLATION
Remote Control Installation

15
1. Turn O Water Supply Valve and Flush Toilet.
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.
2. Disconnect the Bidet Hose from the T-Valve
3. Connect the female end of the Swash Filter to the open
T-Valve connection.
4. Connect the Bidet Hose to the male end of the Swash Filter.
5. Turn the toilet water supply valve back on.
Step 2
FLOW
Step 3
FLOW
Step 4
NOTE: Customers with hard water, well water, and softened water
can extend the life of their bidet seat by purchasing and installing
an external inline water filter to be used with the Swash. The bidet filter
should be changed every six months, and can be purchased online
at brondell.com.
PRODUCT INSTALLATION
External Bidet Filter Installation

16
Water Temperature
Button
Nozzle Position
Buttons
Water Pressure and
Dry Temperature
Buttons
Water Pressure and
Dry Temperature
Indicators
Seat Temperature
Button
Water Temp. and Seat
Temp. Indicators
Battery Life Indicator
Deodorizer Button
Auto Mode Button
Massage Button
Move Button
Rear Wash Button
Stop Button
Front Wash Button Warm Air Dry
Button
10
1
2
4
3
7
6
5
8
11
13 14
12
9
15
OPERATING THE SWASH
CL950 Remote Control

17
1. Rear Wash Button
Press once to initiate a two-minute
rear wash.
2. Front Wash Button
Press once to initiate a two-minute front
(feminine) wash.
3. Warm Air Dry Button
Press once to initiate a two-minute warm
air dry cycle.
4. Stop Button
Press to stop all wash or dry functions
currently operating.
5. Nozzle Position Buttons
Press the arrow up and arrow down buttons
to adjust the nozzle position forward and
backward during a wash cycle.
6. Water Pressure and Dry
Temperature Indicators
These lights indicate the Water Pressure
setting during a wash cycle, and the dryer
temperature during a Dry cycle.
7. Water Pressure and Dry
Temperature Buttons
Press the “+” and “–” buttons to
increase and decrease the outgoing water
pressure to one of five settings. Pressing
these buttons while the Warm Air Dryer is
operating will adjust the drying temperature.
Settings will be saved for the next use.
8. Water Temperature Button
Press and release this button to adjust the
outgoing water temperature to one of four
settings (LO: 34° C / 93.2° F, MED: 37° C /
98.6° F, HI: 40° C / 104° F, and OFF). Settings
will be saved for the next use.
9. Seat Temperature Button
Press and release the “Seat Temp” button
to adjust the seat temperature to one of
four settings (LO: 35° C / 95° F, MED: 38°
C / 100.4° F, HI: 40° C / 104° F, and OFF).
Settings will be saved for the next use.
10. Water Temperature and Seat
Temperature Indicators
These lights indicate the water temperature
setting while a wash cycle is active, and
the seat temperature setting during all
other times.
11. Massage Button
Pressing this button while a wash is running
enables the water to repeatedly increase
and decrease in pressure in a pulsating
pattern. Press again to stop.
12. Auto Mode Button
Press this button once to initiate a one
minute rear wash cycle followed by a
one minute dry cycle. See Page 20 for
more information.
13. Move Button
Press to initiate nozzle oscillation (repetitive
forward and backward nozzle movement)
during either the Front or Rear Wash. Press
again to stop the oscillation.
14. Deodorizer Button
Press this button to activate a one-minute
Deodorizer cycle.
15. Battery Life Indicator
This indicator will light up when the
batteries are low. See Page 14 on how to
replace the batteries.
OPERATING THE SWASH
CL950 Remote Control

18
AUXILIARY CONTROL PANEL
1. Power Indicator Light
This light is illuminated when there is
electricity running to the bidet seat.
2. Night Light Indicator
This indicator is illuminated when the Night
Light is on. The indicator extinguishes when
the Night Light is turned o.
3. Eco Mode Indicator
This indicator is illuminated when
Eco Mode is selected.
123
456
OPERATING THE SWASH
CL950 Auxiliary Control
4. Night Light Button
Pressing this button turns the Night Light
on and o.
5. Eco Mode Button
Pressing this button turns Eco Mode on
and o. See page 20 for more details on
Eco Mode.
6. Rear Wash Button
Pressing this button initiates the Rear
Wash cycle. Press this button again to
stop the Rear Wash cycle.
