Swash LES512
Advanced Bidet Seat
Owner's Manual
Models: LES512
Owner’s Manual
ADVANCED BIDET SEAT
SWASH LT89 / LE89

2
This manual contains important safety information.
Before operating the bidet, please read this manual
thoroughly, and retain it for future reference.
PRODUCT INSTALLATION
GENERAL INFO
PRODUCT OPERATION
01 SAFETY INFORMATION
06
06
07
08
PRODUCT INFORMATION
Product Features
Product Dimensions
Product Parts
09
09
10
11
13
PRODUCT INSTALLATION

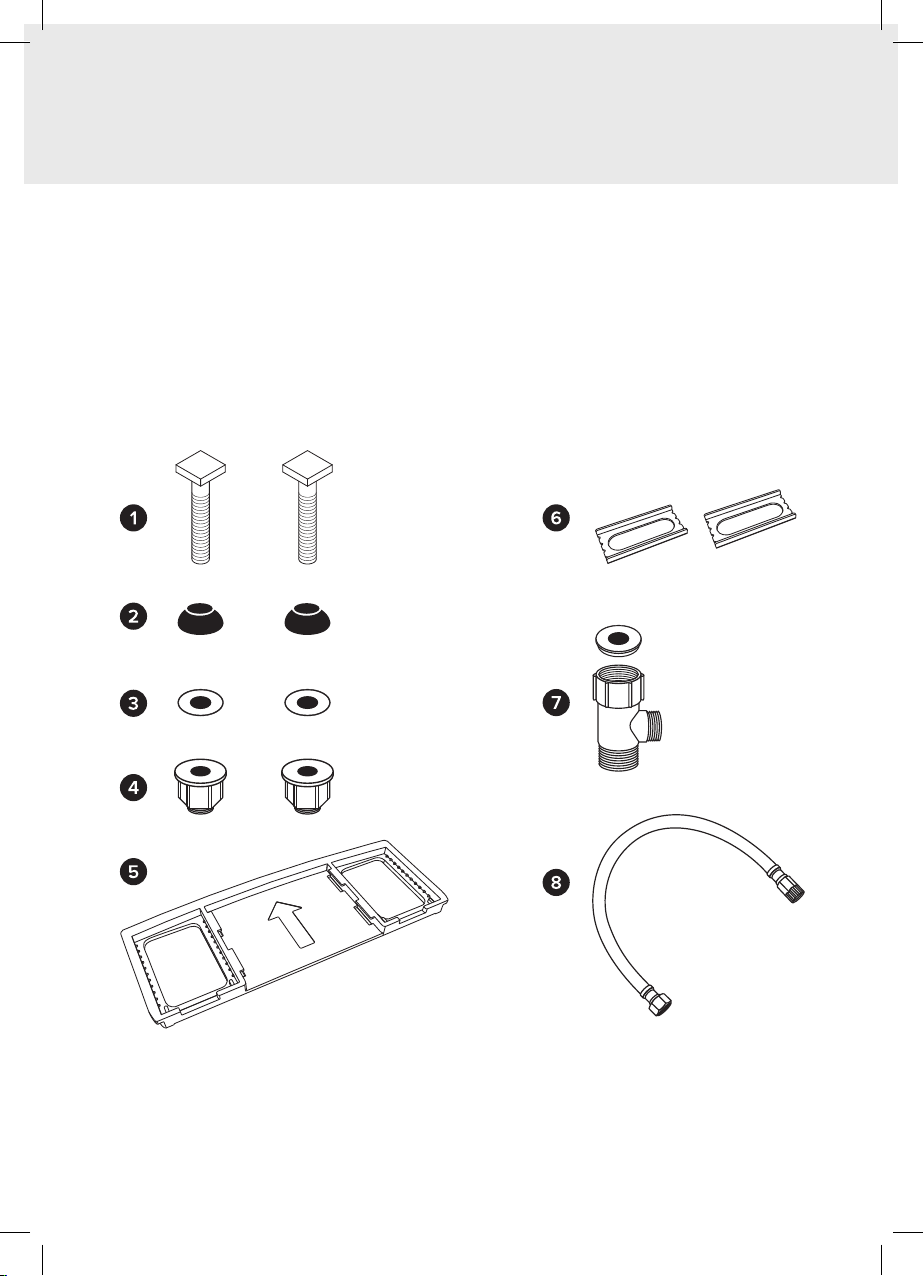

Installation Parts
Before Installation
Swash Installation
External Bidet Filter Installation
14
14
16
17
OPERATING THE SWASH
LES512 Control Panel
Using the LES512
Special Mode Operations
TECHNICAL INFO
TRANSLATIONS
19 PRODUCT SPECIFICATIONS
20
20
20
21
21
MAINTENANCE
Seat Cleaning & Removal
Nozzle Cleaning
Cleaning the Mesh Filter
Product Storage
22 TROUBLESHOOTING
25 WARRANTY
26 CONTACT
1ENGLISH
27 SPANISH
54 FRENCH
LES512 OWNER'S MANUAL
Table of Contents

1
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS
INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.
DANGER: If not observed, serious injury or even death may occur as a result.
WARNING: If not observed, serious physical injury or property damage may occur as a result.
CAUTION: If not observed, minor physical injury or property damage may occur as a result.
DANGER Failure to observe the following warnings may result in electric
shock, ire, personal injury, property damage or product damage.
• Do not use a damaged power plug or plug into a loose electric outlet.
• Do not move the product by pulling the power cord.
• Do not handle the product or power plug with wet hands.
• Do not forcefully bend the power cord or place heavy objects on it to prevent it
from being damaged or deformed.
• Do not connect and pull out the power plug or cord repeatedly.
• Unplug the product before cleaning, repairing, inspecting, or replacing parts.
• Remove any dust or water from the power plug prior to plugging in.
• Do not plug the product into an electrical outlet or power strip that is being used
by too many other products. Use an electrical outlet adequate for the wattage of
the product rated for a minimum of 15 amps.
• If the power cord is damaged, do not attempt to repair, modify, or replace the
cord yourself. Contact the Brondell Service Center toll free at 888-542-3355 or
email us through our website.
• If the product produces a strange noise, a burning smell, or emits smoke, unplug
it immediately from the electrical outlet and contact Brondell. Failure to do so
may result in electric shock or ire.
• Do not insert any wires or sharp objects into any product gaps. This may result in
electric shock, ire, or product damage.
• Do not place an electronic or gas heater near the product or dispose of any
burning materials such as a lit cigarette in the toilet. This may result in ire or
product deformation. Do not place any containers illed with water or other
liquids, food, metallic objects, or any lammable material on top of the product. If
foreign material enters the product, this may result in electric shock or ire.
SAVE THESE INSTRUCTIONS

2
• Do not plug in, operate, or store the unit in locations where lammable or
combustible materials are used or kept.
• Do not use industrial water, or gray water for the supply, as this may cause skin
damage or disease.
• Turn o the main water supply valve when cleaning.
• For children and seniors who may have diiculties with adjusting temperatures
or those with sensitive skin or impaired heat sensitivity, set the temperature of
the wash spray and seat to “low” or “o” to prevent burning.
• Close supervision is necessary when this product is used by children, seniors,
or persons requiring general assistance.
• Do not press the buttons using excessive force.
• Do not stand on top of or place any heavy objects onto the seat cover.
• Use this product for its intended use only, as described in this manual. Do not
use any attachments that are not recommended by Brondell.
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
DANGER Failure to observe the following warnings may result in electric
shock, ire, personal injury, property damage or product damage.
• Do not use the product in locations exposed to excessive moisture and do
not splash water onto the product.
• While cleaning the bathroom, pull the power plug out of the electrical
outlet and exercise caution to ensure that water or cleaning supplies do not
splash onto the bidet. Failure to do so may result in electric shock or ire.
• If foreign material enters the product, pull the power plug out of the
electrical outlet, turn o the main water valve, and call the Brondell Service
Center.
• Do not disassemble, repair, or modify the product yourself.
• Do not use the product while wet from bathing or showering.
• Do not place or store the product where it can fall or be pulled into a tub or
sink.
• Do not place in or drop the product into water or any other liquid.
• Do not reach for the product if it has fallen into water. Unplug the product
immediately and call the Brondell Service Center.
• Do not use the product if it is not working properly. Please unplug the
product immediately, close the main water supply valve, and call the
Brondell Service Center at 888-542-3355. Failure to do so may result in
electric shock, ire, or looding.
WARNING Failure to observe the following warnings may result in electric
shock, ire, personal injury, property damage or product damage.

3
SAVE THESE INSTRUCTIONS
• Do not connect the main water supply to the hot water pipe or supply (only
connect to the cold water supply).
• After the installation, make sure to check all water supply connections for leaks.
Rubber washers should be in place for the water connection hoses & T-valve.
• Do not open/close the seat or seat cover with excessive force.
• Exercise caution that urine does not come into contact with the product - failure
to do so may result in bad odors or malfunction.
• If the product will not be used for a long period of time, unplug the power cord,
close the main water supply valve, and drain any water in the water tank.
• Do not pull out the bidet hose using excessive force.
• Do not use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid
detergent on or near the product. This may result in corrosion to the metal parts
or discoloration or scratches to the bidet body.
• This appliance is not intended for use by persons (including children and seniors)
with reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Never operate this product if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped into water.
Contact the Brondell Service Center for examination and repair.
• Keep the cord away from heated surfaces and heating vents.
• Never block the air openings of the product or place it on a soft surface,
such as a bed or couch, where the air openings may be blocked. Keep the
air openings free of lint, hair, etc.
• Never drop or insert any object into any opening or hose.
• Do not use the product outdoors or operate where aerosol (spray) products
are being used or a room where it could be exposed to oxygen.
• Connect this product to a properly grounded outlet only. Refer to the
Grounding Instructions in the next pages of the manual.
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
WARNING Failure to observe the following warnings may result in electric
shock, ire, personal injury, property damage or product damage.
CAUTION Failure to observe the following warnings may result in electric
shock, ire, personal injury, property damage or product damage.

4
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
Ground GFCI Outlet
ATTENTION
This product should only be used with a grounded GFCI
(Ground Fault Circuit Interrupter) outlet and a grounded
three-prong electrical cord as shown to the right. In the
event of an electrical short circuit, using a grounded
GFCI outlet reduces the risk of electric shock.
This product is equipped with a grounded cord and is for
use on a nominal 120V circuit only (minimum 15 amps)
and must be plugged into an outlet that is properly
grounded with a GFCI breaker as shown. Replace or
repair a damaged cord immediately.
Test
Reset
Grounding Pin
IMPROPER USE OF THE GROUNDING PLUG CAN
RESULT IN A RISK OF ELECTRIC SHOCK.
• If repair or replacement of the cord or plug is
necessary, do not connect the grounding wire
to either lat blade terminal. The wire with green
insulation (either with or without a yellow stripe) is
the grounding wire.
• Check with a qualiied electrician if the grounding
instructions are not completely understood, or if
there is doubt if the product is properly grounded.
For those with certain medical or mobility issues in the
bathroom, we recommend our Swash 1400 or Swash 1000
bidet seats, as their mounting systems are engineered for
the most secure transitions from wheelchairs or walkers.
GROUNDING AND GFCI OUTLET INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER Improper use of the grounding plug can result in a risk of electric shock.

5
DANGER Do not connect the grounding
wire to a non-grounded outlet.
SAVE THESE INSTRUCTIONS
OPTIONAL GROUNDING INSTRUCTIONS
SAFETY INFORMATION
IMPORTANT SAFEGUARDS
This product is for use on a nominal 120V circuit, and
has a grounding plug that looks like the plug illustrated
in sketch A in Figure 1.
A temporary adapter, which looks like the adapter
illustrated in sketches B and C, may be used to
connect this plug to a 2-pole receptacle as shown in
sketch B if a properly grounded outlet is
not available.
The temporary adapter should be used only until a
properly grounded outlet (sketch A) can be installed by
a qualiied electrician.
Attach the grounding wire to the grounding screw on
the product as shown in sketch D of Figure 2. Attach
the other end of the grounding wire to the grounding
screw located on the temporary outlet.
A
B
D
C
Figure 1
Figure 2

6
Stainless Steel Nozzle
Stainless steel resists soiling and bacterial
contamination for enhanced hygiene.
Posterior and Feminine Warm Water Wash
Experience the ultimate in clean with
adjustable temperature, position, pressure,
massage, and oscillation settings.
Strong Wash
Concentrated stream with adjustable
pressure, position, temperature, massage,
and oscillation settings.
Positionable Nozzle
The nozzle has ive dierent positions
to ensure the most comfortable and
complete wash.
Adjustable Water Temperature and
Pressure
Front, Rear and Strong wash modes have
four available water temperature settings,
and ive water pressure settings.
Pulse
When activated, the water pressure
automatically increases and decreases to
provide a pulsating, cleaning spray.
Warm Air Dryer
Includes adjustable temperature with ive
levels for a hands-free experience and
toilet paper reduction – even elimination.
PRODUCT INFORMATION
Product Features
Nozzle Oscillation
The Move function provides a massaging,
oscillating cleanse during the wash cycle
ensuring a thorough and comfortable
wash.
Gentle Wash Function
Activates a preset wash cycle at the
softest setting for a gentle clean. A drying
cycle will follow.
Ergonomic Heated Seat
With four temperature settings
(High/Medium/Low/O).
Illuminating Nightlight
The cool blue hue of the nightlight means
no more blinding lights during midnight
trips
to the bathroom.
Gentle-Closing Seat and Lid
“Slam free” gentle-closing seat and lid are
user friendly.
Eco Mode
When activated, this function
automatically lowers the water and seat
temperature to one of two dierent
settings.
Quick-Release Seat
Quick-release button for easy removal and
cleaning of seat and toilet.

7
5.25 – 7.45 in
Required Distance Between Mounting Holes
18.5 in15.9 in
8.1 in
11.4 in
20.7 in
2.1 in
Elongated Top View
PRODUCT INFORMATION
Product Dimensions

8
1. Lid
2. Seat Sensor
3. Warm Seat
4. Warm Air Dryer
5. Nozzle Assembly
6. LED Nightlight
7. Control Panel
8. Power Plug
9. Water Inlet with Mesh Filter
10. Drain Plug
11. Mounting Plate
12. Quick-Release
13. Grounding Wire
PRODUCT INFORMATION
Product Parts

9
1. Mounting Bolt (2)
2. Rubber Cone Washer (2)
3. Flat Washer (2)
4. Nuts (2)
5. Mounting Plate
6. Adjustable Brackets (2)
7. T-Valve Connector with
Rubber Washer
8. Bidet Hose
PRODUCT INSTALLATION
Installation Parts

10
PRODUCT INSTALLATION
Before Installation
DO NOT PLUG THE PRODUCT IN WHILE THE UNIT IS UPSIDE DOWN
This may cause damage to the internal components.
WATCH OUR INSTALLATION VIDEO
Installation for all Swash products can be found online at brondell.com
CHECK BOLT SPREAD
This bidet seat can only be installed on toilets with a bolt hole spread of 5.25 – 7.45 in.
(see Product Dimensions on page 7 for more information).
CHECK FOR TOP MOUNT INSTALLATION
If your ixture only has top-side access to the mounting bolts that hold the seat to the toilet,
you will likely need to purchase the Swash Bidet Seat Top Mount Hardware Kit, found on
brondell.com.
CHECK FOR A CONCEALED TOILET FILL VALVE
Many modern toilets have sleek designs intended to cover and camoulage plumbing
connections, which make a standard Swash installation diicult or impossible. For this, we
recommend using our Alternate Swash Bidet Seat T-valve, found on brondell.com.
CHECK WATER SUPPLY LINE
Check the line that connects the toilet tank to the water shut o valve. If it is a rigid pipe,
you may need to purchase a lexible hose to replace it before installing the Swash. The
length of the hose and the size of the connectors will vary.
RESIDUAL MOISTURE IS NORMAL
Every product is tested with pure water during production to ensure the highest quality and
performance. It is normal to ind a small amount of residual moisture on the product and in
the reservoir and ilter.
TOOLS
A Phillips head or standard screwdriver may be needed to remove the existing toilet seat
and a standard wrench may be needed for tight water supply connections. Telon tape can
be helpful in creating a water-tight seal between plumbing connections.

11
PRODUCT INSTALLATION
Swash Installation
4. Connect the water supply line coming from the wall to the bottom
of the T-valve.
5. Install Mounting Plate for Standard Installation
a. Place mounting plate over mounting holes on toilet, rubber side
facing down, arrow pointing to the toilet tank.
b. Place adjustable brackets lat side down in the center of the
square opening in the mounting plate and insert mounting bolts
through adjustable brackets and mounting holes. Be sure that
the square mounting bolt head is even with sides of adjustable
bracket.
1. Existing Toilet Seat Removal
a. Lift hinge covers and use a screwdriver to remove the mounting
bolts.
b. Remove the toilet seat. Keep for future use.
2. Turn O Water Supply Valve and Flush Toilet
a. Turn water valve o to stop the low of water.
b. Flush toilet and hold down handle to completely
empty tank.
c. Disconnect water supply hose from toilet tank. Do not
disconnect from the water supply valve.
Please read these instructions carefully before installing the Swash. Failure
to do so could result in looding, leaking or damage to the product.
NOTE: Steps may vary by type of seat and toilet
NOTES
• You may wish to place a container under the tank to catch excess water.
• Do not continue without completing the above steps.
• Failure to do so could result in looding, leaking or damage to the Swash.
NOTES
• The T-valve connects to the ill valve directly under your toilet tank -
it does not connect at the wall.
• Only connect to the cold toilet water supply line.
• If your water supply line is rigid you may need to replace the water
supply line before continuing.
Steps 3-4
Toilet tank
T-valve
Cold
water
supply
line
Step 2c
Steps 5b-5c
3. Connect the top of the T-valve to the incoming water connection
on the bottom of your toilet tank.
a. Ensure the rubber washer is placed inside the T-valve against
the metal with the raised lip facing the toilet tank connection.
b. Install the T-valve with the rubber washer to the incoming water
connection on the bottom of the toilet tank.

12
6. Connect the Bidet Hose to the Seat
Connect the plastic side of the bidet hose to the water inlet.
Hand-tighten to secure. Take care not to twist the bidet
hose, excessively bend it, or strip the plastic screw threads
when screwing the hose onto the bidet seat.
7. Attach the Swash to the Mounting Plate
a. Set the Swash lat on the toilet bowl in front of the
mounting plate, and slide seat onto plate until it is secure.
b. If the seat appears too short or too long for the toilet,
adjust the mounting plate accordingly. To adjust the
mounting plate, loosen the nuts underneath the toilet and
slide seat forward or backwards as needed. Once the seat
is lined up properly, tighten the nuts to hold in place.
8. Connect the open end of the Bidet Hose to the T-valve.
NOTE: For those with mobility issues, we recommend our Swash
1400 or Swash 1000 bidet seats, as their mounting systems are
engineered for the most secure transitions from wheelchairs or
walkers.
9. Turn On Water Supply
a. Open the main water supply valve slowly and check for
leaks.
b. Wait 5 minutes, check again and, if there are no leaks,
continue.
10. Plug the Power Cord into an electrical outlet. Nozzle will
extend and retract.
PRODUCT INSTALLATION
Swash Installation
Step 7
Step 6
Step 8
NOTE: Make sure to only use a grounded GFCI (Ground Fault
Circuit Interrupter) electrical outlet. In the case of a short circuit, a
grounded GFCI outlet may help prevent electric shock or injury.
11. Follow instructions on page 16 for using the Swash.
c. Slide rubber cone washer, lat washer, and then nut onto
mounting bolts under the toilet bowl and tighten to keep
mounting plate in place.

13
NOTE: Customers with hard water, well water, and softened water can
extend the life of their bidet seat by purchasing and installing an external
inline water ilter to be used with the Swash. The bidet ilter should be
changed every six months, and can be purchased online at brondell.com.
PRODUCT INSTALLATION
External Bidet Filter Installation
1. Turn O Water Supply Valve and Flush Toilet.
a. Turn water valve o to stop the low of water.
b. Flush toilet and hold down handle to completely empty tank.
2. Disconnect the Bidet Hose from the T-valve.
3. Connect the female end of the Swash Filter to the open T-valve connection.
4. Connect the Bidet Hose to the male end of the Swash Filter.
5. Turn the toilet water supply valve back on.
Step 2
FLOW
Step 3
FLOW
Step 4

14
Nozzle Cleaning Button 9
Pulse Button 6
Seat Temperature Button 8
Nozzle Position Controls 7Water Pressure and
Dryer Temperature Con-
trols
Gentle Mode Button
Water Temperature Button
Eco Mode Button
1
Stop Button
3
Front Wash /
Move Button
2
Rear Wash /
Move Button
4
Strong Wash /
Move Button
Dry Button 5
OPERATING THE SWASH
LES512 Control Panel
10
11
12
13

15
1. Stop Button
Stops all wash and dry functions
currently operating.
2. Rear Wash / Move Button
Press once to initiate a rear wash.
Press again to initiate nozzle oscillation
(repetitive forward and backward nozzle
movement).
3. Front Wash / Move Button
Press once to initiate a front wash.
Press again to initiate nozzle oscillation
(repetitive forward and backward nozzle
movement).
4.Strong Wash / Move Button
Press once to initiate a strong wash.
Press again to initiate nozzle oscillation
(repetitive forward and backward nozzle
movement).
5. Dry Button
Press once to initiate a two-minute Warm
Air Dryer cycle.
6. Pulse Button
Pressing this button while a wash is
running enables the water to repeatedly
increase and decrease in pressure in a
pulsating pattern.
7. Nozzle Position Buttons
Press the up and down arrow buttons to
adjust the nozzle position forward and
backward during a wash cycle.
8. Seat Temperature Button and Indicators
Press and release the Seat Temp button
to adjust the seat temperature to one of
four settings (Low: 93.2°F, Medium:
100.4°F,
High: 107.6°F, and O). Settings will be
saved for the next use.
OPERATING THE SWASH
LES512 Control Panel
9. Nozzle Cleaning Button
Press this button to initiate Nozzle
Cleaning when not sitting on the seat, or
while seat sensor is deactivated. For more
nozzle maintenance see page 20.
10. Eco Mode Button and Indicator
Press and release the Eco Mode button
to select between two energy-saving
options (Standard, High-Eiciency). See
page 17 for more information.
11. Water Temperature Button and
Indicators
Press and release the Water Temp
button to adjust the outgoing water
temperature to one of four settings (Low:
91.4°F,
Medium: 96.8°F, High: 102.2°F, and O).
Settings will be saved for the next use.
12. Water Pressure and
Dry Temperature Controls
Press the “+” and “–” buttons to increase
and decrease the outgoing water
pressure to one of ive settings. Pressing
these buttons while the Warm Air Dryer
is operating will adjust the drying
temperature. For Front Wash, Rear
Wash and Dry, settings will be saved for
next use. For Strong Wash, the highest
pressure settings will default for all uses.
13. Gentle Mode Button
Press this button to initiate a two-minute
gentle wash cycle followed by a two-
minute dry cycle. See page 16 for more
information.

16
Prepare for Wash
Sit on the seat to ensure skin-to-seat contact
on the Seat Sensor. Once contact is made
the water pressure indicator lights will turn
on.
Warm Water Wash
When ready to wash, press the Rear Wash,
Front Wash, or Strong Wash button on
the control panel one time to initiate a wash.
The nozzle will self-clean, extend into
the toilet bowl, spray for two minutes, turn
o automatically, retract, and self-clean
once again.
1. Pressing the Rear Wash, Front Wash,
or Strong Wash button a second time
while the wash is running will cause the
nozzle to oscillate forward and backward,
providing a wider range of wash spray.
Press again to cancel the Move function.
2. While washing, users can adjust the
water temperature, pressure, and nozzle
position settings, as well as initiate the
Pulse feature by following the notes on
page 15.
3. If you would like to stop the wash before
the two-minute cycle ends, press the Stop
button to discontinue water low.
4. After extended use the water may
decrease in temperature if a Low, Medium,
or High water temperature setting is
selected. To regain warmer water, stop all
wash functions for three minutes to allow
the bidet to reheat the water.
NOTE: The wash functions will not work
unless the sensor in the seat detects
someone sitting down (with the built-in
skin conductivity sensor). To override the
Seat Sensor, please see the instructions on
page 17.
OPERATING THE SWASH
Using the LES512
Warm Air Dryer Function
Press the Dry button to activate the Warm
Air Dryer. The dryer will run for two minutes
and turn o automatically.
1. While the air dryer is operating, users
can adjust the dryer temperature to a
comfortable level using the Dry Temp “+”
and “–” buttons. The dry temperature will
be relected on the ive indicator LEDs.
2. If you would like to stop the dryer before
the two minutes has elapsed, press Stop.
Gentle Mode
All settings within Gentle Mode are 40%
softer than standard wash modes.
Once activated, gentle mode will begin a
two-minute wash including:
• Full nozzle extension
• Water Pressure set to low
• Front Wash for one minute, Nozzle
Oscillation for 30 seconds, then Pulse
for 30 seconds
After the wash cycle is over, Gentle Mode
will initiate a two minute Warm Air Dry cycle
on Level Two.
NOTE: While the Gentle Mode cycle
is running, the Water Pressure setting
is adjustable. Dryer settings are also
adjustable during the Gentle Mode.

17
OPERATING THE SWASH
Special Mode Operations
Eco Mode
In this mode, the water in the tank and the seat temperature can be reduced to
one of two dierent energy-saving settings.
Standard Eco Mode: Press the Eco Mode button until the yellow indicator light is
on for Low energy-saving, and the seat and water temperature will be heated to
89.6 °F. Once a person sits on the bidet, the Swash will revert to the last seat and
water temperature settings used. Press the Eco Mode button until there are no
indicator lights on to deactivate Eco Mode.
High-Eiciency Eco Mode: Press the Eco Mode button until the green indicator
light is on for High energy-saving, and the seat and water temperature will turn o
when the bidet is not in use. Once a person sits on the bidet, the Swash will revert
to the last seat and water temperature settings used. Press the Eco Mode button
until there are no indicator lights on to deactivate Eco Mode.
Sitz Bath Mode
In Sitz Bath Mode, water pressure is switched to the lowest level regardless of the
preset water pressure settings. To initiate Sitz Bath Mode, while in a front or rear
wash cycle, press the Nozzle Cleaning button. Sitz Bath Mode will automatically
run for ive minutes. The Nozzle Cleaning LED on the side arm will light up
indicating Sitz Bath Mode is on. To stop the Sitz Bath Mode before the end of the
ive-minute cycle, press the Nozzle Cleaning button.
Seat Sensor Override
1. To activate the Seat Sensor Override, press and hold the Pulse button for four
seconds.
A beep will sound to indicate that the seat sensor has been turned o. If the Swash
is in Silent Mode, there will not be a beep. The Nozzle Position and Water Pressure/
Dry Temp lights will stay on as long as Seat Sensor Override is activated.
2. To deactivate the Seat Sensor Override, press and hold the Pulse button for four
seconds. Two beeps will sound and the Nozzle Position and Water Pressure/Dry
Temp lights will turn o.
NOTES
• Activation or deactivation of Seat Sensor Override is not possible when seated.
• The Swash cannot be put into Silent Mode while Seat Sensor Override is activated.
• Nozzle Cleaning function will not work when Seat Sensor Override is activated. To initiate Nozzle
Cleaning you must irst deactivate Seat Sensor Override.

18
OPERATING THE SWASH
Special Mode Operations
Activating / Deactivating Silent Mode
1. To activate Silent Mode, press and hold
the
“ – “ Water Pressure/Dry Temp button
for four seconds. A beep will sound
to indicate that Silent Mode has been
activated.
2. To deactivate Silent Mode, press and
hold the “ – “ Water Pressure/Dry Temp
button for four seconds. Two beeps will
sound to indicate that Silent Mode has
been deactivated.
Activating / Deactivating Nightlight
The Nightlight is activated at the factory
by default.
1. To deactivate the Nightlight, press and
hold “+” for four seconds. This function
cannot be performed while sitting on the
seat.
2. To activate the Nightlight, press and hold
“+” for four seconds. This function cannot
be performed while sitting on the seat.
Sleep Mode
In Sleep Mode, the Swash essentially
powers down. The Nightlight and the side
arm lights, the seat heater and the water
heater will turn o.
1. To activate Sleep Mode, press and hold
the Stop button for four seconds. The
unit will power down.
2. To awaken the Swash from Sleep Mode,
press the Stop, Front, or Strong button.
Factory Default Reset
It is possible to reset the Swash to Factory
Default settings.
To reset the Factory Default settings, press
and hold the Stop button for ten seconds. A
beep will sound at two seconds indicating
the beginning of the reset process and
another beep will sound at four seconds
indicating the reset is activated.
Automatic Tank Draining
1. To prevent stagnation, water in the warm
water storage tank can be set to drain and
reill itself if the seat hasn’t been used in 48
hours.
2. To program this feature, press “Stop” and
“Water Temp.” at the same time and hold
buttons for four seconds.
