Start Here DCP-8070D
Quick Setup Guide
EEU-ENG Version 0
Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.
For detailed information on how to use all the features, change the default settings, or to troubleshoot your
machine please refer to the User’s Guide.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
1
Unpack the machine
WARNING
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep
these bags away from babies and children.
Symbols used in this guide
IMPORTANT
DO NOT connect the interface cable yet.
Note
USB cable
Please make sure you use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.
WARNINGs tell you what to do to prevent possible personal injury.
CAUTIONs specify procedures you must follow or avoid to prevent possible
minor injuries.
IMPORTANT describes procedures you must follow or avoid to prevent
possible machine problems or machine damage, or damage to other objects.
Electrical Hazard icons alert you to a possible electrical shock.
Hot Surface icons warn you not to touch machine parts that are hot.
Note Notes tell you how you should respond to a situation that may arise or give tips
about how the current operation works with other features.
User’s Guide
Software User’s Guide
Indicates reference to the User’s Guide or Software User’s Guide.
WARNING
CAUTION
IMPORTANT

2
2
Install the drum unit and
toner cartridge assembly
aRemove the protective tape and film covering
the scanner glass.
bPress the front cover release button and open
the front cover a.
cUnpack the drum unit and toner cartridge
assembly.
dGently shake it from side to side several times
to distribute the toner evenly inside the
assembly.
ePut the drum unit assembly into the machine
until it clicks into place.
fClose the front cover of the machine.
IMPORTANT
DO NOT connect the interface cable yet.
1

3
3
Load paper in the paper
tray
aPull the paper tray completely out of the
machine.
bWhile pressing the blue paper-guide release
lever a, slide the paper guides to fit the paper
size you are loading in the tray. Make sure that
the guides are firmly in the slots.
cFan the stack of paper well to avoid paper jams
and misfeeds.
dPut paper in the tray, and make sure that the
paper is below the maximum paper mark a.
The side to be printed on must be face down.
ePut the paper tray firmly back in the machine.
Make sure that it is completely inserted into the
machine.
fUnfold the support flap ato prevent paper
from sliding off the face-down output tray.
1
IMPORTANT
Make sure the paper guides touch the sides of
the paper so it will feed correctly.
1
1

4
4

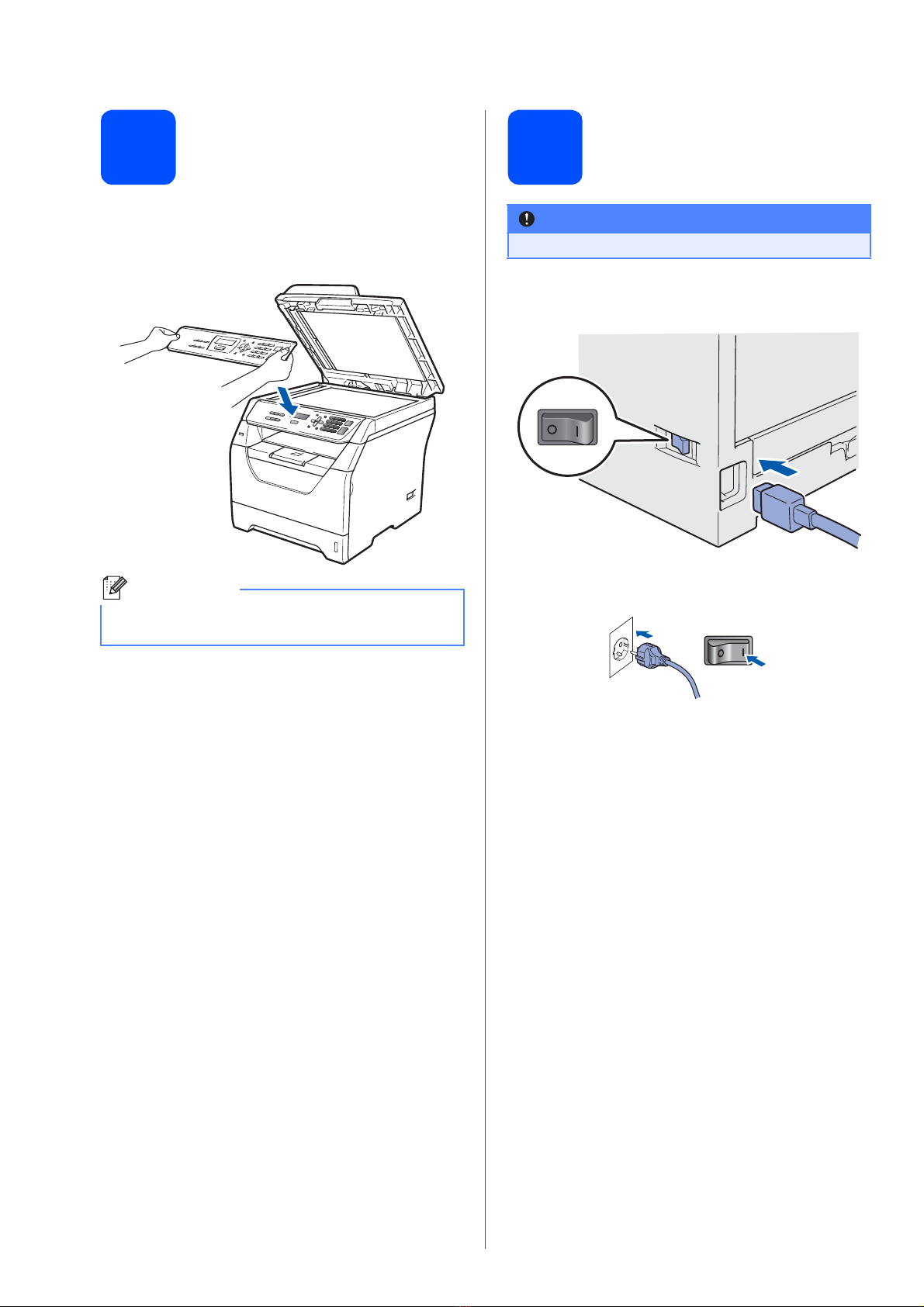

Attach the control panel
cover
aOpen the document cover.
bChoose your language and attach the control
panel cover to the machine.
5
Connect the power cord
aMake sure that the machine power switch is off.
Connect the AC power cord to the machine.
bPlug the AC power cord into an AC outlet. Turn
the power switch on.
Note
If the control panel cover is not fitted correctly, the
key operations will not work.
IMPORTANT
DO NOT connect the interface cable yet.

5
6
Choose your language
aAfter turning the power switch on, the LCD
shows:
Select Language
Press OK Key
Press OK.
bPress or to choose your language and
press OK.
Select ab or OK
English
cThe LCD prompts you to confirm your
selection.
English?
1.Yes 2.No
If the LCD shows the correct language, press
1.
—OR—
Press 2to go back to step ato choose the
language again.
7
Set the LCD contrast
(if needed)
aPress Menu.
bPress 1.
cPress 5.
dPress to increase the contrast.
—OR—
Press to decrease the contrast.
Press OK.
ePress Stop/Exit.
8
Set the date and time
aPress Menu.
bPress 5.
cPress 1.
dEnter the last two digits of the year on the dial
pad, and then press OK.
(e.g. Enter 0, 9for 2009.)
eEnter the two digits for the month on the dial
pad, and then press OK.
(e.g. Enter 0, 3for March.)
fEnter the two digits for the day on the dial pad,
and then press OK.
(e.g. Enter 2, 5.)
gEnter the time in 24-hour format on the dial
pad, and then press OK.
(e.g. Enter 15, 25for 3:25 P.M.)
hPress Stop/Exit.
Note
If you have set the wrong language, you can
change the language from the control panel menu
of the machine. (Menu, 1, 0)

6
9
Automatic Daylight
Savings Time
aPress Menu.
bPress 5.
cPress 2.
dPress or to choose On (or Off).
Press OK.
ePress Stop/Exit.

7
Windows®
USB
Macintosh
10
Choose your connection type
For USB Interface Users
Windows
®
, go to page 8
Macintosh, go to page 10

8
Windows®
USB
For USB Interface Users
(Windows
®
2000 Professional/XP/XP Professional x64 Edition/
Windows Vista
®
)
11
Before you install
aMake sure that your computer is ON and you
are logged on with Administrator rights.
bTurn off and unplug the machine from the AC
outlet and disconnect it from your computer, if
you already connected an interface cable.
12
Install MFL-Pro Suite
aPut the supplied CD-ROM into your CD-ROM
drive. If the model name screen appears,
choose your machine. If the language screen
appears, choose your language.
bThe CD-ROM top menu will appear. Click
Initial Installation.
cClick Install MFL-Pro Suite.
dWhen the ScanSoft™ PaperPort™ 11SE
License Agreement window appears, click
Yes if you agree to the Software
License Agreement.
eThe installation of ScanSoft™ PaperPort™
11SE will automatically start and is followed by
the installation of MFL-Pro Suite.
fWhen the Brother MFL-Pro Suite Software
License Agreement window appears, click
Yes if you agree to the Software
License Agreement.
gChoose Standard, and then click Next. The
installation continues.
hIf you do not want to monitor the machine
status and error notifications from your
computer, uncheck Enable Status Monitor
and then click Next.
iWhen this screen appears, go to the next step.
13

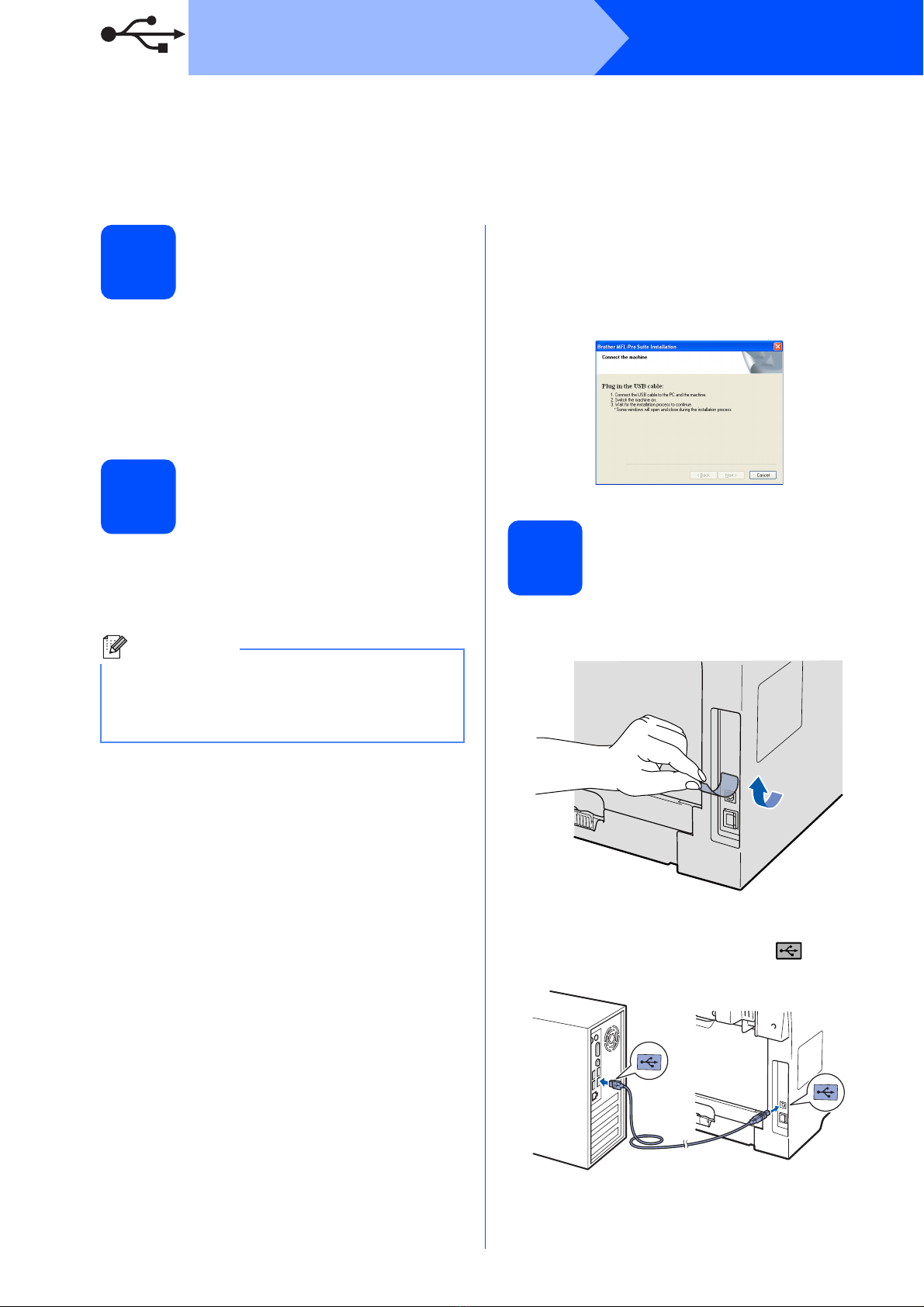

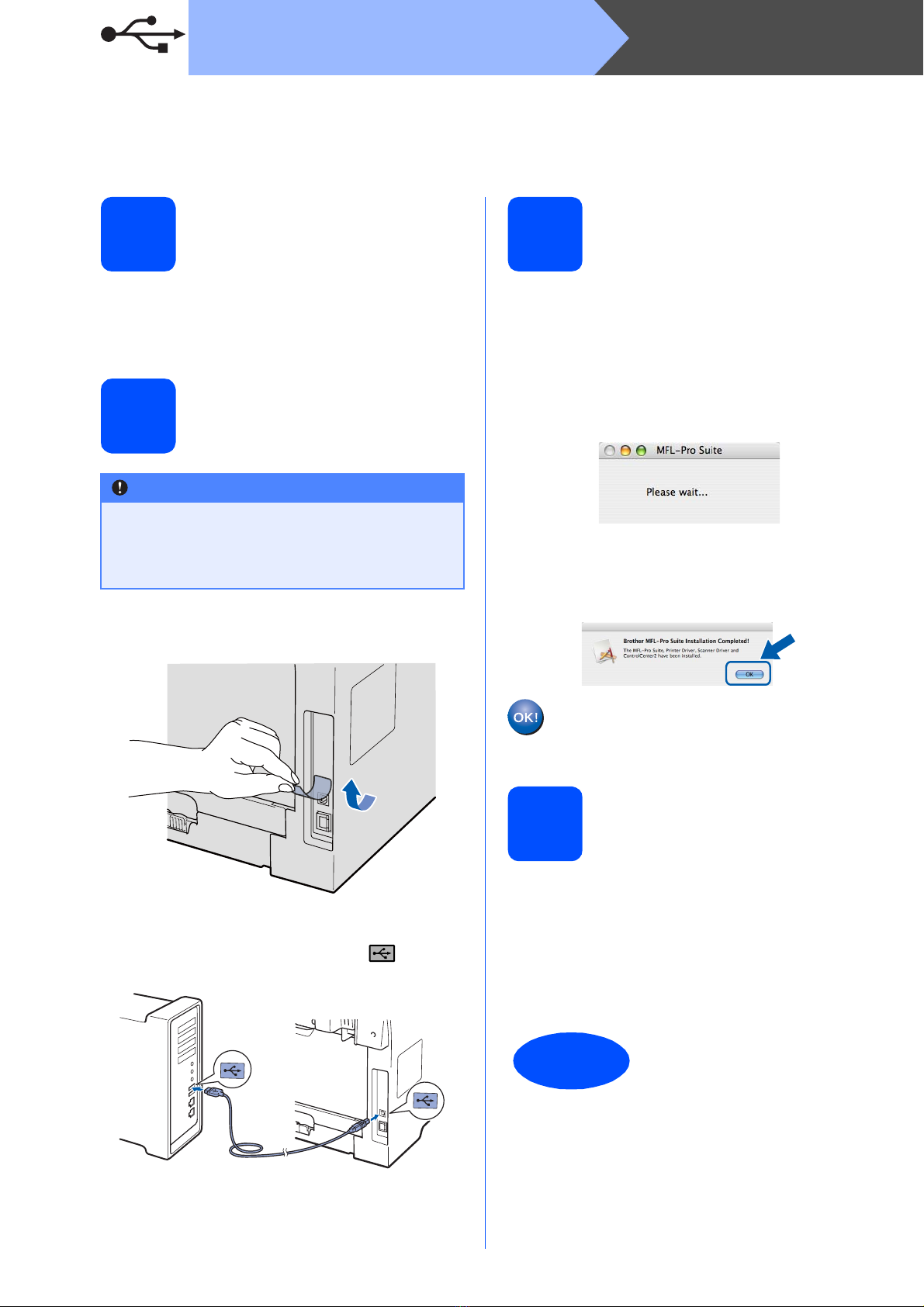

Connect the USB cable
aRemove the label covering the USB interface
connector.
bConnect the USB cable to the USB connector
on the machine marked with the symbol.
Then connect the cable to your computer.
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click Start.exe.

9
Windows®
USB
Windows®
USB
Macintosh
14
Connect the power cord
aPlug the AC power cord into an AC outlet. Turn
the power switch on.
The installation of the Brother drivers will
automatically start.
The screens appear one after another.
bWhen the On-Line Registration screen is
displayed, make your selection and follow the
on-screen instructions. Once you have
completed the registration process, close your
web browser to return to this window.
Then click Next.
15
Finish and restart
aClick Finish to restart your computer.
After restarting the computer, you must be
logged on with Administrator rights.
bIn the Check for Firmware Updates screen,
choose the firmware update setting you want
and click OK. If you disabled the Status Monitor
setting in step hthe screen will not appear.
IMPORTANT
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
Note
Internet access is required for the firmware
upgrade.
Finish The installation is now
complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver when printing from the
applications that use the XML Paper Specification
documents. Please download the latest driver by
accessing the Brother Solutions Center at
http://solutions.brother.com/.

10
Macintosh
USB
For USB Interface Users
(Mac OS X 10.3.9 or greater)
11
Before you install
aMake sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
12
Connect the USB cable
aRemove the label covering the USB interface
connector.
bConnect the USB cable to the USB connector
on the machine marked with the symbol.
Then connect the cable to your computer.
13
Install MFL-Pro Suite
aPut the supplied CD-ROM into your CD-ROM
drive.
bDouble-click Start Here OSX to install.
cThe Brother software will search for the Brother
device. During this time the following screen
will appear.
dChoose the machine from the list, and then
click OK.
eWhen this screen appears, click OK.
14
Install
Presto! PageManager
When Presto! PageManager is installed OCR
capability is added to Brother ControlCenter2. You
can easily scan, share and organize photos and
documents using Presto! PageManager.
aDouble-click Presto! PageManager and follow
the on-screen instructions.
IMPORTANT
• DO NOT connect the machine to a USB port
on a keyboard or a non-powered USB hub.
• Connect the machine directly to your
Macintosh.
The installation of MFL-Pro Suite is now
complete.
Go to step 14 on page 10.
Finish The installation is now
complete.

11
Other Information
To use the machine safely
Please keep these instructions for later reference and read them before attempting any maintenance.
WARNING
There are high voltage electrodes inside the machine. Before
you clean the inside of the machine, make sure you have
unplugged the power cord from the electrical socket. Doing this
will prevent an electrical shock.
DO NOT handle the plug with wet hands. Doing this might
cause an electrical shock. Always make sure the plug is fully
inserted.
This product must be installed near an electrical socket that is
easily accessible. In case of an emergency, you must unplug
the power cord from the electrical socket to shut off the power
completely.
DO NOT use flammable substances, any type of spray or any
organic solvent/liquids contains alcohol or ammonia to clean
the inside or outside of the machine. Doing this may cause a
fire or electrical shock. Refer to Routine maintenance in the
User’s Guide for how to clean the machine.
DO NOT use a vacuum cleaner to clean up scattered toner.
Doing this might cause the toner dust to ignite inside the
vacuum cleaner, potentially starting a fire. Please carefully
clean the toner dust with a dry, lint-free soft cloth and dispose
of it according to local regulations.

Other Information
12
CAUTION
CAUTION

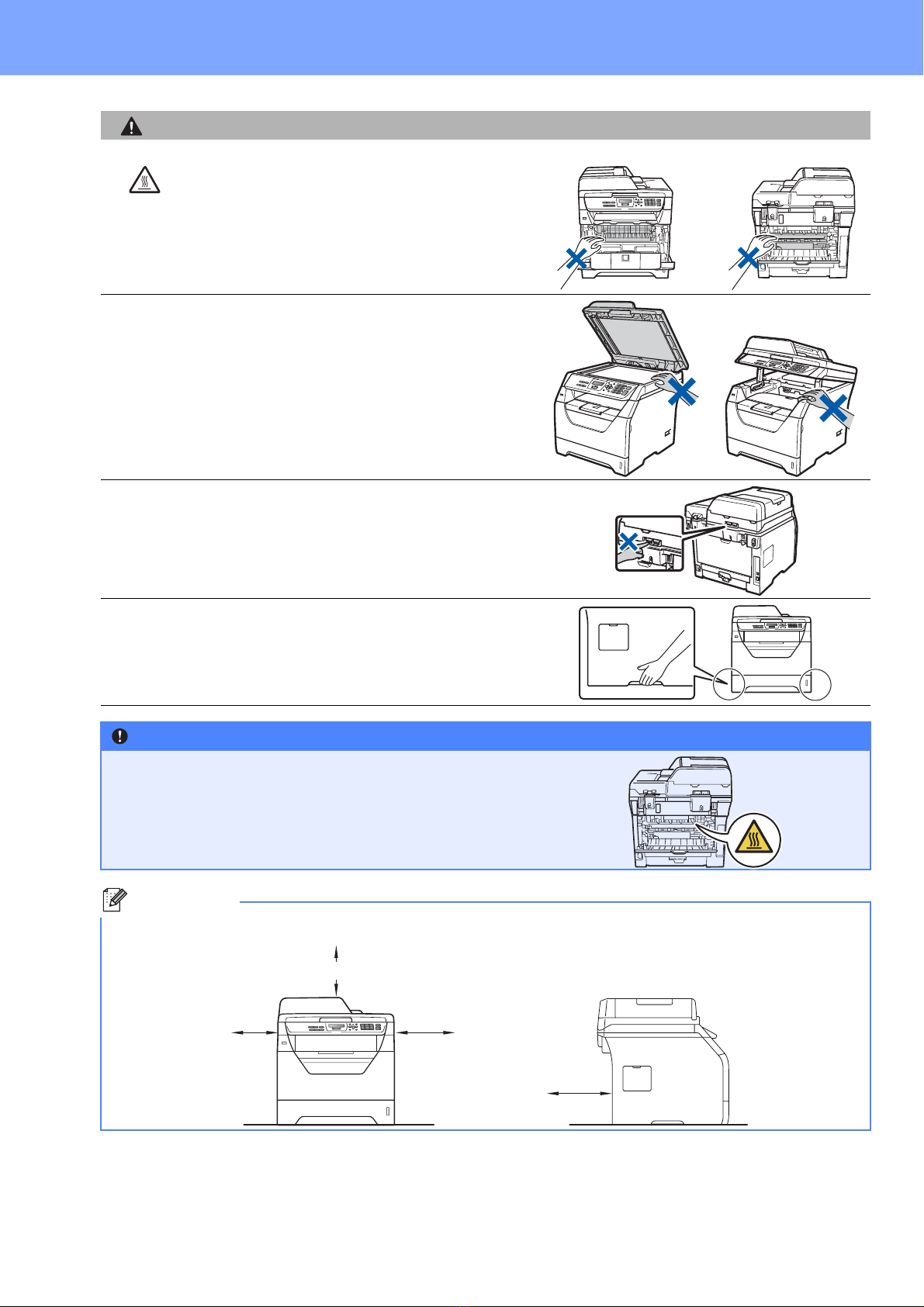

After you have just used the machine, some internal parts of
the machine will be extremely hot. When you open the front
or back cover of the machine, DO NOT touch the shaded
parts shown in the illustrations.
To prevent injuries, be careful not to put your hands on the
edge of the machine under the document cover or scanner
cover as shown in the illustrations.
To prevent injuries, be careful not to put your fingers in the
area shown in the illustration.
When you move the machine, grasp the side hand holds
that are located at the bottom of the machine. DO NOT carry
the machine by holding the scanner unit.
IMPORTANT
The fuser unit is marked with a Caution label. Please DO
NOT remove or damage the label.
Note
Keep a minimum gap around the machine as shown in the illustration.
130 mm
500 mm
200 mm
300 mm

13
Other Information
Regulations

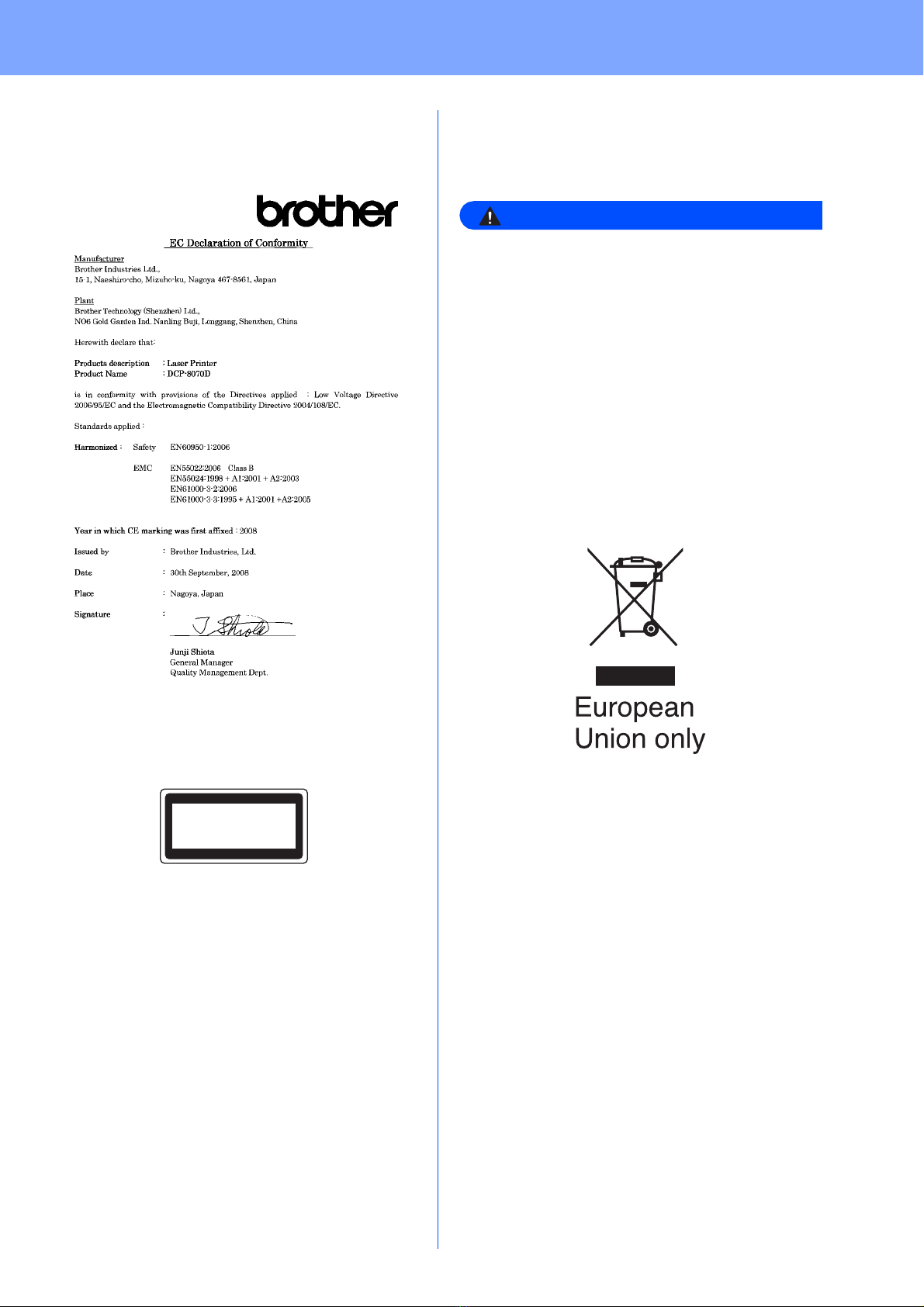

EC Declaration of Conformity
IEC60825-1+A2:2001 Specification
This machine is a Class 1 laser product as defined in
IEC60825-1+A2:2001 specifications. The label
shown below is attached in countries where required.
This machine has a Class 3B Laser Diode which
emits invisible laser radiation in the Scanner Unit. The
Scanner Unit should not be opened under any
circumstances.
Internal laser radiation
Wave length: 770 - 810 nm
Output: 5 mW max.
Laser Class: Class 3B
WARNING
Use of controls, adjustments or performance
of procedures other than those specified in
this manual may result in hazardous radiation
exposure.
Disconnect device
This product must be installed near an electrical
socket that is easily accessible. In case of
emergencies, you must disconnect the power cord
from the electrical socket to shut off power
completely.
Radio interference
This product complies with EN55022 (CISPR
Publication 22)/Class B.
EU Directive 2002/96/EC and EN50419
This equipment is marked with the above recycling
symbol. It means that all the end of the life of the
equipment, you must dispose of it separately at an
appropriate collection point, and not place it in the
normal domestic unsorted waste stream. This will
benefit the environment for all. (European Union only)
EU Directive 2006/66/EC - Removing or Replacing
the Battery
This product incorporates a battery that is designed to
last for the lifetime of the product. It is not to be
replaced by the user. It should be removed as part of
the machine recycling process at the end of life and
appropriate precautions taken by the recycler.
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
LASER KLASSE 1 PRODUKT

Other Information
14
International ENERGY STAR®Compliance
Statement
The purpose of the International ENERGY STAR®
Program is to promote the development and
popularization of energy-efficient office equipment.
As an ENERGY STAR®Partner, Brother Industries,
Ltd. has determined that this product meets the
ENERGY STAR®guidelines for energy efficiency.

15
Options and Consumables
Options
For more details about the optional compatible SO-DIMM Memory please see the User’s Guide or visit
http://solutions.brother.com/.
Replacement consumables
When the time comes to replace consumable items, an error message will be indicated on the LCD. For more
information about the consumables for your machine, visit http://www.brother.com/original/ or contact your local
Brother re-seller.

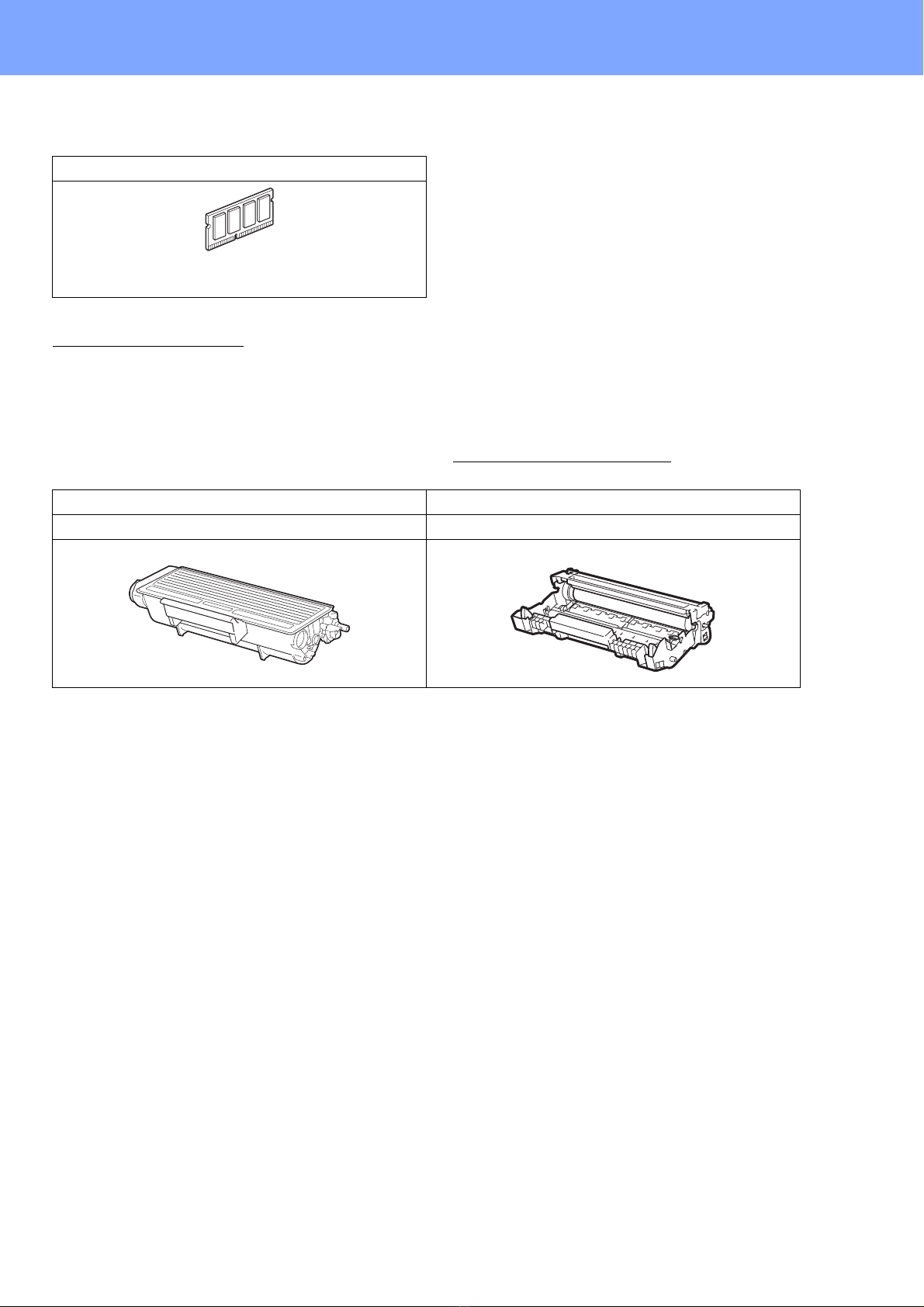

SO-DIMM Memory
You can expand the memory by installing a (144-pin
SO-DIMM) memory module.
Toner cartridge Drum unit
TN-3230/TN-3280 DR-3200

Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd.
Multi-Function Link is a registered trademark of Brother International Corporation.
Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
Microsoft, Windows and Windows Server and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
Apple, Macintosh, Safari and TrueType are trademarks of Apple Inc., registered in the United States and other countries.
Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates
in the United States and/or other countries.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.
All other trademarks are the property of their respective owners.
Compilation and Publication
Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and
specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for
any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other
errors relating to the publication.
Copyright and License
©2009 Brother Industries, Ltd.
