Thank you for buying a quality Brunner product from the na
ex series.
The conference table system with removable T-leg is versatile
and features a modular design that can be exibly extended.
The individual table components can be quickly and easily
connected. A patented mechanism makes frequent, tool-free
dismantling and reassembly a breeze.
Cable ducts that can be folded down and removed without tools
enable perfect media integration. The following instructions
will help you to assemble your na ex table system easily and
conveniently.

THE TABLE SYSTEM: BASIC STRUCTURAL PRINCIPLE
FINA FLEX
This is a rened interplay between elegant shapes, ligree lightness and convincing stability. Between a unique design
statement and a high degree of adaptability to rooms and situations. And it is the perfect addition to nasoft. That's because
na ex represents the systematic evolution of the idea behind the multiple award-winning seating range.
The table system: basic structural principle 2 . 3
OVERVIEW TABLE TOPS
The required table or selected table formation has a signicant impact when selecting a matching table top. We basically
dierentiate between three dierent table top types. The exible conference table system is combined with the removable
T-leg frame.
Table tops for individual tables
are ideally suited to seminar or small conference rooms. Thanks to the recessed connection points for attaching the T-legs,
the table tops with two plate ends oer sucient space for seating on both sides.
Connecting table tops and end table tops
are ideal for slotting in to create table formations. Thanks to their internal connection points, the connecting plates can also
be used as table ends. This is particularly recommended when quickly adapting individual table formations for short-term
use in seminars. The connecting plates can also be used as individual tables if required. We recommend using appropriate
end plates in this position to make best use of the space at the table end.
End table tops with retracted base for table systems
are used in table formations to complete a group of tables. The recessed connection point for the T-leg frees up an additional
seating place at the end of the table and, furthermore, also looks better; thanks to the recessed base, the table looks lighter
and more elegant.

ASSEMBLY INSTRUCTIONS
WINNING FORMULA

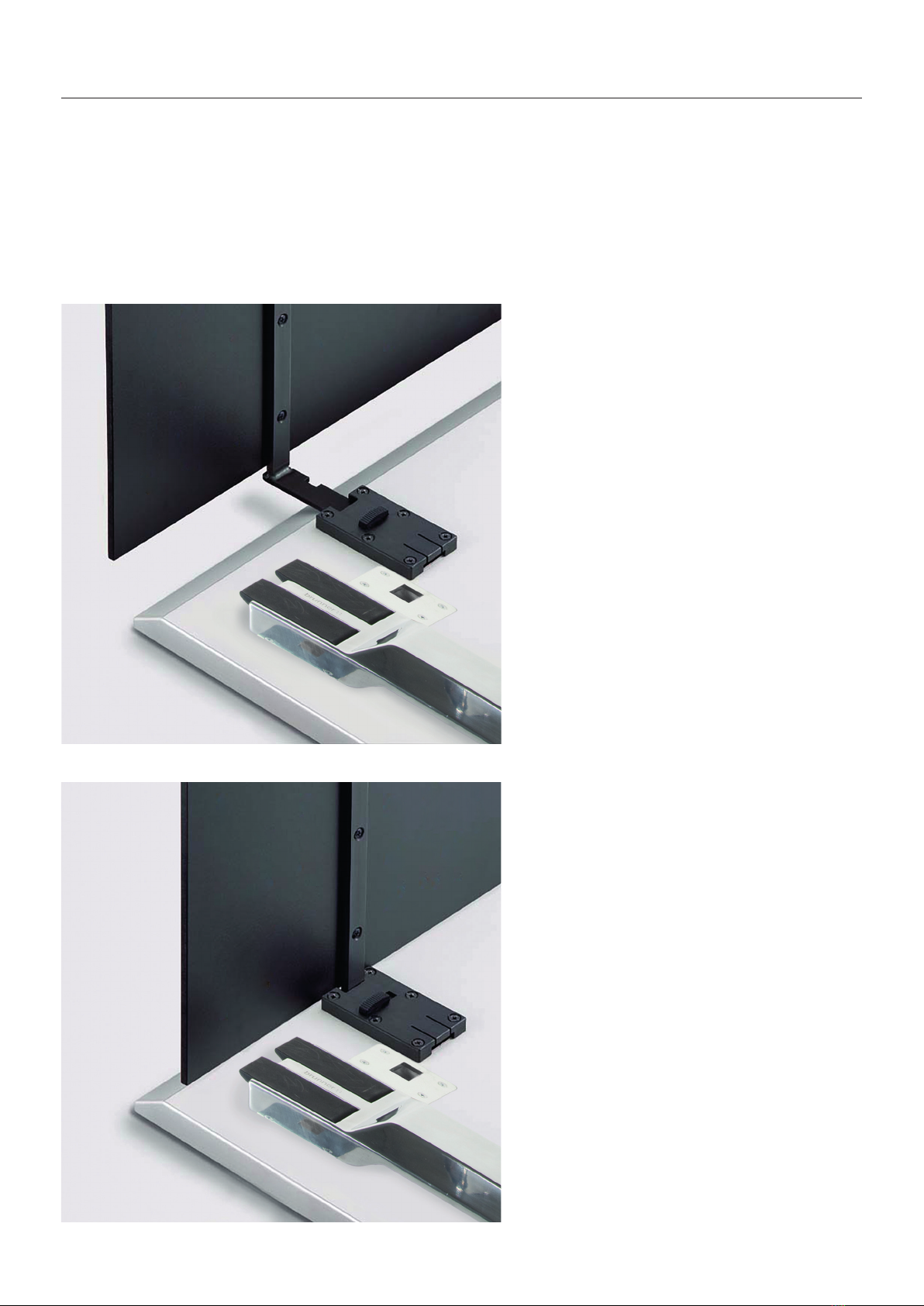

The modular design of the na ex frame. Speedy and stable: when locked, the four ngers of the connection elements
clamp into the metal plates recessed in the table top. Thanks to the patented mechanism, two table tops can be connected
or separated in just a few simple steps, with no need for tools.
Assembly step 1
Place the table top to be mounted (face down) on a
soft base to prevent scratches to the table surface.
Assembly step 2
With table formations, position the T-leg in such a
way that it projects halfway over the table edge and
snaps into two of the recessed connecting points.
Place the second T-leg in the same position on the
other side of the table top. Now close the levers
positioned on the table top on both T-legs, to secure
the bases in place on the table top. Once this has
been done, the table can be carefully turned over
and placed upright on the legs.
With individual tables, position the T-leg
correspondingly in the two internal connecting
points. Closing the levers secures the T-legs onto the
table top.

ASSEMBLY INSTRUCTIONS
Assembly instructions 4 . 5
Assembly step 3
If you have assembled multiple individual tables
and placed them on the legs, you can connect them
to the matching table tops (with the connecting
points on the edge). To do so, position the table
top's connecting point on the corresponding T-leg
brackets (while open) and close both levers to
secure the table top.
Create your required table formation using the right
table top formats, in line with your ideas.
To make small adjustments to the table tops, both
levers must be slightly opened on the table top you
wish to move. After adjusting the table top, close
the lever to lock the table in the desired position.
Important note
Table tops with recessed connecting points, which
do not extend to the edges, can only be used
as individual tables or as end tables and are not
suitable for connecting multiple table elements
using one T-leg.
