Bryton Amis S430 User manual

S430/S630
Quick Start Guide
Gu
i
de de
d
émarrage rapide
S
chnellstartanleitun
g
Guida introduttiv
a
Guía de inicio
ráp
i
do
Aan de sla
g
Hurt
i
gve
j
ledn
i
n
g
Hurti
g
start
g
uide
Guia de consulta
rápida
クイックスタ
ートガイド


Amis S430/S630 Quick Start Guide1
EN
Amis S430/S630
1Up / Backlight (S/ )
• In Menu, press to move
up to scroll through menu
options.
• Press to turn on the
backlight.
3Power / OK / Start / Lap ( / )
• Press to turn the device on.
• In clock view, press to enter the main menu.
• In menu mode, press to enter or conrm a selection.
• When recording, press to mark the lap.
• In clock view, press and hold to turn othe device.
• In any modes, except clock view, press and hold to lock the
Up and Down keys. While the keys are locked, press and hold
to unlock.
2Down (T)
• In Menu, press to move
down to scroll through
menu options.
• In data page view, press to
switch data page screen.
4Back / Pause / Stop ( / / )
• Press to return to the previous page or cancel an operation.
• In data page view, press to pause log. While the recording is
paused, press again to stop.
• In training mode, press to stop recording log.
Note:
• In data page view, quick press twice to stop recording log.
4
10
12:05
18
O
C
09/06
MON
AM
35
3
2
1
Note:
• In swimming mode, the Amis device auto-locks the sensor keys (up and
down keys) to prevent false contact by the water. In order to view the data
page(s), please wipe oexcess water on the surface of the watch and pause
the recording before operating the sensor keys. Press the power key to resume
the recording while pausing. We highly recommend to lock the sensor keys in
humid environment.

Amis S430/S630 Quick Start Guide 2
EN
Accessories
The Amis S430/S630 comes with the following accessories:
Amis S430 Amis S630
In the box
Device  
Magnet Charging Clip  
Quick Start Guide  
Warranty and Safety Booklet  
Optional items
Speed & Cadence Dual
Sensor  (Amis S630 R)
Heart Rate Monitor Set (Amis S430 H) (Amis S630 H,
Amis S630 R)
Heart Rate Chest Strap (Amis S430 H) (Amis S630 H,
Amis S630 R)
Bike Mount  (Amis S630 R)
Adaptors  
For more information about purchasing optional accessories,
please go to Bryton Eshop http://www.brytonsport.com/eshop or
contact your Bryton dealer.

Amis S430/S630 Quick Start Guide3
EN
Initial Setup
Step 1: Charge the Battery
Warning:
This product contains a lithium-ion battery. See the Warranty and
Safety Information guide in the package for important battery
safety information.
Charge the device for at least 4 hours before you start using it.
1. Attach the magnet charging clip onto the device.
2. Plug the other end of the magnet charging clip to a computer.
10
18
O
C
09/06
MON
3
10
12:05
18
O
C
09/06
MON
AM
35
Step 2: Turn On the Device
Turn On/O
• To turn on the device, press / .
• In clock view, press and hold / to turn othe device.
Step 3: Initial Setup
When turning the device on for the rst time, the setup wizard
appears on screen. Follow the instructions to complete setup.
1. Select the display language.
2. Select the unit of measurement.
3. Enter your user prole (gender, date of birth, height, weight,

Amis S430/S630 Quick Start Guide 4
EN
maximum heart rate, lactate threshold heart rate, race time).
Note:It is recommended to input the data since data accuracy will highly aect
your training analysis.
4. Scan the QR code with your phone to download the Bryton
Mobile APP.
Note:
• The Amis S430/S630 was designed to wirelessly sync your data in the
background using Bluetooth Smart.
• For more instructions, please refer to“Share Your Records”section. Bluetooth
Smart and WiFi-enabled mobile phone is required. Android 4.3 or above.
5. Read and accept the Safety Agreement.
• Press Sand Tkey to read the Safety Agreement.
• Press / to accept the Safety Agreement.
Step 4: Acquire Satellite Signals
Once the Amis S430/S630 is turned on, it will automatically search
for satellite signals. While the device is searching for satellite
signals, the screen may display:
• Reposition
No GPS signal or GPS signal is weak. Under this
environment, it is very dicult to get GPS
position x. This status usually happens when
you’re in urban area or close to buildings. Please
move to an open area to acquire better GPS
reception.
• Searching
GPS should be able to acquire position in few
minutes. When ( ) appeared, it is recommend
to move to an open area until ( ) is displayed
to acquire as many satellites as possible.
Pls Reposition
Searching

Amis S430/S630 Quick Start Guide5
EN
• Fixed
GPS position is xed. The screen will
automatically enter data page.
Note:
• For a more accurate measurement the rst time you use the device, please
stay outdoor for at least 10 minutes with no obstructions overhead before
performing a GPS search.
• If you are unable to get the GPS reception after 5 minutes or more, try again at
another location.
• For more information on receiving GPS signals, refer to“Receiving GPS Signals”
section.
Download Bryton Update Tool
Note:Bryton Update Tool can notify you if a new software version or GPS data
is available. The newer GPS data can speed up the GPS acquisition. We highly
recommend you to check for updates every 1-2 weeks.
1. Go to http://www.brytonsport.com/help/start and download
Bryton Update Tool.
2. Follow the on-screen instructions to install Bryton Update Tool.
Share Your Records
Share Your Tracks to Brytonsport.com
1. Sign up/log in on Brytonsport.com
a. Go to http://www.brytonsport.com/help/start.
b. Register a new account or use your current Bryton account
to log in.
Note:Bryton account is the email address used to register as a member of
brytonsport.com.
Fixed

Amis S430/S630 Quick Start Guide 6
EN
2. Connect to PC
Turn on your Amis S430/S630 and connect it to your computer
by using USB cable.
3. Share Your Records
a. Go to http://www.brytonsport.com/help/landing. Click
“Upload Files”button. Then, click“Select from Files”.
b. Choose to save as“History”. Then, click“Select and Upload
les”.
c. Select FIT les from Bryton folder in the device.
Share Your Tracks via Bryton Sports APP
When using the device for the rst time, please download Bryton
Mobile APP and pair your mobile phone with Amis S430/S630.
Note:
• You can also scan QR code here or go to
corp.brytonsport.com/app/sports to download
Bryton APP.
• You need to install the Bryton APP to enable the
notication feature.
a. Go to Settings > General >
Bluetooth > Pairing.
b. Use mobile phone to scan QR
code to download Bryton APP.
Pairing
Next

Amis S430/S630 Quick Start Guide7
EN
c. Install the Bryton APP. d. Press / and leave Amis
device with the“Waiting for
pairing”.
e. Sign up/log in on Bryton APP
Register a new account or use your
current Bryton Account to log in.
Note:Bryton Account
is the email address
that you used to
register a member of
brytonsport.com.
f. Make sure Bluetooth on mobile
phone and Amis are turned on.
g. Pairing your mobile phone with
Amis
Select Setting > Bluetooth >
Pairing. Once the Amis appears on
the list, select it to pair.
Note:The pairing process is required
only one time. Once completed, your
Amis and mobile phone will remain
paired.
h. Later, tap Sync with device,
the workout records will sync to
Bryton APP.
Pairing
waiting for pairing
Bryton mobile app
INSTALLING...
Pairing
waiting for pairing

Amis S430/S630 Quick Start Guide 8
EN
Status Page
Fixed
Battery level
Bike Type(Amis S630 only)
Log recording
GPS positioning status
Combo sensor indicator (Amis S630 only)
Heart rate sensor indicator
GPS signal status
Icon Description
GPS Signal Status Running mode
No Signal Log recording in progress
Poor * Recording is paused
Fair ** Bluetooth function is enabled
Good ** Alarm
GPS Positioning/Function Status Lock up and down key
No signal (not xed) Power Status
Weak Full battery
Normal Half battery
Good Low battery
Heart rate sensor active Battery depleted
Cadence sensor active (Amis S630 only) Battery charging
Speed sensor active (Amis S630 only)
Combo sensor active (Amis S630 only)
1Cycling mode (Amis S630 only)
Swimming mode (Amis S630 only)
Note:
• Only the active icons are displayed on the screen.
• When the speed & cadence dual sensor is activated, the sensor icon will appear
at the speed sensor icon position.
*Please go to an open area for better reception.
** When blinking, this indicates the device is still searching for the GPS signal.

Amis S430/S630 Quick Start Guide9
EN
Receiving GPS Signals
• Amis implements a status page to indicate current GPS signal
strength. After position-x is done, you can still check GPS status
at data page by inspecting the icon located at up-right corner.
Trip Time
Total Dist.
11
00:31:00
Cycling
k
m
k
m
Trip Time
Total Dist.
11
00:31:00
Cycling
k
m
Total Dist.
11
00:31:00
Cycling
Trip Time
GPS signal is weak.
The satellite condition is only sucient
for position-x. This situation may not
be sustained if your sky-view changes,
such as going to the obstructed
environments.
GPS signal is normal.
Adequate for normal use.
GPS signal is good.
• The best way to allow GPS get your position is to wear the watch
on your wrist, with the watch surface facing up. Please do not let
the antenna facing down or cover it with hand.
Searching
Searching
• Please avoid the obstructed environments since they might
aect the GPS reception.
Tunnels Inside rooms,
building, or
underground
Under water High-voltage
wires or television
towers
Construction sites
and heavy trac

Amis S430/S630 Quick Start Guide 10
EN
Troubleshooting
Getting More Information
Go to http://corp.brytonsport.com > Support.
Getting the User’s Manual
To download User’s Manual, please go to
http://corp.brytonsport.com > Support > Download.
Reset Amis S430/S630
Press and hold the two buttons ( / and / / ) at the
same time until the device restarts.
Appendix

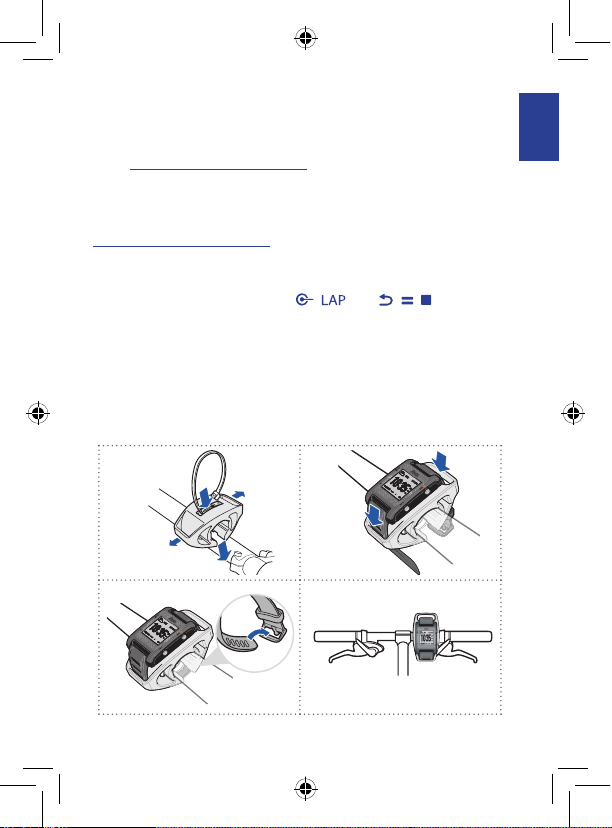

Installing the Bike Mount (Amis S630 only)
To mount Amis S630 onto your bike, do the following:
1
2
3
4

Amis S430/S630 Quick Start Guide11
EN

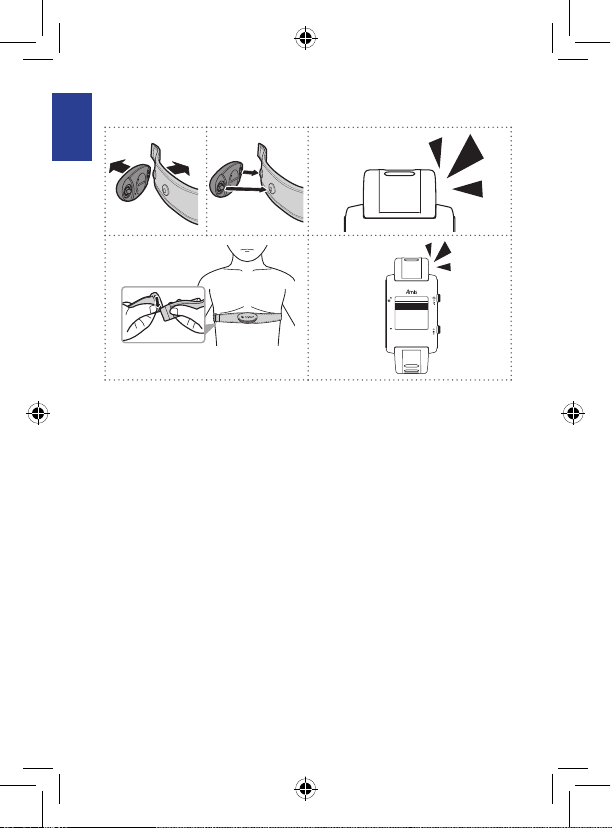

Installing the Heart Rate Monitor
C
L
O
S
E
O
P
E
N
Sensors
Heart Rate
1
2
3
4
5
C
L
O
S
E
O
P
E
N
Sensors
Heart Rate
Note:
• Adjust the sensor position to the middle part of the body. The belt should be
worn under the chest and directly on your body. The Bryton logo shown on the
sensor should be facing upward. Tighten the elastic belt rmly so that it will not
turn loose during the exercise.
• In cold weather, wear appropriate clothing to keep the heart rate belt warm.
• If the sensor cannot be detected or the reading is abnormal, please wet the
electrodes area with water as shown in the step 3 or warm up the heart rate
sensor for about 5 minutes.
• If the heart rate belt is not used for a period of time, remove the sensor from the
heart rate belt to prevent the battery from running at.
• Heart rate sensor does not work under water. This is common to all ANT+
sensors.
• For triathlon, it is recommended to wear Heart rate belt after swimming as water
will reduce the strength of heart beat signal. If the heart rate belt is wore before
swimming, heart rate data may not be properly recorded after leaving the water
for a period of time.
• The Amis devices and heart rate monitor (HRM) are waterproof. However, the
wireless signal does not transmit through water and as a result, this disrupts the
data communication between the device and the HRM.

Amis S430/S630 Quick Start Guide 12
EN
Installing the Speed/Cadence Dual Sensor
(Amis S630 only)
CAD
SPD
CAD
SPD
1
2
SPD
CAD
3
4
CAD
3
mm
CAD
5
6
Speed/CAD
Rescan
Turn Off
CAD
SPD
Sensors
Speed/CAD
SPD
3
mm
• Rescan: rescan
to detect the
sensor.
• Turn O: disable
the sensor.

Amis S430/S630 Quick Start Guide13
EN
Note:
• Align both sensor and magnet as shown in the illustration (3) and (4). Pay
attention on the alignment points.
• Ensure the distance between the sensor and the magnet is within 3 mm.
• On the initial usage, do the following:
(1) Press the button. The LED blinks from red to green, indicating the sensor
is working.
(2) Start pedaling.
(3) When the cadence magnet comes across the sensor, the red LED blinks.
When the speed magnet comes across the sensor, the green LED blinks.
(4) The LED blinks only for the rst 10 passes after pressing the button.
(5) If you want to check the alignment status after 10 passes, just press the
button and repeat Step 1 to 4.
Specications
Amis S430
Item Description
Display 1.28" Mono LCD
Dimensions 46.6(L) x 36.6(W) x 13.0(T) mm
Weight 47g
Operating temperature -10°C ~ 50°C
Battery charge
temperature
0°C ~ 40°C
Battery life • Up to 180 days in clock mode
• Up to 16 hours in exercise mode in
open-sky environment
GPS Integrated high-sensitivity receiver with
embedded antenna
Radio Frequency • 2.4 GHz ANT+ receiver with embedded
antenna
• Bluetooth Smart wireless technology
with embedded antenna
G-Sensor 3-axis acceleration sensor

Amis S430/S630 Quick Start Guide 14
EN
Amis S630
Item Description
Display 1.28" Mono LCD
Dimensions 46.6(L) x 36.6(W) x 13.0(T) mm
Weight 47g
Operating temperature -10°C ~ 50°C
Battery charge
temperature
0°C ~ 40°C
Battery life • Up to 180 days in clock mode
• Up to 16 hours in exercise mode in
open-sky environment
GPS Integrated high-sensitivity receiver with
embedded antenna
Radio Frequency • 2.4 GHz ANT+ receiver with embedded
antenna
• Bluetooth Smart wireless technology
with embedded antenna
G-Sensor 3-axis acceleration sensor
Heart Rate Monitor Set
Item Description
Physical size 67~100 x 26 x 15 mm
Weight 14 g (sensor) / 35g (strap)
Water Resistance 20m
Transmission range 5m
Battery life 1 hour per day for 24 months
Operating temperature 5°C ~ 40°C
Radio frequency/
protocol
2.4GHz ANT+ wireless communication
protocol

Amis S430/S630 Quick Start Guide15
EN
Speed & Cadence Dual Sensor
Item Description
Physical size 32.5 x 20.2 x 60mm (body)
Weight 30g
Water Resistance 20m
Transmission range 5m
Battery life 1 hour per day for 1.4 years
Operating temperature -10°C ~ 60°C
Radio frequency/
protocol
2.4GHz ANT+ wireless communication
protocol
Accuracy may be degraded by poor sensor contact, electrical interference, and
receiver distance from transmitter.

Guide de mise en route Amis S430/S630 16
FR
Amis S430/S630
1Haut / Rétroéclairage
(S/ )
• Dans le Menu, appuyez
pour aller vers le haut dans
les options du menu.
• Appuyez pour allumer le
rétroéclairage.
3Marche / OK / Démarrer /Tour ( / )
• Appuyez pour allumer l'appareil.
• En vue Horloge, appuyez pour entrer dans le menu principal.
• En le mode menu, appuyez pour entrer ou conrmer votre
sélection.
• Lorsque vous enregistrez, appuyez pour marquer le tour.
• En vue Horloge, appuyez et maintenez pour éteindre l'appareil.
• Dans tous les modes, sauf la vue Horloge, appuyez et
maintenez pour verrouiller les touches Haut et Bas. Lorsque
les touches sont verrouillées, appuyez et maintenez pour
déverrouiller.
2Bas (T)
• Dans le Menu, appuyez pour
aller vers le bas dans les
options du menu.
• Dans la vue Page de données,
appuyez pour basculer l'écran
de la page de données.
4Retour / Pause / Stop ( / / )
• Appuyez pour retourner à la page précédente ou pour
annuler une opération.
• Dans la vue Page de données, appuyez pour mettre
l’enregistrement sur pause. Quand l'enregistrement est en
4
3
2
1
Remarque :
• En mode de natation, l'appareil Amis verrouille automatiquement les touches
de capteur (les touches haut et bas) pour protéger contre des faux contacts par
l'eau. Pour acher la page(s) des données, veuillez essuyer l'excès d'eau sur la
surface de la montre et pauser l'enregistrement avant d'utiliser les touches de
capteur. Appuyez sur la touche d'alimentation pour continuer l'enregistrement
lorsqu'il est pausé. Nous vous recommandons fortement de verrouiller les
touches de capteur dans les endroits humides.

Guide de mise en route Amis S430/S63017
FR
pause, appuyez à nouveau pour arrêter.
• En mode Entraînement, appuyez pour arrêter l'enregistrement
du journal.
Remarque :
• Dans la vue Page de données, appuyez rapidement pour arrêter l’enregistrement.
Accessoires
Le Amis S430/S630 est livré avec les accessoires suivants :
Amis S430 Amis S630
Dans la boîte
Appareil ✓ ✓
Clip de chargement
magnétique ✓ ✓
Guide de démarrage rapide ✓ ✓
Garantie et guide de sécurité ✓ ✓
Éléments optionnels
Double capteur vitesse et
cadence ✘✓(Amis S630 R)
Ensemble moniteur de
fréquence cardiaque
(capteur+ceinture)
✓(Amis S430 H) ✓(Amis S630 H,
Amis S630 R)
Ceinture de fréquence
cardiaque ✓(Amis S430 H) ✓(Amis S630 H, Amis S630 R)
Support de vélo ✘✓(Amis S630 R)
Adaptateurs ✓ ✓
Pour plus d’informations sur l’achat d’accessoires optionnels, veuillez
visiter la boutique en ligne Bryton Eshop http://www.brytonsport.
com/eshop ou contactez votre revendeur Bryton.

Guide de mise en route Amis S430/S630 18
FR
Conguration initiale
Etape 1 : Charger la batterie
Avertissement :
Ce produit contient une batterie au Lithium. Consultez le guide de
garantie et de sécurité dans cet emballage pour les informations
importantes relatives à la sécurité de la batterie.
Chargez l'appareil pendant au moins 4 heures avant de commencer
à l'utiliser.
1. Attachez le clip de chargement magnétique sur l'appareil.
2. Branchez l'autre extrémité du clip de chargement magnétique
sur un ordinateur.
Etape 2 : Allumer l'appareil
Allumer/éteindre
• Pour allumer l'appareil, appuyez sur / .
• En vue Horloge, appuyez et maintenez / pour éteindre
l'appareil.
Etape 3 : Conguration initiale
A la première mise sous tension de l'appareil, l'assistant de
conguration apparaît sur l'écran. Suivez les instructions pour
eectuer la conguration.
1. Choisissez la langue de l’achage.
2. Choisissez l'unité de mesure.

Guide de mise en route Amis S430/S63019
FR
3. Entrez votre prol utilisateur (sexe, date de naissance, taille,
poids, fréquence cardiaque maximale, taux lactate du coeur,
temps de course).
Remarque : Il est recommandé d'entrer les données puisque leur précision va
grandement aecter l'analyse de votre entraînement.
4. Scannez le QR code avec votre téléphone pour télécharger l'APP
Bryton Mobile.
Remarque :
• Amis S430/S630 a été conçu pour synchroniser sans l vos données en
arrière-plan en utilisant Bluetooth Smart.
• Pour plus d'informations, veuillez vous référer à la section "Partager vos
données". Un téléphone mobile doté de Bluetooth Smart et avec WiFi activé
est requis. Android 4.3 ou plus
5. Lisez et acceptez l'accord relatif à la sécurité.
• Appuyez sur les touches Set Tpour lire le contrat de sécurité.
• Appuyez sur / pour accepter le contrat de sécurité.
Etape 4 : Acquérir les signaux des satellites
Une fois que le Amis S430/S630 est allumé, il recherche
automatiquement les signaux de satellite. Lorsque l'appareil est
en train de chercher les signaux de satellite, l'écran peut acher :
• Déplacer
Pas de signal GPS ou signal GPS très faible.
Dans cet environnement, il est très dicile
d'obtenir une position GPS. Cet état se produit
généralement lorsque vous êtes dans une ville
ou à proximité de grands bâtiments. Veuillez
aller dans un endroit dégagé pour obtenir une
meilleure réception GPS.
• Recherche
Un signal GPS doit être normalement obtenu
après quelques minutes. Lorsque ( ) est
apparaît, il est recommandé d'aller dans une
zone ouverte jusqu'à ce que ( ) s'ache pour
obtenir autant de satellites que possible.
Déplacer
Recherche
