BT DIVERSE 3010 CLASSIC User manual

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Diverse 3010 Classic
Digital Cordless Telephone
This equipment is not designed or making emergency telephone calls when the power ails.
Alternative arrangements should be made or access to emergency services.
This product is intended or connection to analogue public switched telephone networks
and private switchboards in the United Kingdom.
User Guide
*YOU MUST SUBSCRIBE TO A CALLER
DIS LAY AND CALL WAITING
SERVICE BEFORE YOUR DIVERSE
3010 CLASSIC WILL
DIS LAY CALLER
INFORMATION
Diverse 3010 User Guide 22/3/01 1:32 pm Page 1

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱
0

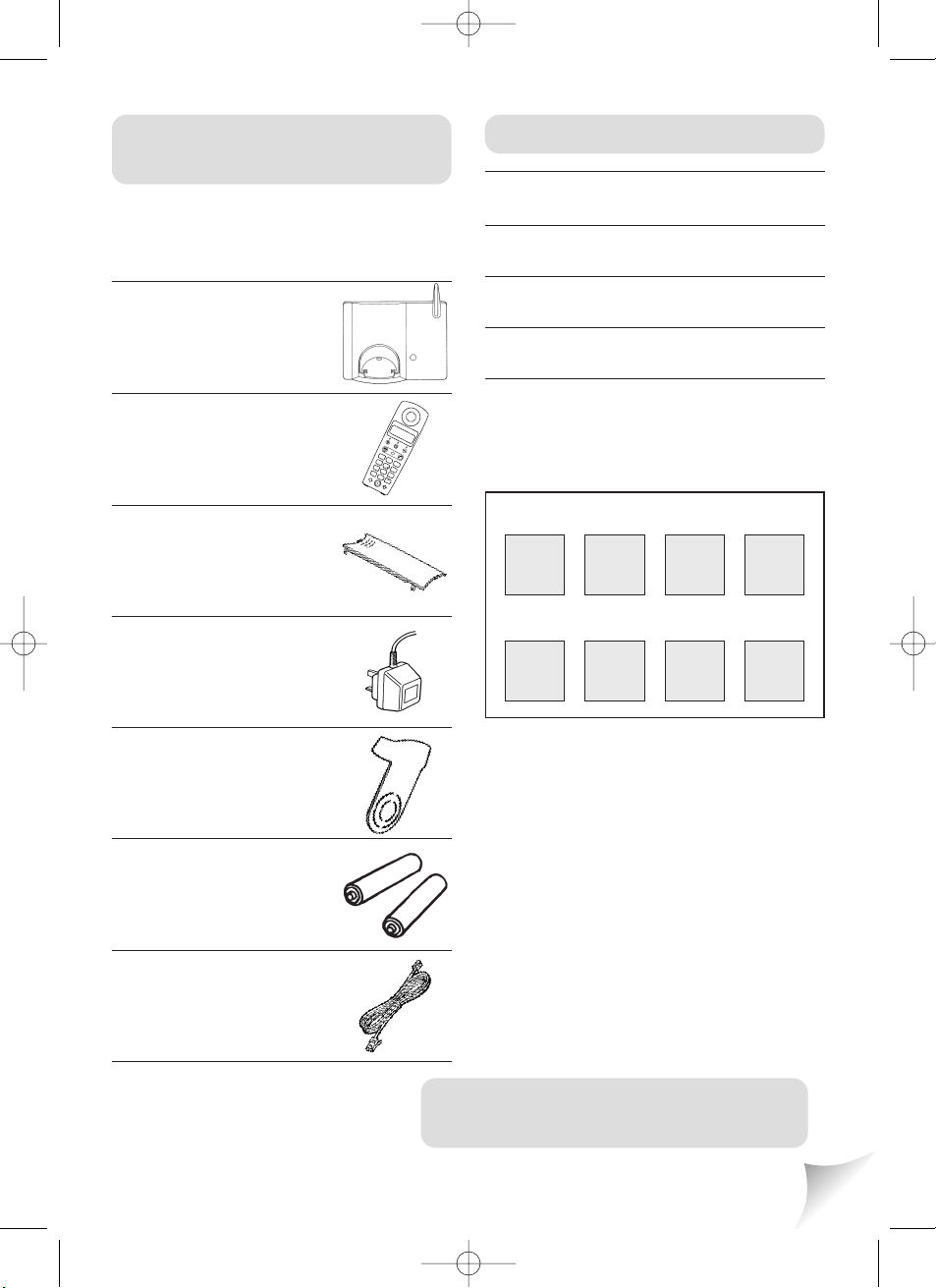

If anything is missing. please contact
your place of purchase immediately.
Diverse 3010
base station.
Diverse 3010 Classic
handset.
Battery compartment
cover.
Power adaptor.
Belt Clip
Two nickel cadmium
(Ni-Cad) rechargeable
batteries.
Telephone line cord.
For your records
Date of purchase:
Place of purchase:
Serial number:
Purchase price:
For guarantee purposes, proof of
purchase is required, so please keep
your receipt.
See page 26 for more information about
your handset PIN.
Base Station PIN Number:
Handset PIN Number:
Unpacking your
Diverse 3010 Classic
Please open this page for an ‘At a glance’
guide to your Diverse 3010 Classic
Diverse 3010 - Foldout 1 22/3/01 1:50 pm Page 1

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Please open this pa e for a ‘Further at a
lance’ uide to your Diverse 3010 Classic.
Diverse 3010 - Foldout 2 22/3/01 1:49 pm Page 2

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
At a glance
Display
Displays the status of
your handset.
Memory
Enables speed dialling
of numbers stored in the
memory.
Redial
Lets you redial the last
five external numbers
you called.
Intercom
Enables internal calls
and call transfer
between handsets.
Green phone
For making and
answering calls.
Key lock
Lets you lock (and
unlock) the keypad to
prevent accidentally
pressing buttons.
Confirmation (OK)
Lets you confirm
settings.
Delete
Deletes digits shown on
the display.
Recall
For use with
switchboards and BT
Select Services.
Also, press and hold
down to enter a Pause
in a stored number.
Keypad
Red phone
Press to end a call.
Power
Press and hold down to
switch off the handset.
Press and hold down
again to switch back on.
Set
Lets you access your
phone’s functions.
Used to store numbers
in the memory.
1
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
Diverse 3010 - Foldout 2 22/3/01 1:49 pm Page 1

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Base station
Handset display
Display buttons
The top three buttons
are also used with icons
on the display
Scroll backwards
Scroll forwards
Confirm – OK.
OK
2
Base page button
Contact points
Aerial
Diverse 3010 - Foldout 1 22/3/01 1:50 pm Page 2

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Diverse 3010 User Guide 22/3/01 1:32 pm Page 2

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
3
In this guide
At a glance 1
Quick guide 4
Quick reference display 5
Introducing the
Diverse 3010 Classic 6
Building up a phone system 6
afety instructions 7
etting up 9
Using your
Diverse 3010 Classic 13
On and off modes 13
Making and receiving calls 13
Making and transferring
calls between handsets 16
Using the memory to store
and dial numbers 19
Using Caller Display
and Call Waiting 22
Telephone security 26
Base station and handset IN 26
Emergency numbers 29
Call barring and call enabling 30
Additional features 32
Adjusting volumes
and tones 32
Call allocation 37
Using your Diverse 3010
Classic with a switchboard 40
Setting to Tone or ulse dialling 40
Entering access codes 41
Registering a new
Diverse 3000 handset
with the base station 43
Using multiple base
stations and handsets 45
General information 48
Guarantee 48
Technical information 49
Help 50
Index 53
Hints and tips boxes
In this user guide, we’ve included
helpful tips and important notes.
They are shown in boxes like this.
Diverse 3010 User Guide 22/3/01 1:32 pm Page 3

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Hold down for 1 second until you hear a long beep.
Hold down for 1 second until you hear a long beep.
to display last 5 numbers
0-9 location
e.g.
microphone off. microphone on.
then the handset no., eg 3.
then the handset no,. eg 2
then the handset no., eg 3to end the internal call.
R
INT
✱
INT
INT
INT
R
INT
2
ABC
0
1
2
ABC
#
Switch the handset
on and off
Switch keypad lock
on and off
Answer a call
Make an external call
End a call
Redial a number
Store a number in
the memory
Dial a number from the
Caller Display calls list
Adjust the handset olume
Secrecy
Call another handset
Transfer a call
Call all handsets
Put an external caller on
hold while you make an
internal call
Quick Guide
Information for the handset settings.
4
Diverse 3010 User Guide 22/3/01 1:32 pm Page 4

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Indicates an active signal with the base station.
Warning – you are going out of range of the base station or handset
is not registered to the base station.
Shows status of battery.
You have new calls listed in your Caller Display list.
Off hook.
EXT Connecting to an external caller.
INT Connecting to another handset registered to the base.
Handset locked.
PPause.
ABase station.
—
—
—Blank space.
Star button.
—— Hash button.
Recall button.
Telephone PIN.
---- Keypad locked.
----
----
JIndicates that the call in your caller display calls list was answered.
––
–
–
––
–
–
––
–
–
–
–
–
P
–
Quick Reference
Handset Display
✱
#
R
5
Diverse 3010 User Guide 22/3/01 1:32 pm Page 5

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
6
Please read the instructions carefully
before use and retain this user guide
for future reference.
Building up a phone
system
You can use up to six handsets on each
Diverse base station, up to four base
stations can be used with each Diverse
handset. Although this user guide
applies to both single and multiple
handset systems, some functions
described in this guide apply only to
Diverse 3010 Classic phones with more
than one handset connected.
Introducing the
Diverse 3010 Classic
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
R
INT
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
#
✱0
Note
As this product is rechargeable, it is
normal that a certain amount of heat
will be produced in its day-to-day
operation. Whilst this is entirely safe
we would advise against placing this
product on antique, veneered or
wooden surfaces as damage may occur.
INTRODUCTION
Diverse 3010 User Guide 22/3/01 1:32 pm Page 6

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
7
afety instructions
SAFETY INSTRUCTIONS
General
For the handset use only approved
nickel-cadmium (NiCad) or nickel-
metal hydride (NiMH) rechargeable
batteries. Never use other batteries or
conventional alkaline batteries. They
could lead to a short circuit or destroy
the battery casing. Recommended
batteries should have a power rating of
at least 600mAh 1.2V. Batteries are
available from the Diverse Helpline
08457 908070.
Only use the power supply included
with the product. Using an
unauthorised power supply will
invalidate your guarantee and may
damage the telephone. The item
number for the mains power supply is
C39 280-Z4-C174/..-C67.
If Keyguard is active, it is still possible
to make emergency calls to 999 and
112.
Do not open the handset or base
station. This could expose you to high
voltages or other risks. Contact the
helpline for all repairs.
Radio signals transmitted between the
handset and base may cause
interference to hearing aids.
This product should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
Never dispose of batteries in a fire.
There is a serious risk of explosion
and/or the release of highly toxic
chemicals.
Cleaning
Simply clean the handset and base
station with a damp (not wet) cloth, or
an antistatic wipe. Never use household
polish as this will damage the product.
Never use a dry cloth as this may cause
a static shock.
Environmental
Do not expose to direct sunlight.
The product may heat up when the
batteries are being recharged. This is
normal. However, we recommend that
you do not place the product on
antique/veneered wood to avoid
damage.
Do not stand your product on carpets
or other surfaces which generate
fibres, or place it in locations
preventing free flow of air over it’s
surfaces.
Do not submerge any part of your
product in water and do not use it in
damp or humid conditions, such as in
bathrooms.
Diverse 3010 User Guide 22/3/01 1:32 pm Page 7

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Approved rechargeable batteries
Nickel-Cadmium (NiCd)
Sanyo N-3U (700 mAh)
GP GP60AAKC (600 mAh)
Varta 751RS (700 mAh)
Mobile Power 700 (700 mAh)
Panasonic 600 DT (600 mAh)
Nickel-Metal Hydride (NiMH)
Sanyo H-3 U (1500 mAh)
GP GP130 AA HC (1300 mAh)
GP GP150 AA HC (1500 mAh)
Varta VH 1101 or
Phone Power (1000 mAh)
Panasonic HHR-110 AA (1100 mAh)
Friwo NiMH (1400 mAh)
Toshiba TH-1200 AARE (1200 mAh)
Do not expose your product to fire,
explosive or other hazardous
conditions.
There is a slight chance that your
phone could be damaged by an
electrical storm. We recommend that
you unplug the power and telephone
line cord for the duration of the storm.
SAFETY INSTRUCTIONS
8
Diverse 3010 User Guide 22/3/01 1:32 pm Page 8

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722

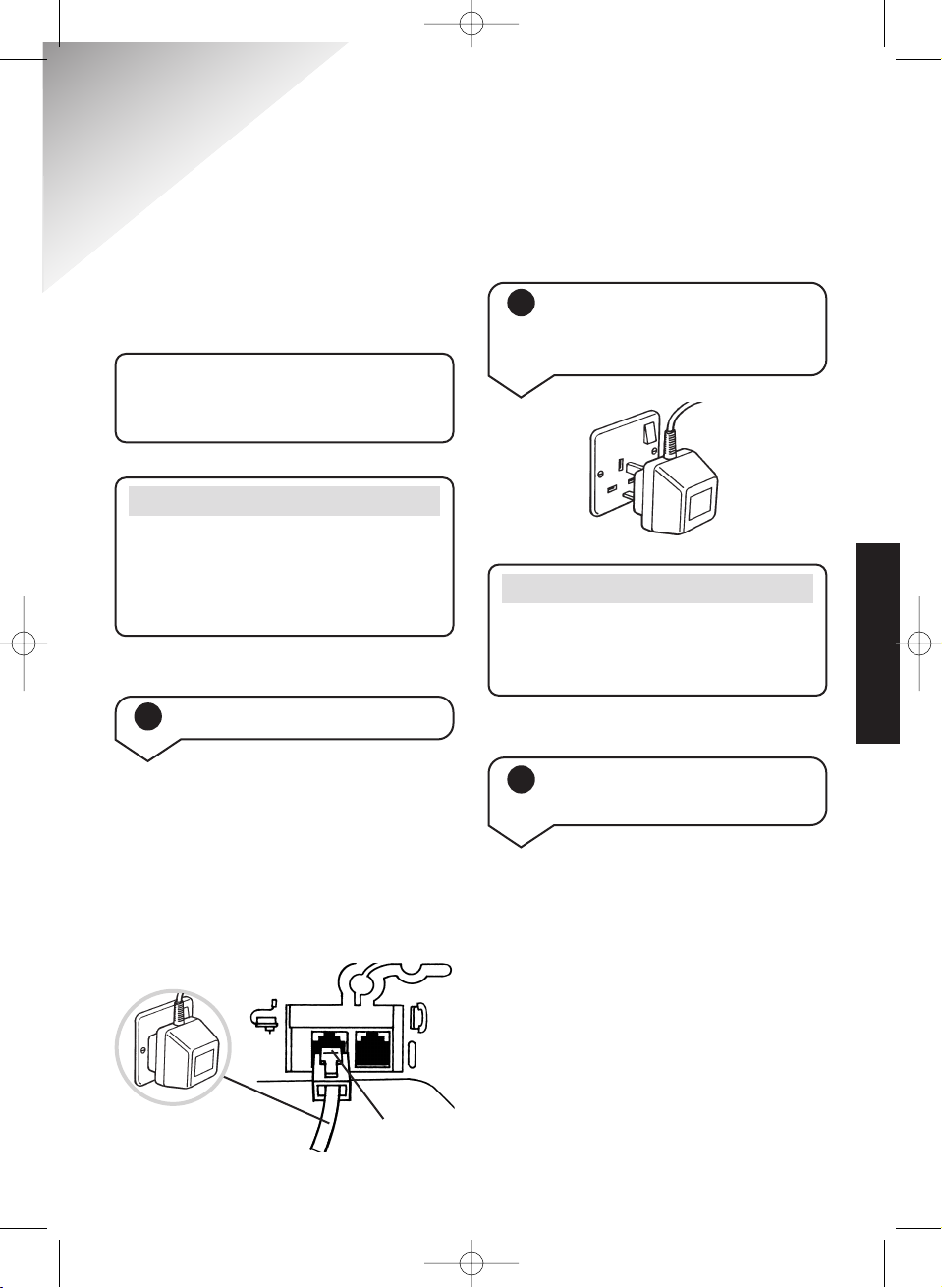

1Connect the power cable
Plug the power cable into the power
socket on the underside of your
Diverse 3010 Classic. Take care that
the telephone line cord and power
cable plugs are connected to the
correct sockets. Incorrect placement
could damage the station.
9
Follow these steps to get your
Di erse 3010 Classic ready for use.
Note
Plan where you will put your Diverse
3010 Classic. It should be within two
metres of a power socket and the
phone socket.
Note
Use only the power adaptor
C39 280-Z4-C174/..–C67 with your
Diverse 3010 Classic.
2lug the 3 pin adaptor
into a mains power socket
and switch on
3Install the rechargeable
batteries in the handset
The handset uses the two AA size nickel
cadmium (NiCad) batteries, which are
supplied. To install them, insert the
batteries as indicated on the inside of the
battery compartment (or in the picture
on the next page) and slide the battery
compartment cover shut.
Your handset is already “registered”
to the Diverse 3010 Classic base
station.
Red socket
etting up
SETTING UP
Diverse 3010 User Guide 22/3/01 1:33 pm Page 9

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
Place the handset on the base.
When charging the battery level
symbol shown on the display flashes.
10
Battery display when inserting
or replacing a battery
When you replace the handset batteries
with ones that have been fully charged,
the battery indicator will not show full
until the next charge cycle has been
completed. Charge the handset until
the batteries register full again. From
then on the display will be correct.
Battery performance
After charging your Diverse 3010
Classic for the first time, subsequent
charging time for the handset batteries
is approximately 4-5 hours. Batteries and
case may become warm during charging.
This is normal.
Note
Under ideal conditions, the handset
batteries should give about 10 hours
talktime or 100 hours standby on a
single charge. However, new NiCad
batteries do not reach their full capacity
until they have been in normal use
for several days.
Please note that the lifespan of NiCad
rechargeable batteries depends on how
heavily they are used. However, over
time, their capacity to recharge will
begin to diminish and they will
eventually need replacing.
Slide battery cover down and lift off.
The battery compartment cover may be
found in the packaging with the batteries.
4Fit the handset belt clip
Fit the belt clip onto the back of the
handset.
TTaabb
SSlloott
5When charging for the
first time, we recommend
that you let the batteries
charge for the full 16
hours before making or
receiving calls
SETTING UP
Diverse 3010 User Guide 22/3/01 1:33 pm Page 10

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
11
WARNING
It is recommended that the line cord
is not connected until the handset is
fully charged. This will prevent the
risk of the phone being answered prior
to the batteries being fully charged
and therefore not achieving their
optimum capacity.
Note
If you go out of range of a base station
for a long time while your handset is
switched ON, it may take more than
20 minutes to ‘find’the base station
again when you come back within
range. However, by simply switching
the handset OFF for a moment, then
ON again, it will find the base station
within a few seconds.
If flashes continuously
It means the handset is either out of
range or is not registered with the
base station. To register, follow the
steps on page 43. All additional
handsets you purchase will need to be
individually registered with the base
station before they will work on the
Diverse 3010 Classic.
The may also flash after a power
failure. Provided the handset has been
registered with the base the will
stop flashing after a while indicating
the handset has automatically
re-registered to the base station. If it
continues to flash, re-register the
handset to the base station.

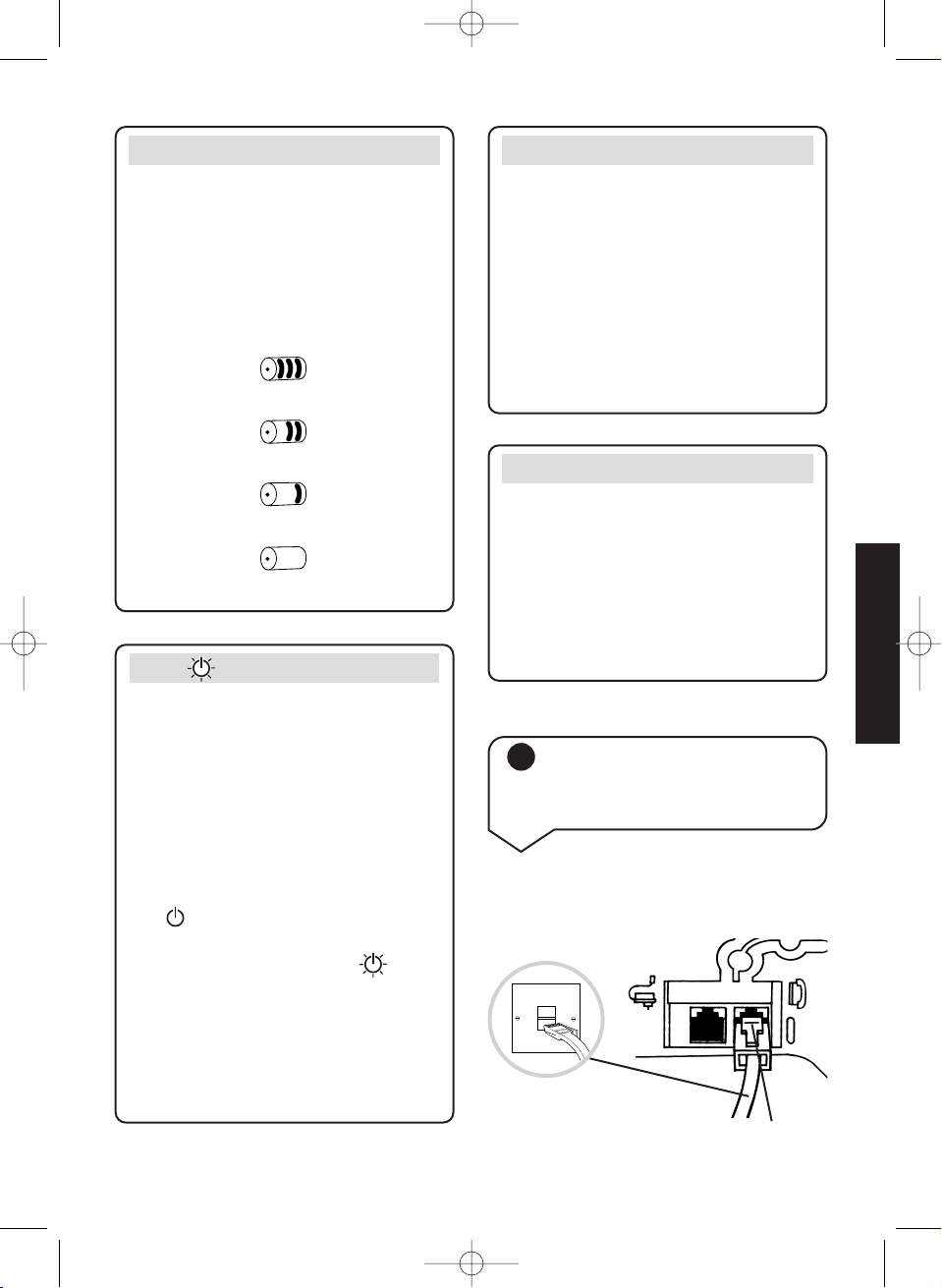

Battery low warning
An LCD on the handset display shows
the current state of the charge. When
the batteries are almost flat a beep
sounds and the display shows the empty
battery symbol. Displays showing the
various states of charge are shown
below:
Batteries fully charged
Batteries at 66%
Batteries at 33%
Batteries empty
6Connect the telephone
line cord to the Diverse
3010 Classic base station
Ensure that this is fitted correctly into
the right socket.
Dark blue socket
SETTING UP
Diverse 3010 User Guide 22/3/01 1:33 pm Page 11

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
12
7lug your Diverse 3010
Classic into the phone
socket
8lease remove the
protective film from the
display
SETTING UP
Diverse 3010 User Guide 22/3/01 1:33 pm Page 12

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
To make an external call
Ensure the handset is
switched ON.
Press the GREEN PHONE
button. You will hear the dial
tone.
Dial the number. The phone
calls the number and the
display shows the number you
have dialled.
Press and hold the
#
button
until the display shows:
The keypad is now locked and
you cannot dial out. Incoming
calls can be answered as
normal by pressing the
GREEN PHONE button.
Press and hold the
#
button
until the display returns to
standby. The keypad is now
unlocked.
13
Using your Diverse 3010
Classic
On and Off modes
To switch the handset on
and off
You can normally leave your
handset on 24 hours a day.
However, if you need to switch
it off:
Press and hold the RED
PHONE button down for about
1 second. You hear a long beep
and the screen goes blank.
To switch it back on, press and
hold down the RED PHONE
again. You hear a long beep and
the display returns to standby.
#
#
To switch the keypad lock on
and off
You can lock the keypad so
that it cannot be used
accidentally while carrying it
around.
Making and receiving calls
KEYPAD
Note
The handset is already set to ON.
USING
Diverse 3010 User Guide 22/3/01 1:33 pm Page 13

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
To end a call
Press the RED PHONE button.
To receive an external call
When the phone rings the
display flashes EXT .
Press the GREEN PHONE
button on the handset and
speak.
Or
If the handset is on the base
station or charging station,
simply lift it up and speak. You
do not need to press the
GREEN PHONE button.
Alternatively, you can enter
the phone number you want
first, check that it is correct,
and then press the GREEN
PHONE button to dial.
Note
If another handset is already being
used to make an external call, your
handset will display ‘–––’ flashing and
you will hear the internal ‘busy’signal.
Note
The default setting is for an immediate
connection to callers when lifting the
handset from its base station or
charger. This is called Auto Talk. It
can be deactivated so that you always
have to press the GREEN PHONE
button to answer a call. See page 36.
Caller Display/Call Waiting
The Diverse 3010 Classic can let you
know who’s calling before you answer
the telephone.
With BT’s Caller Display and Call
Waiting services, your Diverse base
station receives caller information which
is transmitted over the BT network, for
more information see page 22.
14
USING
Diverse 3010 User Guide 22/3/01 1:33 pm Page 14

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
15
To redial the last external
number
Press the button. Display
shows the last number dialled.
Press the GREEN PHONE
button. The number is dialled.
Press the RED PHONE button
to end the call.
To redial any of the last 5
external numbers
Press the button. Display
shows the last number dialled.
Press the MEMORY or SET
buttons under to scroll
through the last 5 numbers.
Press the GREEN PHONE
button. The number displayed
is dialled.
Press the RED PHONE button
to end the call.
To delete the redial memory
All five numbers will be
deleted.
Press the SET button.
Press the 1button.
Press the 8button.
Press the OK ( ) button.
Enter the handset PIN
(original setting
0000 .
To change it see page 26).
Press the OK ( ) button.
Press the 2button.
Press the OK ( ) button to
confirm.
Press the RED PHONE button
to return to standby.
Call timer
Your Diverse 3010 Classic automatically
times the duration of all outgoing
external calls. The handset display
shows the call duration both during
your call and for a few seconds after it
is completed.
1
8
TUV
2
ABC
KEYPAD
USING
Diverse 3010 User Guide 22/3/01 1:33 pm Page 15

Diverse 3010 ~ 4th Edition ~ 28th February ~ 3722
16
Making and transferring
calls between handsets
If you have multiple handsets
registered with the base, the Diverse
3010 Classic enables two handsets to
talk to each other on an internal
‘intercom’call, while a third handset
can be on an external call.
To page a handset from the
base station
To locate handsets that are
away from the base station.
Press the PAGE button on
the base.
All handsets registered with
the base will ring for 30
seconds.
To stop paging press the
PAGE button again.
Or
Press the GREEN PHONE
button on the handset.
If you have additional handsets,
you can make internal intercom
calls between the handsets.
Secrecy
You can switch off the handset
microphone so that your caller
cannot hear you while you talk
to someone else in the room.
When ready, you can switch
the microphone back on.
During a call:
Press the INT button to switch
the microphone off. Your
caller will hear a melody.
Display shows EXT (flashing)
and INT .
Press the RECALL button to
speak to your caller again.
INT
R
To make an internal intercom
call to another handset
Press the INT button. Display
shows your handset number.
Enter the number of the
handset you want to call e.g. 2.
The handset will ring.
To end the call, press the RED
PHONE button, or replace the
handset on the base.
INT
2
ABC
Note
You may turn the music on hold off.
Please see page 34.
USING
Diverse 3010 User Guide 22/3/01 1:33 pm Page 16
